Black Box LBT01A-KIT User manual

BL A C K B O X®
Transmits up to 100-/60-Mbps downstream/
upstream data up to 984.2 feet (300 meters)
over a single twisted pair of copper wire.
Supports 30-/10-Mbps at distances up to 3280 feet (1 km).
10/100BASE-T Ethernet Extender over VDSL2
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
PA 15055-1018 • Web site: www.blackbox.com • E-mail: [e-mail]
Customer
Support
Information
LBT01A-KIT

Page 2 724-746-5500 | blackbox.com
FCC and IC RFI Statements/ NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation
of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

Page 3
724-746-5500 | blackbox.com
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.

Page 4 724-746-5500 | blackbox.com
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5
724-746-5500 | blackbox.com
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com
Table of Contents
Chapter Page
1. Specifications............................................................................................ 7
1.1 General ............................................................................................ 7
1.2 Data Rates and Distances................................................................. 7
2. Overview .................................................................................................. 8
2.1 Introduction ..................................................................................... 8
2.2 Features............................................................................................ 8
2.3 What’s Included ............................................................................... 9
2.4 Hardware Description....................................................................... 9
2.5 Typical Application ..........................................................................11
3. DIP Switch Settings..................................................................................12
4. LED Indicators..........................................................................................13

Page 7
724-746-5500 | blackbox.com
Chapter 1: Specifications
1. Specifications
1.1 General
Autodetection — Autodetects 10/100BASE-T and half-/full-duplex, automatic
MDI/MDI-X
Coding — Trellis code with 1024 DMT bins
Standards — VDSL Transmission: ITU-T G.993.1/2 SG15Q4 DT standard;
LAN Interface: IEEE 802.3/IEEE 802.3u
Connectors — VDSL: (1) RJ-11 for DSL or 3-pin terminal block;
POTS: (1) RJ-11;
LAN Interface: (1) RJ-45
Indicators — (4) LEDs: (1) Power, (1) DSL for VDSL Loop Connection Status,
(1) LAN, (1) Master/Slave (M/S)
Temperature Tolerance — 32 to 122° F (0 to 50° C)
Humidity Tolerance — 5 to 95%, noncondensing
Power — 5 VDC, 1 A
Size — 4.7"H x 3.5"W x 1.1"D (12 x 9 x 2.8 cm)
1.2 Data Rates and Distances
Table 1-1. Full-rate 26 AWG line performance at 6 dB.
Downstream Data Rate
(Mbps)
Upstream Data Rate
(Mbps) Distance (feet)
100 60 500
98 53 1000
90 44 1250
80 36 1500
70 27 1750
60 18 2000
48 11 2500
39 83000
35 3.5 3500
28 0.3 4000

Page 8 724-746-5500 | blackbox.com
Chapter 2: Overview
2. Overview
2.1 Introduction
The 10/100BASE-T Ethernet Extender over VDSL2 (very high-bit-rate digital
subscriber line) provides a broadband transmission up to 100-/60-Mbps
downstream/upstream data rates over a single twisted-pair copper line for
point-to-point Ethernet. At 100-/60-Mbps data rates, the extender supports
transmission distances up to 984.2 feet (300 meters), and provides a
30-/10-Mbps data rate for a 3280 feet (1 km) connection. Users may also select
a fixed data rate or a fixed SNR margin for different copper line ranging.
With plug-and-play features and minimum installation time, you can configure
each extender for either CO for central side or RT for remote side by setting DIP
switches. The extender conforms to ITU-T G.993.1 and G.993.2 to meet VDSL/
VDSL2 and SG15Q4 DMT standards for network requirements. Use a pair of
extenders for bandwidth-hungry applications such as LAN-to-LAN connectivity,
video streaming, FTTB, and MDU/MTU over a single twisted-pair telephone line.
2.2 Features
• Complies with ITU-T G.993.1, G.993.2 VDSL/VDSL2 and SG15Q4 DMT
standards.
• Enables 100-/60-Mbps downstream/upstream speeds for distances up to
984.2 feet (300 meters).
• Supports VDSL2 connections up to 6561.6 feet (2000 meters).
• Supports Annex A, B, or C for internal splitter (option).
• Protects against line surges.
• Has (1) RJ-11 connector or (1) three-pin terminal block for DSL link.
• Includes (1) RJ-11 connector for PHONE or POTS interface.
• Has (1) RJ-45 connector for Ethernet LAN port.
• Includes four LED Indicators.
• Provides (4) DIP switches for configuration settings.
• Supports Trellis coding up to 1024 Discrete Multi-Tone (DMT) bins.
• Uses Auto MDI-X for the 10/100BASE-T Ethernet LAN port.
• Has low-latency for video/voice/data applications.

Page 9
724-746-5500 | blackbox.com
Chapter 2: Overview
• You can select Fast and Interleaved modes: Fast mode guarantees a minimum
end-to-end latency less than 1 ms. Interleaved mode provides impulse noise
protection for any impulse noise with a duration less than 250 us. Interleaved
mode has a maximum end-to-end latency of 10 ms. Interleaved mode is the
default mode.
• You can also select fixed data rate and fixed SNR margin: Choose fixed SNR
margin (9 dB) or fixed target data rate. When fixed SNR margin is selected, the
systems will maintain the SNR margin at 9 dB across all available loop length.
When fixed target data rate is selected, the system will lock the data rate at
50-/20-Mbps whenever the calculated SNR margin is higher than 9 dB. This will
result in the best system stability and is the default mode.
2.3 What’s Included
Your package should contain the following items. If anything is missing or
damaged, contact Black Box Technical Support at 724-746-5500 or
[e-mail].
• (2) 10/100BASE-T Ethernet Extenders over VDSL2
• (2) AC-to-DC Power Adapters (5-VDC/1-A) with (1) EU power clip
• (1) CD-ROM containing this user manual in PDF format
• (2) 3-position terminal blocks
• (8) rubber feet
• (8) screws
• (2) RJ-11 cables
2.4 Hardware Description
Figures 2-1 and 2-2 show the extender’s front and back panels. Table 2-1
describes its components.
1 2 3 4 5

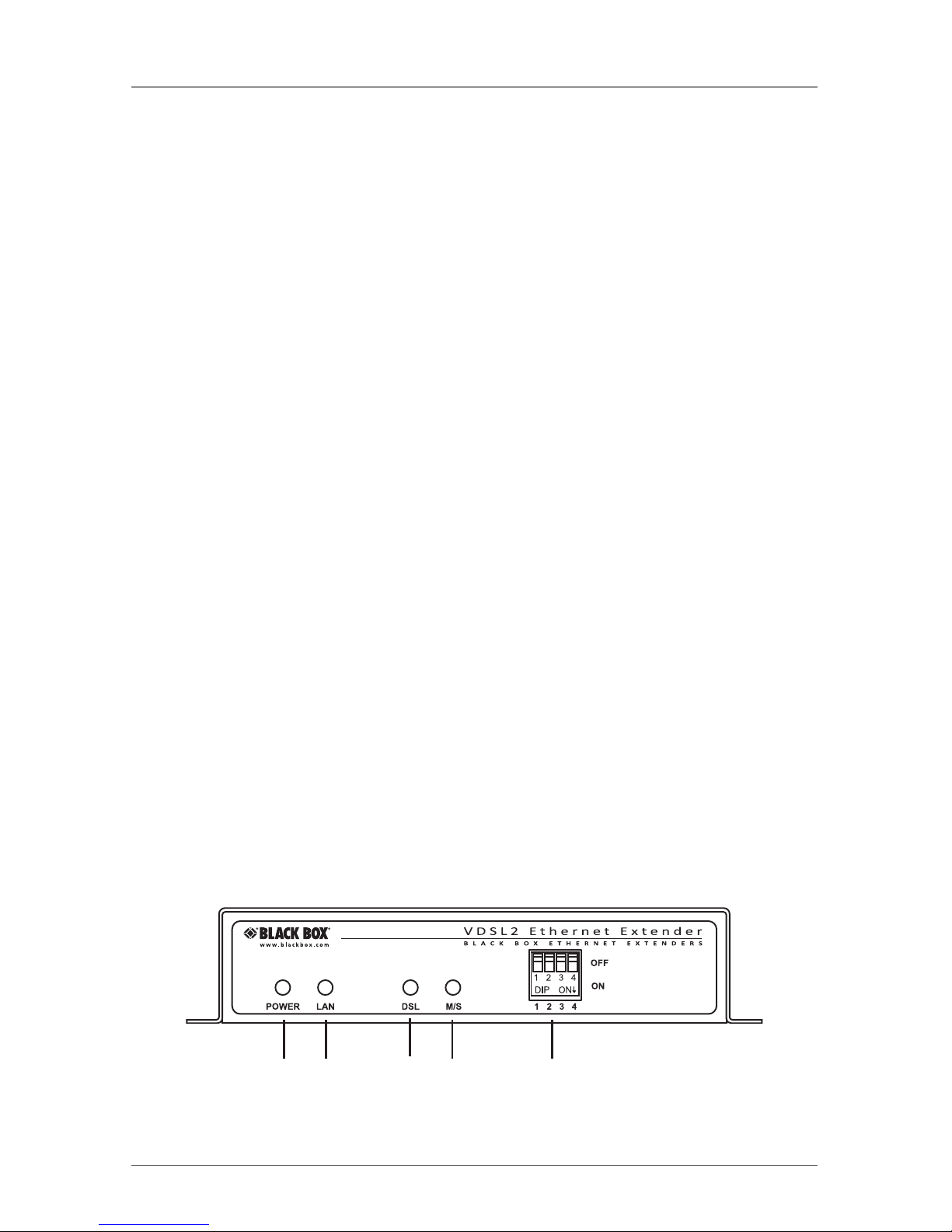

Figure 2-1. Front panel.

Page 10 724-746-5500 | blackbox.com
Chapter 2: Overview
6 7 8 9 10

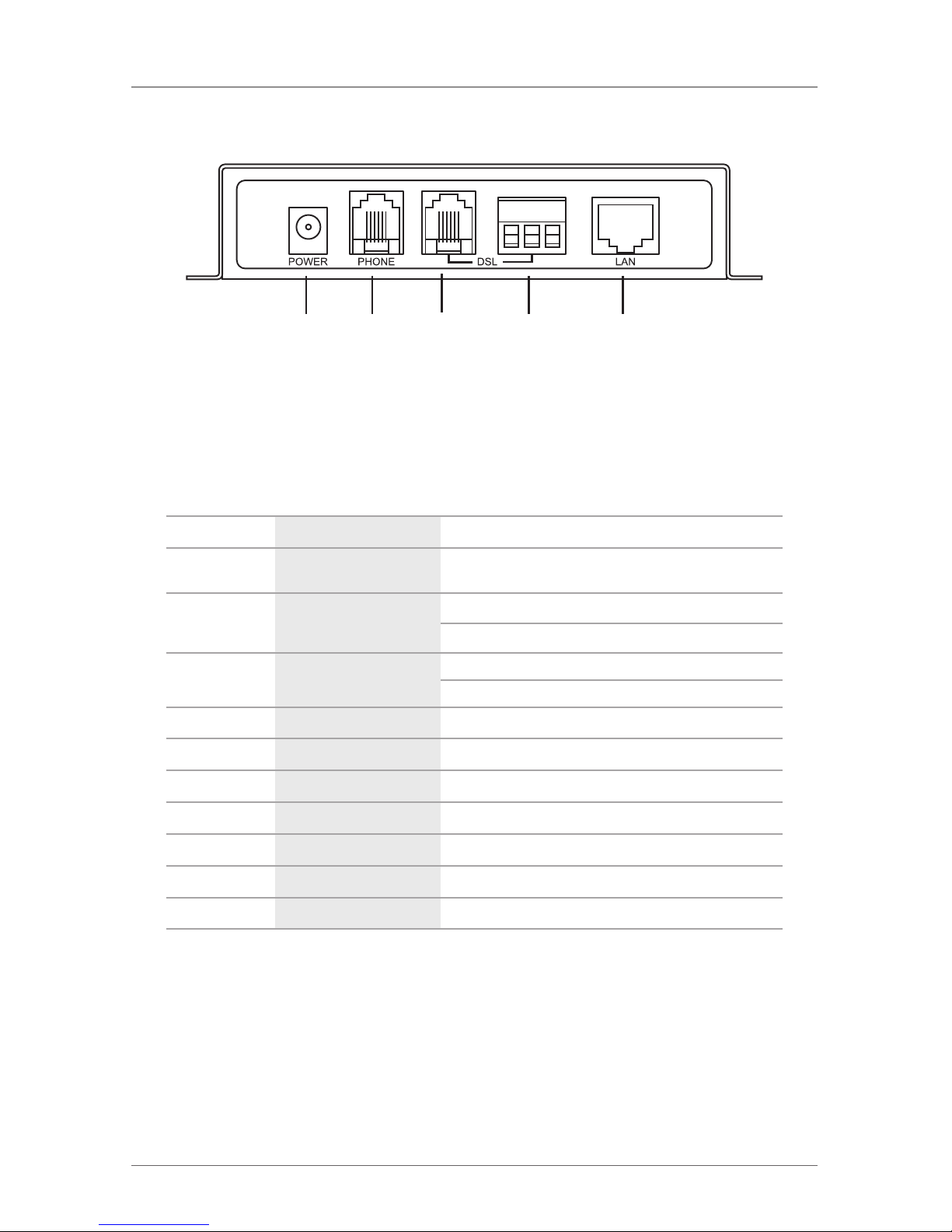

Figure 2-2. Back panel.
Table 2-1. 10/100BASE-T Ethernet Extender components.
Number Component Description
1Power LED Lights green when power is on
2LAN LED
Lights green when LAN is connected
Flashing green when LAN is active
3DSL LED Lights green when VDSL is connected
Flashing green when VDSL is in line handshakking
4M/S LED Selects master or slave (OFF = Master; ON = Slave)
54-position DIP switch Used for configuration settings: See Table 3-1
6Barrel connector Links to power
7RJ-11 connector Links to telephone line
8RJ-11 connector Links to VDSL interface
93-pin terminal block Connects to ring/tip/frame ground
10 RJ-45 connector Connects to LAN interface

Page 11
724-746-5500 | blackbox.com
Chapter 2: Overview
2.5 Typical Application
Public switched
telephone network
Router
POTS line
Ethernet
POTS line
LAN
Internet
10-/60-Mbps
for 984.2 ft. (300 m)
Max. 6561 ft. (2 km)
for DSL line

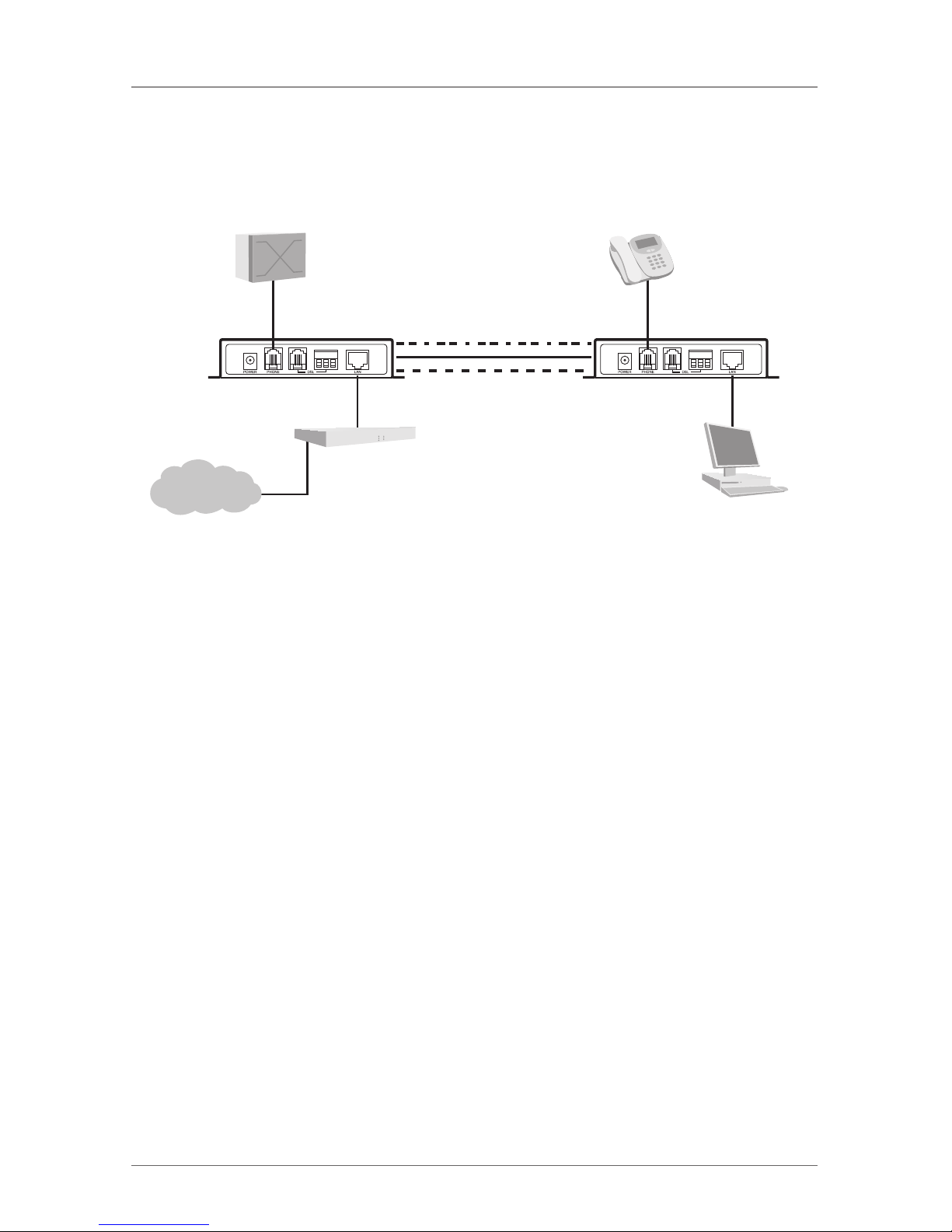

Figure 2-3. Ethernet to Ethernet Bridge Extension over DSL Line.

Page 12 724-746-5500 | blackbox.com
Chapter 3: DIP Switch Settings
3. DIP Switch Settings
Table 3-1 describes the DIP switches on the extender.
Table 3-1. DIP switches.
Pin Number:
Name
Postion:
OFF Description
Position:
ON Description
1: CO/CPE
switch CO Extender is configured as Central Office CPE Extender is configured as Customer Premise Equipment
2: Mode Interleaved
Protection for up to 250 ms
impulse noises with latency
less than 6 ms
Fast Direct data transmission with
latency less than 1 ms
3: Rate limit 50-/20-Mbps Line rate limited to 50-/
20-Mbps Full rate Provides up to 100-/60-Mbps line rate in a short time
4: Signal-to-
noise (SNR)
ratio
9 dB
Higher SNR margin (9 dB) will
result in less error with more
stable VDSL2 link
6 dB
Original and normal channel
noise protection with 6 dB
SNR

Page 13
724-746-5500 | blackbox.com
Chapter 4: LED Indicators
4. LED Indicators
The extender‘s front panel (see Figure 2-1) has four LED indicators, which are
described in Table 4-1.
Table 4-1. LED indicators.
LED Color Description
Power Green ON Power to the unit is on
LAN
Green ON Ethernet LAN port is connected
Flashing green Ethernet LAN data is active
DSL
Green ON VDSL2 is connected
Flashing green VDSL2 is in line handshaking
Master/Slave (M/S)
Green ON Extender is set in Slave mode
OFF Extender is set in Master mode

Page 14 724-746-5500 | blackbox.com
NOTES

Page 15
724-746-5500 | blackbox.com
NOTES

BL A C K B OX®
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
Great tech support is just 30 seconds away at
724-746-5500 or blackbox.com.
724-746-5500 | blackbox.com
LBT01A-KIT, version 2
About Black Box
Black Box provides an extensive range of networking and infrastructure products.
You’ll find everything from cabinets and racks and power and surge protection
products to media converters and Ethernet switches all supported by free, live 24/7
Tech support available in 30 seconds or less.
© Copyright 2012. Black Box Corporation. All rights reserved.
