VX1000 Series HDMI Extender - 4K, HDMI, CATx, USB
VX-1001-TX
VX-1001-RX
Extend 3840 x 2160 @ 60Hz video, power,
Ethernet, RS-232, and USB up to 328 feet
(100 meters) over a single CAT5e or higher cable.

877-877-2269 | blackbox.com
Page 2
FCC and IC RFI Statements/NOM Statement
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufac-
turer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC
rules, which are designed to provide reasonable protection against such
interference when the equipment is operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference,
in which case the user at his own expense will be required to take whatever
measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emis-
sion from digital apparatus set out in the Radio Interference Regulation
of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de classe A prescrites
dans le Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas
antes de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas
para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones
de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.

877-877-2269 | blackbox.com Page 3
NOM Statement
5. El aparato eléctrico no deberá ser usado cerca del agua — por ejemplo,
cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio— El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.

877-877-2269 | blackbox.com
Page 4
NOM Statement
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

877-877-2269 | blackbox.com Page 5
Trademarks Used in this Manual
TRADEMARKS USED IN THIS MANUAL
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Blu-ray™is a trademark of Blu-ray Disc Association.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.
Important Safety Instructions
1. Do not expose this apparatus to rain, moisture, dripping or splashing water
and do not place objects filled with liquids, such as vases, on the apparatus.
2. Do not install or place this unit in a bookcase, built-in cabinet or in another
confined space. Make sure the unit is well ventilated.
3. To prevent risk of electric shock or fire hazard caused by overheating, do not
obstruct the unit’s ventilation openings with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
5. Do not place sources of flames, such as lighted candles, on the unit.
6. Clean this apparatus only with a dry cloth.
7. Unplug this apparatus during lightning storms or when unused for long
periods of time.
8. Protect the power cord from being walked on or pinched particularly at
plugs.
9. Only use attachments/accessories specified by the manufacturer.
10. Refer all servicing to qualified service personnel.
Disclaimer
Black Box Network Services shall not be liable for damages of any kind, includ-
ing, but not limited to, punitive, consequential or cost of cover damages, result-
ing from any errors in the product information or specifications set forth in this
document and Black Box Network Services may revise this document at any
time without notice.

877-877-2269 | blackbox.com
Page 6
Table of Contents
Table of Contents
1. Specifications........................................................................................ 7
2. Overview .............................................................................................11
2.1 Introduction ..............................................................................11
2.2 Features.....................................................................................11
2.3 What's Included ....................................................................... 12
2.4 Hardware Description.............................................................. 12
2.4.1 Transmitter..................................................................... 12
2.4.2 Receiver ......................................................................... 14
3. Initial Installation ................................................................................ 16

877-877-2269 | blackbox.com Page 7
Chapter 1: Specifications
1. Specifications
Transmitter (VX-1001-TX)
Video
Input Connector (1) HDMI In
Input Signal Type HDMI: HDMI 1.4 w/HDCP 2.2 passthrough
Input/Output
Resolution
Support
Maximum 3840 x 2160 (UHD)
Input Video Level 0.5-1.0 Vp-p
Maximum Pixel
Clock
297 MHz
Output
Connector
(1) RJ-45
Input Signal Type CATx
Video Impedance 100 ohms
Audio
Audio Format
Support
Stereo, LPCM 5.1 LPCM 7.1, Dolby True HD, DTS-HD
Master Audio
Control
Control Method (1) RS-232, (1) Ethernet, (1) USB Type B female

877-877-2269 | blackbox.com
Page 8
Chapter 1: Specifications
Receiver (VX-1001-RX)
Video
Input Connector (1) RJ-45
Input Signal Type CATx
Input/Output
Resolution
Support
Maximum 3840 x 2160 (UHD)
Input Video Level 0.5-1.0 Vp-p
Maximum Pixel
Clock
297 MHz
Output
Connector
(1) HDMI Out
Output Signal
Type
HDMI: HDMI 1.4 w/HDCP 2.2 passthrough
Video Impedance 100 ohms
Audio
Audio Format
Support
Stereo, LPCM 5.1 LPCM 7.1, Dolby True HD, DTS-HD
Master Audio
Control
Control Method (1) RS-232, (1) Ethernet, (1) USB Type B female

877-877-2269 | blackbox.com Page 9
Chapter 1: Specifications
General (VX-1001-TX and VX-1001-RX)
Environment
Operating
Temperature
32 to 113° F (0 to 45° C)
Storage
Temperature
-4 to +158° F (-20 to +70° C)
Humidity 10 to 90%, noncondensing
ESD Protection Human-body model
±8 kV (air-gap discharge)/4 kV (contact discharge)
Power
Power Supply 12 VDC, 1.5 A with US, EU, UK, and AU power clips
Power
Consumption
(Maximum)
1080p @ 60 Hz: 13.08 W (pair)
3840 x 2160 @ 60 Hz: 13.2 W (pair)
Mechanical
Dimensions Each unit: 0.98"H x 8.66"W x 3.67"D (2.5 x 22 x 9.3 cm)
Weight Each unit: 1.1 lb. (0.5 kg)

877-877-2269 | blackbox.com
Page 10
Chapter 1: Specifications
Cable Specifications
Cable Type Range Supported Video
CAT5e/6 328 ft. (100 m) 1080p @ 60 Hz, 36-bit
230 ft. (70 m) 1080p @ 60 Hz, 4-bit;
1080p @ 60 Hz, 3D;
840 x 2160 @ 60 Hz, 4:2:0 bit
CAT6a/7 328 ft. (100 m) 1080p @ 60 Hz, 48-bit;
1080p @ 60 Hz, 3D;
3840 x 2160 @ 60 Hz, 4:2:0 bit

877-877-2269 | blackbox.com Page 11
Chapter 2: Overview
2. Overview
2.1 Introduction
The VX-1001-TX and VX-1001-RX are a pair of HDMI extenders with USB-HID*
and PoC (Power over CATx).
*Keyboard and mouse only.
• VX1000 Series Extender Transmitter - 4K, HDMI, CATx, USB (VX-1001-TX)
• VX1000 Series Extender Receiver - 4K, HDMI, CATx, USB (VX-1001-RX)
The extender pair distributes 3840 x 2160 @ 60Hz Chroma sub-sampling 4:2:0
(8-bit only) video, power, Ethernet, RS-232, and USB up to 328 feet (100
meters) over a single CATx cable.
USB-HID passthrough enables users to control or monitor a remote server form
a harsh environment or to operate a physically inaccessible PC, server, or work-
station remotely.
With 48-V PoH integrated inside, the extender pair needs just one power supply
connected to the RX unit to power both units. A screw-on connector secures
the 12-V power supply to the transmitter to prevent the power from accidentally
being disconnected. LEDs indicate power supply to units and signal status to
show an established connection between connected devices.
2.2 Features
• Via CAT6a/7 cables, the extenders support 3840 x 2160 @ 60 Hz 4:2:0 8-bit
or 1080p @ 60 Hz up to 328 feet (100 meters).
• Via CAT5e or higher cables, the extenders support 3840 x 2160 @ 60 Hz,
4:2:0, 8-bit output up to 224 feet (70 meters), and 1080p @ 60 Hz up to 328
feet (100 meters).
• Offers a single CATx cable solution that transmits HD Audio/Video, RS-232,
Ethernet, and electrical power.
• Complies with HDMI 1.4 with 4K @ 60 Hz chroma subsampling 4:2:0, 8-bit
only, and HDCP 2.2.
• Supports USB-KVM control.
• Supports Power over CATx (PoC).
• Provides RS-232 passthrough.
• Manages EDID automatically.
• Cable termination follows IEEE-568B standards.

877-877-2269 | blackbox.com
Page 12
Chapter 2: Overview
2.3 What's Included
Your package should include the following items. If anything is missing
or damaged, contact Black Box Technical Support at 877-877-2269
or [e-mail].
VX-1001-TX:
• VX1000 Series Extender Transmitter - 4K, HDMI, CATx, USB (VX-1001-TX)
• (1) 3.5-mm 3-pin Phoenix male connector
• (2) mounting brackets
• This user manual
VX-1001-RX:
• VX1000 Series Extender Receiver - 4K, HDMI, CATx, USB (VX-1001-RX)
• (1) 12-VDC, 1.5-A power supply with US, EU, UK, and AU power clips
• (1) 3.5-mm 3-pin Phoenix male connector
• (2) mounting brackets
• This user manual
2.4 Hardware Description
2.4.1 Transmitter

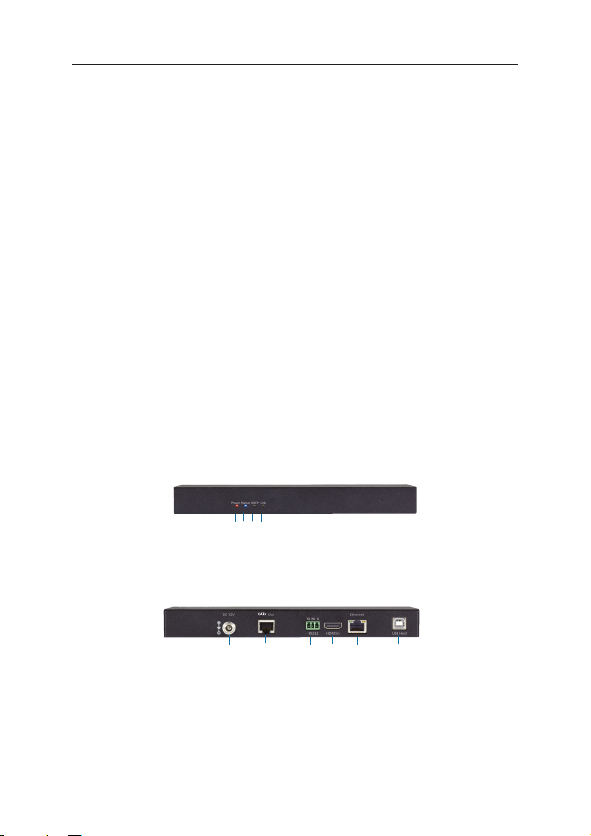

Figures 2-1 and 2-2 illustrate the front and back panels of the transmitter.
Table 2-1 describes its components.
1 2 3 4
Figure 2-1. Transmitter front panel.
5 6 7 8 9 10
Figure 2-2. Transmitter back panel.

877-877-2269 | blackbox.com Page 13
Chapter 2: Overview
Table 2-1. Transmitter components.
Number Component Description
1Power LED ON: The transmitter is powered on.
OFF: The transmitter is powered off.
2Status LED Blinking: The transmitter is working properly.
OFF: The transmitter is not working properly.
3HDCP LED ON: HDCP video is being transmitted.
Flashing quickly: Non-HDCP video is being
transmitted.
4Link LED ON: CATx link is normal.
OFF: No CATx link.
5(1) Barrel
connector
Links to 12-VDC power input.
6CATx Out Connects to CATx IN port of CATx
receiver.
7RS-232 port Provides RS-232 passthrough.
8HDMI IN port Connects to an HDMI source.
9(1) RJ-45
port
and (2) LEDs
RJ-45 port connects to an Ethernet device.
Speed LED (Amber)
Link/Activity LED (Green)
10 USB Type B Connects to a device you wish to control,
such as a server or computer.

877-877-2269 | blackbox.com
Page 14
Chapter 2: Overview
2.4.2 Receiver

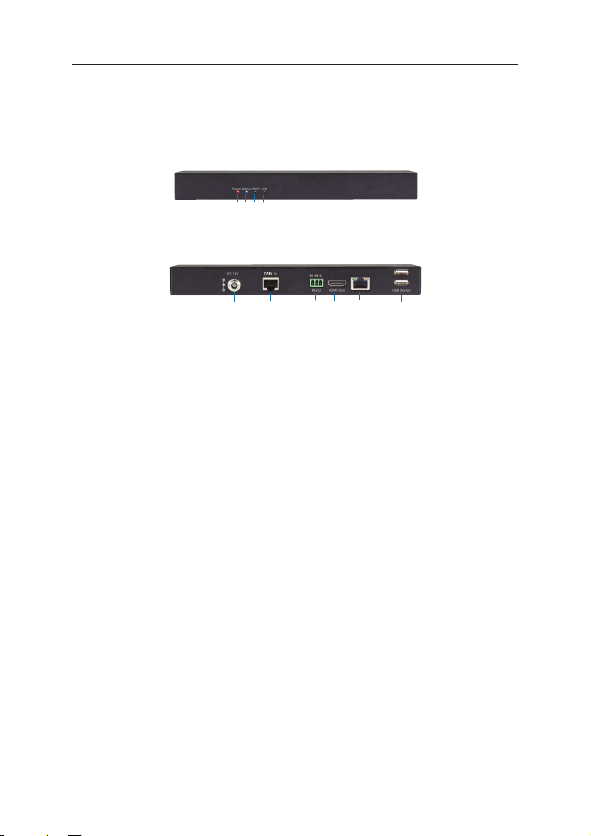

Figures 2-3 and 2-4 show the front and back panels of the receiver. Table 2-2
describes its components.
1 2 3 4
Figure 2-3. Receiver front panel.
5 6 7 8 9 10
Figure 2-4. Receiver back panel.

877-877-2269 | blackbox.com Page 15
Chapter 2: Overview
Table 2-2. Receiver components.
Number Component Description
1Power LED ON: The receiver is powered on.
OFF: The receiver is powered off.
2Status LED Blinking: The receiver is working properly.
OFF: The receiver is not working properly.
3HDCP LED ON: HDCP video is being transmitted.
Flashing quickly: Non-HDCP video is being
transmitted.
4Link LED ON: CATx link is normal.
OFF: No CATx link.
5(1) Barrel
connector
Links to 12-VDC power input (optional).
6CATx IN Connects to CATx OUT port of CATx
transmitter.
7RS-232 port Provides RS-232 passthrough.
8HDMI OUT
port
Connects to an HDMI display device.
9(1) RJ-45
port and
(2) LEDs
RJ-45 port connects to an Ethernet device.
Speed LED (Amber)
Link/Activity LED (Green)
10 (2) USB Type
A connectors
Connects to a USB keyboard or mouse.

877-877-2269 | blackbox.com
Page 16
Chapter 3: Initial Installation
3. Initial Installation
1. Using quality HDMI cables, connect an HDMI source (Blu-ray™ disk or PC) to
the HDMI IN connector on the VX-1001-TX Transmitter.
NOTE: Make sure that the source and display are 4K compatible if you are
attempting to transmit an Ultra HD signal—check that all devices are
correctly configured for input/output compatibility.
2. Connect a good quality, well-terminated CAT5e or higher cable between the
CATx OUT of the VX-1001-TX Transmitter to the CATx IN of the VX-1001-RX
Receiver.
NOTE: The maximum transmission distances for the extenders are 230 feet
(70 meters) @ 4K or 328 feet (100 meters) @1080p. This value applies
to perfect transmission conditions—including straight cable runs
with no electrical interference, bends, kinks, patch panels, or wall outlets.
If any of the above is a factor in your installation, transmission range may be
affected—avoid this where possible.
3. Connect the HDMI display device (LED/LCD display or projector) to the HDMI
OUT of the VX-1001-RX Receiver.
NOTE: We strongly recommend using the supplied mounting brackets to secure
the receiver to a flat surface behind/near the display device.
Sudden movement of these devices could lead to loss of picture/sound
if connections loosen or strain, resulting in unnecessary service call-backs.
4. Connect the included 12-VDC power supply to the VX-1001-TX Receiver and
power it on. The PoH function carries power along the length of the cable
one way to power the Transmitter. No additional power supply is required at
the display end of the cable run.
Power, Status, and HDCP, and Link LEDs illuminated on both units indicates a
successful connection. An HDCP light illustrates the presence of encryption
within the signal. The Power and Link LEDs are static lights. The Status LED
should be blinking.

877-877-2269 | blackbox.com Page 17
NOTES

877-877-2269 | blackbox.com
Page 18
NOTES

877-877-2269 | blackbox.com Page 19
NOTES

Chapter
877-877-2269 | blackbox.com
Great tech support is just 60 seconds away
at 877-877-2269 or blackbox.com.
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
vx-1001-tx_rx_user_rev3
About Black Box
Black Box provides an extensive range of networking and infrastructure
products. You’ll find everything from cabinets and racks and power and surge
protection products to media converters and Ethernet switches all supported by
free, live 24/7 Tech support available in 60 seconds or less.
© Copyright 2021. Black Box Corporation. All rights reserved. Black Box®and the Double Diamond
logo are registered trademarks of BB Technologies, Inc. Any third-party trademarks appearing in
this manual are acknowledged to be the property of their respective owners.
