Black Box LGC200A User manual

BL A C K B O X®
Link a 1000BASE-TX segment to a 1000BASE-FX
segment on your network, and extend the 328-foot
(100-m) distance limit of copper-based Ethernet.
Pure Networking™Gigabit Media Converters
LGC200A
LGC201A
LGC202A
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) • FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax [phone] • Mailing address:
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
Page 2
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks, and Pure
Networking is a trademark, of BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

724-746-5500 | blackbox.com Page 3
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
Class B Digital Device. This equipment has been tested and found to comply with
the limits for a Class B computing device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interfer-
ence in a residential installation. However, there is no guarantee that interference
will not occur in a particular installation. This equipment generates, uses, and can
radiate radio frequency energy, and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. If this
equipment does cause harmful interference to radio or telephone reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult an experienced radio/TV technician for help.
Caution:
Changes or modifications not expressly approved by the party responsible for com-
pliance could void the user’s authority to operate the equipment.
To meet FCC requirements, shielded cables and power cords are required to con-
nect this device to a personal computer or other Class B certified device.
This digital apparatus does not exceed the Class B limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de classe B prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.

724-746-5500 | blackbox.com
Page 4
NOM Statement
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.

724-746-5500 | blackbox.com Page 5
NOM Statement
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com
Page 6
Table of Contents
Table of Contents
1. Specifications.............................................................................................. 7
2. Overview .................................................................................................... 8
2.1 Introduction.................................................................................... 8
2.2 Features .......................................................................................... 8
2.3 What’s Included.............................................................................. 9
2.4 Connectors and Network Cables Supported ................................. 9
2.5 Hardware Description................................................................... 10
2.5.1 LGC201A ............................................................................ 10
2.5.2 LGC202A............................................................................ 12
2.5.3 LGC200A............................................................................ 14
3. Configuration ........................................................................................... 16
4. Installation ................................................................................................ 18
4.1 Typical Installation......................................................................... 18

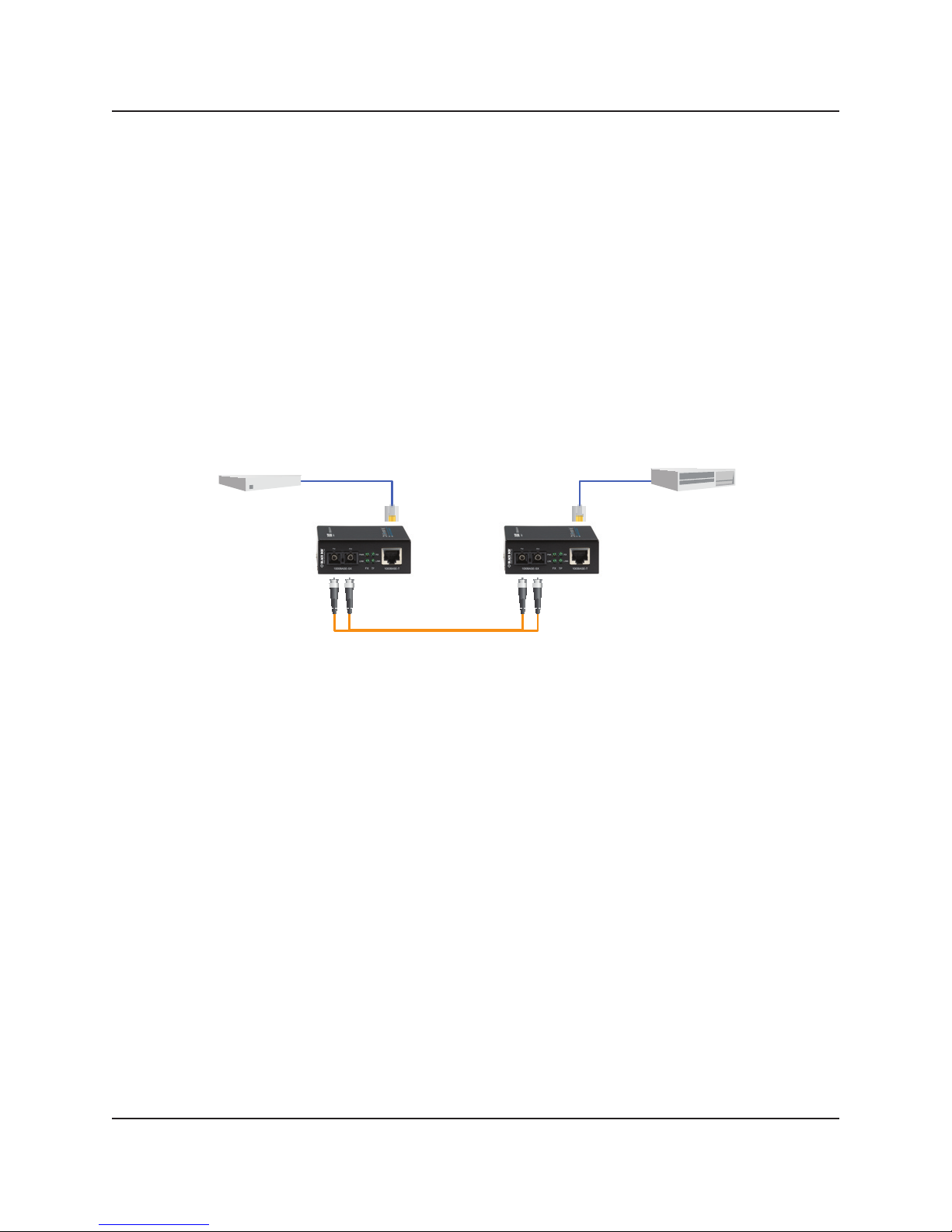

4.1.1 LGC201A and LGC202A ..................................................... 18

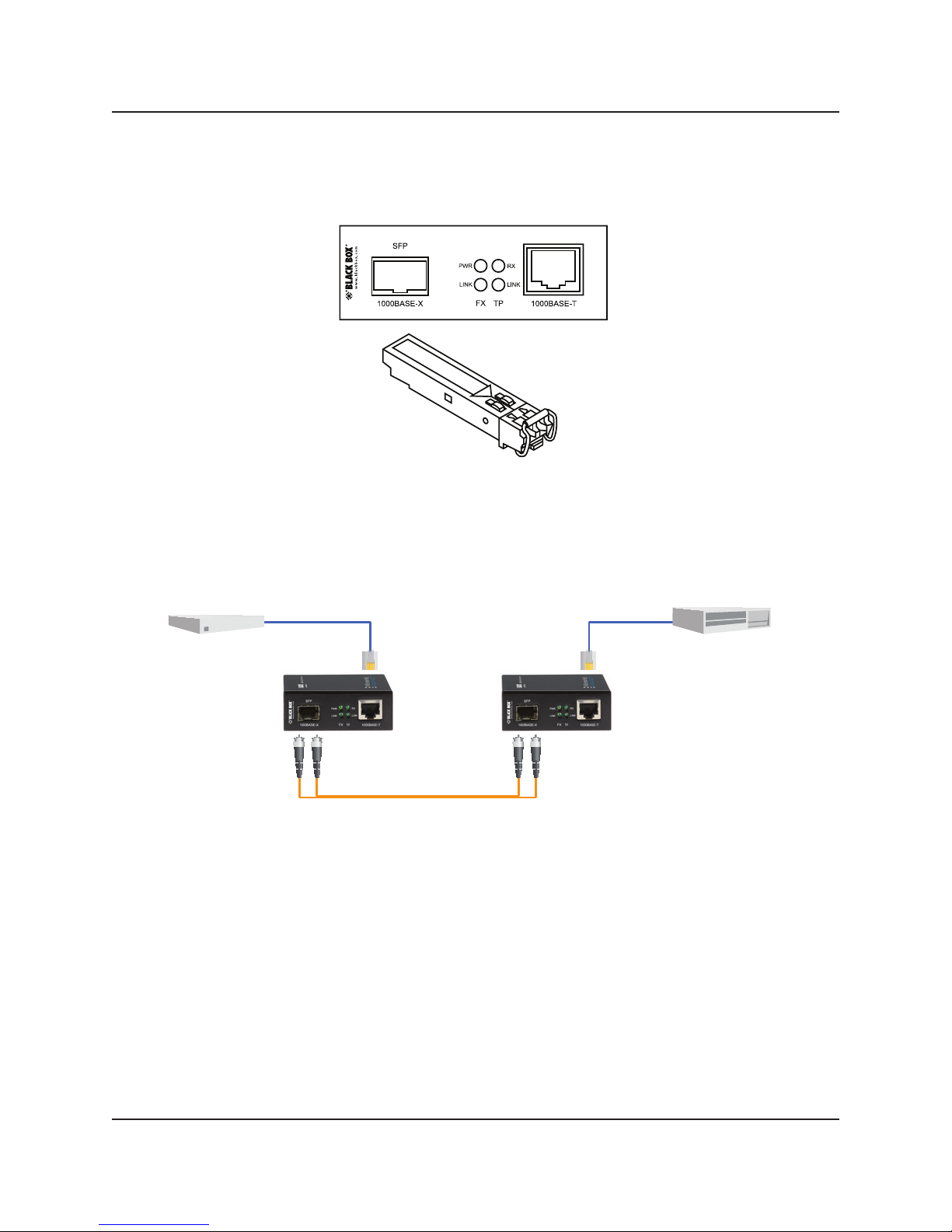

4.1.2 LGC200A ............................................................................ 19

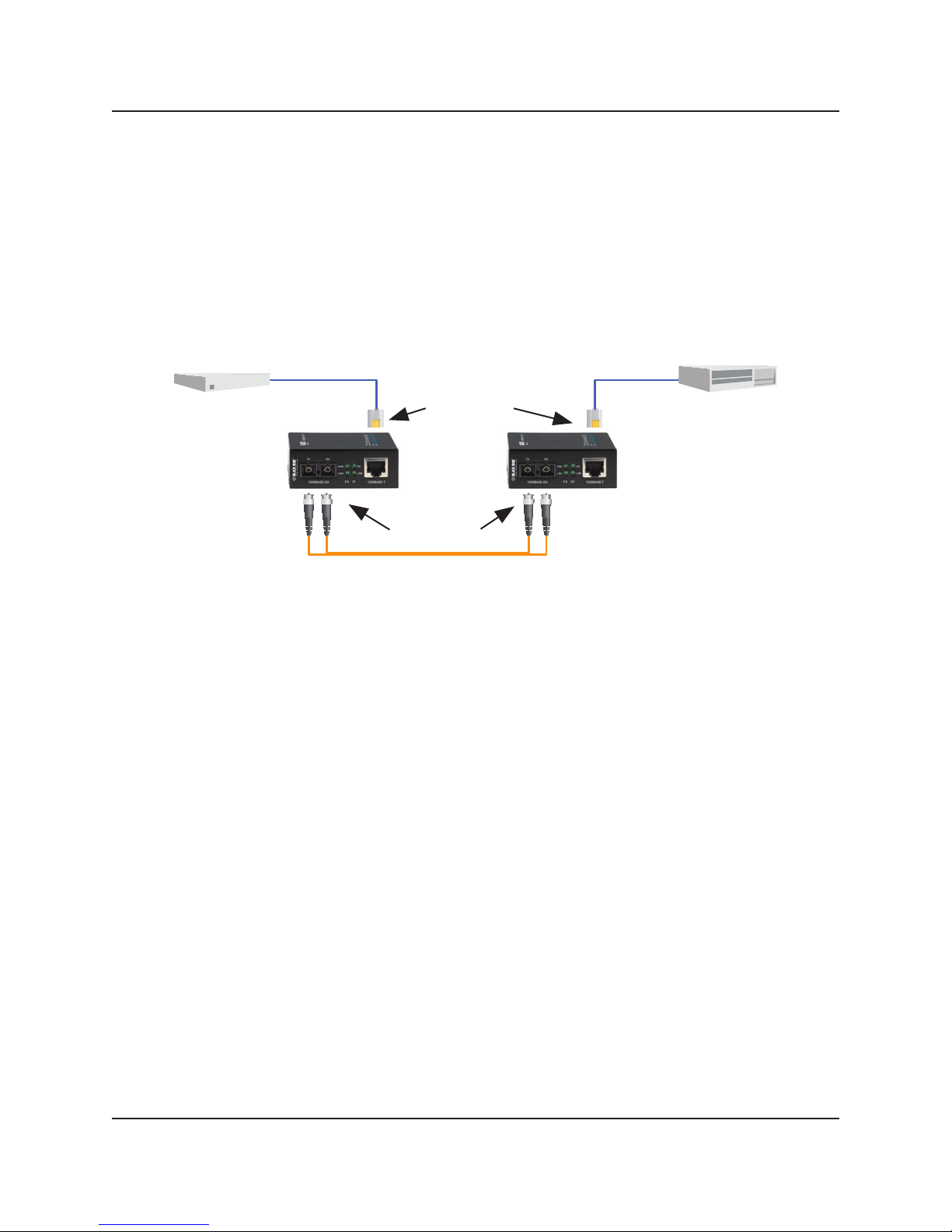

4.2 Installation Procedure ................................................................... 20
5. Operation ................................................................................................. 23
5.1 LEDs on the Media Converter ......................................................23
5.2 Force/Auto Switch ........................................................................ 25
6. Troubleshooting........................................................................................ 26
6.1 Contacting Black Box.................................................................... 26
6.2 Shipping and Packaging ............................................................... 26

724-746-5500 | blackbox.com Page 7
Chapter 1: Specifications
1. Specifications
Maximum Distance — LGC201A: Multimode fiber optic: 0.55 km,
LGC202A: Single-mode fiber optic: 15 km
Standards — IEEE 802.3ab,802.3z
Connectors — LGC201A: (1) dual SC, (1) RJ-45;
LGC202A: (1) dual SC, (1) RJ-45;
LGC200A: Depends on installed SFP module
Temperature Tolerance — Operating: +32 to +104° F (0 to +40° C);
Storage: -40 to +158° F (-40 to +70° C)
Humidity — Operating: 10 to 90% relative humidity, noncondensing;
Storage: 5 to 90% relative humidity, noncondensing'
Power — External: 100–240 VAC, 50–60 Hz, 0.3 A;
Output: 9 VDC, 0.6 A, 5.4 W maximum
Size — 1.1"H x 3.7"W x 2.9"D (2.7 x 9.4 x 7.4 cm)
Weight — 1.1 lb. (0.5 kg)

724-746-5500 | blackbox.com
Page 8
Chapter 2: Overview
2. Overview
2.1 Introduction
The Pure Networking LGC200A, LGC201A and LGC202A are Gigabit Media
Converters. The SFP port of the LGC200A supports hot-swappable, Gigabit SFP
modules. The LGC201A has a dual SC multimode fiber connector, and the LGC202A
has a dual SC single-mode fiber connector.
Use the media converters to join a 1000BASE-TX segment to a 1000BASE-SX or
1000BASE-LX segment on your network, or use them in pairs to extend the
328-feet (100-m) distance limitation of copper-based Ethernet.
Three converter models are available:
• LGC200A: This SFP module media converter transmits/receives data based on the
SFP module that is installed.
• LGC201A: This fiber SC media converter transmits/receives data by 850-nm
short-wave laser over multimode fiber.
• LGC202A: This fiber SC media converter transmits/receives data by 1310-nm
short-wave laser over single-mode fiber.
2.2 Features
• Complies with 802.3ab and 802.3z standards.
• Provides (1) SC/LC connector or (1) SFP module slot and (1) RJ-45 connector.
• Both TX and FX ports work at 1000 Mbps in full-duplex mode.
• Supports Auto MDI/MDI-X for the TX port.
• Extends fiber distance up to 0.55 kilometers for multimode fiber and 15 kilometers
for single-mode fiber.
• Easy-to-view LED indicators provide status to easily monitor network activity.
• Uses a 9-VDC, 600 mA external power supply (included).

724-746-5500 | blackbox.com Page 9
Chapter 2: Overview
2.3 What’s Included
Your package should contain the following items. If anything is missing or damaged,
contact Black Box Technical Support at 724-746-5500 or [e-mail].
• (1) Pure Networking Gigabit Media Converter
• (1) 9-VDC, 600 mA power adapter
• This user’s manual
2.4 Connectors and Network Cables Supported
The connectors and network cables supported by the converter are listed as follows.
• Connectors: RJ-45, SC, LC.
• Network Cables: CAT5 twisted-pair (TP), 850-nm, 62.5/125-µm or 50/125-µm
multimode fiber; or 1310-nm 9/125-µm single-mode fiber.
Table 2-1. Connectors and network cable supported.
Part
Number Interface
Transmission
Distance
Transmission
Media
Output
Center
Wavelength
LGC200A RJ-45 TP
and fiber
Depends on
SFP used
Multimode/
single-mode
fiber
Depends on
SFP used
LGC201A
RJ-45 TP
and SC
fiber
0.55 km
50/125-µm
multimode
fiber, TP
850 nm
0.22 km
62.5/125 µm
multimode
fiber, TP
LGC202A
RJ-45 TP
and SC
fiber
15 km Single-mode
fiber, TP 1310 nm

724-746-5500 | blackbox.com
Page 10
Chapter 2: Overview
2.5 Hardware Description
Figures 2-1 through 2-6 show the front and back panels of the media converters.
Tables 2-2 through 2-4 describe their components.
2.5.1 LGC201A
5 6
1 2 3 4

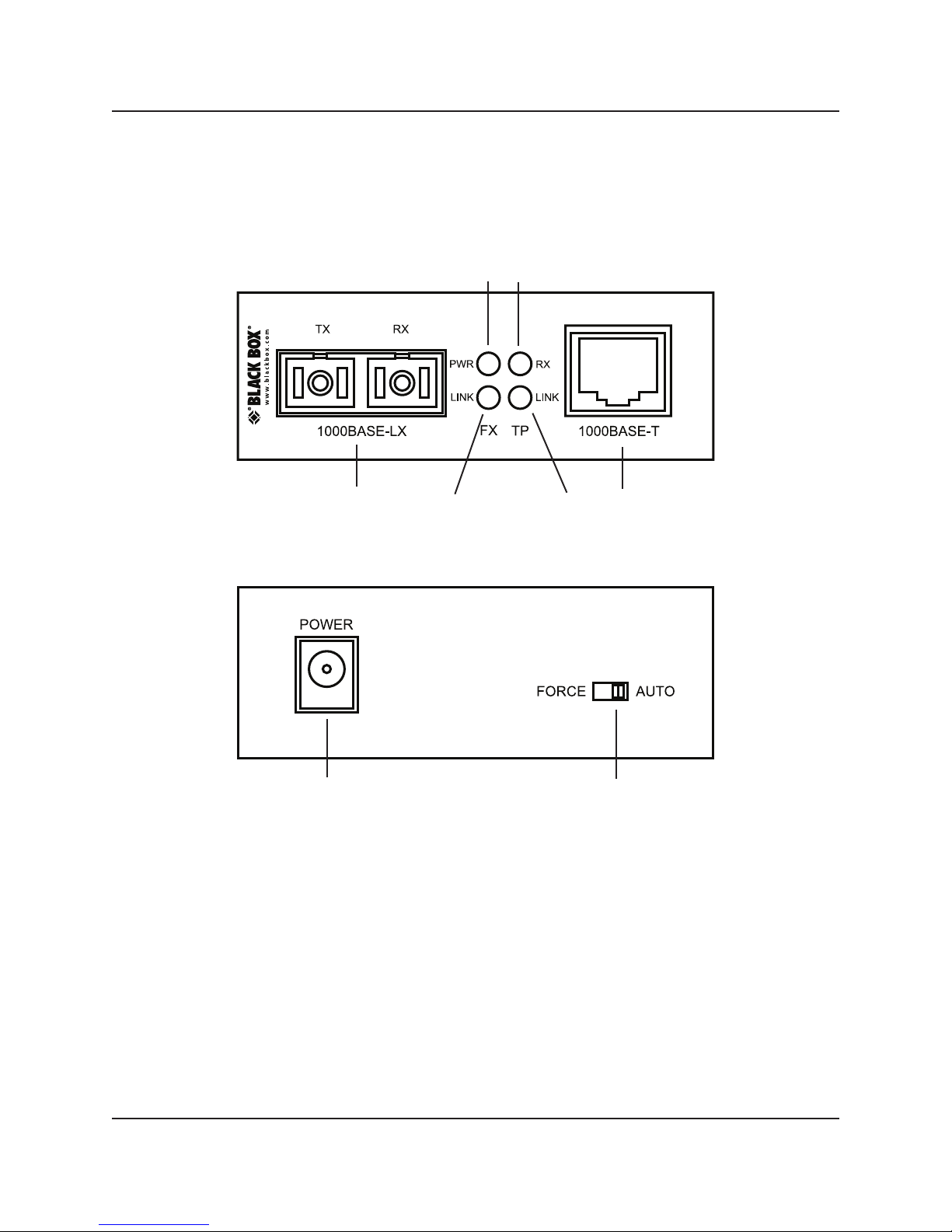

Figure 2-1. Front panel of the LGC201A.
7 8
Figure 2-2. Back panel of the LGC201A.

724-746-5500 | blackbox.com Page 11
Chapter 2: Overview
Table 2-2. LGC201A components.
Number Component Description
1(1) dual SC connector (TX/RX) Links to fiber segment
2(1) FX Link LED
Lights ON when there is a
valid link. Flashing when
the converter is receiving
or transmitting data from
the fiber optic connector.
OFF when there is no valid
link.
3(1) TP Link LED
Lights ON when there is a
valid link. Flashing when
the converter is receiving
or transmitting data from
the twisted-pair port. OFF
when there is no valid link.
4(1) RJ-45 connector Links to 1000BASE-T
device
5(1) PWR LED
Lights ON when power to
the chassis is on; OFF
when power is off.
6(1) RX LED
Lights ON when the TP
port is connected to
1000BASE-TX. OFF when
the TP port is not
connected.
7(1) barrel connector Links to power
8(1) switch for the FX port Selects Force or
Auto-negotiation mode

724-746-5500 | blackbox.com
Page 12
Chapter 2: Overview
*See Table 5-1 for LED functions.
2.5.2 LGC202A
5 6
1 2 3 4
Figure 2-3. Front panel of the LGC202A.
7 8
Figure 2-4. Back panel of the LGC202A.

724-746-5500 | blackbox.com Page 13
Chapter 2: Overview
Table 2-3. LGC202A components.
Number Component Description
1(1) dual SC connector
(TX/RX) Links to fiber segment
2(1) FX Link LED
Lights ON when there is a valid link.
Flashing when the converter is
receiving or transmitting data from
the fiber optic connector. OFF
when there is no valid link.
3(1) TP Link LED
Lights ON when there is a valid link.
Flashing when the converter is
receiving or transmitting data from
the twisted-pair port. OFF when
there is no valid link.
4(1) RJ-45 connector Links to 1000BASE-T device
5(1) PWR LED
Lights ON when power to the
chassis is on; OFF when power is
off.
6(1) RX LED
Lights ON when the TP port is con-
nected to 1000BASE-TX. OFF when
the TP port is not connected.
7(1) barrel connector Links to power
8(1) switch for the FX
port
Selects Force or
Auto-negotiation mode
*See Table 5-1 for LED functions.

724-746-5500 | blackbox.com
Page 14
Chapter 2: Overview
2.5.3 LGC200A
5 6
1 2 3 4
Figure 2-5. Front panel of the LGC200A.
7 8
Figure 2-6. Back panel of the LGC200A.

724-746-5500 | blackbox.com Page 15
Chapter 2: Overview
Table 2-4. LGC200A components.
Number Component Description
1(1) SFP slot for SFP module Links to fiber segment
2(1) FX Link LED
Lights ON when there is a
valid link. Flashing when
the converter is receiving
or transmitting data from
the fiber optic connector.
OFF when there is no valid
link.
3(1) TP Link LED
Lights ON when there is a
valid link. Flashing when
the converter is receiving
or transmitting data from
the twisted-pair port. OFF
when there is no valid link.
4(1) RJ-45 connector Links to 1000BASE-T
device
5(1) PWR LED
Lights ON when power to
the chassis is on; OFF
when power is off.
6(1) RX LED
Lights ON when the TP
port is connected to
1000BASE-TX. OFF when
the TP port is not
connected.
7(1) barrel connector Links to power
8(1) switch for the FX port Selects Force or
Auto-negotiation mode

724-746-5500 | blackbox.com
Page 16
Chapter 3: Configuration
3. Configuration
To expand a Gigabit Ethernet network, you can use the converter as described in
the following examples:
1. Place two converters back to back between the end devices as shown in Figure
3-1.
Device A Device B
LGC201A
or
LGC202A
LGC201A
or
LGC202A
Twisted-pair
cable
Twisted-pair
cable
Single-mode or
multimode
fiber optic cable
1000BASE-TX
interface
1000BASE-X
interface
Figure 3-1. Application using two converters.
NOTE: Use two LGC201A Media Converters or two LGC202A media converters to
expand your network.
2. Place one converter directly between a 1000BASE-TX network segment and a
fiber optic network segment as shown in Figure 3-2.

724-746-5500 | blackbox.com Page 17
Chapter 3: Configuration
Device A
Device B
1000BASE-TX
interface
1000BASE-X
interface
LGC201A or
LGC202A
Figure 3-2. Application using one media converter.

724-746-5500 | blackbox.com
Page 18
Chapter 4: Installation
4. Installation
4.1 Typical Installation
4.1.1 LGC201A and LGC202A
1. The SC fiber connector of an LGC201A transmits/receives data by 850-nm
short-wave laser on multimode fiber.
2. The SC fiber connector of an LGC202A transmits/receives data by 1310-nm
short-wave laser on single-mode fiber.
Figure 4-1 shows a typical installation.
Device A Device B
LGC201A
or
LGC202A
LGC201A
or
LGC202A
Twisted-pair
cable
Twisted-pair
cable
Multimode or
single-mode
fiber optic cable
Figure 4-1. Transmits and receives data on multimode or single-mode fibers.
NOTE: The units work in pairs. You have to use either two LGC201A converters or
two LGC202A converters. Or use two kinds of SFP modules, single-mode or
multimode.

724-746-5500 | blackbox.com Page 19
Chapter 4: Installation
4.1.2 LGC200A
Plug the SFP module into the LGC200A as shown in Figure 4-2.
Figure 4-2. Plug the SFP module into the LGC200A.
LGC200A
LGC200A,
LGC201A or
LGC202A
Device A Device B
Twisted-pair
cable
Twisted-pair
cable
Multimode or
single-mode
fiber optic cable
Figure 4-3. Transmits and receives data between two LGC200A converters
or one LGC200A and one LGC201A/LGC202A.
NOTE: Two LGC200A with the same SFP modules can be used in pairs.
NOTE: LGC200A could be connected to LGC201A or LGC202A; however, the SFP
module in the LGC200A must use the same mode and wavelength as the
opposite end. The fiber connectors depend on the type of SFP installed. See
Table 4-1.

724-746-5500 | blackbox.com
Page 20
Chapter 4: Installation
Table 4-1. LGC200A LC to LGC201A or LGC202A SC connection.
Part Number LGC200A LGC201A LGC202A
Transmision
Media SFP module 850-nm multimode
1310-nm
single-mode
4.2 Installation Procedure
Use a fiber cable to connect two converters and extend a copper link or to connect
a 1000BASE-FX segment to a 1000BASE-X segment on your network.
1. Connect a converter to a 1000BASE-TX device (hub or switch).
• Make sure that the CAT5 twisted pair cable between the 1000BASE-TX device
and the converter is less than 328 feet (100) meters long.
• Connect one end of the CAT5 twisted pair cable to the RJ-45 jack on the convert-
er and the other end of the cable to the RJ-45 jack on the 1000BASE-TX device.
2. Connect two converters or a converter and a 1000BASE-FX device.
• Use an SC fiber cable to connect the two converters’ SC connector or the SC
connector of a converter and a 1000BASE-FX device.
3. Turn on the power.
4.3 Install the Media Converter into the LHC200A-RACK
1. Take out the two screws located on the top of the chassis and use them to install
the retainer as shown in Figure 4-5.
