Chapter 1: Specifications
1. Specifications
Automatic Scan Interval — 3, 8, 15, and 30 seconds
Hotkey Control — Yes
Hot Plug and Play — Yes
On-Screen Display — Yes
Operating Systems Supported — Windows®and Mac®
Programmable Scan Pattern — Yes
Video Bandwidth — 1920 x 1200 (WUXGA)
User Controls — (8) front-panel push buttons
Connectors — Console side: Video: (2) DVI-I F; (1) HD15 F (VGA) for primary
channel video, first video port;
Keyboard/mouse: (2) USB Type A F;
Peripherals: (2) USB Type A F;
Audio: (2) 3.5-mm jacks (stereo audio and microphone);
CPU side: Video input: (16) DVI-I F (with [2] DVI ports per channel);
Keyboard/mouse: (8) USB Type B F
Audio: (2) 3.5-mm jacks (stereo audio and microphone input)
Indicators — (16) LEDs: (8) Computer Ready (green), (8) Computer Selected
(red)
Temperature Tolerance — Operating: +41 to +104° F (+5 to +40° C);
Storage: -4 to +140° F (-20 to +60° C)
Relative Humidity — 0 to 80%
Power — Input: 100–240 VAC, 50–60 Hz, autosensing;
Output: 12-VDC, 4-amps (maximum) external power supply;
Consumption: 48 watts
Size — 2.7"H x 17.25"W x 9"D (6.6 x 43.8 x 22.9 cm)
Weight — 4.5 lb. (2 kg)

Page 8 724-746-5500 | blackbox.com
Chapter 2: Overview
2. Overview
2.1 Introduction
The ServSwitch DT Dual-Head DVI USB, 8-Port enables users to access and control
up to eight DVI dual-display computers from a high-definition console. It uses two
DVI and/or one VGA monitor(s), two USB 2.0 peripherals, a USB keyboard, a USB
mouse, and bidirectional audio.
The switch’s video enhancement technology ensures superb quality up to
1920 x 1200 resolution. The On-Screen Display (OSD) features computer naming,
computer selection, status indication, autoscan, and much more. The EDID
ensures that the switched graphics card is always ready to work with your screen.
The unique multilayer switching system enables the console to work on one
computer while the USB peripherals are connected to other computers and the
speakers are playing music from another computer.
2.2 Features
• Supports dual-head video with optional VGA output for the primary video head.
• Great for dual-display workstations in financial, banking, engineering, graphics,
and healthcare applications.
• Provides complete control with an easy-to-use OSD interface.
• Supports dual-view function.
• Supports EDID.
• Autoscan function automatically selects computers sequentially.
• Front-panel push buttons and hotkeys make computer selection easy.
• USB peripheral sharing eliminates the expense of duplicate devices.
• Unique Tracking System enables the USB (or audio) devices to operate
independently.
• Assigns computers with unique and meaningful names.
• Identifies and selects computers by their names.
• Programmable scan filters unused computers.
• Stores system settings and name entries in non-volatile memory.
• Password security locks computer from unauthorized access.

Page 9
724-746-5500 | blackbox.com
Chapter 2: Overview
• Operating system is independent and transparent to all applications.
• Plug-and-play system configuration.
• Keyboard and mouse can be hot-plugged at any time.
• DDC2B compatible.
• Supports Windows and Mac host systems
• Compatible with XGA, SXGA, UXGA, WSXGA…Full HD, WUXGA systems.
2.3 What’s Included
• (1) ServSwitch DT Dual-Head DVI USB, 8-Port
• (1) 12-V, 4-A external power supply
• (1) U.S. power cord
• (1) set of rubber feet
• (1) user manual
2.4 System Requirements
2.4.1 Console Side
• Optional (1) VGA/(2) DVI monitor(s)
• (1) USB keyboard
• (1) USB mouse
• Optional microphone and speaker
• Optional (2) USB 2.0 sharing peripherals
2.4.2 Computer Side
• USB-enabled dual-display computer(s)
2.4.3 Cables
Each computer must be connected to the unit by:
• (1) USB cable, up to (2) DVI cables, and (1) bidirectional audio cable
OR
• (1) ServSwitch cable with DVI and USB (EHN900024U)
• (1) DVI cable (EVNDVI02) for second video head
• (1) 3.5-mm audio cable (EJ110)

Page 10 724-746-5500 | blackbox.com
Chapter 2: Overview
2.5 Hardware Description

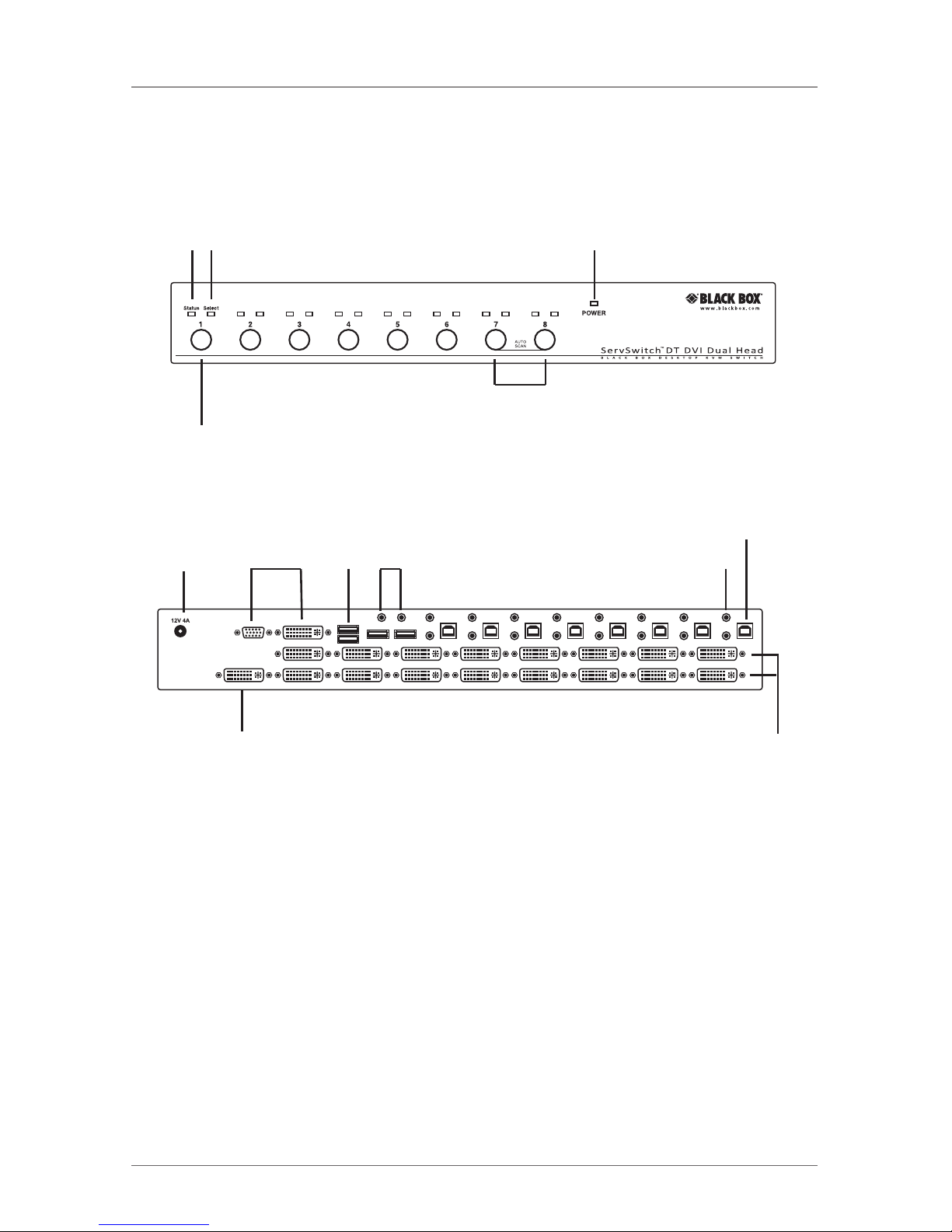

Figures 2-1 and 2-2 illustrate the front and back panels of the KV9628A. Table 2-1
describes its components.
1 3
4
2
5
Figure 2-1. KV9628A front panel.
10
11
9
7
8
8
6 12
Figure 2-2. KV9628A back panel.

Page 11
724-746-5500 | blackbox.com
Chapter 2: Overview
Table 2-1. KV9628A front and back panel components.
Number Component Description
1CPU Status LEDs LEDs light when the connected computer is
powered on.
2Port selection buttons Press buttons 1–8 individually to select a computer.
3CPU Select LED LEDs light when the connected computer is selected.
4AutoScan buttons
Press buttons 7 and 8 together to start AutoScan.
5Power LED Lights when power is on.
6Power in Links to external power.
7Console USB Type A ports Keyboard and mouse ports for console.
8Console video ports Attach to the user monitor.
9Computer DVI ports Connect to a computer’s video cards.
10 Computer USB Type B ports Keyboard/mouse ports for computers.
11 Computer audio ports Connect to speakers and microphones.
12 Console audio ports Connect to speaker and microphone.

Page 12 724-746-5500 | blackbox.com
Chapter 3: Installation
3. Installation
Before installation, power off all devices that will be connected to this system.
• Make sure that all devices you will connect are properly grounded.
• Place cables away from fluorescent lights, air conditioners, and machines
that are likely to generate electrical noise.
3.1 PC BIOS Notice
The following BIOS setup changes are necessary for PC users and not necessary
for Mac users:
• In standard CMOS, set “Halt on Error” to “All but keyboard.”
• In PNP and PCI setup, set “PNP OS installed” to “YES” and set “USB IRQ” to
“Enabled.”
NOTE: The ServSwitch DT Dual-Head DVI USB, 8-Port switches USB keyboard and
USB mouse from one computer to the other. If you plan to share other
peripherals such as a camera, printer, external storage device, or scanner,
shut down a computer’s driver before switching to another computer.
Port switching is equivalent to unplugging the USB cable from one
computer and plugging it into another. Some USB drivers check attached
USB peripherals constantly and do not support plug-n-play functionality.
3.2 Device Connection
3.2.1 Console Connection
1. Plug the monitors into the console’s video port; plug a USB keyboard and a
USB mouse into the corresponding USB ports on the console.
2. To use the standard audio feature, plug a set of audio jacks from the speaker
and microphone to the console’s speaker port and microphone port
respectively,
3. Plug USB peripherals into the USB 1 and/or USB 2 ports on the console side if
needed.

Page 13
724-746-5500 | blackbox.com
Chapter 3: Installation
Clone
DVI 1
VGA
DVI 2
Printer
Figure 3-1. Connecting the console.
NOTE: The HD15 (VGA) port on the console side of the KVM switch provides
an extra clone video signal of DVI1.
3.2.2 Computer Connection
1. Use a male-to-male video cable(s) to connect both video ports on the
computer and the unit’s PC side.
2. Use a USB A–B cable to connect the unit’s USB port (B connector, square
connector) and the USB port on the corresponding computer (A connector,
flat connector).
3. Use a set of audio cables to connect the speaker port and the microphone port
between the computer side of the unit and the corresponding computer.
(Audio connection is optional.)
NOTE: Use KVM Cable with DVI and USB connectors for easy installation. (The
cable part number is EHN900024U.)
4. Repeat Steps 1 through 3 for each PC port on the KVM switch.
5. Plug the external power adapter from an appropriate DC power source to the
switch’s power port.

Page 14 724-746-5500 | blackbox.com
Chapter 3: Installation
USB A–B
Audio
DVI 1
DVI 2
PC 8 PC 1
Figure 3-2. Connecting the computer.

Page 15
724-746-5500 | blackbox.com
Chapter 4: Operation
4. Operation
Figure 4-1 shows the push buttons and LED indicators on the switch’s front panel.
Figure 4-1. Front panel.
4.1 Push Buttons
Use the push buttons on the front panel to select computers, and set scan time
and scan mode.
4.1.1 Scan Time
Set the scan time duration for 3, 8, 15, or 30 seconds.
4.1.2 Autoscan
Press the 7and 8push buttons for two seconds to start autoscanning.
4.2 LED Indicators
The corresponding LED lights red to indicate that port is selected. If the
corresponding LED flashes red, the port is either in autoscan or manual scan
mode. The corresponding LED lights green when the port connects to a
powered-on computer.
4.3 On-Screen Display (OSD)
Figure 4-2. OSD screen.

Page 16 724-746-5500 | blackbox.com
Chapter 4: Operation
DVI with OSD
DVI
Clone
VGA with
OSD
DVI with
OSD
DVI
Figure 4-3. OSD location.
To bring up the hotkey menu if it is enabled:
Press Left-Ctrl + Left-Ctrl within two seconds.
OR
Press Left-Ctrl + Left-Ctrl + Left-Ctrl within two seconds to display a KVM
Menu screen showing a list of the computers with corresponding port numbers,
names, and statuses.
The port number of the currently selected computer is displayed in red, same as
the front indicator, at the upper-right corner of the OSD menu.
The color of a device name is green if it has power and is ready for operation. The
device name is white if it has no power. OSD menu updates the color when it is
activated.
Using the up-arrow, down-arrow, or number 1to 8keys, highlight computer,
then press the Enter key to select it. Or, press the Esc key to exit OSD and remove
the OSD menu from the display; the status window returns to the display and
indicates the currently selected computer or operating status.

Page 17
724-746-5500 | blackbox.com
Chapter 4: Operation
An eyemark to the right of a name indicates that computer is selected and moni-
tored in Scan mode. In the OSD, you can switch this mark on or off by pressing
the F2 key.
Press the Esc key to exit OSD and return to the selected computer; the computer
name is also shown on this screen.
Function key F1: Use this key to edit the name entry of a computer or a slave
with up to 14 characters. First, highlight a port and then press F1 and enter the
computer name. Valid characters are A–Z, 0–9, and the dash (-) character.
Lowercase letters are converted to uppercase ones. Press the Backspace key to
delete a letter one at a time. Non-volatile memory stores all name entries until you
change, even if the unit is powered off.
Function Key F2: Use this key to switch the eyemark of a computer on or off.
First, use the up-arrow and down-arrow keys to highlight it, then press the F2 key
to switch the eyemark on or off. If Scan Type is Ready PC + eyemark, only the
power-on and eyemark-selected computers will be displayed sequentially in Scan
mode.
Function Key F3: Use this key to lock a computer from unauthorized access.
To lock a device, highlight it and then press F3. Enter up to four characters (A–Z,
0–9, or the dash [-] character) for a new password, then press the Enter key.
A security-enabled device is marked with a lock icon following its port number.
To permanently disable the security function from a locked device, highlight it,
press F3, then enter the password.
To access the locked device temporarily, simply highlight it and press the Enter
key. The OSD will ask you for the password. After you enter the correct password,
you can use the device. The device automatically re-locks when you switch to
another port. During Scan mode, the OSD skips the password-protected devices.
NOTE: If you forget the password, the only way to permanently erase all the
passwords is to press and hold the front-panel buttons 1 and 2, then press
and hold buttons 7 and 8. Release 7 and 8, then release 1 and 2.
Function Key F4: Press F4 for more functions. A new screen pops up displaying
more functions as described below. Most of them are marked with a triangle
indicating that there are options to choose from. Use the up-arrow and down-
arrow keys to select the functions, then press the Enter key. Press Esc at any
time to exit.

Page 18 724-746-5500 | blackbox.com
Chapter 4: Operation
Figure 4-4. KVM menu.
Auto Scan: In this mode, the KVM switch automatically switches from one
powered-on computer to the next sequentially in a fixed interval. During auto
scan mode, the OSD displays the name of the selected computer. When Auto
Scan detects any keyboard or mouse activity, it suspends the scanning until
activity stops. Then, it resumes scanning with the next computer in sequence. To
abort the autoscan mode, press the Left-Ctrl button twice, or press any front-
panel button. Scan type and scan rate set the scan pattern. Scan Type (F4: More\
Scan Type) determines if scanned computers must also be eye-mark selected.
Scan Rate (F4: More\Scan Rate) sets the display interval when a computer is
selected before selecting the next one.
Manual Scan enables users to manually switch back and forth between active
computers via keyboard control. Type F4: (More\Scan type) to determine if
scanned computers must also be eye-mark selected. Press the up-arrow key to
select the previous computer and press the down-arrow key to select the next
computer. Press any other key to abort the Manual Scan mode.
Scan Type:
Ready PC + Eyemark: In Scan mode, scan through powered-on and eyemark-
selected computers.
Ready PC: In Scan mode, scan through powered-on computers.
Eyemark Only: In Scan mode, scan through any eyemark-selected computer
regardless of computer power status. The non-volatile memory stores the Scan
Type setting.
Scan Rate: Sets the duration of a computer displayed in Auto Scan mode. The
options are 3 seconds, 8 seconds, 15 seconds, and 30 seconds. The non-volatile
memory stores the Scan Rate setting.

Page 19
724-746-5500 | blackbox.com
Chapter 4: Operation
Hotkey Menu: When you press the Left-Ctrl key twice within two seconds, the
hotkey menu appears displaying a list of hotkey commands if the option is on.
You can turn off the hotkey menu if you prefer not to see it when the Left-Ctrl
key is pressed twice. The non-volatile memory stores the hotkey menu setting.
CH Display:
Auto Off: After you select a computer, the port number and name of the
computer will appear on the screen for three seconds then disappear
automatically.
Always On: The port number and name of a selected computer and/or OSD
status displayed on the screen all the time. The non-volatile memory stores the CH
Display setting.
Position: The position of the selected computer and/or OSD status displays on-
screen during the operation. The actual display position shifts with different video
resolution, the higher resolution, the higher display position. The non-volatile
memory stores the Position setting.
Upper Left, Upper Right,
Lower Left, Lower Right,
Middle.
Stand by EDID-Idle: In some cases display problems may happen because of
incorrect EDID communication between the display monitor and the PC graphics
card or inappropriate EDID data programmed by display manufacturers. This
function enables the KVM switch to read the necessary EDID information from
the attached video display and then provide it at all times to the attached
computer.

Page 20 724-746-5500 | blackbox.com
Chapter 4: Operation
Copy VGA
Copy DVI
DVI 1
DVI 2
Figure 4-5. Copy VGA and DVI.
If no new EDID information is available from a display, a default profile in the
KVM switch is automatically provided instead.
The system can get EDID details from the monitor by using the following
methods:
• Copy DVI: Under the DVI (DVI1) monitor connection, users can copy the DVI
monitor’s EDID data as the system video display setting.
• Copy VGA: Under the VGA monitor connection, users can copy the VGA
monitor’s EDID data as the system video display setting.
• Sequence Hunting: The system will automatically search any available EDID data
from the connected display or embedded EEPROM (Read-Only memory)
• Default: The display configuration will follow the factory default setting.
NOTE: When users plug both the DVI and VGA monitor into the video ports on
the switch, the DVI (DVI1) EDID data has the priority over the VGA EDID
data.
NOTE: The system will automatically Copy the DVI EDID data as the system video
display setting when it detects the DVI (DVI1) monitor connection.
Esc: To exit the OSD, press the Esc key.
