Black Box LIG1014A User manual

Quick Start Guide
• LIG1014A has (10) RJ-45 ports and (4) SFP slots.
• LIE1014A has (8) PoE+ RJ-45 ports and (4) SFP slots.
Industrial Managed Gigabit Ethernet Switch
LIG1014A
LIE1014A
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
call 724-746-5500) • FREE technical support 24 hours a day, 7 days
a week: Call 724-746-5500 or fax [phone]
www.blackbox.com • [email protected]
Customer
Support
Information

724-746-5500 | blackbox.com
Page 2
Trademarks Used in this Manual/Table of Contents
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.
Table of Contents
1. Specifications ...........................................................................................6
1.1 Front-Panel Diagram (LIG1014A) ..................................................8
1.2 Front-Panel Connectors (LIG1014A)..............................................8
1.3 Front-Panel LEDs (LIG1014A).........................................................8
1.4 Front-Panel Diagram (LIE1014A) .................................................10
1.5 Front-Panel Connectors (LIE1014A) ............................................10
1.6 Front-Panel LEDs (LIE1014A) ....................................................... 11
2. What's Included.....................................................................................12
3. Installation..............................................................................................13
3.1 Mounting the Switch on a DIN Rail ............................................13
3.2 Mounting the Switch on a Wall ..................................................14
3.3 Ethernet Interface........................................................................14
3.3.1 RJ-45 .................................................................................14
3.3.2 Fiber, SFP...........................................................................16
3.4 Connecting the Power Terminal Block........................................18
3.5 Alarm Relay and Ground.............................................................20
3.6 Console Connection....................................................................21
3.7 Connect and Login to Managed Switch .....................................22
3.8 CLI Initialization and Configuration (Optional) ...........................22

724-746-5500 | blackbox.com Page 3
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY
CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy, and if
not installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed
to provide reasonable protection against such interference when the equipment
is operated in a commercial environment. Operation of this equipment in a residen-
tial area is likely to cause interference, in which case the user at his own expense
will be required to take whatever measures may be necessary to correct the
interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission
from digital apparatus set out in the Radio Interference Regulation of Industry
Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

724-746-5500 | blackbox.com
Page 4
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.

724-746-5500 | blackbox.com Page 5
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

724-746-5500 | blackbox.com
Page 6
Chapter 1: Specifications
Mechanical
Connectors LIG1014A:
(10) RJ-45, 10/100/1000 Mbps speed
auto-negotiation, MDI-MDI-X auto-
crossover
(4) 100/1000BASE-SFP module slot;
LIE1014A:
(8) RJ-45, IEEE 802.3at PoE PSE
ports, 10/100/1000 Mbps speed
auto-negotiation, MDI-MDI-X
auto-crossover;
(4) 100/1000BASE-SFP module slot
Ingress
protection
IP30
Dimensions (with-
out DIN rail clip)
LIG1014A: 6.0"H x 2.4"W x 4.3"D
(15.4 x 6 x 10.9 cm);
LIE1014A: 6.1"H x 3.0"W x 5.0"D
(15.4 x 7.7 x 12.8 cm)
Weight LIG1014A: 2.4 lb. (1.1 kg);
LIE1014A: 3.1 lb. (1.4 kg)
Installation
Options
DIN-rail mounting;
Wallmounting
Power
PoE LIG1014A: No;
LIE1014A: Yes
Input Redundant input terminals, reverse power protection
Input Voltage LIG1014A: 12–58 VDC;
LIE1014A:
Without PoE: 12–58 VDC;
With PoE: 46–58 V
1. Specifications

724-746-5500 | blackbox.com Page 7
Chapter 1: Specifications
Power (continued)
Maximum Power LIG1014A: 17 Watts;
LIE1014A:
Without PoE: 14 Watts,
With PoE: 265 Watts
Environmental
Operating
Temperature
-40 to +167° F (-40 to +75° C),
cold startup at -40° C
Storage
Temperature
-40 to +185° F (-40 to +85° C)
Humidity 5 to 95% RH (non-condensing)

724-746-5500 | blackbox.com
Page 8
Chapter 1: Specifications

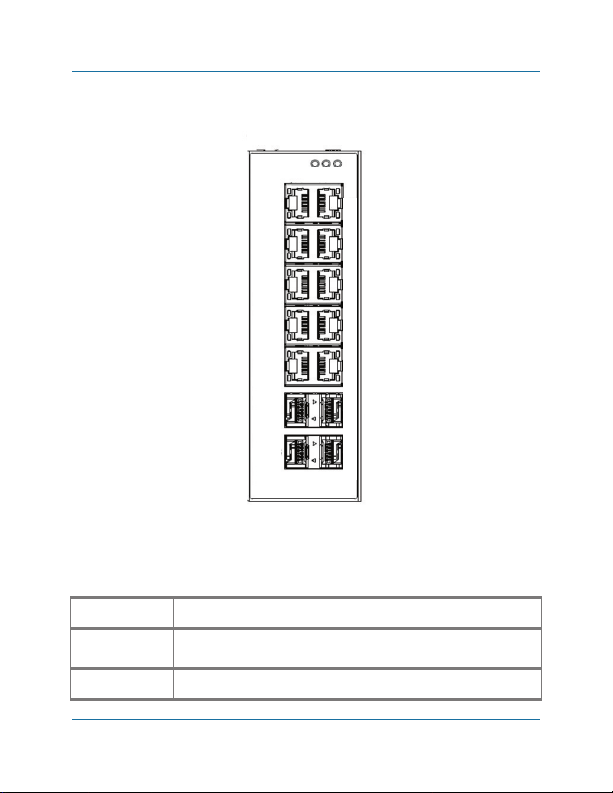

1.1 Front-Panel Diagram: LIG10141
Connector Description
(10) RJ-45 10/100/1000 Mbps speed auto-negotiation, MDI-MDI-X auto-
crossover
(4) SFP slots 100/1000BASE-SFP module slot
1.2 Front Panel Connectors: LIG1014A
Figure 1-3. Front panel, LIG1014A.
P1 P2 ALM
1
3
5
7
9
11
13
2
4
6
8
10
12
14

724-746-5500 | blackbox.com Page 9
Chapter 1: Specifications
1.3 Front-Panel LEDs: LIG1014A
LED Name Status Condition
(1) P1 LED ON, Green P1 power line has power
OFF P1 power line is disconnected or does not
have power
(1) P2 LED ON, Green P2 power line has power
OFF P2 power line is disconnected or does not
have power
(1) Alarm LED ON, Red Power failure alarm occurs
OFF No power failure alarm
(10) Link /Act
LEDs for RJ-45
ports
On, Green Ethernet link is up but no traffic is detected
OFF Ethernet link is down
(10) Speed LEDs
for RJ-45 ports
ON, Yellow 1000-Mbps connection is detected.
OFF No link, a 10-Mbps or 100-Mbps
connection is detected
(4) Link/Act LED
for SFP port
ON, Green Ethernet link is up
OFF Ethernet link is down
(4) Speed LED
for SFP port
ON, Yellow SFP port speed 1000-Mbps connection is
detected
OFF No link, or an SFP port speed 100-Mbps con-
nection is detected

724-746-5500 | blackbox.com
Page 10
Chapter 1: Specifications

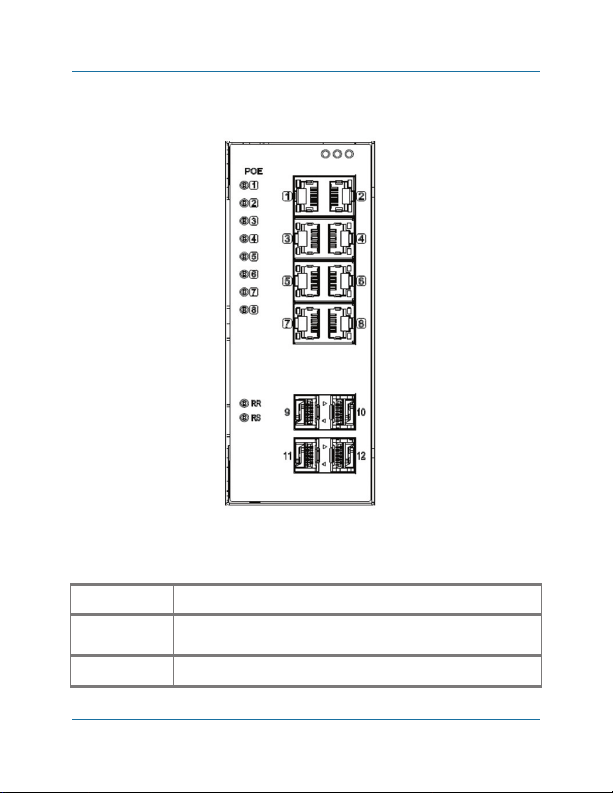

1.4 Front-Panel Diagram: LIE1014A
P1 P2 ALM
Connector Description
(8) RJ-45 PoE+ 10/100/1000 Mbps speed auto-negotiation, MDI-MDI-X auto-
crossover with PoE+
(4) SFP slots 100/1000BASE-SFP module slot
1.7 Front Panel Connectors: LIE1014A
Figure 1-4. Front panel, LIE1014A.

724-746-5500 | blackbox.com Page 11
Chapter 1: Specifications
LED Name Status Condition
(8) PoE LEDs ON, Green PoE is working
OFF PoE is not working
(1) P1 LED ON, Green P1 power line has power
OFF P1 power line is disconnected or does not
have power
(1) P2 LED ON, Green P2 power line has power
OFF P2 power line is disconnected or does not
have power
(1) Alarm LED ON, Red Power failure alarm occurs
OFF No power failure alarm
(8) Link/Act
LEDs for RJ-45
PoE+ ports
On, Green Ethernet link is up but no traffic is detected
OFF Ethernet link is down
(8) Speed LEDs
for RJ-45 PoE+
ports
ON, Yellow 1000-Mbps connection is detected.
OFF No link, a 10-Mbps or 100-Mbps
connection is detected
(4) Link/Act LED
for SFP port
ON, Green Ethernet link is up
OFF Ethernet link is down
(4) Speed LED
for SFP port
ON, Yellow SFP port speed 1000-Mbps connection is
detected
OFF No link, or an SFP port speed 100-Mbps con-
nection is detected
1.5 Front-Panel LEDs: LIE1014A

724-746-5500 | blackbox.com
Page 12
Chapter 2: What's Included
2. What’s Included
Your package should contain the following items. If anything is missing or damaged,
contact Black Box Technical Support at 724-746-5500 or [e-mail].
• (1) Industrial Managed Gigabit Ethernet Switch -
(10) RJ-45, (4) SFP (LIG1014A)
OR
(1) Industrial Managed Gigabit Ethernet PoE+ Switch - (8) RJ-45, (4) SFP
(LIE1014A)
• (2) wallmount brackets
• (1) DIN-rail clip
• (4) M3 screws (for the wallmount brackets
or DIN-rail clip)
• (1) DC power terminal block
• (10) or (8) RJ-45 connector dust covers
• (4) SFP port dust covers
• This Quick Start Guide

724-746-5500 | blackbox.com Page 13
Chapter 3: Installation
3. Installation
WARNING! When a connector is removed during installation, testing, or ser-
vicing, or when an energized fiber is broken, your eyes might be exposed to
to hazardous laser output power.
3.1 Mounting the Switch on a DIN Rail
1. Screw the DIN rail bracket onto the switch with the included bracket and screws.
2. Hook the switch-DIN-rail-bracket assembly over the DIN rail.
3. Push the bottom of the assembly towards the DIN rail until it snaps into place.
Figure 3-1. Din-rail mounting.

724-746-5500 | blackbox.com
Page 14
Chapter 3: Installation
3.2 Mounting the Switch on a Wall
Screw the wall mount brackets on using the included M3 screws.
M4 screw
P1 P2 ALM
Figure 3-2. Wallmounting.
3.3 Ethernet Interface
The switch has two types of Ethernet interfaces: electrical (RJ-45) and optical (SFP)
interfaces.
3.3.1 RJ-45
• To connect the switch to a PC, use straight-through or cross-over Ethernet cables.
• To connect the switch to an Ethernet device, use UTP (Unshielded Twisted Pair) or
STP (Shielded Twisted Pair) Ethernet cables.

724-746-5500 | blackbox.com Page 15
Chapter 3: Installation
The RJ-45 pinout is shown in the following figure and tables.
LED A LED B
Pin 8 Pin 1
Figure 3-3. RJ-45 connector pinout.
Table 3-1. RJ-45 pinout descriptions
Pin Assignment PoE Assignment (LIE1014A only)
1, 2 TX/RX+, TX/RX- Positive Vport
3, 6 TX/RX+, TX/RX- Negative Vport
4, 5 TX/RX+, TX/RX- Not used
7, 8 TX/RX+, TX/RX- Not used

724-746-5500 | blackbox.com
Page 16
Chapter 3: Installation
3.3.2 Fiber, SFP
For both 100/1000 Mbps fiber speed connections, the SFP slots are available. The
SFP slot accepts the fiber transceivers that typically have an LC connector.
The fiber transceivers have options of multimode, single mode, long-haul or special-
application transceivers.
DANGER:
Never attempt to view optical connectors that might be emitting laser
energy.
Do not power up the laser product without connecting the laser to the
optical fiber and putting the dust cover in position, as laser outputs
will emit infrared laser light at this point.

724-746-5500 | blackbox.com Page 17
Chapter 3: Installation
Table 3-2. Compatible SFP modules.
Part Number Description
LF P411 SFP/1250 Extended Diagnostics, LC multimode, 850
nm, 550 m
LFP412 SFP/1250 Extended Diagnostics, LC multimode, 1310
nm, 2 km
LFP413 SFP/1250 Extended Diagnostics, LC
single-mode, 1310 nm, 10 km
LFP414 SFP/1250 Extended Diagnostics, LC
single-mode, 1310 nm, 40 km
LFP401 SFP/155 Extended Diagnostics, LC multimode, 850 nm,
2 km
LFP403 SFP/155 Extended Diagnostics, LC single-mode, 1310
nm, 30 km
LFP404 SFP/155 Extended Diagnostics, LC single-mode, 1310
nm, 60 km
LFP402 SFP/155 Extended Diagnostics, LC multimode, 1310
nm, 2 km
LFP418 SFP/1250 Extended Diagnostics, LC single-mode, 1550
nm, 80 km
LFP420 Simplex SFP/1250, Extended Diagnostics, single-mode,
1550 nm TX, 1310 nm RX

724-746-5500 | blackbox.com
Page 18
Chapter 3: Installation

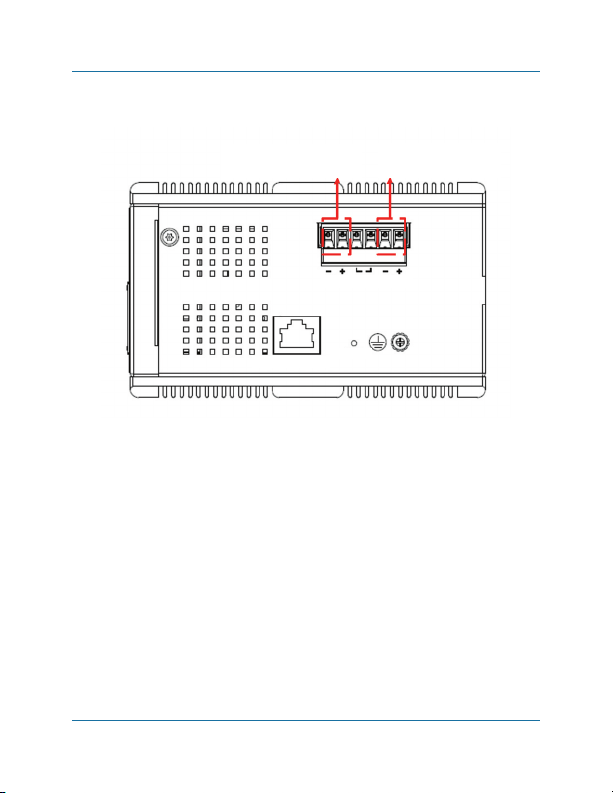

3.4 Connecting the Power Terminal Block
The switch can be powered from two power supplies (input range 12V – 58V).
Insert the positive and negative wires into V+ and V- contacts on the terminal block
respectively and tighten the wire-clamp screws to
prevent the wires from loosening.
LIG1014A
First power supply
Second power supply
PWR1 ALM PWR2
Console
Reset
Figure 3-4. Terminal block, LIG1014A.

724-746-5500 | blackbox.com Page 19
Chapter 3: Installation
LIE1014A
PWR1 ALM PWR2
Console
Reset
Second power supply
First power supply
Figure 3-5. Terminal block, LIE1014A.

724-746-5500 | blackbox.com
Page 20
Chapter 3: Installation
3.5 Alarm Relay and Ground
The alarm relay output contacts are in the middle of the DC terminal block
connector as shown in the figure below.
The alarm relay out is “Normal Open”, and it will be closed when detected any
predefined failure such as power failures or Ethernet link failures.
The relay output with current carrying capacity of 0.5 A @ 24 VDC.
Extra power system
Alarm system
Ground
connector
PWR1 ALM PWR2
Console
Reset
Figure 3-6. Alarm relay, LIG1014A or LIE1014A.
