Black Box VSW-DVI3X1 User manual

BL A C K B O X®
Switch DVI video from three, four, or eight
sources to a single DVI screen.
3 x 1, 4 x 1, and 8 x 1 DVI-D Switches
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
PA 15055-1018 • Web site: www.blackbox.com • E-mail: [e-mail]
Customer
Support
Information
VSW-DVI3X1
VSW-DVI4X1
VSW-DVI8X1

Page 2 724-746-5500 | blackbox.com VSW-DVI3X1
FCC and IC RFI Statements
FEDERAL COMMUNICATIONS COMMISSION AND
INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation
of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par Industrie Canada.
Normas Oficiales Mexicanas (NOM)
Electrical Safety Statement
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el
aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.

Page 3
724-746-5500 | blackbox.com
VSW-DVI3X1
NOM Statement
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe
colocar en libreros o gabinetes que impidan el flujo de aire por los orificios
de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.

Page 4 724-746-5500 | blackbox.com VSW-DVI3X1
NOM Statement
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5
724-746-5500 | blackbox.com
VSW-DVI3X1
Trademarks Used in this Manual
Trademarks Used in this Manual
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc.
Any other trademarks mentioned in this manual are acknowledged to be
the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com VSW-DVI3X1
Table of Contents
Contents
1. Specifications............................................................................................. 7
2. Overview .............................................................................................8
2.1 Introduction ....................................................................................8
2.2 Features .......................................................................................... 8
2.3 What’s Included ..............................................................................8
2.4 Hardware Description .....................................................................9
2.4.1 Front Panel............................................................................ 9
2.4.2 Back Panel .......................................................................... 10
2.4.3 Remote Control .................................................................. 11
3. Connection and Installation..................................................................... 12
4. Troubleshooting ...................................................................................... 13
4.1 No Picture is Present ..................................................................... 13
4.2 Contacting Black Box .................................................................... 13
4.3 Shipping and Packaging................................................................ 13
Appendix. DVI-D Pin Configuration ............................................................... 14

Page 7
724-746-5500 | blackbox.com
VSW-DVI3X1
Chapter 1: Specifications
1. Specifications
Approvals: FCC Class A, CE, RoHS
Frequency Bandwidth: 1.65 Gbps (single-link)
Maximum Resolution: Video: 1080p; VESA: 1920 x 1200
Connectors: VSW-DVI3X1: Input: (3) DVI-I F (single-link);
Output: (1) DVI-I F (single-link);
VSW-DVI4X1: Input: (4) DVI-I F (single-link);
Output: (1) DVI-I F (single-link);
VSW-DVI8X1: Input: (8) DVI-I F (single-link);
Output: (1) DVI-I F (single-link);
Power: Input: 110/220-VAC, 50/60-Hz;
Output: 5-VDC/2-A
Size: VSW-DVI3X1, VSW-DVI4X1: 2"H x 9.5"W x 4.5"D (5.1 x 24.1 x 11.4 cm);
VSW-DVI8X1: 2"H x 11"W x 4.5"D (5.1 x 27.9 x 11.4 cm)
Weight: VSW-DVI3X1, VSW-DVI4X1: 4 lb. (1.8 kg);
VSW-DVI8X1: 6 lb. (2.7 kg)

Page 8 724-746-5500 | blackbox.com VSW-DVI3X1
Chapter 2: Overview
2. Overview
2.1 Introduction
Route digital DVI video from various sources (such as a satellite receiver, DVD
player, and PC) to a high-definition display (such as a TV) with the economical
3 x 1, 4 x 1, or 8 x 1 DVI-D Switch from Black Box.
It features a signal enhancer that helps improve signal quality over a long-distance
transmission from source to screen. Running digital video over DVI cable longer
than 15 feet (1.5 m), you might very well experience signal degradation at the
remote screen. This switch, however, is designed to amplify the DVI video signal
as far as 60 feet (18.2 m).
Plus, it’s easy to install and operate. Connect all your digital video sources (DVD
players, satellite set-top boxes, PCs) to any of the inputs on the switch and con-
nect the output cable to your HD display. Then when you want to switch video
ports, simply press a button on the included remote controller or the switch’s
front panel.
NOTE: Equipped with DVI-I ports. Supports digital video only.
2.2 Features
• Switch on the front panel or from the included IR remote controller.
• Route video from three, four, or eight sources to a common digital display.
• Tested to guarantee resolution up to 1080p without signal degradation.
• Signal enhancer amplifies video as far as 60 feet (18.2 m).
• HDCP 1.1 and DVI 1.0 compliant.
• Ideal for use in conference rooms, classrooms, or corporate theaters.
2.3 What’s Included
Your package should include the following items. If anything is missing
or damaged, contact Black Box Technical Support at 724-746-5500
or [e-mail].
• 3 x 1, 4 x 1, or 8 x 1 DVI-D Switch
• Infrared (IR) remote control
• 5-VDC, 2-A power supply
• This user’s manual

Page 9
724-746-5500 | blackbox.com
VSW-DVI3X1
Chapter 2: Overview
2.4 Hardware Description
2.4.1 Front Panel
Figure 2-1 shows the 3 x 1 switch’s front panel. Table 2-1 describes its
components. The 4 x 1 and 8 x 1 switches function in the same way as the 3 x 1
switch, but they link one output to four or eight inputs.
1 2 3 4 5 6 7 8
Figure 2-1. Front panel.
Table 2-1. Front-panel components.
Number Component Description
1IR sensor Infrared remote control sensor.
2LED 1 Lights when source 1 is selected.
3LED 2 Lights when source 2 is selected.
4LED 3 Lights when source 3 is selected.
5Input selection button Push to select an input.
6Signal enhance LED Indicates that signal enhance is activated.
7Signal enhance button Press this button to enhance a long-distance transmission
signal.
8Power button Lights when power to the switch is on.

Page 10 724-746-5500 | blackbox.com VSW-DVI3X1
Chapter 2: Overview
2.4.2 Back Panel
Figure 2-2 illustrates the 3 x 1 switch’s back panel. Table 2-2 describes its
components. The 4 x 1 and 8 x 1 switches function in the same way as the 3 x 1
switch, but they link one output to four or eight inputs.
1 2 3 4 5
Figure 2-2. Back panel.
Table 2-2. Back-panel components.
Number Component Description
1DVI out connector Use a DVI-to-DVI cable to connect to your display.
2DVI 3 in connector Use a DVI-to-DVI cable to connect to source 3.
3DVI 2 in connector Use a DVI-to-DVI cable to connect to source 2.
4DVI 1 in connector Use a DVI-to-DVI cable to connect to source 1.
5DC power jack Plug in a 5-V, 2-A VDC power supply (included).

Page 11
724-746-5500 | blackbox.com
VSW-DVI3X1
Chapter 2: Overview

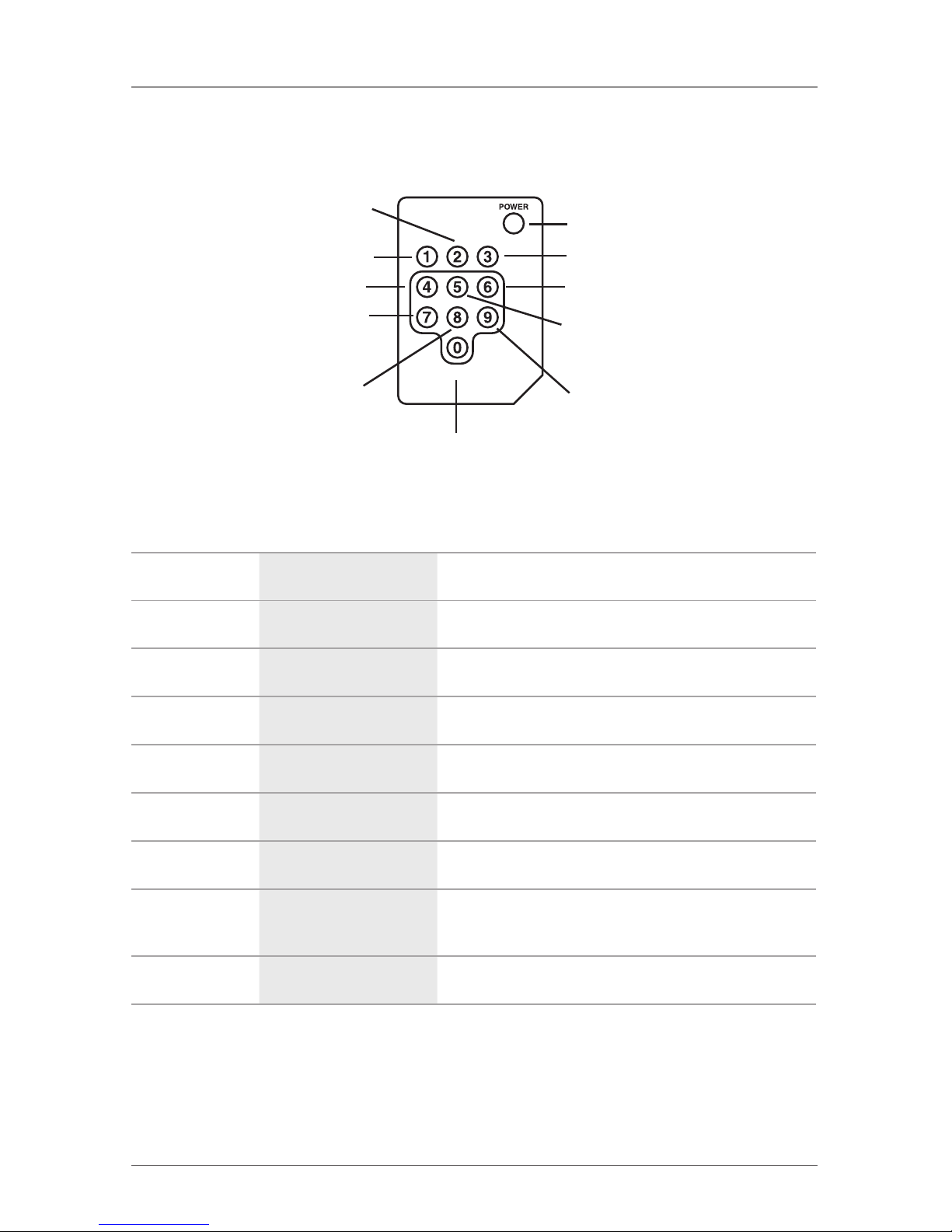

2.4.3 Remote Control
Figure 2-3 illustrates the remote control unit. Table 2-3 describes its buttons.
A
D
G
F
J
C
B
E
H
I
K
Figure 2-3. Remote control unit.
Table 2-3. Remote control buttons.
Number Component Description
APower button Switch between power on and standby.
BButton 1 Press button 1 to select source 1.
CButton 2 Press button 2 to select source 2.
DButton 3 Press button 3 to select source 3.
EButton 4 Press button 4 to select source 4. This button is not used on
the VSW-DVI3X1.
FButton 5 Press button 5 to select source 5. This button is not used on
the VSW-DVI3X1 and VSW-DVI4X1.
G, H, I Buttons 6, 7, 8
Press the 6, 7, or 8 button to select source 6, 7, or 8. These
buttons are not used on the VSW-DVI3X1 and
VSW-DVI4X1.
J, K Buttons 9, 0 These buttons are not used.

Page 12 724-746-5500 | blackbox.com VSW-DVI3X1
Chapter 3: Connection and Installation
3. Connection and Installation
1. Connect the switch’s video output to a plasma, LCD, or any monitor with DVI
input. See Figure 3-1.
2. Connect the switches inputs to sources 3-1. See Figure 3-1.
Plasma, LCD, or
any monitor with
DVI input
Set-top box PC DVD player
Output Input 1
Input 2
Input 3
Figure 3-1. Typical application using the 3 x 1 DVI-D Switch.

Page 13
724-746-5500 | blackbox.com
VSW-DVI3X1
Chapter 4: Troubleshooting
4. Troubleshooting
4.1 No Picture is Present
When no picture is visible, check the following:
1. Are all connectors attached properly and securely?
2. Is the connecting cable damaged?
4.2 Calling Black Box
If you determine that your DVI-D Switch is malfunctioning, do not attempt to alter
or repair the unit. It contains no user-serviceable parts. Contact Black Box
Technical Support at 724-746-5500 or [e-mail].
Before you do, make a record of the history of the problem. We will be able to
provide more efficient and accurate assistance if you have a complete description,
including:
• the nature and duration of the problem.
• when the problem occurs.
• the components involved in the problem.
• any particular application that, when used, appears to create the problem or
make it worse.
4.3 Shipping and Packaging
If you need to transport or ship your DVI-D Switch:
• Package it carefully. We recommend that you use the original container.
• If you are returning the unit, make sure you include everything you received
with it. Before you ship for return or repair, contact Black Box to get a Return
Authorization (RA) number.

Page 14 724-746-5500 | blackbox.com VSW-DVI3X1
Appendix: DVI-D Pin Configuration
Appendix. DVI-D Pin Configuration
Figure A-1 shows the DVI-D connector. Table A-1 describes its pinout.
Figure A-1. DVI-D connector.
Table A-1. DVI-D connector pinout.
Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment
1T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0-
2T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+
3T.M.D.S. Data2/4 shield 11 T.M.D.S. Data1/3 shield 19 T.M.D.S. Data0/5 shield
4T.M.D.S. Data4- 12 T.M.D.S. Data3- 20 T.M.D.S. Data5-
5T.M.D.S. Data4+ 13 T.M.D.S. Data3+ 21 T.M.D.S. Data5+
6DDC clock 14 +5-VDC power 22 T.M.D.S.Clock shield
7DDC data 15 Ground (for +5-VDC
power) 23 T.M.D.S. Clock+
8Not connected 16 Hot plug detect 24 T.M.D.S. Clock-

Page 15
724-746-5500 | blackbox.com
VSW-DVI3X1
NOTES

BL A C K B OX®
Black Box Tech Support: FREE! Live. 24/7.
Tech support the
way it should be.
Great tech support is just 30 seconds away at
724-746-5500 or blackbox.com.
724-746-5500 | blackbox.com
About Black Box
Black Box Network Services is your source for more than 118,000 networking
and infrastructure products. You’ll find everything from cabinets and racks and
power and surge protection products to media converters and Ethernet switches
all supported by free, live 24/7 Tech support available in 30 seconds or less.
© Copyright 2010. Black Box Corporation. All rights reserved.
VSW-DVI3X1, rev. 1
