Black Horse Model SUPER AIR BH.05 User manual

SPECIFICATION


Wingspan : 1.550 mm 61.02 in.


Length : 1.250 mm 49.21 in.


Weight : 2.4 kg 5.28 Lbs.


Radio : 04 channels.


Servo : 05 servos.


Engine : 40 - 46 2 stroke
52 4 stroke


ElectricMotor:BL2826/06OUTRUNER


Battery:4cells-Li-Poly-14.8V-5.000mAh


Speedcontrol:45A


Propeller : 12 x 8
Instruction Manual book
Madein Vietnam.

2
SUPER AIR- Item code BH05-A. Instruction Manual
This instruction manual is designed to help you build a great flying aeroplane. Please read this
manual thoroughly before starting assembly of your SUPER AIR. Use the parts listing below to
identify all parts.
WARNING.
Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is
capable of causing injury to people or property. WHEN YOU FLY THIS AEROPLANE YOU
ASSUME ALL RISK & RESPONSIBILITY.
IfyouareinexperiencedwithbasicR/CflightwestronglyrecommendyoucontactyourR/Csupplier
and join your local R/C Model Flying Club. R/C Model Flying Clubs offer a variety of training
proceduresdesignedtohelpthenewpilotonhiswaytosuccessfulR/Cflight.Theywillalsobeable
to advise on any insurance and safety regulations that may apply.
TOOLS & SUPPLIES NEEDED.
Thick cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modellingknife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder’s triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.
Some more parts.
HARDWAREPACK
Landinggear.....
Toavoid scratching yournew airplane, donot
unwrap the pieces until they are needed for
assembly. Cover your workbench with an old
towel or brown paper, both to protect the air-
craftand to protectthe table.Keep a coupleof
jars or bowls handy to hold the small parts af-
ter you open the bag.
Pleasetrialfitalltheparts.Makesureyouhave
the correct parts and that they fit and are
alignedproperly beforegluing! Thiswillassure
proper assembly. SUPER AIR ARF is hand
made from natural materials, every plane is
unique and minor adjustments may have to
be made. However, you should find the fit su-
perior and assembly simple.
The painted and plastic parts used in this kit
are fuel proof. However, they are not tolerant
of many harsh chemicals including the follow-
ing:paintthinner,C/Aglueaccelerator,C/Aglue
debonderandacetone. Donotlet thesechemi-
cals come in contact with the colors on the
covering and the plastic parts.

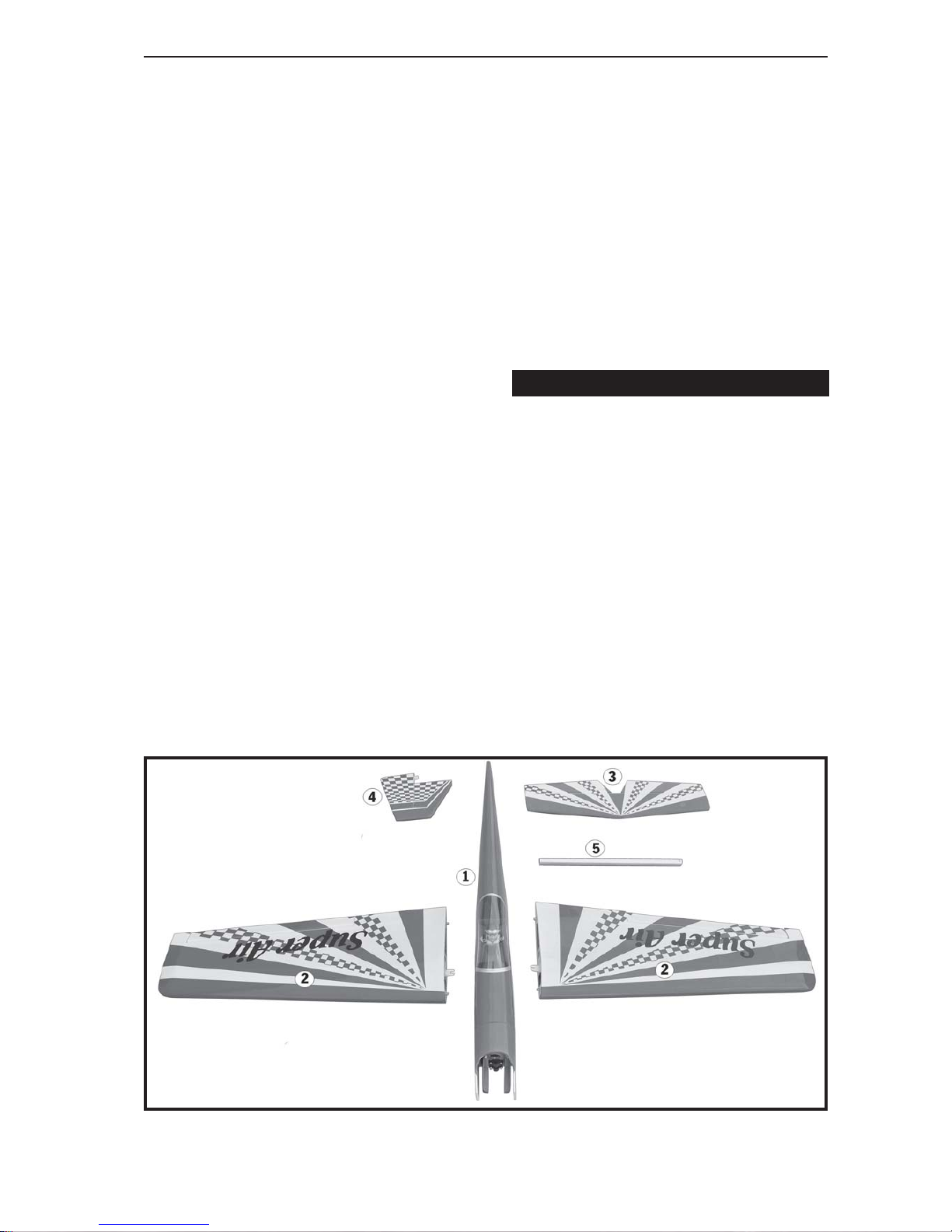

PARTS LISTING.
FUSELAGE ASSEMBLY
(1) Fuselage.
WING ASSEMBLY
(1) Right wing half with pre-installed
aileron.
(1) Left wing half with pre-installed
aileron.
Tail section assembly
(1) Vertical stabilizer with pre-
installedrudder.
(1) Horizontal stabilizer with pre-
installedelevator halves.
SUGGESTION.
NOTE.

3
SUPER AIR- Item code BH05-A. Instruction Manual
+ This is not a toy
+ Be sure that no other flyers are using your
radio frequency.
+ Do not smoke near fuel
+ Store fuel in a cool, dry place, away from
children and pets.
+ Wear safety glasses.
+Theglowplug clipmustbesecurelyattached
to the glow plug.
+ Do not flip the propeller with your fingers.
+ Keep loose clothing and wires away from
thepropeller.
+ Do not start the engine if people are near.
Donot stand inline withtheside ofthe propel-
ler.
+ Make engine adjustments from behind the
propeller only. Do not reach around the spin-
ningpropeller.
Caution: this model is not a toy!
If you are a beginner to this type of powered
model,please askanexperienced modelflyer
forhelpand support.Ifyou attempt tooperate
themodel withoutknowing whatyou aredoing
you could easily injure yourself or somebody
else. Please keep your safety and well-being
in mind at all times.
Important: before you start construction
Even if you have already built a large number
ofRCmodels please readright through these
instructions and check all the kit components
against the parts list. We have taken great
trouble to keep construction as simple as
possible, without making any compromises
in the area of safety.
Note regarding the film covering
Minor creases or bubbles may develop in the
film covering due to major fluctuations in
weather conditions (temperature, humidity
etc.); in rare cases you may even find a slight
warp in a component. These minor faults are
in the nature of film-covered built-up wooden
structures, and can easily be corrected using
a heat gun, as commonly used for modelling.
Caution! do not heat the film more than is
absolutely necessary. If the air or the iron is
too hot, the film may melt and holes may be
formed.
This model is highly pre-fabricated and can
bebuilt ina veryshort time.However,thework
which you have to carry out is important and
must be done carefully. The model will only
be strong and fly well if you complete your
taskscompetently -so pleasework slowlyand
accurately.
When self-tapping screws have to be
screwed into wood, apply a little white glue
to prevent them shaking loose: just squirt
white glue into the hole and fit the screw.
Creases: Blowwarm airoverthe area
and rub down with a soft
cloth.
SAFETY PRECAUTION.
Wing warp: Holdthepaneltwisted gently
in the opposite direction to
the warp, and apply warm
air to remove the creases
from the covering.

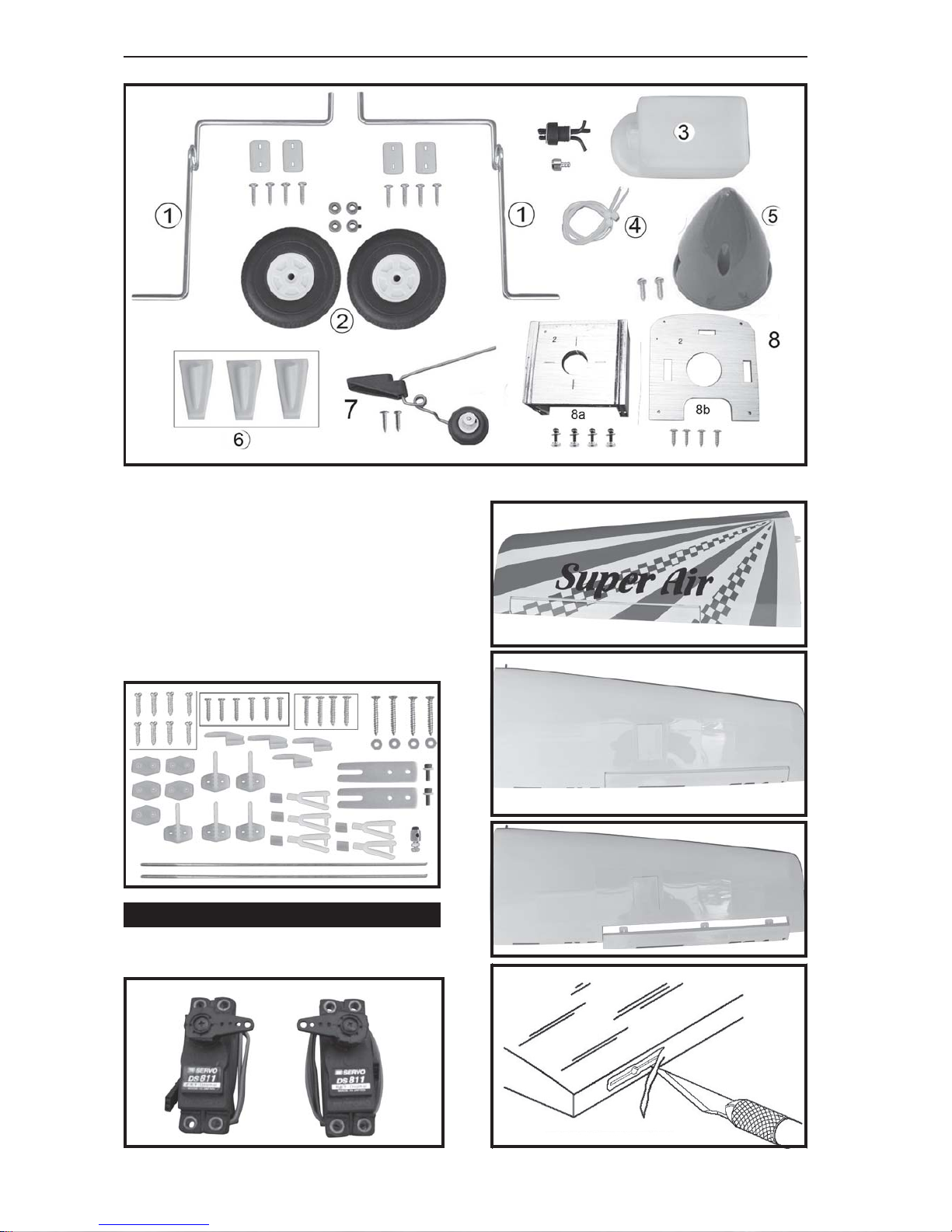

REPLACEMENT LARGE PARTS
3.Horizontalstabilizer
2.Wings panel(Left /Right).
1. Fuselage. 5.Aluminium tube wing
4. Vertical stabilizer

4
SUPER AIR- Item code BH05-A. Instruction Manual
 1. Install the rubber grommets and brass
eyelets onto the aileron servo.
6.Plastic partsforelevator andrudderpushrod.
1.Mainlanding gear(Left/Right).
3.FuelTank.
4. Tie wrap2ww
2. Wheels.
INSTALLING THE AILERON SERVOS.
Top side.
REPLACEMENT SMALL PARTS
7. Tail gear.
Bottom side
Aileron.
Cutthecovering
awayfromtheslot.
5.Spinner.
8.Electricmotorply ofwood(8a,8b).
3x12mm.
3x15mm.

5
SUPER AIR- Item code BH05-A. Instruction Manual
3. Drill 1,5mm pilot holes through the block
of wood for each of the four mounting screws
provided with the servo. Install servo into ai-
leron servo tray as same as picture below.
4. Using the thread as a guide and using
masking tape, tape the servo lead to the end
of the thread: carefully pull the thread out.
When you have pulled the servo lead out, re-
move the masking tape and the servo lead
from the thread.
Temporary pin to
keep hinge centered.
Servo tray.
2.Usinga modeling knife, removethe cov-
ering servo tray.
Aileron
Assemble then apply drops of thin
C/A to center of hinge,on both sides.
5. Instal servo tray with aileron servo into
the wing as same as picture below.
Electric wire.
Servo tray.
Wing.
2x10mm.

6
SUPER AIR- Item code BH05-A. Instruction Manual
Repeat the procedure for the other wing
half.
1. Using a ruler & pen to draw a straight
line as below picture.
4. Install control horn as same as picture
below.
5. Install aileron control horn as same as
picture below.
3. Drill through 1.5mm (diameter) the ai-
leron using the control horn as a guide and
screw the control horn in place.
2. Locate nylon control horn, nylon con-
trol horn backplates and 3 machine screws.
Installaileroncontrol hornassame
aspicturebelow.
Controlhornof Aileron
INSTALLINGTHEAILERON CONTROLHORN. Drill 1.5mm
hole.
2 x 20 mm.
Markpen. Secure
2x20mm.

7
SUPER AIR- Item code BH05-A. Instruction Manual

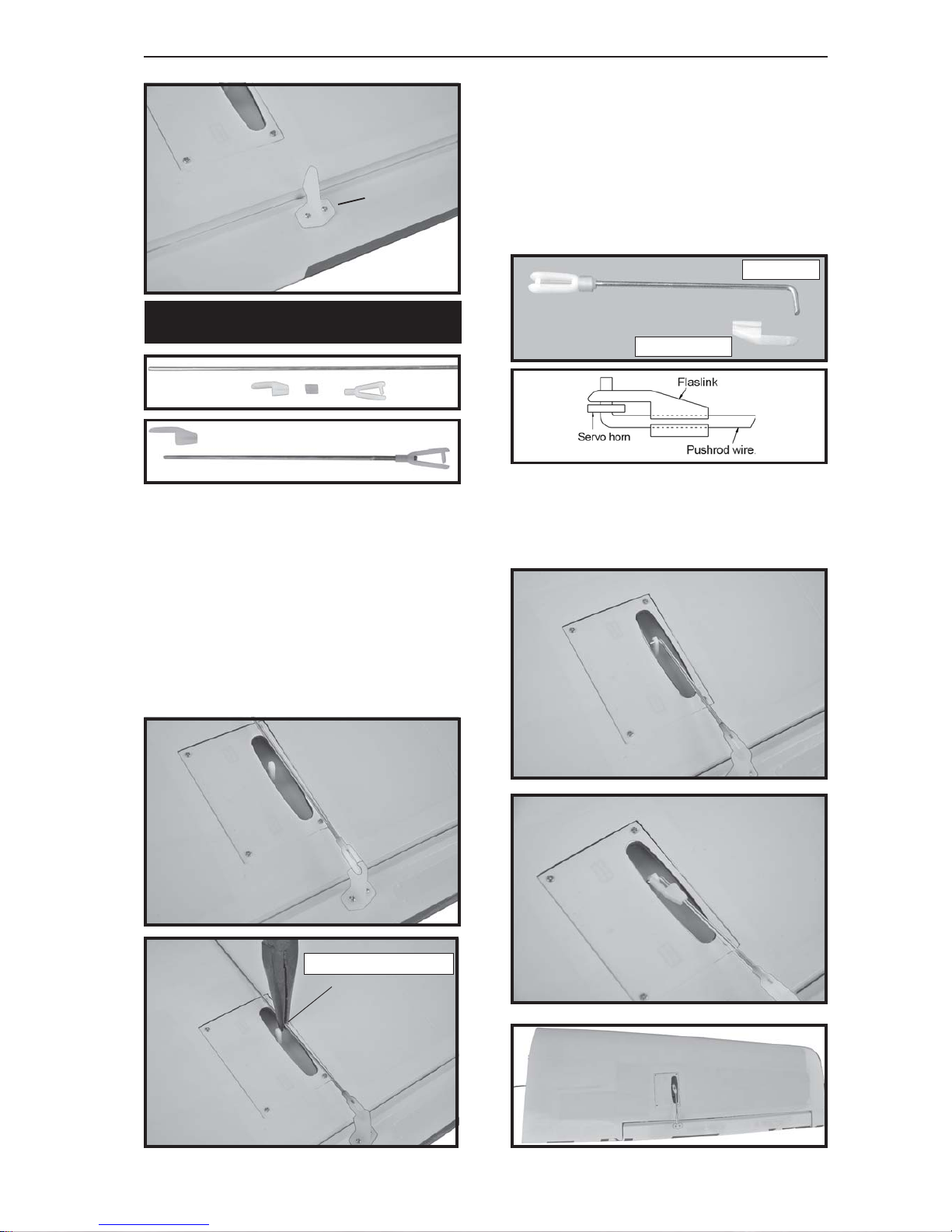

Aileron
control horn.
3. Plug the aileron servo into the receiver
andcentertheservo.Installtheservoarmonto
the servo. The servo arm should be perpen-
dicular to the servo and point toward the mid-
dle of the wing.
 1. Working with the aileron linkage for
now, thread one clevis onto one of the
threaded wires.
2. Attach the clevis to the outer hole in the
control horn. Install a silicone tube on the
clevis.
4. Locate one nylon servo arm, and using
wire cutters,remove all but one of the arms.
Using a 2mm drill bit, enlarge the third hole
out from the center of the arm to accommo-
date the aileron pushrod wire.
5.Using pliers,carefullymake a 90degree
bend down at the mark made. Cut off the ex-
cess wire, leaving about 4mm beyond the
bend.
6.Insertthe90degree bend down through
the hole in the servo arm. Install one nylon
snap keeper over the wire to secure it to the
arm. Installtheservo armretaining screwand
remove the masking tape from the aileron.
Bend and cut after.
INSTALLING THE AILERON
LINKAGES.
M2clevis.
Snapkeeper.
Aileronpushrod.
Bottom side.

8
SUPER AIR- Item code BH05-A. Instruction Manual
Repeat the procedure for the other wing
half.
Secure.
4x12mm

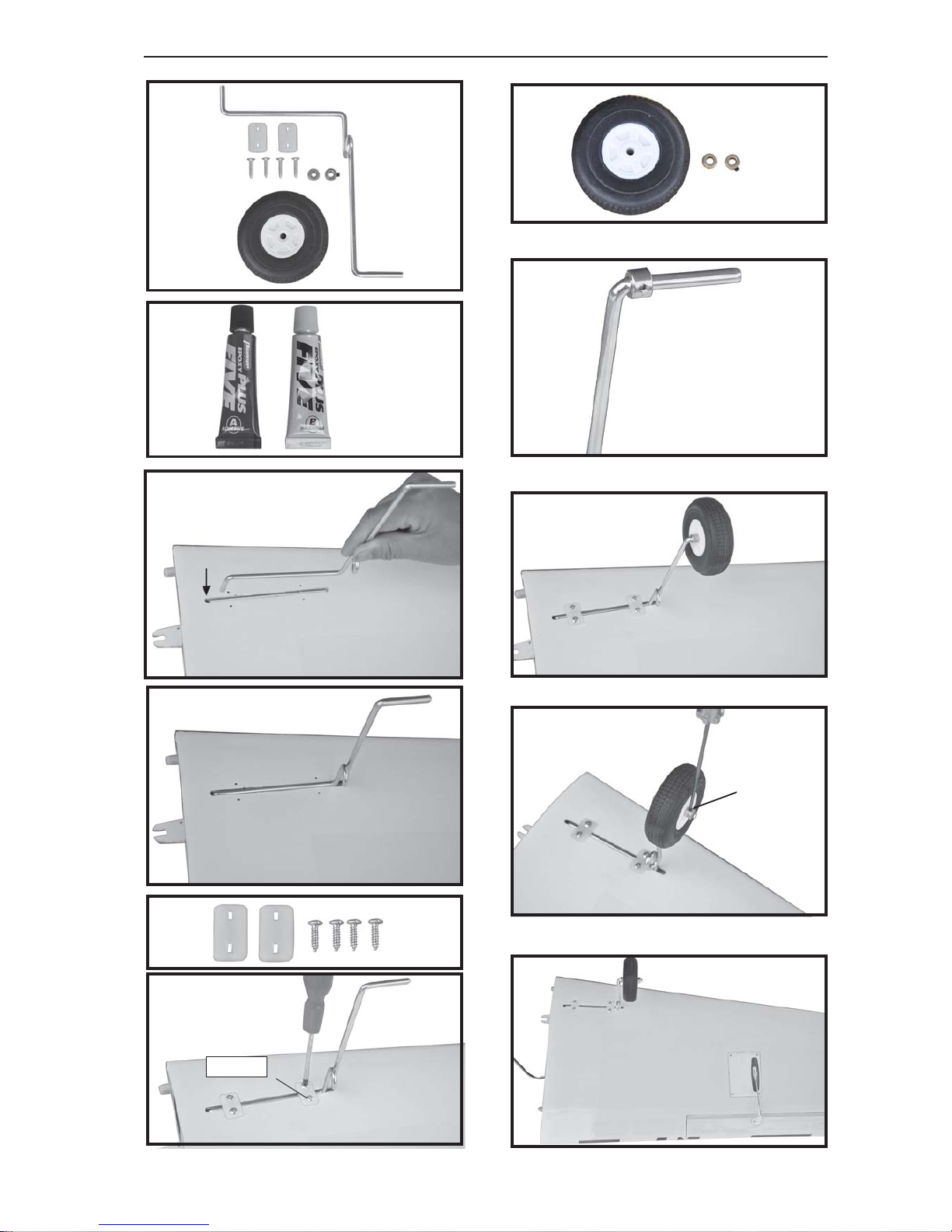

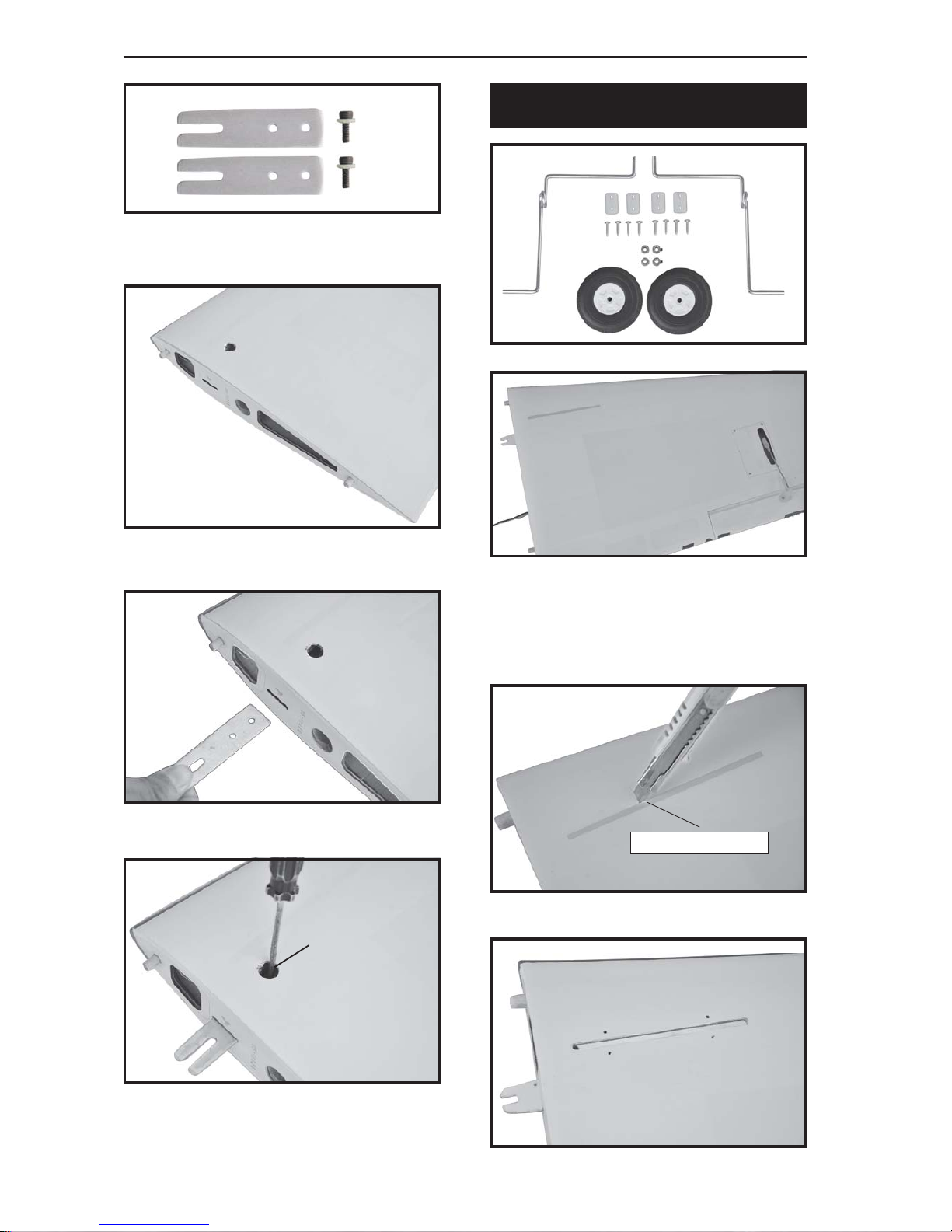

INSTALLING THE MAIN LANDING
GEAR.
3x15mm
2. Using a modeling knife, remove the
covering wing.
Remove covering.

9
SUPER AIR- Item code BH05-A. Instruction Manual
secure.
3x 15mm
3x15mm
A+B Epoxy
PLUS
A+B Epoxy
PLUS glue.
Secure.
Bottom wing.

10
SUPER AIR- Item code BH05-A. Instruction Manual
Bottom wing.
Repeat the procedure for the other main
gear wheel.
THERE ARE TWO OPTIONS:
1. ELECTRIC MOTOR
2. ENGINE MOUNT.
1. OPTION 1: ELECTRIC MOTOR.
INSTALLING THE ENGINE MOUNT.
C/Aglue
3x 15mm
Epoxyglue
Front view
Secure

11
SUPER AIR- Item code BH05-A. Instruction Manual
See pictures below

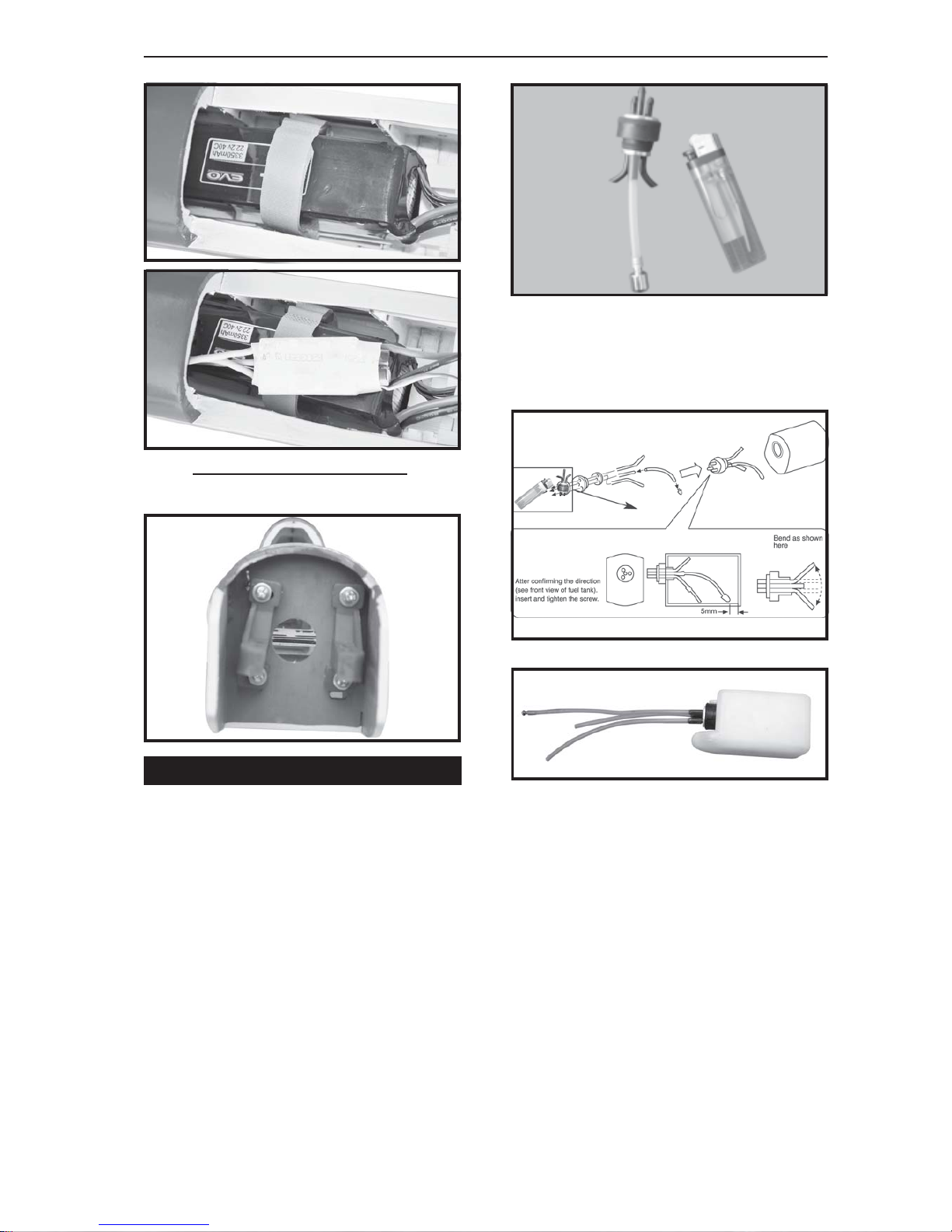

2.. OPTION 2: ENGINE MOUNT.
INSTALLING THE STOPPER ASSEMBLY
FUEL TANK.
1. The stopper has been pre-assembled at
the factory.
2.Using amodelingknife, cutone lengthof
siliconfuelline (thelengthof siliconfuelline is
calculated by how the weighted clunk should
restabout 8mm awayfrom therear of thetank
andmove freelyinsidethe tank).Connect one
end of the line to the weighted clunk and the
otherend to thenylon pickuptube inthe stop-
per.
3.Carefully bend thesecond nylontubeup
ata 45degreeangle(usinga cigarettelighter).
This tube will be the vent tube to the muffler.
4.Carefully bend thethird nylontubedown
ata 45degreeangle(usinga cigarettelighter).
This tubewill bevent tubeto thefuelingvalve.
Front view
ESC
Battery
When the stopper assembly is installed
in the tank, the top of the vent tube should
rest just below the top surface of the tank.
It should not touch the top of the tank.
 5. Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using
amodeling knife. Ifflashing is present, make
sure none of it falls into the tank.
6. When satisfied with the alignment of the
stopper assembly tighten the 3mm x 20mm
machine screw until the rubber stopper ex-
pandsand sealsthe tankopening.Donotover
tighten the assembly as this could cause the
tank to split.
7. Using a modeling knife, cut 3 lengths of
fuel line 150mm long. Connect 2 lines to the 2
vent tubes and 1 line to the fuel pickup tube in
the stopper.

12
SUPER AIR- Item code BH05-A. Instruction Manual

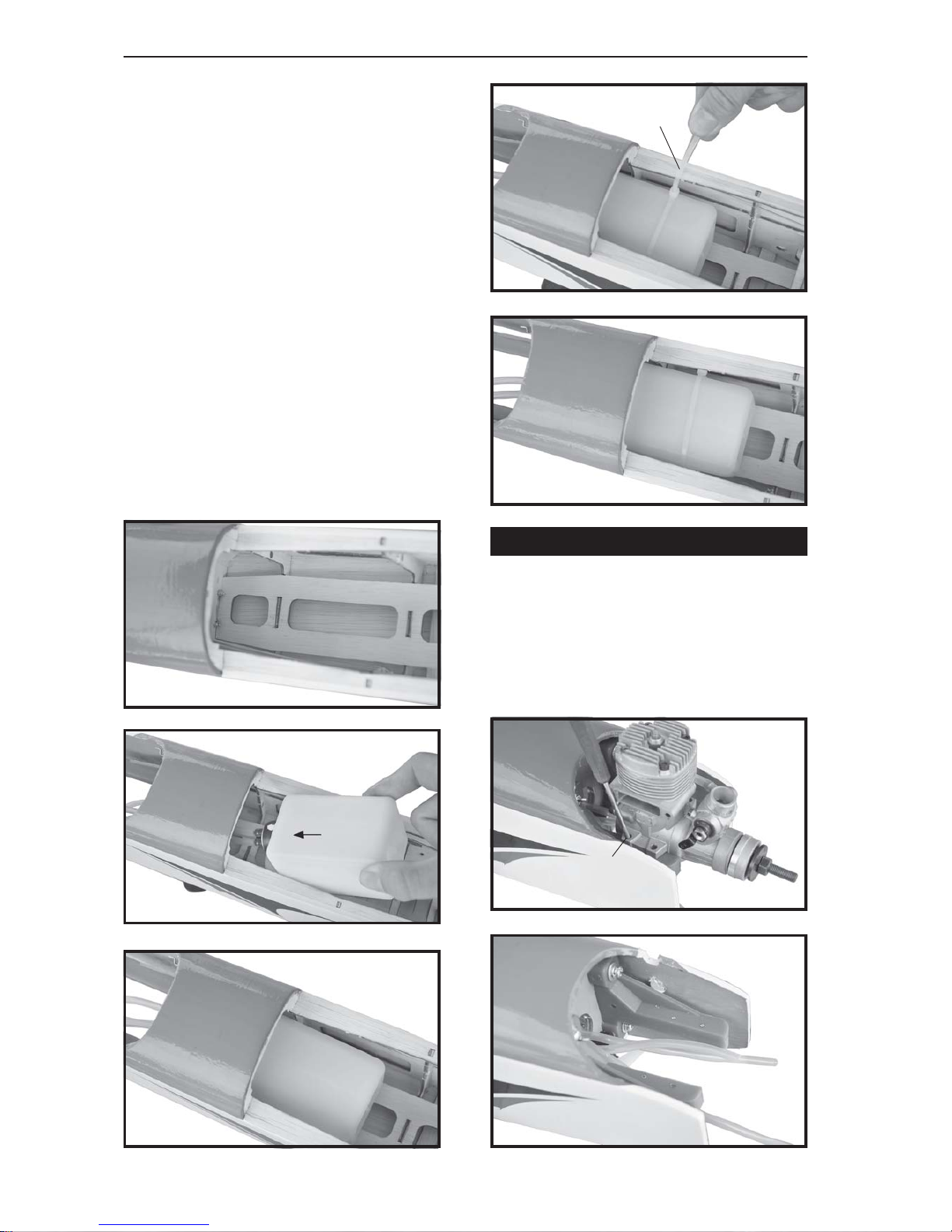

Fueltank
Fueltank
Do not secure the tank into place perma-
nently until after balancing the airplane.
You may need to remove the tank to mount
the battery in the fuel tank compartment.
9. To secure the fuel tank in place, apply a
bead of silicon sealer to the forward area of
thetank, whereit exitsthe fuselagebehind the
enginemountingbox andtothe rearofthetank
at the forward bulkhead.
Blow through one of the lines to ensure
the fuel lines have not become kinked inside
the fuel tank compartment. Air should flow
througheasily.
 8. Feed three lines through the fuel tank
compartment and through the pre-drilled hole
in the firewall. Pull the lines out from behind
the engine, while guiding the fuel tank into
place. Push the fuel tank as far forward as
possible,the frontof thetank shouldjustabout
touch the back of the firewall.
Locate the long piece of wire used for the
throttlepushrod. Oneend ofthe wirehas been
pre-bend in to a “Z” bend at the factory. This
“Z” bend should be inserted into the throttle
armofthe enginewhentheengineisfittedonto
theengine mount. Fitthe enginetothe engine
mount using the screws provided.
INSTALLING THE ENGINE.
Tie wrap.
Mark point.

13
SUPER AIR- Item code BH05-A. Instruction Manual
Drill a hole 2.5mm
diameter
3x20mm
Throttle wire.
secure.
1. Install one adjustable metal connector
through the third hole out from the center of
one servo arm, enlarge the hole in the servo
arm using a 2mm drill bit to accommodate the
servo connector. Remove the excess mate-
rial from the arm.
After installing the adjustable metal con-
nector apply a small drop of thin C/A to
the bottom nut. This will prevent the con-
nector from loosening during flight.
INSTALLING THE THROTTLE SERVO.
Throttle servo

14
SUPER AIR- Item code BH05-A. Instruction Manual

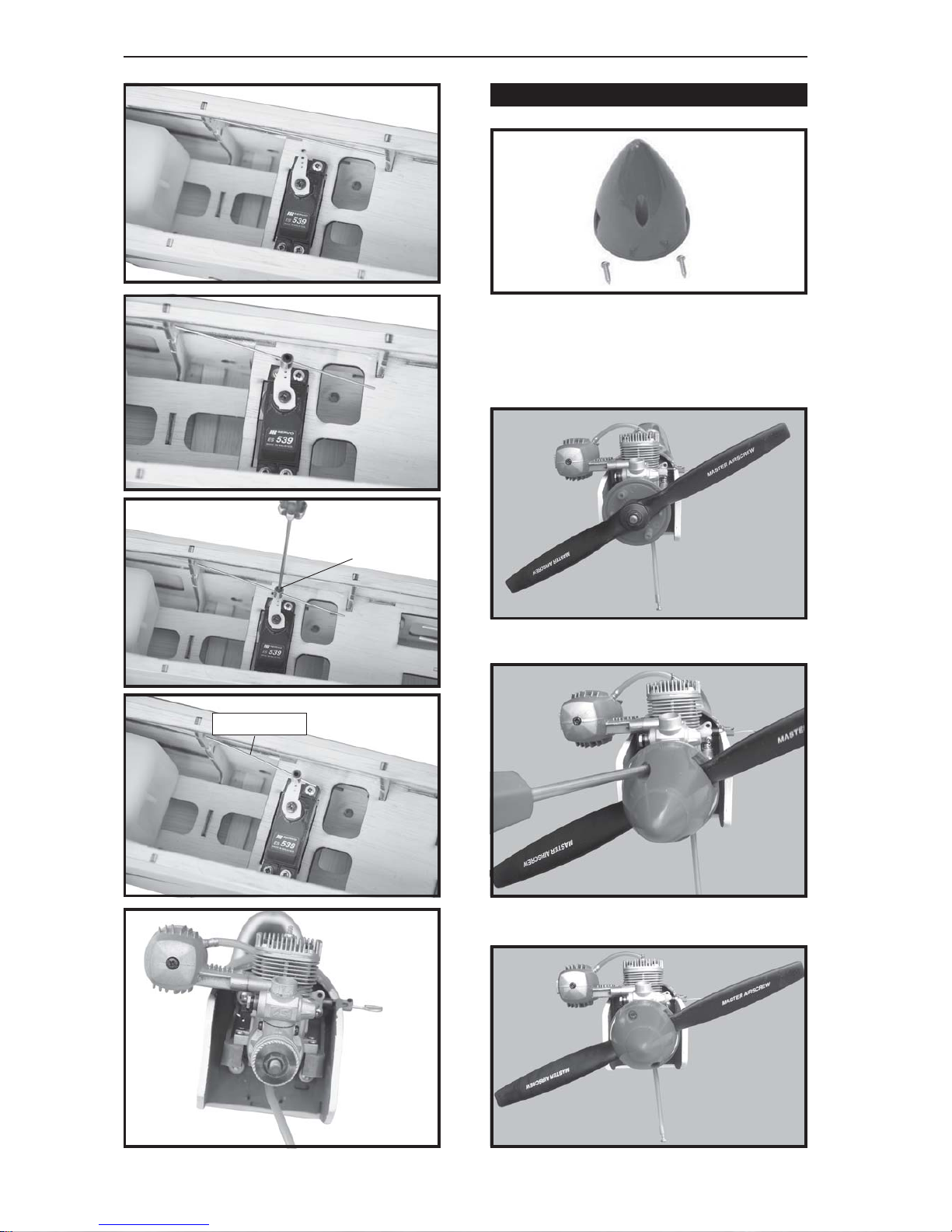

secure.
Throttle wire.
Throttle servo
Front view.
INSTALLING THE SPINNER.
3x 12mm
Installthe spinnerbackplate, propellerand
spinner cone. The spinner cone is held in
place using two 3mm x 12mm wood screws.

15
SUPER AIR- Item code BH05-A. Instruction Manual
1. Install the rubber grommets and brass
colletsintothe elevatorservo.Testfit theservo
into the servo tray.
2. Mount the servo to the tray using the
mountingscrews providedwith yourradio sys-
tem.
ELEVATOR INSTALLATION.
SERVO INSTALLATION.
elevatorservo.
HORIZONTAL STABILIZER INSTALLATION.
elevatorservo.
See pictures below:
Bottom side
1. Using amodeling knife, cut away the
covering from the fuselage for the stabilizer
and remove it.
2. Draw a center line onto the horizontal
stabilizer. Then slide the horizontal into the
fuselage.
Assemble then apply drops of thin
C/A to center of hinge,on both sides.
Center line.
Temporary pin to
keep hinge centered.
Cutthecovering
awayfromtheslot.

16
SUPER AIR- Item code BH05-A. Instruction Manual

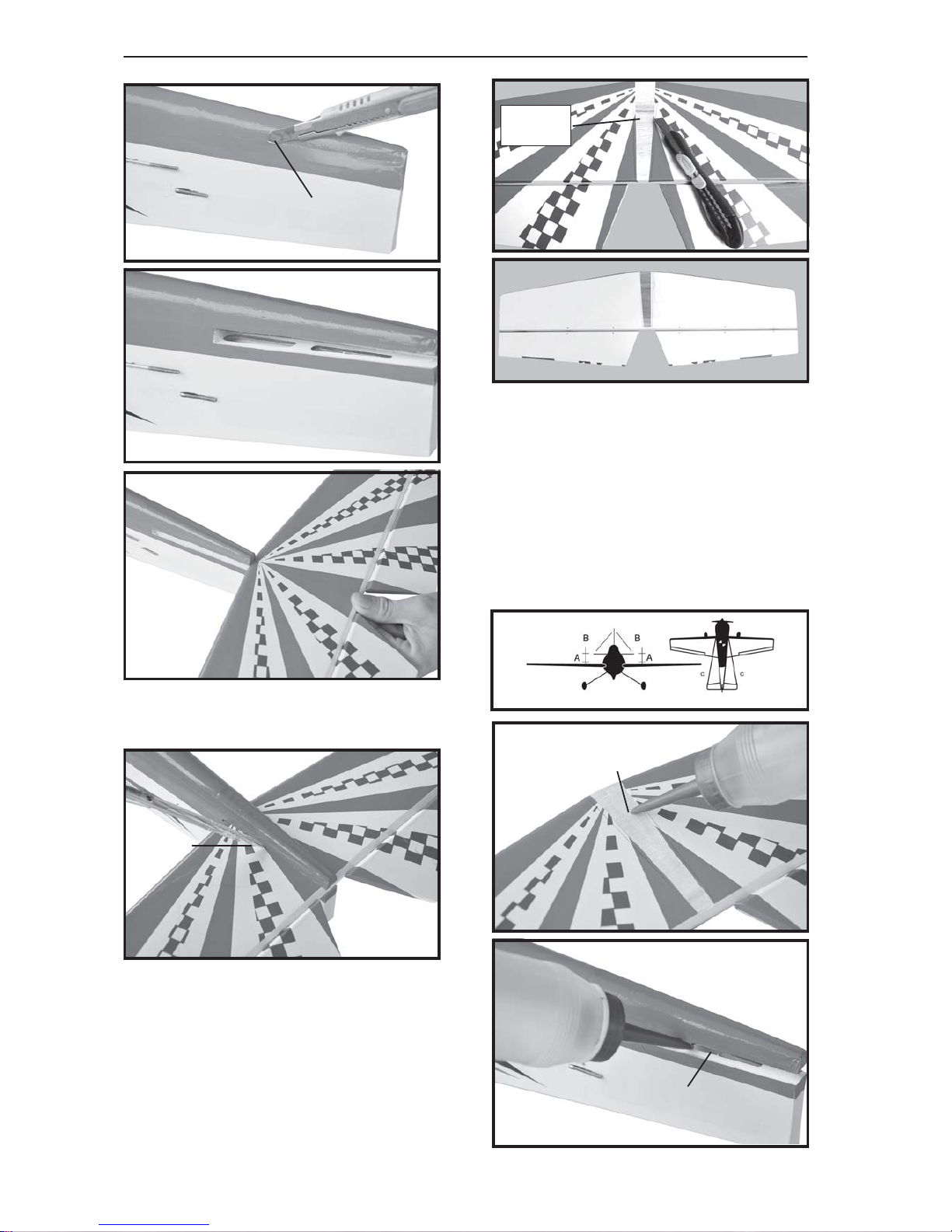

4. Remove the stabilizer. Using the lines
youjustdrew asa guide, carefullyremove the
coveringfrom betweenthem usinga modeling
knife.
When cutting through the covering to re-
move it, cut with only enough pressure to
only cut through the covering it’s self. Cut-
ting into the balsa structure may weaken
it. This could lead to possible failure dur-
ing flight
3. Markthe shape ofthe vertical onthe left
and right sides onto the horizontal stabilizer
using a felt-tip pen
Remove
covering
Markpen.
5. When you are sure that everything is
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
topand bottom ofthe stabilizermountingarea
and to the stabilizer mounting platform sides
inthefuselage.Slidethe stabilizerinplaceand
re-align. Double check all of your measure-
ments one more time before the epoxy cures.
Remove any excess epoxy using a paper
towel and rubbing alcohol and hold the stabi-
lizer in place with T-pins or masking tape.
Remove
covering.
Epoxyglue
Epoxyglue

17
SUPER AIR- Item code BH05-A. Instruction Manual

6. Afterthe epoxy has fully cured, remove
the masking tape or T-pins used to hold the
stabilizer in place and carefully inspect the
glue joints. Use more epoxy to fill in any
gaps that were not filled previously and
clean up the excess using a paper towel and
rubbingalcohol.
Topside
Bottom side.
C/Aglue
Elevator control horn install as same as the
way of aileron control horn. Please see pic-
tures below.
Control horn
of elevator.
Control horn of elevator.
2x12mm.
Drill 1 hole
with 1.5 mm
diameter.
Secure.
ELEVATORCONTROLHORNINSTALLATION.

18
SUPER AIR- Item code BH05-A. Instruction Manual

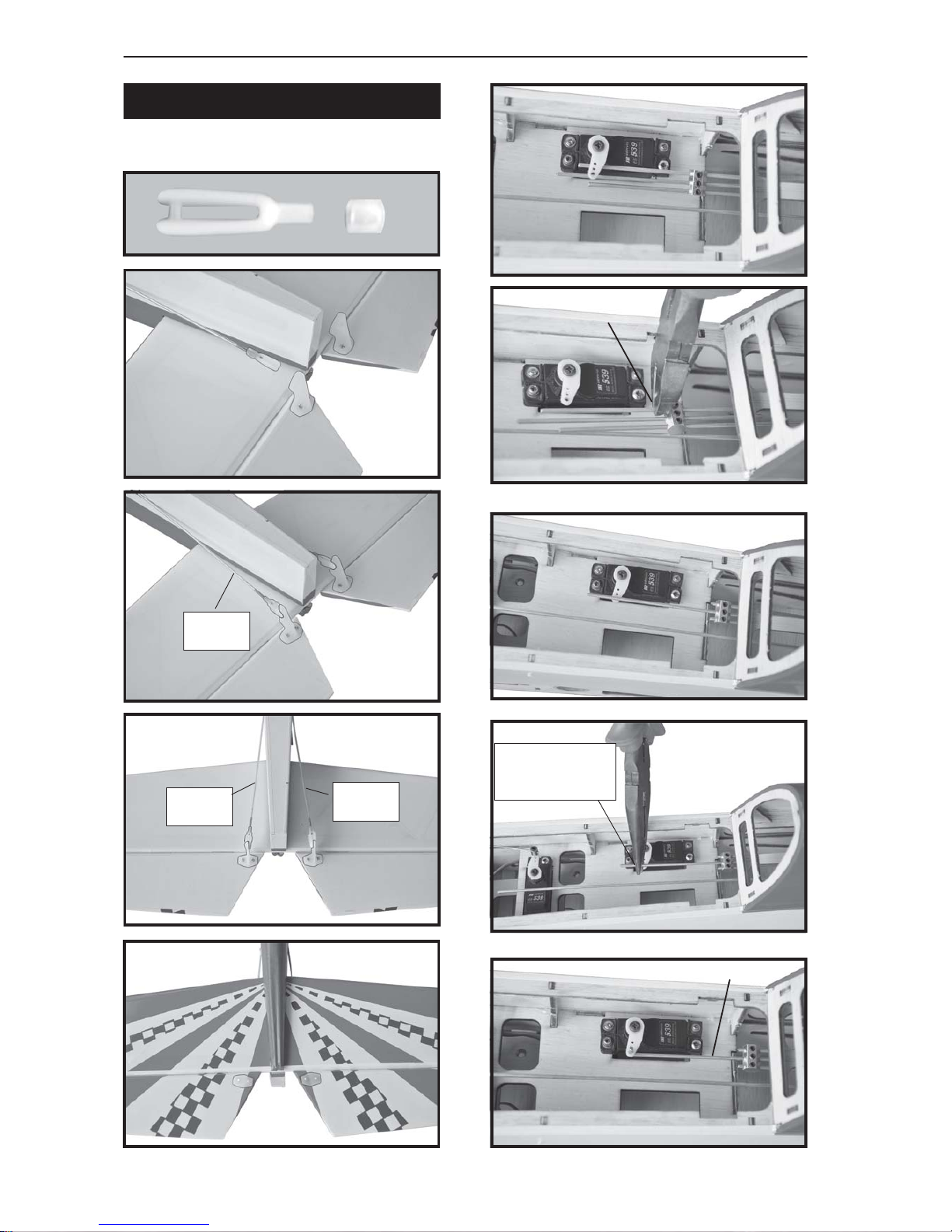

Cut.
Elevator pushrod.
Elevator servo.
Elevator servo.
Bend and cut
after.
 Elevatorpushrod installassame asthe way
of aileron pushrod.
ELEVATOR PUSHROD INSTALLATION.
Bottom side.
Elevator
pushrod.
Elevator
pushrod.
Elevator
pushrod.
Top side.

19
SUPER AIR- Item code BH05-A. Instruction Manual
Rudder servo install as same as method of
elevator servo. See picture below:
Rudder servo.
Rudder servo.
RUDDER SERVO INSTALLATION.
Secure.
VERTICAL INSTALLATION.
See picture below:
Hinge.
Cutthecovering
awayfromtheslot.
Temporary pin to
keep hinge centered.
Assemble then apply drops of thin
C/A to center of hinge,on both sides.

20
SUPER AIR- Item code BH05-A. Instruction Manual
3. Markthe shape ofthe vertical onthe left
and right side on the rudder using a felt-tip
pen.
2. Slide the rudder into the fuselage as
same as picture below.
Remove
covering.
1) Using a modeling knife, remove the
covering from the top of the fuselage and the
covering from over the precut hinge slot cut
intothelower rearportion of thefuselage This
slot accepts the lower vertical.
4. Now, remove the rudder and using a
modeling knife, carefully cut just inside the
marked lines and remove the film of the rud-
der. Just as you did with the horizontal stabi-
lizer, make sure you only press hard enough
to cut the film, not the balsa rudder.
5. Put the vertical stabilizer back in
place. Using a triangle, check to ensure
that the vertical stabilizer is aligned 90 de-
gree to the horizontal stabilizer.
90º
Vertical
Stabilizer.
Horizontal
Stabilizer.
6) When you are sure that everything is a
aligned correctly, mix up a generous amount
of 30 minute epoxy. Apply a thin layer to the
slot in the mounting platform and to the verti-
cal stabilizer mounting area. Apply epoxy to
the lower rudder hinge. Set the stabilizer in
place and re-align. Double check all of your
measurements once more before the epoxy
cures. Remove any excess epoxy using a
paper towel and rubbing alcohol and hold the
stabilizerinplacewithT-pins ormasking tape.
Allow the epoxy to fully cure before proceed-
ing.
