Blackbird 14548 User manual

PN 14548 USER’S MANUAL
18Gbps 1x16 HDMI®Splitter
with 3D Support

2
SAFETY WARNINGS AND GUIDELINES
Please read this entire manual before using this device, paying extra
attention to these safety warnings and guidelines. Please keep this
manual in a safe place for future reference.
•This device is intended for indoor use only.
•Do not expose this device to water or moisture of any kind. Do
not place drinks or other containers with moisture on or near
the device. If moisture does get in or on the device,
immediately remove it from its power source and allow it to
fully dry before reapplying power.
•Do not touch the device, the power cord, or any other
connected cables with wet hands.
•Do not expose this device to excessive vibration, extreme
force, shock, or fluctuations in temperature or humidity.
•Do not expose this device to excessively high temperatures. Do
not place it in, on, or near a heat source, such as a fireplace,
stove, radiator, etc. Do not leave it in direct sunlight.
•Do not place or install this device in an area where it can be
exposed to excessive amounts of dust, humidity, oil, smoke, or
combustible vapors.
•Prior to operation, check the unit and power cord for physical
damage. Do not use if physical damage has occurred.

3
•Before plugging the unit into a power outlet, ensure that the
outlet provides the same type and level of power required by
the device.
•Unplug this device from the power source when not in use.
•Take care to prevent damage to the power cord. Do not allow
it to become crimped, pinched, walked on, or become tangled
with other cords. Ensure that the power cord does not present
a tripping hazard.
•Never unplug the unit by pulling on the power cord. Always
grasp the connector head or adapter body.
•Ensure that power is turned off and disconnected before
making any electrical connections.
•The remote control uses a Lithium battery. Dispose of it only in
accordance with local, state, or federal regulations for
electronic waste.
•Clean using a soft, dry cloth only. Do not use chemical cleaners,
solvents, or detergents. For stubborn deposits, moisten the
cloth with warm water.
•This device has no user serviceable parts. Do not attempt to
open, service, or modify this device.

4
INTRODUCTION
This Blackbird™ 18Gbps 1x16 HDMI® Splitter allows you to distribute a
single HDMI video source to up to 16 displays. It supports video
resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space. It
supports HDR, HDR10, HDR10+, HLG, and Dolby Vision™ passthrough.
A bank of 5 DIP switches allows you to set the EDID® for use by the
video source device.
FEATURES
•Complies with the HDMI® 2.0b, HDCP™ 2.2/1.x, and DVI™ 1.0
specifications
•Delivers up to 18Gbps video bandwidth
•Supports resolutions up to 4K@60Hz with the YCbCr 4:4:4
color space
•Supports HDR, HDR10, HDR10+, HLG, and Dolby Vision™
passthrough
•Supports high definition, multichannel audio, including LPCM
7.1, Dolby TrueHD™, and DTS-HD Master Audio™
•Features a bank of 5 DIP switches for advanced EDID®
management

5
CUSTOMER SERVICE
The Monoprice Customer Service department is dedicated to
ensuring that your ordering, purchasing, and delivery experience is
second to none. If you have any problem with your order, please give
us an opportunity to make it right. You can contact a Monoprice
Customer Service representative through the Live Chat link on our
website www.monoprice.com or via email at
[e-mail]. Check the website for support times and
links.
PACKAGE CONTENTS
Please take an inventory of the package contents to ensure you have
all the items listed below. If anything is missing or damaged, please
contact Monoprice Customer Service for a replacement.
1x Blackbird™ 18Gbps 1x16 HDMI® Splitter
1x AC Power Adapter (12 VDC, 2.5A)
1x User's Manual

6
PRODUCT OVERVIEW
Front Panel
1. POWER SWITCH: Use the POWER SWITCH to turn the splitter
on or off.
2. POWER LED: The LED illuminates when power is applied.
3. IN LED: The LED illuminates green when there is a valid video
signal on the IN port.
4. OUT LEDS: The LEDs illuminate green when an active display is
connected to the corresponding OUT port.
Rear Panel
5. IN: HDMI® port for connecting the video source device.
6. OUT: 16 HDMI ports for connecting up to 16 displays.

7
7. DC 12V: DC barrel connector for connecting the included AC
power adapter.
Side Panel
8. EDID: Bank of 5 DIP switches for the setting the EDID® for use
by the video source device. Refer to the EDID SETTING section
for more details.
9. SERVICE: Micro USB port for connecting a computer for
performing a firmware update, in the event that updated
firmware is available.

8

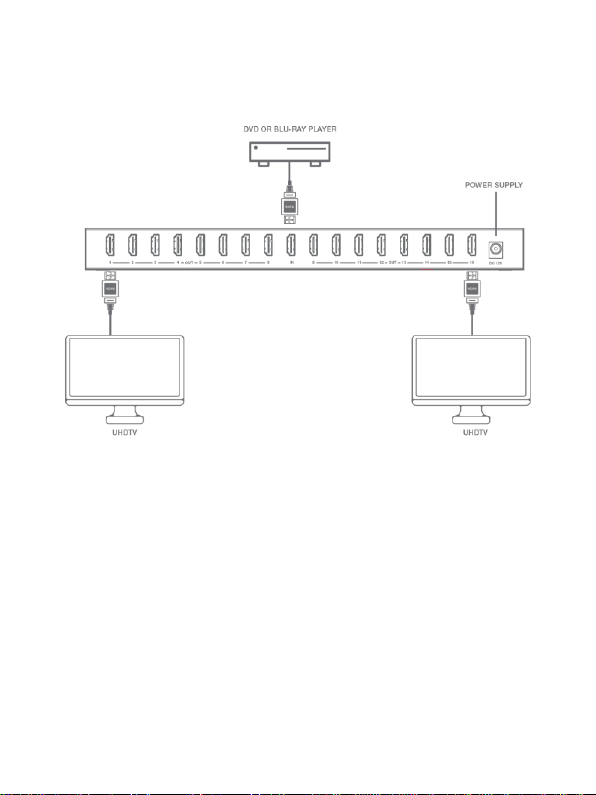

SAMPLE CONNECTION DIAGRAM

9
EDID SETTING
Use the information in the following table to determine the DIP
switch settings for the desired EDID®. You should choose an EDID in
which all the settings are supported by all the displays. Note that
when setting the DIP switches, the switch is on (1) when it is up and
off (0) when it is down.
DIP Switches
Video/Audio Settings
11111
1080p, Stereo Audio 2.0
11110
1080p, Dolby®/DTS® 5.1
11101
1080p, HD Audio 7.1
11100
1080i, Stereo Audio 2.0
11011
1080i, Dolby®/DTS® 5.1
11010
1080i, HD Audio 7.1
11001
1080p 3D, Stereo Audio 2.0
11000
1080p 3D, Dolby®/DTS® 5.1
10111
1080p 3D, HD Audio 7.1
10110
4K@30Hz 4:4:4, Stereo Audio 2.0
10101
4K@30Hz 4:4:4, Dolby/DTS 5.1
10100
4K@30Hz 4:4:4, HD Audio 7.1

10
DIP Switches
Video/Audio Settings
10011
4K@60Hz 4:2:0, Stereo Audio 2.0
10010
4K@60Hz 4:2:0, Dolby/DTS 5.1
10001
4K@60Hz 4:2:0, HD Audio 7.1
10000
4K@60Hz 4:4:4, Stereo Audio 2.0
01111
4K@60Hz 4:4:4, Dolby/DTS 5.1
01110
4K@60Hz 4:4:4, HD Audio 7.1
01101
4K@60Hz 4:4:4, Stereo Audio 2.0 HDR
01100
4K@60Hz 4:4:4, Dolby/DTS 5.1 HDR
01011
4K@60Hz 4:4:4, HD Audio 7.1 HDR
01010
Copy Output 1
01001
1080p, Stereo Audio 2.0
01000
1080p, Stereo Audio 2.0
00111
1080p, Stereo Audio 2.0
00110
1080p, Stereo Audio 2.0
00101
1080p, Stereo Audio 2.0
00100
1080p, Stereo Audio 2.0
00011
1080p, Stereo Audio 2.0

11
DIP Switches
Video/Audio Settings
00010
1080p, Stereo Audio 2.0
00001
1080p, Stereo Audio 2.0
00000
PC control mode
TECHNICAL SUPPORT
Monoprice is pleased to provide free, live, online technical support to
assist you with any questions you may have about installation, setup,
troubleshooting, or product recommendations. If you ever need
assistance with your new product, please come online to talk to one
of our friendly and knowledgeable Tech Support Associates. Technical
support is available through the online chat button on our website
www.monoprice.com or through email by sending a message to
[e-mail]. Check the website for support times and links.
To download the latest drivers, firmware, manuals, etc., go to
www.monoprice.com and type the P/N into the search bar. If
available, support files are linked at the bottom of the product page.

12
SPECIFICATIONS
P/N
14548
Inputs
1x HDMI®
Outputs
16x HDMI
HDMI Version
2.0b
HDCP™ Version
2.2/1.x
Maximum Video Resolution
4K@60Hz
Video Bandwidth
18Gbps
Supported Color Spaces
RGB, YCbCr 4:4:4/4:2:2/4:2:0
Supported Color Depths
1080p@60Hz: 8-bit, 10-bit,
12-bit
4K@60Hz YCbCr 4:4:4: 8-bit
4K@60Hz YCbCr 4:2:2/4:2:0:
8-bit, 10-bit, 12-bit
Supported HDMI Audio
Formats
LPCM 7.1, Dolby TrueHD™,
DTS-HD Master Audio™,
Dolby® 5.1, DTS® 5.1
High Dynamic Range (HDR)
Support
HDR, HDR10, HDR10+, HLG,
Dolby Vision™

13
Input Power
12 VDC, 2.5A
AC Adapter Input Power
100 ~ 240 VAC, 50/60 Hz
Maximum Power Consumption
12 watts
Operating Temperature
+32 ~ +104°F (0 ~ +40°C)
Storage Temperature
-4 ~ +140°F (-20 ~ +60°C)
Operating Humidity
20 ~ 90% RH, noncondensing
Dimensions
11.8" x 3.9" x 1.1"
(300 x 100 x 28 mm)
Weight
31.7 oz. (900g)
REGULATORY COMPLIANCE
Notice for FCC
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

14
Modifying the equipment without Monoprice's authorization may
result in the equipment no longer complying with FCC requirements
for Class B digital devices. In that event, your right to use the
equipment may be limited by FCC regulations, and you may be
required to correct any interference to radio or television
communications at your own expense.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

15
•Consult the dealer or an experienced radio/TV technician for
help.
Notice for Industry Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-
003 du Canada.
Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are
trademarks of Monoprice Inc.
HDMI®, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United States
and other countries.
Dolby®, Dolby® TrueHD™, Dolby Vision™, Dolby Audio™, and the double-D
symbol are trademarks of Dolby Laboratories.
DTS®, the Symbol, and DTS and the Symbol together are registered trademarks
of DTS, Inc. DTS-HD™ and DTS-HD Master Audio™ are trademarks of DTS, Inc.
EDID® is a registered trademark of the Video Electronics Standards Association.
HDCP™ is a trademark of Digital Content Protection LLC.
DVI™ is a trademark of the Digital Display Working Group.
Blu-ray Disc™, Blu-ray™, and the logos are trademarks of the Blu-ray Disc
Association.
