Important safety information
For user safety and to avoid property damage, read through this manual and follow
these safety instructions to use the product correctly.
yDo not disassemble, repair, or modify the product yourself.
Doing so may cause re, electric shock, or malfunction. For internal inspection and
repair, contact the service center.
yDo not adjust the product while driving.
Doing so may cause an accident. Stop or park your car in a safe place before
installing and setting up the product.
yDo not operate the product with wet hands.
Doing so may cause electric shock.
yIf any foreign matter gets inside the product, detach the power cord immediately.
Contact the service center for repair.
yDo not cover the product with any material.
Doing so may cause external deformation of the product or re. Use the product
and peripherals in a well-ventilated location.
yIf the product is used outside the optimal temperature range (-20°C - 70°C /
-4°F - 158°F), performance can decline or malfunctions may occur.
yWhen entering or exiting a tunnel, when directly facing into bright sunlight, or when
recording at night without lighting the quality of recorded video may deteriorate.
yIf the product is damaged or the power supply is cut due to an accident, video may
not be recorded.
yDo not remove the microSD card while the microSD card is saving or reading data.
yThe data can be damaged or malfunctions may occur.
DR750S-2CH 3

FCC Compliance Information
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protections against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment o and on, the user is encouraged
to ty to correct the interference by one or more of the following measures.
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit dierent from that to which the
receiver is connected.
yConsult the dealer or an experienced radio, TV technician for help.
yOnly shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly
approved by the grantee or manufacture could void the user’s authority to operate
such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation of this device.
FCC ID: YCK-DR750S-2CH
4BLACKVUE

CAUTION
Any changed or modications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
There is a risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
CE WARNING
yChanges and modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
yIt is desirable that it be installed and operated with at least 20cm or more between
the radiator and a person’s body (excluding extremities: hand, wrists, feet, and
ankles).
DR750S-2CH 5

Disposal of your BlackVue dashcam
1. All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated
collection facilities appointed by the government or the local
authorities. Contact local authorities to learn about disposal and
recycling options available in your area.
2. The correct disposal of your BlackVue dashcam will help prevent
potential negative consequences for the environment and human
health.
3. For more detailed information about disposal of your BlackVue
dashcam, please contact your city oce, waste disposal service or
the shop where you purchased the product.
6BLACKVUE

DR750S-2CH 7
In the box

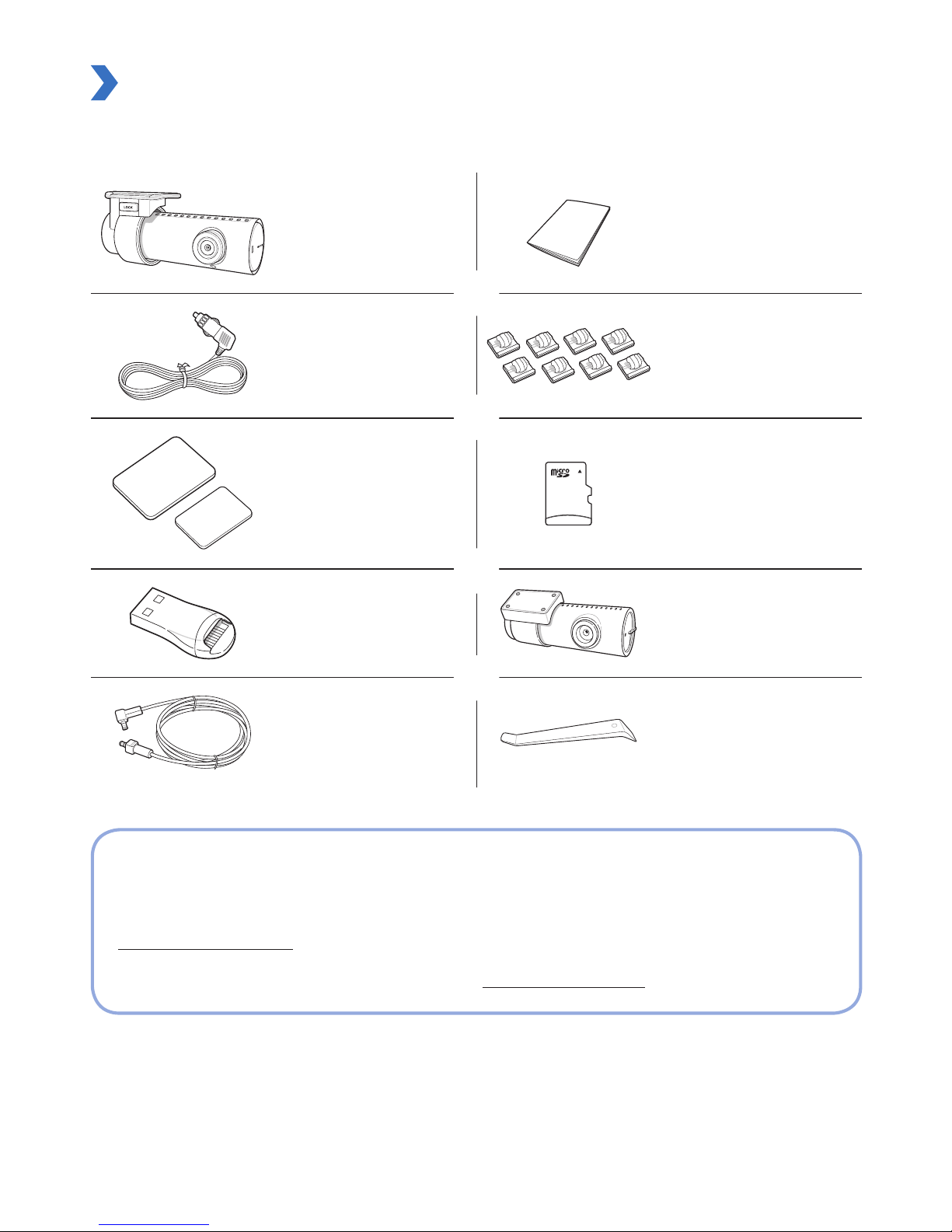

Check the box for each of the following items before installing the BlackVue dashcam.
Front camera Quick start guide
Power cord Cable clips (8 EA)
Double-sided tape
for the Mounting
Brackets
microSD Card
microSD card reader Rear camera
Rear camera
connection cable Pry tool
Need help?
Download the manual (including FAQs) and the latest rmware from
www.blackvue.com
Or contact a Customer Support expert at [email protected]

8BLACKVUE
At a glance
The following diagrams explain each part of the BlackVue dashcam.

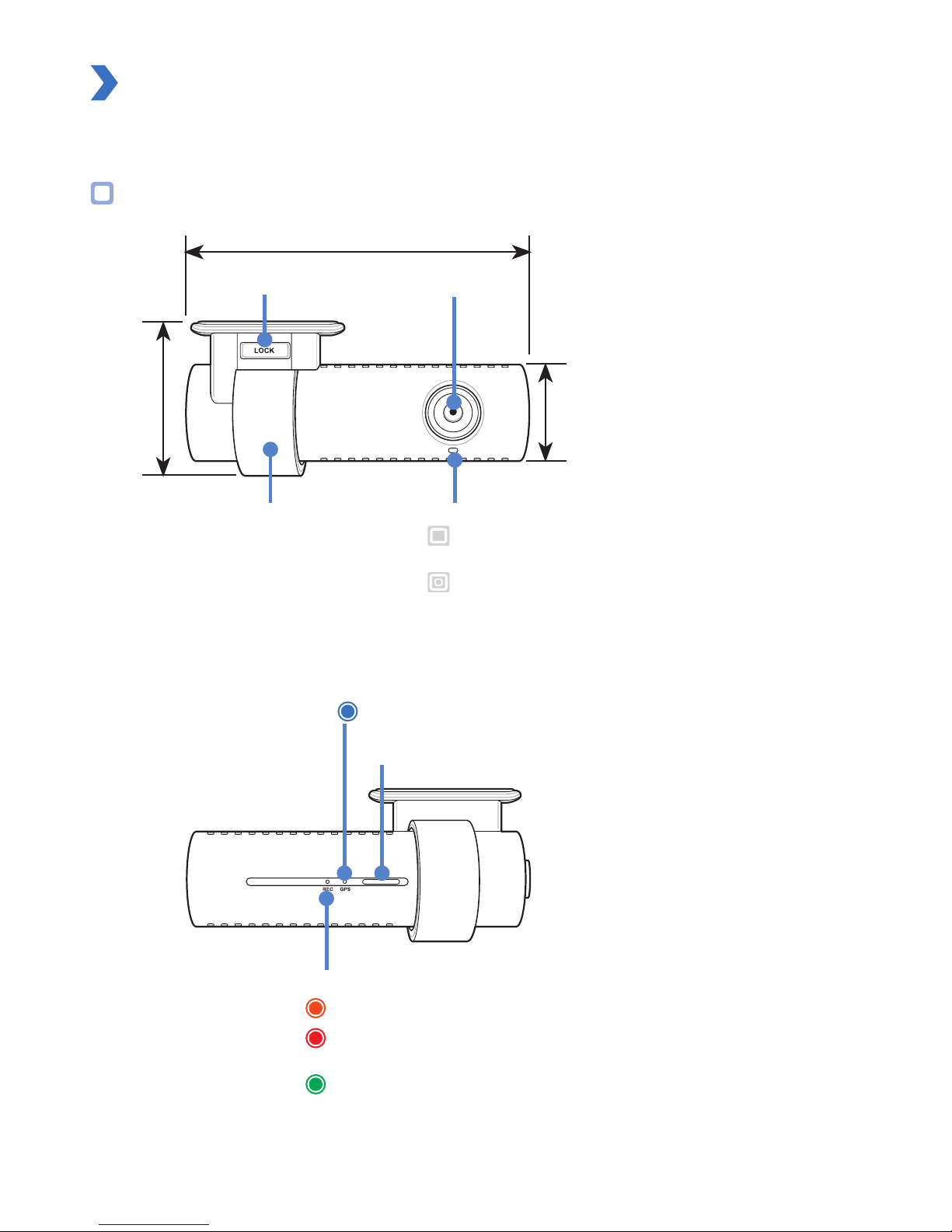

Front camera
36 mm
Camera lens
Mounting bracket Front security LED
: Blinks slowly during normal mode and parking
mode motion detection standby.
: Blinks quickly when (i) an event is being recorded
(impact detected), (ii) manual recording has started,
or (iii) motion is detected in parking mode.
Lock button
55 mm
118.5 mm
GPS LED
: GPS is on
Recording LED
: Blinks orange in normal mode.
: Blinks red when (i) an event is being recorded (impact
detected), or (ii) manual recording has started.
: Blinks green in parking mode when motion is detected.
Speaker

DR750S-2CH 9
Connectivity details label:
- Default Wi-Fi SSID
- Default Wi-Fi password
- Cloud code
- QR code
Serial number label
Proximity Sensor:
Touch or wave a nger within 20mm of the
sensor to turn on/o audio recording.
Alternatively, it can be set as a manual
recording trigger in the rmware settings.
Wi-Fi/Internet LED
: Direct Wi-Fi is on.
: Blinks when connected to the internet
(Cloud connected).

10 BLACKVUE
Wi-Fi / Format button:
- Press once to turn on/o Wi-Fi.
- Press and hold for 5 seconds and once voice instructions
start, release the button. Then press once again to
reset the Wi-Fi SSID and password or press and hold for
5seconds to format the microSD card.
Cover
DC in
(power connector)
microSD card slot
Rear camera connection port
Rear camera
Rear security LED
: Stays on in all
recordings modes but
can be turned o from
rmware settings.
V out
(Front camera
connection port)
Mounting bracket Camera lens
31 mm
67.4 mm
25 mm

DR750S-2CH 11
STEP 1 Install and power up
Install the front camera behind the rear view mirror. Install the rear camera at the top
of the back windshield. Remove any foreign matter and clean and dry the windshield
before installation.
Warning
yDo not install the product in a location where it can obstruct the driver's eld
of vision.
Turn o the engine. Open the cover of the microSD card slot, gently push the
card into the slot until it locks into place and close the cover.
Peel off the protective film from the double-sided tape and attach the front
camera to the windshield behind the rear-view mirror.

12 BLACKVUE

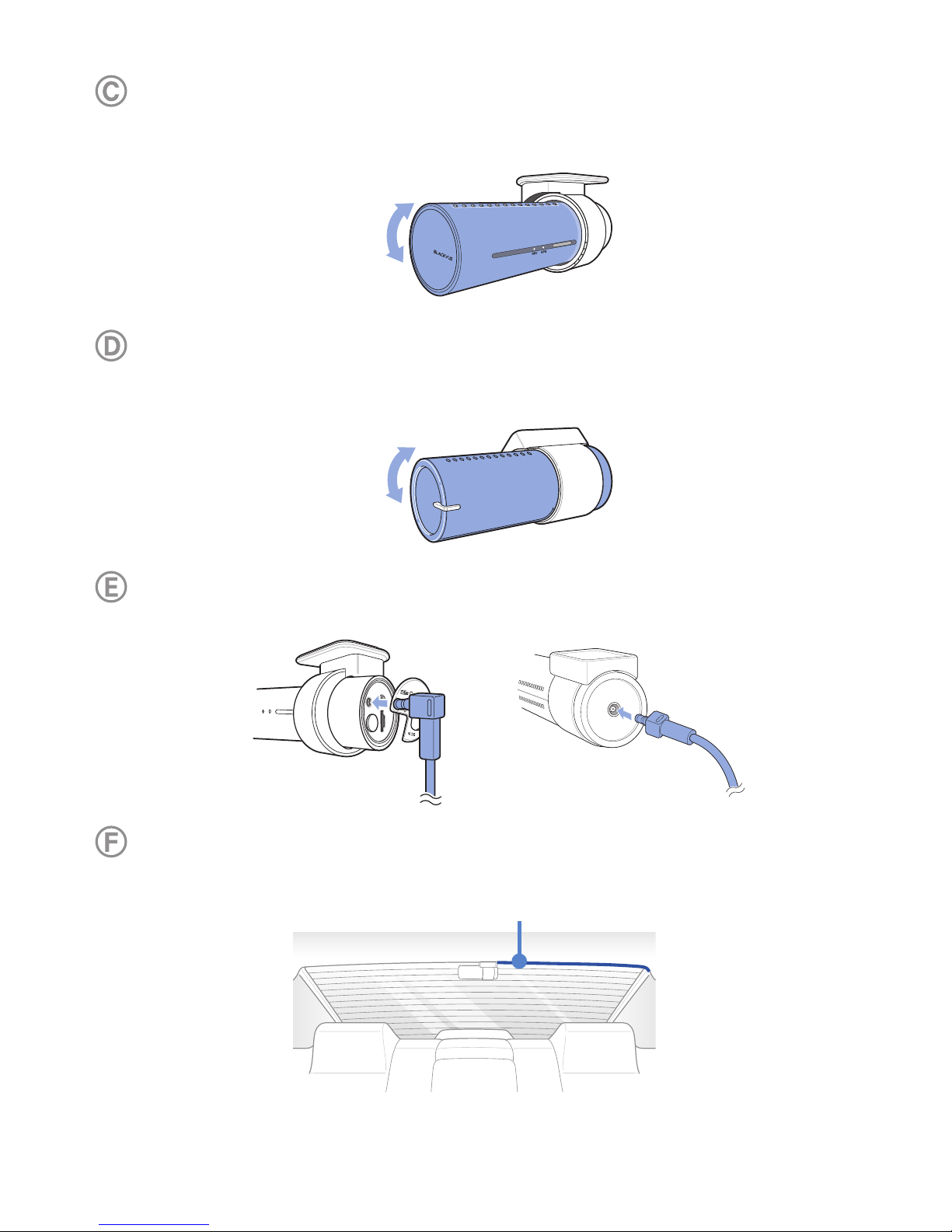

Adjust the angle of the lens by rotating the body of the front camera. We
recommend pointing the lens slightly downwards (≈10° below horizontal), so as
to record video with a 6:4 road to background ratio.
Peel off the protective film from the double-sided tape and attach the rear
camera to the rear windshield. Adjust the angle of the lens by rotating the body
of the rear camera.
Connect the front camera ('Rear' port) and the rear camera ('V out') using the rear
camera connection cable.
Use the pry tool to lift the edges of the rubber window sealing and molding and
tuck in the rear camera connection cable.
Rear camera connection cable

DR750S-2CH 13
Plug the power cord into the cigarette lighter socket and the front camera.
Use the pry tool to lift the edges of the windshield trim/molding and tuck in the
power cord.
Power cordRear camera connection cable
Turn on the engine. The BlackVue dashcam will power up and start recording.
Video les are stored on the microSD card.
Turn o the engine. The dashcam will automatically stop recording and power
down. To record in parking mode while the engine is o please install a Power
Magic Battery Pack (sold separately) or a Power Magic Pro (sold separately). A
Power Magic Pro powers your dashcam when the engine is o by hardwiring it
to the automotive battery. A low voltage power cut-o function and a parking
mode timer protect the automotive battery from discharge.
Note
yWhen you run the dashcam for the first time the firmware is automatically
loaded onto the microSD card. After the firmware has been loaded onto
the microSD card you can customize settings using BlackVue Viewer on a
computer.

14 BLACKVUE
STEP 2 Playback
Playing video les on your smartphone (Android/iOS)
Search for the BlackVue app in the Google Play Store or Apple App Store and
install it on your smartphone.

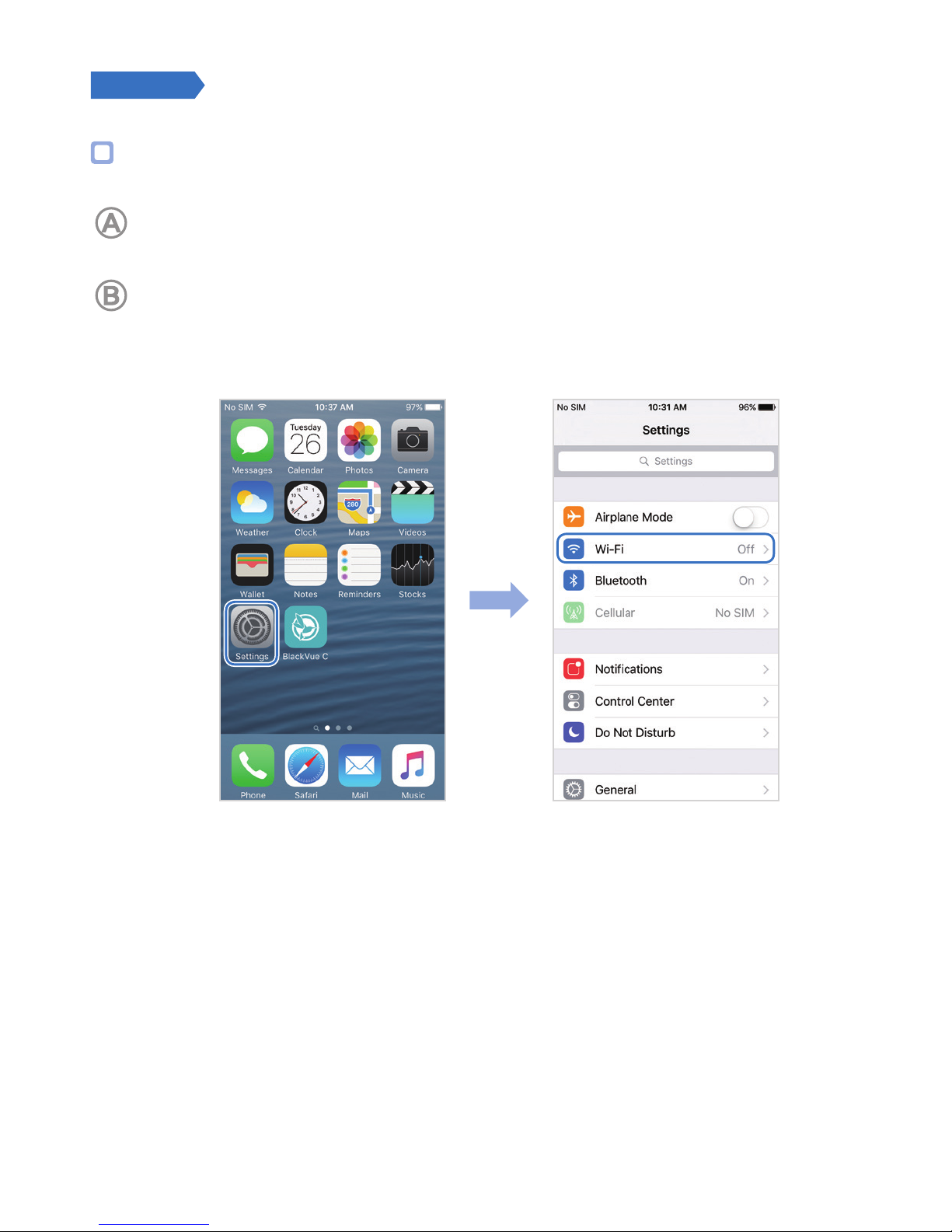

“Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi:
(i) Go to your smartphone’s Settings then select Wi-Fi, and make sure Wi-Fi is
turned on.
(ii) Choose your BlackVue dashcam from the network list. The dashcam’s default
SSID begins with its model number (e.g. BlackVue750S-******).
(iii) Enter the password and tap join.
* To find the default Wi-Fi password, unplug the cables and remove the
front camera from its mount. The default Wi-Fi SSID, password and cloud
code are printed on the dashcam's connectivity details label.
(iv) Open the BlackVue app and select BLACKVUE WI-FI.

DR750S-2CH 15

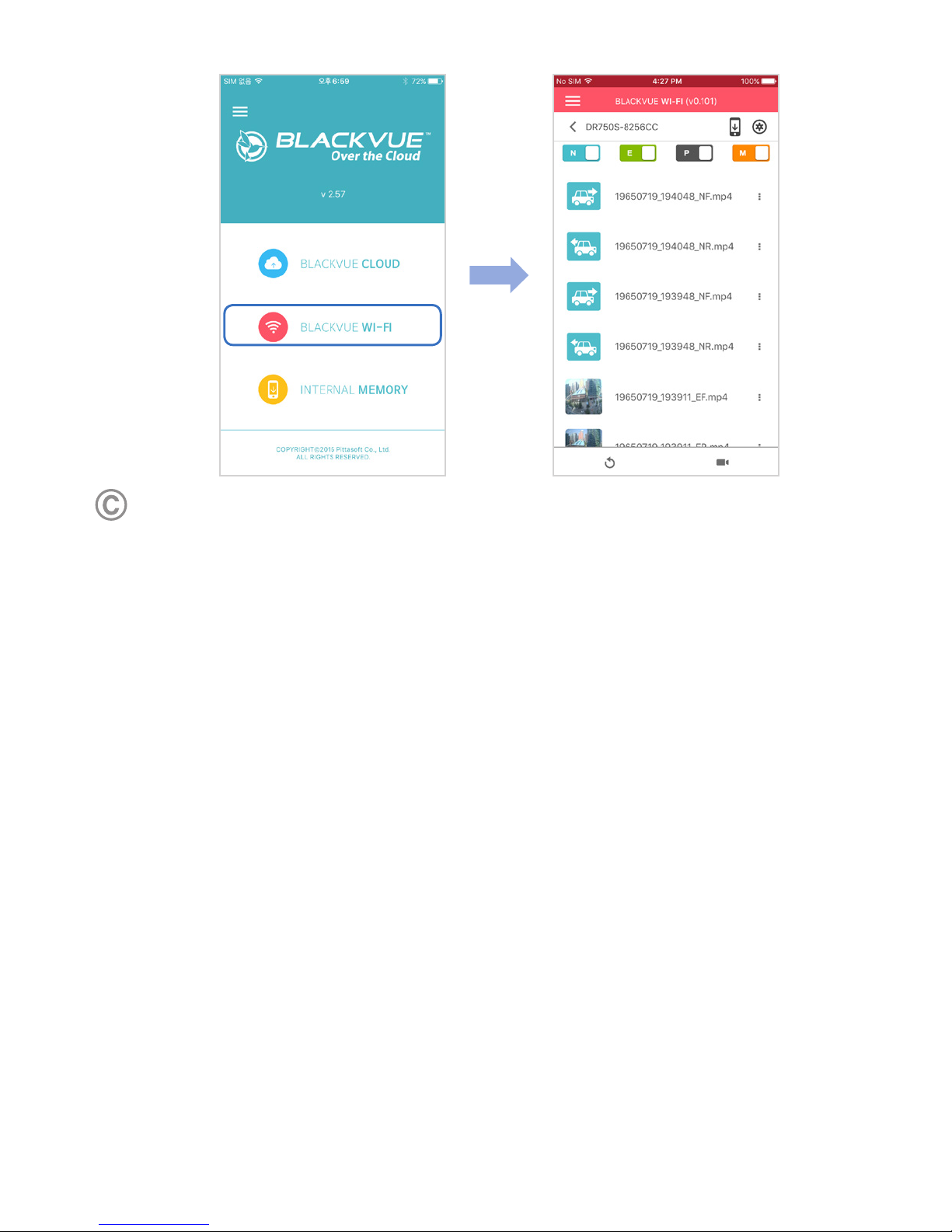

Select the video le you want to play from the video list.

16 BLACKVUE
Playing video les on your computer (Windows/Mac)

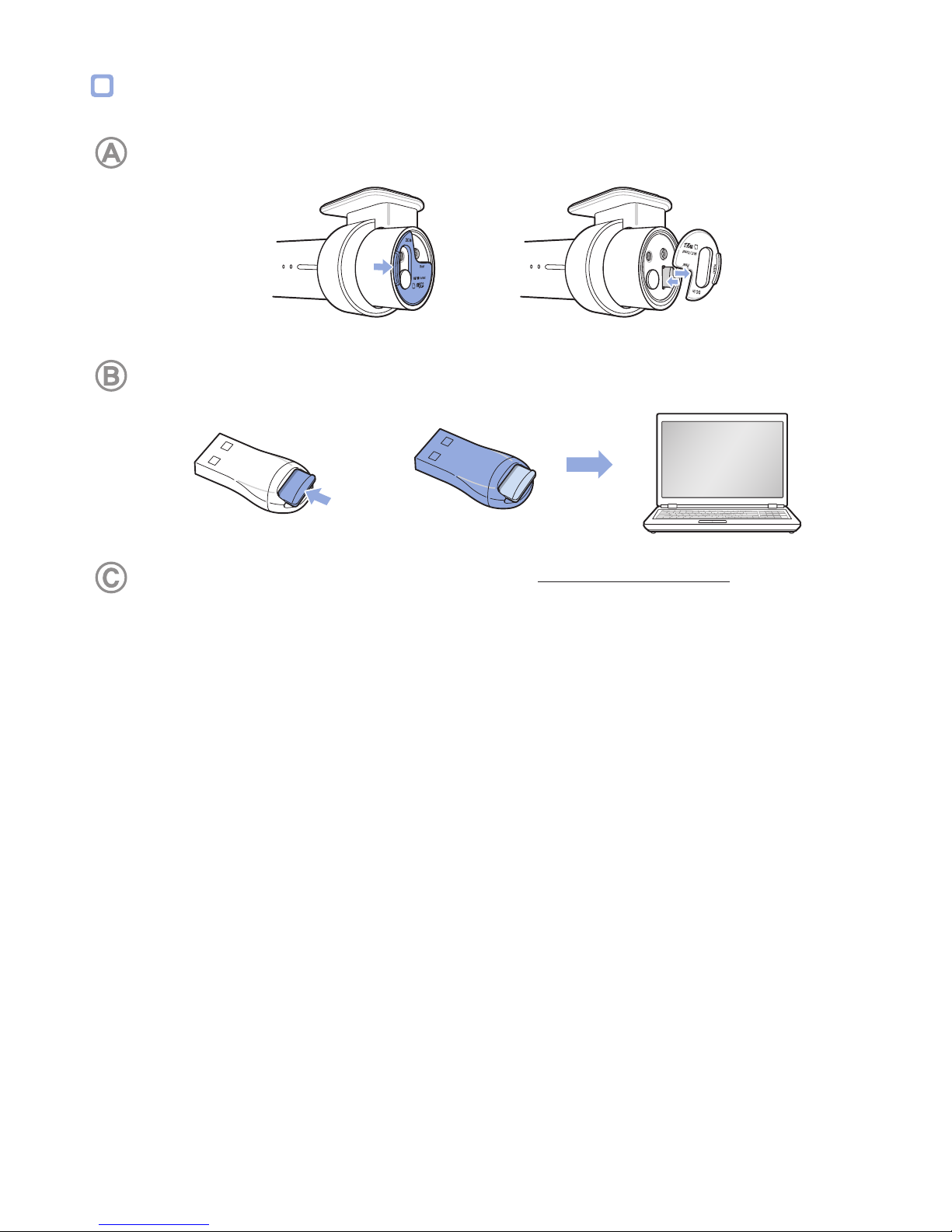

Remove the microSD card from the dashcam.
Open side cover To remove
Insert the card into the microSD card reader and connect it to a computer.
Download BlackVue Viewer program from www.blackvue.com > Support >
Downloads and install it on your computer.

DR750S-2CH 17
Run BlackVue Viewer. To play, select a video and click on the play button or
double click the selected video.
Windows Viewer
Mac Viewer

18 BLACKVUE
STEP 3 Changing dashcam's time zone, Wi-Fi password and
other settings.
The dashcam's time zone is initially set to (GMT-11). To display the correct time please
select your time zone.
Using your smartphone (Android/iOS)
“Pair” your smartphone with the BlackVue dashcam via direct Wi-Fi (for details see
STEP 2 ‘Playing video les on your smartphone’)
Open the BlackVue app and select BLACKVUE WI-FI.

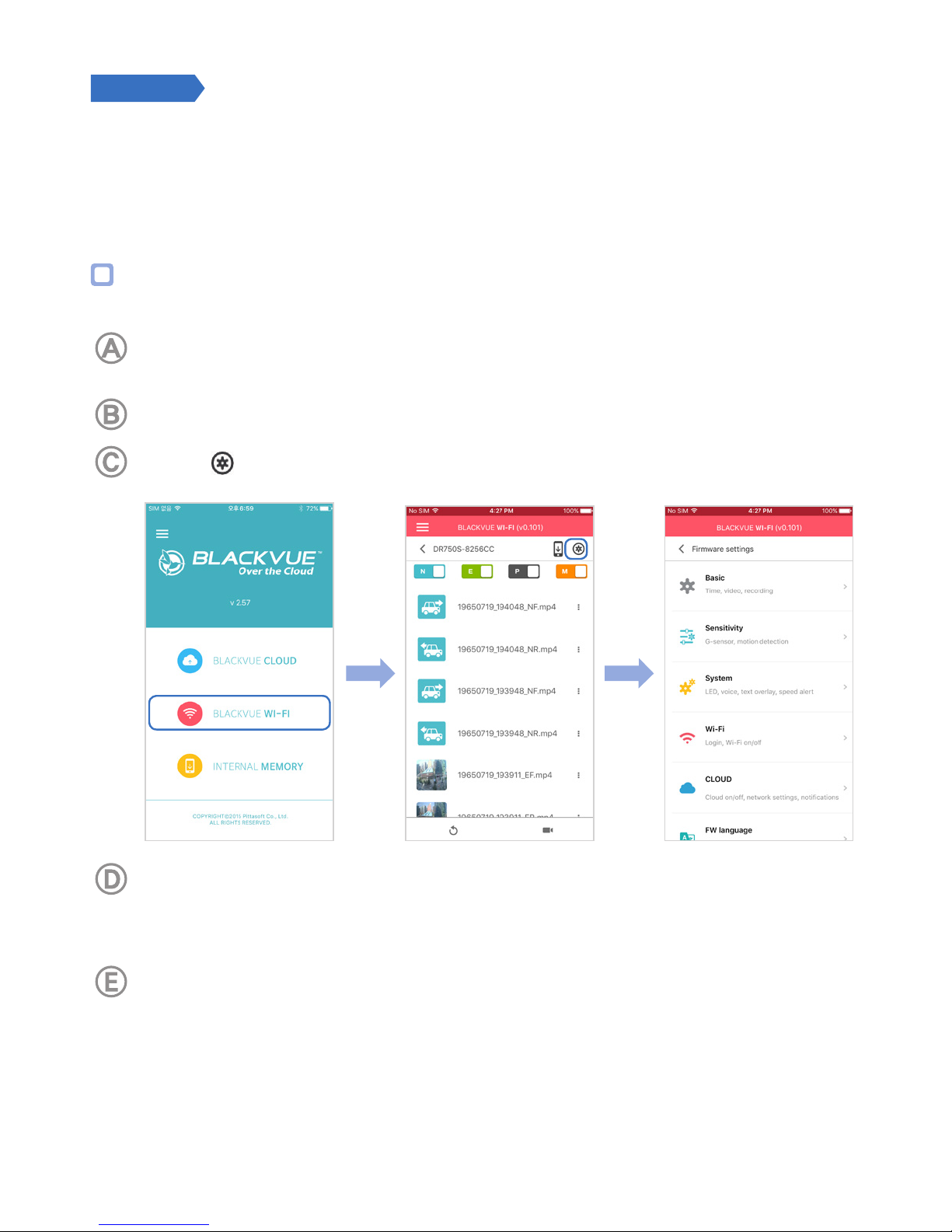

Tap the button to access the Firmware settings menu.
(i) Select Basic settings > Time.
(ii) Select your time zone to auto-sync with GPS time or you can set the time and
date manually after enabling Manual time setting.
Go back to the Firmware settings menu and select Wi-Fi > Login credentials, enter
desired Wi-Fi SSID and password and press OK.

DR750S-2CH 19

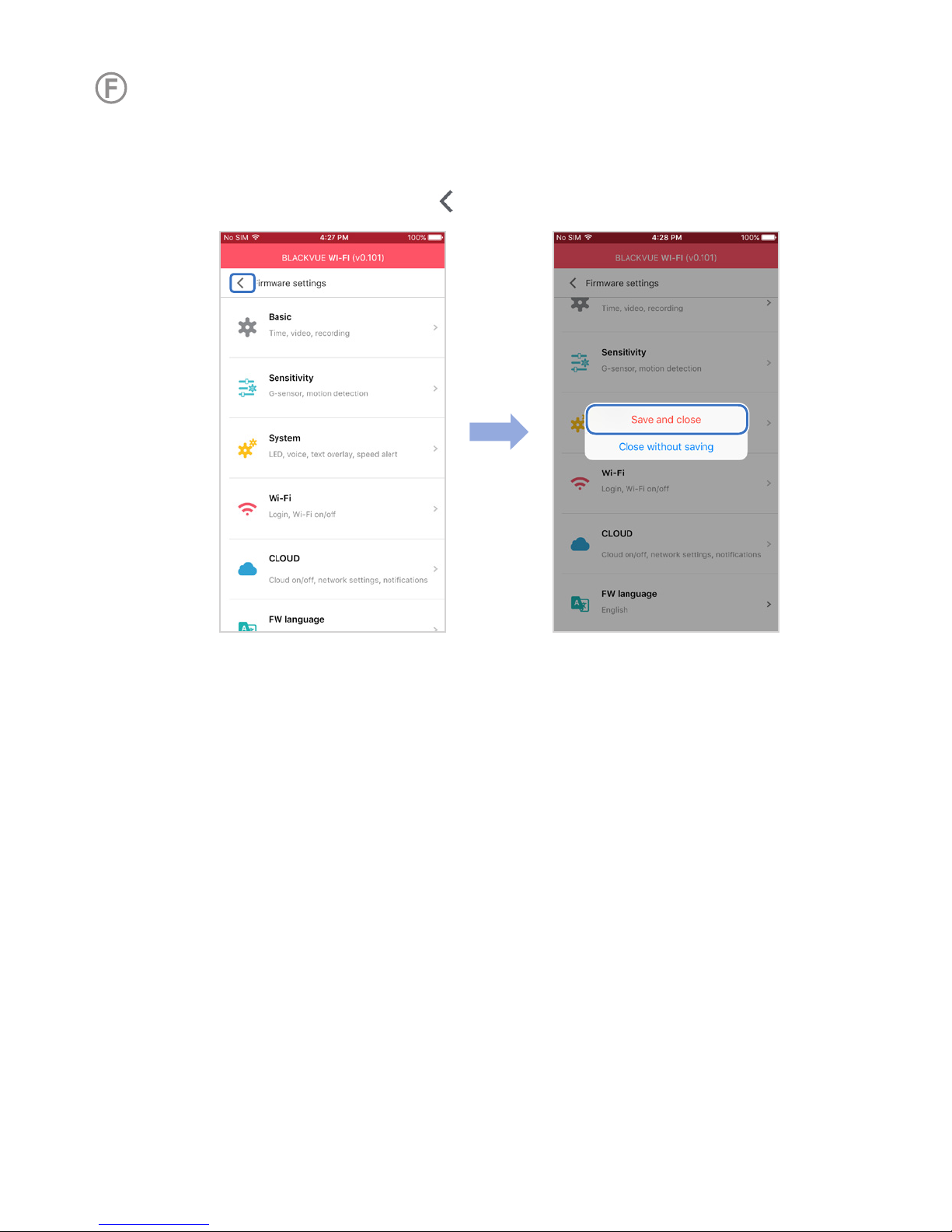

Go back to the Firmware settings menu and congure other desired settings.
Settings that can be changed include video resolution, image quality, video le
duration, sensitivity settings, voice recording on/o, speed unit (km/h,MPH, o ),
LEDs on/o, voice guidance volume, Cloud settings etc.
Once settings are congured, tap and tap Save and close.

20 BLACKVUE
Changing the dashcam's time zone and other firmware settings on
your computer (Windows/Mac)

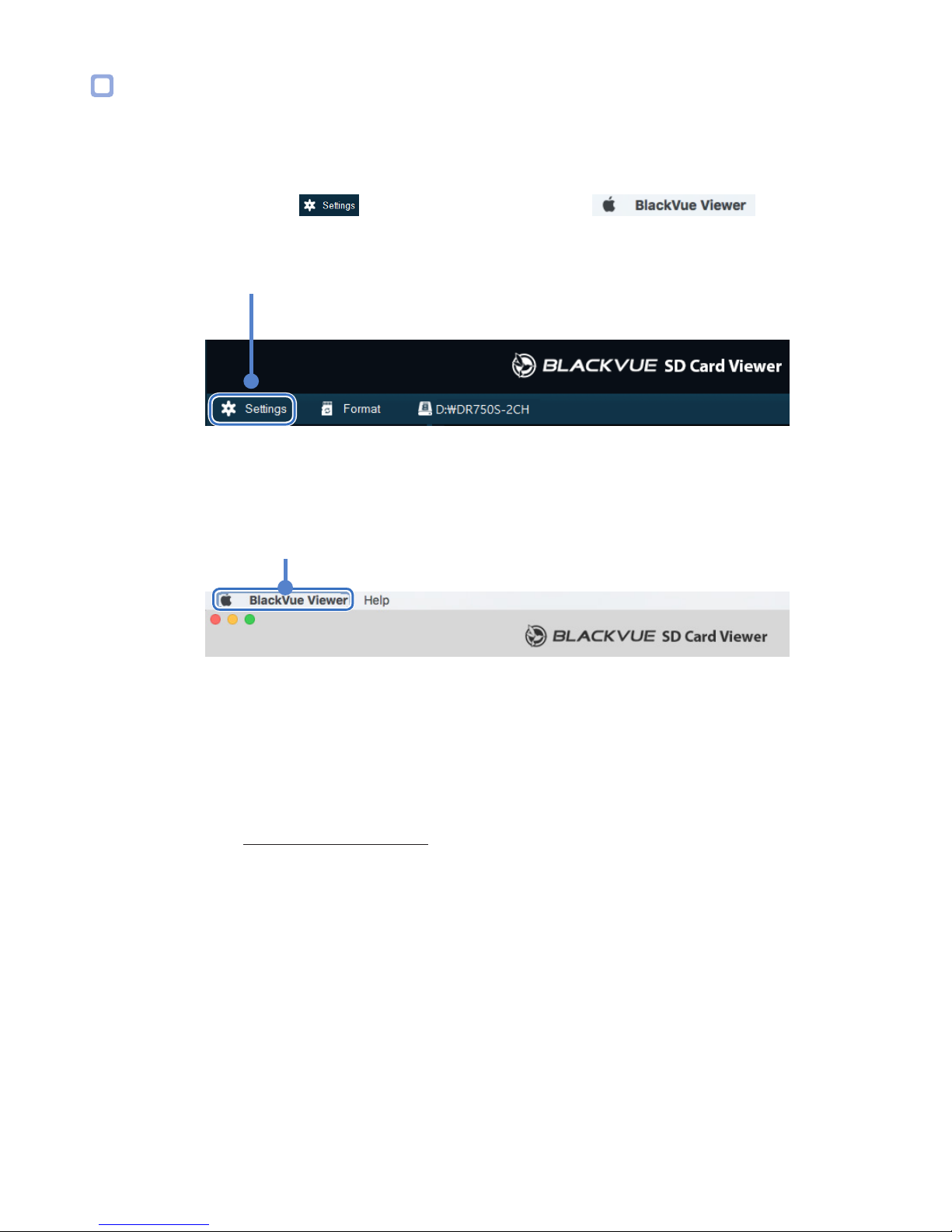

Run BlackVue Viewer program after connecting dashcam's microSD card to your
computer. Click on the button (Windows) or the menu (mac
OS) to open the BlackVue settings panel.
Windows Viewer
Settings
Mac Viewer
Settings
Settings that can be changed include Wi-Fi password, video resolution, image quality,
video le duration, sensitivity settings, voice recording on/o, speed unit (km/h,MPH,
o), LEDs on/o, voice guidance volume, Cloud settings etc.
For more information about changing the settings in BlackVue Viewer, please download
the manual from www.blackvue.com > Support > Downloads.
