Important safety information
For user safety and to avoid property damage, read through this manual and follow
these safety instructions to use the product correctly.
yDo not disassemble, repair, or modify the product yourself.
Doing so may cause fire, electric shock, or malfunction. For internal inspection and
repair, contact the service center.
yDo not adjust the product while driving.
Doing so may cause an accident. Stop or park your car in a safe place before installing
and setting up the product.
yDo not operate the product with wet hands.
Doing so may cause electric shock.
yIf any foreign matter gets inside the product, detach the power cord immediately.
Contact the service center for repair.
yDo not cover the product with any material.
Doing so may cause external deformation of the product or fire. Use the product
and peripherals in a well-ventilated location.
yIf the product is used outside the optimal temperature range, performance can decline
or malfunctions may occur.
yWhen entering or exiting a tunnel, when directly facing into bright sunlight, or when
recording at night without lighting the quality of recorded video may deteriorate.
yIf the product is damaged or the power supply is cut due to an accident, video may
not be recorded.
yDo not remove the microSD card while the microSD card is saving or reading data.
The data can be damaged or malfunctions may occur.

4BLACKVUE
FCC Compliance Information
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protections against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception
which can be determined by turning the equipment off and on, the user is encouraged
to ty to correct the interference by one or more of the following measures.
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment and receiver.
yConnect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
yConsult the dealer or an experienced radio, TV technician for help.
yOnly shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly
approved by the grantee or manufacturer could void the user’s authority to operate
such equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation of this device.
FCC ID: YCK-BV7LTE, YCK-DR970XLTE

DR770X-2CH LTE l DR970X-2CH LTE 5
CAUTION
Any changed or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
There is a risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
CE WARNING
yChanges and modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
yIt is desirable that it be installed and operated with at least 20cm or more between the
radiator and a person’s body (excluding extremities: hand, wrists, feet, and ankles).
Disposal of your BlackVue dashcam
1. All electrical and electronic products should be disposed of
separately from the municipal waste stream via designated
collection facilities appointed by the government or the local
authorities. Contact local authorities to learn about disposal and
recycling options available in your area.
2. The correct disposal of your BlackVue dashcam will help prevent
potential negative consequences for the environment and human
health.
3. For more detailed information about disposal of your BlackVue
dashcam, please contact your city office, waste disposal service or
the shop where you purchased the product.

6BLACKVUE
IC Compliance
This Class [B] digital apparatus complies with Canadian ICES-003.
This radio transmitter has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list,
having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
- IC Warning
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicable aux appreils
radio exempts de license.
L’exploitation est autoriséee aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l ’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, méme si
le brouillage est susceptible d’encompromettre le fonctionnement.

DR770X-2CH LTE l DR970X-2CH LTE 7
Declaration of Conformity
Product information
For the following
Product: radio equipment/ dashcam
Type: DR770X-2CH LTE | DR970X-2CH LTE
Declaration and applicable standards
Hereby, TJM Supplies B.V. declares that the type of radio equipment DR770X-2CH LTE |
DR970X-2CH LTE conforms to:
Directive EMC 2014/53/EU and the RoHS directive (2011/65/EU) on the restriction of
the use of certain hazardous substances in electronic equipment by applying EN 50581:
2012 and IEC 62321-3-1: 2013.
The full text of the EU declaration of conformity can be found at the following internet
address:
https://blackvue-nederland.nl/declaration-of-conformity/
Importer
Company: TJM Supplies B.V.
Address: Zompstraat 8
8102 HX Raalte
The Netherlands
Email: [email protected]
Phone number: [phone]
Business license number: 72016981
VAT number: NL858946439B01

8BLACKVUE
Verklaring van overeenstemming
Productgegevens
Voor het volgende
Product: radioapparatuur/ dashcam
Model(len): DR770X-2CH LTE | DR970X-2CH LTE
Verklaring en toepasselijke normen
Hierbij verklaart TJM Supplies B.V., dat het type radioapparatuur DR770X-2CH LTE |
DR970X-2CH LTE conform is met:
Richtlijn EMC 2014/53/EU en de RoHS richtlijn (2011/65/EU) betreffende beperking
van het gebruik van bepaalde gevaarlijke stoffen in elektronische apparatuur door
toepassing van EN 50581:2012 en IEC 62321-3-1:2013.
De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het
volgende internetadres:
https://blackvue-nederland.nl/declaration-of-conformity/
Importeur
Bedrijfsnaam: TJM Supplies B.V.
Adres: Zompstraat 8
8102 HX Raalte
Nederland
Email: [email protected]
Telefoon: [phone]
KVK nummer: 72016981
BTW nummer: NL858946439B01

DR770X-2CH LTE l DR970X-2CH LTE 9
In the box
Check the box for each of the following items before installing the BlackVue dashcam.
Front camera Rear camera
connection cable
Rear camera Cigarette lighter
power cable
Hardwiring power
cable Quick start guide
Double-sided tape
for the Mounting
Brackets
Cable clips (8 EA)
SIM eject tool microSD card reader
microSD card SIM card (optional)
Pry tool
Need help?
Download the manual (including FAQs) and the latest firmware from www.blackvue.com
Or contact a Customer Support expert at [e-mail]
ENGLISH ENGLISH

10 BLACKVUE
At a glance
The following diagrams explain each part of the BlackVue dashcam.
Front camera
B/W/L
GPS LED
: Lights blue when GPS is on.
: Blinks blue slowly when GPS is turning off.
B/W/L (Bluetooth, Wi-Fi, LTE) LED
: Lights yellow when LTE is connected.
: Lights white when Wi-Fi is connected.
: Blinks yellow quickly when Bluetooth is in
pairing mode.
: Blinks yellow slowly when Bluetooth is paired.
Recording LED
: Lights orange in normal mode.
: Lights red when (i) an event is being recorded (impact detected),
or (ii) manual recording has started.
: Lights green in parking mode when motion is detected.
Speaker
43 mm
Camera lens
Lock button
57.3 mm
137.6 mm
Mounting bracket Front security LED
: Lights on during (i) normal mode, (ii) an
event is being recorded (impact detected),
(iii) manual recording has started, or (iv)
motion is detected in parking mode.
: Blinks slowly during parking mode motion
detection standby.

DR770X-2CH LTE l DR970X-2CH LTE 11
Connectivity details label:
- Default Wi-Fi SSID
- Default Wi-Fi password
- Cloud code
- Serial number
- QR code
- IMEI number
SIM card slot
Touch sensor:
Press the sensor to trigger a manual recording.
* Touch sensor can be turned on/off in the firmware settings.
Cover
DC in (power connector)
microSD card slot
Rear camera connection port
ENGLISH ENGLISH

12 BLACKVUE
Rear camera
31 mm
25 mm
Mounting bracket Camera lens
67.4 mm
V out
Rear security LED
: Stays on in all
recording modes
but can be turned
off from firmware
settings.
V out
(Front camera
connection port)

DR770X-2CH LTE l DR970X-2CH LTE 13
STEP 1 Install and power up
Install the front camera behind the rear view mirror. Install the rear camera at the top
of the back windshield. Remove any foreign matter and clean and dry the windshield
before installation.
Note
yMake sure to peel the protective film off the front and rear camera. The cameras
could be damaged from overheating if the protective film is not removed.
Warning
yDo not install the product in a location where it can obstruct the driver's field
of vision.
Turn off the engine. Open the cover of the microSD card slot, gently push the
card into the slot until it locks into place and close the cover.
To insert the SIM card, remove the bracket from the front camera. Unmount the
SIM slot by using SIM eject tool. Insert the SIM card into the SIM card slot. Then,
Mount the SIM Slot back into the camera.
ENGLISH ENGLISH

14 BLACKVUE
Note
yBlackVue LTE series is only compatible with 4G LTE network.
yFor detailed information about activation of SIM card, please visit BlackVue Help
Center: https://helpcenter.blackvue.com -> SIM Activation Guide (LTE Series).

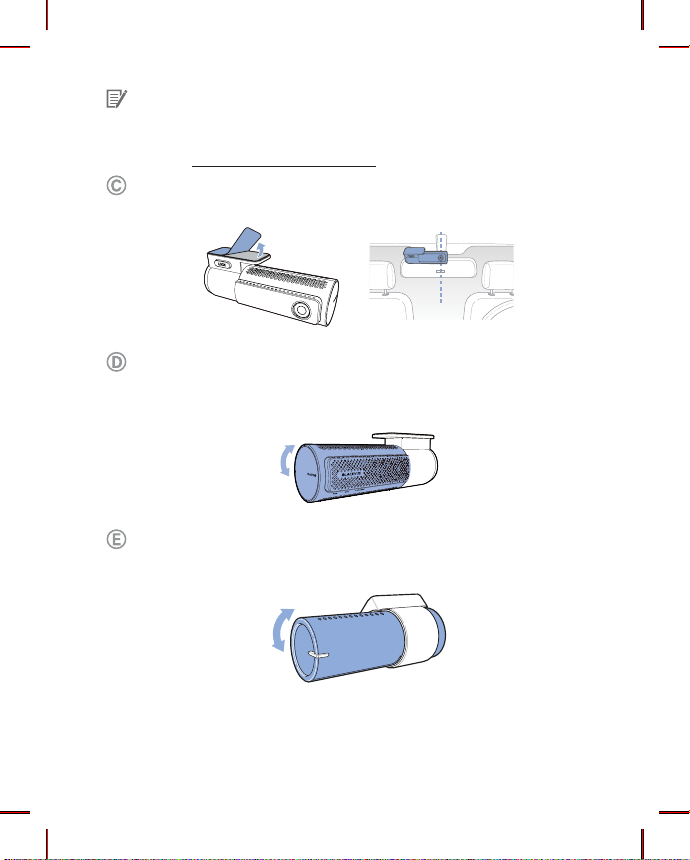

Peel off the protective film from the double-sided tape and attach the front
camera to the windshield behind the rear-view mirror.
Adjust the angle of the lens by rotating the body of the front camera. We
recommend pointing the lens slightly downwards (≈10° below horizontal), so as
to record video with a 6:4 road to background ratio.
Peel off the protective film from the double-sided tape and attach the rear
camera to the back windshield. Adjust the angle of the lens by rotating the body
of the camera.

DR770X-2CH LTE l DR970X-2CH LTE 15
Plug the right angle connector of the rear camera connection cable to the front
camera (‘Rear’ port).
Use the pry tool to lift the edges of the rubber window sealing and/or molding
and tuck in the rear camera connection cable.
Rear camera connection cable
Plug the cigarette lighter power cable into the cigarette lighter socket and the
front camera. Skip to Lfor Hardwiring Power Cable setup.
ENGLISH ENGLISH

16 BLACKVUE
Use the pry tool to lift the edges of the windshield trim/molding and tuck in the
power cord.
Power cord
Rear camera connection cable
Turn on the engine. The BlackVue dashcam will power up and start recording.
Video files are stored on the microSD card.
Turn off the engine. The dashcam will automatically stop recording and power
down. To record in parking mode while the engine is off please connect the
Hardwiring Power Cable (included in the box) or install a Power Magic Battery
Pack (sold separately). A Hardwiring Power Cable uses the automotive battery
to power your dashcam when the engine is off. A low voltage power cut-off
function and a parking mode timer to protect the automotive battery from
discharge is installed in the device. Settings can be changed in the BlackVue App
or Viewer.
Locate the fuse box to connect the hardwiring power cable.
Note
yLocation of the fuse box differ by manufacturer or model. For details, refer to
the vehicle owner's manual.

DR770X-2CH LTE l DR970X-2CH LTE 17
L-After removing fuse panel cover, find a fuse that powers on when engine
is turned on(ex.cigarette lighter socket, audio, etc) and another fuse that
remains powered on after the engine is turned off (ex.hazard light, interior
light). Connect the ACC+ cable to a fuse that powers on after engine start, and
BATT+ cable to a fuse that remains powered on after engine is turned off.
Note
yTo use battery saver feature, connect the BATT+ cable to the hazard light
fuse. Functions of fuse differ by manufacturer or model. For details refer
to the vehicle owner's manual.
L-Connect the GND cable to metal ground bolt.
MConnect the power cable to the DC in terminal of the front camera. BlackVue
will power up and start recording. Video files are stored on the microSD card.
Note
yWhen you run the dashcam for the first time the firmware is automatically
loaded onto the microSD card. After the firmware has been loaded onto
the microSD card you can customize settings using the BlackVue app on a
smartphone or BlackVue Viewer on a computer.
ENGLISH ENGLISH

18 BLACKVUE
Using BlackVue app
App overview
*Image shown is the BlackVue app home screen
Explore
ySee the latest product and marketing information from BlackVue. Also watch popular
video uploads and live views shared by BlackVue users.
Camera
yAdd and remove camera. Watch recorded videos, check camera status, change the
camera settings and use Cloud functions of cameras added to the camera list.
Event map
ySee all the events and uploaded videos on the map shared by BlackVue users.
Profile
yReview and edit account information.

DR770X-2CH LTE l DR970X-2CH LTE 19
Register BlackVue account
Search for the BlackVue app in the Google Play Store or Apple App Store and
install it on your smartphone.
Create an account
(i) Select Login if you have an account, otherwise tap create account.
(ii) During sign up, you will receive an e-mail with confirmation code. Enter the
confirmation code to finish creating your account.
ENGLISH ENGLISH

20 BLACKVUE
Add BlackVue dashcam to camera list
Choose one of the following methods to add your BlackVue dashcam to the
camera list. Once your camera is added, continue to the steps in ‘Connect to
Blackvue Cloud’.
-Add via Seamless Pairing
(i) Select Camera in the Global Navigation Bar.
(ii) Find and Press + Camera.
(iii) Select Seamless Pairing models. Make sure smartphone’s Bluetooth is
turned on.
(iv) Choose your BlackVue dashcam from the detected camera list.
(v) Put your hand on the camera’s touch sensor to complete seamless
pairing.
