Blastrac BDC-33-230V-P User manual

BDC-33-230V-P
C398 US-F-E
06/2018
US
F
E
INSTRUCTIONS MANUAL
MANUEL D’INSTRUCTIONS
MANUAL DE INSTRUCCIONES

Operating manual BDC-33-230V-P 1/14
US
www.blastrac.com ‒ [email protected]
Table of contents
Instructions for use.........................................................................................................2
Operator’s safety............................................................................................................................. 2
General information for using the vacuum cleaner.......................................................................... 2
Proper uses ..................................................................................................................................... 2
Improper Use................................................................................................................................... 3
Dust emissions in the environment ................................................................................................. 3
General recommendations .............................................................................................................. 3
Vacuum cleaner description...........................................................................................4
Labels.............................................................................................................................................. 4
Optional kits..................................................................................................................................... 4
Accessories ..................................................................................................................................... 4
Packing and unpacking ................................................................................................................... 4
Unpacking, moving, use and storage .............................................................................................. 4
Setting to work - connection to the power supply............................................................................ 4
Extensions....................................................................................................................................... 5
Dry applications............................................................................................................................... 5
Maintenance and repairs................................................................................................................. 5
Technical specications................................................................................................................... 6
Dimensions...................................................................................................................................... 6
Controls, indicators and connections .............................................................................................. 7
Inspections prior to starting ............................................................................................................. 7
Starting up ....................................................................................................................................... 7
Emergency stopping........................................................................................................................ 7
Operation of the ltering cartridges ................................................................................................. 7
Tilting discharge device replacement and use ............................................................................... 8
Single plastic bag replacement and use.......................................................................................... 8
Maintenance, cleaning and decontamination .................................................................................. 8
Filter disassembly and replacement................................................................................................ 8
Filter cartridge replacement............................................................................................................. 8
HEPA lter replacement .................................................................................................................. 9
Motor cooling fan inspection and cleaning ...................................................................................... 9
Tightness inspection........................................................................................................................ 9
Wiring diagrams .............................................................................................................................. 9

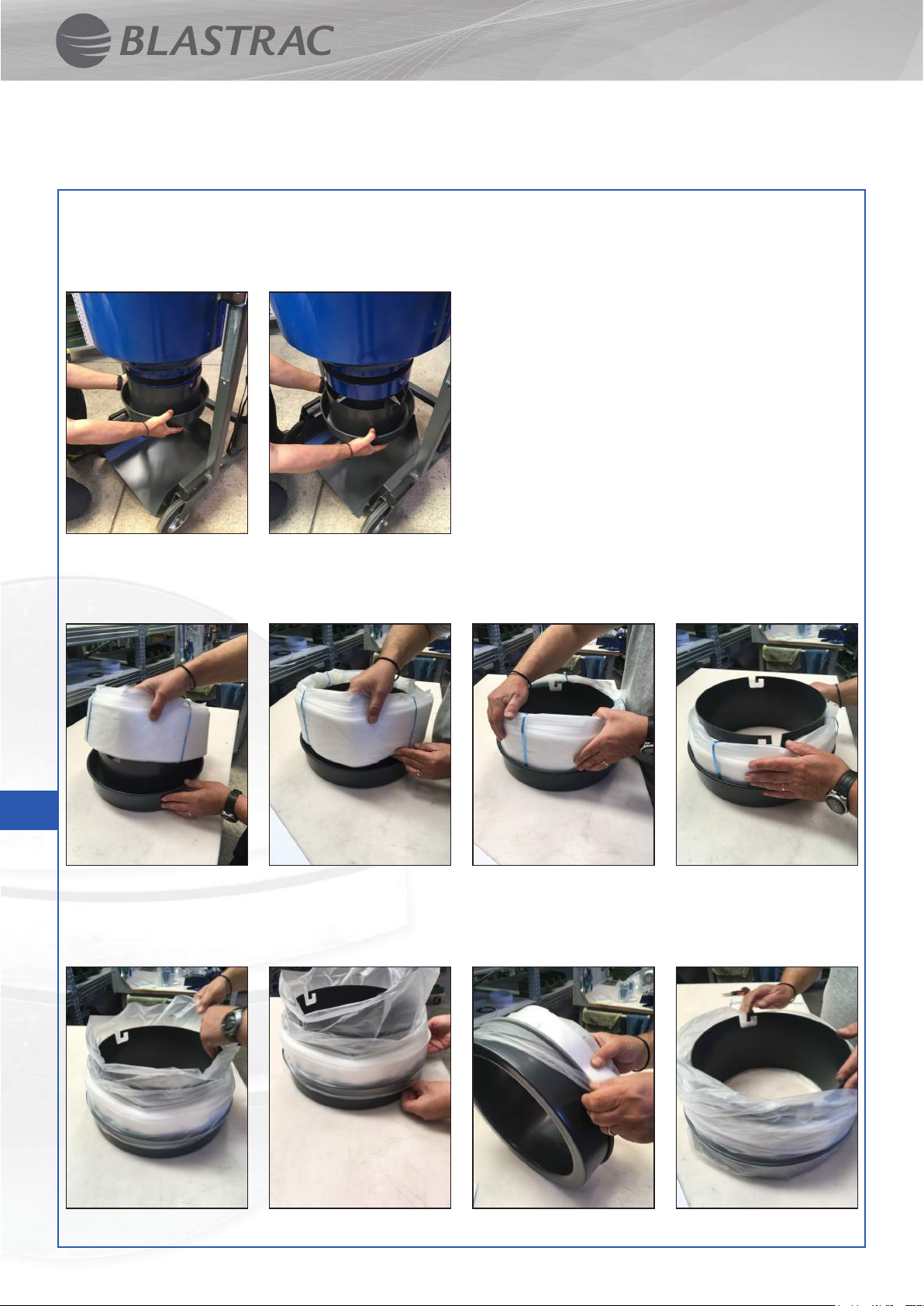

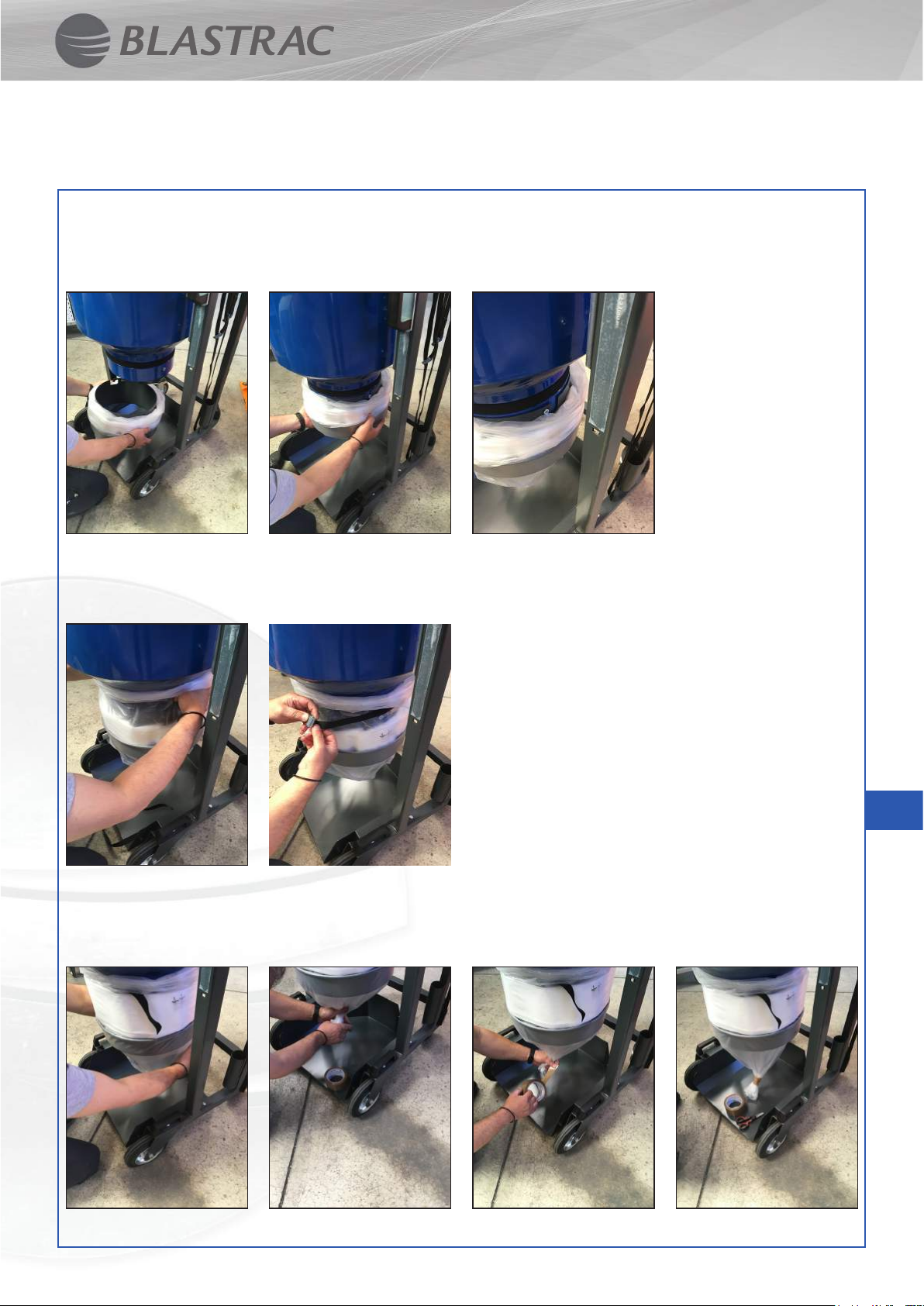

Procedure for Longopac®system installation................................................................................ 10
Procedure for hose removal .......................................................................................................... 12
Recommended spare parts ..........................................................................................13
Troubleshooting ............................................................................................................14
Original instructions

US
Operating manual BDC-33-230V-P 2/14
www.blastrac.com ‒ [email protected]
Instructions for use
Read the operating instructions and comply with the important safety
recommendations identied by the word WARNING!
Operator’s safety
WARNING!
Before starting the device, it is absolutely
essential to read these operating
instructions and to keep them ready at
hand for consultation.
The vacuum cleaner can only be used by people
who are familiar with the way it works and who
have been explicitly authorised and trained for the
purpose.
Before using the device, the operators must be
informed, instructed and trained on how to work
it and for which substances its usage is permitted
including the safe method for removing and
disposing of the vacuumed material.
WARNING!
The use of device by people (including children)
with limited physical and mental capacities or
lacking in experience and knowledge is strictly
forbidden, unless they are supervised by a person
who is experienced in the use and safe handling of
the device.
Children must be supervised to make sure they will
not play with the device.
General information for using the
vacuum cleaner
Use the vacuum cleaner in accordance with the laws in force
in the country where it is used.
Besides the operating instructions and the laws in force
in the country where the device is used, the technical
regulations for ensuring safe and correct operation must also
be observed.
Do not perform any operation that could jeopardize the
safety of people, property and the environment.
Comply with the safety indications and prescriptions in this
instruction manual.
Proper uses
This vacuum cleaner is suitable for commercial use, in
hotels, schools, hospitals, factories, shops, oces and
apartment hotels for example, for hire and in any case for
purposes other than normal domestic use.
This vacuum cleaner was conceived to clean and collect solid
and liquid non-ammable materials indoor and outdoor.
WARNING – This vacuum cleaner can only be used to
vacuum dry materials.
■Always leave enough room around the device to reach
the controls easily.
The device has been designed to be used by one operator at
a time.
This vacuum cleaner consists of an automated vacuum unit,
with a lter upstream and a container for collecting the
vacuumed material.

Operating manual BDC-33-230V-P 3/14
US
www.blastrac.com ‒ [email protected]
Improper Use
WARNING!
The following use of the device is strictly forbidden:
■Outdoors in case of atmospheric precipitation.
■When not placed on horizontal levelled
grounds.
■When the ltering unit is not installed.
■When the vacuum inlet and/or hose are turned
to parts of the human body.
■When the dust bag is not installed.
■Use without the guards, protective covers and
safety systems installed by the manufacturer.
■When the cooling vents are partially or totally
clogged.
■When the vacuum cleaner is covered with
plastic or fabric sheets.
■When the air outlet is partially or totally closed.
■When used in narrow areas where there is no
fresh air.
■Vacuuming the following materials:
1. Burning materials (embers, hot ashes, lit
cigarettes, etc.).
2. Naked ames.
3. Combustible gas.
4. Flammable liquids, aggressive fuels
(gasoline, solvents, acids, alkaline solutions,
etc.).
5. Explosive dust/substances and/or ones
liable to ignite in a spontaneous way (such as
magnesium or aluminium dusts, etc.).
IMPORTANT: Fraudulent use is not admitted.
Dust emissions in the environment
Indicative values of performance:
■normal version (not suitable for vacuuming hazardous
dust): retains at least 99% of particles measuring ≥ 3
μm.
General recommendations
WARNING!
If an emergency situation occurs:
■lter breakage
■re outbreak
■short-circuit
■motor block
■electric shock
■etc.
Turn the vacuum cleaner o, unplug it and request
assistance from qualied personnel.
WARNING!
The vacuum cleaners must not be used or stored
outdoors in damp places.
These devices cannot be used in corrosive environment.
