This user’s manual is a main operating document intended for technical, maintenance, and operating staff.
The manual contains information about purpose, technical details, operating principle, design, and installation of the BLAULTRA unit and
all its modifications.
Technical and maintenance staff must have theoretical and practical training in the field of ventilation systems and should be able to
work in accordance with workplace safety rules as well as construction norms and standards applicable in the territory of the country.

www.blaubergventilation.com.au
Blaultra
3
SAFETY REQUIREMENTS
All user’s manual requirements as well as the provisions of all the applicable local and national
construction, electrical, and technical norms and standards must be observed when installing
and operating the unit.
Disconnect the unit from the power supply prior to any connection, servicing, maintenance, and
repair operations.
Only qualied electricians with a work permit for electrical units up to 1000 V are
allowed for installation and maintenance. The present user’s manual should be carefully
read before beginning works.
• Check the unit for any visible damage of the impeller, the casing, and the grille before starting
installation. The casing internals must be free of any foreign objects that can damage the
impeller blades.
• While mounting the unit, avoid compression of the casing! Deformation of the casing may
result in motor jam and excessive noise.
• Misuse of the unit and any unauthorised modifications are not allowed.
• Do not expose the device to adverse atmospheric agents (rain, sun, etc.).
• Transported air must not contain any dust or other solid impurities, sticky substances, or
fibrous materials.
• Do not use the unit in a hazardous or explosive environment containing spirits, gasoline,
insecticides, etc.
• Do not close or block the intake or extract vents in order to ensure the efficient air flow.
• The information in this user’s manual was correct at the time of the document’s preparation.
• The Company reserves the right to modify the technical characteristics, design, or
configuration of its products at any time in order to incorporate the latest technological
developments.
• No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means in any information search system or translated into any language in
any form without the prior written permission of the Company.
Ensure that the appliance is switched off from the supply mains before removing the guard.
WARNING: If unusual oscillating movements is observed, immediately stop using the appliance
and contact the manufacturer, its service agent or suitably qualified persons.
The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.

www.blaubergventilation.com.au Blaultra
4
THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE.
DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE.
Ensure that the appliance is switched off from the supply mains before removing the guard.
WARNING: If unusual oscillating movements is observed, immediately stop using the appliance
and contact the manufacturer, its service agent or suitably qualified persons.
The replacement of parts of the safety suspension system device shall be performed by the
manufacturer, its service agent or suitably qualified persons.
The connection to the supply mains must be made through a means of disconnection,
which is incorporated in the fixed wiring in accordance with the wiring rules, and has a
contact separation in all poles that allows for full disconnection under overvoltage category III
conditions.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or
similarly qualified persons in order to avoid a safety hazard.
The appliance is to be installed so that the blades are more than 2.1m above the floor.
The appliance may adversely affect the safe operation of appliances burning gas or other
fuels (including those in other rooms) due to back flow of combustion gases. These gases can
potentially result in carbon monoxide poisoning. After installation of the unit the operation
of flued gas appliances should be tested by a competent person to ensure that back flow of
combustion gases does not occur.

www.blaubergventilation.com.au
Blaultra
5
The centrifugal ceiling extract fan BLAULTRA is designed for extract ventilation of small to medium-sized premises.
Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials,
coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust,
pathogenic germs).
NAME BLAULTRA
Centrifugal ceiling extract fan 1 pc.
User’s manual 1 pc.
Packing box 1 pc.
You need to purchase the decorative grille separately for this fan. Operation without the decorative grille is prohibited.
THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED
PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE
TRAINING.
THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED
PERSONNEL AFTER THE APPROPRIATE BRIEFING.
THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORISED
ACCESS BY UNATTENDED CHILDREN.
THE UNIT MUST NOT BE OPERATED IN KITCHEN PREMISES.
PURPOSE
DELIVERY SET

www.blaubergventilation.com.au Blaultra
6
The centrifugal ceiling extract fan is designed for indoor application with the ambient temperature ranging from +1 °C up to +45 °C.
The unit is rated as a Class I electrical appliance.
Ingress protection rating against access to hazardous parts and water ingress is IPX4.
The unit design is constantly being improved, thus some models may be slightly different from those described in this manual.
OVERALL AND CONNECTING DIMENSIONS
TEMPLATE FOR MARKING THE FAN INSTALLATION LOCATION
370
300
BLAULTRA BLAULTRA ROUND BLAULTRA SQUARE
TECHNICAL DATA
198
38
330
316
148
198
36
330
148
198
321
148

www.blaubergventilation.com.au
Blaultra
7
PARAMETER BLAULTRA
Frequency [Hz] 50
Voltage [V] 1 ~ 220-240
Rated fan power [W] 57
RPM [min-1] 1085
Current [A] 0.25
Max. air flow [m3/h] 482
Max. air flow [l/s] 134
Specific fan power (SFP) [W/l/s] 0.43
Sound pressure level at 3 m distance [dBA] 36
Weight [kg] 4.13
IP X4
SEC class C
DESIGN AND FUNCTIONING
Exhaust air duct with a non-
return valve
Terminal box Decorative panel
Casing
TECHNICAL DATA
The fan casing is made of plastic.
The extract spigot with a non-return valve is attached to the fan to prevent back air flow.
In the upper part of the casing there is a terminal box, which contains terminals for connecting the fan to power mains and to electronics
board, if available.
A single-phase electric motor with a centrifugal impeller with forward curved blades is fastened inside of the casing.
Depending on the model, the fan is equipped with a timer.

www.blaubergventilation.com.au Blaultra
8
L = 5mm (min)
MOUNTING AND SETUP
READ THE USER'S MANUAL BEFORE INSTALLING THE UNIT.
The fan is a component part and is not designed for stand-alone operation.
The fan is designed for ceiling mounting with fastening to the ceiling surface using removable rotary clamping brackets on the fan casing.
The fan installation location must comply with local building codes for this type of product.
Check the fan for mechanical damages prior to mounting.
Before mounting make sure the casing does not contain any foreign objects (e.g. foil, paper).
While installing the unit ensure convenient access for subsequent maintenance and repair.
The minimum distance between the fan and the ceiling should be at least 5 mm.

www.blaubergventilation.com.au
Blaultra
9
MOUNTING SEQUENCE
1. Use the template to mark the mounting
location for the fan and make a hole in
the ceiling Ø 300 mm.
Ø
300
2. The flexible air duct is pushed through
the hole from behind the ceiling, from
above. The air duct is installed on a spigot
with a non-return valve.
3. Before installation, it is required to
loosen the self-tapping screws on the
rocking levers, thereby increasing the gap
between the casing and the lever.
4. The spigot and the air duct are installed
on the fan.
Plug the fan into the required GPO in the
ceiling, making sure power to the GPO is
switched off.
5. The fan assembly is inserted into the
ceiling opening from the room side.
6. Secure the fan by turning the levers.
7. After installing the fan, it is necessary
to clamp the self-tapping screws on the
rocking levers to press the fan casing
against the ceiling.
8. Install the decorative panel (purchased separately for the BLAULTRA model) on the fan
casing. The panel is mounted in accordance with the User’s manual for the decorative
panel.

www.blaubergventilation.com.au Blaultra
10
The fan is rated for connection to single-phase AC 220-240 V/50 (60) Hz.
The fan is connected to power mains with an electric plug through a QF circuit breaker with a magnetic trip integrated into the fixed
wiring system.
The position of the automatic circuit breaker must ensure free access for quick power-off of the unit.

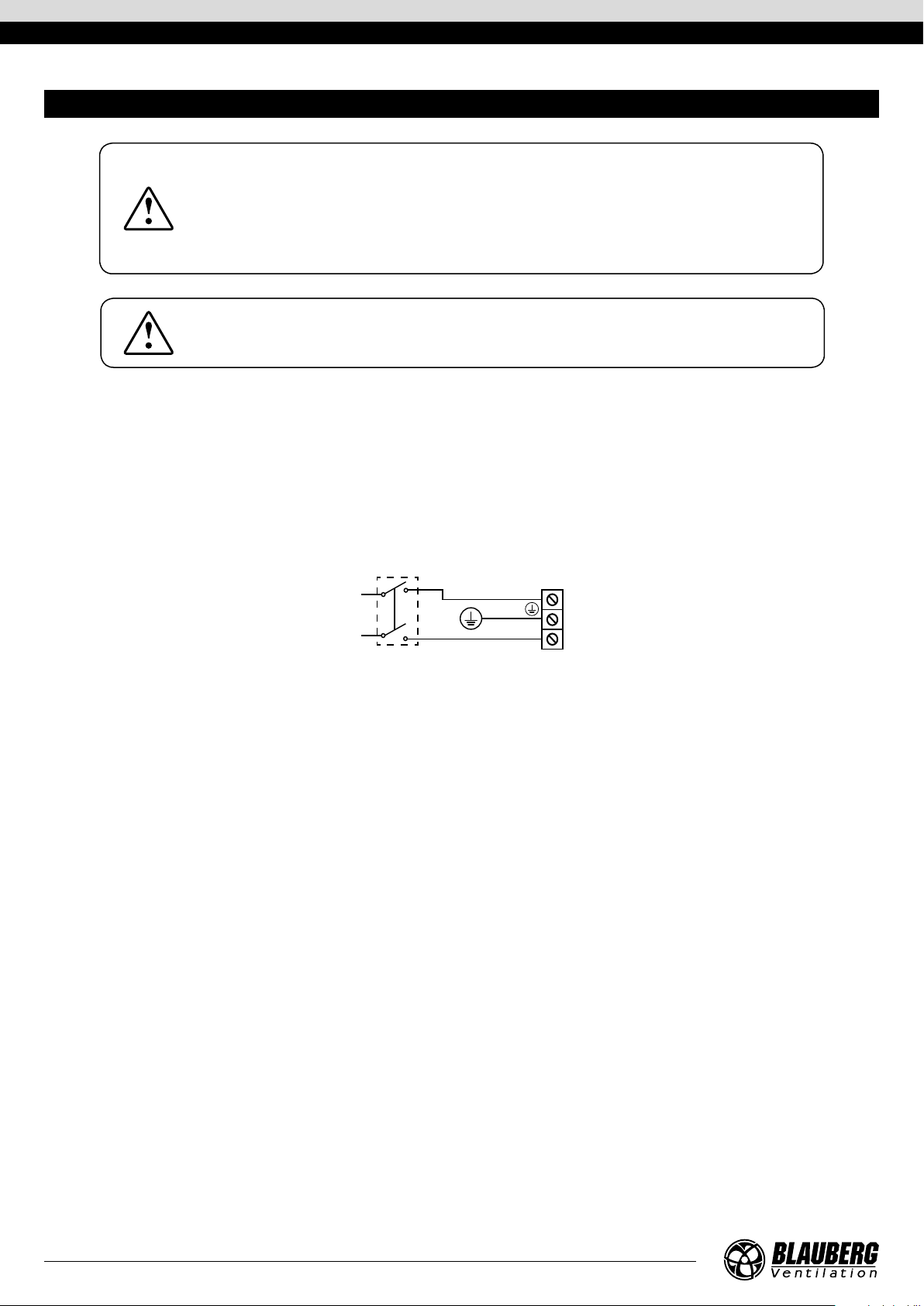

WIRING DIAGRAM OF THE FAN
BLAULTRA
8 mm
max.
L
QF
L
N
N
TERMINAL DESIGNATIONS ON THE WIRING DIAGRAM: L – phase; N – neutral; S1 — switch; QF – automatic circuit breaker.
ANY TAMPERING WITH THE INTERNAL CONNECTIONS IS PROHIBITED
AND WILL VOID THE WARRANTY.
POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT.
THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN.
THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE
MANUFACTURER’S LABEL.
CONNECTION TO POWER MAINS

www.blaubergventilation.com.au
Blaultra
11
TROUBLES AND TROUBLESHOOTING
TROUBLE POSSIBLE REASONS TROUBLESHOOTING
The fan does not get started.
No power supply. Check the electric connections and the operation status of the
circuit breaker.
Motor jam. Turn the fan off. Troubleshoot clogging of the impeller. Restart
the fan.
Automatic circuit breaker tripping
during the unit turning on.
Overcurrent as a result of short circuit in
the electric circuit leads to tripping of
the circuit breaker.
Disconnect the fan from power supply and contact the product
Seller. Do not turn the fan on again!
Low air flow.
Air ducts or other components of the
ventilation system are clogged. The
impeller is clogged. The air ducts are
damaged. The air dampers are closed.
Clean the air ducts, the impeller and other components of
the ventilation system. Make sure that the air ducts are not
damaged. Make sure that the air dampers and louvre shutters
are open.
STORAGE AND TRANSPORTATION REGULATIONS
• Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range
from +5 ˚C to +40 ˚C and relative humidity up to 70 %.
• Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing
deformation.
• Use suitable hoist machinery for handling and storage operations to prevent possible damage to the unit.
• Follow the handling requirements applicable for the particular type of cargo.
• The unit can be carried in the original packaging by any mode of transport provided proper protection against precipitation and
mechanical damage. The unit must be transported only in the working position.
• Avoid sharp blows, scratches, or rough handling during loading and unloading.
• Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at
least 3-4 hours.
The fan maintenance includes regular cleaning of the surfaces of dust and dirt. Replace the filter as required, but at least every 6 months.
The impeller cleaning is shown below. Clean the impeller blades thoroughly every 6 months.
TECHNICAL MAINTENANCE
DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE
OPERATIONS!
ENSURE THAT THE UNIT IS SWITCHED OFF FROM THE SUPPLY MAINS BEFORE
REMOVING THE GUARD.

www.blaubergventilation.com.au Blaultra
12
MANUFACTURER’S WARRANTY
Blauberg Warranty:
• This warranty is given by Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive, Eastern Creek, New South
Wales 2766, Australia. Phone [phone].
• From the date of purchase, the original purchaser is entitled to free replacement parts, or a new unit for a period of two years from
the date of purchase.
• The defective parts or unit must be returned to Blauberg Australasia Pty Ltd at your own cost before an exchange or parts or unit
will be given.
• A proof of purchase will be required before a warranty claim is accepted.
• The warranty will also not cover damage caused by misuse, neglect, shipping accident, incorrect or improper installation, voltage
supply problems, unauthorised modification or repairs of any kind, exposure to corrosive conditions, exposure to weather and
where no fault is found with the product.
• We will not cover any loss incurred by you in relation to the product or making the claim under this warranty including without
limitation any costs associated with installation, reinstallation, or transporting the product.
Additional Information:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement of the
purchased product for a major failure of the product. You are also entitled to have the goods repaired or replaced if the goods fail to be
of acceptable quality and the failure does not amount to a major failure. Our ventilation products also come with a twoe year limited
warranty given by Blauberg Australasia Pty Ltd, with an office at Unit 5, 45A Eastern Creek Drive, Eastern Creek, New South Wales 2766,
as set out in the instruction manual in the box. If your product does not provide the general features and functions described in the user
documentation in the five year period after delivery to you, please call Blauberg Australasia Pty Ltd, ABN 85 637 003 582 on 1300 475-504
with details of your product, serial number and proof of purchase. You maybe required to return the ventilation product to the address
listed, in which case such a return will be at your own cost. The benefits under this warranty are in addition to other rights and remedies
that you may have at law.
FOLLOWING THE REGULATIONS STIPULATED HEREIN WILL ENSURE A LONG AND
TROUBLEFREE OPERATION OF THE UNIT.
USER’S WARRANTY CLAIMS SHALL BE SUBJECT TO REVIEW ONLY UPON
PRESENTATION OF THE UNIT, THE PAYMENT DOCUMENT AND THE USER’S MANUAL
WITH THE PURCHASE DATE STAMP.

www.blaubergventilation.com.au
Blaultra
13

www.blaubergventilation.com.au Blaultra
14

www.blaubergventilation.com.au
Blaultra
15
CERTIFICATE OF ACCEPTANCE
Unit Type Centrifugal ceiling extract fan
Model BLAULTRA
Serial Number
Manufacture Date
Quality Inspector’s
Stamp
SELLER INFORMATION
Seller
Seller’s Stamp
Address
Phone Number
E-mail
Purchase Date
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are
acknowledged and accepted.
Customer’s Signature
INSTALLATION CERTIFICATE
The BLAULTRA unit is installed pursuant to the requirements stated in the present user's manual.
Installation Stamp
Company name
Address
Phone Number
Installation
Technician’s Full Name
Installation Date: Signature:
The unit has been installed in accordance with the provisions of all the applicable local and national construction,
electrical and technical codes and standards. The unit operates normally as intended by the manufacturer.
Signature:
WARRANTY CARD
Unit Type Centrifugal ceiling extract fan
Seller’s Stamp
Model BLAULTRA
Serial Number
Manufacture Date
Purchase Date
Warranty Period
Seller

www.blaubergventilation.com.au
Blauberg_Australasia_219EN-01
