Blaupunkt Brisbane SD48 User manual

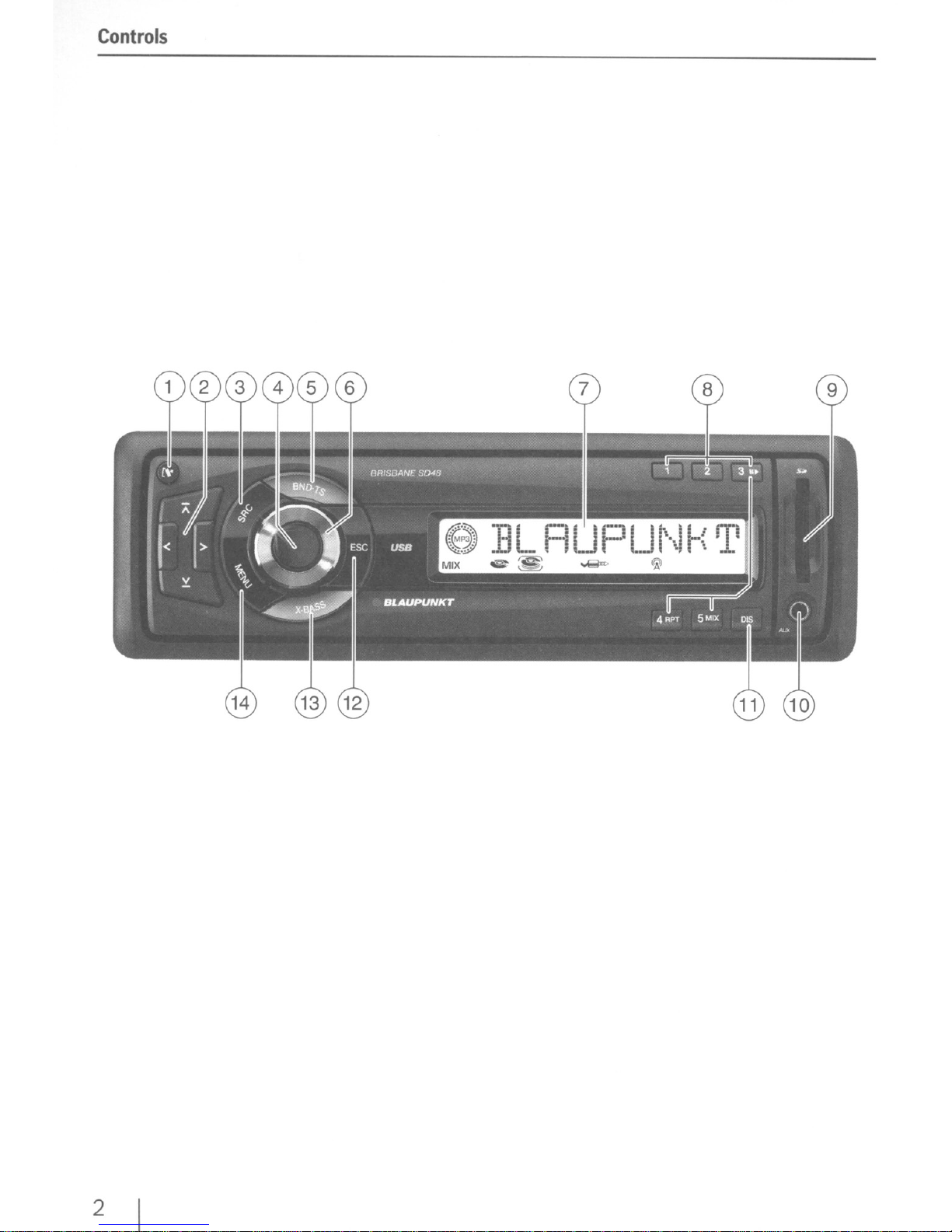

Controls
2I

C!) [,'" button for removing the control
panel (release panel)
GD Arrow buttons
G) SRC button for source selection be-
tween Radio. SD, USB and CD changer
or AUX and FRONT-AUX (if connected).
G) Button to switch the device on/off and
operate the volume mute feature.
(}) BND· 1S button
Short press: Selects the FM or AM
memory banks.
Long press: Starts the Travelstore func-
tion.
~~
~) Volume control
C~ LCD display
~) Keys 1- 5
0) Slot for SD/MMC cards
Controls
@ Front AUX-IN socket for connecting ex-
ternal audio sources (e.g. portable CD
players) .
@ DIS button
@ ESC button
@ X-BASS button for adjusting X-BASS
Increase
@ MENU button
Short press: Calls up the menus for the
settings. Confirming menu settings.
Long press: Starts the scan function.
3

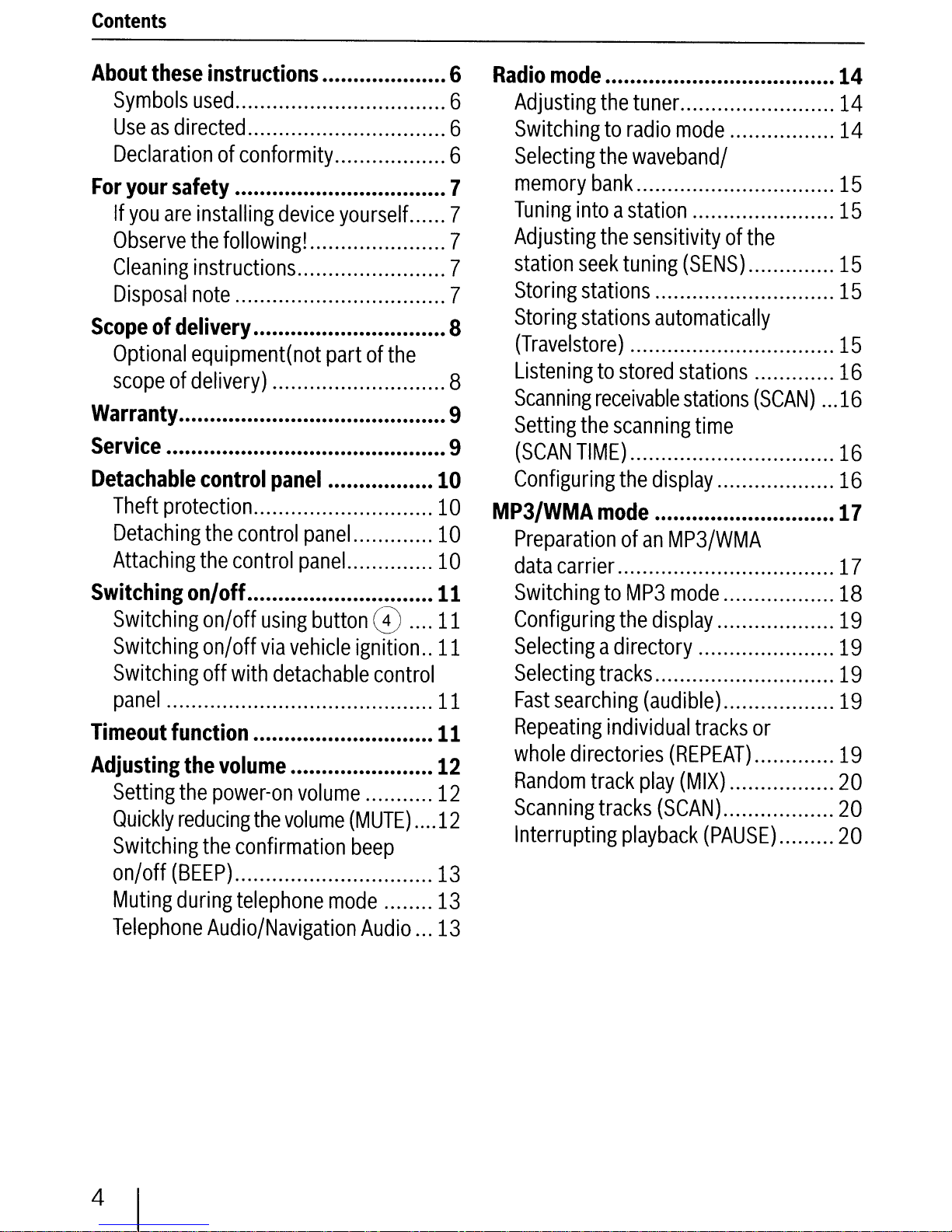

Contents
About these instructions 6
Symbols used 6
Use as directed 6
Declaration of conformity 6
For your safety 7
If you are installing device yourself.. 7
Observe the following! 7
Cleaning instructions 7
Disposal note 7
Scope of delivery 8
Optional equipment(not part of the
scope of delivery) 8
Warranty ......•.••...•.•.•...••.•.••.•.••••••.••••• 9
Service 9
Detachable control panel 10
Theft protection 10
Detaching the control panel 10
Attaching the control paneL 10
Switching on/off 11
Switching on/off using button 0 11
Switching on/off via vehicle ignition .. 11
Switching off with detachable control
panel 11
Timeout function 11
Adjusting the volume 12
Setting the power-on volume 12
Quickly reducing the volume (MUTE) 12

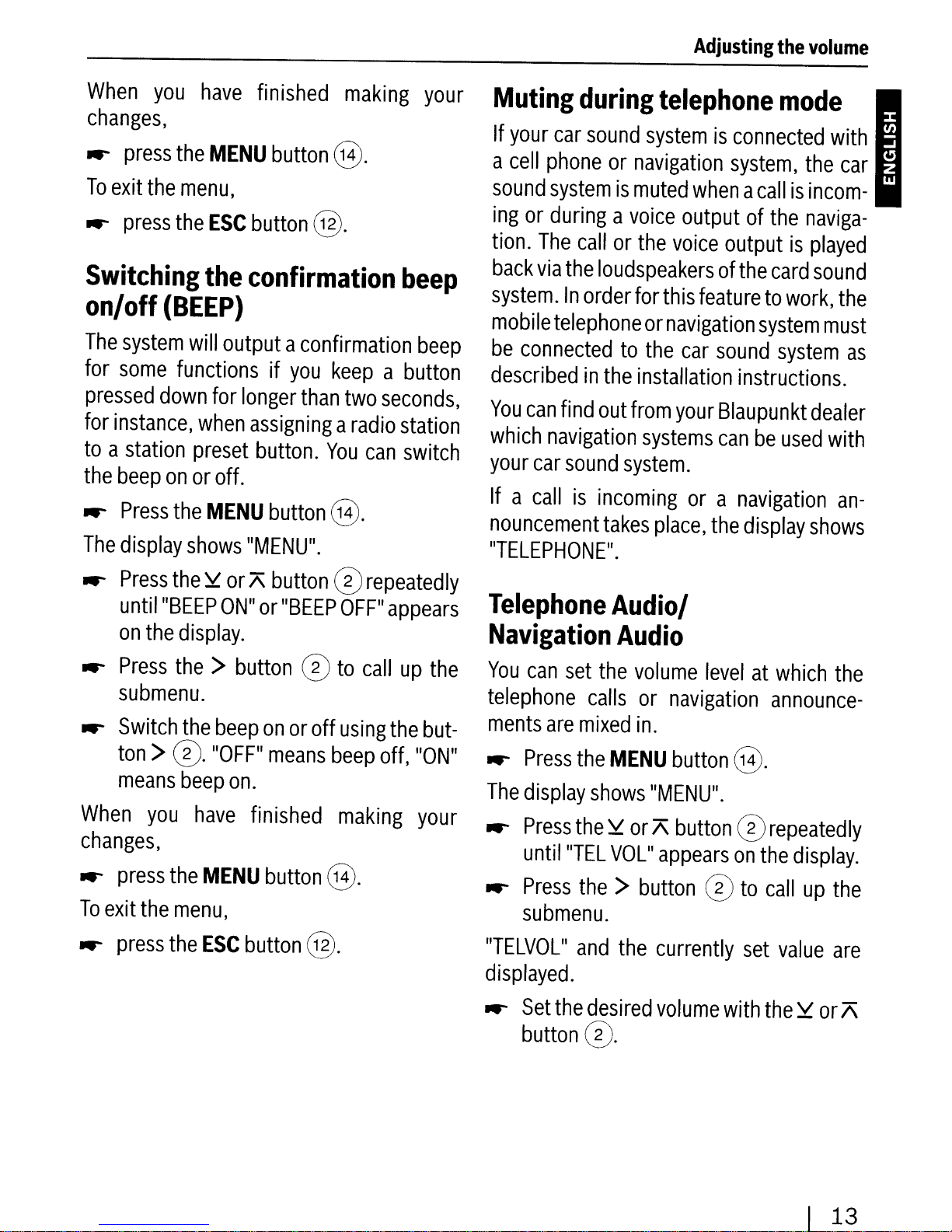

Switching the confirmation beep
on/off (BEEP) 13
Muting during telephone mode 13
Telephone Audio/Navigation Audio 13
4

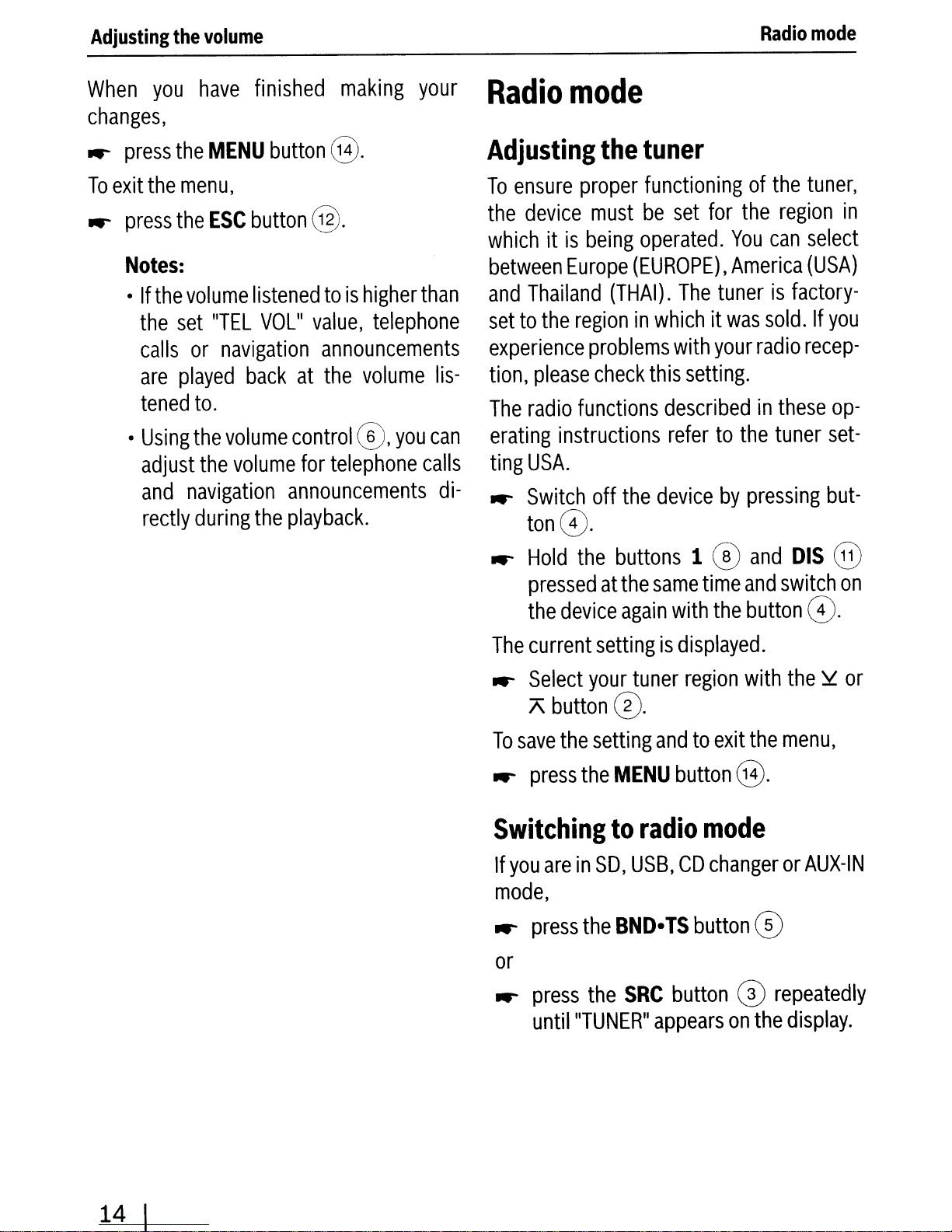

Radio mode 14
Adjusting the tuner 14
Switching to radio mode 14

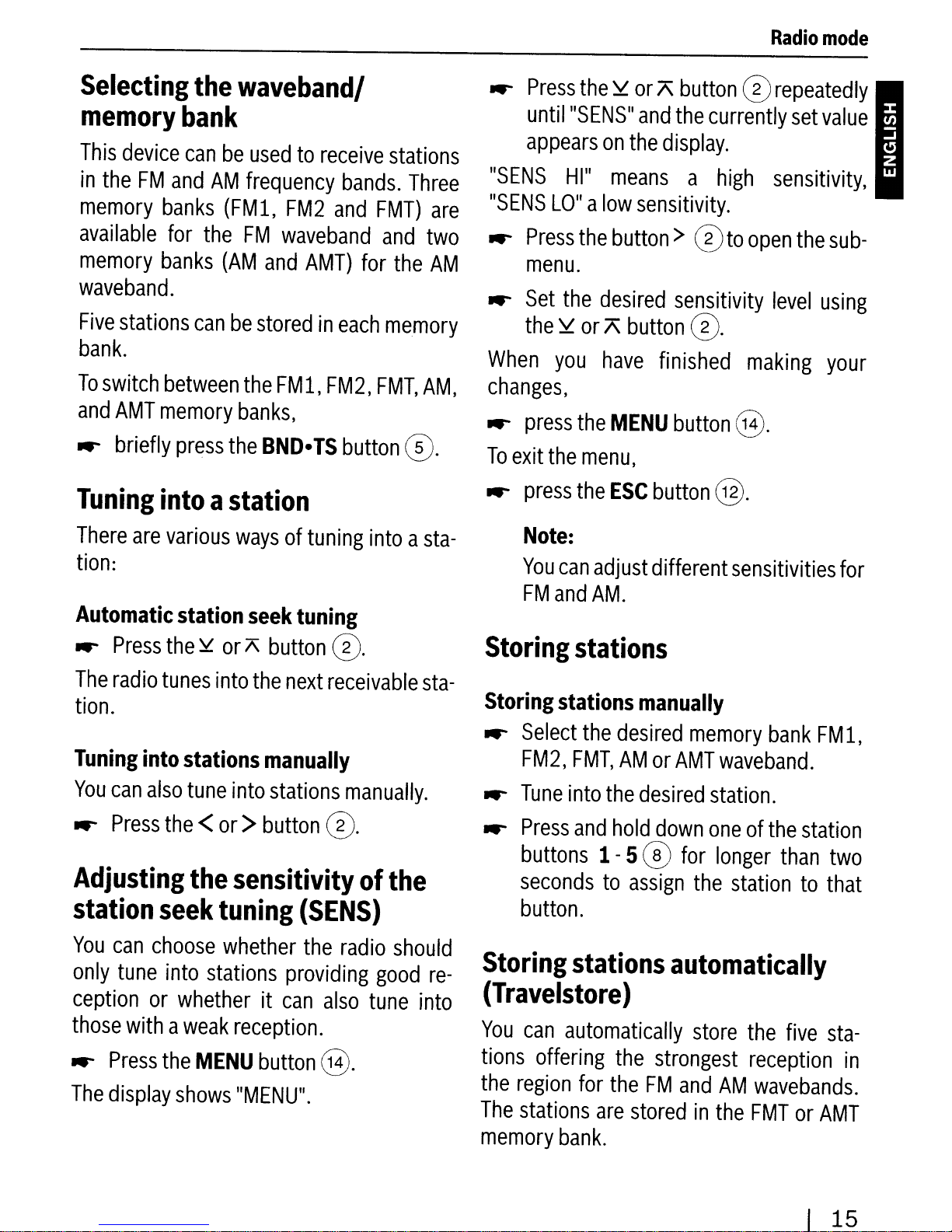

Selecting the waveband/
memory bank 15
Tuning into a station 15
Adjusting the sensitivity of the
station seek tuning (SENS) 15
Storing stations 15
Storing stations automatically
(Travelstore) 15
Listening to stored stations 16
Scanning receivable stations (SCAN) 16
Setting the scanning time
(SCAN TIME) 16
Configuring the display 16

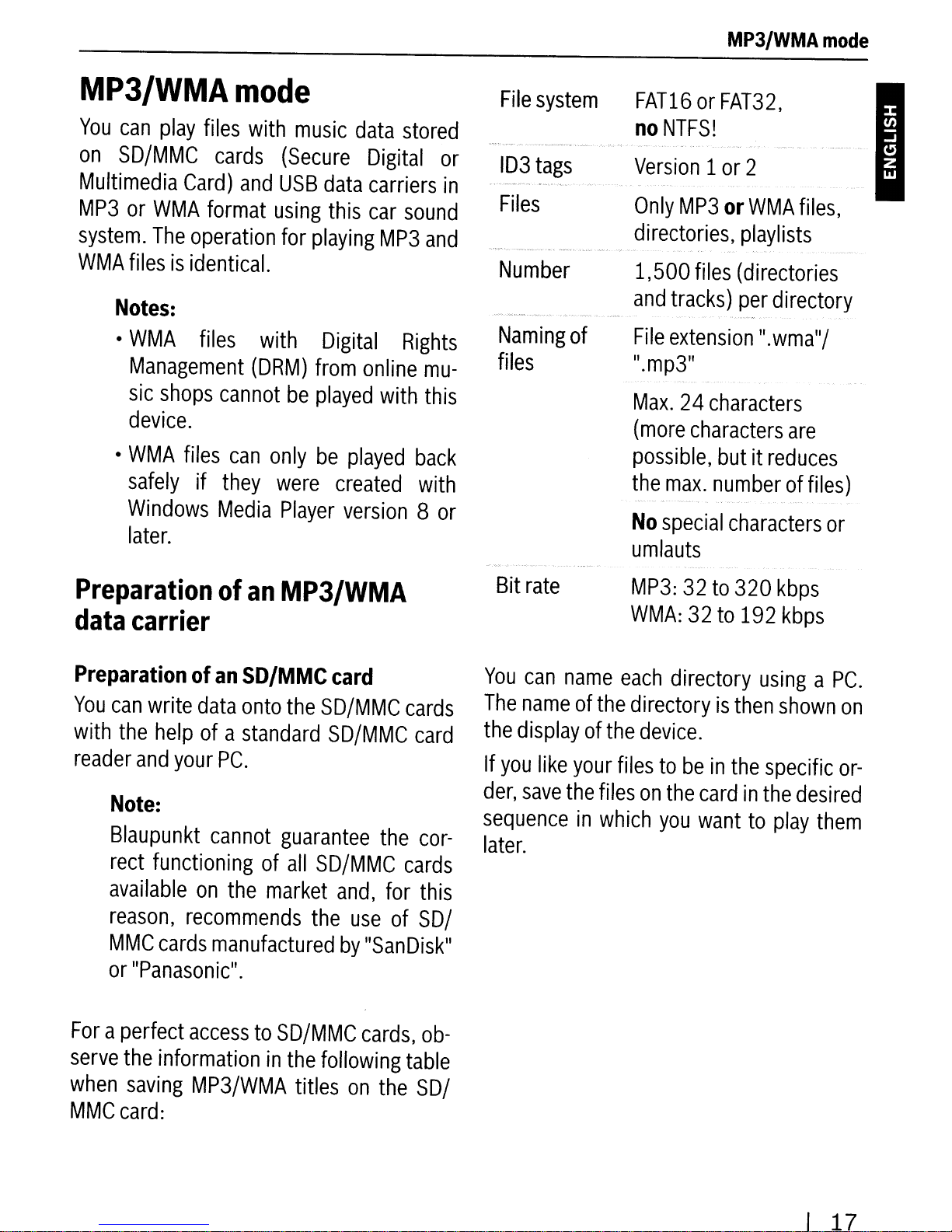

MP3/WMA mode 17
Preparation of an MP3/WMA
data carrier 17

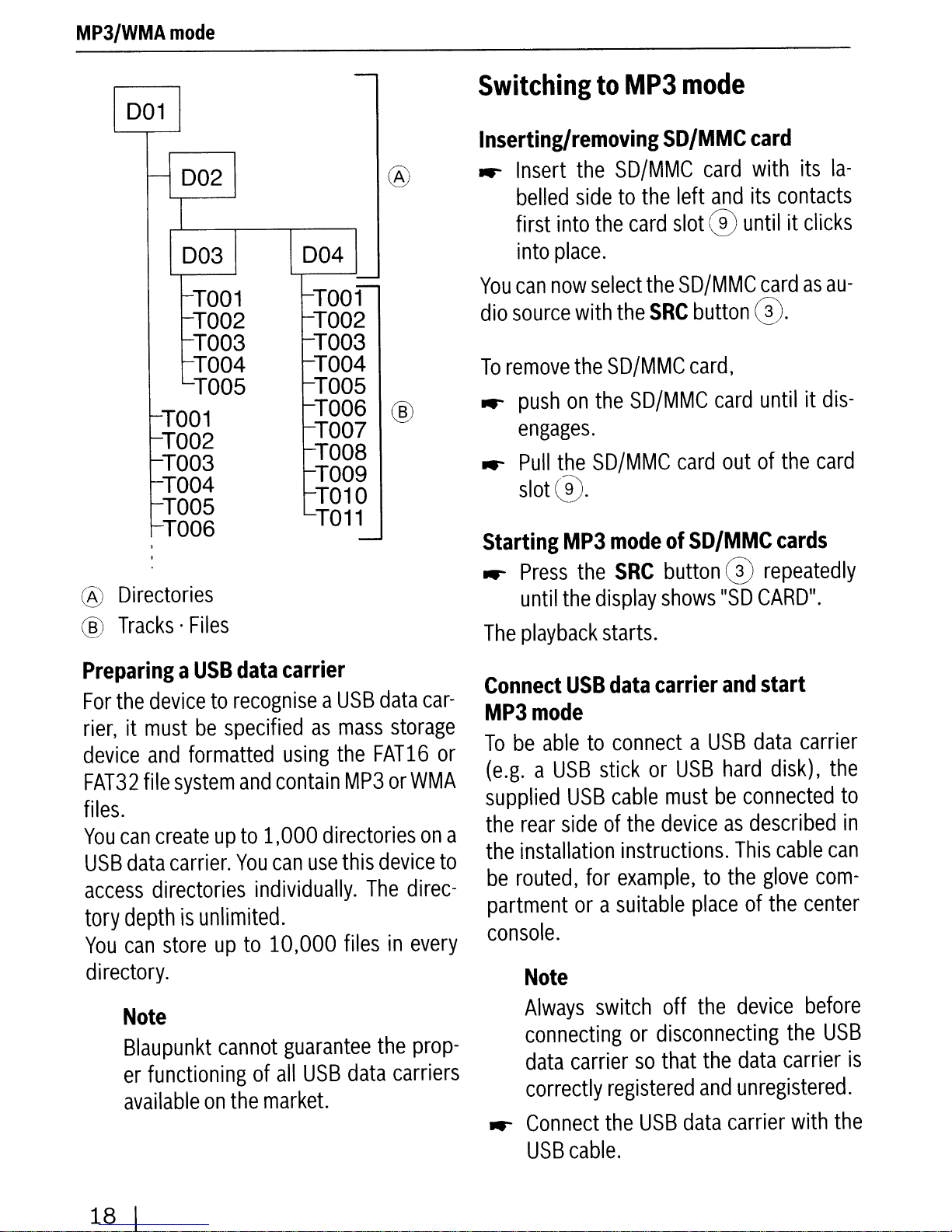

Switching to MP3 mode 18

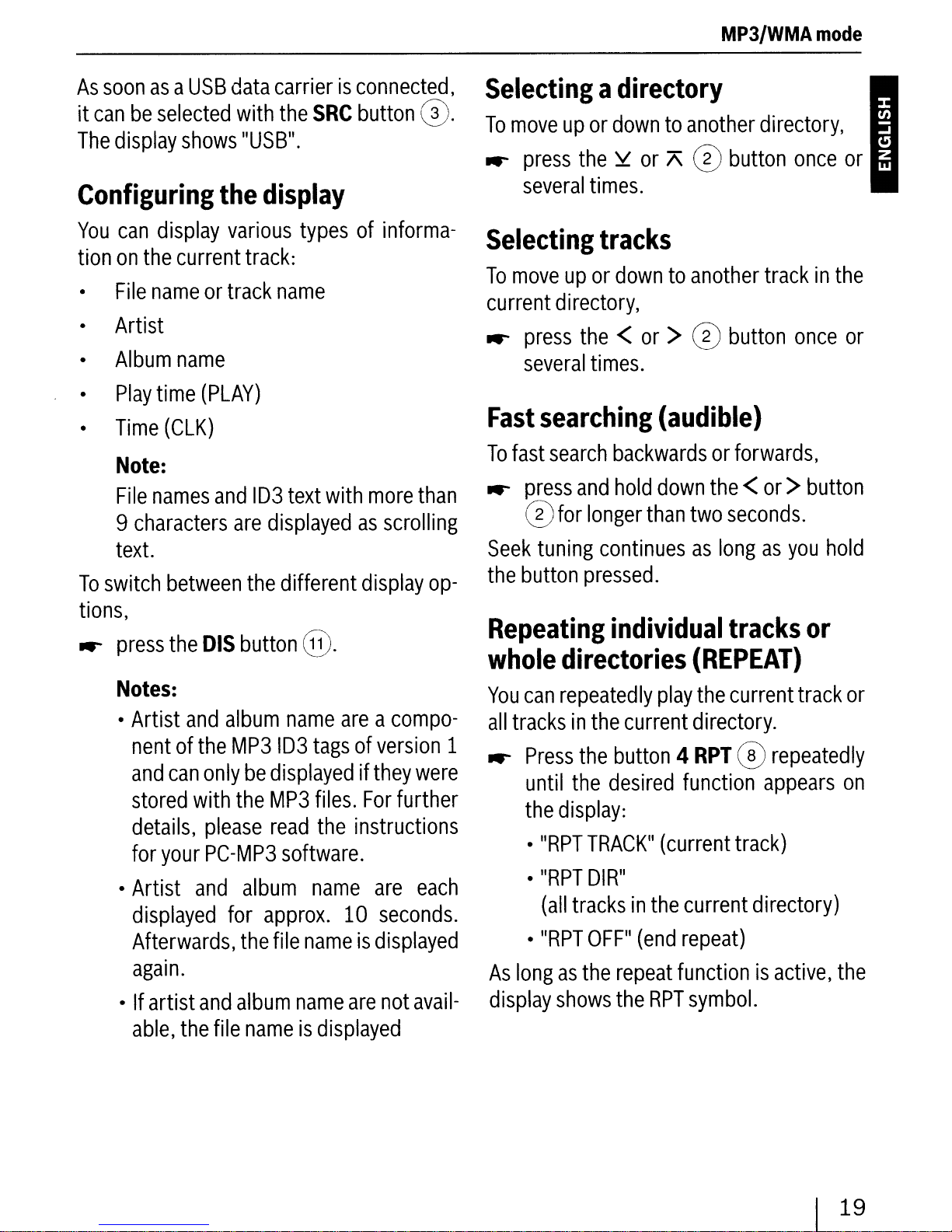

Configuring the display 19
Selecting a directory 19
Selecting tracks 19
Fast searching (audible) 19
Repeating individual tracks or
whole directories (REPEAT) 19
Random track play (MIX) 20
Scanning tracks (SCAN) 20
Interrupting playback (PAUSE) 20

CD-changer mode 21
Switching to CD-changer mode 21
Selecting COs 21
Selecting tracks 21
Fast searching (audible) 21
Configuring the display 21
Repeating individual tracks or whole
CDs (REPEAT) 21
Random track play (MIX) 22
Scanning all tracks on all CDs (SCAN) 22
Interrupting playback (PAUSE) 22
Clock - Time 23
Displaying the time 23
Setting the time 23
Selecting 12/24-hour clock mode 23
Displaying the time with device
and ignition switched off. 23
Sound 24
Equalizer 24
Setting the left/right volume
distribution (BALANCE) 27
Adjusting the front/rear volume
distribution (FADER) 27
Equalizer presettings (PRESETS) 27
)(·EI~~!i .•..••.••...••.•••.••.••••.•••.•••.••...... :lll
Adjusting the X-BASS boost. 28
Adjusting E-XBASS 29
Di!iIJICI~ •••••••••••••••••••••••••••••••••••••••••••• :J()
Adjusting the display brightness 30
Setting the display illumination
colour 30
Contents
External audio sources 32
Rear AUX-IN input 32
Front AUX-IN socket 33
Mixing an external audio source with
another audio source (MIX AUX) 33
Factory settings (NORMSET) 34
Technical data 35
Installation instructions 201
5

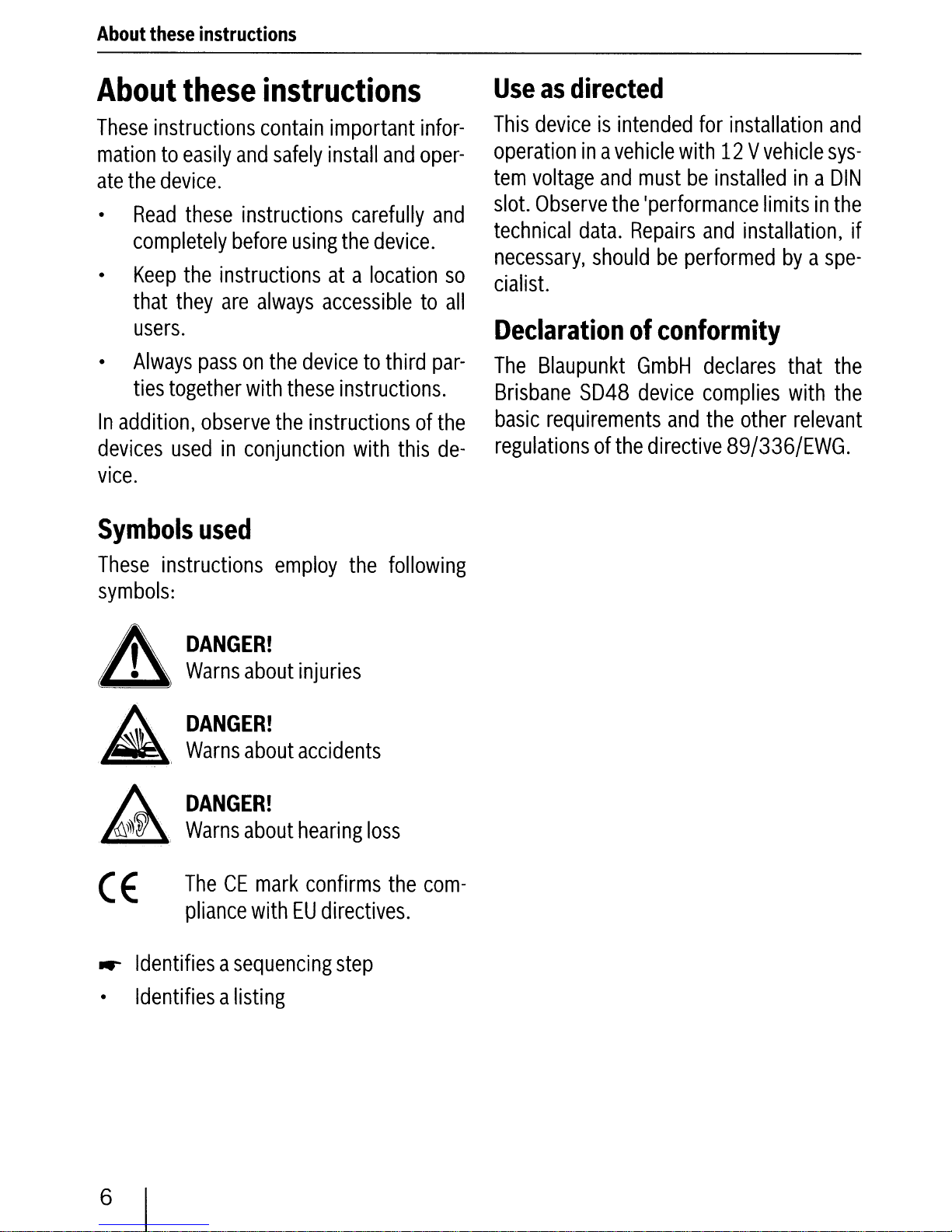

About these instructions
About these instructions
These instructions contain important infor-
mation to easily and safely install and oper-
ate the device.
• Read these instructions carefully and
completely before using the device.
• Keep the instructions at a location so
that they are always accessible to all
users.
• Always pass on the device to third par-
ties together with these instructions.
In addition, observe the instructions of the
devices used in conjunction with this de-
vice.
Symbols used
These instructions employ the following
symbols:
Use as directed
This device is intended for installation and
operation in a vehicle with 12 V vehicle sys-
tem voltage and must be installed in a DIN
slot. Observe the 'performance limits in the
technical data. Repairs and installation, if
necessary, should be performed by a spe-
cialist.
Declaration of conformity
The Blaupunkt GmbH declares that the
Brisbane 5048 device complies with the
basic requirements and the other relevant
regulations of the directive 89/336/EWG.
DANGER!
Warns about injuries
DANGER!
Warns about accidents
A. DANGER!
~, Warns about hearing loss
CE
The CE mark confirms the com-
pliance with EU directives.
.... Identifies a sequencing step
• Identifies a listing
6

For your safety
The device was manufactured according to
the state of the art and established safety
guidelines. Even so, dangers may occur if
you do not observe the safety notes in these
instructions.
If you are installing device
yourself
You may only install the device yourself if
you are experienced in installing car sound
systems and are very familiar with the elec-
trical system of the vehicle. For this pur-
pose, observe the installation instructions
at the end of these instructions.
Observe the following!
A DANGER!
! Increased risk of injury from
connector
In case of an accident, the protruding con-
nector in the front AUX-IN socket may cause
injuries. The use of straight plugs or adapt-
ers can lead to an increased risk of injury.
• For this reason, we recommend using
angled jack plugs, e.g. the Blaupunkt
accessories cable (7607001535).
In operation
• Operate the device only if traffic situa-
tion permits it! Stop at a suitable loca-
tion to perform extensive settings.
• Remove or attach the control panel only
while the vehicle is standing an.
For your safety
• To protect your hearing, always listen at
a moderate volume. During mute phas-
es (e.g. while the CD changer is chang-
ing the CD), changing the volume is not
detectable until after this mute phase.
Do not increase the volume during this
mute phase.
• Always listen at a moderate volume so
that you can always hear acoustic warn-
ing signals (e.g. police).
After operation
• The device is worthless to athief with-
out the control panel. Always remove
the control panel whenever you leave
the vehicle.
• Transport the control panel so that it is
protected against impacts and the con-
tacts cannot become dirty.
Cleaning instructions
Solvents, cleaning and scouring agents as
well as dashboard spray and plastics care
product may contain ingredients that will
damage the surface of the device. Use only
a dry or slightly moistened cloth for clean-
ing the device.
Disposal note
)! Do not dispose of your old unit in the
_ household trash!
Use the return and collection systems avail-
able to dispose of the old device.
7

Scope of delivery
Scope of delivery
The scope of delivery includes:
1 Car sound system
1 Support frame
2 Disassembly tools
1 Guide pin
4 Connecting cables
1 Handheld remote control
1 Operating instructions
Optional equipment
(not part of the scope of delivery)
Use only accessories approved by
Blaupunkt.
Steering wheel remote control
A steering wheel remote control allows for
safely and conveniently operating the basic
functions of your car sound system from the
steeri ng wheel.
You cannot switch the device on/off using
the remote control!
You can find out from your Blaupunkt dealer
or on the Internet at www.blaupunkt.com
which remote controls can be used with
your car sound system.
Bluetooth/USB interface
For Bluetooth applications, such as wireless
hands-free calling and Bluetooth streaming,
you can connect a Bluetooth interface. The
Bluetooth/USB interface provides an addi-
tional USB connection.
8
iPod/USB interface
The iPod interface or iPod/USB interface
allows connecting the iPod or iPod Mini to
the radio device and conveniently control-
ling the playback via the radio device. The
iPod/USB interface provides an additional
USB connection.
Amplifier
You can use all Blaupunkt and Velocity am-
plifiers.
CD changers
You can connect the following Blaupunkt
CD changers:
CDC A 03, CDC A 08 and IDC A 09.

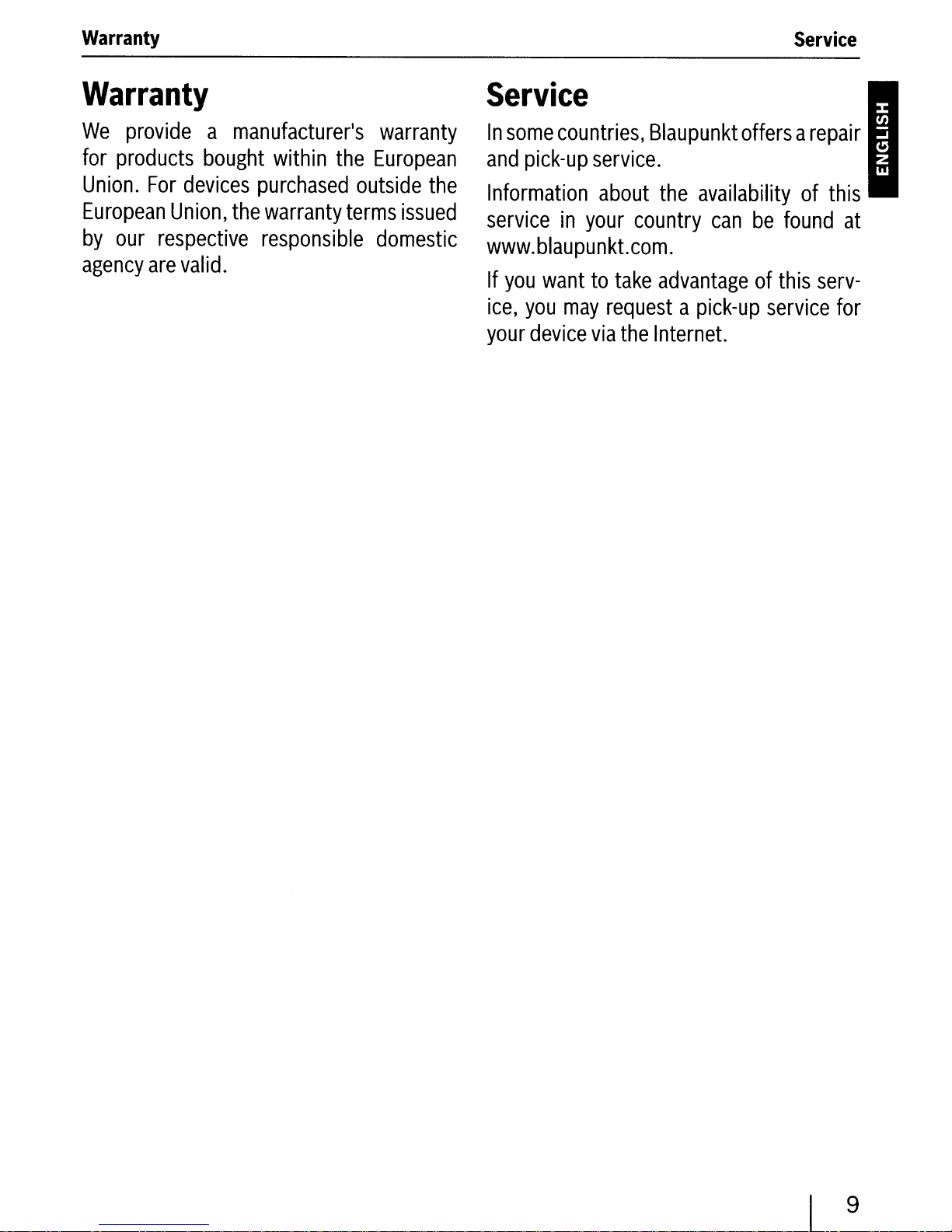

Warranty
Warranty
We provide a manufacturer's warranty
for products bought within the European
Union. For devices purchased outside the
European Union, the warranty terms issued
by our respective responsible domestic
agency are valid.
Service
Service
In some countries, Blaupunkt offers a repair
and pick-up service.
Information about the availability of this
service in your country can be found at
www.blaupunkt.com.
If you want to take advantage of this serv-
ice, you may request a pick-up service for
your device via the Internet.
9

Detachable control panel
Detachable control panel
Theft protection
The device is equipped with a detachable
control panel (flip-release panel) to protect
your equipment against theft. The device
is worthless to athief without this control
panel.
Protect your device against theft by taking
the control panel with you whenever you
leave your vehicle. Do not leave the control
panel inside your vehicle - not even in a hid-
ing place.
The control panel has been designed to be
easy to use.
Notes:
• Never drop the control panel.
• Never expose the control panel to di-
rect sunlight or other heat sources.
• Avoid direct skin contact with the
control panel's electrical contacts. If
necessary, clean the contacts with a
lint-free cloth moistened with c1ean-
i ng alcohol.
10 I
Detaching the control panel
... Press the [\~ button CD.
The locking mechanism of the control panel
is unlocked. The device switches off.
... Pull the control panel straight out of the
device and to the left.
All the current settings are saved.
Attaching the control panel
... Push the control panel into the guides
of the device from the left to the right.
Note:
When attaching the control panel, make
sure you do not push on the display.
... Carefully push on the left side of the
control panel until it clicks into place.

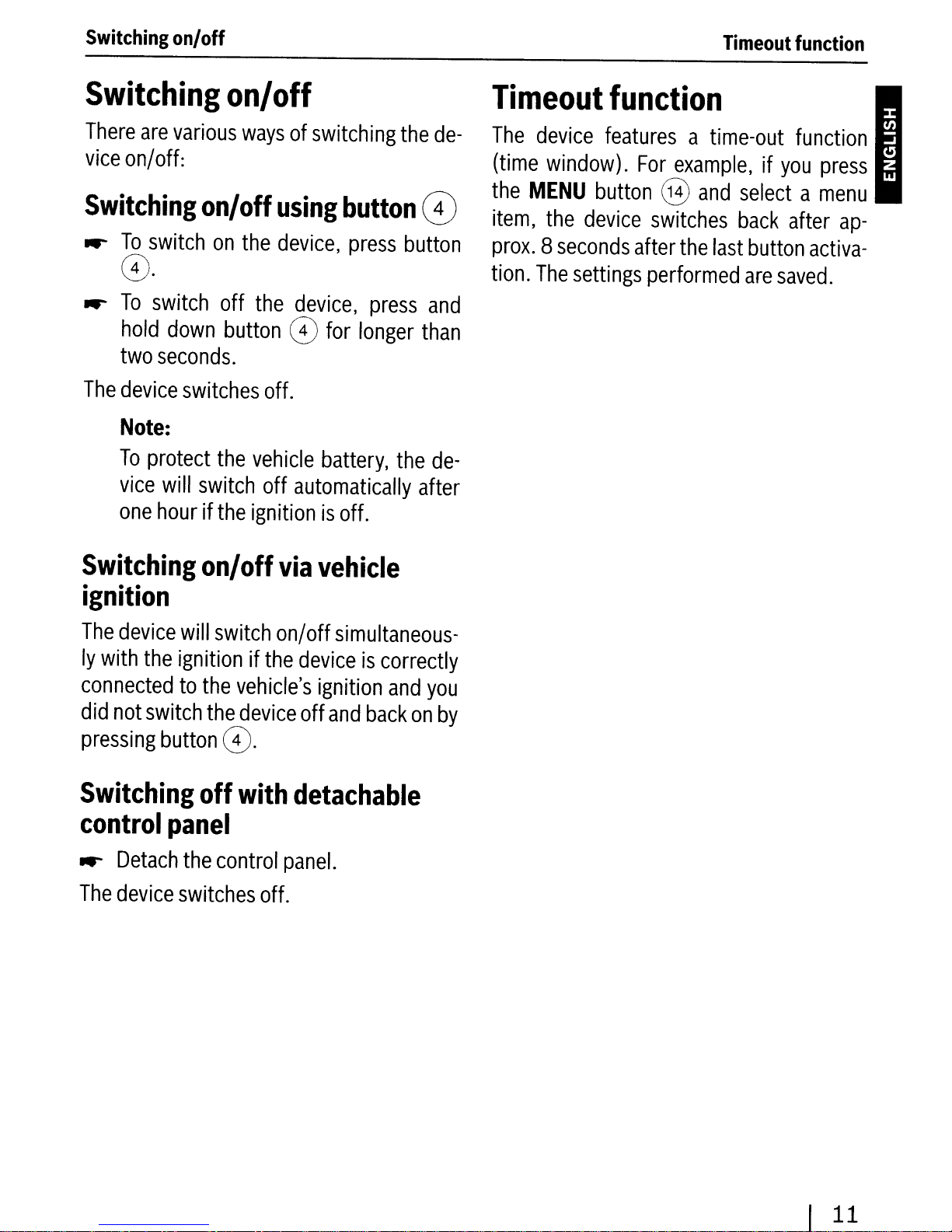

Switching on/off
Switching on/off
There are various ways of switching the de-
vice on/off:
Switching on/off using button 0
.... To switch on the device, press button
0·
.... To switch off the device, press and
hold down button 0 for longer than
two seconds.
The device switches off.
Note:
To protect the vehicle battery, the de-
vice will switch off automatically after
one hour if the ignition is off.
Switching on/off via vehicle
ignition
The device will switch on/off simultaneous-
ly with the ignition if the device is correctly
connected to the vehicle's ignition and you
did not switch the device off and back on by
pressing button 0.
Switching off with detachable
control panel
.... Detach the control panel.
The device switches off.
Timeout function
Timeout function
The device features a time-out function
(time window). For example, if you press
the MENU button @ and select a menu
item, the device switches back after ap-
prox. 8 seconds after the last button activa-
tion. The settings performed are saved .
I 11

Adjusting the volume
Adjusting the volume
You can adjust the volume in steps from
o (off) to 50 (maximum).
To increase the volume ,
.... turn the volume control ® clockwise.
To decrease the volume,
.... turn the volume control CD counter-
clockwise.
Setting the power-on volume
You can set the power-on volume. You can
adjust it manually or select the "LAST VOL"
setting. If you enable "LAST VOL", the
volume which was set the last time you
switched off the device is re-enabled.
.... Press the MENU button @).
The display shows "MENU".
.... Press the v or 1\ button 0 repeat-
edly until "ON VOLUME" appears on
the display.
.... Press the < button 0 to manually ad-
just the power-on volume and
.... adjust the power-on volume using the
v or 1\ buttons 0.
OR:
.... Press the > button 0 to select the
"LAST VOL" setting.
When you have finished making your
changes,
.... press the MENU button @.
To exit the menu,
.... press the ESC button @.
12 I
Note:
To protect your hearing, the power-
on volume is limited to the value "38"
for the setting "LAST VOL". If the
"LAST VOL" setting is selected and the
volume was set higher than "38" before
switch-off, the value "38" will be used
at switch-on.
Quickly reducing the volume
(MUTE)
You can quickly reduce the volume to a pre-
set level (Mute).
..... Briefly press button 0.
"MUTE" appears on the display.
Cancelling mute
To return to your previously set volume
level,
.... briefly press button 0 again.
Adjusting the mute level
You can adjust the mute level.
..... Press the MENU button@.
The display shows "MENU".
.... Press the v or 1\ button 0 repeat-
edly until "MUTE LVL" appears on the
display.
..... Press the button> 0to open the sub-
menu.
"MUTE" and the currently set value are dis-
played.
.... Adjust the mute level using the button
vor7\0·

When you have finished making your
changes,
.... press the MENU button@.
To exit the menu,
.... press the ESC button@.
Switching the confirmation beep
on/off (BEEP)
The system will output a confirmation beep
for some functions if you keep a button
pressed down for longer than two seconds,
for instance, when assigning a radio station
to a station preset button. You can switch
the beep on or off.
....
Press the MENU button @.
The display shows IIMENU
II
.
....
Press the v or A button 0 repeatedly
untililBEEP ON
II
or "BEEP OFF" appears
on the display.
.... Press the> button 0 to call up the
submenu.
.... Switch the beep on or off using the but-
ton> 0. 1I0FF
II
means beep off, 1I0N
II
means beep on.
When you have finished making your
changes,
.... press the MENU button @.
To exit the menu,
.... press the ESC button @.
Adjusting the volume
Muting during telephone mode
If your car sound system is connected with
a cell phone or navigation system, the car
sound system is muted when a call is incom-
ing or during a voice output of the naviga-
tion. The call or the voice output is played
back via the loudspeakers of the card sound
system. In orderfor this feature to work, the
mobile telephone or navigation system must
be connected to the car sound system as
described in the installation instructions.
You can find out from your Blaupunkt dealer
which navigation systems can be used with
your car sound system.
If a call is incoming or a navigation an-
nouncement takes place, the display shows
'TELEPHONE
II
.
Telephone Audio/
Navigation Audio
You can set the volume level at which the
telephone calls or navigation announce-
ments are mixed in .
....
Press the MENU button@.
The display shows IIMENU".
.... Press the v or 1\ button 0 repeatedly
untilllTEl VOlll appears on the display.
.... Press the> button 0 to call up the
submenu.
"TElVOl
ll
and the currently set value are
displayed .
....
Set the desired volume with the v or 1\
button 0.
I13

Adjusting the volume
When you have finished making your
changes,
..- press the MENU button@.
To exit the menu,
..- press the ESC button @.
Notes:
• If the volume listened to is higher than
the set 'TEL VOl" value, telephone
calls or navigation announcements
are played back at the volume lis-
tened to.
• Using the volume control 0, you can
adjust the volume for telephone calls
and navigation announcements di-
rectly during the playback.
14 I
Radio mode
Radio mode
Adjusting the tuner
To ensure proper functioning of the tuner,
the device must be set for the region in
which it is being operated. You can select
between Europe (EUROPE), America (USA)
and Thailand (THAI). The tuner is factory-
set to the region in which it was sold. If you
experience problems with your radio recep-
tion, please check this setting.
The radio functions described in these op-
erating instructions refer to the tuner set-
ting USA.
..- Switch off the device by pressing but-
tonG) .
..- Hold the buttons 1® and DIS @
pressed at the same time and switch on
the device again with the button 8).
The current setting is displayed .
..- Select your tuner region with the ~ or
A button 0.
To save the setting and to exit the menu,
..- press the MENU button @.
Switching to radio mode
If you are in SO, USB, CD changer or AUX-IN
mode,
..- press the BND- 1S button 0
or
..- press the SRC button ® repeatedly
until"TUNER" appears on the display.

Selecting the wavebandl
memory bank
This device can be used to receive stations
in the FM and AM frequency bands. Three
memory banks (FM 1, FM2 and FMT) are
avai lab Ie for the FM waveband and two
memory banks (AM and AMT) for the AM
waveband.
Five stations can be stored in each memory
bank.
To switch between the FMl, FM2, FMT, AM,
and AMT memory banks,
.... briefly press the BNO·TS button 0.
Tuning into a station
There are various ways of tuning into a sta-
tion:
Automatic station seek tuning
.... Press the v or 1\ button 0.
The radio tunes into the next receivable sta-
tion.
Tuning into stations manually
You can also tune into stations manually.
.... Press the < or> button 0.
Adjusting the sensitivity of the
station seek tuning (SENS)
You can choose whether the radio should
only tune into stations providing good re-
ception or whether it can also tune into
those with a weak reception.
.... Press the MENU button @.
The display shows lIMENU".
Radio mode
.... Press the v or 7\ button 0 repeatedly
until lISENS" and the currently set value
appears on the display.
"SENS HIli means a high sensitivity,
"SENS LO" a low sensitivity.
.... Press the button> 0to open the sub-
menu.
.... Set the desired sensitivity level using
the v or 1\ button 0.
When you have finished making your
changes,
.... press the MENU button @.
To exit the menu,
.... press the ESC button@.
Note:
You can adjust different sensitivities for
FM and AM.
Storing stations
Storing stations manually
.... Select the desired memory bank FM 1,
FM2, FMT, AM or AMT waveband.
.... Tune into the desired station.
.... Press and hold down one of the station
buttons 1-50 for longer than two
seconds to assign the station to that
button.
Storing stations automatically
(Travelstore)
You can automatically store the five sta-
tions offering the strongest reception in
the region for the FM and AM wavebands.
The stations are stored in the FMT or AMT
memory bank.
I15

Radio mode
Note:
Any stations that were previously
stored in this memory bank are deleted
in the process.
.... Use the BND- TS button CD to select
one of the memory banks FM 1, FM2 or
FMT for storing FM stations or one of
the memory banks AM or AMT for stor-
ing AM stations.
.... Press and hold down the BND-TS but-
ton (~) for longer than two seconds.
The storing procedure begins. The display
shows IIFM TSTOREII or IIAM TSTORE
II
. After
the process has completed, the radio will
play the station that is stored in memory lo-
cation 1 of the FMT or AMT memory bank.
Listening to stored stations
.... Select the memory bank or waveband.
.... Press the station button 1-5® of the
desired station.
Scanning receivable stations
(SCAN)
You can use the scan function to play all the
receivable stations briefly. You can set the
scanning time from 5 to 30 seconds in the
menu (in increments of 5 seconds).
Starting SCAN
.... Press and hold down the MENU button
@ for longer than two seconds.
Scanning begins. "SCAN
II
and frequency
are intermittently shown on the display.
16 I
Cancelling the SCAN and continuing to
listen to a station
.... Press the MENU button@.
Scanning stops and the radio continues
playing the station that it tuned into last.
Setting the scanning time
(SCAN TIME)
.... Press the MENU button@.
The display shows IIMENU
II
.
....
Press the v or 1\ button 0 repeatedly
untilllSCAN TIME
II
appears on the dis-
play.
.... Press the button> 0 to open the sub-
menu.
IISCAN
II
and the currently set value are dis-
played .
....
Set the desired scan time using the v
or 7\ button 0.
When you have finished making your
changes,
.... press the MENU button @.
To exit the menu,
.... press the ESC button @.
Note:
The adjusted scan time also applies to
scan processes in MP3jWMA mode.
Configuring the display
In radio mode, you have the option of dis-
playing the memory bank or the memory
location and the frequency or the memory
bank and the time.
To switch between the display options,
.... press the DIS button @.

MP3/WMA mode
You can play files with music data stored
on SD/MMC cards (Secure Digital or
Multimedia Card) and USB data carriers in
MP3 or WMA format using this car sound
system. The operation for playing MP3 and
WMA files is identical.
Notes:
• WMA files with Digital Rights
Management (DRM) from online mu-
sic shops cannot be played with this
device.
• WMA files can only be played back
safely if they were created with
Windows Media Player version 8 or
later.
Preparation of an MP3/WMA
data carrier
File system
103 tags
Files
Number
Naming of
files
Bit rate
MP3/WMA mode
FAT16 or FAT32 ,
no NTFS!
Version 1 or 2
Only MP3 or WMA files,
directories, playlists
1,500 files (directories
and tracks) per directory
File extension". wma"j
".mp3"
Max. 24 characters
(more characters are
possible, but it reduces
the max. number of files)
No special characters or
umlauts
MP3: 32 to 320 kbps
WMA: 32 to 192 kbps
Preparation of an SD/MMC card
You can write data onto the SD/MMC cards
with the help of a standard SD/MMC card
reader and your PC.
Note:
Blaupunkt cannot guarantee the cor-
rect functioning of all SD/MMC cards
available on the market and, for this
reason, recommends the use of SD/
MMC cards manufactured by "San Disk"
or "Panasonic".
For a perfect access to SD/MMC cards, ob-
serve the information in the following table
when saving MP3/WMA titles on the SD/
MMCcard:
You can name each directory using a PC.
The name of the directory is then shown on
the display of the device.
If you like your files to be in the specific or-
der, save the files on the card in the desired
sequence in which you want to play them
later.
I17

MP3/WMA mode
001
Switching to MP3 mode
® Directories
® Tracks· Files
Preparing a USB data carrier
For the device to recognise a USB data car-
rier,. it must be specified as mass storage
device and formatted using the FAT16 or
FAT32 file system and contain MP3 or WMA
files.
You can create up to 1,000 directories on a
USB data carrier. You can use this device to
access directories individually. The direc-
tory depth is unlimited.
You can store up to 10,000 files in every
directory.
Note
Blaupunkt cannot guarantee the prop-
er functioning of all USB data carriers
available on the market.
002
003
T001
T002
T003
T004
TOOS
T001
T002
T003
T004
TOOS
T006
®
004
T001
T002
T003
T004
TOOS
T006 ®
TOO?
TOOa
T009
T010
T011
Inserting/removing SD/MMC card
.... Insert the SD/MMC card with its la-
belled side to the left and its contacts
first into the card slot ® until it clicks
into place.
You can now select the SD/MMC card as au-
dio source with the SRC button 0.
To remove the SD/MMC card,
.... push on the SD/MMC card until it dis-
engages.
.... Pull the SD/MMC card out of the card
slot0·
Starting MP3 mode of SD/MMC cards
.... Press the SRC button 0 repeatedly
until the display shows "SD CARD".
The playback starts.
Connect USB data carrier and start
MP3mode
To be able to connect a USB data carrier
(e.g. a USB stick or USB hard disk), the
supplied USB cable must be connected to
the rear side of the device as described in
the installation instructions. This cable can
be routed, for example, to the glove com-
partment or a suitable place of the center
console.
Note
Always switch off the device before
connecting or disconnecting the USB
data carrier so that the data carrier is
correctly registered and unregistered.
.... Connect the USB data carrier with the
USB cable.
18 I

As soon as a USB data carrier is connected
,
it can be selected with the SRC button 0.
The display shows "USB".
Configuring the display
You can display various types of informa-
tion on the current track:
• File name or track name
•Artist
•
Album name
• Play time (PLAY)
• Time (ClK)
Note:
File names and 103 text with more than
9 characters are displayed as scrolling
text.
To switch between the different display op-
tions,
... press the DIS button @.
Notes:
•Artist and album name are a compo-
nent of the MP3103 tags of version 1
and can only be displayed if they were
stored with the MP3 files. For further
details, please read the instructions
for your PC-MP3 software.
•Artist and album name are each
displayed for approx. 10 seconds.
Afterwards, the file name is displayed
again.
•Ifartist and album name are not avail-
able, the file name is displayed
MP3/WMA mode
Selecting a directory
To move up or down to another directory,
... press the v or /\ ® button once or
several times.
Selecting tracks
To move up or down to another track in the
current directory,
... press the < or >® button once or
several times.
Fast searching (audible)
To fast search backwards or forwards ,
... press and hold down the < or> button
® for longer than two seconds.
Seek tuning continues as long as you hold
the button pressed.
Repeating individual tracks or
whole directories (REPEAT)
You can repeatedly play the current track or
all tracks in the current directory.
... Press the button 4 RPT 0 repeatedly
until the desired function appears on
the display:
• "RPT TRACK" (current track)
• "RPT OIR"
(all tracks in the current directory)
•
"RPT OFF" (end repeat)
As long as the repeat function is active, the
display shows the RPT symbol.
I19

MP3/WMA mode
Random track play (MIX)
You can play either all tracks in the current
directory or all tracks on the MP3 data car-
rier in random order.
... Press the button 5 MIX 0 repeatedly
until the desired function appears on
the display:
• "MIX DIW
(all tracks in the current directory)
•
"MIXALL"
(all tracks on the MP3 data carrier)
• "MIX OFF"
(end playback in random order)
As long as the random playback function is
active, the display shows the MIX symbol.
Scanning tracks (SCAN)
You can scan (briefly play) all the tracks on
the MP3 data carrier.
... Press the MENU button @ for longer
than 2 seconds.
The display intermittently shows "SCAN"
and the file name. The titles of the MP3 data
carrier are scanned in ascending order.
Note:
You can set the scanning time. For fur-
ther information on setting the scan-
ning time, please read the section en-
titled IIS
etting
the scanning time
ll
in the
IIRadio mode
ll
chapter.
Cancelling Scan and continuing listening
to a track
... Briefly press the MENU button @.
The currently scanned track will then con-
tinue to be played normally.
20 I
Interrupting playback (PAUSE)
... Press the 311~ button 0.
"PAUSEII appears on the display.
Cancelling pause
... Press the 3 U~ button 0.
Playback is continued.
