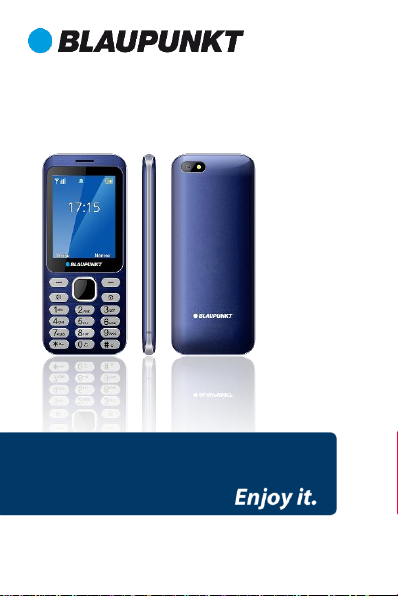

Blaupunkt FL 02 Instruction manual

Quick User Guide
Mobile phone FL 02

EN
Contents
1. Safety ........................................................................................... 1
2. Product specifications................................................................. 2
3. About the keys............................................................................. 2
4. Getting Started............................................................................ 3
4.1. Insert a SIM card ............................................................... 3
4.2. Insert a memory card........................................................ 3
4.3. Insert battery..................................................................... 4
4.4. Remove the battery ........................................................... 4
4.5. Charging the battery ......................................................... 4
4.6. Maintaining the battery .................................................... 5
5. Power On/Off .............................................................................. 5
6. Call functions............................................................................... 6
6.1. Make a call......................................................................... 6
6.2. Receive call ........................................................................ 6
6.3. Emergency call................................................................... 7
7. Messages..................................................................................... 7
7.1. Write a message................................................................ 7
7.2. Incoming messages ........................................................... 7
8. Camera......................................................................................... 8
9. Phone password.......................................................................... 8
10. Declaration of Conformity ........................................................ 8

EN
1
1. Safety
Please read the safety instructions carefully, as ignoring it may be
dangerous or illegal.
The owner of the device is responsible for the use of this
appliance.
Explosion hazards and restricted areas
Do not switch on the device, where it is prohibited to use a
mobile phone or can interfere with radio waves or cause danger,
e.g on airplanes, in hospitals or nearby medical devices, fuel,
chemicals and blasting area.
Follow the instructions strictly in restricted areas.
Road safety
Observe the local laws and regulations. Do not use the device
during driving, road safety comes first.
Interference
Every wireless device can be sensitive to the interference, which
can influence the performance.
Qualified service
The product can only be repaired by a qualified person.
Charger, battery and other accessories
Please, use battery, charger and other accessories which are
approved by the manufacturer. Do not connect incompatible
products.
Hearing protection
To avoid hearing loss, do not listen to music or radio for a long
time at high volume.
Water resistance
The appliance is not waterproof, so keep it dry.
Use environment
The device complies with the recommended emission values for
radio waves when kept at a minimum distance of 1,5 cm from
the ear. When carrying the phone in a case, belt clip or holder,

EN
2
make sure that it does not contain metal and that the phone is
slightly distracted from the body. When using other accessories,
it is not possible to operate in accordance with radio frequency
guidelines. If you do not use a case and do not hold the phone
on your ear, keep it at least 2,5 cm away from your body,
especially during data transfer.
2. Product specifications
The device handles two standard (Mini) SIM cards.
Power Supply Features:
•Input: (AC), 100-240V - 50/60Hz – 0,2A
•Output: (DC), 5V - 500mA
Battery Type and Voltage: Li-ion battery 3,7V - 1000mAh
Network type: GSM 900/1800MHz
SAR values: 0,354W/Kg (Head) – 0,568W/Kg (Body)
Note: Actual operating conditions depend on local conditions,
network environment and user habits.
3. About the keys
1. Left soft key / Right Soft key: Opens the menu item in the left /
right corner of the screen.
2. Dial key: dial / answer the call and in standby mode, open the
call list.
3. End / Off Power Button: Press and hold to turn the power on
and off; briefly press it down, reject a call, or quit it from the
menu.
4. Ok key: press to execute the indicated function. In standby
mode, press to open the selected link.
5. Navigation keys: Press up / down / left / right directions to
scroll through the menu. In standby mode, press the up / down /
left / right arrows to access the quick menu at the top of the
screen and press OK to execute.
6. 0-9 alphanumeric keypad: Press the corresponding keys to

EN
3
enter numbers when dialing or the characters of the numbers
when writing text.
In Idle mode: Press and hold "2" to "9" to use the Speed Dial
feature (if set in the menu [Phonebook / Phonebook settings /
Speed Dial]).
Press and hold „0” to display „+” the international developer
signal.
7. * (Star) button: In Menu mode, briefly press to lock the
keypad.
8. # (Dual Cross) button: in standby mode, press and hold to
activate / deactivate Silent mode.
4. Getting Started
4.1. Insert a SIM card
To use your phone, you need to insert a valid SIM card to
connect to the GSM network.
To avoid missing or damaged the contents of the SIM card,
please DO NOT hold the metal part of the SIM card with your
hands free and keep it away from electromagnetic devices. If the
SIM card is damaged, it can not be connected to the GSM
network. Before inserting or removing the SIM card, make sure
that the device is turned off and the back of the device removed.
Note: Locate the SIM card slot on the back of the device and in
the direction of the signal, with the collisions slide the card.
4.2. Insert a memory card
The memory card is not part of the basic package, but the
memory of the device can be expanded with an SD card. Please
make sure that the memory card is inserted correctly before use.
Note that the device may shakes, the memory card may slide out
of the slot, so please do not bend it, scratch the memory card or
expose it to static electricity or dust, do not immerse it in water.
Place the memory card in the slot on the back of the phone,

EN
4
withits chip facing down, as shown on the device.
Please be careful when using a memory card, especially when it
is removed. Some memory cards must be formatted with a
computer before use.
4.3. Insert battery
1. Insert the battery chip into the protruding metal point in the
battery slot, insert the battery, and push the top down until the
battery engages in the recess.
2. Put back the back cover.
4.4. Remove the battery
To remove the battery, turn off the device, remove the cover and
then remove the battery at the top.
Note:
Please remove the battery when it is switched off, as it may
cause abnormal operation when the device is switched on.
4.5. Charging the battery
Connect the charger to the appliance and plug the other end into
the socket. If the device is turned on while charging, the battery
icon will move in the right corner of the display. Charging is
completed when the charging indicator on the top right is lit. If
charging is switched off, a charging indicator appears on the
display. When charging is complete, unplug the charger from the
unit.
Note: When the battery voltage is low, a warning message is
displayed on the display. Charge the battery as soon as you can,
to avoid any inconvenience, the device can be switched off
during a telephone conversation. Your device can automatically
turn off when the power level is too low.
1. If you use the battery at a persistently low charge, it may
adversely affect the battery life and quality.
2. Use only the charger approved by the manufacturer for proper

EN
5
operation.
3. Do not remove the battery during charging.
4. Fill the unit for at least 4 hours before first use. This can
increase the efficiency of the multiple charge and discharge
cycles.
4.6. Maintaining the battery
The device has a rechargeable battery. When not using the
charger, disconnect it from the power source. For more than a
week, do not leave the phone charging. Temperature influences
battery capacity. Battery may need to be cooled or warmed up
before charging. If the battery temperature is lower than 0 °C or
higher than 45 °C, do not charge the battery. Use the battery
according to its intended purpose. Do not short-circuit the
battery terminals. Do not use a damaged battery. If you are using
an appliance under extreme temperature conditions, the battery
will not work properly and its life span will be reduced. DO NOT
throw the battery into fire, follow local laws and regulations
regarding the disposal of the spent battery.
5. Power On/Off
Press and hold the End / On-Off button to turn the unit on or off.
1. If a SIM card is not inserted, it is defective or not fit correctly, a
warning message will be displayed after switching on the display.
Turn off your device and make sure the SIM card is inserted
correctly.
2. If you insert the SIM card into the device, the PIN request and
the phone password are active, the device prompts you for the
password and PIN code and switches to standby mode.
After switching on, the phone automatically searches for the
network. If the device has found the allowed network, it will
display its name and signal strength.
If your device does not find a suitable network, you can only

EN
6
make an emergency call or access non-network services on your
phone.
6. Call functions
6.1. Make a call
When the network service provider name appears on the display,
the phone is ready to make and receive calls.
In Standby mode, press the number keys to enter the number
you want to call, press the right soft key to clear the wrong
numbers, press the left soft key or the dial key to start the call if
the specified number is correct.
To enter an international phone number format, press and hold
the [0] key until „+” international call sign appears on the display.
6.2. Receive call
When an incoming call is alerted to your device if your service
provider supports the number display, the display shows the
caller's number or the caller's name (depending on whether you
have saved it in the phone book).
1. Press the dial key or the left soft key and answer [Answer] to
the incoming call.
2. If Any key responds function is active, [Menu / Call center / Call
Settings / Advanced Settings / Answer Mode / Anykey], you can
answer any call using any key except the Right softkey and the
End / Off button.
3. When the headset is connected to the unit and [Headset] is
activated [Menu / Call center / Call Settings / Advanced Settings /
Answer Mode / Auto answer in headset mode], incoming calls
will be automatically received by your phone after 5 seconds of
vibration or ringing.
4. If you do not want to answer the call, press the End / Off
button to reject the call.
The End / Off button can also be used to disconnect the call.

EN
7
5. During a call, press the down / up navigation keys to reduce or
increase the loudspeaker volume.
6.3. Emergency call
You can immediately make an emergency call without a SIM card.
Different networks can use different emergency numbers, so
please contact your network operator.
7. Messages
Message service is a network-dependent service that allows you
to send and receive SMS. For more information, contact your
network provider.
7.1. Write a message
In Menu mode, select Messaging> Write message.
Note: To send the SMS, you must have the correct message
center number from your network service provider. You can
check and change the message center in Menu> Messaging>
Message settings> Text message > SIM1 / SIM2> Profile settings.
While writing a message, press # to switch between input modes.
Text messages can consist of up to 612 characters (up to 252
characters for accented characters).
Press the left soft key [Options] during message editing to access
the following functions:
- Send to: You can specify the recipient of the message
manually or select it from Names.
- Sending: After Adding a Recipient (which you can do by
entering a direct phone number or from Contacts), you can
send the message by selecting <Options> Send.
7.2. Incoming messages
You can store received messages on your device or on the SIM
card and access it.
When you receive a message, a beep or vibration (as previously

EN
8
configured in the menu) will alert you to this, or a graphic will
appear on the display. Press the left soft key [View] or OK to view
the message, and the right soft key to return to the SMS menu to
read other incoming messages.
8. Camera
Your device has a camera for taking photos. To store images, you
need a memory card.
9. Phone password
The phone password can be a 4-8-digit code that protects your
device from unauthorized use.
The factory default password is „1122”. When the feature is
active, the phone asks for this code every time you turn it on. To
protect your privacy, change the default password as soon as
possible. Set a password you can easily remember.
10. Declaration of Conformity
The Blaupunkt FL 02 is compliant with the essential requirements
and relevant provisions of RoHS Directive 2014/53/EU and
2011/65/EU. The Declaration of Conformity is available on our
website.
Import: HTM Mobile Ltd.
Address: 1118 Budapest, Dayka Gábor street 3. HUNGARY
For more information on this product, visit our website at
www.htmmobile.hu or www.blaupunkt.com.
