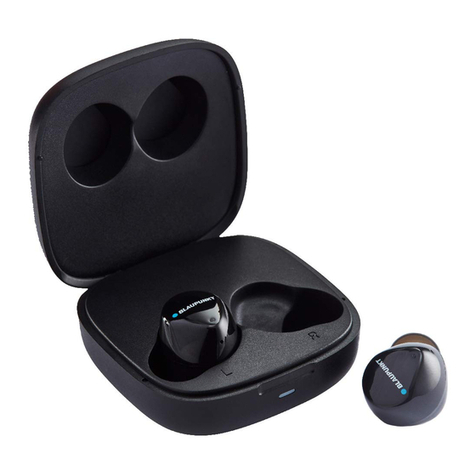

Blaupunkt BTW-LITE User manual

TRUE WIRELESS
BTW-LITE
Google/Siri Assist V 5.0IPX-5

BTW-LITE
Contents
• Appearance 1
• Getting Started 2
• Operation instruction of earbud 3
• Operation instruction of charging case 9
• Cleaning and maintenance 11
• Important Safety Instructions 11
• Troubleshooting 13
• Warranty Information 15

BTW-LITE

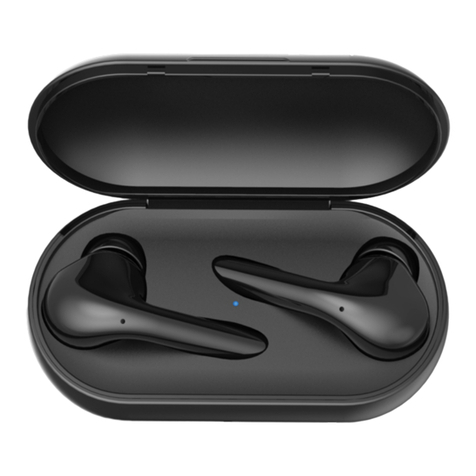

1. Appearance
Button illustration:
1. LED
2. Touch key
3. Ear-gels
4. Charging contactor
1

BLAUPUNKT-BTW LITE (L)
BLAUPUNKT-BTW LITE (L)
BTW-LITE
2. Getting Started
Connecting
To connect your earbuds to a Bluetooth device, rst
ensure the device has Bluetooth enable and it is in
pairing mode (See your device manual for setting
pairing mode). Once your earbuds are in pairing
mode, you should be able to see it in the list of
Bluetooth devices. You should see BLAUPUNKT- BTW
LITE (L) for left earbud or BLAUPUNKT-BTW LITE (R)
for the right earbud appear in your contactable
devices list. After successful connection, the earbuds
prompts "Phone is connected". You need to connect
one of them to use as primary. However, if you want
to use them individually, only connect the desired ear
L or R, and turn o another one.
2

BTW-LITE
When Left earbud is successfully paired with the
phone, the phone will Pop-up a dialog:“Earbud
would like to pair with your phone”. If you click“pair”,
the secondary earbud will also be paired with the
phone. And primary-secondary switching function
will be OK. If it is not conrmed at this time, Left
earbud and Right earbud cannot switch subsequently.
3. Operation instruction of earbud
(1). Indicator Flashing Mode
Indicator Flashing Mode
White light goes on for 1 second
Light goes out
Right earbud: White light ashing
quickly once every 0.2 seconds.
Left earbud: Light goes out.
White light ashing quickly
once every 0.1 seconds.
Light goes out
Light goes out
White light ashing quickly
Light goes out
White light goes on
Light goes out
Item No.
1.1
1.2
1.3
1.4
1.4
1.5
1.6
1.7
1.8
1.9
Status
Power on the earbud
Power o the earbud
Pairing mode
Connected between
“L”&“R”earbuds
Connected
Listening music
Incoming call
Phone call in progress
Battery charging mode
Battery has been fully
charged
3

BTW-LITE
(2). Voice Notication In English
Voice Notication
Power on
Power o
Pairing
TWS Connected
Connected
Disconnected-Pairing
With tone
With tone
With tone
With tone
Battery Low
(once every 4 minutes)
Power o-Resetting
earbuds
Item No.
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
2.10
2.11
2.12
Event
Power on the earbud
Power o the earbud
Pairing with Bluetooth music device
Left & right earbud paired successfully
Connected with Bluetooth music device
Disconnected with Bluetooth music
device
Receive incoming call
Play/Pause
Refuse incoming call
End a call
Battery level is below 10%
Restore to Factory Settings
4

BTW-LITE
(3). Function Keys Table
Item
No.
3.1
3.2
3.3
Function
Power on
Power o
Pairing
with
Bluetooth
device
Status
Earbud
is o
Earbud
is on
Earbud
is o
Action(Right side,
primary)
1.Take the earbuds
from the charging
case
2.Press and hold
touch key for 2 sec.
1.Put the earbuds
into the charging
case
or
2.Press and hold
touch key for 4 sec.
3. Switch on for 8
minutes without
pairing
1. Entering into
pairing mode after
the left & right
earbuds are taken
out of charging case
& connect each other
automatically. Then
Action(Right side,
primary)
1.Take the buds
from the charging
case
2.Press and hold
touch key for 2 sec.
1.Put the earbuds
into the charging
case
or
2.Press and hold
touch key for 4 sec.
3. Switch on for 8
minutes without
pairing
1. Entering into
pairing mode after
the left & right
earbuds are taken
out of charging case
& connect each other
automatically. Then
5

3.4
3.5
3.6
3.7
Restore to
Factory
Settings
Adjust
volume
Previous
song
Next song
Earphone
is o
Earphone is
paired with
device
Playing
music
Playing
music
earphone will search
for last paired
Bluetooth device.
or
2. After being
disconnected from
Bluetooth device,
earphone will go to
pairing mode directly.
Press and hold the
touch key for 10
seconds when the
earphones are o.
---
---
Press touch key
twice on right
earbud to skip to
next song.
earphone will search
for last paired
Bluetooth device.
or
2. After being
disconnected from
Bluetooth device,
earphone will go to
pairing mode directly.
Press and hold the
touch key for 10
seconds when the
earphones are o.
---
Press touch key
twice on left
earbud to skip to
previous song.
---
BTW-LITE
6

BTW-LITE
3.8
3.9
3.10
3.11
3.12
Play/Pause
Receive a
call
End a call
Refuse
incoming
call
Voice
dialing
Playing
music
Playing
music
or connected
with
smartphone
A phone call
has been
connected
There is an
incoming
call
Earbud is
connected
with
smartphone
Press touch key once
to pause and press
once again to resume.
Press touch key
once.
Press and hold
touch key for 2
seconds
Press and hold
touch key for 2
seconds
Press and hold
touch key for 1.5
seconds (need to
have support by
smartphone)
Press touch key once
to pause and press
once again to reume.
Press touch key
once.
Press and hold
touch key for 2
seconds
Press and hold
touch key for 2
seconds
Press and hold
touch key for 1.5
seconds (need to
have support by
smartphone)
7

(4). Illustration of Function Keys
BTW-LITE
8

(2). Charging case operating instruction
Charging the case
(power input)
Charge earbuds by
the case (power output)
Plug in Micro USB charging cable and charge
the case with DC 5V 1A power source.
Place the earbuds in their designated
positions and they will be charged.
4. Operation instruction of charging case
(1) LED Indicator of charging case
Button illustration:
1. Micro USB charging port
2. LED
BTW-LITE
9

(3) LED Indicator during discharge (charging earbuds)
Discharge of charging
case (charging earbud)
Charging the earbuds by charging case:
1. White light of charging case goes on. And
the light goes o after the earbuds are fully
charged.
2. White light of charging case goes out if the
earbuds are taken out of the charging case
during charging.
(4) LED Indicator during charging of charging case
Being charged
Fully charged
White light ashes quickly.
White light goes on.
(5) Indication when battery power level of charging
case is low
White light of charging case ashes slowly when the
earbuds are put into charging case with low battery
power.
BTW-LITE
10

5. Cleaning and maintenance
1. Clean the earbuds and the charging case on a
regular basis.
2. Use dry and soft cotton cloth to wipe the unit.
Note: Do not insert anything into the product.
3. Keep away from sharp objects to avoid scratches.
4. Put the unit in a dry and shady place if it is to be
idle for a long time.
5. Do not clean the product with detergent or
chemicals.
6. Important Safety Instructions
Please read the instructions thoroughly before using
this product and retain it for future reference.
Hearing Safety
• Do not wear earbuds with high volume for a long
time to avoid damaging your hearing.
• Please refer to local laws and regulations if you want
to answer phone calls via this device during driving.
• For your safety, avoid distraction from music or
phone calls when you are driving or doing other
activities with potential dangers.
Warning: Please set the volume to proper level to
avoid hearing damages.
BTW-LITE
11

Caution
• Do not expose this product to high temperatures.
• Do not immerse the earbuds into water or expose
them to humidity for a long time.
• Do not clean the product with detergent containing
alcohol, ammonia, benzene or abrasives.
• Avoid dropping.
• Place the earbuds back into the charging case when
not in use and keep it away from children and pets
to avoid choking hazard.
• Unauthorized disassembly of any parts of this
product is forbidden, which may cause re hazard,
warranty voidance, and/or property loss.
• Close attention is needed when using near children.
• Keep the charging case away from water, rain or any
other liquid.
• Don’t use the product in thunderstorm to avoid
malfunction or electric shock.
• Always ask a professional technician or authorized
personnel for repair.
This product contains lithium battery. Never
expose it to excessive heat such as direct sunlight
or re to avoid explosion.
BTW-LITE
12

7. Troubleshooting
Solution
Earbuds low battery, please charge them
• Place the earbuds into the charging case
properly
• Make sure the charging case is charged fully
Make sure the charging cable is intact and
plugged in properly
The earbuds reconnected with previously
paired device automatically:
• Deactivate the Bluetooth function of
previously paired device or clear the pairing
name from its Bluetooth device list, and then
search again
• Put the device to be connected and the
earbuds within 10 meters / 33 feet
• Turn on the device and activate its Bluetooth
function before pairing
• Bring the earbuds into pairing mode as
instructed in the“Pairing”section
Place both earbuds back to the charging case
and take them out.Then they will pair with
each other automatically. If pairing failed,
No.
1
2
3
4
5
6
Problem
Failed to turn on the
earbuds
Failed to charge the
earbuds
Can’t charge the
charging case
Can’t nd pairing
name in the
Bluetooth
device list
Failed to pair the
earbuds with your
device
No sound in one of
the earbuds in couple
earbuds mode
BTW-LITE
13

restore them back to the factory settings as
instructed in the“Restore to Factory Settings”
section.
• Wear the earbuds properly and keep them
close to each other.
• Place the connected device close to the
earbuds or remove the obstacles between
them
• Clear the debris on the earbuds
• Keep the earbuds and your Bluetooth device
within 10 meters / 33 feet
• The effective distance may shorten with
obstacles in the way
• Turn off other Bluetooth devices to decrease
the interference
Set the volume to higher level
Free the built-in microphone of any covers
7
8
9
10
Poor sound quality
Unstable
connection
Can’t hear the other
party during a
phone call
The other party
can’t hear your
voice during a
phone call
BTW-LITE
14

Place the earbuds into the charging case and
disconnect the Bluetooth connection.
Afterwards, take out the earbuds from the
charging case and pair again.
11 Touch key control of
the earbuds is
unresponsive
8. Warranty Information 1 Year*
If you have issue with our BTW-LITE product please
contact our service center.
Authorized Service Center Blaupunkt Speakers
Address: Envent World Wide Pvt. Ltd.,
KH NO-96/2, Village-Bamnoli, Sector-28, Dwarka,
Bamnoli West, Delhi- 110077.
E-Mail: [e-mail]
Tel: [phone]
Please prepare and submit the following information
during the telephone or e-mail notication to
facilitate the process:
- Serial number
- Date of purchase
- A copy of proof of purchase in case of warranty
Note - Important information:
Please use the original packaging or other suitable
packaging to protect the unit in transit.
BTW-LITE
15
