Blaupunkt BTW-Pro User manual

TRUE WIRELESS
BTW-Pro
Instruction Manual

Contents
• Brief Introduction 1
• Before use 1
1. Overview 2
2. Charging for earbud 3
3. Charging for charging case 4
• Getting started 6
1. Wearing earbud 6
2. One earbud connecting with cellphone 7
3. Two earbuds connecting with cellphone 10
4. Earbuds pairing/connecting 11
5. Function operation-use one earbud 12
6. Function operation-use two earbuds 16
7. Battery display 16
8. Meaning of indicator light 17
9. Factory Reset 18
• Care and maintenance 19
• FAQs 20
• Specication 21
• Warranty Information 22
BTW-Pro

Welcome to use True Wireless Bluetooth earbud, BTW-Pro.
Please read this user’s manual carefully before use.
• Brief introduction
Blaupunkt BTW-Pro is a True Wireless Bluetooth Earbud, each ear piece
comes with a Microphone that can be used by charging, and you can
charge the charging case with your wireless charger individually or use
together for stereo sound. The earbuds come safely placed in a charging
case, which is convenient to carry and charge. The charging case supports
wireless charging.
1
BTW-Pro

• Before use
1. Overview
2
1. LED indicator
2. MFB touch-button
3. Microphone
4. Charging metal
connect
5. Top case
6. Wireless charge
induction area
7. Charging indicator
light
8. Charging jack
BTW-Pro

2. Charging for earbud
When the earbud is low on power, the earbud emits “Battery low”
once every 2 minutes and the red Led ashes slowly 4 times in a row
every 1 minute. Please recharge the battery of the earbud.
The way of charging the earbuds as following:
1. Put the earbuds into the charging case to ensure that the charging
pins connect well, and start charging when you see the red indicator
light of the earbuds on.
Red light on: Charging
Red light off: Finished charging
2. Charging should be completed in roughly 1.5 hours.
3
BTW-Pro

4
Remarks:
• Please cover the charging case cover so that the earbuds and the
charging case connect well when it is charging.
• When the earbuds are not put into charging case, the indicator light of
charging case is off. When the earbuds are put into charging case, the
white indicator light of the charging case will light up and indicate
the power of the current charging case:
White LED ashes once every 2 seconds = low battery power;
White LED ashes 3 times every 2 seconds = sufficient battery power;
White LED remains on = full battery power;
After removing the earbuds from the charging case, the indicator LED
of the charging case will automatically extinguish after 1 minute.
3. Charging for charging case
When any of the following situations occurs, it indicates that the charging
case is low in power and you need to charge the charging case:
1) Put the earbuds into the charging case, and nd that the white
indicator light of the charging case ashes once every 2 seconds. It
means that the charge case is low power.
2) When the indicator light of the charging case doesn’t turn on and the
earbuds cannot be charged, it means that the battery of the charging
case has been used up.
BTW-Pro

5
The charging case supports USB cable charging and wireless charging.
The way of charging for the charging case as following:
Using USB cable
1) Plug the Micro USB charging cable into the case’s charging jack.
2) Plug the USB cable into a USB port of PC or a 5Volt USB charge.
Wireless charging
1) Connect the wireless charger to the power cable. (some wireless
chargers with built-in batteries may not need to be connected to the
power cable)
2) Put the charging case in the center of the wireless charger as far as
possible for the most efficient charging.
White LED ashes: Charging
White LED on: Finish charging
3) Charging should be completed in roughly 1.5 hours. When using
wireless charging, the charging time will be slightly longer.
4) If the earbuds are in the charging case, it can charge the earbuds
while charging the charging case.
BTW-Pro

6
Micro USB charging Wireless charging
Remarks:
1) The battery is recyclable.
2) Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat place, such as sunshine, re or the likes.
3) Please make sure the charging jack is dry before putting on charging.
BTW-Pro

7
Getting started
1. Wearing earbud
a. Choose the suitable size ear gels
b. Ensure each earbuds is worn on the correct ear. “L” should be worn
on the left ear and “R” worn on the right ear
Left ear Right ear
2. One earbud connecting with cellphone
Each earbuds can be connected separately to the cellphone.
1. Power on
a) The earbuds will turn on automatically when they are taken out
of the charging case.
b) If the earbuds are power off, you should press touch-button
for about 3s until white LED ashes as the same time the earbuds
emits “Power on”. Then release. This is now in the “Power on” state.
BTW-Pro

8
2. Pairing
a) After the earbud is taken out of the charging case, it will be power
on. Then it will connect back to the phone it was paired with
before. When the earbuds and the cellphone fails to connect back,
the earbuds will automatically enter the matching state.
b) If the earbuds are power off, you should press touch-button for
about 8s and release it when the red LED and white LED ash
quickly and alternately. You will hear “Pairing”. The earbuds are now
in “Pairing” mode.

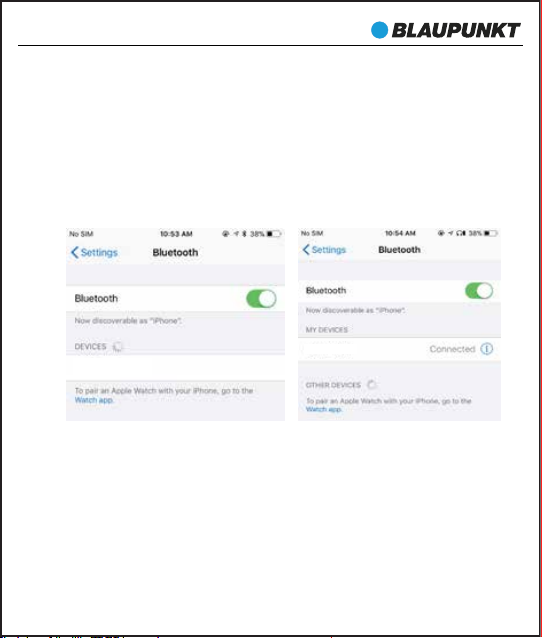

3. Connecting
To connect your earbuds to a Bluetooth device, rst ensure the
device has Bluetooth enable and it is in pairing mode (See your
device manual for setting pairing mode). Once your earbuds are in
pairing mode, you should be able to see it in the list of Bluetooth
devices.
BTW-Pro

9
You should see BLAUPUNKT-BTW PRO (L) for left earbud or
BLAUPUNKT-BTW PRO (R) for the right earbud appear in your
contactable devices list. After successful connection, the earbuds
prompts "Phone is connected".
You need to connect one of them to use as primary. However, if you
want to use them individually, only connect the desired ear L or R,
and turn off another one.
When Left earbud is successfully paired with the phone, the phone
will Pop-up a dialog: “Earbud would like to pair with your phone”.
If you click “pair”, the secondary earbud will also be paired with the
phone. And primary-secondary switching function will be OK. If it
is not conrmed at this time, Left earbud and Right earbud cannot
switch subsequently.
BLAUPUNKT-BTW PRO (L)
BLAUPUNKT-BTW PRO (L)
BTW-Pro

10
4. Power o
1）Auto power off once put into charging case
2）Press touch-button about 5s and release it till red LED is on, and
earbuds prompt “Power off”.
Remark:
 •When the earbuds are idle and not connected to the Bluetooth
device, they will turn off automatically after 5 minutes to save
power.

 •The pairing mode will last for 2 minutes. If the earbuds are not
paired with any Bluetooth devices after 2 minutes, the earbuds will
enter standby mode and turn off automatically after the standby
mode lasts for 3 minutes.
BTW-Pro

11
3. Two earbuds connecting with cellphone
In this mode, you can use two earbuds at the same time to enjoy
stereo sound.
1) Turn on any one of earbuds and connect it with your Bluetooth
device, then power on the other earbud and it will connect with
each other automatically.
2) Primary-secondary switch: When primary earbud is successfully
paired with the phone, the phone will Pop-up a dialog: “Earbud
would like to pair with your phone”. If you click “pair”, the secondary
earbud will also be paired with the phone, and the primary-secondary
switching function will become OK. In the following cases, the
secondary earbud can automatically switch and connect to the
mobile phone, so you can continue to use:
(1) In the process of use, when the primary earbud is automatically
turned off at low power, the secondary earbud will be
automatically connected to the mobile phone.
BTW-Pro

12
(2) When the primary earbud is disconnected from the mobile
phone at a distance, the secondary earbud will be automatically
connected to the mobile phone.
(3) When the primary earbud is put into the charging case, the
secondary earbud will be automatically connected to the
mobile phone.
4. Earbuds pairing/connecting
Please use this step if both the earbuds dsn’t get connected with each
other.
1. Turn off both the earbuds (don’t put them into the charging case).
2. Clear the pairing list: Choose one of the earbuds. Firstly, enter the
pairing mode. Then hit the touch button 5 times, while the red LED
and the white LED turns on for 1 second. The pairing list will be
BTW-Pro

13
cleared when emits prompt tone. The other earbud cleans the
pairing list by doing the same.
3. The earbuds will enter TWS pairing mode automatically when they
are turned on (indicator light status: red and white lights ash
slowly). After successful connection, the primary earbud (L) will
emit “Pairing” after a "dang" prompt, which indicator light status
will be: red LED and white LED ash alternately (it keeps waiting to
be paired with your phone), while the secondary earbud (R) will
emits ‘dang’ and indicator status will be: white LED ash twice
every 5 seconds.
Remarks:
• Normally the two earbuds will connect automatically once you
have taken them out of the charging case, which set in factory.
• You can connect the two earbuds according to the above mentioned
operation if they failed connecting.
BTW-Pro

14
5. Function operation-use one earbud
1. Music
Function
Status of
earbuds L R
Prompt
tone
P
lay Paused
Double-click
touch-button
Double-click touch-
b
utton
D
ang
P
ause
Playing
music
Double-click
touch-button
Double-click touch-
b
utton
D
ang
Previous
s
ong
Playing
music
Press Left touch-
button about 2s
N
/A
D
ang
N
ext song
Playing
music N/A
Press Right touch-
b
utton about 2s
D
ang
V
olume up
Playing
music
N/A
Once-click Right
t
ouch-button
D
ang
Volume
d
own
Playing
music
Once-click Left
touch-button
N
/A
D
ang
BTW-Pro

2. Calling
Function
Status of
earbuds
L
R
Prompt tone
Cancel
calling
Calling
Once-click
touch-button
Once-click
touch-button
Two Tone _ High
Falling after Dang tone
Answering
Incoming
call ringing
Once-click
touch-button
Once-click
touch-button
Dang
Reject
Incoming
call ringing
Press touch-
button about 2s
Press touch-
button about 2s
Two Tone _ High
Falling
End calling
During a call
Double-click
touch-button
Double-click
touch-button
Two Tone _ High
Falling after Dang tone
Voice
switch to
phone
During a call
Press touch-
button about 2s
Press touch-
button about 2s
Two Tone _ High
Falling
Voice
switch to
earbuds
During a call
Press touch-
button about 2s
Press touch-
button about 2s
Two Tone _ Low rising
Activate
SIRI
Connected
device
N/A
Triple-click
touch-button
“Voice dial”
Volume up
During a call
N/A
Once-click
touch-button
Dang
Volume
down
During a call
Once-click
touch-button
N/A
Dang
15
BTW-Pro

16
6. Function operation - two earbuds connecting with cellphone
1. Music
15
Function
Status of
earbuds L R
Prompt
tone
P
lay
P
ausing
Double-click
t
ouch-button
Double-click touch-
b
utton Dang
P
ause
Playing
m
usic
Double-click
t
ouch-button
Double-click touch-
b
utton Dang
Previous
s
ong
Playing
m
usic
Press Left touch-
b
utton about 2s
N
/A Dang
N
ext song
Playing
m
usic
N
/A
Press Right touch-
b
utton about 2s Dang
V
olume up
Playing
m
usic
N/A
Once-click Right
t
ouch-button Dang
Volume
d
own
Playing
m
usic
Once-click Left
t
ouch-button
N
/A Dang
BTW-Pro

2. Calling
Function
Status of
earbuds L R Prompt tone
Cancel
c
alling
C
alling
Once-click
t
ouch-button
Once-click
t
ouch-button
Two Tone_High Falling
a
fter Dang tone
A
nswering
Incoming
c
all ringing
Once-click
t
ouch-button
Once-click
t
ouch-button
D
ang
R
eject
Incoming
c
all ringing
Press touch-
b
utton about 2s
Press touch-
b
utton about 2s
Two Tone _ High
F
alling
E
nd calling
D
uring a call
Double-click
t
ouch-button
Double-click
t
ouch-button
Two Tone_High Falling
a
fter Dang tone
Voice
s
witch to
p
hone
D
uring a call
Press touch-
b
utton about 2s
P
ress touch-
b
utton about 2s
T
wo Tone _ High
F
alling
Voice
s
witch to
e
arbuds
D
uring a call
Press touch-
b
utton about 2s
P
ress touch-
b
utton about 2s
T
wo Tone _ Low rising
Active
S
IRI
Connected
d
evice
N/A
Triple-click
t
ouch-button
“
Voice dial”
V
olume up
D
uring a call
N/A
Once-click
t
ouch-button
D
ang
Volume
d
own
D
uring a call
Once-click
t
ouch-button
N
/A
D
ang
17
BTW-Pro

18
3. Gang control to power o
When using two earbuds, if earbud of the left or right turns off,
the other earbud will be turned off at the same time. The earbuds
will have corresponding indicator light and prompt sound
when they turn off.
Remarks:
• If earbuds are in calling mode, both earbuds will have voice and can
operate function, but only the earbud connected with cellphone
can pick up sound.
• When using both earbuds to talk, the transfer audio operation is on
the primary earbud. In other words, when Left earbud is primary,
long press left touch - button about 2s to transfer audio; when
Right earbud is primary, long press right touch - button about 2s to
transfer audio.
BTW-Pro
