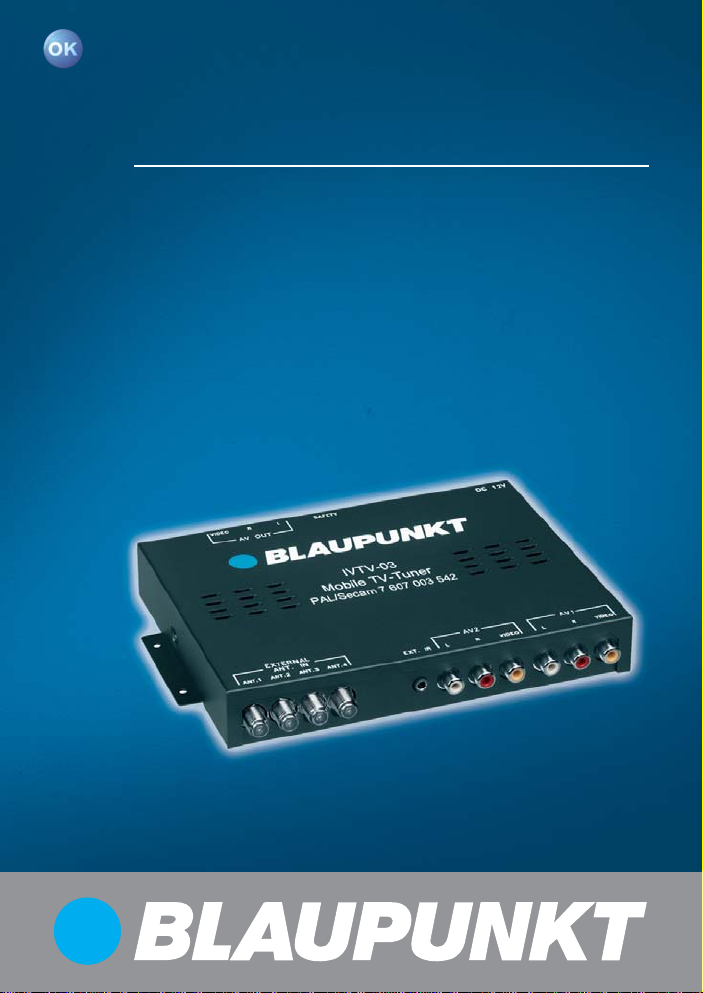

Blaupunkt IVTV-03 User manual

http://www.blaupunkt.com
In Car Video
IVTV-03 7 607 003 542
Operating and installation instructions

14
CONTENTS
Safety notices......................... 15
Notes on installation and
operation ................................ 16
Tuner connection ................... 16
Remote control....................... 18
Functions................................ 19
Cable TV channels ................. 20
Detecting the input signal....... 20
AV output................................ 21
Connection options ................ 21
Installation (antenna).............. 22
Diversity antenna system ....... 22
Safety circuit........................... 24
Accessories............................ 25
Specifications ......................... 25
Signal type ........................... 110
Frequency table for
cable TV ............................... 112

15
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
Thank you for choosing a Blaupunkt
product. We hope you enjoy using this
new piece of equipment.
Please read these operating instruc-
tionsbefore usingtheequipment for
the first time.
The Blaupunkt editors are constantly
working on making the operating in-
structions clearer and easier to under-
stand. However, if you still have any
questions on how to operate the equip-
ment, please contact your dealer or the
telephone hotline for your country. You
will find the telephone numbers printed
at the back of this booklet.
We provide a manufacturer guarantee
for our products bought within the Eu-
ropean Union. You can view the guar-
antee conditions at www.blaupunkt.de
or ask for them directly at:
Blaupunkt GmbH
Hotline
Robert-Bosch-Str. 200
D-31139 Hildesheim
SAFETY NOTICES
Safety notices
Please observe the following safety
noticesduringinstallation and whilst
making the connections.
-Disconnect the negative and positi-
ve terminals of the battery.
-When doing so, please observe the
safetynoticesprovidedbythevehicle
manufacturer.
-Before drilling the holes necessary
for mounting the equipment and for
layingcables,pleasemakesurethat
concealed cables, the fuel tank and
fuel lines cannot be damaged in the
process!

16
NOTES ON INSTALLATION AND OPERATION
Notes on installation and
operation
Tuner connection
-The tuner must first be installed in a
suitable location. You must make
surethat the device is fixed securely
in place and that it is not subjected
to moisture or dirt. You must not lay
the connecting cables in a way that
could cause the vehicle passengers
togetinadvertentlycaughtupinthem
and rip them out.
-Please note that the tuner must not
bepositionednearheatsources(e.g.
heating, direct sunlight) since this
could result in faulty behaviour as a
result of excess temperature.
-Connect all of the tuner’s audio,
videoandpower supplyconnections
(see connection diagram in the
following picture) that you need for
your system installation. When
positioningtheinfraredsensor,make
sure there are no objects positioned
between the sensor and the place
whereyouusuallykeep yourremote
control, since they could interfere
with the transmission of the infrared
signal.
Note:
The following diagram shows all of the
tuner’s connection options. Your car
system’s connections do not necessar-
ily have to be exactly the same as this.

17
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
NOTES ON INSTALLATION AND OPERATION
Tuner connection
4 cables:
1. Ground/GND
2. N.C.
3. +12V permanent
4. +12V ACC
A/V SOURCE 1
(VIDEO GAMES CONSOLE,
VCR or DVD PLAYER)
A/V SOURCE 2
(VIDEO GAMES CONSOLE,
VCR or DVD PLAYER)
IR sensor for the
remote control option
4 3
2 1
SAFETY
EXTERNAL
ANT.IN AV2 AV1
LRVIDEOLRVIDEO
ANT.1 ANT.2 ANT.3 ANT.4
EXT.IR
VIDEO R L
AV OUT
ANT.1ANT.2ANT.3ANT.4
Video output
Audio output (R)
Audio output (L)
RIGHT
DIVERSITY ANTENNA
LEFT DIVERSITY ANTENNA
To the SAFETY CIRCUIT
(refer to the notes on
correct and safe system
operation, page 24)

18
NOTES ON INSTALLATION AND OPERATION

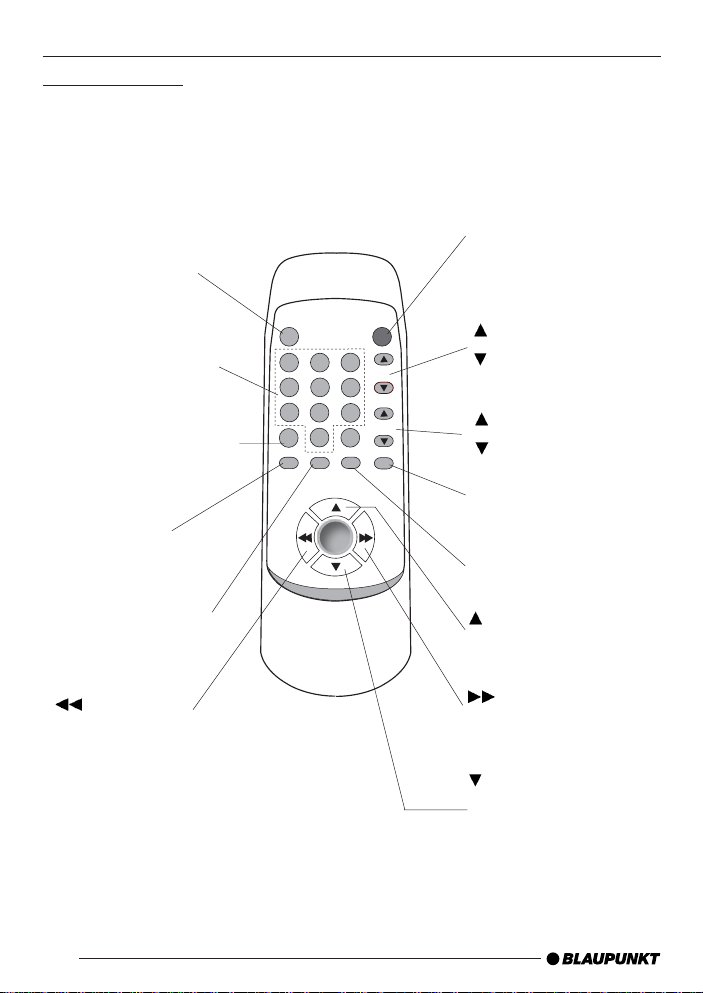

Remote control
OK
123
456
9
87
0
DISP
CH
ADJ
ERASE
ESC
ADD
MENU
TV/AV POWER
POWER
For switching on the
IVTV –03.
TV/AV
These buttons allow you to
select the available inputs
TV, CATV,AV 1, AV 2.
Start search to the previous
channel in the favourites list
Channel selection
UP / DOWN
CH
Channel fine tuning
ADJ
ERASE
Erase button for the pro-
gram memory assignments
ESC
Return without storing
Start search to the next
channel in the favourites list
Start search to the next
channel
Start search to the
previous channel
ADD
Open the channel storing
menu for the program selec-
tion buttons
MENU
Open the region menu
DISP
Display the TV standards
and channel information
Program selection buttons
for stored favourites..

19
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
Functions
POWER
To switch on the TV tuner, press the
POWER button.
To
switch off the TV tuner, press the
POWER button again.
TV/AV
You can use theTV/AVbutton to switch
between the channel/input options TV,
CATV, AV1 andAV2.
CH
Channel search > Press once to
switch to the next higher channel.
Channel search > Press once to
switch to the next lower channel.
ADJ
Channel fine tuning > Carries out fine
tuning once more.
Thisfunctionisnecessaryifthe channel
you are searching for lies outside the
standard frequency raster.
ERASE
Erase button for thSelect the program
memory location, press the ERASE
buttonandconfirmtheeraseactionwith
the OK button.
ESC
Return without saving if you are in the
menuorafterpressingtheErasebutton.
ADD
Open the channel storing menu for the
programselection buttons >Select the
channel, press the ADD button, then
enter the number of the memory
locationandconfirmbypressingtheOK
button.
MENU
Open the region menu > Briefly press
the menu button, use PRG / to
selectthereceivableregionandconfirm
by pressing the OK button.
Selection: PAL B/G, B/H, I, D/K, AUS;
SECAM L, L‘, DK, BG
DISP
Display the TV standards and channel
information.
Channel selection buttons 0 - 9
Program selection buttons for stored
favourites.
Thereareatotalof15 programmemory
locations available.
(01-15)
PRG
Channel search Up/Down for stored
favourites.
Channel search UP/Down
OK
Confirmation button in function menus.
FUNCTIONS

20
Detecting the input signal
Thetunersystemautomatically detects
whether a signal is being received and/
or whether a signal can be received in
everysignalinputmodeornot.Ifitdoes
not detect a signal, the “No Signal” sta-
tusis indicated. Ifa signal is received,a
corresponding display appears
immediately.
Cable TV channels
System TV Cable TV (CATV)
PAL B/G TV channels 2 ~ 69 Cable TV channels 1 ~ 57
PAL B/H TV channels 2 ~ 69 Cable TV channels 1 ~ 57
PAL I TV channels 12 ~ 69 Cable TV channels 1 ~ 44
PAL D/K TV channels 1 ~ 57 Cable TV channels 1 ~ 63
PALAUS TV channels 00 ~ 69 Cable TV channels
SECAM L TV channels 21 ~ 61 Cable TV channels 2 ~ 40
SECAM L‘ TV channels 1 ~ 10 Cable TV channels 2 ~ 40
SECAM DK TV channels 21 - 60 Cable TV channels 1
SECAM BG TV channels 02 - 61 Cable TV channels 2
Input source Description
AV1 External audio/video input 1
AV2 External audio/video input 2

21
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
AV output
Thisconnectionoption isusedforsend-
ing the audio signal directly to the car
sound system. In order to use this op-
tion, the car sound system must be
equipped with anAUX input. The video
output is used to connect additional
video screens and it only outputs the
video signal.
Connection options
FUNCTIONS
IVSC
AV output
IVTV
03
Monitor
Monitor
Audio R/L
Cable adapter 7 607 001 603
IVTV
03 RCA-Y adapter
7 607 001 507
RCA / ISO (10 pin)
7 607 001 508
RCA / ISO-C3 (8 pin)
7 607 001 509
IVMR
7001/
9002/
1042/
1542
Radio
oder
Amplifier

22
Installation
Diversity antenna system
The Diversity antenna system that is integrated in the tuner has been specially
developed for mobile applications and ensures optimum signal reception.
a. Installation
Remove the protective covering from the antenna foot and secure the adhe-
sive foot to the required position (the surface to which it is stuck must be free
from dust and grease).
b. Adjusting the angle
In order to achieve optimum reception quality, adjust the position of the an-
tennaso that (if possible)onerod is aligned horizontallyandone rod vertically.
c. Installation notes
-Installation on the rear window
INSTALLATION
-Installation on the windscreen

23
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
-Installation on the side window
INSTALLATION
-Antenna attachment
-Connection of the antenna to the tuner box
The supplied adhesive strips for
the antenna achieve optimum
adhesion after approx. 24 hours.
You must not re-use adhesive
stripsonceyouremovethemfrom
the window. If you want to re-in-
stalltheantenna,youcanusethe
supplied replacement adhesive
strip,whichcan becuttosizewith
scissors.
ANT.1ANT.2ANT.3ANT.4
Tuner Box

24
TV/AV selection Function of the safety circuit
Vehicle is moving Vehicle is stationary
TV IN Monitor off Monitor on
AV IN Monitor off Monitor on
INSTALLATION

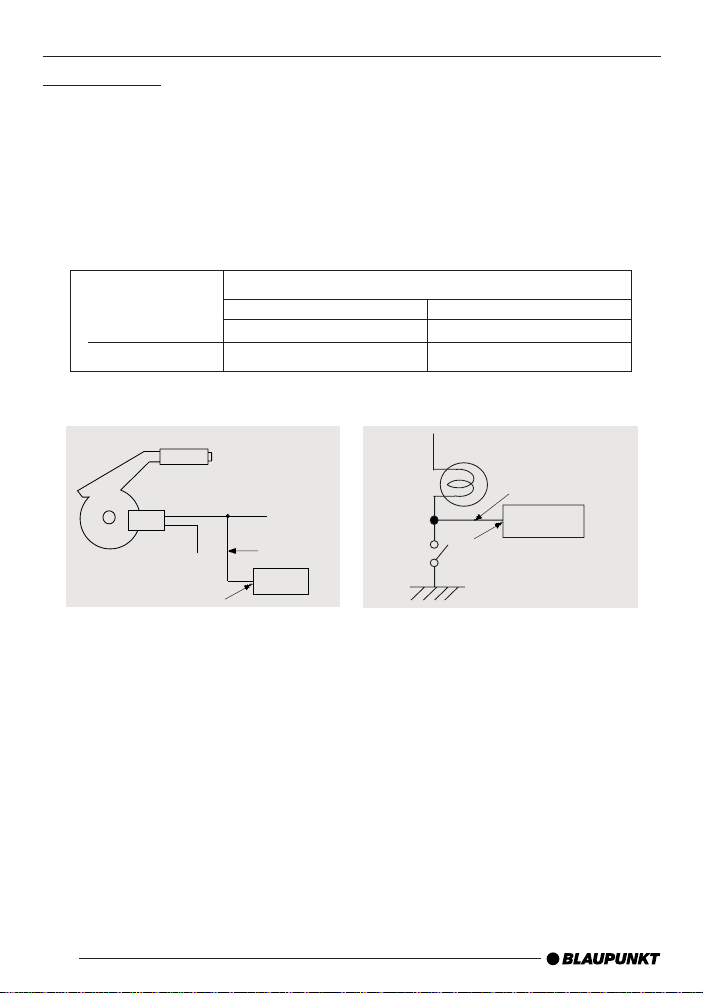

Safety circuit
Thetuner module has been fittedwithasafety circuit to ensure safeTVoperation.
The supplied accessory components include a special safety cable. If the safety
system is installed correctly, you can only activate TV operating mode if the
vehicle handbrake is on. The schematic diagrams below provide information on
howto install the system. If you require additional assistance, please contact your
dealer.
Handbrake
Battery (-)
Hand-
brake (+)
Tuner
Safety cable
Safety
Parking lamp
Tuner
Safety cable
Safety

25
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
ACCESSORIES AND SPECIFICATIONS
IR cable
AV cable
Electrical cable
Safety cable
Remote control with battery
Operating instructions
Antenna
Adapter
Subject to changes!
1
AV input 2 xAV RCA
AV output 1 xAV RCA
TV channels see page 19
Dimensions (W x H x D) 182 x 27.4 x 134 mm
Weight 640 g
Supported system PAL B/G, B/H, I, D/K,
AUS, Secam BG, DK, L, L‘
Visible-type fuse 3 amps
Operating temperature 0°C to +60°C
Storing temperature -20°C to +70°C
Operating voltage 10 V to 16 V
Current consumption approx. 1A (TV mode), 0.76 AAV mode
Quiescent current consumption < 1 mA
Video input/output impedance 75 ohms
Audio input/output impedance 620 ohms
Video in/out amplification 0 dB / 75 ohms
Audio in/out amplification 0 dB / without load
Specifications
Accessories
4

110
COUNTRY SIGNAL TYPE
ISLE OF MAN PAL
NEPAL B
BULGARIA PAL
IRAQ PAL
SRI LANKA PAL
AZORES PAL B
BANGLADESH PAL B
BRUNEI DARUSSALAM PAL B
COOK ISLANDS PAL B
EAST TIMOR PAL B
EASTER ISLAND PAL B
ETHIOPIA PAL B
GAMBIA PAL B
GREENLAND PAL B
INDIA PAL B
INDONESIA PAL B
LAOS PAL B
MADEIRA PAL B
MALAYSIA PAL B
MALDIVES PAL B
MALTA PAL B
MOZAMBIQUE PAL B
NORFOLK ISLAND PAL B
PAKISTAN PAL B
QATAR PAL B
SUDAN PAL B
TANZANIA PAL B
TURKEY PAL B
AFGHANISTAN PAL B,
SECAM B
ALBANIA PAL B/G
ALGERIA PAL B/G
AUSTRALIA PAL B/G
AUSTRIA PAL B/G
BAHRAIN PAL B/G
CAMEROON PAL B/G
CANARY ISLANDS PAL B/G
CYPRUS PAL B/G
DENMARK PAL B/G
ESTONIA PAL B/G
FINLAND PAL B/G
GERMANY PAL B/G
GHANA PAL B/G
GIBRALTAR PAL B/G
GREECE PAL B/G
ICELAND PAL B/G
ISRAEL PAL B/G
ITALY PAL B/G
KENYA PAL B/G
KUWAIT PAL B/G
LEBANON PAL B/G
LIBYA PAL B/G
LIECHTENSTEIN PAL B/G
NETHERLANDS PAL B/G
NEW ZEALAND PAL B/G
NIGERIA PAL B/G
NORWAY PAL B/G
OMAN PAL B/G
PAPUA NEW GUINEA PAL B/G
PORTUGAL PAL B/G
SAO TOMÉ E PRINCIPE PAL B /G
SEYCHELLES PAL B/G
SIERRA LEONE PAL B/G
SINGAPORE PAL B/G
SLOVAKIA PAL B/G
SOMALIA PAL B/G
SPAIN PAL B/G
SWAZILAND PAL B/G
SWEDEN PAL B/G
SWITZERLAND PAL B/G
UGANDA PAL B/G
UNITED ARAB EMIRATES PAL B/G
YUGOSLAVIA PAL B/G
ZAMBIA PAL B/G
ZIMBABWE PAL B/G
JORDAN PAL B/G
CZECH REPUBLIC PAL B/G
(cable), PAL D/K (broadcast)
CAMBODIA PAL B/G
EGYPT PAL B/G,
SECAM B/G
LITHUANIA PAL B/G,
SECAM D/K
LATVIA PAL B/G,
SECAM D/K
LUXEMBOURG PAL B/G,
SECAM L
BELGIUM PAL B/H
BOSNIA/HERZEGOVINA PAL B/H
SIGNAL TYPE

111
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
CROATIA PAL B/H
LIBERIA PAL B/H
MACEDONIA PAL B/H
SLOVENIA PAL B/H
THAILAND PAL B/M
YEMEN PAL B
CHINA
(PEOPLE’S REPUBLIC) PAL D
ROMANIA PAL D/G
POLAND PAL D/K
ANGOLA PAL I
FALKLAND ISLANDS
(LAS MALVINAS) PAL I
HONG KONG PAL I
IRELAND, REPUBLIC OF PAL I
MACAU PAL I
NAMIBIA PAL I
SOUTH AFRICA PAL I
UNITED KINGDOM PAL I
GUINEA PAL K
LESOTHO PAL K
HUNGARY PAL K/K
HAITI SECAM
TAHITI SECAM
EQUITORIAL GUINEA SECAM B
MAURITANIA SECAM B
MAURITIUS SECAM B
MOROCCO SECAM B
SYRIA SECAM
B, PAL G
IRAN SECAM B/G
TUNISIA SECAM B/G
SAUDIARABIA SECAM B/
G, PAL B
CHAD SECAM D
MONGOLIA SECAM D
KOREA (NORTH) SECAM D,
PAL D/K
ARMENIA SECAM D/K
AZERBAIJAN SECAM D/K
BELARUS SECAM D/K
GEORGIA SECAM D/K
KAZAKHSTAN SECAM D/K
KYRGYZ REPUBLIC SECAM D/K
MOLDOVA (MOLDAVIA) SECAM D/K
RUSSIA SECAM D/K
TAJIKISTAN SECAM D/K
TURKMENISTAN SECAM D/K
UKRAINE SECAM D/K
UZBEKISTAN SECAM D/K
FRANCE
(FRENCH FORCES TV) SECAM G
BENIN SECAM K
BURKINAFASO SECAM K
BURUNDI SECAM K
CENTRALAFRICAN
REPUBLIC SECAM K
CONGO
(PEOPLE’S REPUBLIC) SECAM K
CONGO, DEM.
REP. (ZAIRE) SECAM K
DJIBOUTI SECAM K
GABON SECAM K
GUADELOUPE SECAM K
GUIANA (FRENCH) SECAM K
MADAGASCAR SECAM K
MALI SECAM K
MARTINIQUE SECAM K
MAYOTTE SECAM K
NEW CALEDONIA SECAM K
NIGER SECAM K
POLYNESIA (FRENCH) SECAM K
REUNION SECAM K
ST. PIERRE ET MIQUELON SECAM K
SENEGAL SECAM K
TOGO SECAM K
WALLIS & FUTUNA SECAM K
BOTSWANA SECAM K,
PAL I
COTE D’IVOIRE
(IVORY COAST) SECAM K/D
FRANCE SECAM L
MONACO SECAM L,
PAL G
SIGNAL TYPE

112
Frequenztabelle für Kabel-TV
Frequency table for cable TV
Tableau des fréquences pour la télévision câble
Tab ella delle frequenze per TV via cavo
Frequentietabel voor kabel-tv
Frekvenstabell för kabel-tv
Tabla de frecuencias para televisión por cable
Tab ela de frequências para TV
Frekvenstabel for kabel-TV
PAL B/G
Index Channel Freq.
No. (MHz)
1E248.25
2E355.25
3E462.25
4X69.25
5Y76.25
6Z83.25
7Z+1 90.25
8Z+2 97.25
9S1105.25
10 S2 112.25
11 S3 119.25
12 S4 126.25
13 S5 133.25
14 S6 140.25
15 S7 147.25
16 S8 154.25
17 S9 161.25
18 S10 168.25
19 E5 175.25
20 E6 182.25
21 E7 189.25
22 E8 196.25
23 E9 203.25
24 E10 210.25
25 E11 217.25
26 E12 224.25
27 S11 231.25
28 S12 238.25
29 S13 245.25
30 S14 252.25
31 S15 259.25
32 S16 266.25
33 S17 273.25
34 S18 280.25
35 S19 287.25
36 S20 294.25
37 S21 303.25
38 S22 311.25
39 S23 319.25
40 S24 327.25
41 S25 335.25
42 S26 343.25
43 S27 351.25
44 S28 359.25
45 S29 367.25
46 S30 375.25
47 S31 383.25
48 S32 391.25
49 S33 399.25
50 S34 407.25
51 S35 415.25
52 S36 423.25
53 S37 431.25
54 S38 439.25
55 S39 447.25
56 S40 455.25
57 S41 463.25
PAL I
Index Channel Freq.
No. (MHz)
1S01 69.25
2S02 76.25
3S03 83.25
4S1105.25
5S2112.25
6S3119.25
7S4126.25
8S5133.25
9S6140.25
10 S7 147.25
11 S8 154.25
12 S9 161.25
13 S10 168.25
14 S11 231.25
15 S12 238.25
16 S13 245.25
17 S14 252.25
18 S15 259.25
19 S16 266.25
20 S17 273.25
21 S18 280.25
22 S19 287.25
23 S20 294.25
24 S21 303.25
25 S22 311.25
26 S23 319.25
27 S24 327.25
28 S25 335.25
29 S26 343.25
30 S27 351.25
31 S28 359.25
Index Channel Freq.
No. (MHz)

113
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
DANSK
32 S29 367.25
33 S30 375.25
34 S31 383.25
35 S32 391.25
36 S33 399.25
37 S34 407.25
38 S35 415.25
39 S36 423.25
40 S37 431.25
41 S38 439.25
42 S39 447.25
43 S40 455.25
44 S41 463.25
PAL D/K (China)
Index Channel Freq.
No. (MHz)
1DS-1 49.75
2DS-2 57.75
3DS-3 65.75
4DS-4 77.25
5DS-5 85.25
6Z-1 112.25
7Z-2 120.25
8Z-3 128.25
9Z-4 136.25
10 Z-5 144.25
11 Z-6 152.25
12 Z-7 160.25
13 DS-6 168.25
14 DS-7 176.25
15 DS-8 184.25
16 DS-9 192.25
17 DS-10 200.25
18 DS-11 208.25
19 DS-12 216.25
20 Z-8 224.25
21 Z-9 232.25
Index Channel Freq.
No. (MHz) Index Channel Freq. No. (MHz)
22 Z-10 240.25
23 Z-11 248.25
24 Z-12 256.25
25 Z-13 264.25
26 Z-14 272.25
27 Z-15 280.25
28 Z-16 288.25
29 Z-17 296.25
30 Z-18 304.25
31 Z-19 312.25
32 Z-20 320.25
33 Z-21 328.25
34 Z-22 336.25
35 Z-23 344.25
36 Z-24 352.25
37 Z-25 360.25
38 Z-26 368.25
39 Z-27 376.25
40 Z-28 384.25
41 Z-29 392.25
42 Z-30 400.25
43 Z-31 408.25
44 Z-32 416.25
45 Z-33 424.25
46 Z-34 432.25
47 Z-35 440.25
48 Z-36 448.25
49 Z-37 456.25
50 DS-13 471.25
51 DS-14 479.25
52 DS-15 487.25
53 DS-16 495.25
54 DS-17 503.25
55 DS-18 511.25
56 DS-19 519.25
57 DS-20 527.25
58 DS-21 535.25
59 DS-22 543.25
60 DS-23 551.25
61 DS-24 559.25
62 DS-25 567.25
63 DS-26 575.25
SECAM L, SECAM L'
Index Channel Freq.
No. (MHz)
2255.75
3360.5
4463.75
11 SC-1 120
12 SC-2 128
13 SC-3 136
14 SC-4 144
15 SC-5 152
16 SC-6 160
17 SC-7 168
55176
66184
77192
88200
99208
10 10 216
18 SC-8 224
19 SC-9 232
20 SC-10 240
21 SC-11 248
22 SC-12 256
23 SC-13 264
24 SC-14 272
25 SC-15 280
26 SC-16 288
27 SC-17 303.25
28 SC-18 315.25
29 SC-19 327.25
30 SC-20 339.25
31 SC-21 351.25
32 SC-22 363.25
33 SC-23 375.25
34 SC-24 387.25
35 SC-25 399.25
36 SC-26 411.25
37 SC-27 423.25
38 SC-28 435.25
39 SC-29 447.25
40 SC-30 459.25

Service-Nummern / Service numbers / Numéros du service après-
vente / Numeri del servizio di assistenza / Servicenummers /
Telefonnummer för service / Números de servicio / Números de
serviço / Servicenumre
Country: Phone: Fax:
Germany (D) 0180-5000225 05121-49 4002
Austria (A) 01-610 39 0 01-610 39 391
Belgium (B) 02-525 5444 02-525 5263
Denmark (DK) 44-898 360 44-898 644
Finland (FIN) 09-435 991 09-435 99236
France (F) 01-4010 7007 01-4010 7320
Great Britain (GB) 01-89583 8880 01-89583 8394
Greece (GR) 210 94 27 337 210 94 12 711
Ireland (IRL) 01-46 66 700 01-46 66 706
Italy (I) 02-369 62331 02-369 62464
Luxembourg (L) 40 4078 40 2085
Netherlands (NL) 0800 400 1010 0800 400 1040
Norway (N) 66-817 000 66-817 157
Portugal (P) 2185 00144 2185 00165
Spain (E) 902 52 77 70 91 410 4078
Sweden (S) 08-7501850 08-7501810
Switzerland (CH) 01-8471644 01-8471650
Czech. Rep. (CZ) 02-6130 0446 02-6130 0514
Hungary (H) 76 511 803 76 511 809
Poland (PL) 0800-118922 022-8771260
Turkey (TR) 0212-335 06 71 0212-346 00 40
USA (USA) 800-2662528 708-6817188
Brasil
(Mercosur) (BR) 0800 7045446 [phone]
Malaysia
(Asia Pacific) (MAL) [phone] [phone]
06/2005A // CM/ASA2 - 8 622 404 179
Blaupunkt GmbH, Robert-Bosch-Straße 200, D-31139 Hildesheim
http://www.blaupunkt.com
