Blaupunkt BLUEBOT OMEGA User manual

BLUEBOT OMEGA
EN USER MANUAL 2
DE BEDIENUNGSANLEITUNG 33
FR MANUEL DE L'UTILISATEUR 64
NL GEBRUIKERSHANDLEIDING 95
ALL DISPOSAL & RECYCLING 126
Enjoy it.

2
Welcome!
Thank you for choosing the Blaupunkt Bluebot OMEGA.
With this manual we would like to support you in the set-up and usage of
your Blaupunkt Bluebot robot.
For extra how-to videos, tips & tricks, FAQs or contact details, go to:
https://blaupunktrobotics.eu/support-bluebot/
or
In this manual you will find the following topics to support you in the set-
up of your robot:
1 Safety regulations .......................................................................... 03
2 Product information ...................................................................... 06
3 Installation of the robot & auto station ...................................... 08
4 Installation of the Bluebot application .........................................12
5 Usage of the robot & auto station ................................................14
6 Cleaning settings ............................................................................18
7 Maintenance ...................................................................................19
8 Basic parameters ............................................................................26
9 Usage limitations ........................................................................... 27
10 Troubleshooting ............................................................................ 28
11 Warranty ......................................................................................... 32
FOREWORD
Blaupunkt Robotics Youtube Channel

3
EN
1. SAFETY REGULATIONS
WARNING:
· Use only the original rechargeable battery and charging station specially equipped
by the manufacturer. Non-rechargeable batteries are strictly prohibited, please refer
to "product parameters" for battery specification information.
· It is forbidden to use the product in environments with open flames or fragile
objects.
· It is forbidden to use the product in extremely hot (above 40 °C) or extremely cold
(below 0 °C) environments.
· It is forbidden to use the products near burning or evenly hot object, for example a
burning fireplace.
· Do not use this product in high temperature environments.
· It is forbidden to approach the opening and operating parts of the robot with
fingers, clothes, hair and any item for safety reasons.It is forbidden to use the products
on wet or uneven ground.
· It is forbidden for the product to absorb any articles such as stones and waste paper
that may clog the product.
· It is forbidden for the product to absorb any inflammable substances, such as
petrol, toner and toner for printers. Prohibit the use of products in clean areas with
flammable items.
· It is forbidden for the product to absorb any burning articles, such as cigarettes,
matches, ashes and other articles that may cause fire.
· It is forbidden to place objects at the suction opening. Do not use the product when
the suction port is blocked. Clean all possible blockage at the suction opening to
ensure smooth air circulation at the suction opening.
· Use the power cord carefully to avoid damage. It’s forbidden to use the power cord
to drag or pull the product and the product charging station. It’s forbidden to use the
power cord as a handle. It’s forbidden to clamp the power cord in the crack of the
door. It is forbidden to pull the power cord at sharp corners.
· Do not use a damaged charging/auto station.
· Even if the product has been severely damaged, burning of the product is
prohibited, which may lead to explosion of the battery of the product.
· Do not use the product until its roller brush and filters have both been correctly
mounted, otherwise its cleaning performance can be affected.
GENERAL SAFETY REGULATIONS:
Before using this product, please read the following safety instructions and follow all routine safety precautions.
Please read the instructions carefully, please keep the instructions.
Any operation inconsistentcy with this instruction manual may cause damage to this product.

4
CLEANING AUTO STATION WARNINGS:
· Do not pull the power plug with a wet hand.
· Do not use a damaged power plug or a loose power socket.
· When using the cleaning auto station, please only use the official AC power
supply as received with the station. Others may cause fire or electric shocks.
· Please remove the dust on the power plug with a dry cloth at regular intervals
to avoid fires due to poor maintenance.
· Please insert the power plug till the end to avoid electric shocks, short
circuit and fires.
· In the case of any fault, please cut offthe power supply and stop using the
product immediately to avoid smoking, fires and electric shocks.
· If the product is abnormally hot, has a burning smell or sounds abnormally in
charging or use, please cut offits power supply and pull its power plug immedi-
ately, put it in an open space away from combustibles and safely replaced or re-
paired by a full-time maintenance person of the manufacturer to avoid dangers.
· To avoid personal injuries and electric shocks, please pull the power plug from
the power socket before cleaning or maintaining it.
· Do not put the robot or the power plug into water, or spray water onto any
of them.
· Do not use any other power cable to charge the product.
· When pulling the power plug, hold the insulated part of the cleaning auto
station and not pulling the power cable.
· To avoid electric shocks, do not use the cleaning auto station when the shell is
damaged.
· The cleaning auto station only applies to the floor mopping robots designated
by the manufacturer.
· Before charging, please check whether the cleaning auto station’s specification
is consistent with the supply voltage.
· Make sure to empty the dirty water tank in time and refill the clean water tank
in order for the robot to keep performing the mopping function.
SAFETY REGULATIONS
WARNING: Do not put this robot in a place where it is easy to fall (e.g. on a desk,
chair of by the stair case). As the fall prevention sensors can get dirty or be blocked.

5
EN
NOTE:
· Only authorized technicians can disassemble this product. Users are not recommended to
disassemble this product by themselves.
· This product can only use the power adapter provided by the factory. lf other adapters are used,
the product may be damaged.
· Do not touch wires, sockets or power adapters when your hands are wet.
· Make sure no fabrics or bigger items roll into the product drive wheels.
· Do not place this product near cigarette butts, lighters and other smoldering res.
· Please clean the product after charging.
· Do not bend wires excessively or place heavy objects and sharp objects on the machine.
· This product is an indoor household product. Do not use it outdoors.
· Do not sit on the product.
· Do not use this product (e.g. bathroom) in a wet environment.

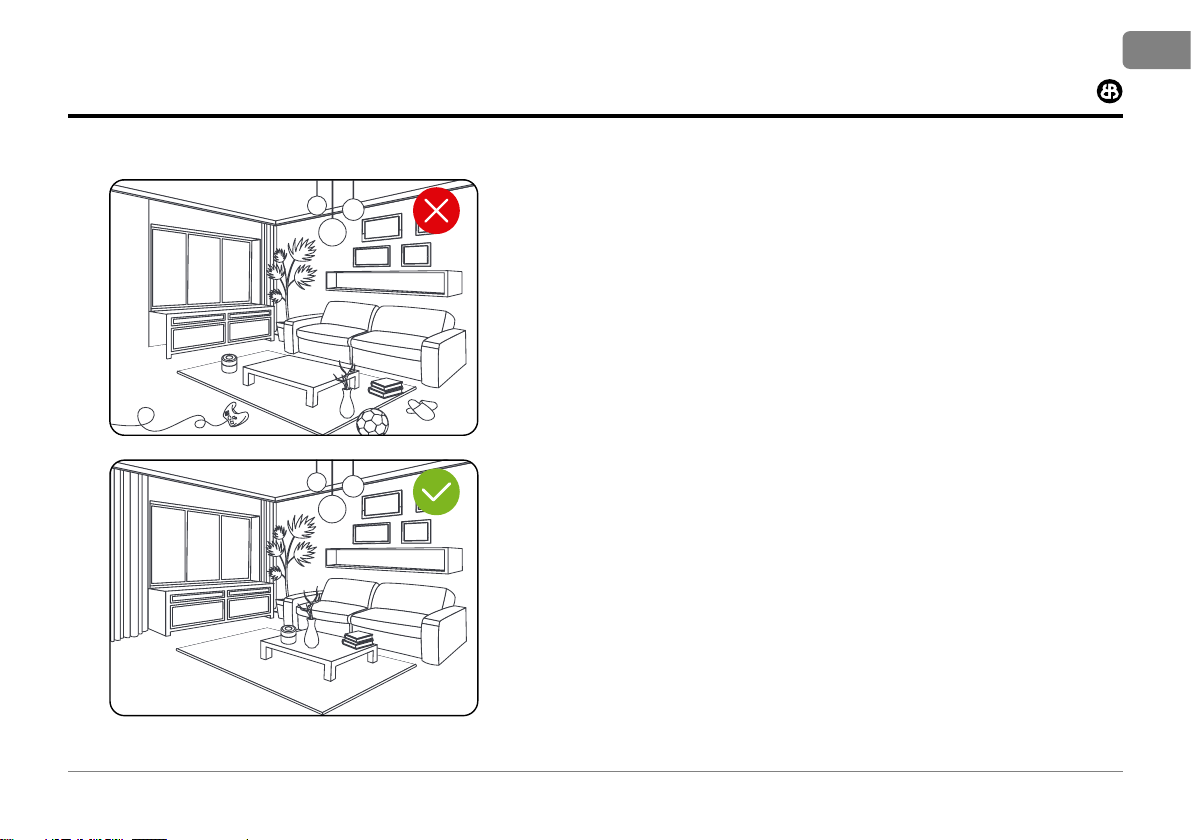

· Before using this product, please remove all vulnerable items (e.g. glasses, lamps, etc.) on the
ground as well as items (e.g. wires, paper sheets, curtains) that may entangle the side brushes and
air suction passages.
· Do not put this product in a place where it is easy to fall (e.g. on desks and chairs, by the stair case).
· Please carefully check whether the power adapter is connected to the socket before use, other-
wise the battery may be damaged.
·To prevent tripping, please inform other members of the house when this product works.
· Please empty the dust bin before using this product when the dust bin is full.
· Please remove the battery from the machine before the product is scrapped.
· Please make sure that this product is not powered on when removing the battery.
· Please recycle the discarded batteries safely.
· Recommended to block the staircase exit or areas where the robot may fall. The anti- drop
sensors prevent the robot from tumbling down stairs and steep drops. However, they may work
less eectively when dirty or used on reective/very dark-colored oors.
· To clean and maintain the robot and the auto station, you must turn oboth. Pull out the power
cord from the socket and disconnect the power supply rst.
· Do not immerse the robot or the auto station in water for cleaning or rinse them with water.
· Do not whipe any part of the product with a damp cloth or any liquid.
· Do not use the mopping module on the carpet.
SAFETY REGULATIONS

6

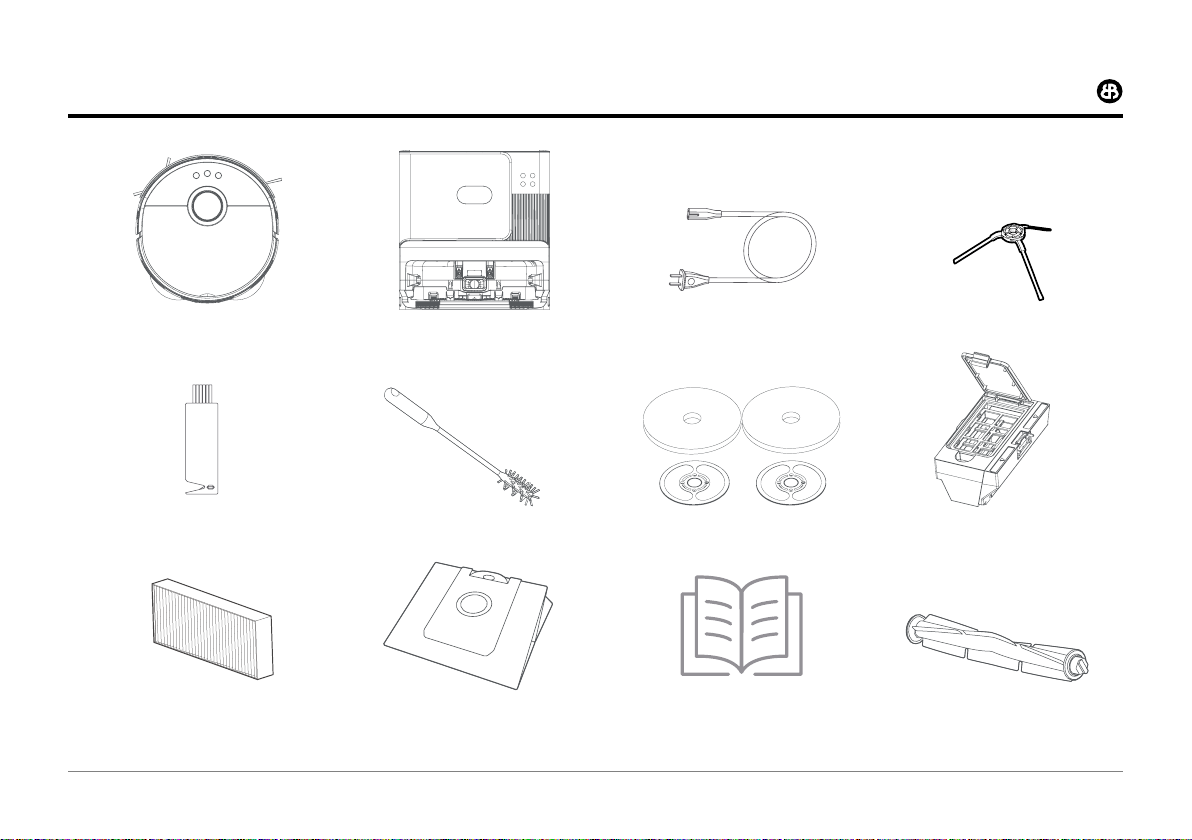

2. PRODUCT INFORMATION
OMEGA robot Auto station
Clean water tank
Dirty water tank
Power cord
Instruction manualDust bag 3L (2x)
Side Brush (4x)
Cleaning brush
with knife
Mopping pad (2x)
+ 2x mop set (L+R; 4 ttl)
Cleaning brush Dustbin
HEPA filter +
Sponge filter (2x)
V shape rolling brush

7
EN
PRODUCT INFORMATION
TOP & FRONT BACK & BOTTOM
FUNCTION BUTTONS
Partial cleaning button
• If it is short pressed, the robot will get
recharged automatically after partial cleaning.
• If it is short pressed in operation, the robot
will pause.
ON/OFF button
• If it is short pressed, the robot will get
recharged automatically after overall cleaning.
• If it is long pressed, the robot will get
powered off.
Recharge button
• If it is short pressed in operation, the robot
will pause.
Location of the cover plate valve
Dustbin disassembly button
Wall motion sensor
Reset button
Dustbin
Air outlet
Charging contact
Infrared sensor
Dust collection inlet
Carpet sensor
Omnidirectional wheel
Side brush (×2)
Cliffsensor (×4)
Roller brush housing release button
Driving wheel (×2)
Roller brush
Mop pad (×2)
Directional wheel
Laser radar pressure sensor
Cover plate
Infrared sensor
Infrared sensor
Bumper
Function buttons

8
AUTO STATION / DUSTBIN
3. INSTALLATION INSTRUCTIONS ROBOT & AUTO STATION
Function buttons Top cover
Cleaning brush
Dust bag
Clean water tank
Dirty water tank
Display
Guide rail (×2)
Infrared lens (×2)
Cleaning tray
Dust bin filter
Screen dust inlet
Infrared lens
Power interface
Dust collection inlet
Charging pins (×2)
Dirty water outlet / drainage
Dust bin release clamp

9
EN

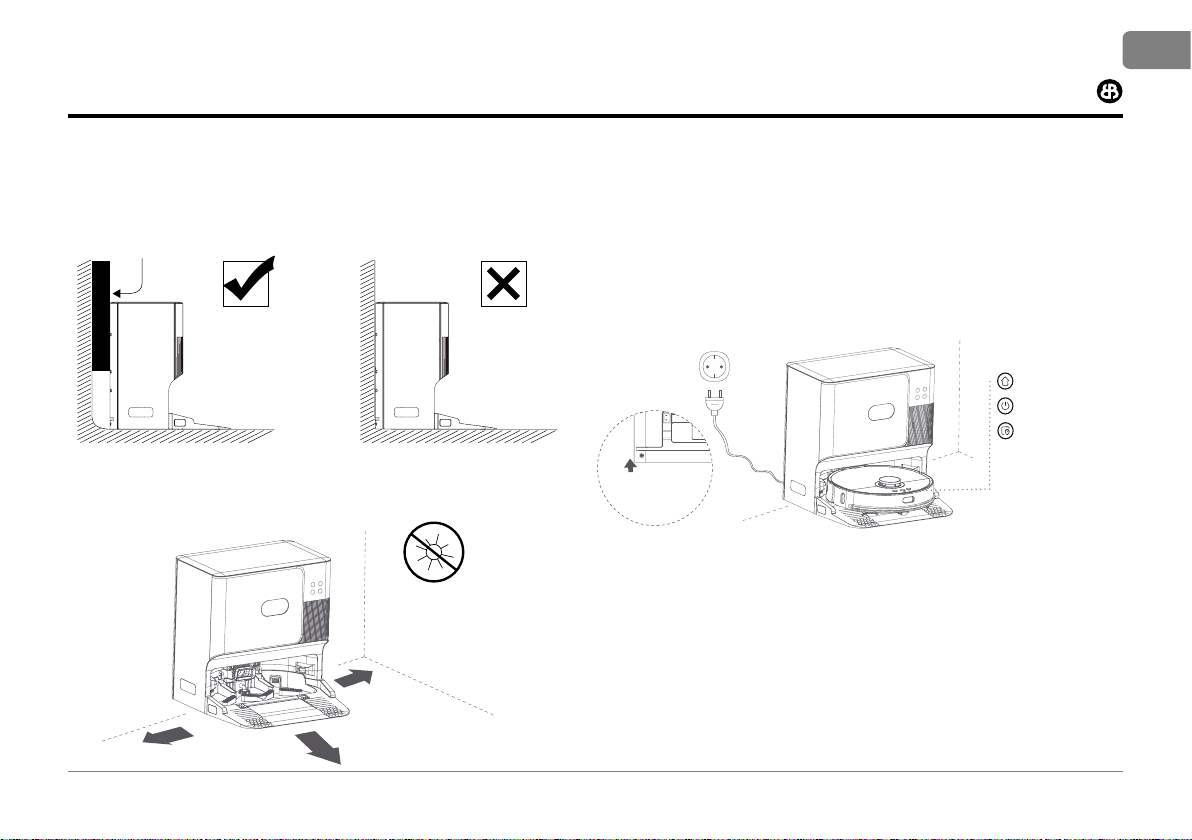

AUTO STATION
1 Lay the auto station on the at ground over 5cm away from the wall, insert
the power plug into the socket, meeting the requirements, and connect the
power supply.
2 Ensure that there are no obstacles within 1.5m in front of the auto station
and 0.5m on both sides.
PAIRING ROBOT AND AUTO STATION
1 Power connect on the auto station
2 Press and hold ON/OFF & Partial Cleaning buttons on Robot for 5 sec
3 Press and hold Start/Pause & Recall buttons on the auto station for 5 sec
4 1 min later pairing done, devices will exit the pairing mode
5 After pairing success, can put the Robot onto the auto station for
recharging
INSTALLATION INSTRUCTIONS ROBOT & AUTO STATION
> 0.5m
> 0.5m > 1.5m
Recharge button
ON/OFF button
Partial cleaning
button
NOTE:
This pairing step is only necessary if a new robot or automatic station is exchanged.
For the complete set in the first purchase, it is already paired.
WARNING:
· Put the product in a place out of reach of infants, young children, and pets and do not
use it in any room where any infant, young children or pet is.
· To enable the robot to go back to the cleaning auto station smoothly after cleaning,
please clean the main body and the cleaning auto station in sequence while not
moving the cleaning auto station.
· The cleaning auto station can realize dust collection, charging, and mop washing and
air drying. It has been provided with a new dust bag before delivery.
· Do not use the mopping function on any carpet.

10
INSTALLATION INSTRUCTIONS ROBOT & AUTO STATION
TIP: First time usage of the robot, we advise to use it without the mopping pad including
mopping cloths. In that way the robot can first only vacuum the required area, create a full
map in the Bluebot app and include carpet areas (without mopping).
PRODUCT ASSEMBLY
1 Dismount the stopper protective sponges on two sides of the
bumper/stopper into the groove on the bottom;
2 Install the mop pad in the bonding area of the mop pad
holder and assemble the mop pad holder sub-assembly.
3 Install the side brushes with a screwdriver until tight.
4 Fully charge the robot (before 1st time use)
5 Connect with Bluebot app (optional)
6 Start cleaning
NOTE
• Please do not move the auto station without reason and keep it out of direct sunlight.
• If the auto station is relocated, the robot may fail in positioning and lose the map. When
restarted, the robot will rebuild and memorise the map. In the rebuilt map the cleaning
information for forbidden areas and other areas may have been lost.
• Direct sunlight will interfere with the recharging signal and consequently, the robot
may be unable to return to the charging/ auto station.
• The robot cannot be used to remove liquids.
• If the battery level is less than 20% the machine will not work. Please charge it.
• The machine will return to the auto station automatically if the battery level is less than
20% when in use and will be powered oand then start cleaning automatically after the
battery level reaches 80%.
• Please clear various wires (including the power line of the auto station ) from the ground
before use to avoid outage and damage of objects or wires when wires are dragged by
the robot.

11
EN
INSTALLATION INSTRUCTIONS ROBOT & AUTO STATION
INSTALLATION OF MOPPING MODULE
1 Put the cleaning auto station horizontally in a proper position.
2 Dismantle the clean water tank and its lid, pour water into it
(make sure that the water level is below the "MAX" scale mark).
3 Reassemble the tank and top cover on the cleaning auto
station in the sequence.
NOTES FOR MOPPING MODULE
· Advice is not to use the mopping function on the carpet. You may
select the function 'Avoid rug' / 'Avoid carpet' in the Bluebot app.
· Please do not move or turn the robot during mopping, otherwise,
it could fail in its positioning, lose its map and “forget” the
forbidden areas that are programmed.
· Please don't use any detergent in the watertank to prevent
clogging.
· The robot cannot be used to remove liquids.
Water inlet
MAX scale mark

12
BLUEBOT APPLICATION 1 Fully charge robot 2 Download Bluebot app 3 Steps for registration 4 Connect robot with app (steps)
4. INSTALLATION BLUEBOT APP
BLUEBOT APPLICATION 1 Fully charge robot 2 Download Bluebot app 3 Steps for registration 4 Connect robot with app (steps)
Register a new account if
you are not yet an existing
user.
Open the Bluebot app and
press the ‘+ icon’ to add your
device.
1 2 3
4 5 6
Download the Bluebot app. The app can be found in the
Appstore and Google Play.
Select the
BLUEBOT OMEGA
Place the robot on the auto station to charge and make
sure it's fully charged before use.
Remove the robot from the auto station

13
EN
INSTALLATION BLUEBOT APP
enter the password and
7 8
9
11
After your registration, make sure the robot is removed
from it’s auto station. Turn on your robot by pressing
the “On button”. After that is done, press both the “On
button”and “Recharge button”simultaneously for more
than 3 seconds until the robot mentions that it lost it’s
Wi-Fi connection.
10
Tick "Conrm power on
key blue slow ash" when
applicable and press ‘Next’.
Press on the 'Go to
connect' button in the
bottom of your screen.
Select the 'SmartLife
xxx' network from the
list and return to the
Bluebot app.
Your Robot will now connect
to the app.
Make sure to wait untill the
proces is nished. The rst
time cleaning may start after,
to set-up a rst map in the
Bluebot app.

14
5. USAGE OF THE ROBOT & AUTO STATION
CHARGING OF THE ROBOT
Press and hold the button for 3 seconds to start the robot, and then
short-press the button to make the robot recharge automatically. The
robot is ready once fully charged.
• Fully charge the robot before starting cleaning.
• Before starting the cleaning, tidy away the wires and articles on the
ground to avoid damage caused by winding, dragging and bumping
during cleaning.
• It is suggested to start the robot at the auto station.
• When the battery is low during the cleaning, the robot will automatically
return to the auto station for charging, and automatically return to the
interrupted place to continue cleaning when the battery is full.
NOTES
· If the robot fails in operation, the ON/OFF button indicator will ash quickly in red,
accompanied with an audible alarm. Please eliminate the fault as instructed in the
“Troubleshooting” section in this manual.
· If there is no operation in more than 20 minutes, the robot will sleep automatically.
After that, it cannot be controlled by the auto cleaning station anymore and can be
wakened by pressing any button on the robot or operating it via the App.
· After cleaning, the robot will go back to the cleaning auto station automatically
for dust collection.
· If the robot cannot be started because of button operation failure, try the reset
system. After the reset button, the robot will be started automatically; after reset,
the product will clear the periodic cleaning setting and the cleaning mode setting
and reset the WiFi.
· Note: Make sure to save your map in the Bluebot app before reset, so you may
restore the existing map.
0.5m
0.5m
1.6m

15
EN
USAGE OF THE ROBOT & AUTO STATION
CLEANING MODE
After the robot is powered on, it will scan and generate the map and
divide it into areas intelligently. Then sweep the areas one by one along
the wall orderly, efficiently and thoroughly and plan the cleaning route in
a bow/S shape. The robot will return to the auto station automatically after
cleaning.
NOTE
Do not move the robot casually and frequently when it is cleaning. After
moving, please put the robot near the original position. When it starts again,
it will try to reposition itself. After successful positioning, it would follow the
planned path and continue to work. If the positioning fails, the robot would
abort previous mission, make a map and do the cleaning again.
SPOT CLEANING
When a local area needs a deep sweep, the user specifies a point on the
map in the APP, the machine will automatically drive to the vicinity of the
point, take the point as the center, and clean within 1.6m x 1.6m.
PARTIAL CLEANING
When the robot cannot be controlled by the mobile APP, please remove
the robot to the place you want to clean. Long press the button for 3
seconds, and the robot will clean twice within the scope of 1.6mx1.6m
centering on itself.
Area being cleaned
Area to be cleaned
1.6m
1.6m
TIP: For first time use we advise to
use the auto cleaning without the
mopping pads and cloths installed.
This so the robot may create a full
map for vacuuming first.

16
SET A RESTRICTED ZONE/ VIRTUAL WALL
You can set a restricted zone or virtual wall in the app. After the setting is
completed, the robot will not enter the restricted zone or cross the virtual
wall for cleaning.
NOTE
Before using this function, you need to open the map save mode in APP setting.
This function is only used to divide cleaning zones, but cannot be used to block
dangerous zones.
If the vacuum cleaner is moved or there are big changes in the home, the map
may become invalid and the settings of the virtual wall or restricted zone may
be lost.
CLEAN SELECTED ZONES
You can select cleaning zones in the app. The robot will clean one or
more rooms based on the zones that you select in the Bluebot app. In the
Bluebot app you are able to edit rooms and create rooms (zones) to your
liking.
Note: this is only available after the robot has scanned the whole area during a
first auto cleaning.
NOTE
Before using this function, you need to open the map save mode in APP setting and the
robot has to generate a map for cleaning.
After cleaning starts, the robot may move to a place beyond the selected zone. Make
sure that you have cleared the obstacles on the ground around the selected zone, which
cannot be used for safety isolation.
USAGE OF THE ROBOT & AUTO STATION
cleaning
restricted zone
mopping
restricted zone virtual wall

17
EN
DISPLAY FUNCTION OF CLEANING AUTO STATION
After the cleaning auto station is powered on, the display will remain lit; if
the cleaning auto station has no operation in 60 sec, the display will go out.
USAGE OF THE ROBOT & AUTO STATION
Function buttons
Display
Dust bag not
installed
In charging
Mop not in place
Communication
disconnected
Water heater
failed
Cleaning tray not
installed
Dirty water
tank full
Mop
Cleaning tray
blocked
Sewage pump
failed
Dirty water tank
not installed
Fan failed
Robot not on cleaning
auto station
In upgrade
Mop drying
Clean water tank
not installed
Clean water
pump failed
Stainer 01
Upgrade
completed
Dust collecting
Dust bag full
Hot air system
failed
Stainer 02
Standby
Insufficient water in
clean water tank
Start/Pause
Recall
Mop washing
Automatic dust
collection

18
MORE OPTIONS
Timer*
Set a timer to program the robot to clean at a certain time or day.
Manual
Control the robot manually with the remote control or use the Bluebot app on your
phone as a remote control.
Find robot
Tap this button when you lost your robot and your robot will tell you where it is.
Map management*
Use this function to manage your maps (5 max.).
Auto Boost*
Auto Boost will increase suction power when the robot gets more friction. This is
designed to increase suction on carpets.
Avoid Rug/Carpet*
This option will make sure the robot avoids rugs or carpet. Especially interesting to
use when using the mopping function. The carpet detection sensor will detect the
carpet and restrict the robot from going further.
Custom mode*
So the robot can remember per area what route to use for cleaning.
Auto Station control*
Here you can select the washing time of the mop (6-9-12min), water temperature
mode, drying mode (silent vs. rapid) and dust collection setting.
Note: Silent drying will take longer as the wind speed is slower and therefore more
quiet.
Auto station information*
This will show you on whih version the auto station is running.
Record | Cleaning history*
View all your previous vacuum cleaning records. You can see how many m2 has been
cleaned and the time it took. Here you can also load previously saved maps. Ideal
when cleaning different area’s (upper floor for instance).
Voice and volume
Set up your language for the voice commands given by the robot and change the
volume of the voice.
Do not disturb mode
Here you can schedule a do not disturb time period.
Consumables and Maintenance*
Here you will find an overview of consumables and indicates when consumables
need to be replaced or maintenance is required.
More info*
Here you will find network and robot information.
Edit room*
Edit rooms in the map by create zones you will frequently use (e.g. split dining area
from kitchen area).
Mop drying
Fast mop drying or normal mop drying: fast 120 min (3 cycles), normal 240 min
(9 cycles)
Suction level
Control the suction power level and choose 'Quiet', 'Standard', 'Max' or 'Turbo Max'.
This will also influence the noise level of the suction of the robot.
Set wall / Resctricted Area*
Use this function to create no-go zones within the area that you are cleaning. You can
draw virtual walls that blocks the robot from crossing. Or you create a restricted area
for either vacuuming or mopping, this is done via area setting in the map overview.
* Via Bluebot app only
6. CLEANING SETTINGS

19
EN
REPLACE THE DUST BAG
When the dust bag is full, replace the dust bag in time.
7. MAINTENANCE
Open the top
cover of the auto
cleaning station
Close the top
cover
Pull up the lifting
handle of the dust
bag and take out
the dust bag
Dispose the dust
bag accordingly in
the trash Make sure that the
dustbag is installed
in place
Place a new dust bag
4

20
CLEAN THE DUST COLLECTION SENSORS
Wipe them gently with a clean, soft, dry cloth. It is recommended to clean
them once a month.
CLEAN THE INFRARED LENS & THE CHARGING CONTACT
Use a clean soft cloth to wipe the infrared lens and the charging contacts
clean. Make sure they are free of any dust or dirt.
MAINTENANCE
Dust inlet
Dust passage
Infrared lens
Charging
contact (2x)
