1. Getting Started 3
What’s In The Box? 3
Getting It Out Of the Box 3
Powering Up! 3
Getting A Hold Of Us 3
Safety Instructions 4
2. Meet the Motif™ Risplendi 150 5
Main Features 5
Motif™ Risplendi 150 Pin-Up Picture 6
The Rear Connections 6
3. Setup 7
Fuse Replacement 7
Power Input 7
Connecting the Fixtures 7
Cable Connectors 8
3-Pin??? 5-Pin??? Huh?!? 8
Take It To The Next Level: Setting Up DMX Control 8
Changing the Lenses 9
Installing or Removing Brackets 9
Mounting & Rigging 9
4. Operating Adjustments 10
The Control Panel 10
Control Panel Menu Structure 11
DMX Mode 12
Dimming Mode Settings 12
Custom Programs 13
Auto, Modes, and Auto Speed 13
Color Calibration Settings 14
Custom Static Colors & Preset Colors 14
Fixture Reset Functions 15
Data Sync Feature 15
Fixture Information 15
DMX Values In-Depth 16
Troubleshooting 17
5. Appendix 18
Keeping Your Motif™ Risplendi As Good As New 18
Returns (Gasp!) 18
Shipping Issues 18
Tech Specs! 19
Dimensional Drawings 20

Page 3
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
1. GETTING STARTED
What’s In The Box?
• Motif™ Risplendi 150
• Power cable
• 4x interchangeable lenses
• This user manual
Optional Accessories (sold separately)
The Motif™ Risplendi 150 allows for an optional full snoot accessory which can
enhance the light's output control by concentrating its beam spread. Contact
your authorized Blizzard Lighting dealer for pricing.
• Black Housing: SNOOT-Motif Risplendi (B)
• White Housing: SNOOT-Motif Risplendi (W)
• Space Gray Housing: SNOOT-Motif Risplendi (SG)
Getting It Out Of the Box
Congratulations on purchasing the Motif™ Risplendi 150. Now that you’ve got
your xture, you should carefully unpack the box and check the contents to
ensure that all parts are present and in good condition. If anything looks as if
it has been damaged in transit, notify the shipper immediately and keep the
packing material for inspection. Again, please save the carton and all packing
materials. If a xture must be returned to the factory, it is important that the
xture be returned in the original factory box and packing.
Powering Up!
All xtures must be powered directly o a switched circuit and cannot be run
o a rheostat (variable resistor) or dimmer circuit, even if the rheostat
or dimmer channel is used solely for a 0% to 100% switch.
Warning! All xtures must be connected to circuits with a suitable
Ground (Earthing).
Getting A Hold Of Us
If something happens to go wrong, visit blizzardpro.com/support and
open a support ticket. We’ll be happy to help, honest.
Disclaimer: The information contained in this document are subject to change without
notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions
that may appear in this user manual. We reserve the right to update the existing, or create
a new document to correct any errors or omissions at any time. You can download the
latest version of this document from www.blizzardpro.com.
Author: Date: Last Edited: Date:
J. Thomas 6/13/2023 J. Thomas 6/27/2023

Page 4
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Please read these instructions carefully. They include
important information about the installation, usage and
maintenance of this product.
Safety Instructions
• Please keep this User Guide for future use. If you sell the unit to someone
else, be sure that they also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that
the line voltage you are connecting to is not higher than that stated on the de-
cal or rear panel of the xture.
• This product is intended for indoor use only.
• To prevent risk of re or shock, do not expose xture to rain or moisture.
• Make sure there are no ammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least
20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are
blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse
and be sure to replace with same fuse size and type.
• ALWAYS secure xture using a safety chain. NEVER carry the xture by its
head. Use its carrying handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately.
NEVER try to repair the unit by yourself. Repairs carried out by unskilled people
can lead to damage or malfunction. Please contact the nearest authorized tech-
nical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Caution! There are no user serviceable parts inside the unit. Do not open the
housing or attempt any repairs yourself. In the unlikely event your unit may
require service, please open a support ticket at www.blizzardpro.com/support.

Page 5
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
2. MEET THE MOTIF™ RISPLENDI 150
Main Features
• Light source: 150W RGBAL COB LED, 100,000 hrs.
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Color mixing ability in standalone mode
• 4x light collimating lenses (30°, 45°, 60°, 80°)
• Convection cooled aluminum housing
• Dual mounting brackets for positioning exibility
• Adjustable LED refresh rates (1200Hz-20KHz)
• PowerCON® TRUE1™ compatible + hardwire AC connector
• Emergency power backup connector (42-48V DC, 20W)
• 5-pin male/female XLR input & output connections
Control
• Protocol: USITT DMX-512, RDM
• DMX channels: 5/7/11-channels
• OLED control menu with 4x touch sensitive buttons
• Operating modes: DMX512, master/slave, auto
DMX Quick Reference (5-Channel Mode)
Channel What is does...
1 Red Intensity (0 <--> 100%)
2 Green Intensity (0 <--> 100%)
3 Blue Intensity (0 <--> 100%)
4 Amber Intensity (0 <--> 100%)
5 Lime Intensity (0 <--> 100%)
DMX Quick Reference (7-Channel Mode)
Channel What is does...
1 Master Dimmer (0 <--> 100%)
2 Red Intensity (0 <--> 100%)
3 Green Intensity (0 <--> 100%)
4 Blue Intensity (0 <--> 100%)
5 Amber Intensity (0 <--> 100%)
6 Lime Intensity (0 <--> 100%)
7 Strobe (Slow <--> Fast)
DMX Quick Reference (11-Channel Mode)
Channel What is does...
1 Master Dimmer (0 <--> 100%)
2 Red Intensity (0 <--> 100%)
3 Green Intensity (0 <--> 100%)
4 Blue Intensity (0 <--> 100%)
5 Amber Intensity (0 <--> 100%)
6 Lime Intensity (0 <--> 100%)
7 Strobe (Slow <--> Fast)
8 Built-In Programs
9 Auto Speed (Slow <--> Fast)
10 Virtual Color Wheel
11 32-Bit Dimming

Page 6
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Motif™ Risplendi 150 Pin-Up Picture
The Rear Connections
EMERGENCY
POWER DC: 40-48V
V-
V+
DMX IN
EXT.POWER IN
EXT INT
POWER SWITCH
EXT/INT.POWER IN
AC:100-240V 50Hz-60Hz
SAFETY
FUSE
INT.POWER
DMX OUT
Ext./Int.
Power Switch
4-Button
Control Menu
DMX In/OutExt. Power In
Emergency
Power
Int. Power In
150W RGBAL LED
Light Source
Locking
Knob
Anodized Aluminum
Housing
Vertical
Bracket
Adjustable
Bracket
Safety Loop

Page 7
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Fuse Replacement
Remove the fuse holder from of its housing. Take out the damaged fuse from its
holder and replace with exact same type of fuse.
Power Inputs
This xture comes with a powerCON® TRUE1™ compatible power input and a
3-wire power terminal block connector located under the "Int. Power In" cover
plate on the rear of the xture that can be used for hardwiring power.
Depending on which method you use, adjust the external/internal power switch
on the back of the unit to select the proper input source.
Before replacing the fuse, disconnect the power cord.
ALWAYS replace it with the same type and rating.
3. SETUP
Connecting the Fixtures
Fixtures on a serial data link must be daisy chained in one single line. Also,
connecting more than 32 xtures on one serial data link without the use of a
DMX optically-isolated splitter may result in deterioration of the signal.
Data/DMX Cabling
To link xtures together you’ll need data cables. You should use data-grade
cables that can carry a high quality signal.
The data cable should have the following characteristics:
• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms
Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow or Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green
Use the table below for reference when using the bare wire:

Page 8
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Cable Connectors
Cables must have a male XLR connector on one end and a female XLR connec-
tor on the other end. (Duh!)
To build your own DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor, and wire it between pins 2 & 3 of the last xture. They are also
readily available from specialty retailers.
Take It To The Next Level: Setting Up DMX Control

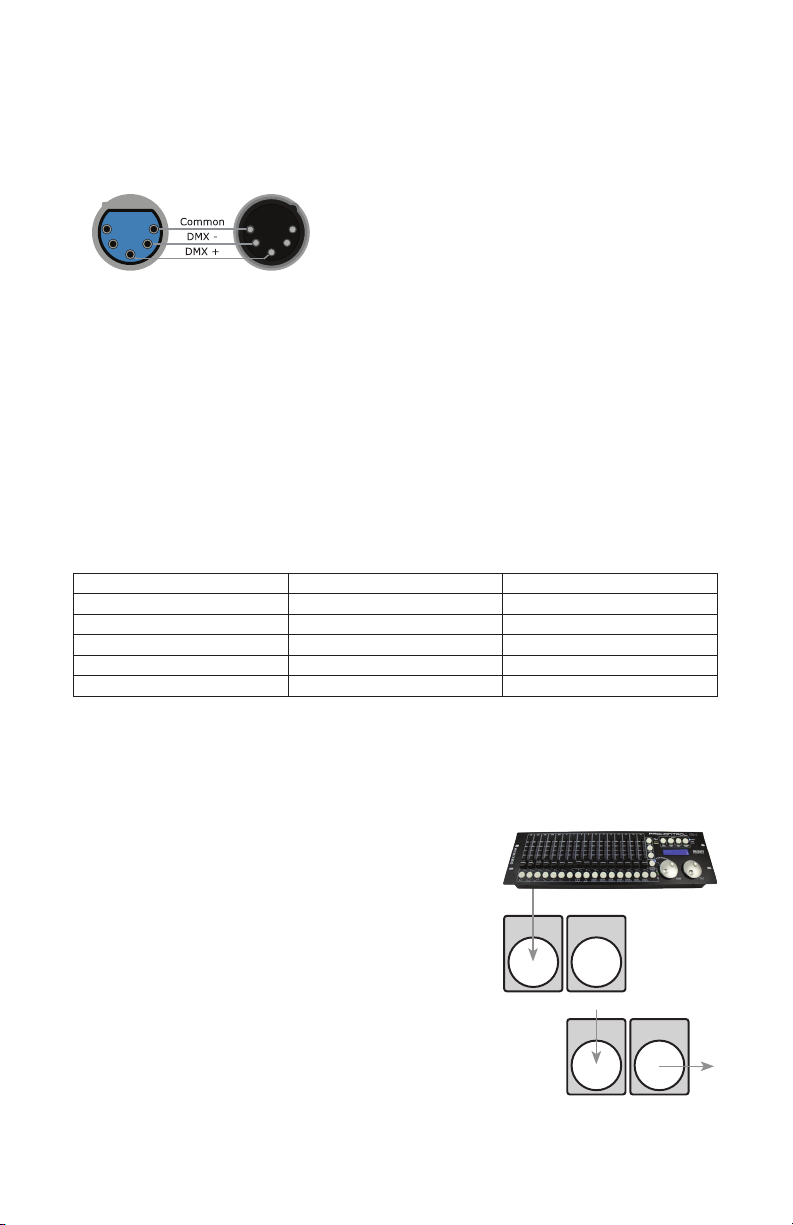

Step 1: Connect the male connector of the DMX cable to the female connector
(output) on the controller.
Step 2: Connect the female connector of the
DMX cable to the rst xture’s male connector
(input).
Note: It doesn’t matter which xture address is the rst one
connected. We recommend connecting the xtures in terms
of their proximity to the controller, rather than connecting the
lowest xture number rst, and so on.
Step 3: Connect other xtures in the chain
from output to input as above. Place a DMX
terminator on the output of the nal xture to
ensure best communication.
CAUTION: Do not allow contact between the common and the xture’s chassis
ground. Grounding the common can cause a ground loop, and your xture may
perform erratically. Test cables with an ohm meter to verify correct polarity and
to make sure the pins are not grounded or shorted to the shield or each other.
3-Pin??? 5-Pin??? Huh?!?
If you use a controller with a 3-pin DMX output connector, you will need to use a 3-pin to 5-pin adapter. If
you’d like to build your own, the chart below details a proper cable conversion:
Conductor 3-Pin Female (Output) 5-Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data 1- (Primary Data) Pin 2 Pin 2
Data 1+ (Primary Data) Pin 3 Pin 3
Data 2- (Optional) -- Pin 4 - Do Not Use
Data 2+ (Optional) -- Pin 5 - Do Not Use
3
1
2
5
4
3
1
2
5
4
INPUT OUTPUT
DMX OUTDMX IN
First
Fixture
in Chain
Next
Fixture
in Chain
DMX OUTDMX IN
A Word on Termination:
DMX is a resilient communication protocol, however
errors still occasionally occur. Termination reduces signal
errors, and therefore best practices include use of a
terminator in all circumstances. If you are experiencing
problems with erratic xture behavior, especially over
long signal cable runs, a terminator may help improve
performance.

Page 9
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Thumbscrew
Lens Holder Brackets
Snoot
(sold separately)
Installing or Removing Brackets
1.) Install or remove the brackets as shown above us-
ing the included bolts, washers, and knobs.
2.) Use the small bracket for vertically mounted xed
installations. You can remove the large bracket in these
types of applications, and use the included plastic
plugs to cover the bracket screw holes.
Changing the Lenses
This xture comes with a pre-installed 80° diuser lens plus 3x replaceable
Fresnel lenses (30°, 45°, and 60°) for a variety of beam angles.
To change the lens, remove the thumbscrew from the lens holder and swivel
the holder outwards. Replace the existing lens with the lens of your choice.
Note: The replaceable lenses need to be installed with the circular pattern side
of the lens facing outwards.
*When using lenses with narrower beam angles, some chromatic aberration
(color separation) may occur. We recommend using the snoot accessory (sold
separately) to cut o the beam edge. This may help in certain circumstances.
Mounting & Rigging
This xture may be mounted in any SAFE position pro-
vided there is enough room for ventilation.
Mount the xture using a suitable "C" or "O" type
clamp. The clamp should be rated to hold at least 10x the xture’s weight to
ensure structural stability. Do not mount to surfaces of unknown strength,
ensure properly rated rigging is used, and always secure your xtures with a
safety cable.

Page 10
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
4. OPERATING ADJUSTMENTS
The Control Panel
All of the features and dierent modes possible with this xture are accessed
by using the control panel on the front of the xture. There are 4 control but-
tons next to the menu display which allow you to navigate through the various
control panel menus.
<MENU>
Is used to navigate to the previous higher-level menu item.
<ENTER>
Is used to select and conrm/store the current selection.
<UP>
Scrolls through menu items and numbers in ascending order.
<DOWN>
Scrolls through menu items and numbers in descending order.
The control panel display shows the menu items you select from the menu map
on page #11. When a menu function is selected, the display will show immedi-
ately the rst available option for the selected menu function. To select a menu
item, press <ENTER>.
Use the <UP> and <DOWN> buttons to navigate the menu options. Press the
<ENTER> button to select the menu function currently displayed, or to enable
a menu option. To return to the previous option or menu without changing the
value, press the <MENU> button.

Page 11
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Control Panel Menu Structure
ADDR 001-512 To choose the DMX address
STAT R Red intensity (0% <--> 100%)
G Green intensity (0% <--> 100%)
B Blue intensity (0% <--> 100%)
A Amber intensity (0% <--> 100%)
L Lime intensity (0% <--> 100%)
SHUT Flash / strobe speed (0-255)
PRSC (preset colors) NONE, R, G, B, A, L, RGBAL, YELLOW, PINK, CYAN, ORANGE, VIO-
LET, GOLDEN, 2700K, 3200K, 4000K, 5500K, 6500K, RGBL
SET CAL To set global intensity levels of each color + USE: YES/NO
CHMD 11CH To run in 11-channel mode
7CH To run in 7-channel mode
5CH To run in 5-channel mode
DIM
(dimming)
LIN Linear dimming curve
SQR Square law curve
ISQR Inverse square law curve
SCUR S-curve
LIN. Linear dimming curve (smooth)
SQR. Square law curve (smooth)
ISQR. Inverse square law curve (smooth)
SCUR. S-curve (smooth)
PWM <ENTER> 1200Hz, 2400Hz, 4000Hz, 12000Hz, 16000Hz, 20000Hz
DISY ON Menu display is on continually
2OFF Menu display shuts o after 2 minutes of inactivity
Rotate Normal Normal
Rotate Rotate the display 180°
Intensity <ENTER> Adjust the menu brightness level 1-100
CTST CT01-CT10 <ENTER> R/G/B/A/L adjustments for custom color banks 01-10
AUTO AT01-AT05 <ENTER> Auto programs 1-5
ATSP <ENTER> Auto Speed
CHS1 <ENTER> Custom program 1
CHS2 <ENTER> Custom program 2
CHS3 <ENTER> Custom program 3
PROG CHS1-CHS3
Custom
programs
1-3.
SC01-SC25
25 scenes
for each
custom
program.
R (0-255) SHUT (strobe, 0-255)
G (0-255) AUTO (None, AT01-AT05)
B (0-255) ATSP (speed, 0-255)
A (0-255) TIME (duration, 0-255)
L (0-255) WAIT (before fade, 0-255)
USE (use scene, YES/NO)
INFO SOFT Vx.x Software version information
POWER <ENTER> Current automated overheat protection level (100%/80%/50%)
TEMP <ENTER> Internal temperature in Celsius
RDM U <ENTER> RDM Unique ID (UID)
LOAD ST L <ENTER> Restore factory settings
PR L <ENTER> Restore factory program settings
SEND YES/NO Sync settings between xtures via DMX

Page 12
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Setting the DMX Address:
1.) The default mode for the xture is DMX, which appears as 001 on the LED readout. To
select a dierent DMX address, using the <MENU> button, select ADDR, then hit <ENTER>.
Use the <UP/DOWN> buttons to select the correct address, then hit <ENTER> to conrm.
Setting the DMX Channel Mode:
1.) To select a DMX channel mode, press the <MENU> button, then use the <UP/DOWN>
buttons until the display reads SET and press the <ENTER> button. Then use the <UP/
DOWN> buttons until the display reaches CHMD, and press <ENTER>. Now press the <UP/
DOWN> buttons again to highlight your desired DMX channel mode, and press the <ENTER>
button to conrm.
Slave Mode:
1.) Daisy chain the DMX in/out connections on all xtures.
2.) There is nothing else to it! The rst xture in the DMX chain is the master xture, and the
other xtures down the line will follow it.
Dimming Mode Settings
Allows users to set the xture to use 1 of 4 (x2) dimming curve settings for smoother (and slower)
dimming capabilities. In the control panel menu, there are two settings for each curve that are
distinguishable from one another by the trailing dot.
*The curve settings with the trailing dot adds a bit more delay to the curve for a smoother eect.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>,
then <UP/DOWN> buttons again to scroll to DIM, and press the <ENTER> button.
2.) Now use the <UP/DOWN> buttons to highlight either LIN (Linear), SQR (Square), ISQR
(Inverse Square), SCUR (S-Curve), LIN. (Smooth Linear), SQR. (Smooth Square), ISQR.
(Smooth Inverse Square), or SCUR. (Smooth S-Curve), then hit <ENTER>.

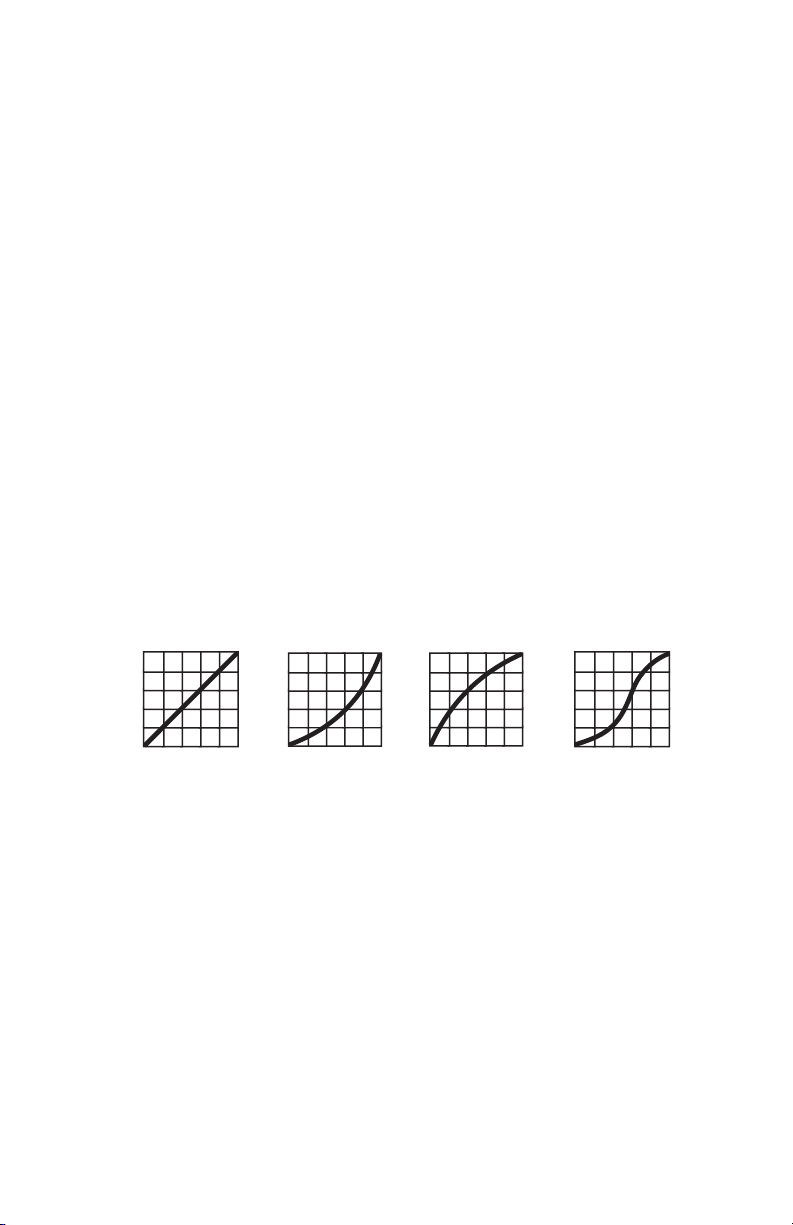

DMX% DMX% DMX% DMX%
Output Output Output Output
(LIN, LIN.) (SQR, SQR.) (ISQR, ISQR.) (SCUR, SCUR.)
Linear Curve Square Law Inverse Square Law S-Curve

Page 13
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Custom Programs
Allows users to create up to 3 customizable, 25 scene programs that are directly accessible via the control
panel and also in DMX mode.
Creating A Custom Program:
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to PROG, and press <ENTER>.
2.) Now use the <UP/DOWN> buttons to highlight your choice of either CHS1, CHS2, or
CHS3 and press <ENTER>.
3.) Start with editing scene 1 (SC01), customizing it to your liking by using the choices outlined
in the table below. You can insert any of its 5 built-in auto programs (AT01-AT05), and adjust
its speed (ATSP 0-255), and also set the duration (in seconds) before moving on to the next
scene (TIME 0-255). You can also add a fade in eect to the start of this scene (WAIT 0-255),
and/or strobe (SHUT 0-255). Finally, if you want to use this scene in your program, be sure to
enable it (USE: YES/NO).
4.) Repeat the above process to create up to 25 scenes in each of the 3 customizable programs.
R (0-255) - Red Intensity SHUT (0-255) - Strobe (slow - fast) USE (YES/NO) Use Scene in Program?
G (0-255) - Green Intensity AUTO (AT01-AT05) - Auto Programs
IMPORTANT:
If USE is set to NO, or TIME is set
to 0, the scene will not run!
B (0-255) - Blue Intensity ATSP (0-255) - Auto Speed (fast - slow)
A (0-255) - Amber Intensity TIME (0-255) - Scene Time (seconds)
L (0-255) - Lime Intensity WAIT (0-255) - Fade In (fast - slow)
Running A Custom Program:
1.) To view your newly created lighting masterpiece, use the <MENU> and <UP/DOWN>
buttons to navigate to AUTO, and press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight your choice of CHS1, CHS2, or CHS3 and press
<ENTER>. These are directly accessible from the built-in program channel in DMX mode.
Auto, Modes, and Auto Speed
Set single or Master/Slaved units to run auto modes at user selectable speeds.
Auto Mode:
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to navigate to AUTO, and press
the <ENTER> button.
2.) Now use the <UP/DOWN> buttons to highlight any program ranging from AT01-AT05,
and press <ENTER>.
Auto Speed:
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to AUTO and press <ENTER>,
then with the <UP/DOWN> buttons navigate to ATSP, and press the <ENTER> button.
2.) Make a selection from 0-255, and press <ENTER> to choose a speed (slow <--> fast).

Page 14
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Color Calibration Settings
Allows the user to setup and save 1 customized R/G/B/A/L color balance setting and save it for future use.
This custom setting is global, and it will eect all modes.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to SET and press <ENTER>,
then on while CAL, push <ENTER> again.
2.) Use the <UP/DOWN> buttons to highlight either R(Red Level), G(Green Level), B(Blue
Level), A(Amber Level), or L(Lime Level) then hit <ENTER>.
3.) Now using the <UP/DOWN> buttons, select the maximum level for each color between
000-255 (000=o), and hit <ENTER> to conrm your choice.
4.) You have now just setup and saved a custom global color calibration setting that you can use
at you convenience. To use your custom setting now (or later), press the <UP/DOWN> buttons
to reach USE, and press <ENTER>. Then choose either YES or NO and press <ENTER>. When
you select YES, it enables this custom color calibration globally, and when choosing NO the
xture will continue to use the default color calibration settings. Your customized settings will
be saved for later use even after powering o the xture. It can be altered to your liking at any
time. Just remember to return to this setting to either enable or disable it when needed.
Custom Static Colors & Preset Colors
Allows the user to create and save custom static colors for use in standalone or DMX mode.
Static Color Mixing and Preset Mixed Colors
Important: When nished editing and saving a static color, you must return to (and stay
on) any one of the editing screens (0-255) to make the eect stay on continually. If you were
only to press <ENTER> to save your nal edit, you would again be on the static color/eect
selection menu, which from here will result in blackout mode after 1 minute.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to STAT and press <ENTER>,
then <UP/DOWN> buttons to select R/G/B/A/L, and push <ENTER> to conrm your selection.
Then in adjust the values (0-255) to your liking and press <ENTER> to save.
2.) In the same manner, you can select SHUT to add a strobe eect.
3.) You can also select <PRSC> and use the <UP/DOWN> buttons to scroll through and
quickly use any of the xtures built-in preset colors.
Mix and Save Custom Colors (1-10)
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to CTST and press <ENTER>,
then <UP/DOWN> buttons to select a color bank from CT01-CT10, and push <ENTER> to
conrm your selection.
2.) Now use the <UP/DOWN> buttons to highlight either R(Red Level), G(Green Level), B
(Blue Level), A(Amber Level), or L(Lime Level), then hit <ENTER>.
3.) Finally, using the <UP/DOWN> buttons, select the maximum level for each color between
000-255 (000=o), and hit <ENTER> to conrm your choice(s).
4.) These 10 custom colors can be accessed and edited to your liking at any time, and will be
saved even after powering o the xture.
5.) Your custom colors and programs are also directly accessible from the built-in program
channel in DMX mode.

Page 15
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Fixture Reset Functions
Allows users to reset the xture to factory default settings, without loosing customized settings, or reset
the custom programs exclusively.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to LOAD and press <ENTER>,
then use the <UP/DOWN> buttons to highlight ST L or PR L, and press <ENTER>.
2.) Use the <UP/DOWN> buttons to highlight either YES or NO, then press <ENTER>.
3.) The ST L reset function will reset all default values with the exception of those in ADDR
(address), CTST (10 custom colors), and PROG (custom scenes and programs).
4.) The PR L reset function will only reset all customized program settings found in the PROG
settings (custom scenes and programs).
Data Sync Feature
Users can transfer their custom settings from one xture to another via DMX.
1.) Disconnect xtures from any DMX controllers, and link them together via DMX in/out.
2.) On the sending xture (DMX out), navigate the main menu using the <UP/DOWN> buttons
to reach SEND, and press the <ENTER> button.
3.) Select YES, and press the <ENTER> button to begin the transfer.
4.) Information for ADDR (address), or CAL (global intensity) will not be sent.
5.) After the data has been transferred, the receiving xture will be automatically be reset.
Fixture Information
These are not editable features, they are for informational purposes only.
1.) Use the <MENU> and <UP/DOWN> buttons to navigate to INFO and press <ENTER>,
then use the <UP/DOWN> buttons to highlight SOFT or POW, and press <ENTER>.
2.) The SOFT information simply displays the current software version installed on the xture,
and POW displays the xtures current power level setting. Under normal conditions, it will be
at 100%... but this xture has built-in overheat protection that may automatically reduce the
output level to 80%, or 50% in high temperature situations.

Page 16
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
DMX Values In-Depth (5/7/11-Channel Modes)
5CH 7CH 11CH Value What It Does
-- 1 1 000 <--> 255 Dimmer (0% <--> 100%)
1 2 2 000 <--> 255 Red Intensity (0% <--> 100%)
2 3 3 000 <--> 255 Green Intensity (0% <--> 100%)
3 4 4 000 <--> 255 Blue Intensity (0% <--> 100%)
4 5 5 000 <--> 255 Amber Intensity (0% <--> 100%)
5 6 6 000 <--> 255 Lime Intensity (0% <--> 100%)
-- 7 7
000 <--> 005
006 <--> 020
021 <--> 060
061 <--> 100
101 <--> 140
141 <--> 180
181 <--> 220
221 <--> 255
Strobe
No strobe
Non-synchronous strobe (slow <--> fast)
Synchronous strobe (slow <--> fast)
Electronic sine wave (slow <--> fast)
Random strobe (slow <--> fast)
Opening pulse (slow <--> fast)
Closing pulse (slow <--> fast)
Electronic square wave (slow <--> fast)
-- -- 8
000 <--> 005
006 <--> 010
011 <--> 015
016 <--> 020
021 <--> 025
026 <--> 030
031 <--> 035
036 <--> 040
041 <--> 045
046 <--> 050
051 <--> 055
056 <--> 060
061 <--> 065
066 <--> 070
071 <--> 075
076 <--> 080
081 <--> 110
111 <--> 115
116 <--> 120
121 <--> 125
126 <--> 130
131 <--> 135
136 <--> 140
141 <--> 145
146 <--> 150
151 <--> 155
156 <--> 160
161 <--> 165
166 <--> 170
171 <--> 175
176 <--> 180
181 <--> 185
186 <--> 190
191 <--> 195
196 <--> 200
201 <--> 220
221 <--> 225
226 <--> 230
231 <--> 235
236 <--> 255
Built-In Programs
No Function
Custom color 1 (CT01 in menu settings)
Custom color 2 (CT02 in menu settings)
Custom color 3 (CT03 in menu settings)
Custom color 4 (CT04 in menu settings)
Custom color 5 (CT05 in menu settings)
Custom color 6 (CT06 in menu settings)
Custom color 7 (CT07 in menu settings)
Custom color 8 (CT08 in menu settings)
Custom color 9 (CT09 in menu settings)
Custom color 10 (CT10 in menu settings)
Auto 1
Auto 2
Auto 3
Auto 4
Auto 5
Reserved
Red
Green
Blue
Amber
Lime
RGBAL
Yellow
Pink
Cyan
Orange
Violet
Golden
2700K White
3200K White
4000K White
5500K White
6500K White
RGBL
No Function
Custom program 1 (CH01 in menu settings)
Custom program 2 (CH02 in menu settings)
Custom program 3 (CH03 in menu settings)
No Function

Page 17
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
DMX Values In-Depth (5/7/11-Channel Modes), continued
5CH 7CH 11CH Value What It Does
-- -- 9 000 <--> 255 Auto Speed (slow <--> fast)
-- -- 10
000 <--> 010
011
012 <--> 050
051
052 <--> 090
091
092 <--> 130
131
132 <--> 170
171
172 <--> 210
211
212 <--> 250
251 <--> 255
Virtual Color Wheel
No Function
Blue
Blue (+ green)
Cyan
Cyan (- blue)
Green
Green (+ red)
Yellow
Yellow (- green)
Red
Red (+ blue)
Magenta
Magenta (- red)
Blue
-- -- 11
000 <--> 010
011 <--> 020
021 <--> 030
031 <--> 040
041 <--> 050
051 <--> 060
061 <--> 070
071 <--> 080
081 <--> 090
091 <--> 255
Dimming Mode
Default (as set in the LED menu)
Linear curve
Square law curve
Inverse square law curve
S-curve
Linear curve (smooth)
Square law curve (smooth)
Inverse square law curve (smooth)
S-curve (smooth)
Default (as set in the LED menu)
Troubleshooting
Symptom Solution
No Light Output Check power connection and ensure that the xture is operating
under the correct working mode.
Dim Output Check the overheat protection level in the menu. If it has been
triggered, ensure that the xture has sucient ventilation.
Chase Speed Too
Fast/Slow
Verify that the speed adjustment settings are correct.
Loss of DMX
Control
Check the DMX and the power connections to make sure that they
are connected.
Make sure the DMX address setting is correct.
Check to see if the channel mode setting is correct.
No Power Verify that the power cord and circuit are functioning.
Blown Fuse Check power cords and circuit for damage.
Fixture Not
Responding /
Responding Errati-
cally
Make sure all connectors are seated properly and securely.
Use only DMX cables and/or check cables for defects.
Install a DMX signal terminator.
Reset xture(s).

Page 18
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC
Keeping Your Motif™ Risplendi As Good As New
The xture you’ve received is a rugged, tough piece of pro lighting equipment,
and as long as you take care of it, it will take care of you. That said, you’ll need
to take care of it if you want it to operate as designed. You should keep the
xture clean, especially if you are using it in an environment with a lot of dust,
fog, haze, wild animals, wild teenagers or spilled drinks.
Cleaning the optics routinely with a suitable glass cleaner will greatly improve
the quality of light output. Keeping the fans free of dust and debris will keep
the xture running cool and prevent damage from overheating.
In transit, keep the xtures in cases. You wouldn’t throw a prized guitar,
drumset, or other piece of expensive gear into a gear trailer without a case,
and similarly, you shouldn’t even think about doing it with your shiny new light
xtures.
Common sense and taking care of your xtures will be the single biggest thing
you can do to keep them running at peak performance and let you worry about
designing a great light show, putting on a great concert, or maximizing your
client’s satisfaction and “wow factor.” That’s what it’s all about, after all!
Returns (Gasp!)
We’ve taken a lot of precautions to make sure you never even have to worry
about sending a defective unit back, or sending a unit in for service. But,
like any complex piece of equipment designed and built by humans, once in a
while, something doesn’t go as planned. If you nd yourself with a xture that
isn’t behaving like a good little xture should, you’ll need to obtain a Return
Authorization (RA).
Don’t worry, this is easy. Just visit www.blizzardpro.com/support and open a
support ticket, and we’ll issue you an RA. Then, you’ll need to send the unit to
us using a trackable, pre-paid freight method. We suggest using USPS Priority
or UPS. Make sure you carefully pack the xture for transit, and whenever
possible, use the original box & packing for shipping.
When returning your xture for service, be sure to include the following:
1.) Your contact information (Name, Address, Phone Number, Email address).
2.) The RA# issued to you
3.) A brief description of the problem/symptoms.
We will, at our discretion, repair or replace the xture. Please remember
that any shipping damage which occurs in transit to us is the customer’s
responsibility, so pack it well!
Shipping Issues
Damage incurred in shipping is the responsibility of the shipper, and
must be reported to the carrier immediately upon receipt of the items.
Claims must be made within seven (7) days of receipt.
5. APPENDIX

Page 19
Motif™ Risplendi 150 - Rev. A © 2023 Blizzard Lighting, LLC

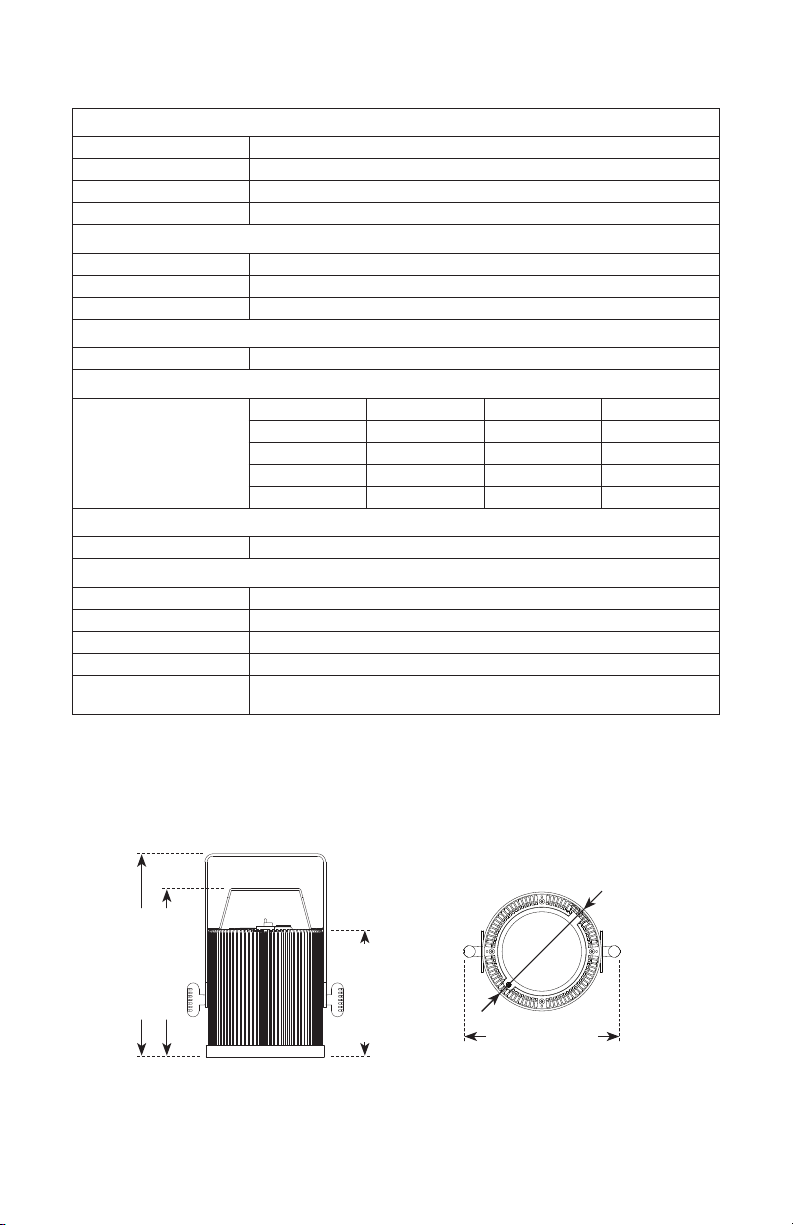

Tech Specs!
Weight & Dimensions
Width 7.9" (200 mm)
Depth 7.9" (200 mm)
Height Fixture: 8.5" (217 mm), w/short bracket: 11.3" (287 mm)
Weight 11.3 lbs. (5.1 kg)
Power
Operating Voltage 100-240V, 50/60Hz
Power Consumption 141W, 1.24A, PF: .98
Fuse 10A, 250V
Light Source
LED 150W RGBAL COB LED, 100,000 hours
Optical
Luminous Intensity Lux/m 2.5-meters 5-meters 7.5-meters
35° 5,658 1,488 732
45° 4,303 1,160 594
60° 2,785 754 364
80° 1,208 353 163
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512, RDM
DMX Channels 5/7/11-channel DMX modes
Data 5-pin XLR In/Out
Other Operating Modes Standalone, Master/Slave, Auto Mode
Warranty
2-year limited warranty, does not cover malfunction caused by
damage to LEDs. Visit www.blizzardpro.com/warranty.
DISCLAIMER:
The power connector tted to the xture and xture cord are designed for compatibility with products
manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured
by, aliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and power-
CON® are registered trademarks of Neutrik AG.
7.9" (200 mm)
10.5" (266 mm)
11.3" (287 mm) 13.6" (346 mm)
8.5" (217 mm)

Enjoy your product!
Our sincerest thanks for your purchase!
--The team @ Blizzard Lighting
