Blu Stream DA11AEN User manual

01
DA11AEN QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail]
Our DA11AEN has been designed to encode unbalanced or balanced 2ch analogue
audio to Dante® digital signal. The DA11EN allows any non-Dante® audio source
such as mixing consoles, amplifiers, computers and Blustream Matrix products
or distribution products to be connected as a source within a Dante® network.
The DA11EN is a plug & play device that is powered using either PoE (Power Over
Ethernet) from any PoE network switch or via local 12v power supply input.The
DA11AEN also supports AES67 RTP audio transport.
Introduction
• Encodes unbalanced or balanced 2ch analogue audio to a Dante® digital signal
• Supports 44.1, 48 & 96 KHz sample rates @ 24 Bit
• Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
• Supports AES67 RTP audio transport
• Features Class 1 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
DA11AEN
Quick Reference Guide
FEATURES:
Connections:
1Dante® Audio Output - RJ45 socket connets Dante® network.
2DC Input - Connect to +12VDC power supply (not supplied) if
device is not powered via a PoE switch
3Audio Input - Phoenix Connector accepts balanced or
unbalanced 2 channel audio input.
Front Panel
1
Rear Panel
3
Wiring Configuration
Balanced - XLR Unbalanced - RCA
+
-
-
+
2
DA11AEN
Dante®Audio Analogue Encoder
DA11AEN
Dante®Audio Analogue Encoder
DA11AEN
Dante®Audio Analogue Encoder

02
DA11AEN QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
Dante Controller soware is required in order to setup and configure the DA11AEN as well as control your Dante®
network. Audinate provide extensive training videos and documentation on their website. This can be found here:
http://www.audinate.com/products/soware/dante-controller
Upon connecting your DA11AEN to a compatible network, the Dante Controller soware should automatically
discover the device. The DA11AEN will appear in the Dante Controller with a name denoted with “BLS”. On the
“Routing” screen you can create audio routing between Dante® encoders and decoders in your system.
By default the DA11AEN is shipped with its network settings set to obtain an IP Address automatically. This means
that if a DHCP server is present on your network, it will provide the DA11AEN with an IP Address. If no DHCP server
is present then the DA11AEN will receive a default IP Address in the 169.254.xxx.xxx range. To change the IP Address
of the DA11AEN, you must enter the “Network Config” menu in the “Device Info” screen of the Dante Controller
soware.
Dante Controller

03
DA11AEN QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail]
REVA2_QRG_DA11AEN_210811
Advanced Dante® Settings
It is also possible to change the settings of the DA11AEN under the “Device Info” screen in the Dante Controller
soware. To do so, select the “Device Config” menu.
Here we can adjust the sample rate of the DA11AEN. Please Note: that Dante® products can only transmit or receive
audio from other Dante® products that are set up with the same sample rate. A mismatch in sample rate may stop
audio from transmitting.
Under the “Device Config” screen we can also adjust the latency of the DA11AEN from 1, 2 or 5 milliseconds.
SWITCH POSITION OUTPUT SENSITIVITY
1 +18dBu
2 +4dBu
3 +0dBu
4 0dBV
5 -10dBV
Depending on the connected audio device, it may be necessary to adjust the gain or input sensitivity.
The DA11AEN features a 5 pin switch on the side of the device to adjust the output gain of each channel from
various settings between +18dBu to -10dBV.
Gain Adjustment

04
DA11AEN QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
Specifications
Audio Input Connectors: 6-pin Phoenix connector (2ch balanced / un-
balanced analogue audio)
Audio Output Connectors: 1 x RJ45, female (100 Mbps Dante® network)
Casing Dimensions (W x H x D): 120mm x 26mm x 47mm
Shipping Weight: 0.3 Kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
Power Supply: Class 1 IEEE 802.3af POE PD or 12V/1A DC 2-PIN Phoenix connector
Package Contents
• 1 x DA11AEN
• 1 x Quick Reference Guide
Acknowledgements
Dante® is a registered trademark of
Audinate Pty Ltd.
DA11AEN

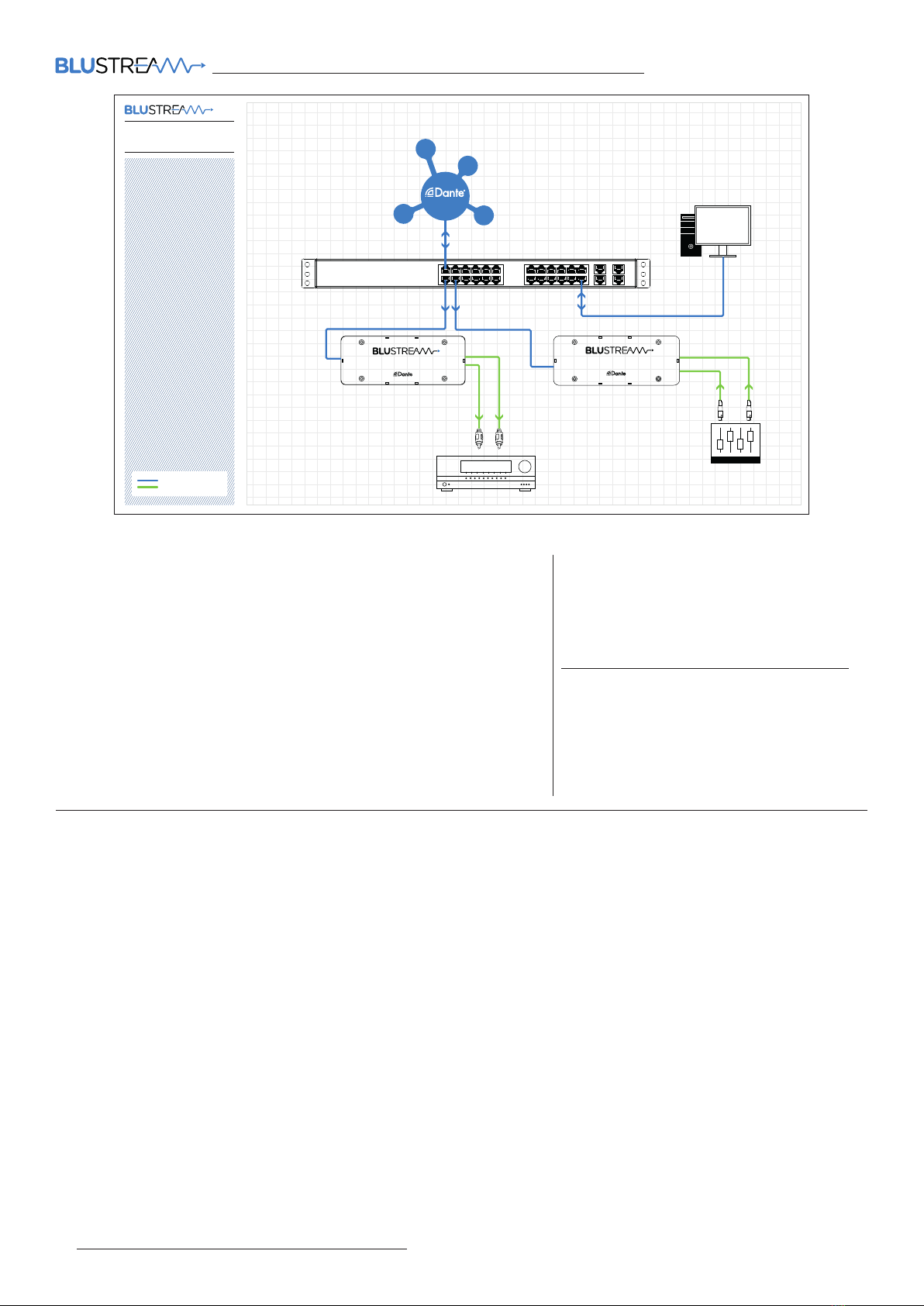

Example Schematic
CAT Cable
Analogue Audio
DA11ADE
Dante®Audio Analogue Decoder
DA11AEN
Dante®Audio Analogue Encoder

Analogue
Audio Output
(2 x channels)
DA11ADE DA11AEN Analogue
Audio Input
(2 x channels)
1G Network Switch
Dante®
Controller
FCC NOTICE
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by
turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
CAUTION - changes or modifications not expressly approved
by the party responsible for compliance could void the user’s
authority to
operate the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003.
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed
with other household wastes. To prevent possible harm to the
environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmentally safe
recycling.
Certifications
