Document code: MN67643_ENG Revision 1. Page 1 of 24
User Manual
Revision 1.
English
EtherNet/IP Master / PROFIBUS Slave -
Converter
(Order Code: HD67643-A1)
for Website information:
http://www.adfweb.com/?Product=HD67643
for Price information:
http://www.adfweb.com/?Price=HD67643-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others EtherNet/IP Master devices, see also the following links:
EtherNet/IP Master from/to
www.adfweb.com?Product=HD67158 (SNMP Agent)
www.adfweb.com?Product=HD67643 (PROFIBUS Slave)
www.adfweb.com?Product=HD67645 (CAN)
www.adfweb.com?Product=HD67646 (CANopen)
www.adfweb.com?Product=HD67647 (DeviceNet Slave)
www.adfweb.com?Product=HD67661 (PROFINET)
www.adfweb.com?Product=HD67665 (Modbus TCP Slave)
www.adfweb.com?Product=HD67667 (Serial)
www.adfweb.com?Product=HD67669 (Modbus Slave)
www.adfweb.com?Product=HD67689 (BACnet Slave)
www.adfweb.com?Product=HD678 6 (KNX)
www.adfweb.com?Product=HD67955 (MQTT)
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
User Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 2 of 24
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
PROFIBUS 1
ETHERNET 11
USE OF COMPOSITOR SW67643 12
NEW PROJECT / OPEN PROJECT 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
ETHERNET/IP ACCESS 17
GSD FILE 18
UPDATE DEVICE 19
MECHANICAL DIMENSIONS 21
ORDERING INFORMATIONS 22
ACCESSORIES 22
DISCLAIMER 23
OTHER REGULATIONS AND STANDARDS 23
WARRANTIES AND TECHNICAL SUPPORT 24
RETURN POLICY 24
Pagina 2 di 24
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1. 13/ 3/2 18 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 3 of 24
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 4 of 24

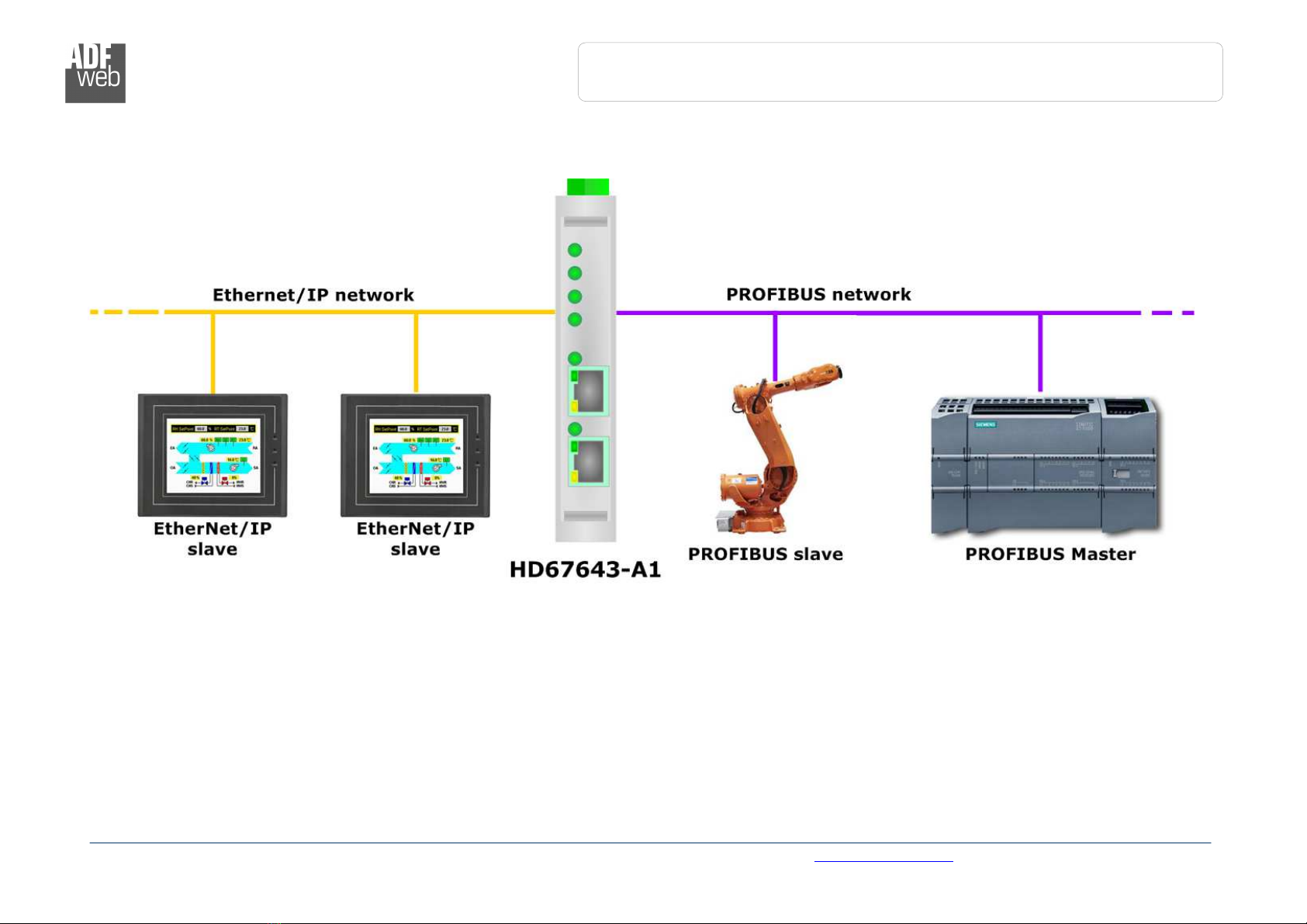

EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 5 of 24
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67643-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 6 of 24
CHARACTERISTICS:
The HD67643-A1 is a EtherNet/IP Master / PROFIBUS slave Converter.
It allows the following characteristics:
Two-directional information between EtherNet/IP and PROFIBUS;
Electrical isolation between PROFIBUS – EtherNet/IP, Power Supply – EtherNet/IP, Power Supply – PROFIBUS;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67643 software on your PC in order to perform the following:
Define the parameter of the PROFIBUS;
Define the parameter of the EtherNet/IP;
Define the list of EtherNet/IP slaves connected to the converter;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 7 of 24
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67643-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67643-A1 4
Caution: Not reverse the polarity power
HD67643-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 8 of 24
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’:
The first, with Dip2 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip2 in On position, is used for upload the Project/Firmware.
For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).
Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 9 of 24
LEDS:

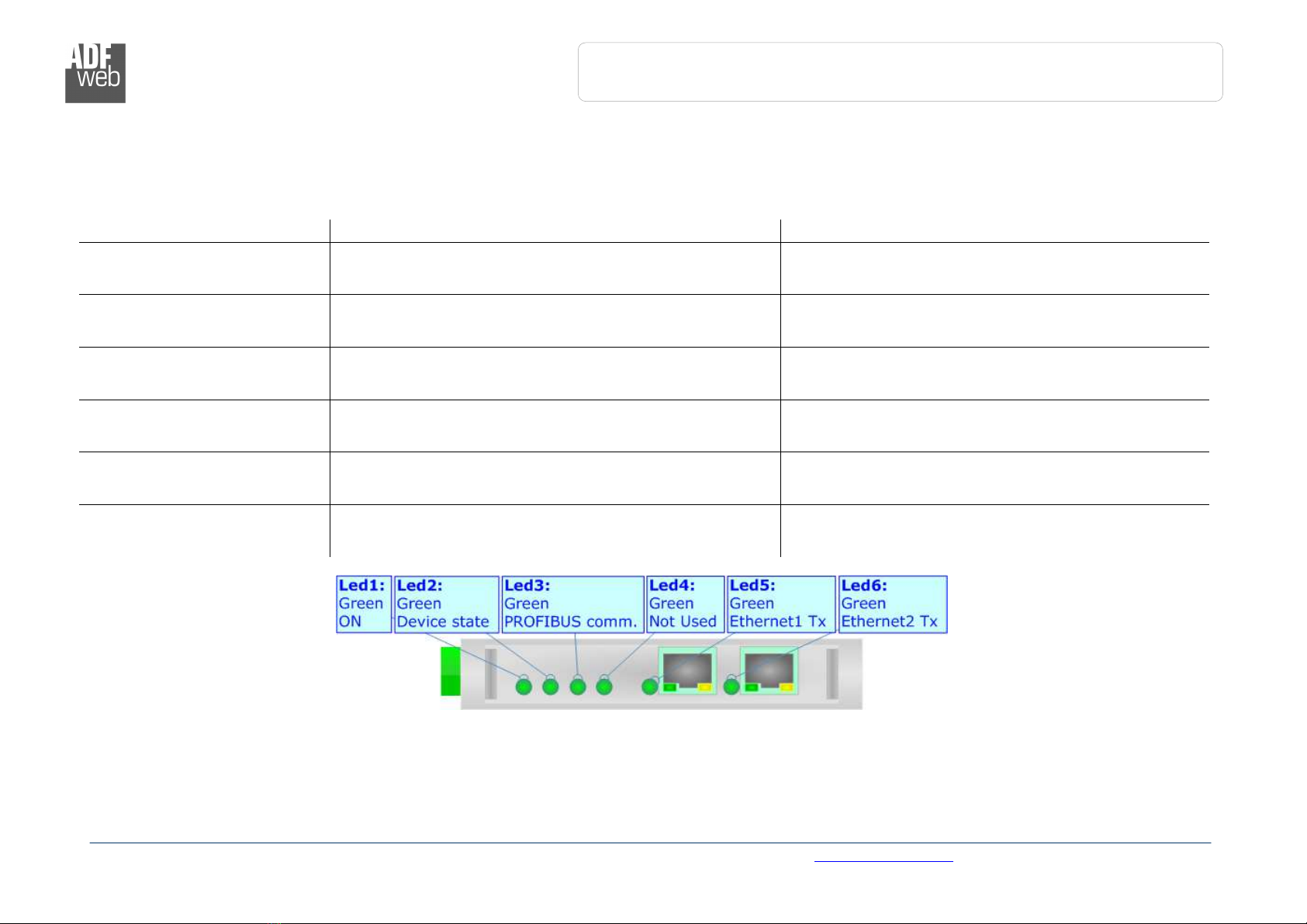

The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: PROFIBUS communication
(green) Blinks when PROFIBUS communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Not used (green) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet1 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
6: Ethernet2 Tx (green) Blinks when is transmitting Ethernet frames Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 1 of 24
PROFIBUS:

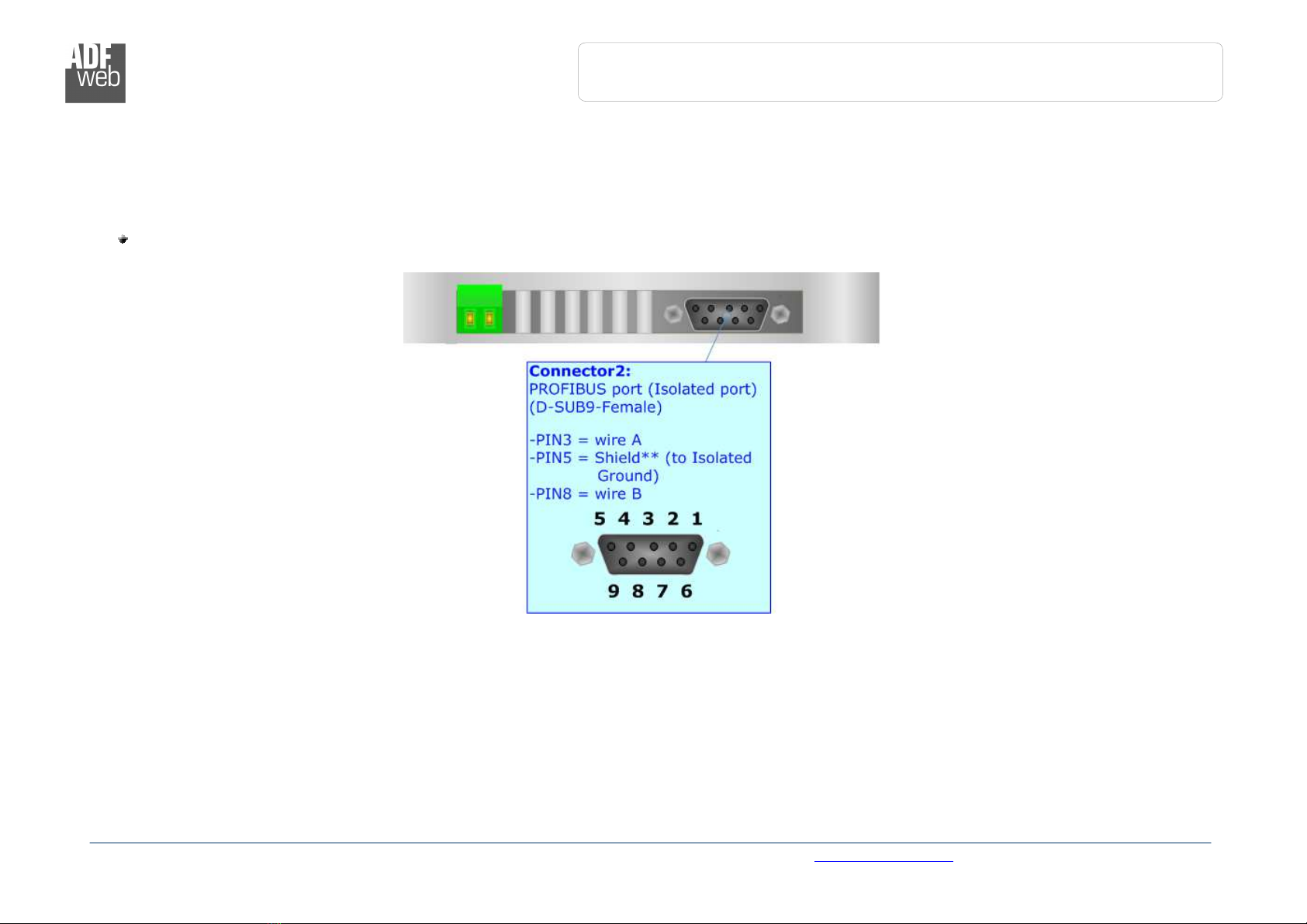

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the following figure.
Here some codes of cables:
Belden: p/n 183 79A - Continuous Armor DataBus® ISA/SP-5 PROFIBUS Cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 11 of 24
ETHERNET:

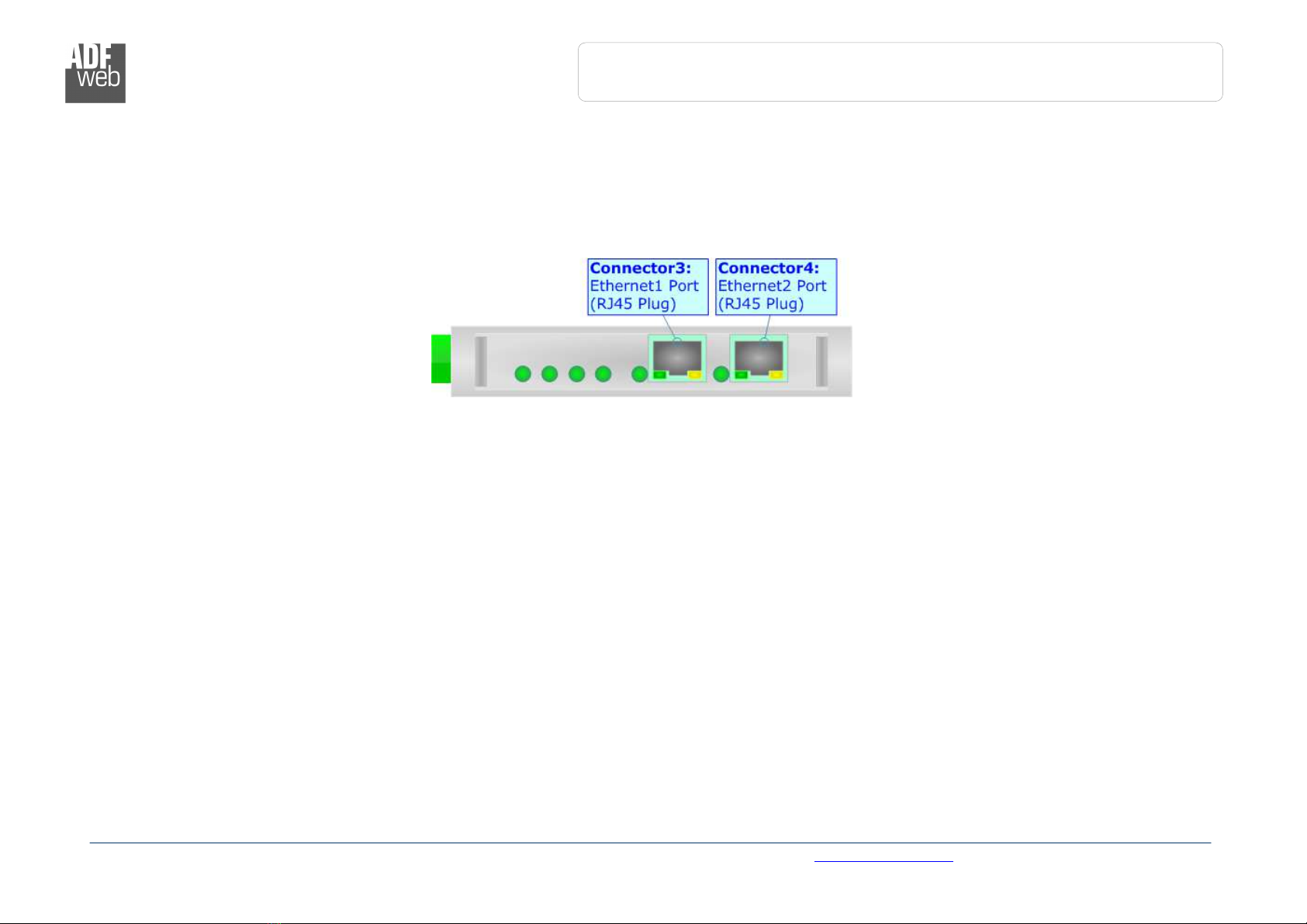

The Ethernet connection must be made using Connector3 or Connector4 of HD67643-A1 with at least a Category 5E cable. The maximum
length of the cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended
the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 12 of 24
USE OF COMPOSITOR SW67643:
To configure the Converter, use the available software that runs with Windows called SW67643. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (XP, Vista, Seven, 8, 1 ; 32/64bit).
When launching the SW67643, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67643

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 13 of 24
NEW CONFIGURATION / OPEN CONFIGURATION:

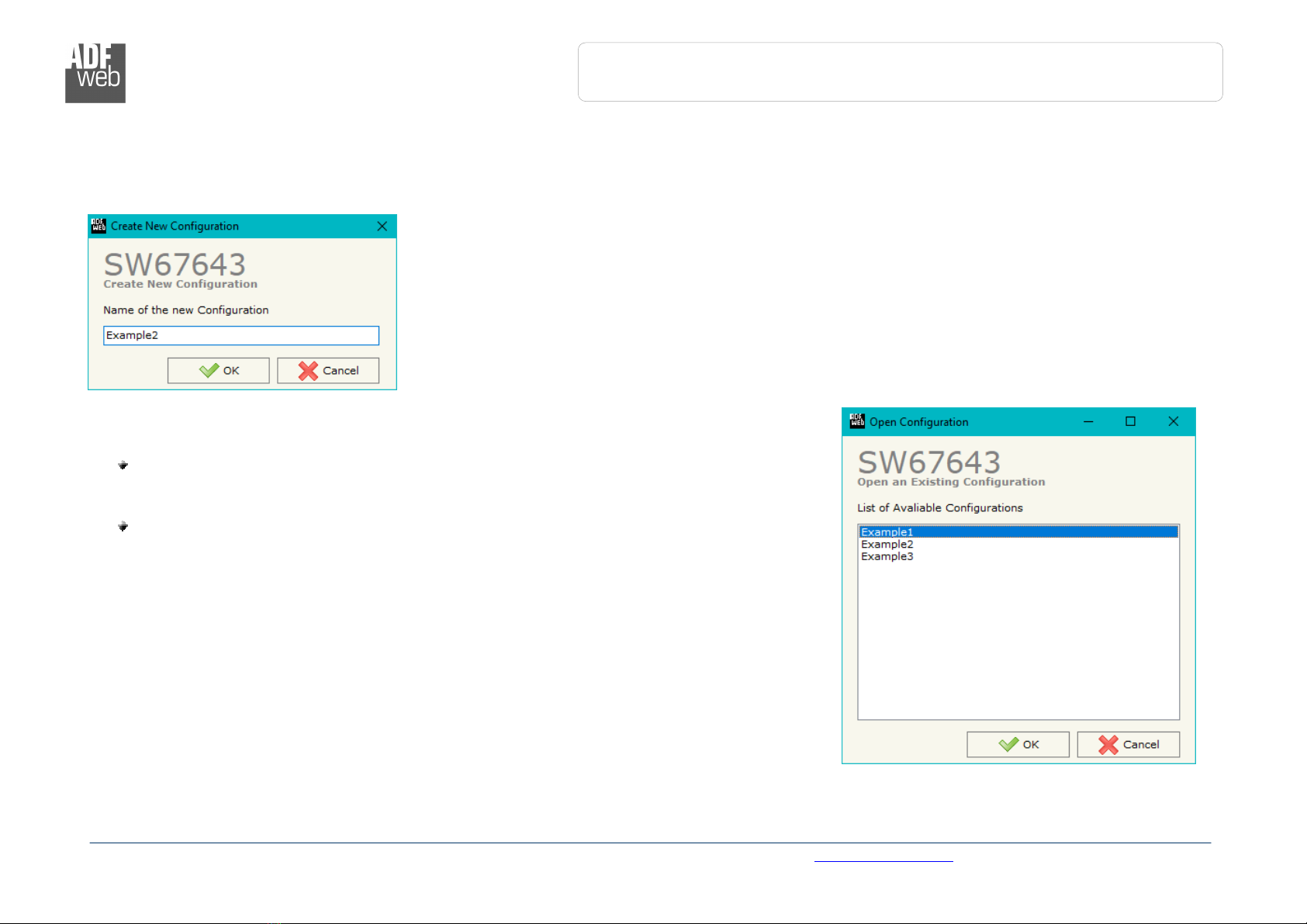

The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “EtherNet/IP Master / PROFIBUS Slave
- Converter” in order to configure another device in the same manner, it is necessary
to maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 14 of 24
SOFTWARE OPTIONS:

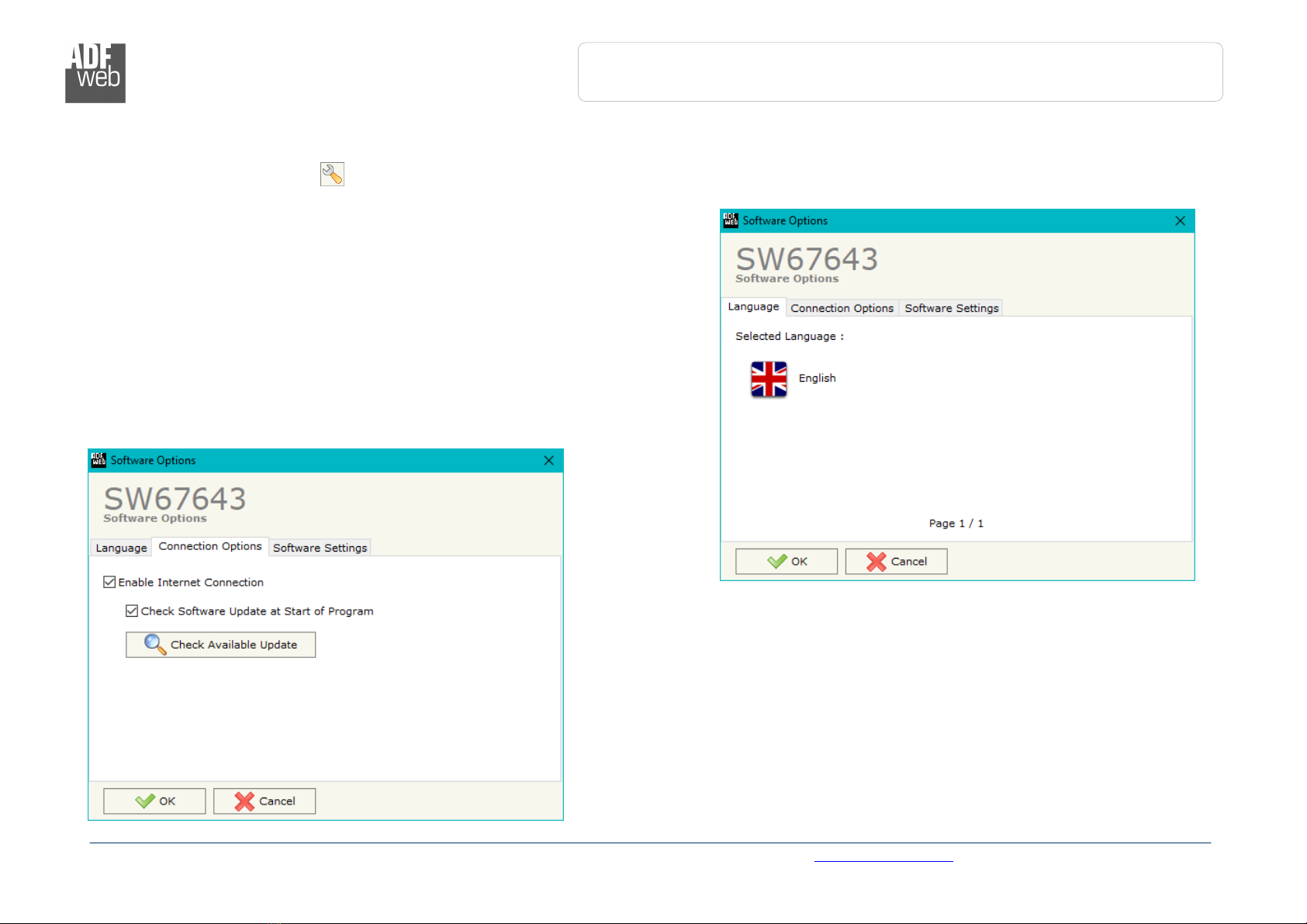

By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67643 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 15 of 24
In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 16 of 24
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses,
PROFIBUS and EtherNet/IP.
By Pressing the “Set Communication” button from the main window for SW67643
(Fig. 2) the window “Set Communication” appears (Fig. 3).
The means of the fields for “PROFIBUS” are:
In the field “ID Device” the address of the PROFIBUS side is defined;
In the field “Baudrate” the data rate of the PROFIBUS side is defined (fixed to
“Auto Baudrate”);
In the field “Number Byte IN” the number of Input bytes of PROFIBUS is
defined (at maximum it is possible to use 244 byte);
In the field “Number Byte OUT” the number of Output bytes of PROFIBUS is
defined (at maximum it is possible to use 244 byte).
The means of the fields for “EtherNet/IP Master” are:
In the fields “IP ADDRESS” the IP address for EtherNet/IP side of the converter
is defined;
In the fields “SUBNET Mask” the SubNet Mask for EtherNet/IP side of the
converter is defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature
can be enabled or disabled pressing the Check Box field. This feature is used for
going out of the net;
In the field “Port” the port used for EtherNet/IP communication is defined. The
port has a fixed value of 44818.

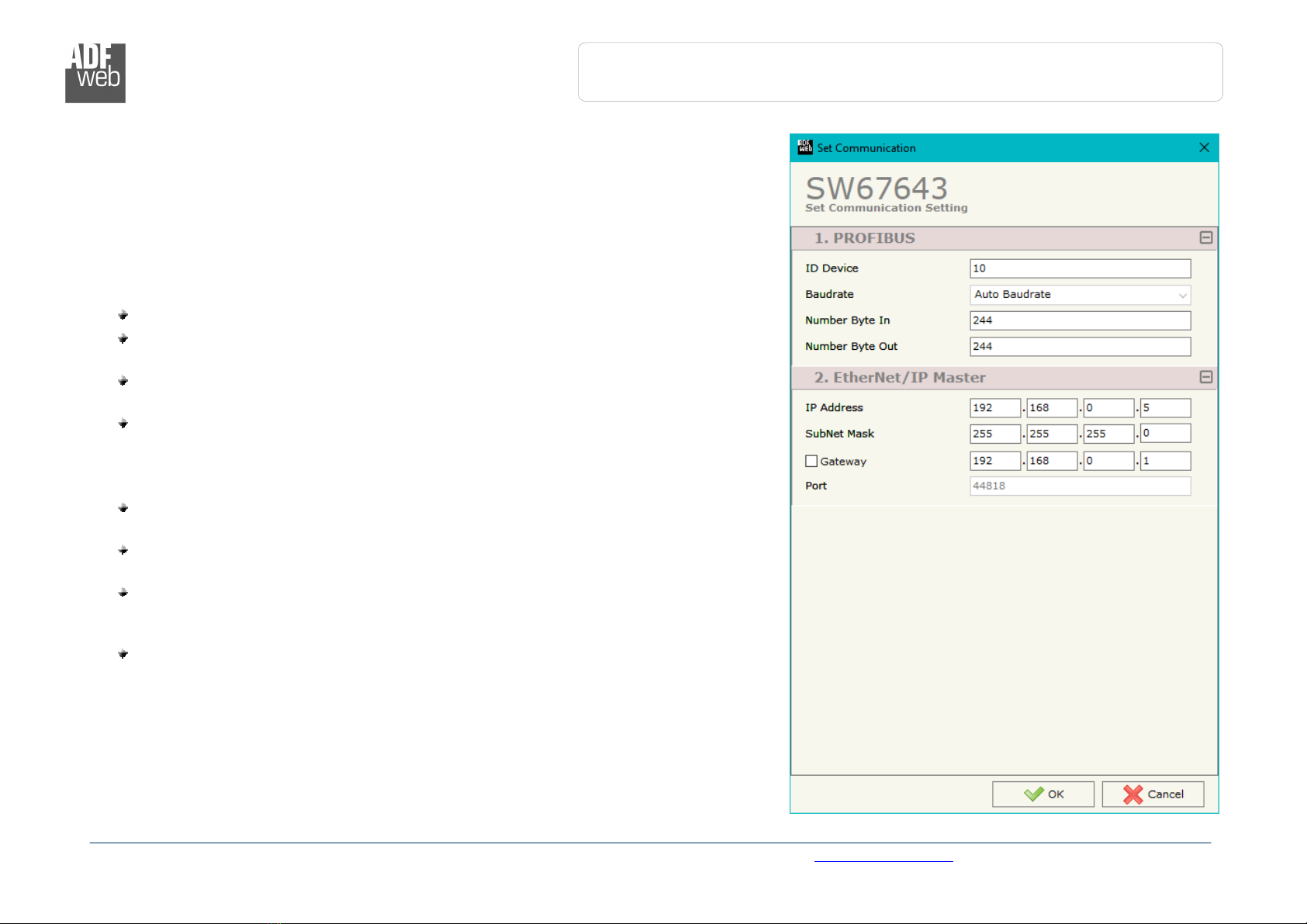

Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 17 of 24
Figure 4: “Set EtherNet/I Slaves Access” window
ETHERNET/IP ACCESS:
By Pressing the “EtherNet/IP Access” button from the main window for SW67643 (Fig. 2) the window “Set EtherNet/IP Slaves Access”
appears (Fig. 4).
This section is used to define the list of the EtherNet/IP slaves to read/write with the PROFIBUS Master.
The means of the fields are:
If the field “Enable” is checked, the polling to the EtherNet/IP slave is enabled;
In the field “IP Address” the IP Address of the EtherNet/IP slave is defined;
In the field “Start Input” the starting Input byte of the EtherNet/IP slave to map on PROFIBUS side is defined;
In the field “Num Input” the number of consecutive Input byte to map on PROFIBUS side is defined;
In the field “Start Output” the starting Output byte of the EtherNet/IP slave to write from PROFIBUS side is defined;
In the field “Num Output” the number of consecutive Output byte to write from PROFIBUS side is defined;
In the field “Time Poll” the polling time in ms is defined;
In the field “Instance T > O” the instance of the assembly for the Target to Originator data direction is defined;
In the field “Conn. Point T > O” the connection point of the assembly for the Target to Originator data direction is defined;
In the field “Instance O > T” the instance of the assembly for the Originator to Target data direction is defined;
In the field “Conn. Point O > T” the connection point of the assembly for the Originator to Target data direction is defined;
In the field “Mnemonic” a brief description is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 18 of 24
GSD FILE:
By pressing the “PROFIBUS GSD” button it is possible to save the GSD file for the PROFIBUS side.
With this feature you can save the configuration of the gateway of the PROFIBUS side.
Note:
When you import the .gsd file on your Master PROFIBUS you have to add all the modules that are present inside it in the correct
order.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 19 of 24
UPDATE DEVICE:
By pressing the “Update Device” button, it is possible to load the created
Configuration into the device; and also the Firmware, if necessary. This by using the
Ethernet port.
If you don’t know the actual IP address of the device you have to use this procedure:
Turn OFF the Device;
Put Dip2 of ‘Dip-Switch A’ in ON position;
Turn ON the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn OFF the Device;
Put Dip2 of ‘Dip-Switch A’ in OFF position;
Turn ON the device.
If you know the actual IP address of the device, you have to use this procedure:
Turn ON the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at Normal Mode.
At this point the configuration/firmware on the device is correctly updated.
Figure 5: “Update device” windows

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
EtherNet/IP
Master /
PROFIBUS
Slave
Document code: MN67643_ENG Revision 1. Page 2 of 24
Note:
When you receive the device, for the first time, you also have to update the Firmware in the HD67643 device.
Warning:
If Fig. 6 appears when you try to do the Update try these points before seeking
assistance:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
Check the LAN settings;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven, Vista, 8 or 1 make sure that you have the
administrator privileges;
In case you have to program more than one device, using the "UDP Update", you
have to cancel the ARP table every time you connect a new device on Ethernet. For
do this you have to launch the "Command Prompt" and write the command "arp -
d". Pay attention that with Windows Vista, Seven, 8, 1 you have to launch the
"Command Prompt" with Administrator Rights;
Pay attention at Firewall lock.
Warning:
In the case of HD67643 you have to use the software “SW67643”: www.adfweb.com\download\filefold\SW67643.zip.
Figure
6
:
“
Error
” window
