Introduction
This installation guide covers the features of the HawkEye 7200A-BB2327, part number: 200800. Since
there is no user interaction directly with the system there is a separate user guide detailing the features of
the Blue Sky Network SkyRouter systems for managing and interacting with the HE7200A-BB2327.
Hawkeye 7200A-BB2327
The GTI HE7200A-BB2327 offered by Blue Sky Network is a modular product line that consists of an
Iridium 9523-based voice/data core platform ‘black box’ (BB) with an interface to allow future product
implementations. The HE7200A BB2327 will be an FAA certified product with a “D” connector for power
and future accessory options as well as female antenna connectors for GNSS and Iridium. The unit will
derive power from the aircraft electrical bus and will exist through a 3A circuit breaker. Input power to the
box can be from 10V-30VDC. It is expected that the box will power on when the aircraft Master Switch is
turned “on” and turn “off” when the Master Switch is turned “off”. The unit is designed to operate without
any human interaction and performs its’ own self-test before sending any data.

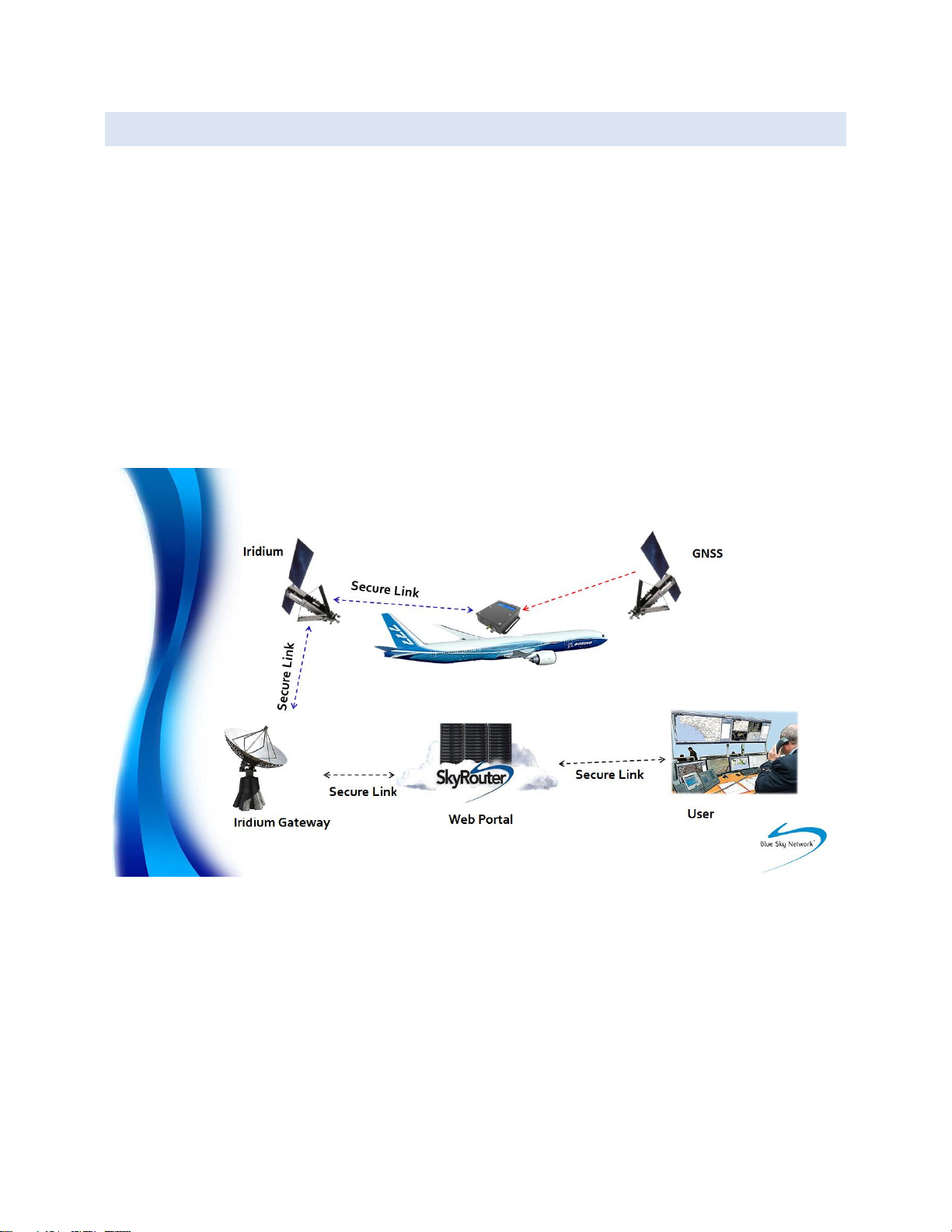

Once on, the product will send periodic position reports and other events (e.g. take-off and landing)
derived from the GNSS receiver and transmitted over the Iridium Satellite Network. All parameters (e.g.
frequency of reporting) are set by the customer remotely and sent to the unit over the Iridium Satellite
Network using SkyRouter, the cloud based back end designed and operated by Blue Sky Network.
On SkyRouter, the owner and any other customer authorized users can autonomously track the aircraft
anywhere in the world in virtual real-time. The unit function can be thought of as a satellite-based
transponder except the owner controls who might see the aircraft in flight.

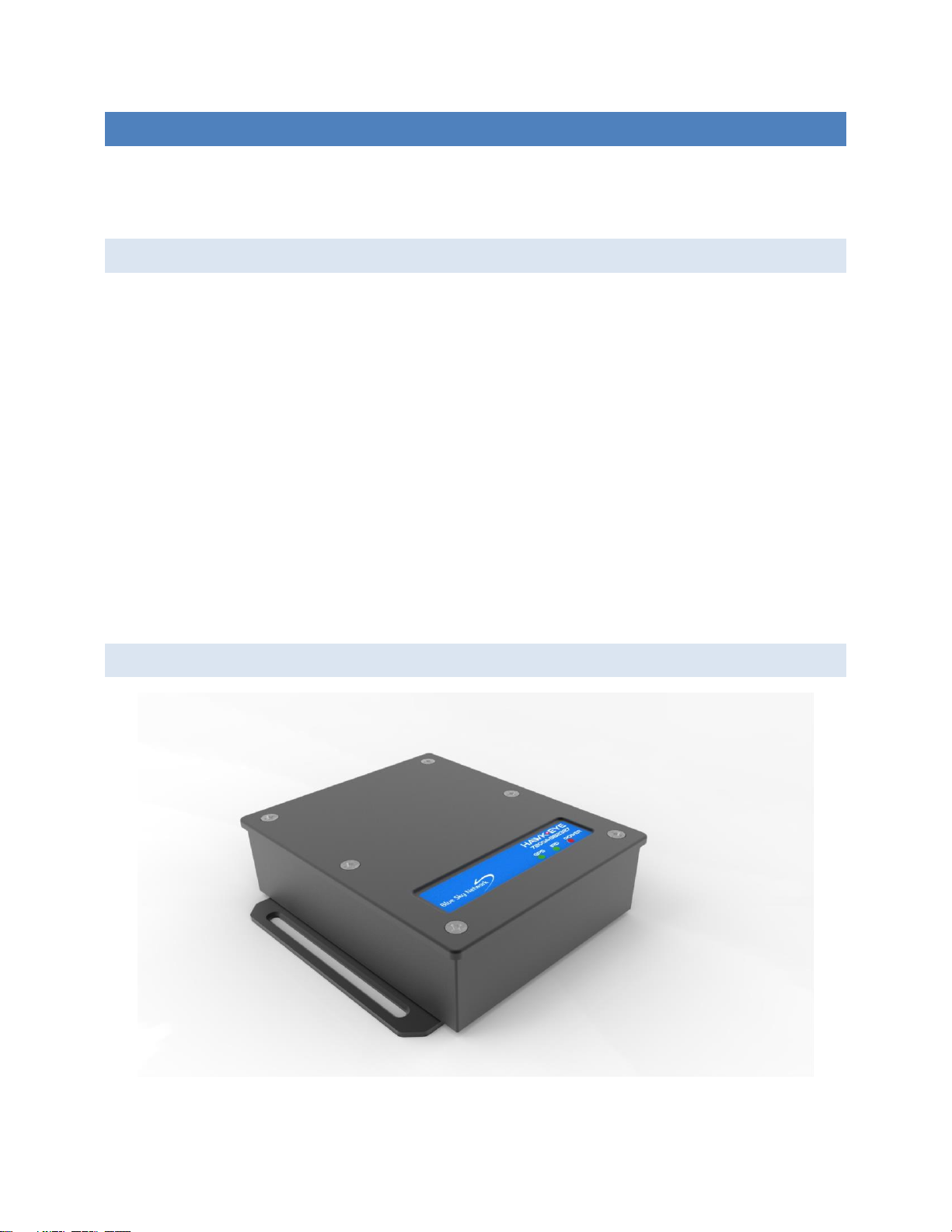

Product Image

Blue Sky Network June 2019
Page | 8 HE7200A-BB2327 Install Guide P/N: 200804
Front Panel Description
LED Layout
Power On & Boot LED Procedure
When power is first applied to the HE7200A product, all three LED’s will be on and solid for 2 seconds.
Then, the GNSS and Iridium LED’s will turn off. At this point the device has passed the boot stage.
Post Boot LED Blink Patterns
•The Power LED –This LED should remain on and solid as long as power is being properly
applied to the device.
•The Iridium LED –This LED will blink repeatedly while the device is searching for signal. The
LED will be solid when the device has a satellite fix.
•The GNSS LED –This LED will blink repeatedly while the device is searching for signal. The LED
will be solid when the device has a satellite fix.

Blue Sky Network June 2019
Page | 9 HE7200A-BB2327 Install Guide P/N: 200804

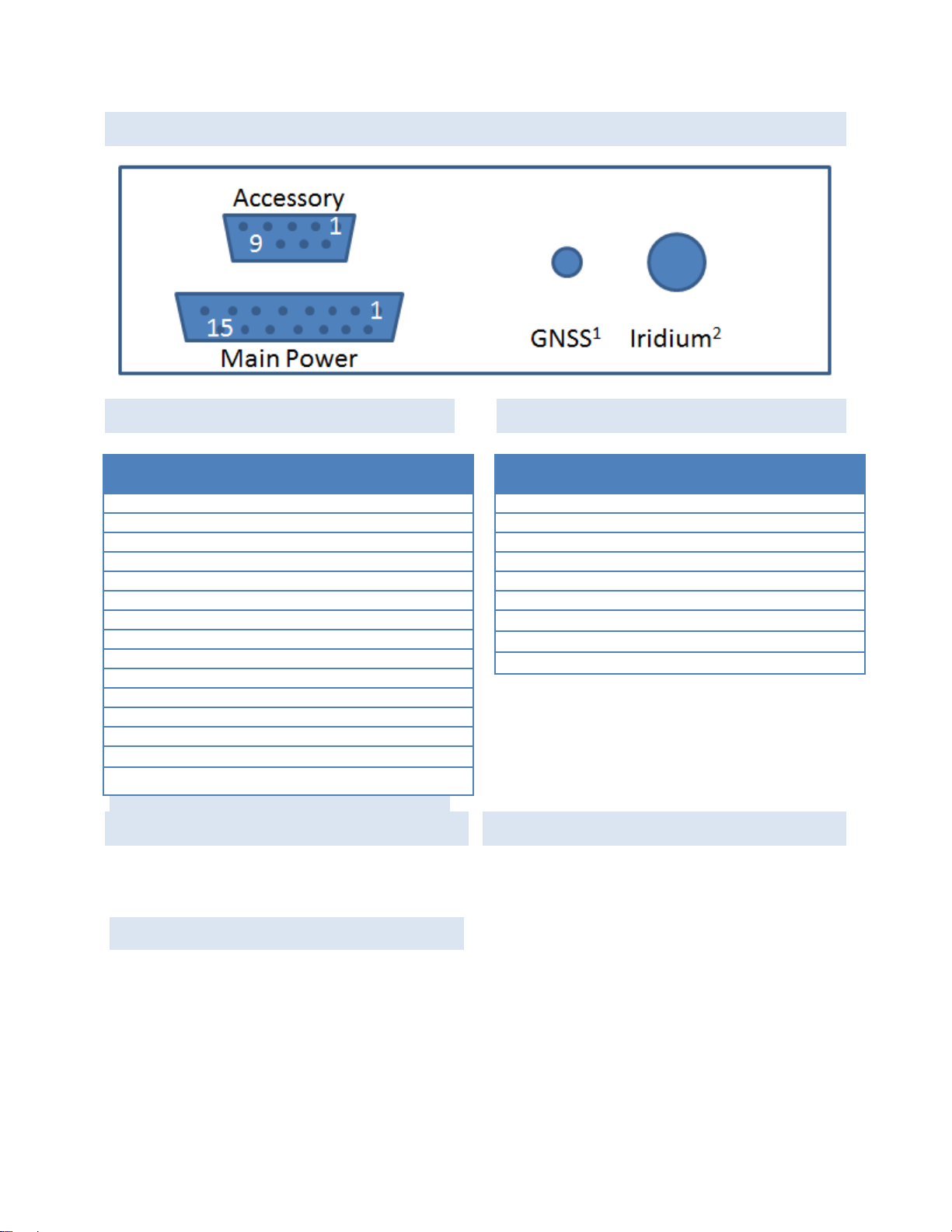

Interface View
MAIN POWER PIN LAYOUT
DB15 Connector
I/O
AWG
1
VIN+
20 AWG
2
VIN-
20 AWG
3
DO1
24 AWG
4
DO2
24 AWG
5
DI1
24 AWG
6
DI2
24 AWG
7
DGND
24 AWG
8
AI1
24 AWG
9
AGND
24 AWG
10
232 RXD
24 AWG
11
232 TXD
24 AWG
12
SHUNT
24 AWG
13
SHUNT
24 AWG
14
N/A
15
N/A
ACCESSORY PIN LAYOUT
DB9 Connector
I/O
AWG
1
485 - A
24 AWG
2
GND
24 AWG
3
TIP
24 AWG
4
RING
24 AWG
5
GND
24 AWG
6
485-B
24 AWG
7
N/A
8
N/A
9
N/A
GNSS1
Connector Type: SMA (f)
Antenna Frequency: 1560 to 1606 MHz
Antenna Type: Active
GNSS Channels: GNSS L1 C/A, GLONASS L1
IRIDIUM2
Connector Type: TNC (f)
Antenna Frequency: 1616 MHz to 1626.5 MHz
Antenna Type: Passive

Blue Sky Network June 2019
Page | 10 HE7200A-BB2327 Install Guide P/N: 200804
SkyRouter
The SkyRouter portal ties together Blue Sky Networks data solutions in an integrated and user-friendly
way. By accessing the SkyRouter Web-site users can do the following:

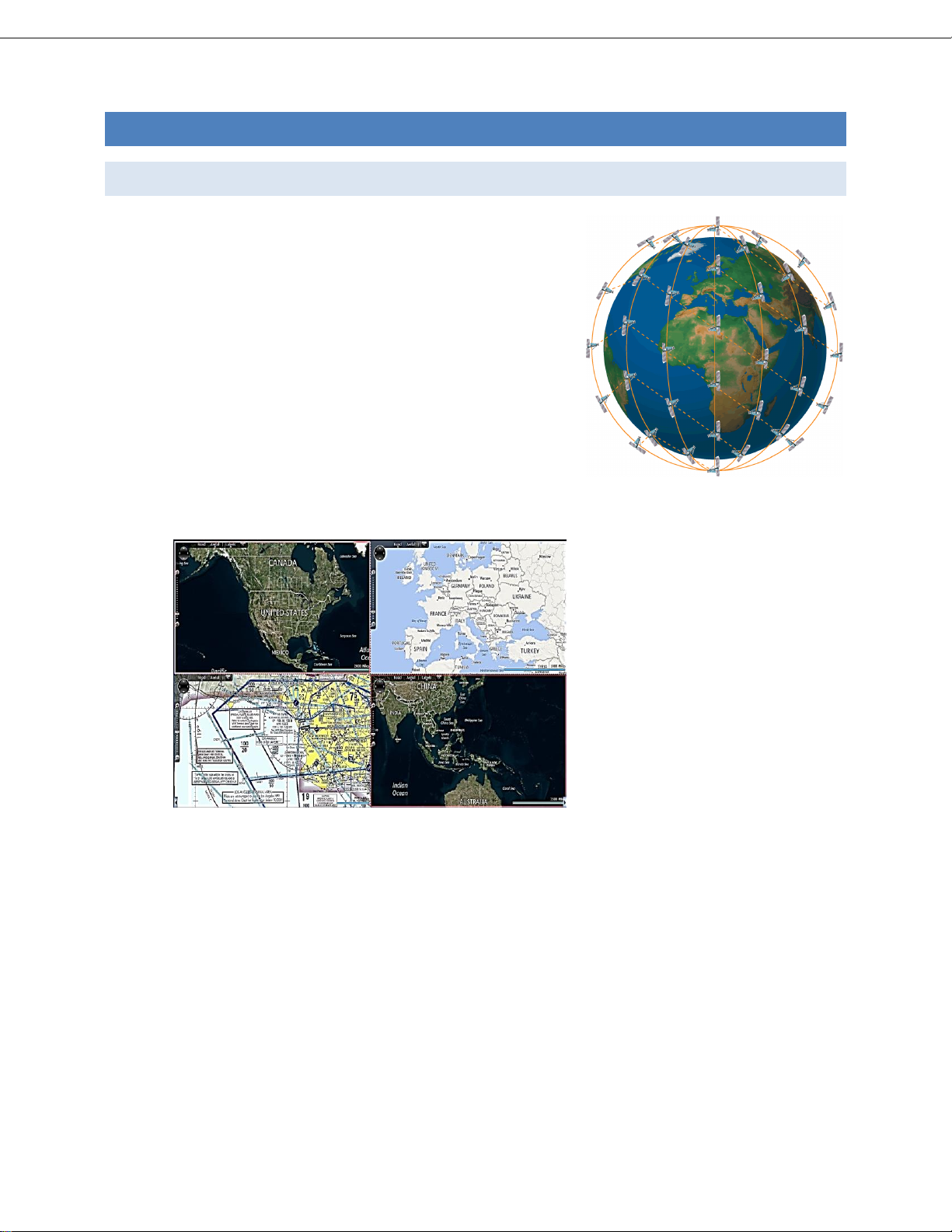

•Advanced device tracking on a global, layered map including satellite imagery and standard
street maps.
•Event notification for emergency, take-off, landing, inactive unit, speeding, moving and not-
moving and more.
•Playback past trips and view detailed reports.
•2-way email messaging to and from devices in the field.
•Update and request the current state of parameters on devices in the field.
•Manage alert settings.
•Management of a device fleet, including assignment of units to groups and creation of additional
user accounts.
•Manage naming of the units and many other visual characteristics.

Blue Sky Network June 2019
Page | 11 HE7200A-BB2327 Install Guide P/N: 200804
FAA/JAA APPROVAL
General
Acceptance for the installation and use of the HE7200A-BB2327 must be sought through the appropriate
offices of the Federal Aviation Administration (FAA), Joint Aviation Authorities (JAA) or other certifying
agency.
The HE7200A Satellite System is approved by the FAA (Federal Aviation Administration) as compliant
with the airworthiness requirements as defined in 14 CFR (Code of Federal Regulations), Part 23.
STC Number: FAA STC SA02590LA.
Installation & Operational Approval Procedures
A functional ground test procedure and an operational flight check procedure should be used to verify
proper installation, functional performance and electromagnetic compatibility with existing aircraft
systems.
Instructions for Continued Airworthiness
The HE7200A components require no routine servicing or maintenance. The installation has no additional
overhaul time limitations.
Environmental Qualification
HE7200A-BB2327 MODEM UNIT
The HE7200A modem unit has been tested to RTCA/DO-160G, Sections 4, 6, 8, 10, 21
.

Blue Sky Network June 2019
Page | 12 HE7200A-BB2327 Install Guide P/N: 200804
Technical Specifications
Environment
Operating Temperature:
Operating Humidity:
Storage Temperature:
Storage Humidity:
Certifications:
-30ºC to + 70ºC
≤ 75% Relative Humidity
-40ºC to + 85ºC
≤ 93 % Relative Humidity
RTCA/DO-160G, Section 4, 6, 8, 10, 21
Electrical
Input Voltage Range:
Input Power (max):
10 –32VDC
15W
Physical
Dimensions:
Weight:
5.5”x5.61”x1.6”
~1 Lb.
Iridium
Connector Type:
Antenna Frequency:
Antenna Type:
TNC (f)
1616MHz to 1626.5MHz
Passive
GNSS
Connector Type:
Antenna Frequency:
Antenna Type:
GNSS Channels:
SMA (f)
1560 to 1606MHz
Active:
GNSS L1 C/A, GLONASS L1

Blue Sky Network June 2019
Page | 13 HE7200A-BB2327 Install Guide P/N: 200804
Hawkeye 7200A-BB2327 Features
Features
•True Global Coverage –The Iridium global network of 66
low-earth-orbit (LEO) satellites offer faster connection
times and true global coverage, so you know where your
important assets are all of the time.
•Faster, More Accurate Positioning Reports –The
HE7200A-BB2327 offers concurrent satellite
communication with 3 global satellite positioning (GNSS)
systems, providing faster, more accurate positioning
reports.
•SkyRouter Command Center –The HE7200A-BB2327
communicates directly to SkyRouter, Blue Sky Network’s
web portal—where you can track, update, communicate
and manage all your assets.
•Advanced Device-Side Geo-Fencing –The device connects directly with SkyRouter, which
supports advanced variable response (AVR) geo-fencing. It allows owners to create radius or
polygonal fences, variable responses
and alerts.
•Satellite Voice Service –
With an integrated satellite telephone
system, users can easily connect any
standard dialer and headset system
to the HE7200A-BB2327 and
communicate directly with anybody
anywhere.
•Dedicated Installation &
Maximum Performance–The
airworthiness compliant HE7200A-
BB2327 allows the Federal Aviation
Administration (FAA), Joint Aviation
Authorities (JAA) and other certifying agencies to approve permanent installation inside Part 23,
25, 27, & 29 aircraft.
•Add-on Accessories –The HE7200A-BB2327 provides the base platform to allow future
upgrades to add additional functionality such as voice connectivity, emergency events, &
Bluetooth connectivity for text messaging and operation with most smart phones.
•External autonomous battery packs –Optionally support tracking operations even in the event
of aircraft power loss.

Blue Sky Network June 2019
Page | 14 HE7200A-BB2327 Install Guide P/N: 200804
Installation & Wiring
General Information
Generally, modification of the aircraft consists of installing a dedicated single-channel or dual-channel
Iridium antenna with connections for the HE7200A-BB2327.
NOTE: ALL AIRCRAFT ANTENNAS REQUIRE PROFESSIONAL INSTALLATION.
License Requirements
The HE7200A-BB2327 has no licensing requirements.
Cooling Air Requirements
The HE7200A-BB2327 has very low power usage so forced air cooling is not required for any of the
components. However, units should be kept away from heat sources.
Aircraft Interfaces
The HE7200A-BB2327 operates independent of aircraft navigation systems. Therefore, no aircraft
interface is required other than the 10 –32 VDC Power Input, Power Return and Chassis Ground.
Power Input
The only component of the HE7200A-BB2327 requiring aircraft power is the modem unit. The HE7200A-
BB2327 power interface supports wide voltage input in the range of 10V to 32V DC. The following input
connections are the most commonly used:
•28 VDC nominal, typically less than 0.5A
•12 VDC nominal, typically less than 1A
A single 3-amp circuit breaker is recommended to protect the aircraft power distribution system.
Equipment Required But Not Supplied
1. Circuit Breaker: Pull Type Required for HE7200A-BB2327 Modem Unit
Wire Harness Fabrication & Installation Considerations
Referring to the appropriate section of this manual, assemble a wiring harness as required for the
installation. All wires must be MIL-SPEC in accordance with current regulations. Two-conductor shielded
wire must be used where indicated and be MILSPOEC- 27500 or equivalent specification. Shields should
only be grounded at the Modem Unit end of the interconnect cable. Other ends remain floating. It is
imperative that the correct wiring be used and that proper stripping, shielding, grounding, crimping and
soldering techniques be used at all times. Failure to correct techniques may result in poor performance,
electrical noise or unit failure.

Blue Sky Network June 2019
Page | 15 HE7200A-BB2327 Install Guide P/N: 200804
Power Wiring
To assure that the HE7200A-BB2327 will operate properly down to its rated minimum input voltage,
ensure that power wires of at least the recommended size are connected in accordance with the
installation drawings. It is recommended that power and ground wires are a twisted pair to reduce signal
noise.
Ground Bonding
In order to assure installation characteristics match the DO-160 RF and Lightning test conditions, ensure
that ground wires of at least the recommended size are installed and these wires are connected to a
bonded aircraft ground.
Cable & Wire Harness Routing Considerations
•The length and routing of cables must be carefully planned before starting the installation.
•Avoid sharp bends in the cable.
•Do not locate the cable near aircraft controls.
•Observe all appropriate sections of FAR Parts 23, 25, 27, and 29, as well as AC43.13-1B and AC
43.13-2A. Damage caused by improper installation will void product warranty.
•In order to ensure optimum performance, the HE7200A-BB2327 and associated wiring should be
kept a minimum of three feet from high noise sources and not routed with cables from high power
sources.

Blue Sky Network June 2019
Page | 16 HE7200A-BB2327 Install Guide P/N: 200804
Wiring Diagram

Blue Sky Network June 2019
Page | 17 HE7200A-BB2327 Install Guide P/N: 200804

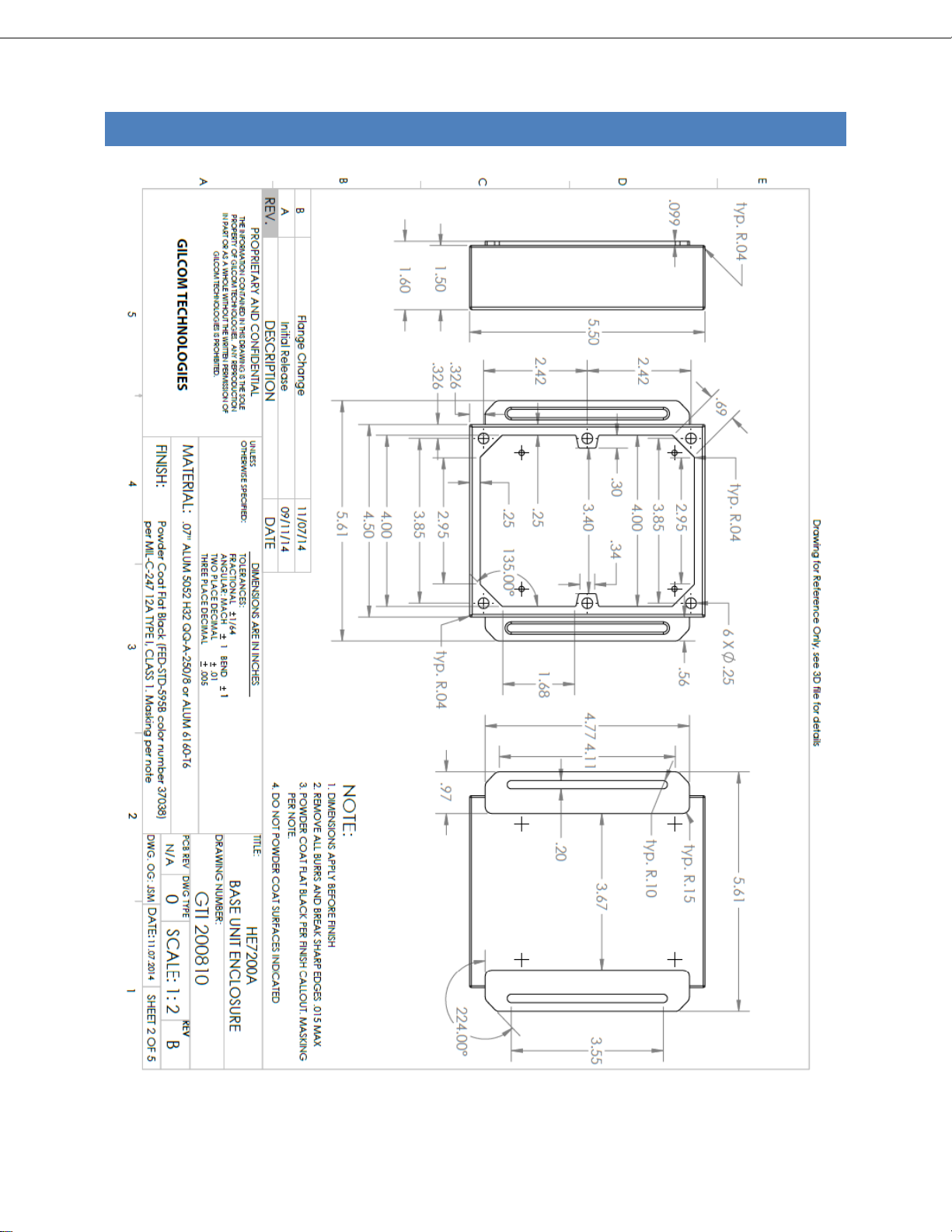

Mechanical Specifications

Blue Sky Network June 2019
Page | 18 HE7200A-BB2327 Install Guide P/N: 200804
Antenna Requirements
This guide does not cover antenna installation requirements completely and this section is intended to
provide general information about the antenna and its general installation configuration. The installation of
the antenna should be completed prior to installing the HE7200A-BB2327. For optimum performance, the
antenna must be installed on the upper surface of the aircraft fuselage, away from the vertical stabilizer
and with an unrestricted view of the sky down to eight degrees above the horizon (similar to a GNSS
antenna).
NOTE: Transmission from the antenna may be affected by and can affect the operation of other
systems; it is the operator’s responsibility to evaluate the location for any possible RF
interference. In particular the Iridium frequency is near the allocated GNSS band. The device
should be positioned at least 39 inches (1 meter) from any L-band antennas, particularly GNSS,
TCAS and Transponder antennas.
Minimum Antenna Requirement:
•Iridium: 1616MHz to 1626.5MHz, Passive
•GNSS: 1560MHz to 1606MHz, Active
Antenna Cable Requirement:
The signal loss budget, including the antenna cable and all connectors, from the antenna to the HE7200A
unit is < 1.5dB @1626MHz. Measured Voltage Standing Wave Ratio, or VSWR, of the coax cable
assembly, antenna and any bulkhead feed-through adapter must be less than 1.5 to 1.
Antenna Cable Routing Recommendations:
•The length and routing of cables must be carefully planned before starting the installation.
•Avoid sharp bends in the cable. Exceeding the minimum bend radius of the antenna coax cable
may result in permanent degradation of the cable loss.
•Do not locate the cable near aircraft controls.
•Observe all appropriate sections of FAR Parts 23, 25, 27, and 29, as well as AC 43.13-1B and
AC 43.13-2A
•In order to ensure optimum performance, the HE7200A and associated wiring should be kept a
minimum of three feet from high noise sources and not routed with cables from high power
sources.

Blue Sky Network June 2019
Page | 19 HE7200A-BB2327 Install Guide P/N: 200804
Activation
Your HawkEye 7200A-BB2327 device must be activated prior to use. By default, all Blue Sky
Network tracking devices are shipped to customers in an un-activated state. All activation requests must
be submitted by the Blue Sky Network SkyRouter Administrator on file.
An activation request can be submitted through our website, the link is shown below. You should receive
an immediate email confirmation that your request has been submitted and another email once the
requested services have been activated. Please make sure your contact details are accurate, this is how
we contact you if there are any problems processing your request.
https://blueskynetwork.com/support/activation/
NOTE TO INSTALLERS: It is not possible to temporarily activate devices for installation testing, please
contact the SkyRouter Administrator/Device owner in order to activate.

Blue Sky Network June 2019
Page | 20 HE7200A-BB2327 Install Guide P/N: 200804
Configure
Parameters
Before using your HawkEye 7200A-BB2327 it is recommended that you take time to check and update
the parameters on the device to prevent unexpected data usage. By default Blue Sky Network configures
the HawkEye 7200A-BB2327 at the factory default setting of 1 hour reporting.
The HawkEye 7200A-BB2327 system parameters are all managed using the SkyRouter system.
Administrators of SkyRouter can customize the parameters from the SkyRouter interface and update
devices remotely (device must be powered on and have sufficient signals to receive the update.) Please
consult your SkyRouter user manual for more specific information about sending parameter updates.
Adjusting the parameters on your device will change the behavior of your device. Some parameters
control the frequency at which normal position reports are sent, and other will generate events that will be
sent in addition to your normal position reports.
NOTE: Modifying parameters will have an impact on your data usage and associated service
charges.
Hawkeye 7200A-BB2327 Parameter Explanation
Normal Position Reports
Time Based Reporting
Time Based Status
This option will enable or disable normal position reports to be generated based upon a timer.
Time Based Interval
Normal position reports will be generated at this interval.
Distance Based Reporting
Distance Based Status
This option will enable or disable normal position reports to be generated based upon a distance that has
been displaced.
Distance Based Interval
Normal position reports will be generated when the device has displaced this distance.
Altitude Based Reporting
Altitude Based Status
Turn Altitude based reporting ON/OFF
Trigger Altitude (ft.)
Determine the altitude above which a different GNSS reporting interval should be in effect.
Interval (sec)
GNSS reporting interval above trigger altitude.
Perimeter Range Reporting
Perimeter Range Status
Turn Perimeter Range GNSS reporting ON/OFF
Range (ft.)
Determine the range within which the unit will start reporting at the perimeter range interval. The unit will
check every “regular GNSS reporting interval” to determine whether the unit has moved more than the
Perimeter Range distance from the previous measurement. If it has not, the perimeter range interval will
be in effect.
Interval (sec)
Perimeter range mode reporting interval.
Time Specified Reporting (4 options)
Time Specified Reporting
Status
This option will enable or disable a normal position report being sent with the associated time specified
reporting time.
Time Specified Reporting Time
If the time specified reporting status is enabled a report will be sent at this time.
Event Reporting
Excessive GNSS Speed Event
