Blue-White industries ProSeries Chem-Feed CFS-1AA-XAAA User manual

5300 Business Drive, Huntington Beach, CA 92649 USA
Phone: [phone] FAX: [phone]
E mail: [email protected] or [email protected] URL: www.blue-white.com
ProSeries
by Blue-White Ind.
TM
CHEM-FEED
Engineered Skid Systems
2
TWO-YEAR
WARRANTY
ProSeries
R
R
Note: Your Chem-Feed Engineered Skid System may be designed differently from above photos.

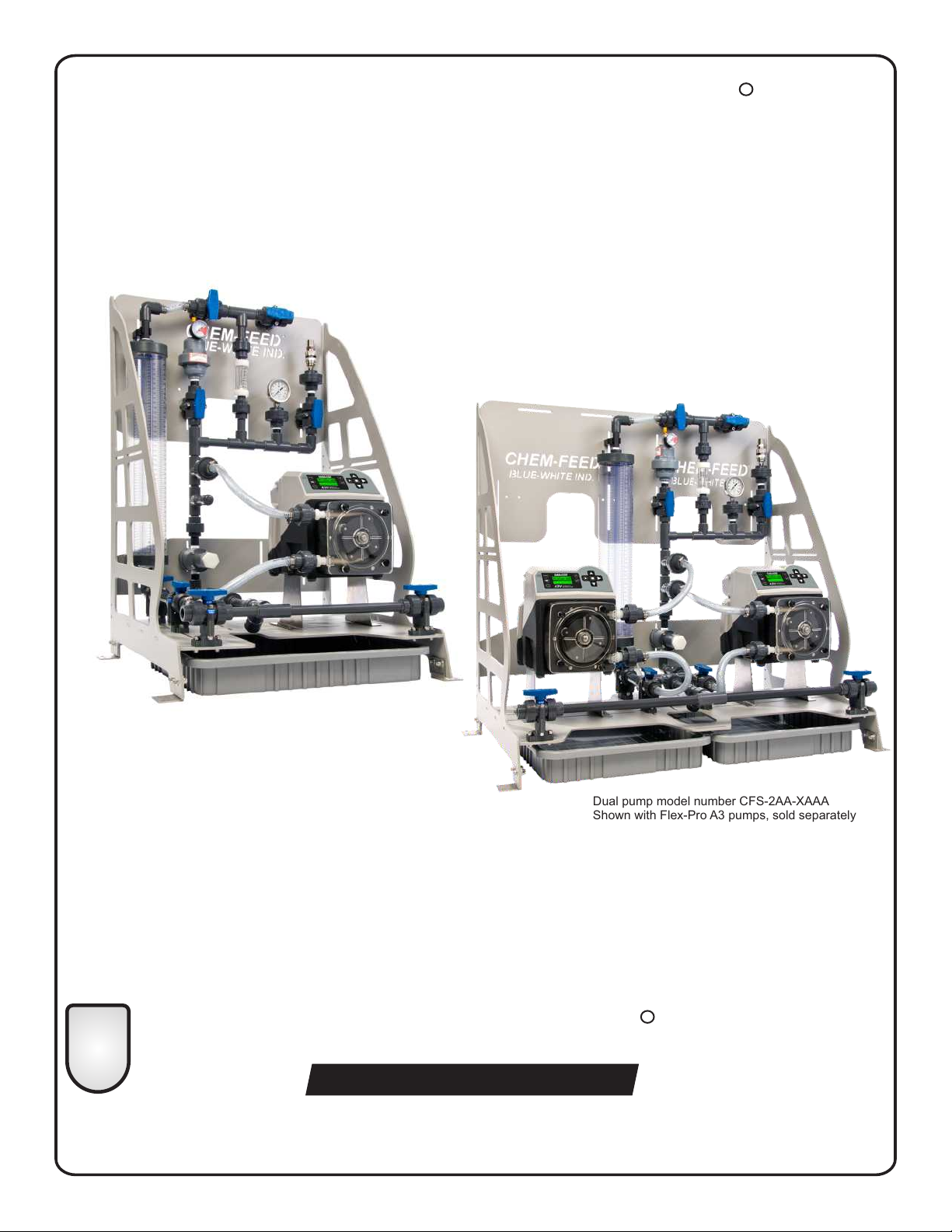

Dual pump model number CFS-2AA-XAAA
Shown with Flex-Pro A3 pumps, sold separately
Single pump model number CFS-1AA-XAAA
Shown with Flex-Pro A3 pump sold separately

TABLE OF CONTENTS
Section Heading Page
1.0 ... ... ...Introduction... ... ...... ... ... ... ... ... ... ... ... ... ...2
2.0 . . . . . . . . . Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.0 ... ... ...Dimensions... ... ... ... ... ... ... ... ... ... ... ... ... ...4
4.0 ... ... ...Features.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...5
5.0 . . . . . . . . . Chem-Feed® Matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

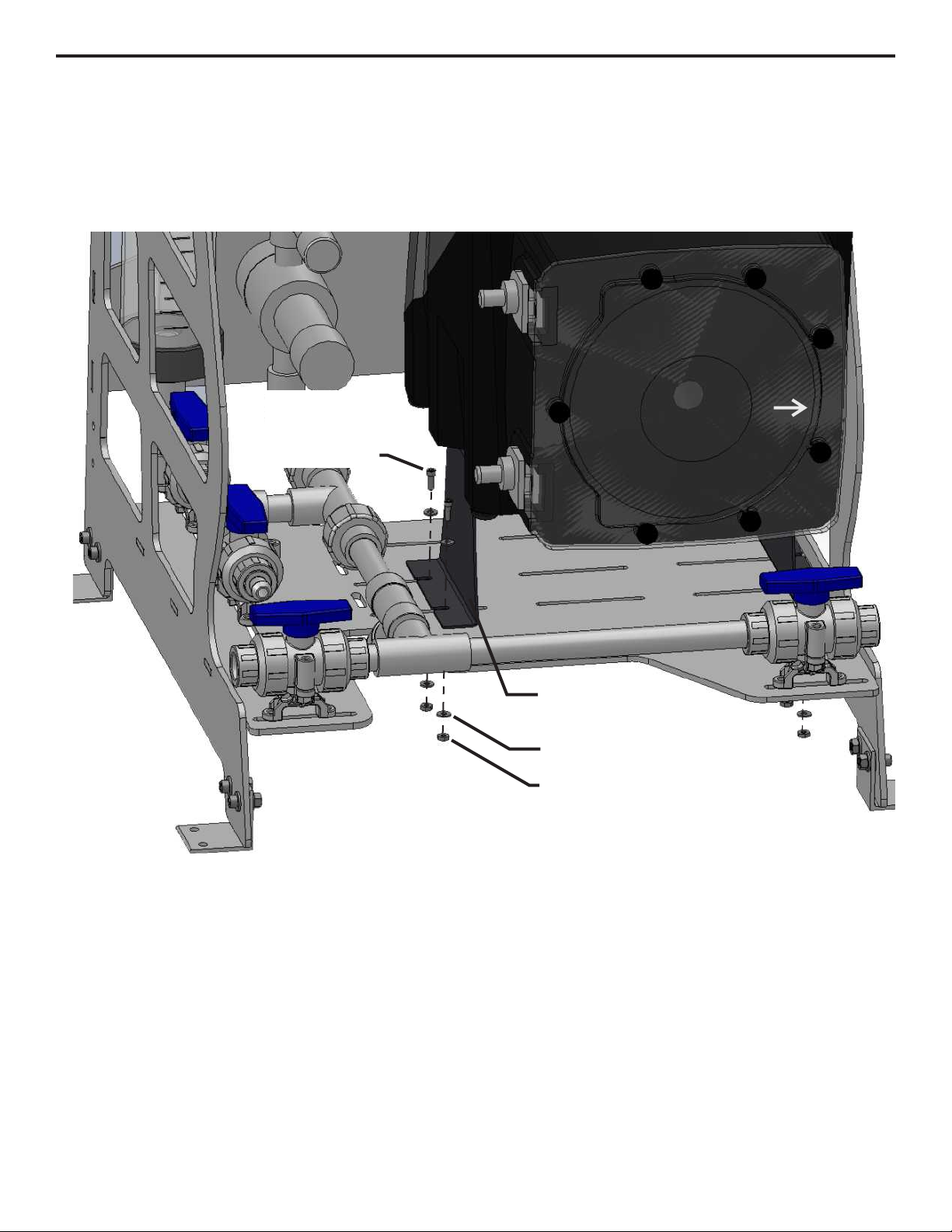

6.0 . . . . . . . . . Mounting a pump to the system (single and dual). . . . . . . . . . . . . . . 7
7.0 . . . . . . . . . Component Identification and Typical Operation - Single Pump. . . . . 8
7.1 . . . . . . . . . How to Operate the Chem-Feed® Skid System - Single Pump . . . . . 9
8.0 . . . . . . . . . Component Identification and Typical Operation - Dual Pump . . . . . . 10
8.1 . . . . . . . . . How to operate the Chem-Feed Skid System - Dual Pump . . . . . . . . 11
CFS System
Page 2 CFS System Page 3
1.0 Introduction
Congratulations on purchasing the Chem-Feed® Engineered Skid System. The system is designed with the
necessary components to safely inject liquid chemical into a system.
Your Chem-Feed® Engineered Skid System is pre-configured based on your selections via the matrix or when
designed with our engineering staff.
Please Note: Your new Chem-Feed® System has been pressure tested at the factory with clean water for a
minimum of four hours before shipping. You may notice trace amounts of clean water in the system. This is part of
our stringent quality assurance program at Blue-White Industries.
!
Skid
Chemically resistant polyester powder coated 6061 T6 aluminum. Welded
joint construction.
Pump (sold separately)
Flex-Pro model A3 or A4 peristaltic pumps or Chem-Pro model C2 or C3
diaphragm pump. See page 6 for metering pump data.
Piping
PVC Schedule 80 (optional CPVC).
Tubing (T)
Reinforced braided PVC, 200 Psi max, meets NSF std. 51. The pump inlet
and outlet flexible tubing connections are terminated to half unions and
secured to the barbed fitting with stainless steel clamps. The calibration
cylinder fill
Tubing clamps
300 series SS band, 400 series SS screw
Unions (U)
PVC body, schedule 80, FKM seals
Ball valves (V)
Vented ball type, True unions, PVC body, PTFE shaft bearings and seats,
FKM seals
Pressure Relief Valve (PRV)
PVC body, PTFE primary diaphragm seal. Non-wetted components: FKM
secondary seal, zinc plated steel spring, stainless steel external hardware,
HDPE pressure adjusting screw and locknut. Infinite adjustment from 5-
100 psi. Maximum inlet pressure 150 psi.
Calibration Cylinder (CC)
PVC body, PVC end caps, 1/4” ID tubing outlet vent.
Available volumes: 1.6 GPH (100ml), 4 GPH (250ml), 8 GPH (500ml), 16
GPH (1000ml), 32 GPH (2000ml).
Pulsation Dampener (PD)
CPVC body,10 cubic inch volume, FKM bladder (optional EPDM bladder)
Gauge w/guard (G)
Gauge: liquid filled stainless steel with blowout plug, bottom mount, 1/4”
NPT theads. Available pressure ranges: 0-30 psi, 0-100, psi, 0-200 psi.
Guard: PVC body, FKM diaphragm seal, temperature compensated oil
filled.
Check Valve (CV)
PVC body, FKM diaphragm (optional EPDM). Cracking pressure: 1.0-1.5
psi. Maximum working pressure: inlet = 150 psi, back = 100 psi.
Flow Indicator (F)
Machined cast acrylic, PVC connections, ceramic ball, polypropylene ball
stop, PVC half unions, FKM seals (optional EPDM).
Y Strainer (S)
PVC body, FKM seals (optional EPDM).
Universal mounting blocks
PVC
Pump extended mounting brackets
316 Stainless Steel
Skid mounting foot pads
316 Stainless Steel
Mounting hardware
18-8 Stainless Steel
Drip Tray
Polypropylene
Maximum working pressure
150 psig (10.3 bar)
Operating Temperature
O O O O
14 F to 115 F (-10 C to 46 C)
Drip Tray
16” x 21” x 3” - 4 gallons total containment
Approximate Shipping Weight
Single Pump System: 50 lb. (22.7 Kg)
Dual Pump System: 60 lb. (27.2 Kg)
2.0 Specifications
Items listed below are standard available items and ship with most configurations. Your system may be custom-
ized with components not listed below.

TABLE OF CONTENTS
Section Heading Page
1.0 ... ... ...Introduction... ... ... ... ... ... ... ... ... ... ... ... ... ...2
2.0 . . . . . . . . . Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3.0 ... ... ...Dimensions... ... ... ... ... ... ... ... ... ... ... ... ... ...4
4.0 ... ... ...Features.. ... ... ... ... ... ... ... ... ... ... ... ... ... ...5
5.0 . . . . . . . . . Chem-Feed® Matrix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
6.0 . . . . . . . . . Mounting a pump to the system (single and dual). . . . . . . . . . . . . . . 7
7.0 . . . . . . . . . Component Identification and Typical Operation - Single Pump. . . . . 8
7.1 . . . . . . . . . How to Operate the Chem-Feed® Skid System - Single Pump . . . . . 9
8.0 . . . . . . . . . Component Identification and Typical Operation - Dual Pump . . . . . . 10
8.1 . . . . . . . . . How to operate the Chem-Feed Skid System - Dual Pump . . . . . . . . 11
CFS System
Page 2 CFS System Page 3
1.0 Introduction
Congratulations on purchasing the Chem-Feed® Engineered Skid System. The system is designed with the
necessary components to safely inject liquid chemical into a system.
Your Chem-Feed® Engineered Skid System is pre-configured based on your selections via the matrix or when
designed with our engineering staff.
Please Note: Your new Chem-Feed® System has been pressure tested at the factory with clean water for a
minimum of four hours before shipping. You may notice trace amounts of clean water in the system. This is part of
our stringent quality assurance program at Blue-White Industries.
!
Skid
Chemically resistant polyester powder coated 6061 T6 aluminum. Welded
joint construction.
Pump (sold separately)
Flex-Pro model A3 or A4 peristaltic pumps or Chem-Pro model C2 or C3
diaphragm pump. See page 6 for metering pump data.
Piping
PVC Schedule 80 (optional CPVC).
Tubing (T)
Reinforced braided PVC, 200 Psi max, meets NSF std. 51. The pump inlet
and outlet flexible tubing connections are terminated to half unions and
secured to the barbed fitting with stainless steel clamps. The calibration
cylinder fill
Tubing clamps
300 series SS band, 400 series SS screw
Unions (U)
PVC body, schedule 80, FKM seals
Ball valves (V)
Vented ball type, True unions, PVC body, PTFE shaft bearings and seats,
FKM seals
Pressure Relief Valve (PRV)
PVC body, PTFE primary diaphragm seal. Non-wetted components: FKM
secondary seal, zinc plated steel spring, stainless steel external hardware,
HDPE pressure adjusting screw and locknut. Infinite adjustment from 5-
100 psi. Maximum inlet pressure 150 psi.
Calibration Cylinder (CC)
PVC body, PVC end caps, 1/4” ID tubing outlet vent.
Available volumes: 1.6 GPH (100ml), 4 GPH (250ml), 8 GPH (500ml), 16
GPH (1000ml), 32 GPH (2000ml).
Pulsation Dampener (PD)
CPVC body,10 cubic inch volume, FKM bladder (optional EPDM bladder)
Gauge w/guard (G)
Gauge: liquid filled stainless steel with blowout plug, bottom mount, 1/4”
NPT theads. Available pressure ranges: 0-30 psi, 0-100, psi, 0-200 psi.
Guard: PVC body, FKM diaphragm seal, temperature compensated oil
filled.
Check Valve (CV)
PVC body, FKM diaphragm (optional EPDM). Cracking pressure: 1.0-1.5
psi. Maximum working pressure: inlet = 150 psi, back = 100 psi.
Flow Indicator (F)
Machined cast acrylic, PVC connections, ceramic ball, polypropylene ball
stop, PVC half unions, FKM seals (optional EPDM).
Y Strainer (S)
PVC body, FKM seals (optional EPDM).
Universal mounting blocks
PVC
Pump extended mounting brackets
316 Stainless Steel
Skid mounting foot pads
316 Stainless Steel
Mounting hardware
18-8 Stainless Steel
Drip Tray
Polypropylene
Maximum working pressure
150 psig (10.3 bar)
Operating Temperature
O O O O
14 F to 115 F (-10 C to 46 C)
Drip Tray
16” x 21” x 3” - 4 gallons total containment
Approximate Shipping Weight
Single Pump System: 50 lb. (22.7 Kg)
Dual Pump System: 60 lb. (27.2 Kg)
2.0 Specifications
Items listed below are standard available items and ship with most configurations. Your system may be custom-
ized with components not listed below.

4.0 Features
Chem-Feed® Engineered Skid Systems were designed and engineered using solid modeling tools for superior piping
installation and easy component maintenance. Custom engineered universal mounting blocks and pre-machined
mounting slots provide for easy component servicing and replacement. Each factory built and tested system includes
the following standard components:
!Pressure Relief Valve - Protects the system from over-pressurization, 5-100 psi setting range, 150 psi maximum system
pressure. Ships on all systems.
!Check Valve - Protects the user from back-flow during pump maintenance. Ships on all systems.
!Flow Verification Sensor - S6A accurately verifies chemical feed. Exclusive to Blue-White®.
!Inlet Y Strainer - Protects system components from damage cause by dirt or debris.
!Calibration Cylinder - Confirm pump output under system conditions. Specify cylinder volumes from 1.6 GPH to 32
GPH.
!Pulsation Dampener - Protect the system components from pulsation. Recommended for diaphragm pump systems.
Not recommended for peristaltic pump systems.
!Pressure Gage with Guard - Isolate and protect the system pressure gage. Specify pressure ranges from 0-100psi, or
0-200 psi.
!Mounting Pads - Stainless Steel mounting pads to secure Chem-Feed® System to a solid surface. Designed for floor
mount or wall mount.
!Corrosion Resistant - Chem-Feed® frame constructed of chemically resistant polyester powder coated 6061 T6
aluminum. Welded joint construction.
Page 4 Page 5
Single Pump System:
Dual Pump System:
39.75”
(101 cm)
(92.1 cm)
36.25"
(15.2 cm)
6.0"
(61 cm)
24"
30.75”
(78.1 cm)
(88.9 cm)
35.0"
(57.8 cm)
22.75"
(6.4 cm)
2.5"
(51.4cm)
20.25"
23.75”
(60.3cm)
30.75”
(78.1cm)
(15.2cm)
6.0"
(88.9cm)
35.0"
(57.8cm)
22.75"
(61cm)
24"
(6.4cm)
2.5"
3.0 Dimensions
Your Chem-Feed System may be designed differently from drawings below. However, the dimensions shown
below remain the same no matter your configuration.
CFS System CFS System

4.0 Features
Chem-Feed® Engineered Skid Systems were designed and engineered using solid modeling tools for superior piping
installation and easy component maintenance. Custom engineered universal mounting blocks and pre-machined
mounting slots provide for easy component servicing and replacement. Each factory built and tested system includes
the following standard components:
!Pressure Relief Valve - Protects the system from over-pressurization, 5-100 psi setting range, 150 psi maximum system
pressure. Ships on all systems.
!Check Valve - Protects the user from back-flow during pump maintenance. Ships on all systems.
!Flow Verification Sensor - S6A accurately verifies chemical feed. Exclusive to Blue-White®.
!Inlet Y Strainer - Protects system components from damage cause by dirt or debris.
!Calibration Cylinder - Confirm pump output under system conditions. Specify cylinder volumes from 1.6 GPH to 32
GPH.
!Pulsation Dampener - Protect the system components from pulsation. Recommended for diaphragm pump systems.
Not recommended for peristaltic pump systems.
!Pressure Gage with Guard - Isolate and protect the system pressure gage. Specify pressure ranges from 0-100psi, or
0-200 psi.
!Mounting Pads - Stainless Steel mounting pads to secure Chem-Feed® System to a solid surface. Designed for floor
mount or wall mount.
!Corrosion Resistant - Chem-Feed® frame constructed of chemically resistant polyester powder coated 6061 T6
aluminum. Welded joint construction.
Page 4 Page 5
Single Pump System:
Dual Pump System:
39.75”
(101 cm)
(92.1 cm)
36.25"
(15.2 cm)
6.0"
(61 cm)
24"
30.75”
(78.1 cm)
(88.9 cm)
35.0"
(57.8 cm)
22.75"
(6.4 cm)
2.5"
(51.4cm)
20.25"
23.75”
(60.3cm)
30.75”
(78.1cm)
(15.2cm)
6.0"
(88.9cm)
35.0"
(57.8cm)
22.75"
(61cm)
24"
(6.4cm)
2.5"
3.0 Dimensions
Your Chem-Feed System may be designed differently from drawings below. However, the dimensions shown
below remain the same no matter your configuration.
CFS System CFS System

Page 6 Page 7
5.0 Chem-Feed® Skid System Matrix
A4 Pump
Before securing, move pump as far
over to right as possible.
Hex Nut, SS (Qty: 4)
Washer, SS (Qty: 8)
Socket Head
Screw, SS
#10-32 - .5”
(Qty: 4 per pump)
Extended Brackets
SS (Qty: 4)
6.0 Mounting Pump to the Chem-Feed® System - Single and Dual System
CFS System CFS System
Chem-Feed® Engineered Skid System Matrix
Note:
All skid systems ship with the following
in/out union connections:
½” PVC female NPT
½” PVC slip glue
Chem-Feed Engineered Skid System Matrix
System type
Single pump system - single chemical / single outlet
CFS-1
Dual pump system - single chemical / single outletCFS-2
Structure Assembly Materials
Chemical resistant powder coated aluminum stand with 316SS mounting pads
A
Chemical Feed Flowmeters
Calibration Cylinder
1.6 GPH (100 ml)
16 GPH (1000 ml)
32 GPH (2000 ml)
Pulsation Dampener
10 cubic inch, CPVC body, PTFE diaphragmA
8 GPH (500 ml)
4 GPH (250 ml)
None
X
Pressure Gauge w/Guard
None
X
PVC piping, FKM seals, 3/4” OD PVC braided tubing connectionsA
B
PVC piping, , Polyethylene FKM seals tubing connections 3/8” OD
C
DPVC piping, , 3/8” OD Polyethylene EPDM seals tubing connections
PVC piping, EPDM seals, 3/4” OD PVC braided tubing connections
Model S6A12 Chemical Feed Flowmeter with meter mounted display, 10-5,000 ml/min (0.158 - 79.2 GPH)
E
F
NoneX
Piping / Valves / Unions / Seal Materials
E
F
XSkid Frame only without piping
G
H
CPVC piping, FKM seals, 3/4” OD PVC braided tubing connections
CPVC piping, FKM seals, Polyethylene tubing connections 3/8” OD
CPVC piping, EPDM seals, 3/8” OD Polyethylene tubing connections
CPVC piping, EPDM seals, 3/4” OD PVC braided tubing connections
200 PSI gauge, PTFE diaphragmA
B100 PSI gauge, PTFE diaphragm
C30 PSI gauge, PTFE diaphragm
None
X
E
A
D
C
B
PVC Glass
S
R
Q
P
Miscellaneous Options - (leave blank if not specified)
Model S6A22 Chemical Feed Flowmeter with meter mounted display, 100-10,000 ml/min (1.58 - 158.0 GPH)
CFS-1 A A Sample Chem-Feed Engineered Skid System Part Number
-A
E A XB-
Model S6A11 Chemical Feed Flowmeter with remote mounted display, 10-5,000 ml/min (0.158 - 79.2 GPH)
5
6Model S6A21 Chemical Feed Flowmeter with remote mounted display, 100-10,000 ml/min (1.58 - 158.0 GPH)
A
Isolation ball shut-off valves at check valves
R
Outlet plumbing and calibration column position switched (Only avaliable on the dual skid)
1
Install a specific pump model on the skid and perform pressure and fluid testing
2
Install two specific pump models on the skid and perform pressure and fluid testing

Page 6 Page 7
5.0 Chem-Feed® Skid System Matrix
A4 Pump
Before securing, move pump as far
over to right as possible.
Hex Nut, SS (Qty: 4)
Washer, SS (Qty: 8)
Socket Head
Screw, SS
#10-32 - .5”
(Qty: 4 per pump)
Extended Brackets
SS (Qty: 4)
6.0 Mounting Pump to the Chem-Feed® System - Single and Dual System
CFS System CFS System
Chem-Feed® Engineered Skid System Matrix
Note:
All skid systems ship with the following
in/out union connections:
½” PVC female NPT
½” PVC slip glue
Chem-Feed Engineered Skid System Matrix
System type
Single pump system - single chemical / single outlet
CFS-1
Dual pump system - single chemical / single outletCFS-2
Structure Assembly Materials
Chemical resistant powder coated aluminum stand with 316SS mounting pads
A
Chemical Feed Flowmeters
Calibration Cylinder
1.6 GPH (100 ml)
16 GPH (1000 ml)
32 GPH (2000 ml)
Pulsation Dampener
10 cubic inch, CPVC body, PTFE diaphragmA
8 GPH (500 ml)
4 GPH (250 ml)
None
X
Pressure Gauge w/Guard
None
X
PVC piping, FKM seals, 3/4” OD PVC braided tubing connectionsA
B
PVC piping, , Polyethylene FKM seals tubing connections 3/8” OD
C
DPVC piping, , 3/8” OD Polyethylene EPDM seals tubing connections
PVC piping, EPDM seals, 3/4” OD PVC braided tubing connections
Model S6A12 Chemical Feed Flowmeter with meter mounted display, 10-5,000 ml/min (0.158 - 79.2 GPH)
E
F
NoneX
Piping / Valves / Unions / Seal Materials
E
F
XSkid Frame only without piping
G
H
CPVC piping, FKM seals, 3/4” OD PVC braided tubing connections
CPVC piping, FKM seals, Polyethylene tubing connections 3/8” OD
CPVC piping, EPDM seals, 3/8” OD Polyethylene tubing connections
CPVC piping, EPDM seals, 3/4” OD PVC braided tubing connections
200 PSI gauge, PTFE diaphragmA
B100 PSI gauge, PTFE diaphragm
C30 PSI gauge, PTFE diaphragm
None
X
E
A
D
C
B
PVC Glass
S
R
Q
P
Miscellaneous Options - (leave blank if not specified)
Model S6A22 Chemical Feed Flowmeter with meter mounted display, 100-10,000 ml/min (1.58 - 158.0 GPH)
CFS-1 A A Sample Chem-Feed Engineered Skid System Part Number
-A
E A XB-
Model S6A11 Chemical Feed Flowmeter with remote mounted display, 10-5,000 ml/min (0.158 - 79.2 GPH)
5
6Model S6A21 Chemical Feed Flowmeter with remote mounted display, 100-10,000 ml/min (1.58 - 158.0 GPH)
A
Isolation ball shut-off valves at check valves
R
Outlet plumbing and calibration column position switched (Only avaliable on the dual skid)
1
Install a specific pump model on the skid and perform pressure and fluid testing
2
Install two specific pump models on the skid and perform pressure and fluid testing

Page 8 Page 9
7.1 How To Operate the Chem-Feed® Skid System - Single Pump Skid
7.0 Component Identification and Typical Operation - Single Pump Skid
Connections:
Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2)
Connect chemical treated system to outlet. (V-7)
Connect safety vent adapter with 1/4” ID tube from top of calibration cylinder to chemical supply tank.
To Pump chemical solution into system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4.
Close ball valve V-6.
Open ball valve V-7 to inject chemical solution into your system.
Start pump.
To calibrate pump / system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4.
Close ball valve V-7.
Open ball valve V-6.
Start pump and run until calibration cylinder is filled to top calibration line. Do not leave pump unattended during
this operation.
Stop pump once calibration cylinder is filled.
Close ball valves V-1 and V-2.
Close ball valve V-6.
Open ball valve V-3.
Open ball valve V-4.
Open ball valve V-7 to inject chemical solution into your system.
Note the chemical solution level in the calibration cylinder.
To calibrate pump at maximum speed into your system, Press the prime button on pump. The prime mode runs the
pump at maximum speed for 60 seconds (1 minute) on all Blue-White® ProSeries(r) pumps.
To calibrate pump at your desired feed rate, you must pre-program your pump speed before running this routine.
Please refer to the instruction manual for your pump to adjust feed rate and additional calibration instructions.
Chemical
Output
Gauge
Flow
Verification
Sensor
One way
Check Valve
(with union)
Calibration
Cylinder
Gauge
Guard
V7
V6
CFS System CFS System
U-2
P
PRV-1 CV-1
U-3 U-4
V-1
V-2
V-3 V-4
V-6
V-5
PD-1
G-1
F-1
V-7
Secondary
Discharge
(capped)
T-1 T-2
T-3
Chemical
Inlet 2
Chemical
Inlet 1
Chemical
Outlet
Safety vent
to tank
S-1
CC-1
U-1
Vent To
Chemical
Tank
Pulse
Dampener
(optional)
V2
Chemical
Input #2
Drip Containment Tray
V5
Chemical
Input #1
V1
Y Strainer
PRV*
V3
V4
* PRV = Pressure Relief Valve preset at 50% maximum gauge rating.

Page 8 Page 9
7.1 How To Operate the Chem-Feed® Skid System - Single Pump Skid
7.0 Component Identification and Typical Operation - Single Pump Skid
Connections:
Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2)
Connect chemical treated system to outlet. (V-7)
Connect safety vent adapter with 1/4” ID tube from top of calibration cylinder to chemical supply tank.
To Pump chemical solution into system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4.
Close ball valve V-6.
Open ball valve V-7 to inject chemical solution into your system.
Start pump.
To calibrate pump / system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4.
Close ball valve V-7.
Open ball valve V-6.
Start pump and run until calibration cylinder is filled to top calibration line. Do not leave pump unattended during
this operation.
Stop pump once calibration cylinder is filled.
Close ball valves V-1 and V-2.
Close ball valve V-6.
Open ball valve V-3.
Open ball valve V-4.
Open ball valve V-7 to inject chemical solution into your system.
Note the chemical solution level in the calibration cylinder.
To calibrate pump at maximum speed into your system, Press the prime button on pump. The prime mode runs the
pump at maximum speed for 60 seconds (1 minute) on all Blue-White® ProSeries(r) pumps.
To calibrate pump at your desired feed rate, you must pre-program your pump speed before running this routine.
Please refer to the instruction manual for your pump to adjust feed rate and additional calibration instructions.
Chemical
Output
Gauge
Flow
Verification
Sensor
One way
Check Valve
(with union)
Calibration
Cylinder
Gauge
Guard
V7
V6
CFS System CFS System
U-2
P
PRV-1 CV-1
U-3 U-4
V-1
V-2
V-3 V-4
V-6
V-5
PD-1
G-1
F-1
V-7
Secondary
Discharge
(capped)
T-1 T-2
T-3
Chemical
Inlet 2
Chemical
Inlet 1
Chemical
Outlet
Safety vent
to tank
S-1
CC-1
U-1
Vent To
Chemical
Tank
Pulse
Dampener
(optional)
V2
Chemical
Input #2
Drip Containment Tray
V5
Chemical
Input #1
V1
Y Strainer
PRV*
V3
V4
* PRV = Pressure Relief Valve preset at 50% maximum gauge rating.

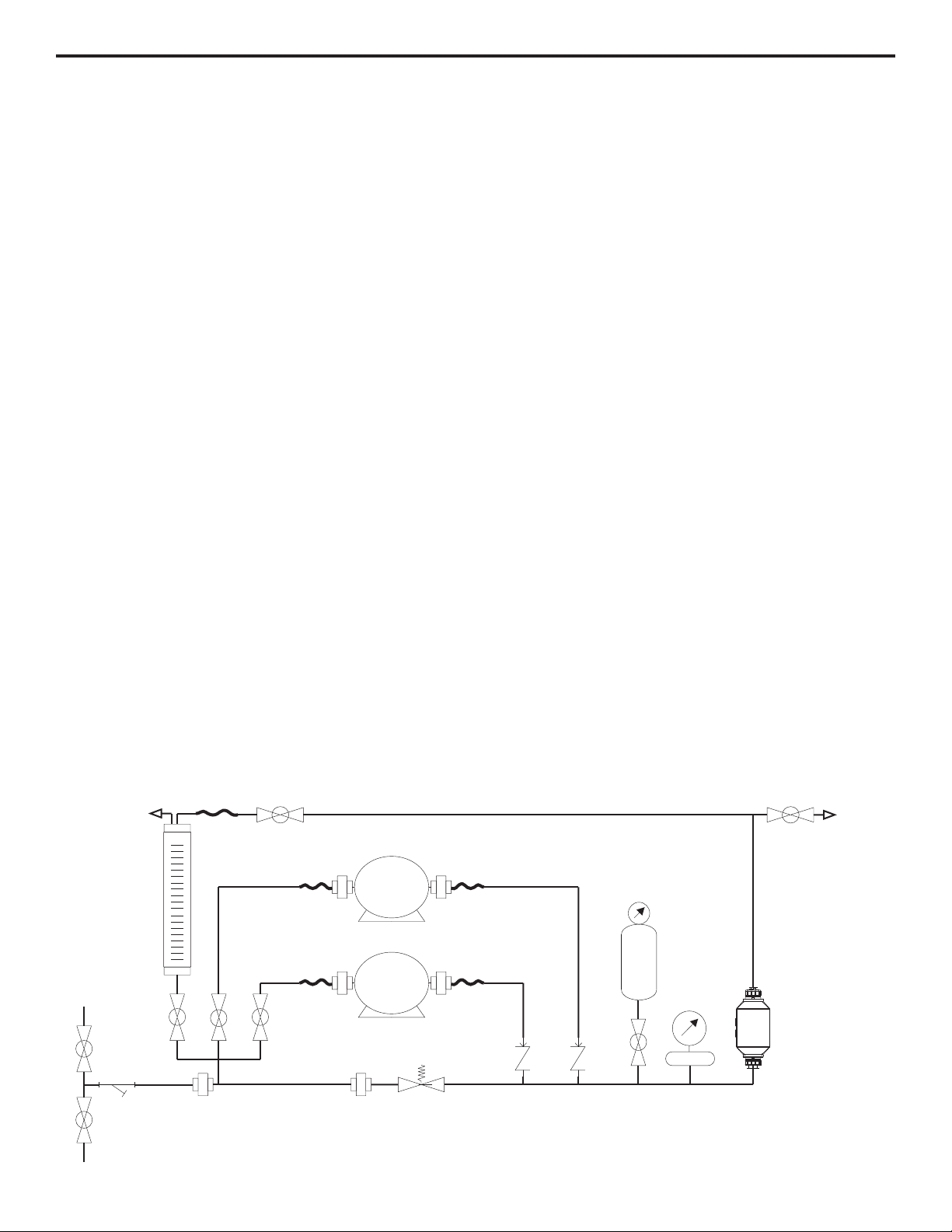

Page 10 Page 11
CFS System CFS System
Connections:
Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2)
Connect chemical treated system to outlet. (V-8)
Connect safety vent adapter with 1/4” ID (3/8” OD) tube from top of calibration cylinder to chemical supply tank.
To Pump chemical solution into system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4 and / or V5. Depending on your system design.
Close ball valve V-7.
Open ball valve V-8 to inject chemical solution into your system.
Start pump(s).
To calibrate pump(s) / system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4 or V5, depending on which pump you’re calibrating.
Close ball valve V-8.
Open ball valve V-7. This open valve will direct chemical into calibration cylinder.
Start pump and run until calibration cylinder is filled to top calibration line. Do not leave pump unattended during
this operation!
Stop pump once calibration cylinder is filled.
Close ball valves V-1 and V-2.
Close ball valve V-7.
Open ball valve V-3.
Open ball valve V-4 or V5, depending on which pump you’re calibrating.
Open ball valve V-8 to inject chemical solution into your system.
Note the chemical solution level in the calibration cylinder.
To calibrate pump at maximum speed into your system, Press the prime button on pump. The prime mode runs the
pump at maximum speed for 60 seconds (1 minute) on all Blue-White® ProSeries(r) pumps.
To calibrate pump at your desired feed rate, you must pre-program your pump speed before running this routine.
Please refer to the instruction manual for your pump to adjust feed rate and additional calibration instructions.
U-2
P
PRV-1 CV-1
U-3 U-4
V-1
V-2
V-3 V-4
V-6
PD-1
G-1
F-1
T-1 T-2
V-5
CV-2
Chemical
Inlet 2
Chemical
Inlet 1
P
V-7 V-8
T-5
U-5 U-6
T-3 T-4
Chemical
Outlet
Safety vent
to tank
CC-1
S-1 U-1
8.1 How To Operate the Chem-Feed® Skid System - Dual Pump Skid
8.0 Component Identification and Typical Operation - Dual Pump Skid
* PRV = Pressure Relief Valve preset at 50% maximum gauge rating.
Drip Containment Tray Drip Containment Tray
Chemical
Output
V8
Flow
Verification
Sensor
Gauge
Gauge
Guard
Pulse
Dampener
(optional)
Calibration
Cylinder
Vent To
Chemical
Tank
V6
Chemical
Input #2
V1
V2
V3
V4 V5
PRV*
Y Strainer
One way
Check Valve
(with union)
Chemical
Input #1
V7
PRV*
Y Strainer
V3
V4 V5

Page 10 Page 11
CFS System CFS System
Connections:
Connect chemical solution into either Inlet 1 or inlet 2. (V-1 or V-2)
Connect chemical treated system to outlet. (V-8)
Connect safety vent adapter with 1/4” ID (3/8” OD) tube from top of calibration cylinder to chemical supply tank.
To Pump chemical solution into system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4 and / or V5. Depending on your system design.
Close ball valve V-7.
Open ball valve V-8 to inject chemical solution into your system.
Start pump(s).
To calibrate pump(s) / system.
Open ball valve V-1 or V-2, depending on your inlet side.
Close ball valve V-3.
Open ball valve V-4 or V5, depending on which pump you’re calibrating.
Close ball valve V-8.
Open ball valve V-7. This open valve will direct chemical into calibration cylinder.
Start pump and run until calibration cylinder is filled to top calibration line. Do not leave pump unattended during
this operation!
Stop pump once calibration cylinder is filled.
Close ball valves V-1 and V-2.
Close ball valve V-7.
Open ball valve V-3.
Open ball valve V-4 or V5, depending on which pump you’re calibrating.
Open ball valve V-8 to inject chemical solution into your system.
Note the chemical solution level in the calibration cylinder.
To calibrate pump at maximum speed into your system, Press the prime button on pump. The prime mode runs the
pump at maximum speed for 60 seconds (1 minute) on all Blue-White® ProSeries(r) pumps.
To calibrate pump at your desired feed rate, you must pre-program your pump speed before running this routine.
Please refer to the instruction manual for your pump to adjust feed rate and additional calibration instructions.
U-2
P
PRV-1 CV-1
U-3 U-4
V-1
V-2
V-3 V-4
V-6
PD-1
G-1
F-1
T-1 T-2
V-5
CV-2
Chemical
Inlet 2
Chemical
Inlet 1
P
V-7 V-8
T-5
U-5 U-6
T-3 T-4
Chemical
Outlet
Safety vent
to tank
CC-1
S-1 U-1
8.1 How To Operate the Chem-Feed® Skid System - Dual Pump Skid
8.0 Component Identification and Typical Operation - Dual Pump Skid
* PRV = Pressure Relief Valve preset at 50% maximum gauge rating.
Drip Containment Tray Drip Containment Tray
Chemical
Output
V8
Flow
Verification
Sensor
Gauge
Gauge
Guard
Pulse
Dampener
(optional)
Calibration
Cylinder
Vent To
Chemical
Tank
V6
Chemical
Input #2
V1
V2
V3
V4 V5
PRV*
Y Strainer
One way
Check Valve
(with union)
Chemical
Input #1
V7
PRV*
Y Strainer
V3
V4 V5

P.N. 80000-462 Rev 9 20200706
CFS System
LIMITED WARRANTY
Your new Chem-Feed Engineered Skid System is a quality product and is warranted for 24 months from date of purchase (proof of
purchase is required). The system will be repaired or replaced at our discretion. The metering pump may have its own warranty and is
not covered under this warranty.
WHAT IS NOT COVERED
• The metering pump is covered under a separate warranty.
• Removal, re-installation, and any related labor charges.
• Freight to the factory, or ProSeries service center.
• Systems that have been tampered with, or in pieces.
• Damage to the System that results from misuse, carelessness such as chemical spills, abuse, lack of maintenance,
unsuitable materials of construction, or alteration which is out of our control.
• Systems damaged by acts of nature.
Blue-White Industries does not assume responsibility for any loss, damage, or expense directly or indirectly related to or arising out of
the use of its products. Failure must have occurred due to defect in material or workmanship and not as a result of operation of the
product other than in normal operation as defined in the system manual. System components not manufactured by Blue-White are
warrantied by their respective manufacturers. Manufacturer makes no warranty of fitness or merchantability. Purchaser assumes all
liability in determining the acceptability of the system in their specific application.
Warranty status is determined by the system serial label and the sales invoice or receipt. The serial label must be on the system and
legible. The warranty status of the system will be verified by Blue-White or a factory authorized service center.
OTHER IMPORTANT WARRANTY INFORMATION
Blue-White engineered skid systems are factory tested with water only for pressure and performance. Installers and operators of these
systems must be well informed and aware of the precautions to be taken when injecting various chemicals - especially those
considered hazardous or dangerous. Eye protection must be worn when working around this product.
Should it become necessary to return the system or system components for repair or service, you must attach information regarding the
chemical used as some residue may be present within the unit which could be a hazard to service personnel. Blue-White Industries will
not be liable for any damage that may result by the use of chemicals with their system and its components.
PROCEDURE FOR IN WARRANTY REPAIR
Contact the factory to obtain a RMA (Return Material Authorization) number. Carefully pack the system or component to be repaired.
Please enclose a brief description of the problem as well as the original invoice or sales receipt, or copy showing the date of purchase.
Prepay all shipping costs. COD shipments will not be accepted. Warranty service must be performed by the factory or an authorized
ProSeries service center. Damage caused by improper packaging is the responsibility of the sender. When In-Warranty repair or
replacement is completed, the factory pays for return shipping to the dealer or customer.
Users of electrical and electronic equipment (EEE) with the WEEE marking per Annex IV of the WEEE Directive must not
dispose of end of life EEE as unsorted municipal waste, but use the collection framework available to them for the return,
recycle, recovery of WEEE and minimize any potential effects of EEE on the environment and human health due to the
presence of hazardous substances. The WEEE marking applies only to countries within the European Union (EU) and Norway.
Appliances are labeled in accordance with European Directive 2002/96/EC.
Contact your local waste recovery agency for a Designated Collection Facility in your area.
5300 Business Drive, Huntington Beach, CA 92649 USA
Phone: [phone] FAX: [phone]
E mail: [email protected] or [email protected] URL: www.blue-white.com
ProSeries
by Blue-White Ind.
TM
R
