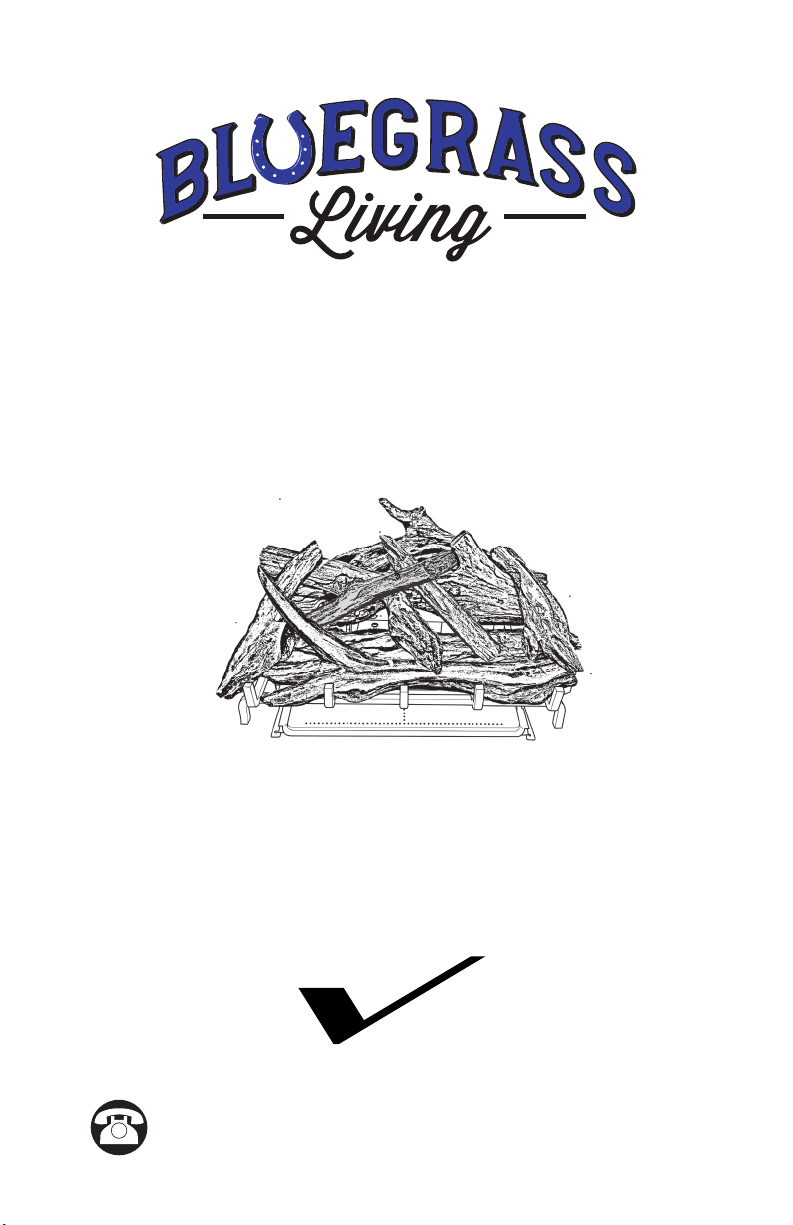

VENT-FREE GAS LOGS
INSTALLATION INSTRUCTIONS
MODEL B24EL-2
For Use With BGDLR24/30-1, BC24/30NR, & BC24/30PR Chassis
PFS
®
US
Questions, problems, missing parts? Before returning to your retailer, call
our customer service department at 1-866-762-4050, 8:00 am - 4:30 pm CST,
Monday through Friday or email [e-mail]
B24EL-2 Driftwood Log Cluster

2www.bluegrassliving.com 200515-02A
TABLE OF CONTENTS
Installation Guidelines ............................... 3
Placing Ember Material ............................. 4
Installing Logs............................................ 4
Parts .......................................................... 7
Warranty .................................................... 8
SAVE THIS BOOK
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This log set has been tested and approved to ANSI
Z21.11.2 standard for Unvented Heaters and also com-
plies with ANSI Z21.60 Decorative Vented Appliances for
Solid Fuel Burning Fireplaces. State and local codes in
some areas prohibit the use of vent-free heaters. Check
your state or local codes.

3
www.bluegrassliving.com
200515-02A
INSTALLATION GUIDELINES
Proper Log Placement
Log placement is critical to proper burner
performance. Logs must be correctly posi-
tioned onto the burner. The illustrations in this
manual show the proper location and position
for logs on this set. Owners need to be shown
proper log placement and instructed not to
move the logs.
Logs must t rmly onto the burner when
positioned as shown in the illustrations.
Malformed logs or logs with sloppy pin holes
must be replaced.
Proper Primary Airow into the
Burner
For proper burner operation and ame ap-
pearance, the ow of primary air into the
venturi tube, located on the rear of the burner,
must not be reduced. This ow of air is re-
duced if dirt, lint or other obstructions build-up
around or inside the venturi. Any obstruction
in the venturi tube area must be removed.
The ow of air into the venturi is also reduced
if the gas orice isn't centered in the venturi
inlet and/or is not aligned with the venturi. Any
misalignment of the burner orice may be cor-
rected by bending the shutter cap holding the
orice to the inlet or the venturi tube.
Ceiling Fans, Portable Fans or Logs
Installed Near Cold Air Returns
Ceiling fans or oscillating oor type fans need
to be monitored during the operation of vent-
free logs. If the air blows directly into the ame
causing it to impinge on the log set, or rebox,
it should be turned o󰀨 or redirected. Ceiling
fans could be reversed to possibly eliminate
ame impingement, and the oor fan could be
redirected. Upon installation, be aware of any
cold air returns or vents in the proximity of the
log set. Any draft created around a vent-free
log set can cause the ame to impinge on the
log and create a sooting situation.
Candles
Avoid the use of scented or decorative can-
dles while the log set is in operation. Candles
produce a residue in the air that creates a soot
like substance. Burning candles while the
log set is operating magnies the problem.
It should be noted that candles, in general,
produce soot. The amount of time burned and
the quantity of candles burned will determine
the amount of soot produced and deposited.
Proper Log Set Operation
Properly installed and properly maintained log
sets do not deposit soot on the logs. If users
see soot appear on a log, call for service. Do
not continue to operate the log set.
Sunken Fireplace
If installing this unit into a sunken replace,
you must raise the oor to insure adequate
airow and guard against sooting. Raise re-
place oor using a noncombustible material,
which is secure.
Glass Doors
Make sure that glass doors are open during
all operations of the log set. The opening of
the glass door frame should be the dimen-
sion used for the minimum front opening of
the rebox.
Wood Burning Fireplaces
The interior of the rebox and the chimney
should be cleaned and free of all creosote be-
fore installing a gas burning log set. Creosote
will soften when heated and can drop on the
log set causing odors and possibly sooting.

4www.bluegrassliving.com 200515-02A
INSTALLING LOGS
WARNING: Failure to position the parts in accordance with these
diagrams or failure to use only parts specically approved with this
heater may result in property damage or personal injury.
It is very important to install the logs exactly as instructed. Do not modify logs. Use only logs
supplied with heater.
Each log is marked with a number. This number will help you to identify the logs when installing.
After installing logs, add decorative cinders on the ember ports, do not place any decorative
cinders on the main burner ports or on the logs (see illustration below).
Some logs have pins and holes to help secure them in place. If applicable, place pin in the
log into the hole of the log is it being placed on. See instructions and illustrations below for
proper placement.
Ember Material
Burner
PLACING EMBER MATERIAL
Separate the ember material into light pieces
smaller than the size of a dime. Place the
pieces around the round gas ports starting in
the front of the burner and working your way
toward the back of the burner. Do not place
ember material on the burner ports or the
carry over ports leading to the left and right
rear burner slots.
WARNING: Use only ember
material provided with log set.
Do not add additional ember
material.
Place ember material on front
burner port only. DO NOT PLACE
EMBER MATERIAL ON PORTING
BEYOND THEGRATE,OVER THE
MIDDLE OR BACK BURNERS.

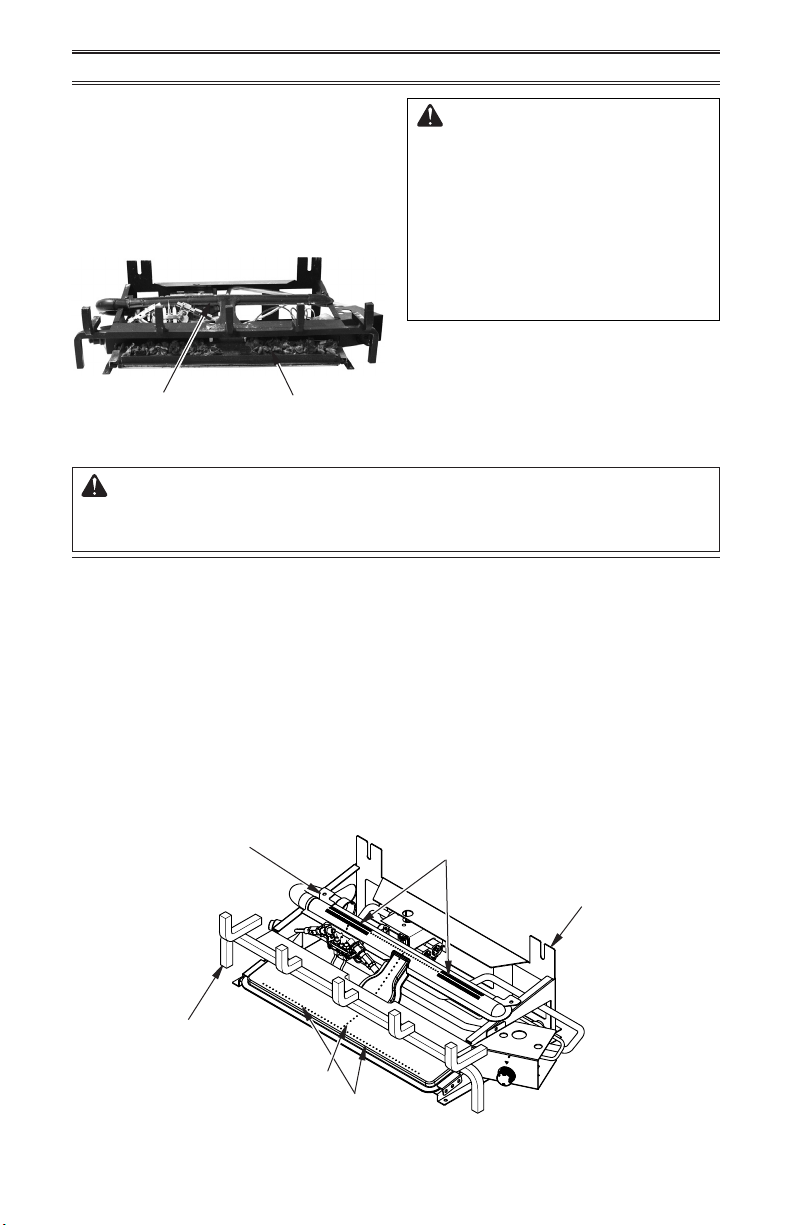

Rear Log
Bracket
Main Burner
Ports
Ember Ports
Middle Log
Bracket
Grate Assembly
Carry over
Ports

5
www.bluegrassliving.com
200515-02A
INSTALLING LOGS
CAUTION:After installation
and periodically thereafter,
check to ensure that no yellow
ame comes in contact with
any log. With the heater set
to High, check to see if yellow
ames contact any log. If so,
reposition logs according to
the log installation instruc-
tions in this manual. Yellow
ames contacting logs will
create soot.
MODEL B24EL-2
"DRIFTWOOD"

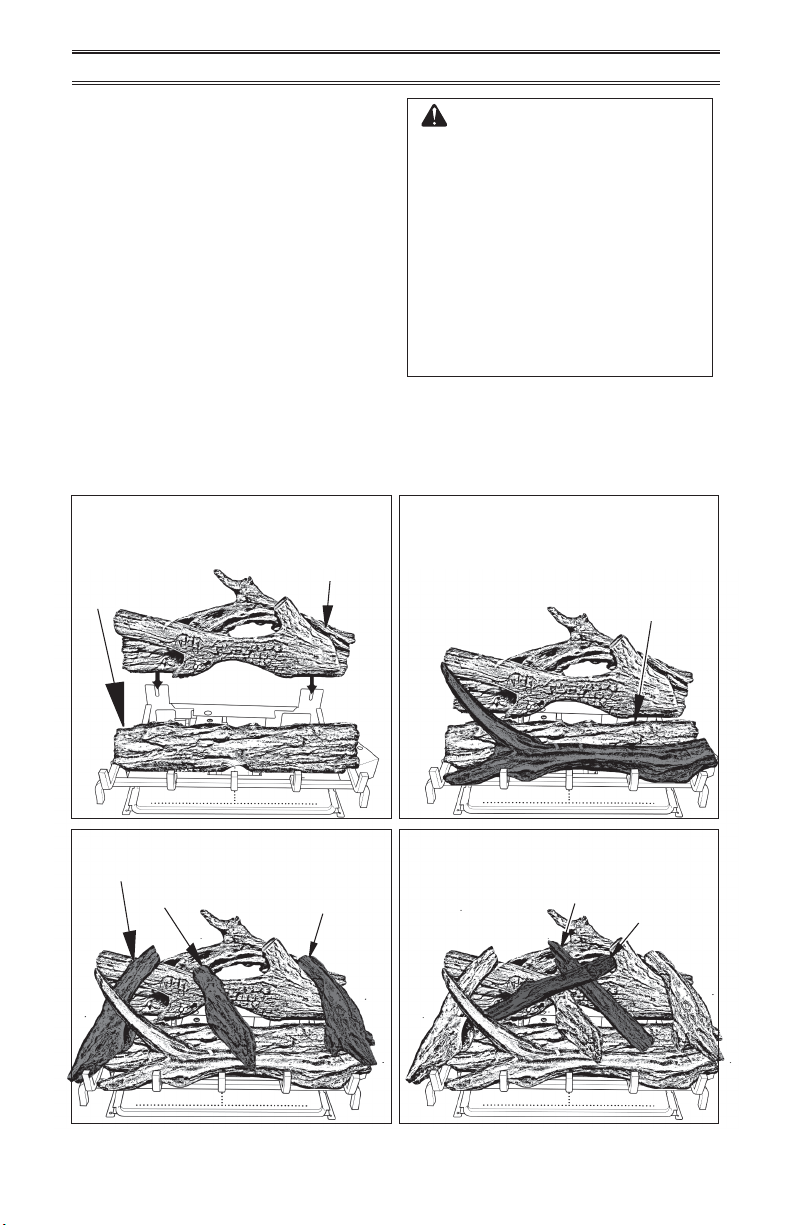

1. Insert log #1 onto shelf at rear of grate.
The screws on back will locate log.
2. Place log #2 onto front shelf of grate
assembly.
3. Place log #3 in front of Log #2 on grate
assembly.
4. Place log #4 onto pins at the right side
of logs #1 and log #3.
5. Place log #5 onto notches in Logs #1 and
pin in log #3.
6. Place log #6 onto pin on Log #1 at left
side. The front tip will set on grate nger.
7. Place log #7 right of center onto pin in
log #4 and notch in Log #3.
8. Place log #8 left of center onto pin in log
#4 and into notch in log#2.
Log #1
Log #2 Log #3
Log #4
Log #5
Log #6
Log #7
Log #8
Step 1 and 2 Step 3
Step 4, 5, and 6 Step 7 and 8

6www.bluegrassliving.com 200515-02A
PARTS
ITEM B24EL-2 DESCRIPTION QTY
1 B24EL-2-1 Log 1 1
2 B24EL-2-2 Log 2 1
3 B24EL-2-3 Log 3 1
4 B24EL-2-4 Log 4 1
5 B24EL-2-5 Log 5 1
6 B24EL-2-6 Log 6 1
7 B24EL-2-7 Log 7 1
8 B24EL-2-8 Log 8 1
This list contains replaceable parts used in your heater. When ordering parts, contact autho-
rized dealers of this product or call customer service at 1-866-762-4050. When calling have
you model and serial numbers available.
