Blueview MZ18 User manual

XXXX
Features
Application
BLUEVIEW ELEC-OPTIC TECH CO.,LTD
Add: No.1000, Section 2, 2nd Konggang Road, Southwest
Aviation Industrial Development Zone, Chengdu,Sichuan, China.
Zip code: 610207
Tel: [phone] Fax: [phone]
Mail: [email protected] Web.: www.blueviewled.com
Specifications are subject to change without notice.
Blueview™ 2018– All rights reserved. Made in China.
2835 LED Injection Module
Color：
Cuttable between modules;
High efcacy 2835 LEDs；
Injection molding for water-proof；
Special lens with 30*40 °；
MZ18
Suitable for guide signs depth of 8-10cm with width of 0.3-0.8m.
IP65 3 Years 30*40
12V
2835

MZ18
Fix by self adhesive tape or screws.
Installation
Specications
1.5
Model No. MZ18-3
Color Temperature(K) 7060-7600
Beam Angle(°) 30*40
Luminous Flux(lm/PCS) 128
Ra ≥80
Efcacy(lm/W) 85
Voltage(V DC) 12
Power(W)
Standard Connection Quantity (PCS)
Single Ended Max Connection Quantity(PCS)
Working Temperature
Storage Temperature
20
20
-25~+60
-25~+70
NOTE:
Test environment temperature : 25±2°C.
The above data is typical values. The actual data of each single product may differ from
the typical values. The data is subject to change without notice.
Luminous ux is tested when lighting on with the single color.
Different color temperature will make luminous ux different.
BLUEVIEW ELEC-OPTIC TECH CO.,LTD
Add: No.1000, Section 2, 2nd Konggang Road, Southwest
Aviation Industrial Development Zone, Chengdu,Sichuan, China.
Zip code: 610207
Tel: [phone] Fax: [phone]
Mail: [email protected] Web.: www.blueviewled.com
Specifications are subject to change without notice.
Blueview™ 2018– All rights reserved. Made in China.

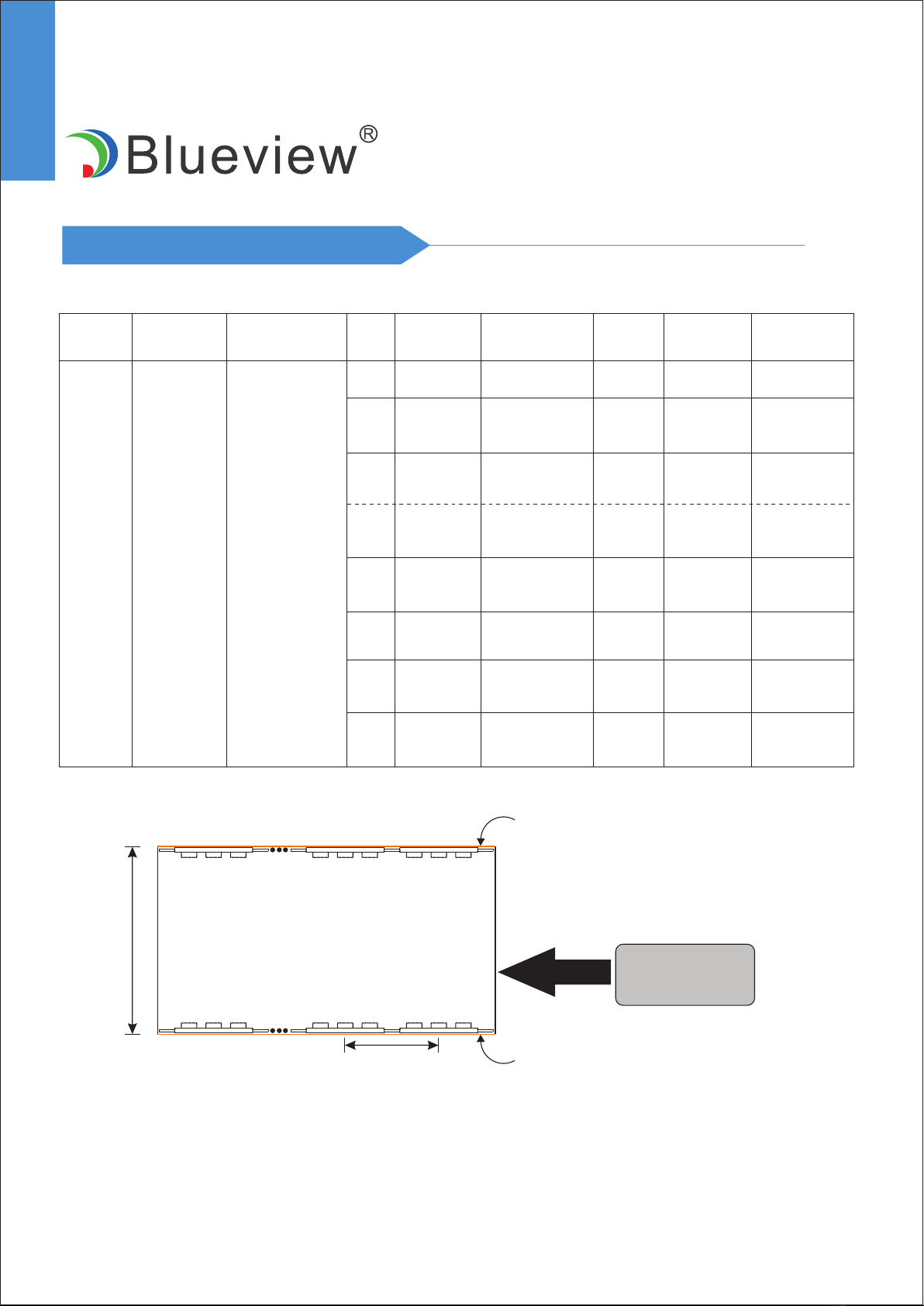

MZ18
Prole Drawing
73[2.87]
23[0.9]
9.6[0.38]
MAX=20pcs
88[3.46]
3059120.43]
3320[130.7]
Please ask the sales for detail drawing.
Unit mm[inch]
BLUEVIEW ELEC-OPTIC TECH CO.,LTD
Add: No.1000, Section 2, 2nd Konggang Road, Southwest
Aviation Industrial Development Zone, Chengdu,Sichuan, China.
Zip code: 610207
Tel: [phone] Fax: [phone]
Mail: [email protected] Web.: www.blueviewled.com
Specifications are subject to change without notice.
Blueview™ 2018– All rights reserved. Made in China.
10cm
20cm
30cm
40cm
50cm
60cm
70cm
80cm
1557,2248lx
3504,5057lx
14016,20228lx
876.0,12641x
560.6,809.1lx
389.3,561.9lx
286.0,412.8lx
219.0,316.1lx
5.47cm
10.94cm
16.41cm
21.88cm
27.35cm
32.82cm
38.29cm
43.76cm
Average Beam Angle Average Illumination
Light Intensity:cd
Luminous Flux: 36.201m
Average Beam Angle(50%):34.7° Height Eavg，Emax Beam Angle: 118.89° Diameter
FLUX OUTPUT:36.20lm

MZ18
BLUEVIEW ELEC-OPTIC TECH CO.,LTD
Add: No.1000, Section 2, 2nd Konggang Road, Southwest
Aviation Industrial Development Zone, Chengdu,Sichuan, China.
Zip code: 610207
Tel: [phone] Fax: [phone]
Mail: [email protected] Web.: www.blueviewled.com
Specifications are subject to change without notice.
Blueview™ 2018– All rights reserved. Made in China.

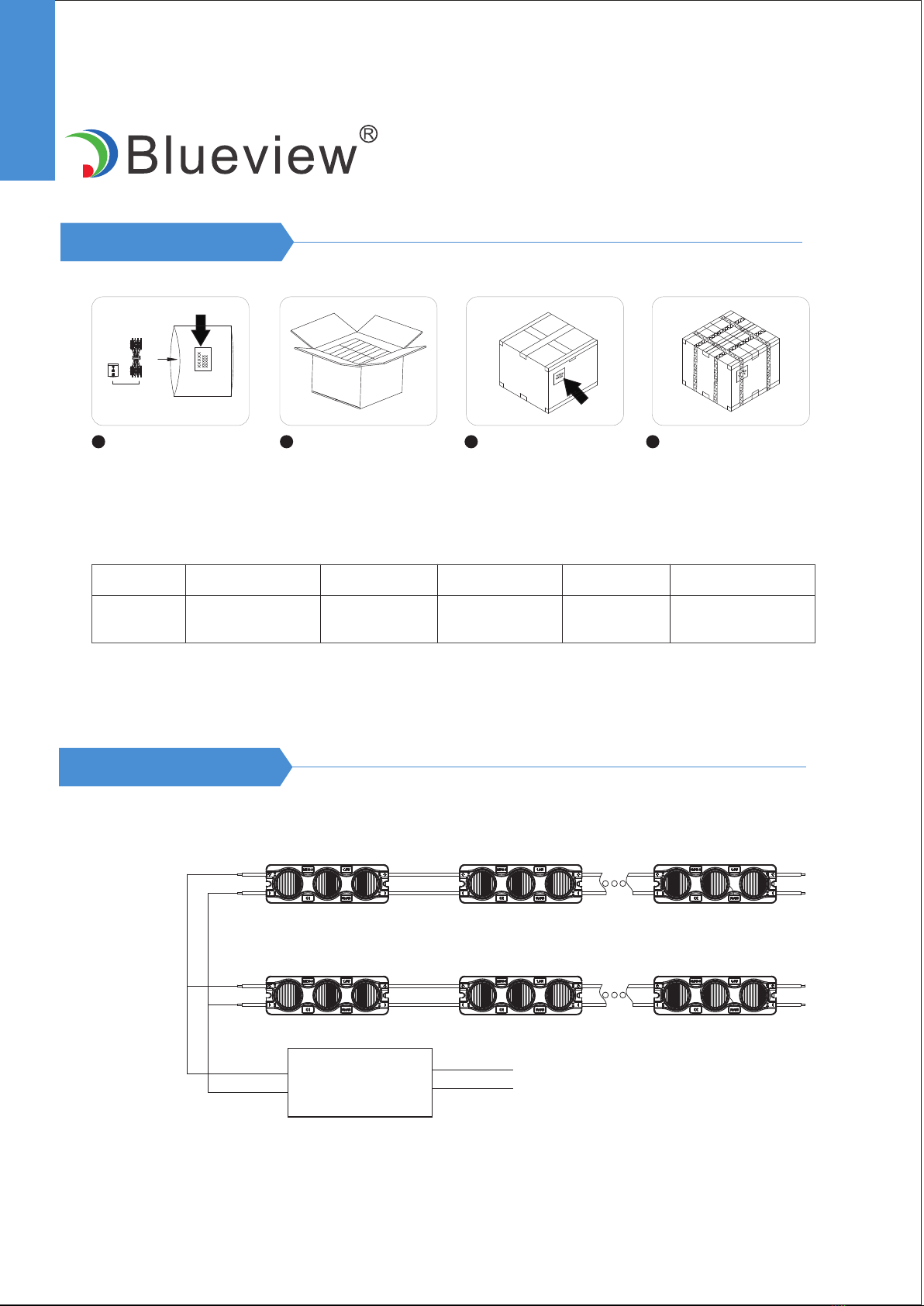

Packaging
21 3 4
Put product and desiccant
t o g e t h e r i n t o s t a t i c
shielding bag and label
the bag
Put the sealed product
into the box Seal and label the box Use packing belt to pack.
Add edge protectors if
necessary.
Packaging Information
MZ18-3
Product Size(mm)Carton Size(mm)Net Weight(kg)Gross Weight(kg)
73*23*9.6 550*400*340 16.20(1±10%) 17.90(1±10%)
Total Quantity(PCS)
1000
Model No.
20PCS per string, 2 strings packed in a static shielding bag, and 25 bags per carton case.
Note: The above quantity and weight are only for the illustrated packaging method. There will be differences
in the quantity and weight with other packaging methods.
Installation
Connection Diagram
MAX=20pcs
MAX=20pcs
LED
+
-AC220V
power supply

MZ18
BLUEVIEW ELEC-OPTIC TECH CO.,LTD
Add: No.1000, Section 2, 2nd Konggang Road, Southwest
Aviation Industrial Development Zone, Chengdu,Sichuan, China.
Zip code: 610207
Tel: [phone] Fax: [phone]
Mail: [email protected] Web.: www.blueviewled.com
Specifications are subject to change without notice.
Blueview™ 2018– All rights reserved. Made in China.
Installation Reference
Depth(H)
cmcm Lux PCS/m
S(Y)pacing
cm
MZ18-3
830
1030
850
1050
880
860
1080
1060
2980-3150
2780-2970
1790-2450
1610-2270
780-1840
1360-2140
570-1620
1160-1950
11*2
11*2
11*2
11*2
11*2
11*2
11*2
11*2
8.5
8.5
8.5
8.5
8.5
8.5
8.5
8.5
OK
OK
OK
OK
OK
OK
OK
OK
Model No. Light Box Surface Material Width Illumination Density Visual effects
Double-sided
light box weaving canvas
White non
①
②
，
Density refers to the amount of the product
installed on the side of the light box
Note:
"11*2" means two sides and 11PCS product
installed in each side.
Spacing refers to the product center spacing,
seeing the left
Installation side
SpacingX
Edgelit light box or
guide signs
Width

MZ18

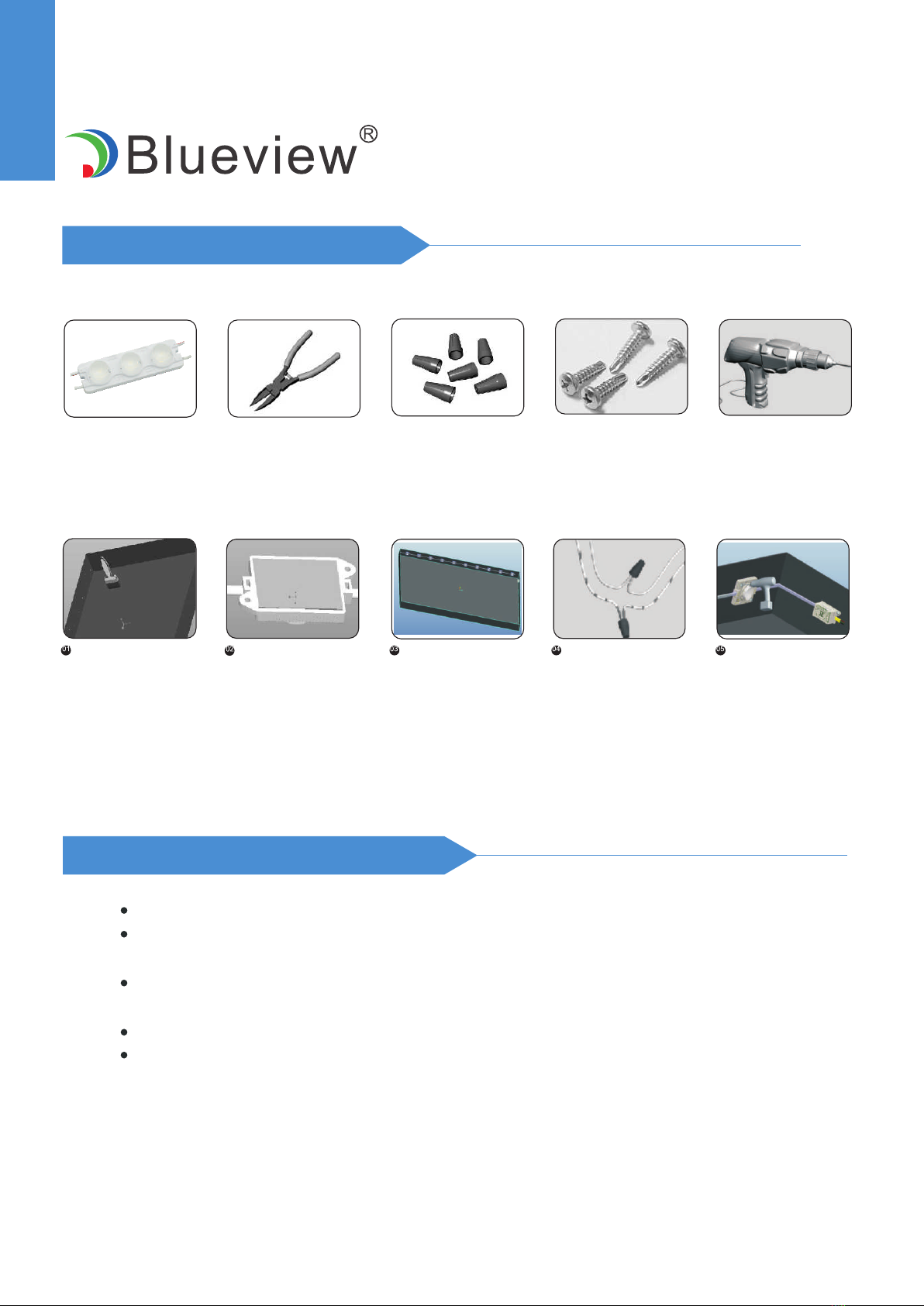

Accessories & Tools
BLUEVIEW ELEC-OPTIC TECH CO.,LTD
Add: No.1000, Section 2, 2nd Konggang Road, Southwest
Aviation Industrial Development Zone, Chengdu,Sichuan, China.
Zip code: 610207
Tel: [phone] Fax: [phone]
Mail: [email protected] Web.: www.blueviewled.com
Specifications are subject to change without notice.
Blueview™ 2018– All rights reserved. Made in China.
MZ18 Diagonal pliers Connection terminal M3 Self-tapping screw Electric Drill
Installation steps
Clean the mounting
surface;
Peel away the self
adhesive tape on the
rear of led modules;
Evenly arrange the
l e d m o d u l e s w i t h
appropriately space.
Pay attention to the
corn e r of the l ight
box
If the modules need to
be connected, please
connect rmly. The
thread should have
insulation,waterproof
and anti-corrosive
treatment；
Check the line to
ensure correct
connection, then
power on for self-
test. Fix the led
modules with screws
if no problem.
Attentions in installation
Load voltage, current, power and power supply should be matched with the product.
Follow the instructions of wiring diagram (rst connect the load and then the power supply) to avoid
short circuit.
Make sure the correct connection of positive and negative poles between led module and power
supply. Otherwise, the light will not be on.
Make sure the power cord rmly screwed into the terminal and it should not be pulled out by hands.
The terminal should have insulation,waterproof and anti-corrosive treatment.

MZ18
Common Faults and Troubleshoot
Quick Guide
Problems Reasons Solutions
All LEDs can not
light on.
No electric supply.
Automatic power protection
f rom t h e o pen or s h o rt
c i rcu i t i n o u t put of th e
power supply.
Wrong connection
of power supply.
Supply electricity.
Fix the short circuit problem.
LEDs can not
light on partly.
S o m e s w i t c h i n g m o d e
p ow e r sup p li e s ar e n ot
powered.
C h e c k t h e p o w e r s u p p l y
system to x it.
Power supply line error.
Mistaken wire connection
of some of products
is inconsistent
Brightness of
LED
tor insufcient.
Power overloaded.
P o w e r s u p p l y c i r c u i t
excessive consumption.
Exc essive qu antities in
series connection of LED
modules.
Reduce the quantities of LED
modules in series connection
to meet requirement.
Make sure led module working
voltage within ±5% of standard
voltage, or keep balance by
circuit power consumption.
Replace with more powerful
power
LED icker.
Connection point fault.
Switching power supply failure.
Wrong Installation or use of
products
Please follow the instructions
Replace a new power supply.
Remove bad connection point.
Do not disassemble or retrot the light. Do not touch the surface of the light with
a sharp object.
Treatment the ends and the circuit connection points that are not connected to
the main line with insulation,waterproof, and anti-corrosion in the installation.
Do not do live-line working during installation,especially for high voltage
product.
Do not use any organic chemical solvents.
Use neutral glass adhesive to x this product and it needs to be dried 4 hours in
the open environment after operation.
Use 18AWG (0.75mm²) or thicker core wire to avoid adverse consequences
caused by overheating, if the power cable need to lengthen.
Make sure the input voltage meets the requirements and lines are connected
correctly before lighting on.
This product is as backlight of signage, and do not use as general lighting.
Series connection within the max run.
The length of the power cable between the power supply and the led strip should
not exceed 2 meters.Otherwise, large circuit loss will lead to inconsistent
brightness
Installation, maintenance and repair should be operated by a qualied
technician.
BLUEVIEW ELEC-OPTIC TECH CO.,LTD
Add: No.1000, Section 2, 2nd Konggang Road, Southwest
Aviation Industrial Development Zone, Chengdu,Sichuan, China.
Zip code: 610207
Tel: [phone] Fax: [phone]
Mail: [email protected] Web.: www.blueviewled.com
Specifications are subject to change without notice.
Blueview™ 2018– All rights reserved. Made in China.
Statements and Recycling
Repair should be operated by a qualied technician, if the external circuit or main line of this product is
damaged.
The parameters given in this manual are typical values and for reference only.
All illustrations and drawings in this manual are for reference.
This product is subject to change without notice.
Statements:
LED lighting products belongs to electronic products, please do recycling treatment according to the relevant
WEEE directives.
Recycling:
