Soundoff Signal P Series User manual

1.800.338.7337 / www.soundoffsignal.com
17X3 POLYCARB_WARNING 1121
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
P SERIES 7X3 - WARNING LIGHT
EPSSC0JX(x)-(x) - STUD MOUNT
EPSSC0JY(x)-(x) - SCREW MOUNT
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and re. Follow crimp
connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner’s Manual for deployment zones.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or re.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring conguration and proper integration of
system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local chassis ground (-) must be
sized to supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through rewall or metal.
WARNING
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage.
To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.
ENHANCING SAFETY THROUGH INNOVATION
P SERIES 7X3 WARNING LIGHT
TECHNICAL SPECIFICATIONS
Input Voltage: 9-32Vdc
WARNING LIGHT
CURRENT CONSUMPTION (Amps)
12.8Vdc 25.6Vdc
Peak Average Peak Average
Red 1.55 0.78 0.78 0.39
Amber, Blue,
Green or
White
1.90 0.95 0.95 0.48
AFTER POWER IS ON, touching the WHITE wire to the ground
will allow you to change various settings on the module. (refer to
page 7).
NOTE: It is recommended to use the Stud Mount
option for any dynamic mount surfaces (i.e.
Swinging Panels, Doors, and Tail Gates).
Protected by U.S. Patent 10,703,260 and Patents Pending
https://soundo󰀨signal.com/legal/patent-notication/

1.800.338.7337 / www.soundoffsignal.com
27X3 POLYCARB_WARNING 1121
7X3 SCREW MOUNT PART NUMBERS
EPSSC0JX(x)-(x) - SCREW MOUNT
SCREW MOUNT INSTALLATION
1. Drill (4) 5/16 holes to mount light. Drill 3/4" wire hole. See
Fig. 2
2. Insert well nuts into the 4 drilled holes. Fully seat to
mounting surface.
3. Align the gasket to the mounting surface.
4. Pull the wire harness through the opening and plug into
the back of the light.
5. Place light into gasket, pressing light and gasket against
mount surface.
6. Place bezel over the light.
7. Secure the bezel/light to mount surface using (4) supplied
screws.
DO NOT USE POWER
TOOLS TO TIGHTEN
NOTE: Horizontal and vertical orientations indicated
on gasket for proper seal.
NOTE: Tighten until gasket is compressed. DO NOT
overtighten and strip well nuts. DO NOT use power
driver.
WIRE HOLE
BEZEL
WIRE HARNESS
GASKET
SCREWS
WELL NUTS
SCREW MOUNT LIGHT SHOWN
FIG. 1

1.800.338.7337 / www.soundoffsignal.com
37X3 POLYCARB_WARNING 1121
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage.
To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.
ENHANCING SAFETY THROUGH INNOVATION
NOT TO SCALE, FOR REFERENCE ONLY
7X3 STOP/TAIL & TURN SCREW MOUNT TEMPLATE
C
L
C
L
FIG. 2

1.800.338.7337 / www.soundoffsignal.com
47X3 POLYCARB_WARNING 1121
7X3 STUD MOUNT PART NUMBERS
EPSSC0JY(x)-R - Stop/Tail & Turn Light, Stud Mount
EPSSC0JY(x)-A - Turn Light, Stud Mount
STUD MOUNT INSTALLATION
1. Drill (2) 1/4" holes to mount light. Drill 3/4" wire hole. See
Fig. 2
2. Thread studs into back of light.
3. Align gasket to mount surface.
4. Plug wire harness into the back of the light.
5. Press light against gasket, against mount surface.
6. Secure the light to mounting surface using (2) supplied
nuts.
DRILL FOR WIRE EXIT
DRILL FOR STUD MOUNT
C
L
DO NOT USE POWER
TOOLS TO TIGHTEN
NOTE: Horizontal and vertical orientations indicated
on gasket for proper seal.
NOTE: Tighten until gasket is compressed. DO NOT
over tighten and strip casting threads.
GASKET
WIRE HARNESS
NUTTS
STUDS
FIG. 1
FIG. 2 NOT TO SCALE, FOR REFERENCE ONLY
STUD MOUNT LIGHT SHOWN
NOTE: Bezels are not compatible with Stud Mount
Option

1.800.338.7337 / www.soundoffsignal.com
57X3 POLYCARB_WARNING 1121
FLASH PATTERNS
PATTERN # SINGLE COLOR
1 QUINT
2 WARP
3 INTER-CYCLE
4 DOUBLE
5 QUAD
6 POWER PULSE
7 ROAD RUNNER
8 Q-SWITCH
9
STEADY-BURN / ROADRUNNER
(SEQUENCE TYPE 1: STEADY BURN, SEQUENCE
TYPE 2: ROADRUNNER)
10
STEADY-BURN DRIVER TITLE 13 QUAD
(SEQUENCE TYPE 1: STEADY BURN, SEQUENCE
TYPE 2: TITLE 13 QUAD)
11 QUAD 2
12 DOUBLE 2
OVER-VOLTAGE PROTECTION
When an over-voltage condition is detected, the module will ash an over-voltage warning pattern of 50mS ON/950mS OFF to alert of the over-voltage condition and protect the electronics from damage due to heat/
voltage.
THERMAL COMPENSATION PROTECTION
The LED module is designed to provide maximum power output while providing protection to the electronic components by reducing the output power at extreme temperatures.
SYNC 2
Synchronizing the ashing of multiple light modules is accomplished by connecting the Green wires of different light modules together. Up to 24 light modules can be connected for synchronized ashing. All light
module ash patterns must be set to the same ash pattern # to ensure proper operation. Refer to the Sequence Type section in Set-Up Table (page 7) to setup light modules to ash in alternate or simultaneous ash
pattern. NOTE: Will NOT work with non-Sync 2 products such as Ghost, LED3, and 4 wire Intersector. WILL WORK with Sync 2 products nFORCE Secondary Lights, nFORCE FIT and 5 wire Intersector Lights.
WIRING AND TABLE INFORMATION
BLACK
RED
WHITE
GREEN
Sync
Set-up/Function
ORANGE
+Vd c
A FUSE
5
+Vd c
+Vd c
A FUSE
5

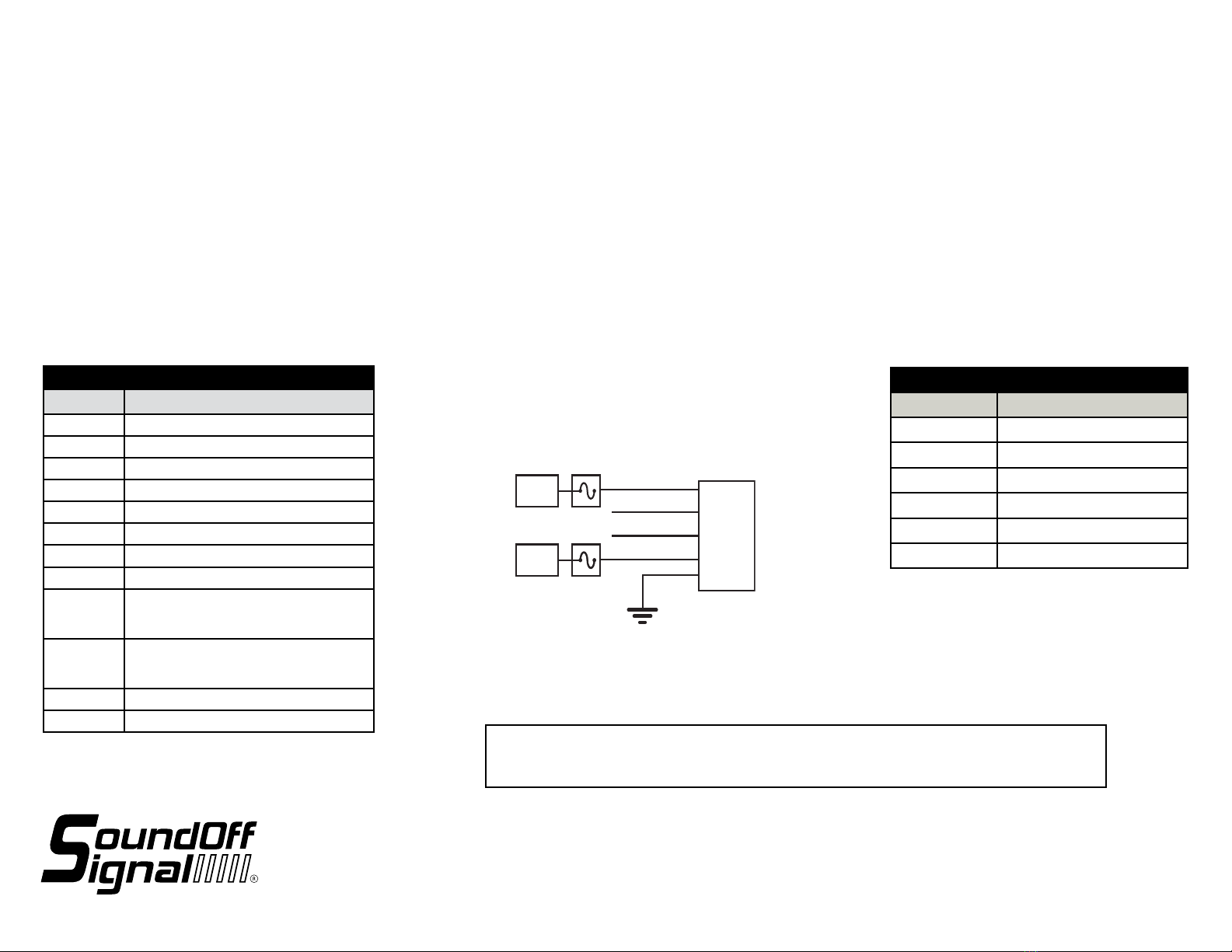

WIRE HOOK-UP TABLE
WIRE COLOR: FUNCTION:
RED Power (Primary)
BLACK Ground
GREEN** Sync2 *
WHITE to GROUND Setup Wire (See pg. 8*)
WHITE to POWER Function Wire
ORANGE Power (Secondary)
** To sync multiple lights, connect the Green
wire from each light together.
* Will NOT work w/ other sync products such as
Ghost, LED3, & 4 wire Intersector w/external asher.
*Will Work with Sync 2 products nFORCE Secondary Lights,
nFORCE FIT and 5 wire Intersector Lights.
Lights are chassis-grounded. If you need to ground-switch the light, you must isolate the lights
metal backing, heatsink, studs and/or screws from the body of the vehicle or use a relay.

1.800.338.7337 / www.soundoffsignal.com
67X3 POLYCARB_WARNING 1121
FUNCTION TABLE 1
WIRE LIGHT
RED ORANGE WHITE SINGLE
+9-32V FLASH
+9-32V CRUISE
+9-32V +9-32V FLASH
+9-32V NO OP
+9-32V +9-32V LOW PWR FLASH
+9-32V +9-32V CRUISE
+9-32V +9-32V +9-32V LOW PWR FLASH
FUNCTION TABLE 2
WIRE LIGHT
RED ORANGE WHITE SINGLE
+9-32V FLASH
+9-32V STEADY COLOR 1
+9-32V +9-32V STEADY COLOR 1
+9-32V NO OP
+9-32V +9-32V CRUISE
+9-32V +9-32V STEADY COLOR 1
+9-32V +9-32V +9-32V STEADY COLOR 1
AFTER SELECTION
The light will "wink" to indicate which of the new tables is selected.
Custom table will "wink" 7 times.
FUNCTION TABLE 3
WIRE LIGHT
RED ORANGE WHITE SINGLE
+9-32V FLASH
+9-32V LOW PWR FLASH
+9-32V +9-32V LOW PWR FLASH
+9-32V NO OP
+9-32V +9-32V LOW PWR FLASH
+9-32V +9-32V LOW PWR FLASH
+9-32V +9-32V +9-32V LOW PWR FLASH
FUNCTION TABLES
The functional operation of the LED module can be changed while applying the +V to the Red wire with the Black wire connected to ground. When the light is ashing, momentarily connect the White wire to ground
for >4S and <5S (light will go steady high, steady low, off, steady high, steady low) then release. The function table will now advance to the next table (table 1 to table 2 or table 2 to table 3. In the case that the
custom table is programmed, the order is 1 to 2, 2 to 3 and 7 to 1.) Repeat above process until required function table is active.
WIRING AND TABLE INFORMATION (CONT.)
EXAMPLE: If the light is using Function Table 2 with the Orange wire to power, which steady burns color 2, and you then apply the White wire to ground,
to change the Function Table to number 3, this would cause the light to start ashing dual low power.

1.800.338.7337 / www.soundoffsignal.com
77X3 POLYCARB_WARNING 1121
REMOTE MODE: FOR USE WITH bluePRINT® SYSTEM ONLY
Connecting the Green wire to ground before applying power to the Red wires will place the LED module into remote mode and the light output color will be directly controlled by the input wires as shown below.
For Cruise mode or Low Power control of the LED module, the signal to the control wires must be 100 +/- 2Hz using the duty cycle inputs listed below to produce the light output.
Cruise Mode Duty Cycle
(@ 100Hz)
Input Light Output
40% OFF
50% 5%
60% 10%
Low Power Flash D.C.
(@ 100Hz)
Input Light Output
70% 30%
80% 40%
90% 50%
7x3 LED Light Remote Mode
Functionality
Red Wire
Cruise
Flash
Steady ON
WIRING AND TABLE INFORMATION (CONT.)

1.800.338.7337 / www.soundoffsignal.com
87X3 POLYCARB_WARNING 1121
SIMULTANEOUS/ALTERNATE
This function can only be changed when the LED module is in a ashing mode (disabled in cruise or steady ON functions) and only has an effect when at least 2 LED modules have the green sync wire connected
together. When the light is ashing, momentarily connect the white wire to ground for >3S and <4S (light will go steady high, steady low, off, steady high) then release. The light module will switch between
Simultaneous and Alternate each time this sequence is done. To have light modules ash simultaneously, both light modules need to be set to the same sequence type (Set-Up Table). To have light modules ash
alternately, the light modules need to be set to different sequence types (Set-Up Table).
ADVANCE PATTERN
Flash pattern can only be changed when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >250mS and
<1S (light will go steady high) then release. The ash pattern will advance to the next pattern. If the light module was at the last pattern, the pattern will reset to the 1st pattern.
BACKUP PATTERN
This function is only valid when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >1S and < 2S (light will
go steady high, steady low) then release. The ash pattern will backup to the previous pattern. If the light module was at the rst pattern, the pattern will change to the last pattern on the list.
PATTERN RESET
This function is only valid when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >5S and <6S (light will
go steady high, steady low, off, steady high, steady low, off) then release. The ash pattern will reset to the 1st pattern in the list.
FACTORY RESET
This function is only valid when the LED module is in a ashing mode (disabled in cruise or steady ON functions). When the light is ashing, momentarily connect the white wire to ground for >6S and <7S (light will
go steady high, steady low, off, steady high, steady low, off, steady high) then release. The LED module will reset to: pattern=1, Function Table=1, Color Swap=OFF, Simultaneous.
SETUP TABLE
SECONDS USER INTERFACE
FROM TO VISUAL FEEDBACK ACTION TAKEN
0 1 STEADY-HIGH (60%) FORWARD ONE PATTERN
1 2 STEADY-LOW (30%) BACKWARD ONE PATTERN
2 3 OFF COLOR SWAP (OFF OR ON )
3 4 STEADY - HIGH (60%) SEQUENCE TYPE:
SIMULTANEOUS OR ALTERNATE
4 5 STEADY - LOW (30%) SEE FUNCTION TABLE
5 6 OFF RESET TO PATTERN 1
6 7 STEADY-HIGH (60%)
FACTORY RESET (PATTERN 1, COLOR SWAP:
OFF, SIMULTANEOUS)
SEPARATE COLOR CONTROL: OFF
If held longer than 7 seconds, the light will go back to ashing the current pattern
and no action will be taken.
WIRING AND TABLE INFORMATION (CONT.)

1.800.338.7337 / www.soundoffsignal.com
97X3 POLYCARB_WARNING 1121
RETENTION CLIP INSTRUCTIONS*
1. Plug harness into light housing, aligning tab to window, as
shown in Fig 1.
2. Install the retainer clip over harness/light interface,
inserting retainer into window, as shown in Fig. 2.
3. Press retainer clip's locking arm to snap closed.
*In the event the harness needs to be disengaged from the
light, these instructions can be used to reattach and apply
the retention clip.
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage.
To review our Limited Warranty Statement & Return Policy for this or any SoundO Signal product, visit our website at www.soundosignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundosignal.com.
ENHANCING SAFETY THROUGH INNOVATION
FIG. 1
WINDOW
TAB
FIG. 3 FIG. 4
RETAINER
FIG. 2
LOCKING ARM
FULLY SEATED RETENTION CLIP
