Blyss NE10FB User manual

EN
RADIANT GLASS PANEL
HEATER
NE10FB 1000W 3663602912996 / 3663602913030
NE15FB 1500W 3663602913016 / 3663602913047
NE20FB 2000W 3663602913023 / 3663602913054

Let’s
get started…
These instructions are for your safety. Please read through them thoroughly
before use and retain them for future reference.
Getting started… 02
Safety
Before you start
Quick start
03
06
11
In more detail… 17
Technical and legal information
Care and cleaning 18 22
23Environment protection
02EN

03
Safety
PLEASE READ SAFETY INSTRUCTIONS CAREFULLY
BEFORE USING THE UNIT.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept away
unless continuously supervised.
Children aged from 3 years and less than 8 years
shall only switch on/off the appliance provided that
it has been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Children aged from 3 years and less than 8 years
shall not plug in, regulate and clean the appliance
or perform user maintenance.
CAUTION — Some parts of this product can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are
present.
EN

Safety
If the power cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
The appliance should not be placed immediately
below a socket.
WARNINGS: In order to avoid overheating, do
not cover the heater.
Do not use this heater with a programmer, timer,
separate remote control system or any other device
that turns on the heater automatically because
there is a risk of fire if the device is covered or
placed incorrectly.
CAUTION: To avoid hazard due to inadvertent
resetting of the thermal cutout, this appliance must
not be powered via an external switch, such as a
timer, or connected to a circuit that is regularly
switched on and off by the electricity supplier.
This heater must not be disposed of with household
waste; it must be taken to a local centre of
recovery and recycling of electrical appliances.
The heater must be installed so that switches and
other control devices can not be touched by a person
in the bath or shower.
A means of disconnection from the power supply
having a contact opening distance of all poles must
be included in the fixed wiring in accordance with
the installation requirements.
04EN

Safety
If being fitted in a bathroom, a 30mA RCD must
be used.
With respect to the details of how to install the
appliance onto the wall, refer to "INSTALLATION"
on pages 9-10.
05EN
WARNING: The heater must not be used if the
glass panels are damaged.

For domestic use only.
Never allow children or persons unable to operate the
appliance safely to use this appliance without supervision.
Please dispose of plastic bags carefully and keep them
away from children.
This appliance is for indoor use only.
Observe the minimum distances as shown in Fig. 1.
Do not install the unit in place where air flow that may
disturb its regulation(e.g. under an air conditioning unit)
Before you start
The power connection is made by the 2 cables via a
connection box. In places such as wet bathroom,
laundry, kitchen, install the appliance at least 250 mm from
the level of the ground.
Things to check before you start

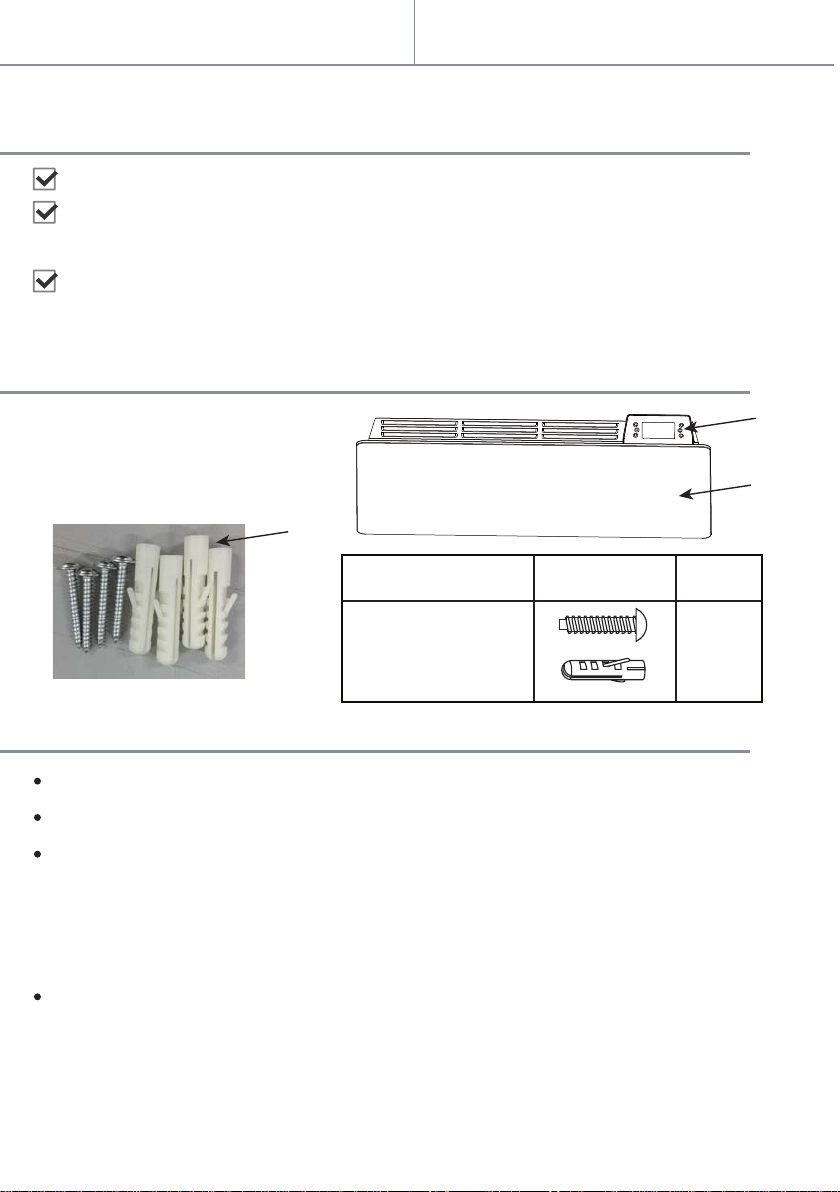

1. Body
2. Control panel
Your product
INSTALLING THE APPLIANCE?
3. Wall-mounted kits
Description Drawing QTY
Screw
Wall plug
4
4
3
06
EN
2
1

Before you start
This heater is for wall mounting only. Do not attempt to use it
free standing.
You need to follow the below requirements when you install
your heater:
- Means for disconnection having a contact separation in all
poles must be incorporated in the fixed wiring in accordance
with the wiring rules.
- Warning: you need to connect the two conductors of the
supply cable to a connection block in respecting the
polarities as following:
IMPORTANT: The wires in the mains lead are coloured in
accordance with the following code:
Blue – Neutral
Brown – Live
The blue wire must be connected to the terminal marked with
an N or coloured black.
The brown wire must be connected to the terminal marked
with an L or coloured red.
WARNING: Never connect live or neutral wires to the earth
terminal.
This product is double insulated and must not be
earthed. If there are any incoming earth cables, they must be
joined together using a suitable connector (not supplied) and
well insulated with good quality insulation tape. This is to
ensure earth continuity throughout your property.
All fittings must be installed by a competent person in
accordance with the current IET Wiring Regulations
(BS7671). If in doubt, consult a qualified electrician.
THIS PRODUCT IS SUITABLE FOR BATHROOMS ZONE
2 AND OUTSIDE ZONE;
07EN

Before you start
This product is suitable for use in living areas, and Bathroom
dry (Outside) Zones only (see diagram below and current
IET Wiring Regulations for details). It is not suitable for
Bathroom Zones 0,1, or other areas where contact with
moisture is likely. If being fitted in a bathroom a 30mA RCD
must be used. This appliance does not come fitted/supplied
with a fused plug. DO NOT wire/fit a plug to this appliance.
The appliance must be electrical connected to a fused fixed
spur, which is fitted with a 13Amp fuse.
Always refer to the Reference Drawing for Bathroom
Installation.
Note: the below drawing is for reference only.
We suggest you to contact a professional electrician for any
help.
* Full details can be found in the current IET Wiring
Regulations (BS7671)
0.6m
0.6m
ZONE
2
Window
recess
(DRY) OUTSIDE ZONES
ZONE
2
ZONE
1
2.25m
Ceiling
THIS PRODUCT IS SUITABLE FOR BATHROOMS
ZONE 2 AND OUTSIDE ZONE;
ZONE
0
08EN

Before you start
INSTALLATION
To hang the heater on the wall:
1. Choose a suitable installation location for the
heater. (Figure 1)
2. Disassemble the wall bracket by loosening the
screw (do not remove, only loosen) and slide the
metal plate out of the hole. Take out the bracket by
pulling down (Figure 2).
3. Verify that the bracket is horizontal with a spirit
level and mark the location of 4 holes on the wall.
Drill 4 holes in the wal
l using a drill adapted to
the diameter of wall plug. Insert the wall plug into
the holes,then screw securely wall mount bracket
onto the wall. (Figure 3)
4. Place the heater against bracket (Figure 4):
A : Align the heater on the 2 lower hooks that are
downwards.
B : Pull the heater upwards whilst retaining it in the
2 lower hooks.
C : Align the heater on the 2 upper hooks that are
upwards.
D : Pull the heater down.
5. Slide the metal plate into the hole, and fasten the
screw to lock the wall mount bracket (Figure 5).
09EN

Before you start
10EN

11EN

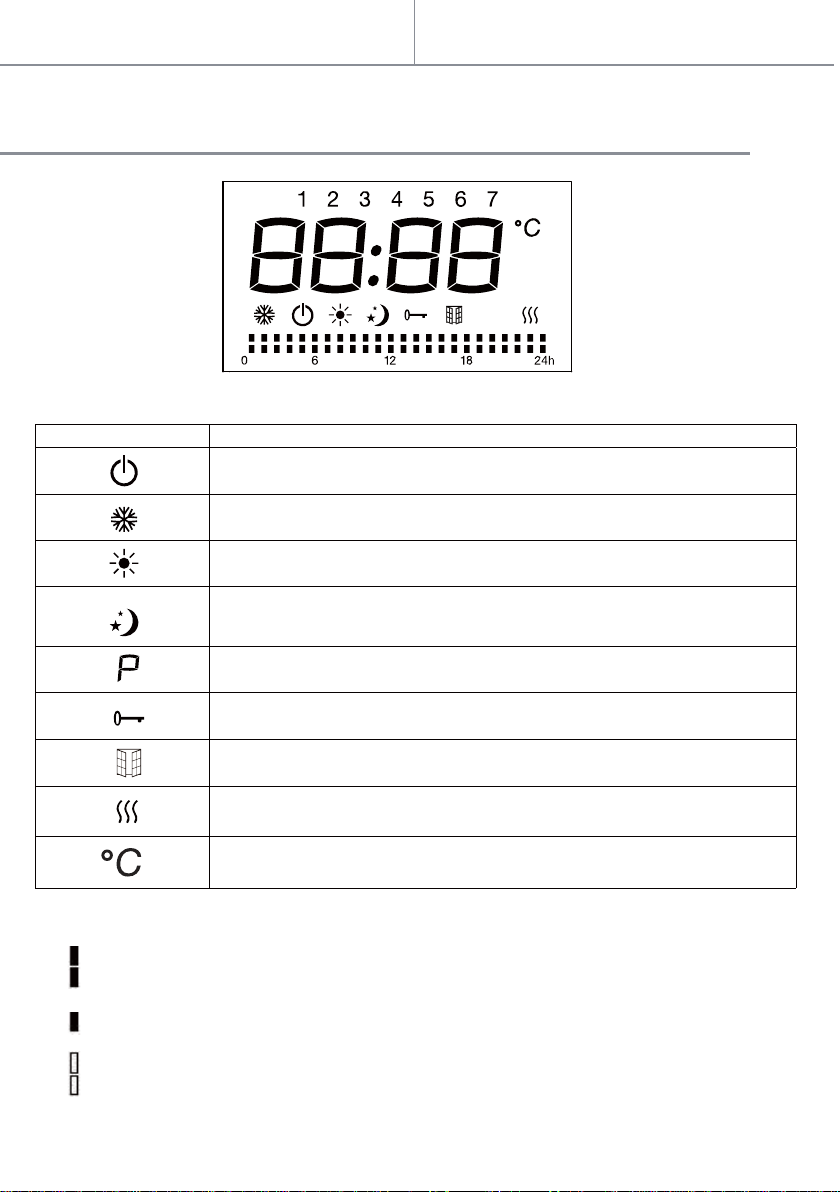

Functions of the icons on the LCD:
LCD display:
Quick start
Symbol Function
Mode Standby (the appliance doesn’t work but with power on)
Mode Anti-freeze(the appliance maintains the temperature around 7°C)
Mode Comfort (set the desired temperature)
Mode ECO (ECO maintains the temperature that is 3.5 ° C lower to comfort temperature.
This mode reduces the temperature without disturbing the desired temperature in comfort
mode)
Temperature (centigrade)
Weekly personalized modes:
Mode Comfort active
Mode ECO active
Standby
keyboard lock
Mode P (Under mode P , the appliance will work at comfort mode as default (except for
France)
Window detector function
Heating indicator (When appliance is heating up, this icon will show on the screen.
The icon will disappear when detected temperature reach the set temperature.)

12EN
2. Press M button to toggle among the modes: Comfort mode , Economic mode
Antifreeze mode , P1/P2/P3/P.
Under mode P , the appliance will work at comfort
mode as default (except for France).
I. Mode setting
HOW TO USE
Quick start

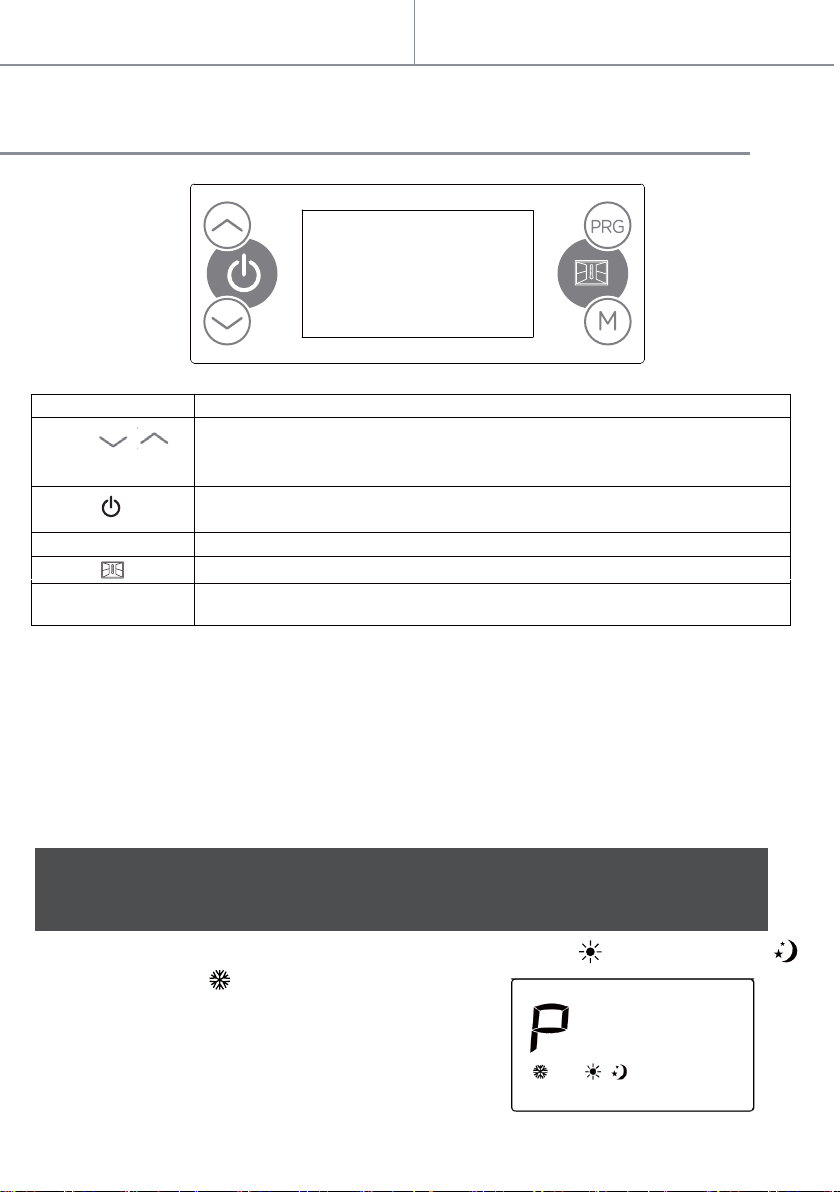

CONTROL PANEL
1. For the first time you use the device, after you connect to the power supply and
after that the clock is set, the device will be in standby mode, and you can press
the standby button to go to comfort mode.
Notes: In case of power failure, the unit keep in memory only the parameters, temperature
and operating mode. When power is restored, the clock should be adjusted again to
operate the various programs properly P1/ P2/ P3/ personalized.
Symbol Function
Touch
Touch
Touch
Touch
Touch
/Set the time, day of the week, the temperature; or under weekly
personalized programs, to choose between comfort mode, eco mode or
standby mode.
Standby
PRG To choose the weekly personalized program
To select Window detector function
M To select the working mode comfort / eco / anti-freeze / P1 / P2 / P3 / P
When first use the machine, there will be some smell. The smell will disappear after
heater working for an hour.

13EN
1. Under the mode of comfort mode or Eco mode (excluding anti-freezing mode),
press or to choose the desired temperature. The temperature difference
between mode ECO and mode comfort is 3.5°C, so the temperature of mode ECO is
between 1.5°C and 25.5°C.
2. Press other buttons except / to finish the setting, or after 5 seconds it will
automatically save.
When the room temperature is higher than the selected temperature, the heater will
stop heating.
Note:
Press the to set the hour/minute/week.
The time and day of the week remain valid as long as the power supply is not cut off.
The setting "day of the week" and "Time" applies to all programs (see Section IV, P1 /
P2 / P3 / Personalized).

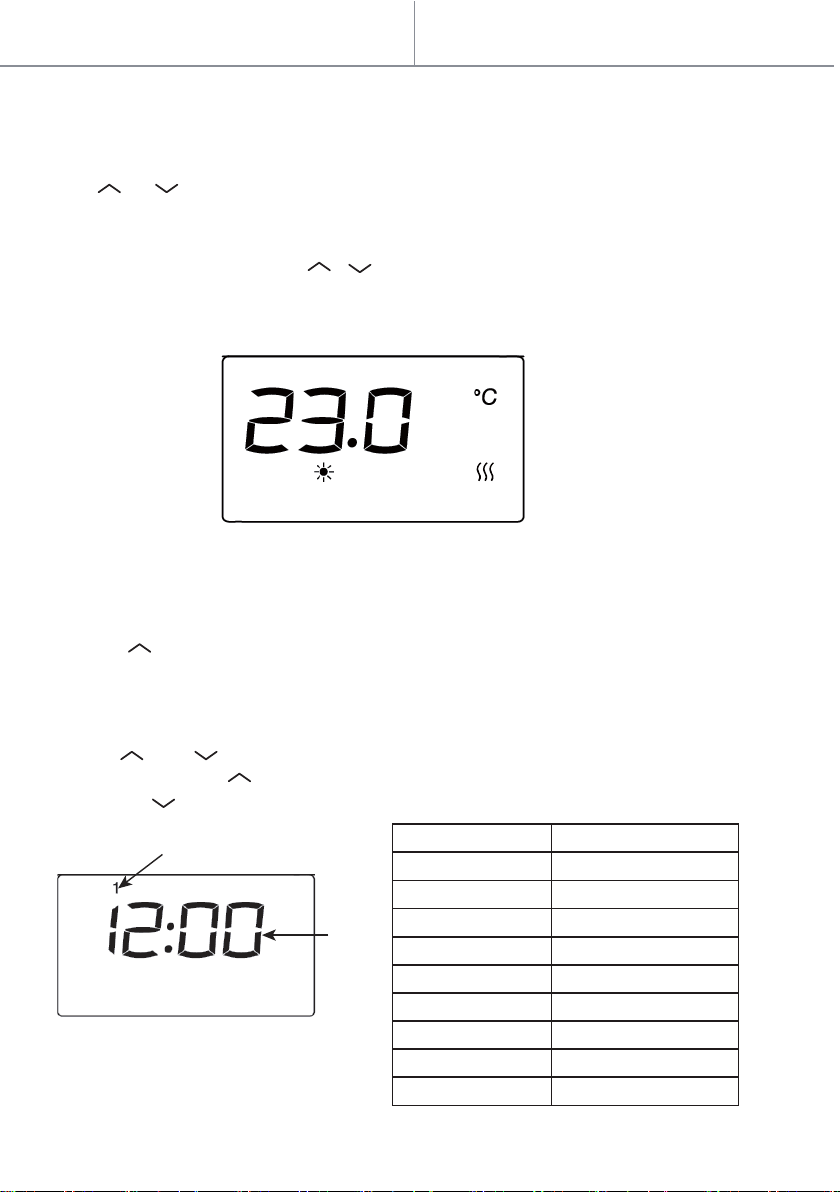

1. Press and at the same time to start the time setting.
2. Continue to press to toggle among hour/minute/week.
3. Press the to set the hour/minute/week.
II. Temperature setting
III. Time setting
Quick start
Day of the week
Time
Selection Displayed icon
Monday
Tuesday
Wednesday
Thursday
Friday
Saturday
Sunday
Hour
Minute
1
2
3
4
5
6
7
00-23
0-59
0

14EN
1. Pre-installed programs P1/P2/P3
2. Setting the personalized program

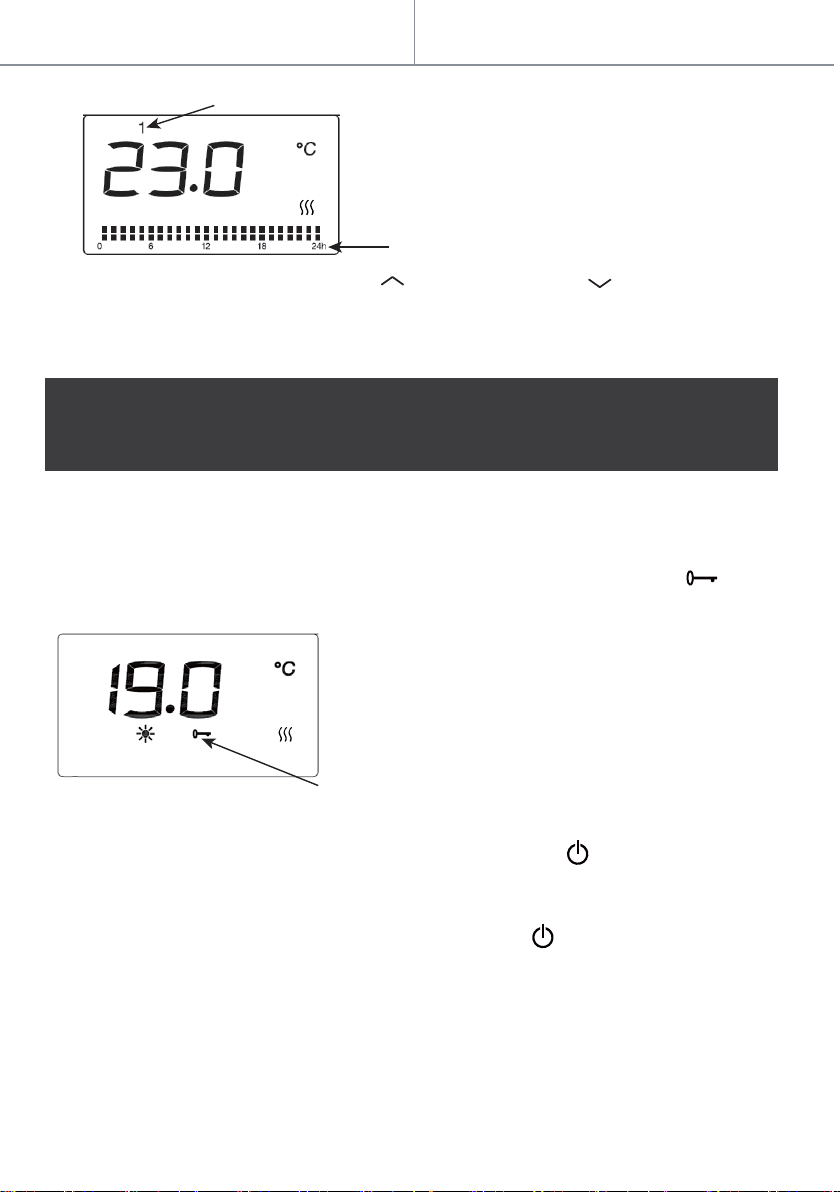

For example: to select the day 1, temperature of 23℃, comfort mode for 24 hours:
1. Press PRG, then / to choose day 1.
Press PRG button to select between “day (1-7)” and “heating mode of different
periods (00:00-24:00)”.
Select the desired day(1-7) or heating mode by pressing / buttons.
When setting “heating mode of different period(00:00-24:00)”, press button
to choose hours, and to choose among function: comfort , economic ,
and standby mode . after30 seconds it will automatically finish.
P1 / P2 / P3 programs are pre-installed programs. After confirming the program,
the program icon and the set temperature will be shown on the screen.
IV. Program setting
Quick start
4. Press other buttons except / to finish the setting, or after 10 Seconds it will
automatically save.
P1
P2
P3
Mon-Sun
day workables
weekends
weekends
day workables

15EN
Day of the week
2. Press the PRG button again, press to choose the hour, to choose comfort
mode and then repeat for the entire 24 hours.
3. After 30 seconds without action, the setting is saved.
Notes: In case of power failure, the unit keep in memory only the parameters, temperature
and operating mode. When power is restored, the clock should be adjusted again to
operate the various programs properly P1/ P2/ P3 /personalized.
Press M button for three seconds to activate the keyboard lock function , in
order to unlock, press M again for three seconds.
Quick start
Keyboard lock
Hour
V: Keyboard lock
Remarks:
1. The keyboard lock function doesn’t lock the standby button.
2. The keyboard lock function will automatically be deactivated under below
circumstances.
1) the appliance is turned off by pressing standby button.
2) the appliance suffer power disconnection
You need to set again by pressing M for 3 seconds if you need this function.

16EN
The backlight is automatically turned off:
1. 60 seconds after the keyboard lock
The backlight is reactivated when the system unlocked.
2 60 seconds after the last use of the front keys.
The backlight reactivates after a key has been activated.
VII: Backlight
All the above settings for temperature, time, the date of week and the programs
remain valid until the electric power is not cut.
In case of power failure, the device keeps in memory only the parameters,
temperature and operating mode. When power is restored, the clock must be set
again to operate the various programs correctly P1 / P2 / P3 / personalized.
Lock the keyboard after making your settings to avoid any setting is deactivated
inadvertently by the engagement of a key.
VIII: Validity of settings
Quick start
VI: Window detector function
Press button to enter window detector function. The appliance will enter comfort
mode as default. If temperature decrease detected, the appliance will automatically enter
anti-freeze mode. If temperature rise up, the appliance will go back to comfort mode.
You can press M or PRG button to choose other modes, or press standby button to
enter standby mode.
REMARKS: under window function, pilot control is not available.

Technical information
Care and cleaning
Environmental protection
18
22
23
In more detail…
17EN

Technical information
Technical Specifications
18EN
Model no. Voltage
& Frequency Power
(Watt)
Product
Dimension
(mm)
Class PI
1000WFB01EN
1500W
2000W
Double isolation
CLASS II IPX4
NE15FB
220-240V~
220-240V~
220-240V~
Double isolation
CLASS II IPX4
FB02EN Double isolation
CLASS II IPX4
460x560×90
460x710×90
460x860×90
H x W x D
50/60Hz
50/60Hz
50/60Hz

19EN
Technical information
Information requirements for electric local space heaters
Item Symbol Value Unit Item Unit
Nominal heat output Pnom 0.57 kW
manual heat charge control, with integrated
thermostat
NA
Minimum heat output
(indicative)
Pmin 0kW
manual heat charge control with room and/or
outdoor temperature feedback
NA
Maximum continuous
heat output
Pmax,c 0.57 kW
electronic heat charge control with room
and/or outdoor temperature feedback
NA
Auxiliaryelectricity
consumption
fan assisted heat output NA
At nominal heat output elmax NA kW
At minimum heat output elmi n NA kW
single stage heat output and no room
temperature control
[no]
In standby mode elSB 0kW
Two or more manual stages, no room
temperature control
[no]
withmechanic thermostat room temperature
control
[no]
with electronic room temperature control [no]
electronic room temperature control plus day
timer
[no]
electronic room temperature control plus
week timer
[yes]
room temperature control, with presence
detection
[no]
room temperature control, with open window
detection
[yes]
with distance control option [no]
with adaptive start control [no]
with working time limitation [no]
with black bulb sensor [no]
Other control options (multiple selections possible)
Kingfisher International Products Limited
3 Sheldon Square, London W2 6PX, United Kingdom
Contact details
Model identifier(s): NE10FB
Heat output
Type of heat input, for electric storage local space
heaters only(select one)
Type of heat output/roomtemperature control
(select one)

20EN
Technical information
Information requirements for electric local space heaters
Item Symbol Value Unit Item Unit
Nominal heat output Pnom 0.85 kW
manual heat charge control, with integrated
thermostat
NA
Minimum heat output
(indicative)
Pmin 0kW
manual heat charge control with room and/or
outdoor temperature feedback
NA
Maximum continuous
heat output
Pmax,c 0.85 kW
electronic heat charge control with room
and/or outdoor temperature feedback
NA
Auxiliaryelectricity
consumption
fan assisted heat output NA
At nominal heat output elmax NA kW
At minimum heat output elmi n NA kW
single stage heat output and no room
temperature control
[no]
In standby mode elSB 0kW
Two or more manual stages, no room
temperature control
[no]
withmechanic thermostat room temperature
control
[no]
with electronic room temperature control [no]
electronic room temperature control plus day
timer
[no]
electronic room temperature control plus
week timer
[yes]
room temperature control, with presence
detection
[no]
room temperature control, with open window
detection
[yes]
with distance control option [no]
with adaptive start control [no]
with working time limitation [no]
with black bulb sensor [no]
Other control options (multiple selections possible)
Kingfisher International Products Limited
3 Sheldon Square, London W2 6PX, United Kingdom
Contact details
Model identifier(s): NE15FB
Heat output
Type of heat input, for electric storage local space
heaters only(select one)
Type of heat output/roomtemperature control
(select one)
