BN Products DIAMOND DBD-20M User manual

Products that make money, save money and add value to your bottom line
Page • 1
Bender Handling Instructions
DBD-20M 0-180 degree
Portable Rebar Benders
BN Products-USA, LLC.
3450 Sabin Brown Road
Wickenburg, AZ 85390
[phone] • [phone]
FAX: [phone]
[e-mail]
www.bnproducts.com
DBD-20M TM.indd • ©BN Products-USA, LLC. • [phone] • [e-mail]

Products that make money, save money and add value to your bottom line
Page • 2
READ ALL INSTRUCTIONS AND SAVE
THIS DOCUMENT FOR REFERENCE.
1. Keep hands away from all moving parts and roll-
ers while operating.
2. Dress properly. Loose clothing or jewelry can
get caught in moving parts. Wear sturdy boots
with non-skid soles. Steel toed boots and safety
glasses are recommended.
3. Keep children and bystanders away. Distractions
can cause you to lose control.
4. Do not overreach. Keep proper footing and bal-
ance at all times. is enables better control of
the power tool in unexpected situations.
5. Stay alert. Watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs or alcohol. A moment of
inattention while operating power tools may re-
sult in serious personal injury.
6. Do not exceed the maximum number of bars
that can be bent at one time. Please refer to the
Rebar Bender Roller Selection Chart
7. When positioning the bar between rollers, make
sure to lay it at on the machine surface. Failure
to do so may cause the rebar to y out.
8. Do not expose tool to rain or use in damp loca-
tions. Do not use tool in presence of ammable
liquids or gases. Keep work area well lit. If the
tool is used outdoors, keep it covered when not
in use and protect it from rain or water.
9. Do not try to bend materials harder than “Grade
60 or 600N/mm2” as they will either crack and
y out or cause machine failure.
10. Disconnect tool from receptacle when not in use.
Disconnect the tool when servicing or changing
rollers to prevent accidents.
11. Keep tool clean at all times for best and safest
performance. Follow instructions for lubricat-
ing and changing parts. Keep hands dry and
free of oil or grease. Inspect switches, tool cords
periodically and have them repaired or replaced
by an authorized service center if damaged.
Check moving parts for alignment and binding
as well as for breakage and improper mount-
ing. Damaged parts should be repaired or re-
placed by an authorized service facility unless
otherwise indicated in this instruction book.

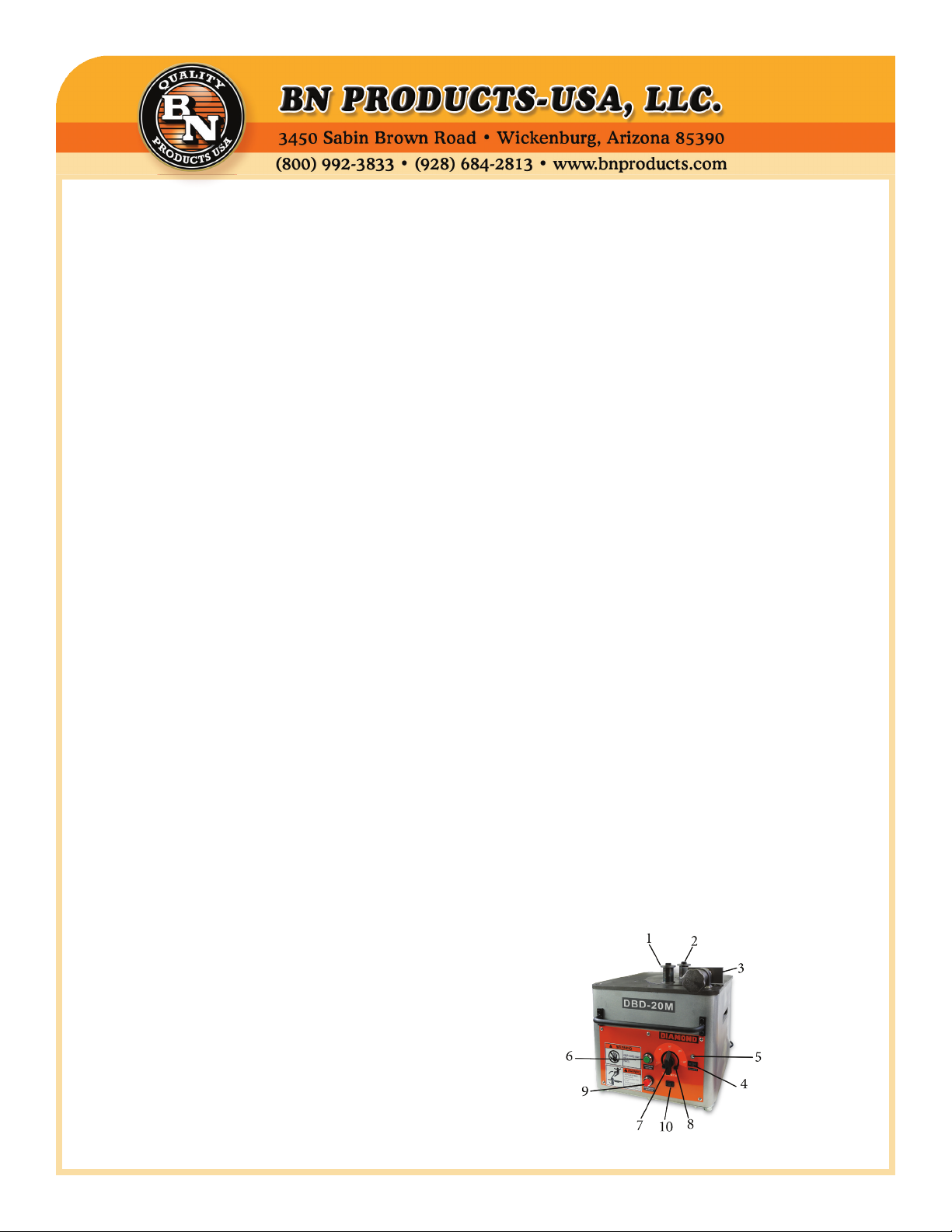

1. Moving bending roller
2. Center roller
3. Adjustable stopper
4. Main switch
5. Pilot lamp
6. On/O Button
7. Angle setter (dial type)
8. Angle stopper (Le &
Right)
9. Emergency stop button
10. Plug-in for foot switch
11. Roller set (not shown)
12. Foot Operated Switch
(not shown)
Bender Handling Instructions
DBD-20M Rebar Benders (0-180 degree)
Important: When using electric tools, basic safety precautions should always be
followed to reduce the risk of electric shock and personal injury, please note the
followings items:

Products that make money, save money and add value to your bottom line
Page • 3
SPECIFICATIONS
Model DBD-20M
Max. Bending
Capacity
3/4” (# 6) (19 mm)
Grade 60 Rebar
Bending Angle 0-180°
Bending Speed 7 seconds for a
180° bend
Electric Power
Supply
115 Volts, 50/60 Hz, 15
amps, 1725 watts
Dimensions
L x W x H (mm)
16.4” x 18” x 16.2”
(420) x (462) x (415)
Weight (Kg) 134.5 lbs (61)
DBD-20M Rebar Bender Roller Selection Chart
Rebar Diameter Size Center Roller Moving Roller # of Grade 60 Rebar Bent
# 6 (3/4”) (19mm) # 4 (3.71” diameter) # 2 (2.65” diameter) 1 piece at one time
# 5 (5/8”) (16 mm) # 4 (3.71” diameter) # 3 (2.93” diameter) 2 pieces at one time
# 4 (1/2”) (13 mm) # 3 (2.93” diameter) # 5 (3.90” diameter) 3 pieces at one time
# 3 (3/8”) (10 mm) # 1 (2.22” diameter) # 6 (4.80” diameter) 4 pieces at one time
PLEASE NOTE: CRSI (Concrete Reinforcing Steel
Institute) recommends the nished inside bend di-
ameter or center roller outside dimension for stan-
dard hooks be 6 times the bar diameter from #3 to
#8, and 8 times the diameter for #9, #10 and #11 re-
bar. For #3, #4 and #5 stirrup hooks it’s only 4 times
the bar diameter, #6, #7 and #8 are again 6 times.
CHANGING ROLLERS OR ACCESSORIES.
WARNING: ALWAYS UNPLUG TOOL
BEFORE CHANGING ROLLERS
1. Select and set the correct rollers for the bars to
be bent. See Rebar Bender Roller Selection
Chart
2. Plug the electrical power cord into an appropri-
ate outlet.
3. Lay the bar on the machine surface between
the center roller and bending roller. Adjust the
stopper so that the bar is parallel to the front
edge of the machine.
4. Turn the main switch on and check that the
pilot lamp has lit up.
5. Set the angle and make a test bend. If the bent
angle is not exact, adjust the angle setter slightly
to the right or le. Lock in the angle stoppers to
duplicate the same angle each time.
6. Push the operation button or foot switch. e
moving bending roller will automatically return
to the start position once the bend has been
completed.
7. If it is necessary to stop the machine in an
emergency, push the emergency stop button or
release your foot from the foot operated switch.
e bending roller will return to the start posi-
tion automatically.

Products that make money, save money and add value to your bottom line
Page • 4
BENDING ANGLES CAN BE PRESET
1. Set the angle setter to 135° then tighten the
right angle stopper to lock the 135° position.
2. Set the angle setter to 90° then tighten the le
angle stopper to lockthe 90° position.
3. Set the angle setter to 135°. Push the operation
button to make your rst bend.
4. Slide the rebar to the desired length and set the
angle setter to 90°. Push the operation button to
complete your second bend.
For stirrups, cut your rebar to the desired length
before bending. en make both bends for your
turndowns. Finally make your (3) 90° bends to con-
nect your ends together. See chart (below)
WARNING: Never touch any moving parts or roll-
ers while the rebar bender is being operated.
INSPECTION AND MAINTENANCE
WARNING: ALWAYS UNPLUG TOOL
BEFORE PERFORMING MAINTENANCE.
DO NOT USE PARTS OR ACCESSORIES THAT
ARE NOT GENUINE DIAMOND BRAND
FROM: BN PRODUCTS-USA, LLC.
At least once a month remove the bottom plate and
grease all the visible gears and pinions. At the same
time, check the carbon brushes for wear or damage.
Replace with new brushes if they are worn out.
(wear limit→replace carbon brushes)
1. Check that there are no loose nuts and bolts
before starting the operation.
2. Aer operation is completed, be sure to remove
metal dust, dirt, oil, etc… adhering to the ma-
chine surface.
3. In order to empty the metal dust from the
bender, remove side cover (DBD-25X and
DBD-32X models) then tilt the machine to one
side allowing the debris to fall out of the catch
pan. Be sure to blow out any remaining dirt
and dust with compressed air prior to using the
tool again (wear safety goggles to block blowing
debris).
CUSTOMER SERVICE:
[phone]
[e-mail]

Products that make money, save money and add value to your bottom line
Page • 5

Page • 6

Page • 7
No. Part No. Part Name Qty 1 1BL51028500 FRAME 1 2 1BL5303401 HANDLE 2 3 7CB08020 CAP BOLT M8X20 4 4 7NS008 NUT W/DISC
SPRING 8
4
5 7CB08015 CAP BOLT M8X15 4 6 1BL5402801 BRUSH COVER 2 7 7PB08015 PAN HEAD BOLT
M8X15
4
8 1BL51028700 BASE PLATE 1 9 7CB10020 CAP BOLT
M10X20
7
10 7TAF243220 NEEDLE BEAR-
ING TAF243220
1
11 7KI40 ANTI-VIBRATION
RUBBER (KI-40)
1
12 7SW008 SPRING WASH-
ER 8
1
13 7N008 NUT M8 1 14 1BL54265800 ADJUSTABLE
STOPPER
1
15 1BR5064 ADJUSTABLE
NUT S45C50X74
1
16 1BR5065 ADJUSTABLE
HANDLE
1
17 7SP05008W SPRING PIN
M5X8
2
18 1BL54265600 CENTER COVER 1 19 1BL54265700 CENTER PLATE 1 20 7SB06015 CAP BOLT M6X15 1 21 1BL5402000 WASHER 3 22 7B12025T11 BOLT (11T)
M12X25
3
23 1BL5101503 SWIVEL GEAR 1 24 1BL54265300 SWIVEL SHAFT 1 25 7SW012 SPRING WASHER
12
1
26 1BL53136600 MAIN SHAFT 1 27 1BL54265200 KEY (4) 1
28 7CB05018 CAP BOLT 5X18 1 29 76205ZZ BEARING 6205ZZ 1 30 76207ZZ STOPPER
CRESCENT TYPE 5103-18
2
31 762072RS BEARING
62072RS
1
32 7SRH072 C TYPE STOP
RING 72 FOR HOLE
1
33 1BL54265400 SHAFT COLLAR 1 34 1BL5403200 LS DOCK 1 35 7PW005 PLATE WASHER 5 1 36 7SW005 SPRING WASH-
ER 5
1
37 7CB05008 CAP BOLT M5X8 1 38 1BL5402200 SPRING COLLAR 1 39 1BL53136700 RETURN SPRING 1 40 7CB10035 CAP BOLT
M10X35
1
41 7SW010 SPRING WASHER
10
1
42 7PW010 PLATE WASHER
10
1
43 762122RS BEARING
62122RS
1
44 1BL5401700 MAIN SHAFT
SUPPORT
1
45 1BL9404400 ANGLE GEAR (B) 1 46 7SS5GL2 LIMIT SWITCH
SS5GL2
2
47 7PB2.3015 TAPPING SCREW
M2.3X15
4
48 7N002.3 NUT M2.3 2 49 7SRS030 C TYPE STOP
RING 30 FOR SHAFT
1
50 1BL5403102 OVERRUN LS
STAY
1
51 7SS04008 SET SCREW
M4X8
2
52 7SW002.3 SPRING WASHER
2.3
2
53 1BL51028600 GEAR CASE (A) 1 54 1BL5100300 GEAR CASE (B) 1 55 7CW08035 CAP BOLT M8X35 4 56 7CB10110 CAP BOLT
M10X110
4
57 7GW010 WASHER 10 4 58 76006ZZ BEARING 6006ZZ 1 59 7K0606012R2 KEY 6X6X12 1 60 1BL5400502 PINION (1) 1 61 1BL5400402 GEAR (1) 1 62 7SRS020 SNAP RING 1 63 76902ZZ BEARING 6902ZZ 1 64 76004ZZ BEARING 6004ZZ 1 65 7K0505028R1 KEY 5X5X28 1 66 1BL5400802 PINION (2) 1 67 76002ZZ BEARING 6002ZZ 1 68 1BDL401162 CLUTCH TMC
2.5KW
1
69 7TND14V471K VARISTOR
TND14V- 471KB00AAA0
2
70 1BDL400280 COLLAR 1 71 1BDL400242 CLUTCH GEAR 1 72 76904ZZ BEARING 6904ZZ 2 73 7SRH037 S TYPE STOP
RING 37 FOR HOLE
1
74 1BL5400700 CLUTCH COLLAR 1 75 7FU02SC FINE U NUT 1 76 7CB05080 CAP BOLD M5X80 1 77 7N005 NUT M5 1 78 7SW005 SPRING WASH-
ER 5
1
79 76203ZZ BEARING 6203ZZ 2 80 7SRS025 S TYPE STOP
RING 25 FOR HOLE
1

Page • 8
No. Part No. Part Name Qty 81 1BL5400902 GEAR (2) 1 82 7K0807015R2 KET 8X7X15 1 83 1BL5401002 PINION (3) 1 84 76204ZZ BEARING 6204ZZ 1 85 7SRS030 C TYPE STOP
RING 30 FOR SHAFT
1
86 1BL5401202 GEAR (3) 1 87 7K1008023R2 KEY 10X8X23 1 88 1BL53136500 PINION (4) 1 89 76909ZZ BEARING 6909ZZ 1 90 7V40S V RING (40S) 1 91 7CB06025 CAP BOLT M6X15 2 92 7GW006 WASHER 6 2 93 7CB05020 CAP BOLT M5X20 2 94 7GW005 WASHER 5 2 95 7UML8 MOTOR ASSEM-
BLY 95 - 112
1
96 76202ZZ BEARING 6202ZZ 1 97 7M315320G01 ROTOR (100V) 1 98 76200ZZ BEARING 6200ZZ 1 99 7PB05100 TAPPING SCREW
M5X100
2
100 7SW005 SPRING WASH-
ER 5
2
101 7P304229H01 FAN GUIDE 1 102 7P850966H01 BRACKET 1 103 7M315321G01 STATOR (100V) 1 104 7WT06110 VARNISH TUBE
Φ6X110
1
105 7P504595H01 BRUSH CAP 2 106 7P442416G01 BRUSH 2 107 7P445180G01 FLAME SET W/
BRUSH HOLDER
1
108 7P203006BS TAPPING SCREW
M3X6
2
109 7P858310H01 END COVER 1
110 7P205008 TAPPING SCREW
M5X8
6
111 7P445701H01 COVER 1 112 7P443817H01 RUBBER PIN 1 113 1BL9303802 ANGLE STAND 1 114 1BL9404200 ANDGLE SHAFT
(B)
1
115 7K0404010R2 KEY 4X4X10 1 116 1BL9403900 ANGLE PLATE 2 117 7SP04020W SPRING PIN
M4X20
2
118 1BL9404300 ANGLE GEAR (A) 1 119 7SRS012 SNAP RING 1 120 7N008 NUT M8 2 121 7PW008 PLATE WASHER 8 2 122 7WW008 WAVE WASHER 8 1 123 1BL54265900 ANGLE SHAFT (A) 1 124 1BL9405900 ANGLE SPRING 1 125 1BL9404100 ANGLE COLLAR 1 126 7SS04004 SET SCREW 4X4 1 127 7NT304016 TAPPING SCREW
M4X16
1
128 7AG1610B CABLE GRAND
(AG16-10B)
1
129 1BDL401180 CORD W/GRIP 1 130 7G7J4AT RELAY G7J4AT
AC100
1
131 7R9904 BRACKET R99-04 1 132 7P304012 TAPPING SCREW
M4X12
4
133 7ORM0309FS CLUTCH POWER 1 134 1BL52070300 CONTROL PANEL 1 135 7TS05010 SCREW M5X10 6 136 1BL5404200 ANGLE PLATE 2 137 7YB05015 BUTTON SCREW
M5X15
2
138 1BL9404501 ANGLE SETTER 1 139 7SS05010 SET SCREW
M5X10
2
140 7ABS110N START-UP
SWITCH ABS110N
1
141 7ABS201NR EMERGENCY
STOP SWITCH
1
142 7ACT03FB03 OUTLET 1 143 7NB106PWF PILOT LAMP 1 144 7AJ8101B MAIN SWITCH 1 145 1BL53136800 BOTTOM PLATE 1 146 7B206012 BOLT M6X12 10 * 1BL52071400AS
Not Shown
DBD20M STAND SET
1
* 1BL54035ST
Not Shown
ROLLER SET (DBD20M) (20M)
1
* 1BDL401190A
Not Shown
FOOT SWITCH OFL-55SM2C W/ PLUG
1
