BOMANN WA 5612 User manual

1
06/2012
User Manual
HOUSEHOLD-
WASHING MACHINE
WA 5612
Please read this manual carefully and keep for future reference!

2
06/2012
TABLE OF CONTENT
O VERVIEW
Thank you for choosing this device. This user manual contains important information for installation,
operation and maintenance. Please read all instructions carefully, so that you can make use of all
functions and the device is kept in good order. The warranty does not cover defects due to overstrain-
ing, improper use or maintenance.
Please keep all documents in a safe place for future reference. If you have any doubt, please contact
your distributor or the nearest authorized specialist.
I MPORTANT U SE A ND S AFETY I NSTRUCTIONS
All safety information in this user manual are marked with a warning symbol. They indicate possi-
ble dangers precociously. It is imperative to read and follow these information.
Prevent Electric Shocks
- Disassembly, reparation or modification cannot be carried out by people other than professional
maintenance staffs.
- The household electrical supply system (the current, the voltage, the cable) such as a fuse with
suitable specifications should be provided and should meet requirements of the device.
- The power plug must be connected to a three-core socket with an earth wire and is grounded
properly and reliably.
- If the supply cord is damaged, it must be replaced by an authorized specialist or similarly qualified
persons in order to avoid a hazard.
- Do not disconnect the power plug by pulling the supply cord. Hold the power plug with your hand.
- Do not use the supply cord when connection of the power plug and the supply cord is loose.
- Do not touch the power plug with wet hands. Wipe dust or water drops over the power plug off with
dry cloth in advance.
- Do not over-bend the supply cord or put it under heavy weight.
- Do not use the supply cord / socket / power plug if it is damaged or broken.
Possible Explosions
- Do not put combustible liquid such as gasoline, petrol and alcohol into the appliance or nearby.
Do not put clothes with that liquid into the appliance.
- Do not use flammable cleaning agents or chemicals such as those used for chemical cleanings.
- Do not connect / disconnect the power plug when leakage of gas or other combustible gas occurs.
OVERVIEW
2
IMPORTANT USE
AND SAFETY INSTRUCTI
ONS
2
DISPOSAL OF USED DEV
ICES
4
PRODUT D
ESCRIPTION
5
Delivery scope 5
Specifications 5
IN
STALLATION
6
Remove the Transit Bolts 6
Location 6
Water Connection 6
Power Connection 7
STARTUP / OPERATION
8
Prior to First Use 8
Control Panel 9
Table of Washing Cycles 11
Start up the Washing Machine 12
End of Washing 12
TIPS FOR SAVING ENER
GY
12
MAINTENANCE AND CLEA
NING
12
Cleaning and care 12
Repairs 14

3
06/2012
Fire Danger / Short Circuit or Electric Leakage may occur
- Do not install the appliance close to fire sources or heat sources.
- Do not rest any burning candles or cigarettes on the appliance.
- Do not install the appliances in places with high dampness or extreme wetness, lest igniting dam-
ages or other accident occur easily due to gathered water drops on electrical components.
- Do not install the device in places under direct sunshine, lest the plastic components and rubber
components become aged.
- Do not use water shooting at the appliance when cleaning it.
Danger of Injury
- This machine is not intended for use by persons (including kids) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
and/or instruction concerning use of the machine by a person responsible for their safety.
- Packing materials may be dangerous to the children. Please keep all packing materials (plastic
bags, foams etc) far away from the children.
- Children and pets must be supervised to ensure that they are not playing with the appliance. They
can climb into the washing machine. Check the appliance before use.
- Please check whether the water inside the drum has been drained before opening its door. Please
do not open the door if there is any water visible.
- Glass door may be very hot during the operation. Keep kids and pets far away from the machine
during the operation.
- The drain pipe will be very hot under high temperatures during washing, resulting in a spin cycle.
Be careful and do not burn your hands.
General instructions / Intended use
- This device is intended for private use. The manufacturer is not reliable for any damage resulting
from improper or other then intended use.
- For safety reasons, alterations or modifications of the device are prohibited. Use the device only for
its intended function.
- Any electrical and water connection work required to install this appliance should be carried out by
a qualified electrician or competent person.
- The appliance is to be connected to the water mains using new hose sets and that old hose-sets
should not be reused.
- This washing machine is for indoor use only.
- Do not climb onto the device or rest heavy objects / heating devices or items with water or liquid
leakage on it, lest deformation of the surface and the plastic component occur.
- Before operating this machine, transport bolts must be removed from the backside of this machine.
Otherwise the washing machine may be seriously damaged while washing (see selection ‘Remove
the Transit Bolts’).
- After having installed the appliance, check that it is not pressing or standing on its electrical supply
cable or water hose.
- Before washing the first time, the washing machine shall be operated in one round of the whole
procedures without the clothes inside (see section ‘Prior to First Use’).
- Do not overload the appliance (see section ‘Table of Washing Cycles’).
- Any objects such as coins, safety pins, nails, screws. Stones or any other hard, sharp material can
cause extensive damage and must not be placed into the machine.
- Inflammable and explosive or toxic solvents are forbidden. Do not use detergents containing gaso-
line or alcohol. Only use detergents for washing machines.
- Do not wash any waterproof items such as raincoats, car sun protection cloth and sleeping bags.
- We do not recommend washing carpets.
- The drain pump filter has to be cleaned frequently.
- After each use unplug the power cord and turn off the water supply after each use.
Unpacking
Check the device for any possible transport damage. Do not install a damaged device. In case of
damage, please contact your distributor.

4
06/2012
D ISPOSAL O F U SED D EVICES
This product is marked in accordance with the European waste regulation
2002 / 96 / EC - WEEE
It regulates the proper disposal of the product. Environmentally friendly disposal will pre-
vent possible negative consequences to health caused by improper disposal.
This symbol on the product or its packaging indicates that this product must not be dis-
posed of with the regular household waste. The user has to return the product to a collection point for
the recycling of electric and electronic equipment.
The disposal must comply with the local regulations in place.
For further information please contact your local authorities or waste collection service.
Disable Waste Equipment before Disposal:
- Disconnect the mains plug from the wall socket.
- Disconnect the plug from the mains cable.
- Remove or disable any existing spring or latch locks.
This will prevent children from locking themselves (risk of suffocation!) or from getting into perilous
situations. Children might not understand the risks that arise from handling household devices.
Therefore, observe children and make sure they do not play with the device.
Environmental Protection
- Do not use excessive detergents.
- Decontaminant and bleacher can be used to pre-treat the stains on the clothes only when very
necessary.
Packaging Material
The packaging for transportation of the device and individual parts is produced of recyclable materials.
- corrugated cardboard / paperboard (mainly of waste paper)
- form part of PS (foamed, CFC-free polystyrene)
- Films and bags of PE (polyethylene)
- Strapping strips of PP (polypropylene)
IMPORTANT
Make sure you dispose of packaging materials environmentally friendly.

5
06/2012
P RODUCT D ESCRIPTION
Delivery Scope
User manual (D+GB)
Specifications
Model WA 5612
Spin speed stop -400 -600 -800 –1.000 –max 1.200 rpm
Capacity 6 kg
Energy Efficiency Class
1)
– Washing Efficiency Class –
Spinning Efficiency Class A+ – A – B
Estimated annual consumption
2)
9.900 l / 177 kWh
Noise level washing / spinning 60 / 75 dBA
Connection voltage 220-240 V / 50 Hz
Connection power 2.100 W
Fuse protection 10 A
Water pressure 0.02 MPa – 0.08 MPa
Power consumption of off-mode 0.1 W
Power consumption of left-on mode 0.3 W
Unit sizes (HxWxD) 84.5 x 59.5 x 53.0 cm
Gross / net -weight ca. 68.0 / 64.0 kg
Energy-test program in accordance with EU 1061/2010; Annex II:
Cotton 60°C/40°C, intensive. With complete filling and partial filling these standard washing cycles are for the data
determination on the energy label. These programs are suitable for washing normal soiled laundry and on the
combined energy and water consumption at the most efficient.
1)
The energy efficiency class is specified according to EU 1061/2010, Annex VI point 1.
2)
The weighted annual energy consumption in kWh/year and water consumption in l/year was calculated on the
basis of 220 standard washing cycles according to the EU 1061/2010, Annex II.
MANUFACTURER DATA: Product is subject to changes and improvements.

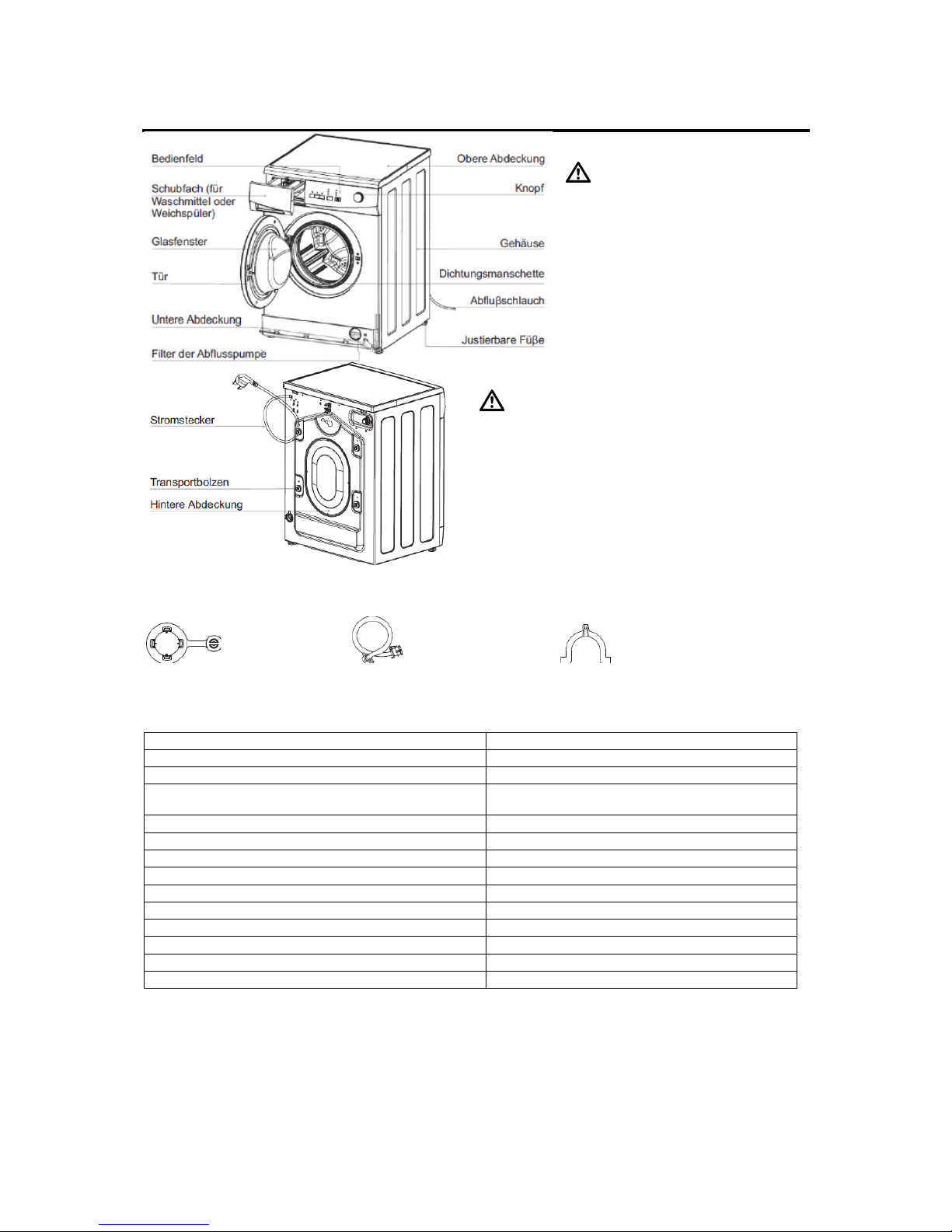

NOTE: The drawings in the manual are only
used for instruction. It may be vary from the model
you buy.
IMPORTANT: Unscrew the
drain pump filter to let water run out
when the machine is not used for a
long time.
4 Transit bolts caps Water inlet hose Hose holder
