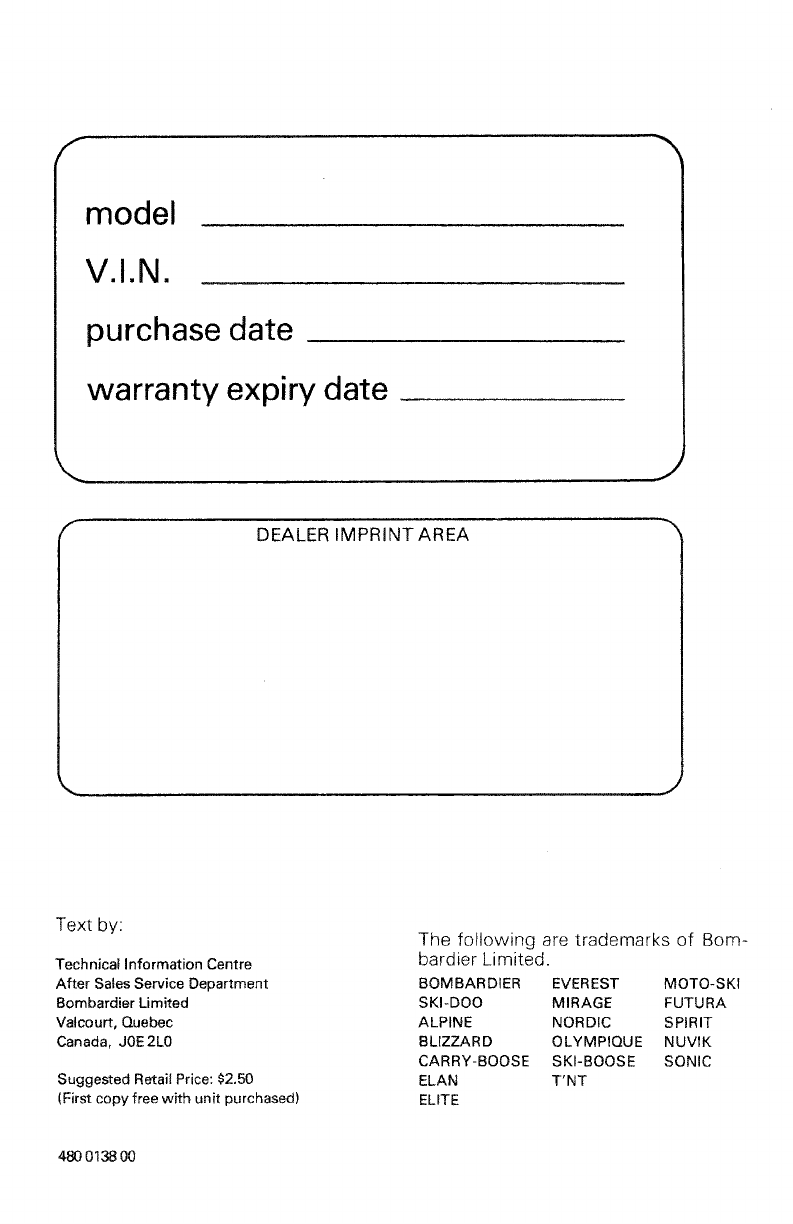

BOMBARDIER Ski-Doo 1978 Series User manual

480Ot3800

model
V.I.N.
purchase date
warranty expiry date
DEALER IMPRINT AREA
MOTO-SKI
FUTURA
SPIRIT
NUVIK
SONIC
Text by:
Technical Information Centre
After SalesService Department
Bombardier Limited
Valcourt, Quebec
Canada, JOE2LO
Suggested RetailPrice:$2.50
(First copy free with unit purchased)
480013800
The following are trademarks of Bom-
bardier Limited.
BOMBARDIER EVEREST
SKI-DOO MIRAGE
ALPINE NORDIC
BLIZZARD OLYMPIQUE
CARRY-BOOSE SKI-BOOSE
ELAN T'NT
ELITE

CONGRATULATIONS... You are now
the proud owner of a new 1978 Ski-
Doo snowmobile. This vehicle is the
result of incomparable teamwork be-
tween Bombardier designers, engi-
neers and technicians. Consequently,
this vehicle is designed and engineered
with safety, handling, comfort and
quietness in mind. We do respect your
desires and that of others.
The information has been prepared to
acquaint the
owner /operator of a
new snowmobile with the various ve-
hicle controls, owner-related mainte-
nance, and safe operating instructions.
This is accomplished via 'The Snow-
mobile Safety Handbook Booklet' and
the 'Operator Manual'. Each is insepa-
rable toward proper use of the product,
and should be kept with the vehicle at
all times.
Although the Alpine model is intended
for utilitarian use rather than recre-
ational for simplicity, it has been in-
cluded in this operator manual.
Should you have any questions per-
taining to the warranty and its applica-
tion, please consult the
"Often Asked
Question" section of this manual or
your selling dealer.
This manual emphasizes particular in-
formation denoted by the wording and
symbols:
•
WARNING: Identifies an instruc-
tion which, if not followed, could
cause personalinjury.
_CAUTION: Denotes an instruc-
.... tion which, if not followed, could
severely damage vehicle components.
ONOTE: Indicates supplementary
information needed to fully
com-
plete an instruction.
Although the mere reading of such in-
formation does
not eliminate the haz-
ard, your understanding of the infor-
mation will promote its correct use.
Ride safe and have fun.
Recreational Products Group
Bombardier Limited,
Valcourt, Quebec, Canada

Observe the following precautions:
• Throttle mechanism should be
checked for free movement before
starting engine.
• Engine should be running only when
pulley guard is secured in place.
• Never run engine
without drive belt
installed. Running an unloaded en-
gine can prove to be dangerous.
• Never run the engine at high R,P.M,
when the track of the vehicle is
raised
off the ground.
• It can be dangerous to run engine
with the cab open or removed,
• Gasoline is flammable and explosive
under certain conditions. Always
perform procedures in awell ventila-
ted area. Do not smoke or allow
open flames or sparks in the vicinity,
If gasoline fumes are noticed while
driving, the cause should be deter-
mined and corrected
without delay,
• Your snowmobile is not designed to
be operated on public streets, road
or highways. In most States and
Provinces, it is considered an illegal
operation,
• Maintain your vehicle in top mecha-
nical condition at all times,
• Your snowmobile is not designed to
be driven or operated on black top,
bare earth, or other abrasive surfa-
ces. On such surfaces abnormal and
excessive wear of critical parts is
inevitable.
• Only perform procedures asdetailed
in this manual. It is recommended
that dealer assistance beperiodically
obtained on other components /
systems
not covered in this manual.
Unless otherwise specified, engine
should be turned OFF for all lubri-
cation and maintenance procedures.
•Installation of other than
"stock"
equipment, including ski-spreaders,
bumpers, pack racks, etc.. could
severely affect the stability and
safety of your vehicle. Avoid adding
on accessories that alter the basic
vehicle configuration.
• The snowmobile engine can be
stopped by activating the emergen-
cy cut-out or tether switches, or
turning
off the key.
• On
T'NT equipped with free air en-
gine since the engine cooling is in
effect only when the vehicle is in
motion, it is recommended that you
do not allow the engine to idle for
more brief periods. Prolonged idling
and low speed operation may cause
engine damage.
Please read and understand all other
warnings contained elsewhere in this
manual.

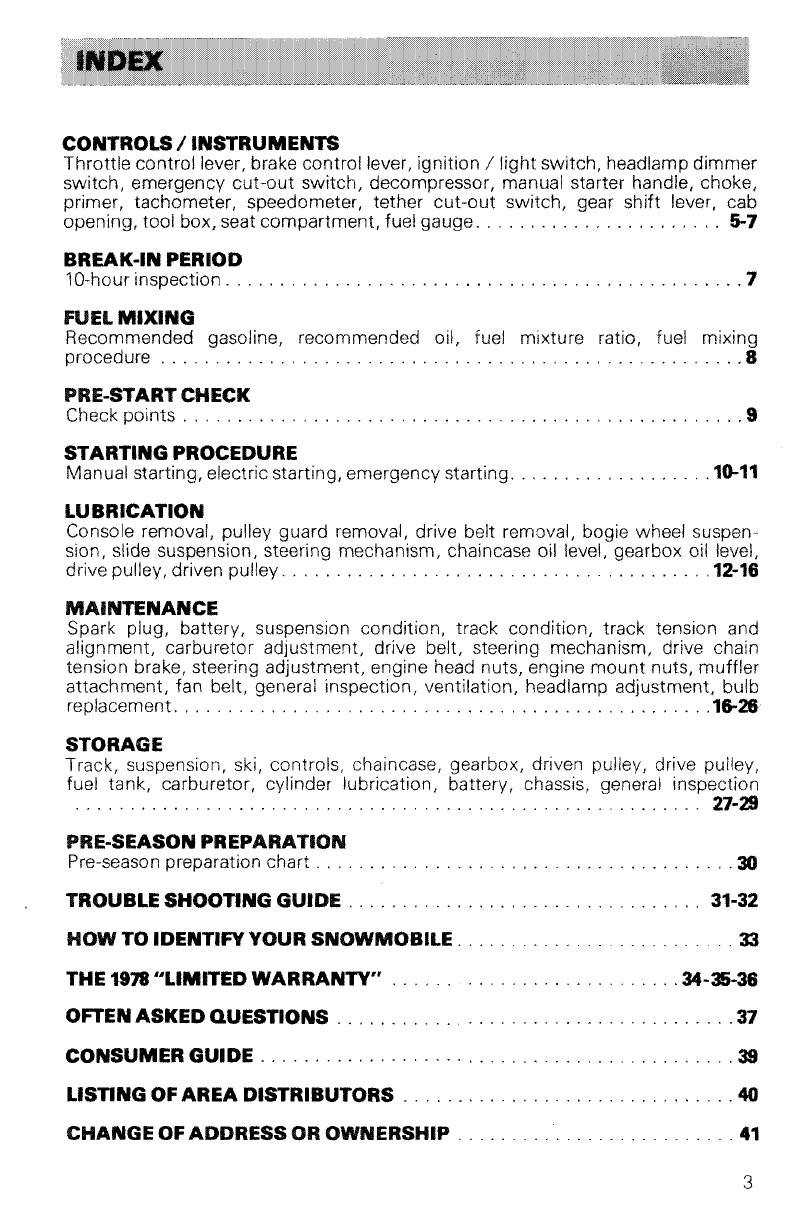

CONTROLS/ INSTRUMENTS
Throttle control lever, brake control lever, ignition /light switch, headlamp dimmer
switch, emergency
cut-out switch, decompressor, manual starter handle, choke,
primer, tachometer, speedometer, tether
cut-out switch, gear shift lever, cab
opening, tool box, seat compartment, fuel gauge 5-7
BREAK-IN PERIOD
lO-hour inspection 7

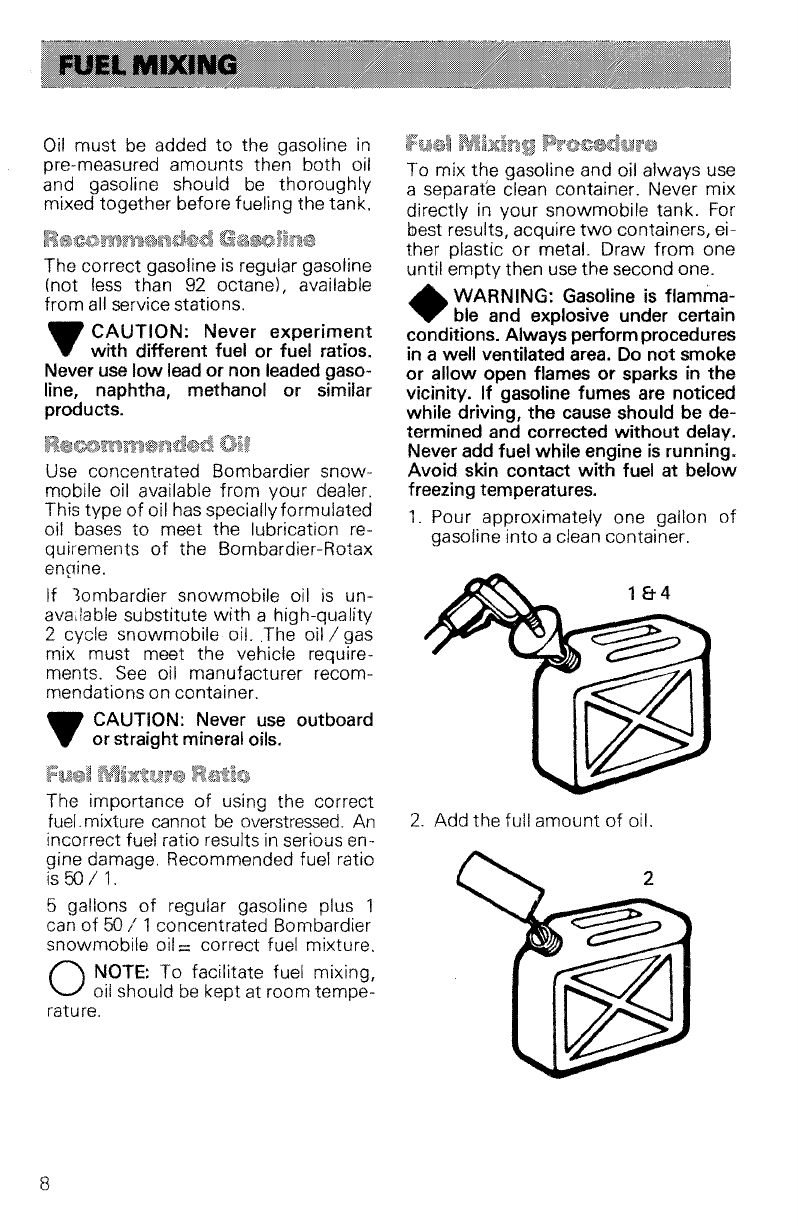

FUEL MIXING
Recommended gasoline, recommended oil, fuel mixture ratio, fuel mixing
procedure 8

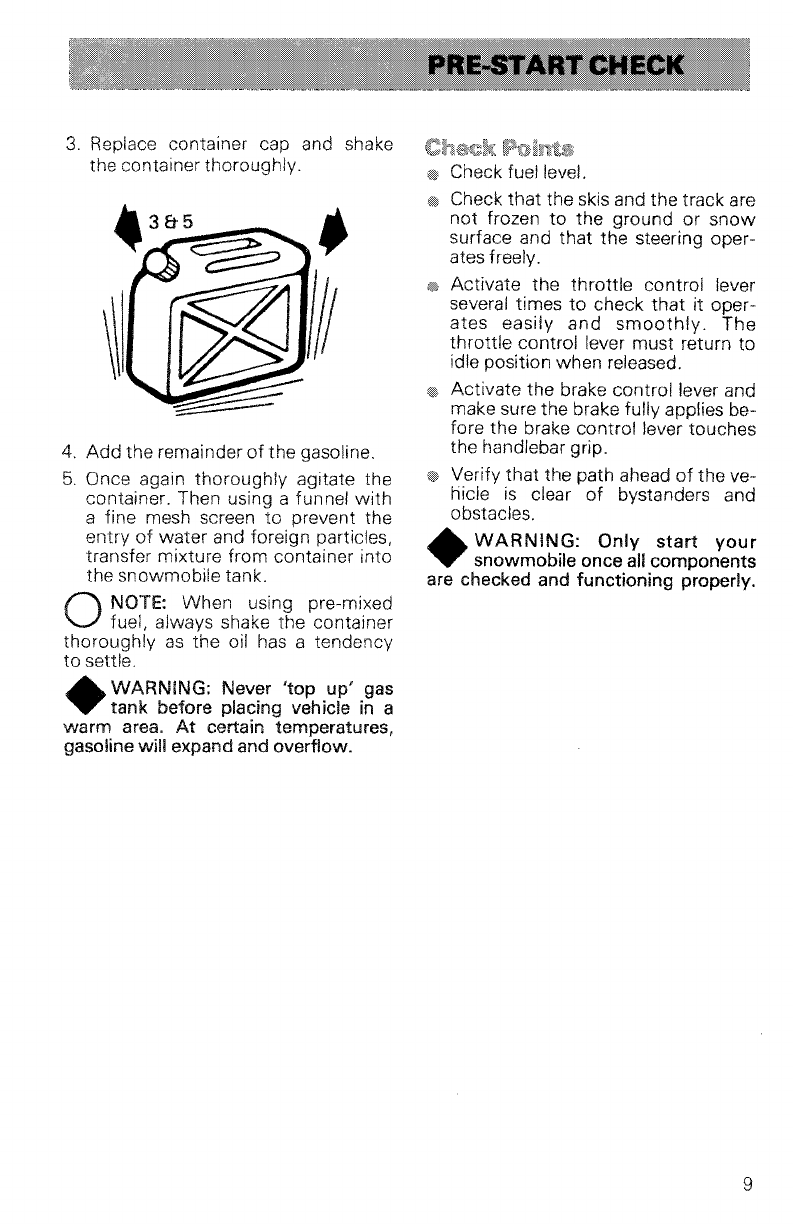

PRE-STARTCHECK
Check points 9
STARTING PROCEDURE
Manual starting, electric starting, emergency starting 10-11

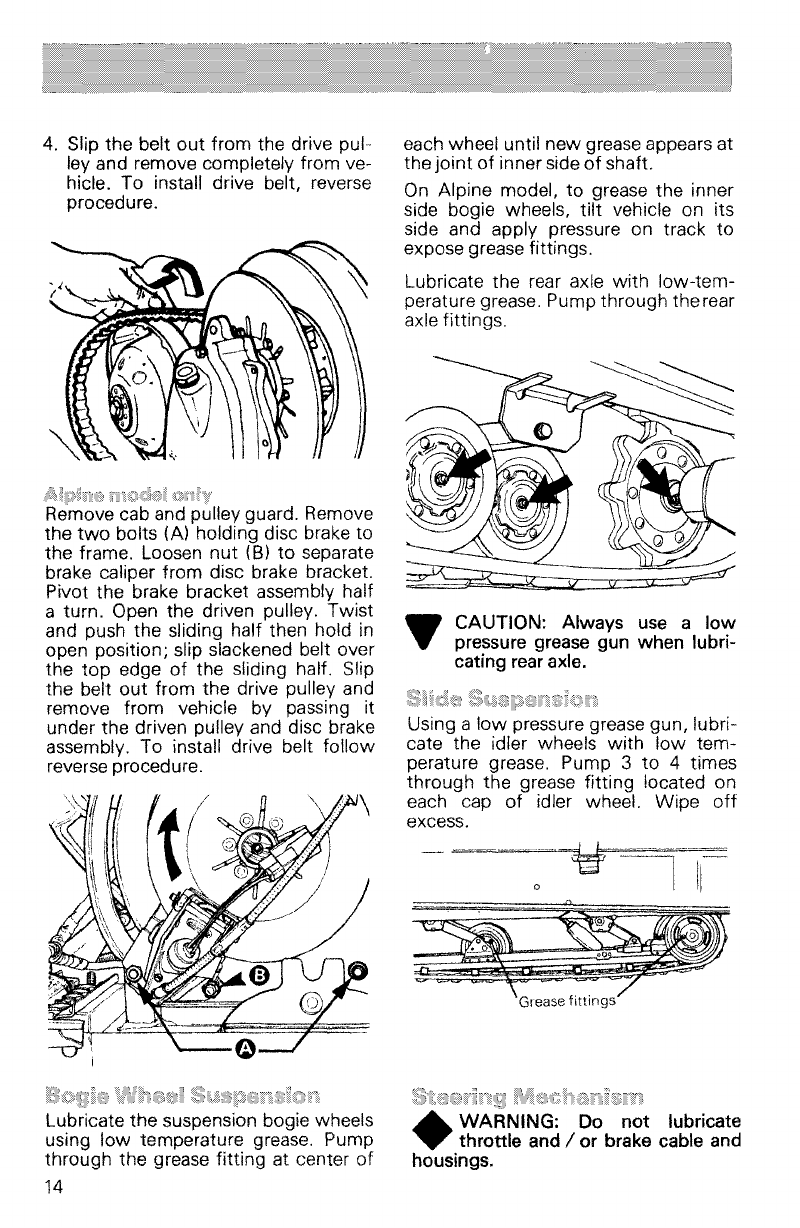

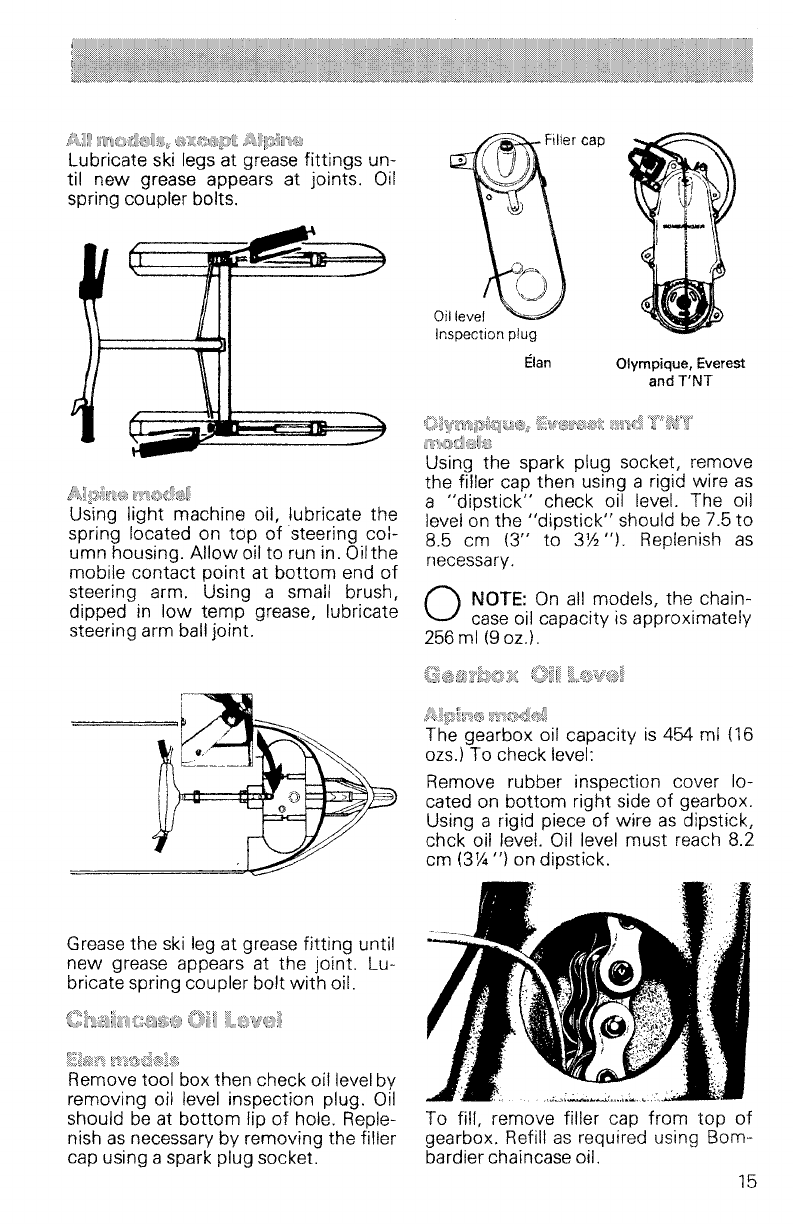

LUBRICATION
Console removal, pulley guard removal, drive belt removal, bogie wheel suspen-
sion, slide suspension, steering mechanism, chaincase oil level, gearbox oil level,
drive pulley, driven pulley 12-16
MAINTENANCE
Spark plug, battery, suspension condition, track condition, track tension and
alignment, carburetor adjustment, drive belt, steering mechanism, drive chain
tension brake, steering adjustment, engine head nuts, engine mount nuts, muffler
attachment, fan belt, general inspection, ventilation, headlamp adjustment, bulb
replacement 16-26
STORAGE
Track, suspension, ski, controls, chaincase, gearbox, driven pulley, drive pulley,
fuel tank, carburetor, cylinder lubrication, battery, chassis, general inspection
.......................................................... 27-29
PRE-SEASON PREPARATION
Pre-season preparation chart 30
31-32
. 33
.34-35-36
.37
.39
TROUBLE SHOOTING GUIDE .
HOW TO IDENTIFYYOUR SNOWMOBILE .
THE 1978
"LIMITED WARRANTY" .
OFTEN ASKED QUESTIONS .
CONSUMER GUIDE .
LISTING OF
AREA DISTRIBUTORS . . . . . . . . . . . . . . .. .40
CHANGE OF ADDRESS OR OWNERSHIP 41
3

4

- LIGHTS
A) Throttle ControlLever
BJ Brake ControlLever
C) Ignition / Light Switch
D) Headlamp DimmerSwitch
E) Emergency Cut-Out Switch
FJ Decompressor(Elansingle cylinder
engine only)
G) ManualStarterHandle
Located on right side of handlebar.
When compressed, it controls the en-
gine speed and the engagement of the
transmission. When released, engine
speed returns automatically to idle.
Located on the left side of handlebar.
When compressed, the brake is ap-
plied. When released, it automatically
returns to its original position. Braking
effect is proportionate to the pressure
applied on the lever.
OFF
Key operated, 3position switch. To
start engine, first turn key clockwise to
ON position. To stop engine, turn key
counter-clockwise to OFF position.
Turning key fully clockwise,
with en-
gine running, illuminates both head-
lamp and taillight.
OFF
/L1GHTS
_ON
- START
H) Choke (Elan and Alpinemodels
only)
I) Primer
J) Tachometer
K) Speedometer
U Tether Cut-Out Switch
M) GearShift Lever
Key operated, 4 POSition switch. To
start engine, turn key fully clockwise to
START position and hold. Return key
to ON position immediately engine has
started. To stop engine, turn key coun-
ter clockwise to OFF position. To illu-
minate both headlamp and taillight,
turn key to LIGHTS position.
The dimmer switch, located on left side
of handlebar, allows correct selection
of headlamp beam. To obtain high or
low beam simply depress switch.
A push button switch located on right
side of handlebar. To stop the engine
in an emergency, press button down
into lower position.
Before re-startinq engine always de-
press button into released upper posi-
tion. The driver of this vehicle should
familiarize himself
with the function of
this device by using it several times on
first outing. Thereby being mentally
prepared for emergency situations re-
quiring its use.
•
WARNING: If the button has
been used in an emergency situa-
tion the source of malfunction should
be determined and corrected before
restarting engine.
Two positron (OFF/ ON). push-pull
knob. To engage, purl decompressor
knob fully out.
5

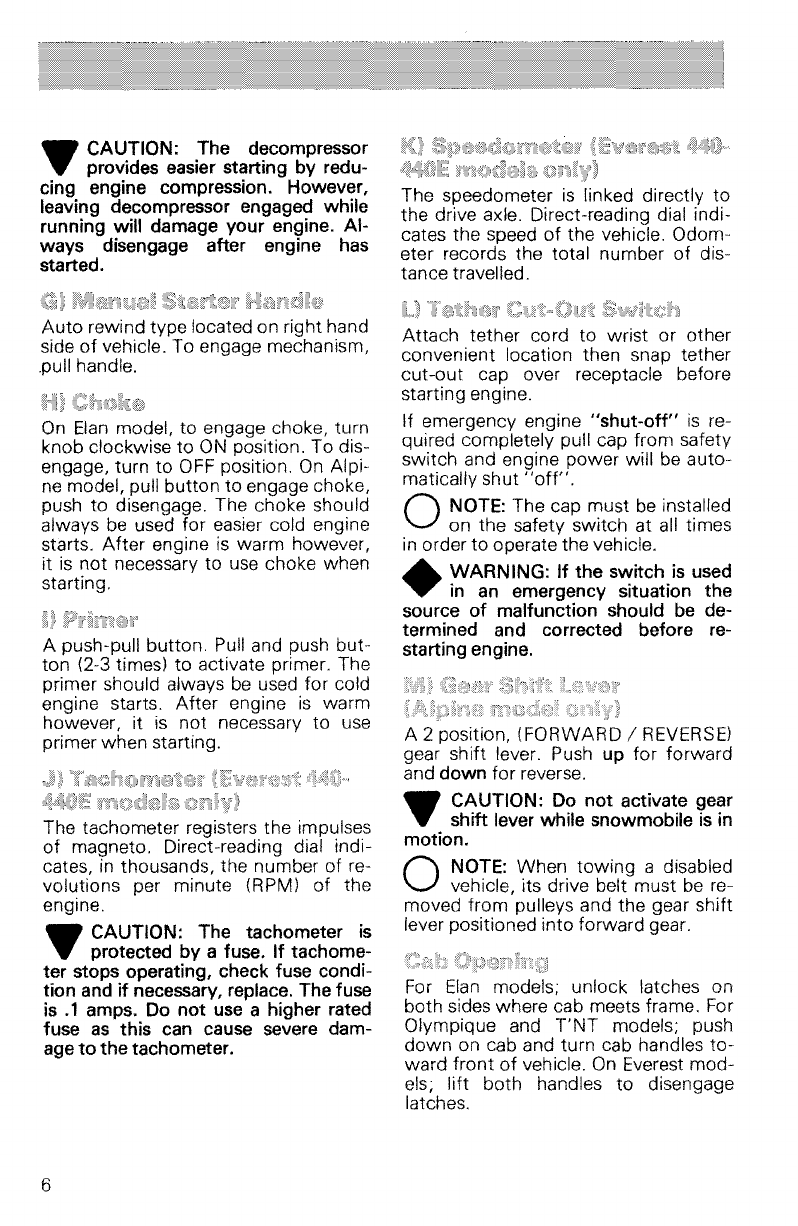

_CAUTION: The decompressor
.. provides easier starting by redu-
cing engine compression. However,
leaving decompressor engaged while
running will damage your engine. Al-
ways disengage after engine has
started.
Auto rewind type located on right hand
side of vehicle. To engage mechanism,
pull handle.
On Elan model, to engage choke, turn
knob clockwise to ON position. To dis-
engage, turn to OFF position. On Alpi-
ne model, pull button to engage choke,
push to disengage. The choke should
always be used for easier cold engine
starts.
After engine is warm however,
it is not necessary to use choke when
starting.
Apush-pull button. Pull and push but-
ton (2-3 times) to activate primer. The
primer should always be used for cold
engine starts. After engine is warm
however, it is not necessary to use
primer when starting.
The tachometer registers the impulses
of magneto. Direct-reading dial indi-
cates, in thousands, the number of re-
volutions per minute (RPM) of the
engine.
_CAUTION: The tachometer is
.. protected by a fuse. If tachome-
ter stops operating, check fuse condi-
tion and if necessary, replace.The fuse
is .1 amps. Do not use a higher rated
fuse as this can cause severe dam-
ageto the tachometer.
6
The speedometer is linked directly to
the drive axle. Direct-reading dial indi-
cates the speed of the vehicle. Odom-
eter records the total number of dis-
tance travelled.
Attach tether cord to wrist or other
convenient location then snap tether
cut-out cap over receptacle before
starting engine.
If emergency engine "shut-off" is re-
quired completely pull cap from safety
switch and engine power will be auto-
matically shut
"off".
ONOTE: The cap must be installed
on the safety switch at all times
in order to operate the vehicle.
•WARNING: If the switch is used
in an emergency situation the
source of malfunction should be de-
termined and corrected before re-
startingengine.
A 2 position, {FORWARD / REVERSE}
gear shift lever. Push up for forward
and down for reverse.
_CAUTION: Do not activate gear
.. shift lever while snowmobile is in
motion.
ONOTE: When
towing a disabled
vehicle, its drive belt must be re-
moved from pulleys and the gear shift
lever positioned into forward gear.
For Elan models; unlock latches on
both sides where cab meets frame. For
Olympique and
T'NT models; push
down on cab and turn cab handles to-
ward
front of vehicle. On Everest mod-
els; lift both handles to disengage
latches.

aNOTE: Always lift cab gently up
until stopped by restraining de-
vice.
On Alpine model, the cab is remov-
able, unlatch cab by turning both
handles toward front of vehicle, re-
move fuel tank cap, gently lift cab then
disconnect junction block at right side
of engine. Remove cab from vehicle.
•WARNING: It isdangerousto run
an engine with the cab open or
removed. Personal injury could result.
Located under the cab. To gain access,
tilt cab. Ideal location for spare plugs,
belt, rope, etc.
Remove backrest and tilt seat. Ideal
location for spare plugs, belt, rope, etc.
aNOTE: Emergency materials
should be wrapped in foam or
similar material. This will prevent pos-
sible damage to breakable items when
travelling over rough or bumpy terrain.
On all models except Elan models, un-
screw fuel tank cap and
withdraw dip-
stick to check fuel level. On Elan mod-
els, the tank is translucent and fuel
level can be checked by opening cab
and glancing at tank.
•WARNING: Never use a lite
match or open flame to check
fuel level.
With Bombardier-Rotax snowmobile
engines, a break-in period is required
before running the vehicle at full
throttle. Engine's manufacturer re-
commendation is 10 to 15 operating
hours. During this period, a richer mix-
ture is needed (i.e. 40 parts of gas for
1part of 50 / 1 Bombardier oil). Maxi-
mum throttle should not exceed %,
however, brief full acceleration and
speed variations contribute to a good
break-in. Continued wide open throttle
accelerations, prolonged cruising
speeds, and luggin are detrimental
during the break-in period.
As with any precision piece of mechan-
ical equipment, we suggest that after
the first 10 hours of operation or 30
days after the purchase, whichever
comes first, that your vehicle be
checke.d by your dealer. This inspec-
tion will give you the opportunity to
discuss the unanswered questions you
may have encountered during the first
hours of operation. Remember that it
is easier to remedy at this time than to
allow the snowmobile to operate until
a possible failure occurs.
The 10 hours inspection is at the ex-
penseof the vehicleowner.
7

Oil must be added to the gasoline in
pre-measured amounts then both oil
and gasoline should be thoroughly
mixed together before fueling the tank.
The correct gasoline is regular gasoline
(not less than 92 octane), available
from all service stations.
_ CAUTION: Never experiment
.". with different fuel or fuel ratios.
Never use low lead or non leadedgaso-
line, naphtha, methanol or similar
products.
Use concentrated Bombardier snow-
mobile oil available from your dealer.
This type of oil has specially formulated
oil bases to meet the lubrication re-
quirements of the Bombardier-Rotax
ermine.
If lombardier snowmobile oil is un-
ava.lable substitute with ahigh-quality
2cycle snowmobile oil. The oil/gas
mix must meet the vehicle require-
ments. See oil manufacturer recom-
mendations on container.
_CAUTION: Never use outboard
.". or straight mineraloils.
The importance of using the correct
fuel.mixture cannot be overstressed. An
incorrect fuel ratio results in serious en-
gine damage. Recommended fuel ratio
is 50
/1.
5 gallons of regular gasoline plus 1
can
of 50/1concentrated Bombardier
snowmobile oil
== correct fuel mixture.
ONOTE: To facilitate fuel mixing,
oil should be kept at room tempe-
rature.
8
To mix the gasoline and oil always use
a separate clean container. Never mix
directly in your snowmobile tank. For
best results, acquire
two containers, ei-
ther plastic or metal. Draw from one
until empty then use the second one.
•
WARNING: Gasoline is flamma-
ble and explosive under certain
conditions. Always perform procedures
in a well ventilated area. Do not smoke
or allow open flames or sparks in the
vicinity. If gasoline fumes are noticed
while driving, the cause should be de-
termined and corrected without delay.
Never add fuel while engine is running.
Avoid skin contact with fuel at below
freezing temperatures.
1. Pour approximately one gallon of
gasoline into aclean container.
2. Add the full amount of oil.

3. Replace container cap and shake
the container thoroughly.
4. Add the remainder of the gasoline.
5. Once again thoroughly agitate the
container. Then using a funnel
with
a fine mesh screen to prevent the
entry of water and foreign particles,
transfer mixture from container into
the snowmobile tank.
aNOTE: When using pre-mixed
fuel, always shake the container
thoroughly as the oil has a tendency
to settle.
•
WARNiNG: Never 'top up' gas
tank before placing vehicle in a
warm area.
At certain temperatures,
gasoline will expand and overflow.
(IW. Check fuel level.
(IW Check that the skis and the track are
not frozen to the ground or
snow
surface and that the steering oper-
ates freely.
@; Activate the throttle control lever
several times to check
that it oper-
ates easily and
smoothly. The
throttle control lever must return to
idle position when released.
(fl; Activate the brake control lever and
make sure the brake fully applies be-
fore the brake control lever touches
the handlebar grip.
.1& Verify that the path ahead of the ve-
hicle is clear of bystanders and
obstacles.
•
WARNING: Only start your
snowmobile once all components
are checked and functioning properly.
9

Emergency cut-out button
Upper position
before starting
engine.
Lower
position
to stop engine.
8. Allow the engine to warm before
operating at full throttle.
... CAUTION: On T'NT free air mod-
Yel since engine cooling is in effect
only when the vehicle is in motion.
Prolonged idling and
low speed opera-
tion may cause engine damage. Do
not
allow the engine to idle for more than
brief periods.
... CAUTION: Never operate your
1. Insert key in ignition and turn to ON y
". snowmobile with the battery
position. removed or disconnected.
, I
2. Test throttle control lever. 1. lnsert ~ey in ignition switch
3. On vehicle equipped
with a choke 2. Tkst t~rottle control lever. Activate
system, engage the choke, on other primerl(2 or 3 times) or engage
models activate the primer (2 to 3 choke.
times). (On Elan single cylinder
model, also pull decompressor knob aNOTE: Choke or primer are
not
fully outl. necessary when engine is warm.
aNOTE: Choke or primer are not 3. On vehicle equipped
with ~mer-
necessary when engine is warm./JJ8flCY cut-out switch. make Isure
.
.--. that the tether cut-out cap.is I~JPOSI-
4. On vehicle equipped wltb;erneL'--_'::"-~-::':::#ef'rand that tbe-ccrrdjs/atta;:med to
gency" cut-outswltGh,JD§!S',-,S.~~-:: your clothing:, Gh€c1Ghattne erner-
that tne tether cut-out cap Ism
~'--- gency cut-out button is in the re-
non and that the cord IS attached to leased upper position
your clothing. Check that the emer-
gency cut-out button is in the re- 4. Turn ignition key clockwise until
leaseupper position. starter engages. If engine does
not
5. Grasp manual starter handle firmly start on first try, key m~st be turned
and pull slowly until a resistance is fully back to OFFeach time.
felt then pull vigorously. Slowly re- WARNING: Do
not apply throttle
leaserewind starter handle. while starting.
... WARNING: Do not apply throttle 5. Released key immediately engine
..... while starting. has started. If applicable, disengage
6. If applicable, disengage choke, On choke.
Elan single cylinder model, push in 6. Check operation of the emergency
decornpressor.
cut-out switch and when applicable,
7. Check operation of the emergency tether switch. Restart engine.
cut-out switch, and where appli- • WARNING: If engine does not
cable, tether switch. Restart engine.
shut-off when applying the emer-
•WARNING: If engine does not gency
cut-?ut switch and where appli-
shut-off when applying the erner- cable, pulling .the tether ~ut-out cap,
gency cut-out switch and where appli-
~top. the engine by turning off ~he
cable, pulling the tether cut-out. cap, Ignition key. Do not operate the vehicle
stop the engine by turning
off the further, seeyour dealer.
ignition key. Do not operate the vehicle 7.
Allow the engine to warm before
further, seeyourdealer. operating at full throttle.
'10

ONOTE: If
for some reasons, the
vehicle cannot be started elec-
trically, place ignition key to ON posi-
tion and start engine manually.

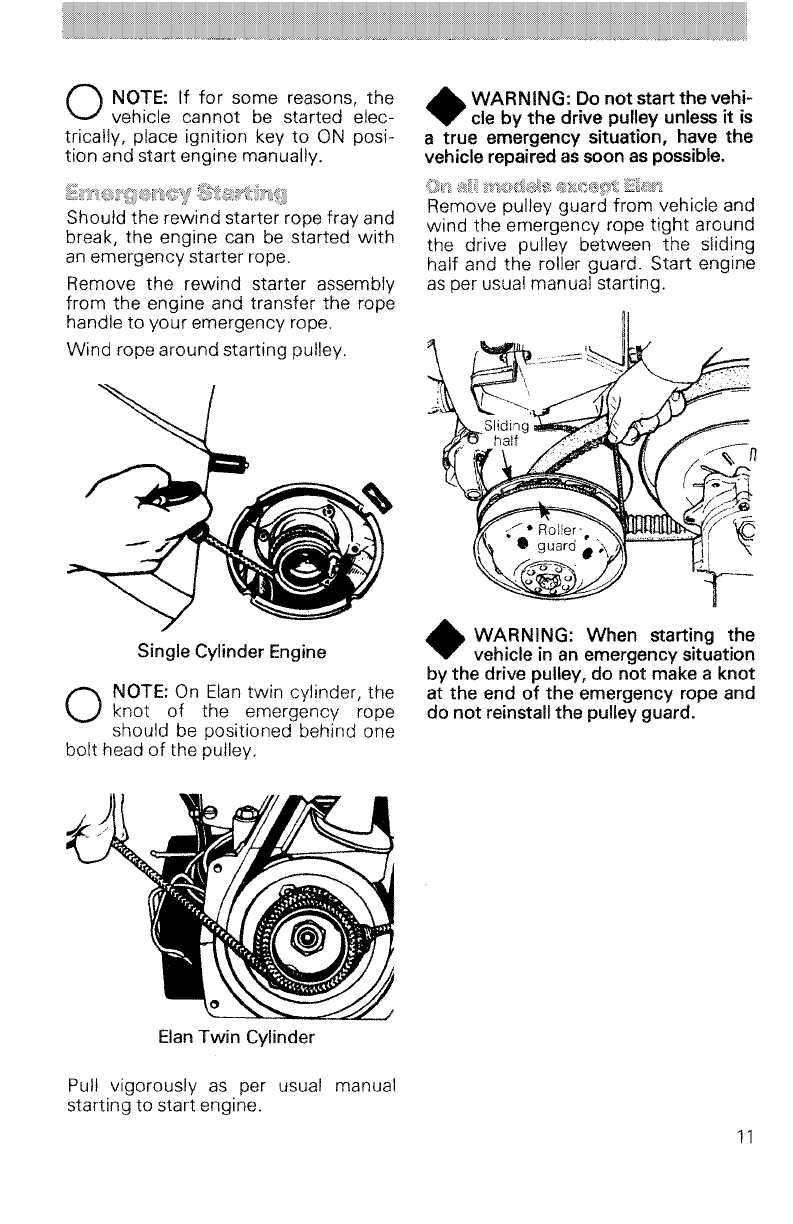

Should the rewind starter rope fray and
break, the engine can be started
with
an emergency starter rope.
Remove the rewind starter assembly
from the engine and transfer the rope
handle to your emergency rope.
Wind rope around starting pulley.
Single Cylinder Engine
ONOTE: On Elan twin cylinder, the
knot of the emergency rope
should be positioned behind one
bolt head of the pulley.
ElanTwin Cylinder
Pull vigorously as per usual manual
starting to start engine.
•WARNING: Do
not start the vehi-
cle by the drive pulley unless it is
a true emergency situation, have the
vehicle repairedassoon aspossible.
Remove pulley from vehicle and
wind the emergency rope
tight around
the drive pulley between the sliding
half and the roller guard. Start engine
asper usual manual starting.
•WARNING: When starting the
vehicle in an emergency situation
by the drive pulley, do not make a knot
at the end
of the emergency rope and
do not reinstall the pulley guard.
11

+WARNING: Engine should be
running only when pulley guard is
secured in place.
Routine maintenance is necessary for
all mechanized products, and the
snowmobile is no exception. Aweekly
vehicle inspection contributes to the
life span of the snowmobile as well as
retain safe and dependable operation.
It is recommended that the steering
system and suspension, be lubricated
monthly or every 40 hours of opera-
tion. If the vehicle is operated in
wet
snow or in severe conditions these
items should be lubricated more fre-
quently.
+WARNING: Only perform such
procedures as detailed in this
manual. It is recommended that dealer
assistance be periodically obtained on
other components / systems not cov-
ered in this manual. Unless otherwise
specified, engine should be turned OFF
for all lubrication and maintenance
procedures.
For any procedure that may require re-
moval of console, proceed as follows:
1. Unlock latch where console and
dashpanel meet.
2. Push the console
downward then
tilt away from engine. To reinstall,
reverse procedure.
12
1. Tilt cab and remove console.
2. Remove driven pulley guard (front)
by unlocking it from attaching
points.
3. To remove drive pulley guard, pull
out retaining clip (A) and pull on
spring (B) to disengage pin
from
bracket.
4. Push pulley guard forward to disen-
gage front attchement (C) from
frame. Lift guard from vehicle.
Detach air duct from engine and pull it
from muffler compartment wail. Un-
lock pulley guard from attaching points
and remove from vehicle.

1. Tilt cab, unscrew wing nut (A) and
pullout retaining clips (8 &C).
2. Disengage guard from rear and mid-
dle brackets then disengage pin
from front bracket. Remove com-
plete assembly.
1. cab. Pull out retaining clip
(A) and tilt driven pulley guard to-
ward front of vehicle.
2.
Pullout retaining clip (8) to disen-
gage pin (C) from bracket.
3. Move pulley guard toward front of
vehicle to disengage front attaching
device from front bracket.
•
WARNING: Never start or runen-
gine without drive belt installed.
Running an unloaded engine is dange-
rous.
1. Tilt cab and remove pulley guard.
On Everest and
T'NT models, un-
lock and raise driven pulley support.
2. Open the driven pulley by twisting
and pushing the sliding half. Hold In
fully open position.
3. Slip slackened belt over the top
edge of the sliding half.
~
13

4. Slip the belt out from the drive pul-
ley and remove completely from ve-
hicle. To install drive belt, reverse
procedure.
Remove cab and pulley guard. Remove
the
two bolts (A) holding disc brake to
the frame. Loosen nut (8) to separate
brake caliper from disc brake bracket.
Pivot the brake bracket assembly half
a turn. Open the driven pulley. Twist
and push the sliding half then hold in
open position; slip slackened belt over
the
top edge of the sliding half. Slip
the belt out from the drive pulley and
remove from vehicle by passing it
under the driven pulley and disc brake
assembly. To install drive belt follow
reverseprocedure.
Lubricate the suspension bogie wheels
using low temperature grease. Pump
through the grease fitting at center of
14
each wheel until new greaseappearsat
the jointof inner side of shaft.
On Alpine model, to grease the inner
side bogie wheels, tilt vehicle on its
side and apply pressure on track to
expose greasefittings.
Lubricate the rear axle with low-tem-
perature grease. Pump through the rear
axle fittings.
CAUTION: Always use a
low
pressure grease gun when lubri-
cating rearaxle.
Using a
low pressure greasegun, lubri-
cate the idler wheels with low tem-
perature grease. Pump 3 to 4 times
through the grease fitting located on
each cap of idler wheel. Wipe
off
excess.
•WARNING: Do
not lubricate
throttle and / or brake cable and
housings.

Lubricate ski legs at grease fittings un-
til new grease appears at joints. Oil
spring coupler bolts.
light machine oil, lubricate the
spring located on top of steering col-
umn housing. Allow oil to run in. Oilthe
mobile contact point at
bottom end of
steering arm. Using a small brush,
dipped in
low temp grease, lubricate
steering arm ball joint.
Greasethe ski leg at grease fitting until
new grease appears at the joint. Lu-
bricate spring coupler bolt
with oil.
Remove tool box then check oil levelby
removing oil level inspection plug. Oil
should be at bottom lip of hole. Reple-
nish as necessary by removing the filler
cap using a spark plug socket.
Oil level
Inspection plug
Elan Olympique, Everest
and
T'NT
Using the spark plug socket, remove
the filler cap then using a rigid wire as
a
"dipstick" check oil level. The oil
level on the
"dipstick" should be 7.5 to
8.5 cm (3" to 3Y2 "l. Replenish as
necessary.
ONOTE: On all models, the chain-
case oil capacity is approximately
256ml (9oz.).
gearbox oil capacity is 454 ml (16
ozs.) To check level:
Remove rubber inspection cover lo-
cated on bottom right side of gearbox.
Using a rigid piece of wire as dipstick,
chck oil level. Oil level must reach 8.2
cm (3\4
"l on dipstick.
To fill, remove filler cap from top of
gearbox. Refill as required using Bom-
bardier chaincase oil. 15

The drive pulley requires lubrication
bi-monthly or every 20 hrs. of opera-
tion. All other models, covered in this
manual do
not require lubrication.
+WARNING: The lubrication of
the drive pulley should be per-
formed only by an authorized dealer.
Adisassembly, cleaning, inspection
and lubrication
where applicable
shouldalso be performed by the dealer
every 100operating hoursor at the end
of each season, whichever occurs
first.
IMPORTANT: The drive pulley assem-
bly will be excluded from warranty, if
the factory seal is broken by other than
a duly authorized representative of
Bombardier.
With cab removed, grease the driven
pulley shaft as follows:
Remove pulley guard and slip
off drive
belt. Open the driven pulley, (push and
twist sliding half).
Thoroughly clean the driven pulley
shaft.
Apply alight coat of low-temp grease
on the shaft. Always lubricate lightly
and wipe
off surplus.
ONOTE: Activate the sliding half
several times to distribute lubri-
cant over full length of shaft. Be care-
ful that lubricant does not get on inner
halves of pulley.
16

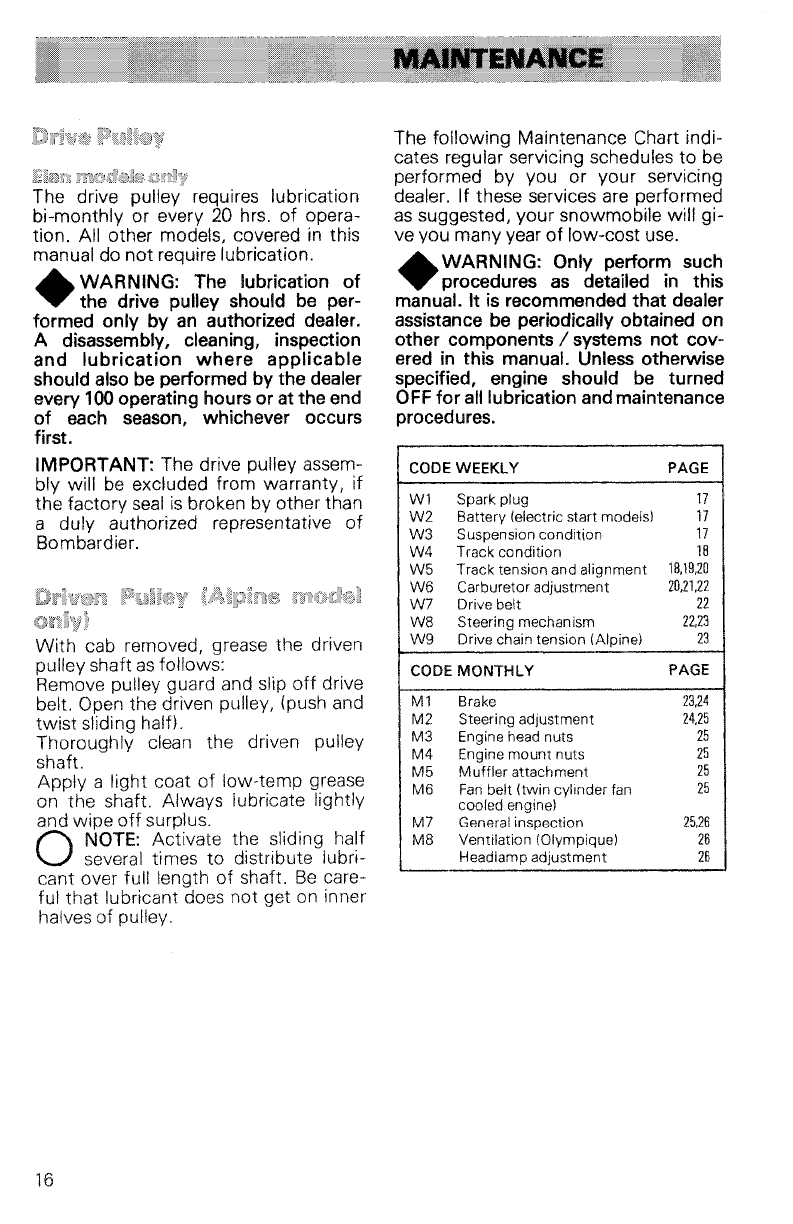

The following Maintenance Chart indi-
cates regular servicing schedules to be
performed by you or your servicing
dealer. If these services are performed
as suggested, your snowmobile will gi-
ve you many year of low-cost use.
+WARNING: Only perform such
procedures as detailed in this
manual. It is recommended that dealer
assistance be periodicallyobtained on
other components Isystems not cov-
ered in this manual. Unless otherwise
specified, engine should be turned
OFF for all lubrication andmaintenance
procedures.
CODE WEEKLY PAGE
W1 Spark plug
17
W2 Battery (electric start models) 17
W3 Suspension condition
17
W4 Track condition 18
W5 Track tension and alignment
18.19.20
W6 Carburetor adjustment
20.21,22
W7 Drive belt 22
W8 Steering mechanism
22.23
W9 Drive chain tension (Alpine)
23
CODE MONTHLY
PAGE
M1 Brake
23,24
M2 Steering adjustment
24,25
M3 Engine head nuts
25
M4 Engine mount nuts
25
M5 Muffler attachment
25
M6 Fan belt (twin cylinder fan
25
cooled enginel
M7 General inspection
25,26
M8 Ventilation (Qlympiquel
26
Headlamp adjustment
26

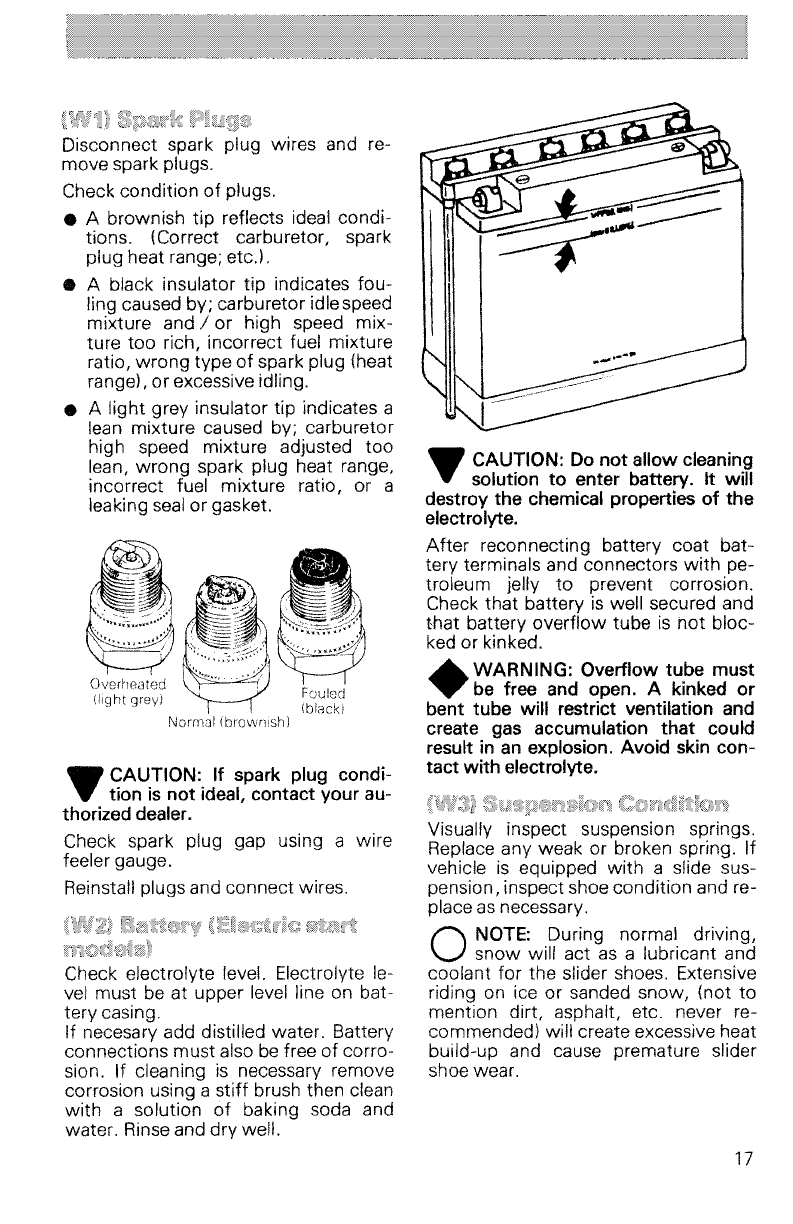

Disconnect spark plug wires and re-
move spark plugs.
Check condition of plugs.
• A brownish tip reflects ideal condi-
tions. (Correct carburetor, spark
plug heat range; etc.).
• A black insulator tip indicates fou-
ling caused by; carburetor idlespeed
mixture and / or high speed mix-
ture too rich, incorrect fuel mixture
ratio, wrong type of spark plug (heat
range). or excessive idling.
• A light grey insulator tip indicates a
lean mixture caused by; carburetor
high speed mixture adjusted too
lean, wrong spark plug heat range,
incorrect fuel mixture ratio, or a
leaking sealor gasket.
Norrr1Jl (brcwrusn)
_CAUTION: If spark plug condi-
.". tion is not ideal, contact your au-
thorized dealer.
Check spark plug gap using a wire
feeler gauge.
Reinstall plugs and connect wires.
Check electrolyte level. Electrolyte le-
vel must be at upper level line on bat-
tery casing.
If necesary add distilled water. Battery
connections must also be free of corro-
sion. If cleaning is necessary remove
corrosion using a stiff brush then clean
with asolution of baking soda and
water. Rinseand dry well.
-CAUTION: Do
not allow cleaning
.". solution to enter battery. It will
destroy the chemical properties of the
electrolyte.
After reconnecting battery coat bat-
tery terminals and connectors with pe-
troleum jelly to prevent corrosion.
Check that battery is well secured and
that battery overflow tube is not bloc-
ked or kinked.
+WARNING: Overflow tube must
be free and open. A kinked or
bent tube will restrict ventilation and
create gas accumulation
that could
result in an explosion. Avoid skin con-
tact with electrolyte.
Visually inspect suspension springs.
Replace any weak or broken spring. If
vehicle is equipped with a slide sus-
pension, inspect shoe condition and re-
place as necessary.
ONOTE: During normal driving,
snow will act as a lubricant and
coolant for the slider shoes. Extensive
riding on ice or sanded snow, (not to
mention dirt. asphalt, etc. never re-
commended) will create excessive heat
build-up and cause premature slider
shoe wear.
17

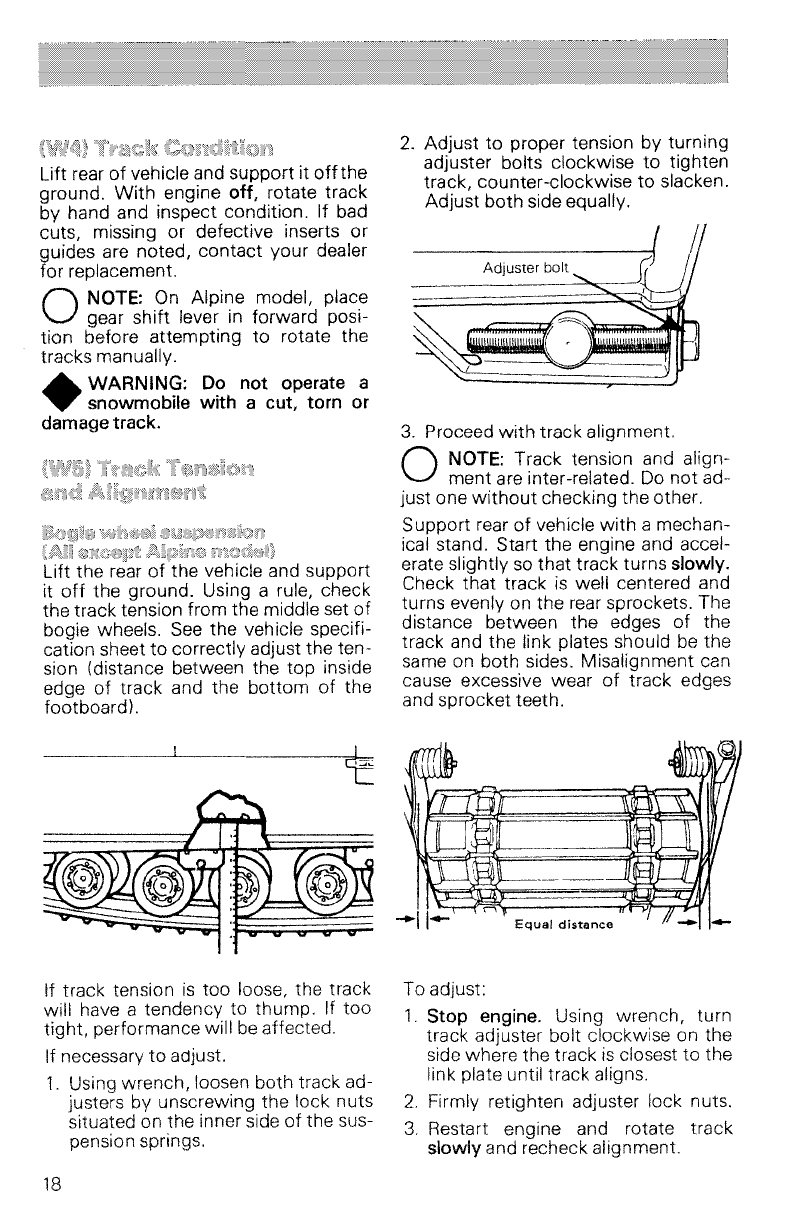

Lift rear of vehicle and support it off the
ground.
With engine off, rotate track
by hand and inspect condition. If bad
cuts, missing or defective inserts or
guides are noted, contact your dealer
for replacement.
ONOTE: On Alpine model, place
gear shift lever in forward posi-
tion before attempting to rotate the
tracks manually.
•WARNING: Do
not operate a
snowmobile
with a cut, torn or
damage track.
Lift the rear of the vehicle and support
it
off the ground. Using a rule, check
the track tension from the middle set of
bogie wheels. See the vehicle specifi-
cation sheet to correctly adjust the ten-
sion (distance between the top inside
edge of track and the bottom of the
footboard).
2.
A~just to proper tension by turning
adjuster bolts clockwise to tighten
track, counter-clockwise to slacken.
Adjust both side equally.
Adjuster bolt
3. Proceed with track alignment.
ONOTE: Track tension and align-
ment are inter-related. Do not ad-
just one without checking the other.
Support rear of vehicle
with amechan-
ical stand. Start the engine and accel-
erate slightly so that track turns slowly.
Check that track is well centered and
turns evenly on the rear sprockets. The
distance between the edges of the
track and the link plates should be the
same on both sides. Misalignment can
cause excessive wear of track edges
and sprocket teeth.
--II ....
Equal distance
If track tension is too loose, the track
will have a tendency to thump. If too
tight, performance will be affected.
If necessary to adjust.
1. Using wrench, loosen both track ad-
justers by unscrewing the lock nuts
situated on the inner side of the sus-
pension springs.
18
To adjust:
1. Stop engine. Using wrench, turn
track adjuster bolt clockwise on the
side where the track is closest to the
link plate until track aligns.
2. Firmly retighten adjuster lock nuts.
3. Restart engine and rotate track
slowly and recheck alignment.
