Bonavita Interurban Series User manual

Interurban
1.0L STAINLESS STEEL
VARIABLE TEMPERATURE KETTLE
CUSTOMER SUPPORT
USA 1-855-664-1252
[email protected]
Patents: D683,584, 146260
TECHNICAL DATA
Rated voltage: 120V, 60Hz,
AC only
Rated power input: 1000 W
1-year limited warranty
Item # BV07002US, BV07003US,
BV07004US, BV07005US

3
BonavitaWorld.com
Table of Contents
Safeguards
Important Safeguards...............................................................................4
Warranty
Limited Warranty ......................................................................................7
Instructions
Product Features......................................................................................8
Operating Kettle .......................................................................................9
Kettle Set-Up..................................................................................9
Before First Use ............................................................................10
Temperature Scale, °F or °C .........................................................10
Preset Temps Button ....................................................................10
Manually Setting Temperature .......................................................10
Boil Button....................................................................................11
Hold Button ..................................................................................12
Count-Up Timer / Stopwatch Feature ...........................................12

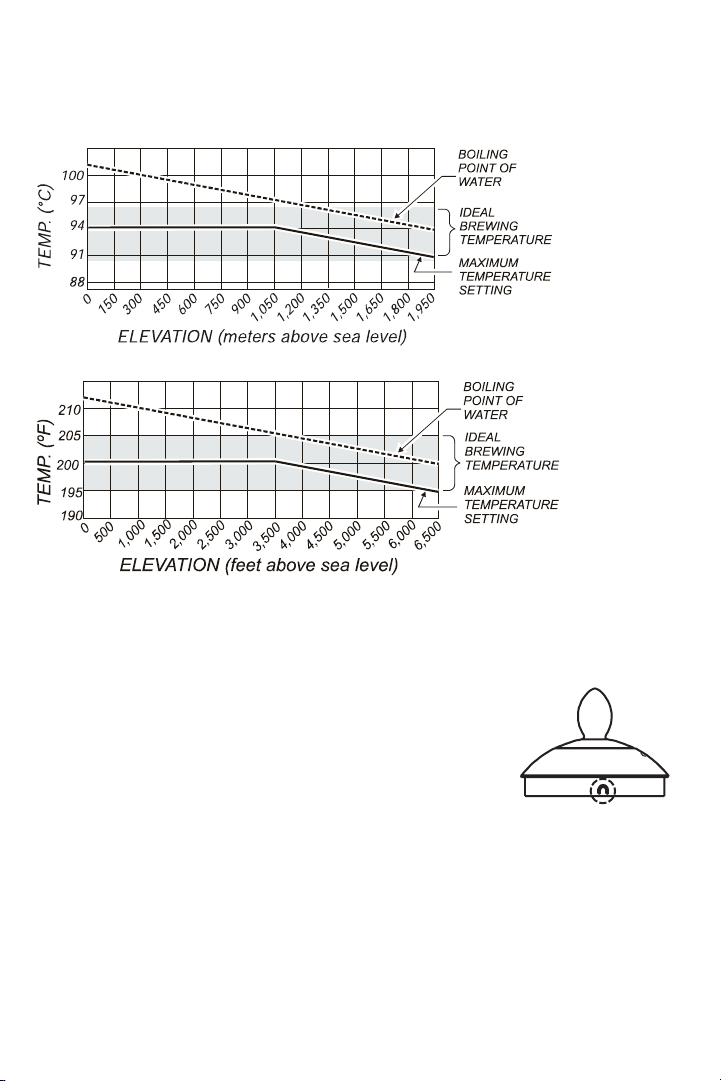

High Altitude Use....................................................................................13
Adjusting Kettle Lid Tension....................................................................13
Cleaning and Maintenance .....................................................................14
Pour-Over / Manual Brew Coffee ............................................................15
Recommended Temperatures.................................................................16
Troubleshooting......................................................................................16

4
IMPORTANT SAFEGUARDS
WARNING: This appliance utilizes a high wattage relay for arriving at the
desired water temperature. In some instances, this relay may cause slight
flickering of lights on the same circuit. It is best to use this appliance on a
dedicated circuit or with all other appliances off during this appliance’s use.
It will not damage electrical systems but caution should be used to not
overload this circuit with other appliances running at the same time.
When using electrical appliances, basic safety precautions should always be
followed, including the following:
Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock and injury to
persons, do not immerse cord, plugs, base or kettle in
water or other liquid.
• Never leave the appliance unattended when in use.
Close supervision is necessary when any appliance is
used by or near children.
• Unplug from outlet when not in use, when empty,
and before cleaning. Allow to cool before putting on
or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord
or plug, after the appliance has malfunctioned, or
has been damaged in any manner. Call our toll-free
Customer Support Number 1-855-664-1252 for
examination, repair, or replacement.
• Do not use a base unit other than the one supplied.
The use of accessory attachments is not recommended
by the appliance manufacturer and may result in fire,
electrical shock or personal injury.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table,
countertop, or touch hot surfaces. Always store the
excess portion of the power cord in the underside
compartment of the base unit.

5
BonavitaWorld.com
• The digital kettle must be operated on a flat surface. Do not place on or near
a hot electric or gas burner, or in a heated oven, or on the top of other electric
appliances.
• Plug cord into the wall outlet and then turn on. To disconnect, turn base off, then
remove plug from wall outlet.
• Do not use appliance for other than intended use.
• To avoid circuit overload, do not operate another high wattage appliance on the
same circuit.
• Always remove kettle from base before filling. Remove all moisture on the bottom
of the kettle before placing it onto the power base.
• Be aware of steam being emitted from spout or lid especially during refilling.
Do not remove lid during heating cycle. Scalding may occur if the lid is removed
during heating cycles.
• Do not use the kettle to heat anything other than water. Do not fill above the 1.0 L
indicator inside the kettle. If the kettle is overfilled, hot water may be ejected.
• Do not insert any object into slots or holes of the kettle.
DO NOT ATTEMPT TO OPERATE APPLIANCE IF THE POWER CORD
SHOWS ANY DAMAGE, OR IF APPLIANCE WORKS INTERMITTENTLY,
OR STOPS WORKING ENTIRELY.
EXTENSION CORDS
A short power-supply cord is provided to reduce the risk resulting from becoming
entangled in or tripping over a longer cord. Longer, detachable power-supply
cords or extension cords may be used if care is exercised in their use. If a longer
detachable power-supply cord or extension cord is used:
• The marked electrical rating of the cord set or extension cord should be at least
as great as the electrical rating of the appliance
• The extension cord should be a grounding-type 3-wire cord
• The longer cord should be arranged so that it will not drape over the countertop
or tabletop where it can be tripped over, snagged, or pulled on unintentionally
(especially by children).
CAUTION: This appliance must be grounded when in use. To ensure
protection against risk of electric shock, connect to properly ground
outlets only.

6
Circuit grounding
conductor
connected
properly
grounding prong
Adapter
grounding means Cover of grounded
outlet box
Metal mounting
screw
SAVE THESE INSTRUCTIONS!
GROUNDING INSTRUCTIONS
The appliance has a plug that looks like Figure A. An adapter, as shown in Figure
B, should be used for connecting a 3-prong grounding plug to a 2-wire receptacle.
The grounding tab, which extends from the adapter, must be connected to a
permanent ground such as a properly grounded receptacle as shown in Figure C,
using a metal screw.

7
BonavitaWorld.com
Limited Warranty
1-year limited warranty from the date of original purchase.
1. This warranty extends only to the original consumer purchaser or gift recipient.
An original sales receipt from an authorized retailer is required as proof of
purchase for all warranty claims.
2. Damages or defects which are not the responsibility of the manufacturer
including but not limited to the following are not covered under this limited
warranty:
• Defects resulting from improper connection, improper handling, impermissible or
improper use or failure to follow instructions
• Use of any third party products not designed or specified for use in or on the
product (e.g. cleaning and decalcifying agents)
• Repairs or modifications made by the consumer or unauthorized third parties
3. Failure to comply with any safeguards listed in the Important Safeguards
section will void limited warranty.
4. Commercial UL Rated: USA
5. Household UL Rated: Canada
Please call 1-855-664-1252
or e-mail [e-mail] for warranty claims.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES IMPLIED
WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED
TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY
BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD
ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS
OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT
APPLY TO YOU. IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S
SOLE AND EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT
ACCORDING TO THE TERMS OF THIS LIMITED WARRANTY. BONAVITA, ESPRESSO
SUPPLY, Inc. or SMARTCO INTERNATIONAL LIMITED DO NOT ASSUME ANY
RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. This warranty
gives you specific legal rights and you may also have other rights which vary from
state to state, country to country or province to province.

8
Product Features
Gooseneck
Spout
Rated voltage: 120V 60Hz
Rated current: 8.3 A
Rated power input: 1000 W
Capacity:
max. 33.8 oz (1.0 L)
Lid
Water Level Indicator
(Inside Kettle on Handle Side)
Handle
Power Cord
with Plug
Base with
Cord Storage
Boil Button
Hold Button
with LED Light
+ Button & Count Up Timer
Start / Stopwatch Function
- Button
Power Button
with LED Light
Preset
Temps
Button
LCD Screen

9
BonavitaWorld.com
Operating Kettle
Visit the Support section of BonavitaWorld.com to view instructional videos on
using your Bonavita Kettle.
Please note: Before plugging the kettle into the
wall outlet, check that the electrical circuit is not
overloaded with other appliances.
KETTLE SET-UP
1. Set the base on a flat, even and steady surface.
2. Take off the kettle lid, fill kettle with cold water
(Fig. 1).
3. After adding the minimum to maximum amount of
cold water, insert lid into kettle opening with holes
facing towards the handle (Fig. 2).
4. Place the kettle firmly on the stainless-steel base
and plug power cord into standard wall outlet
(Fig. 3).
5. When ready, press the Power Button (Fig. 4) and
the LED surrounding the button will illuminate.
The LCD will turn on, and the display will flash set
temperature for 3 seconds, then begin heating.
6. This product is pre-programmed to display °F
settings. You have the capability of switching to
°C by holding down both - and + Buttons at the
same time for three seconds to switch between
Fahrenheit and Celsius while the power is on.
7. The factory default temperature is 185°F (85°C)
1
3
2
4

10
BEFORE FIRST USE
1. Fill the kettle to 1.0L fill line with cold water then heat at the maximum boil
temperature setting.
2. Empty the kettle, and let the appliance cool down for one minute.
3. Repeat the same heating cycle written in the directions above once more and
rinse. Your kettle is now ready for use.
TEMPERATURE SCALE, ˚F OR ˚C
This product is pre-programmed to display °F settings. You have the capability of
switching to °C by holding down both - and + Buttons at the same time for three
seconds to switch between Fahrenheit and Celsius while the power is on.
PRESET TEMPS BUTTON
Immediately after turning kettle on, press the Preset Temps Button and continue
to press it until your desired preset temperature is displayed. If you would like
to see which temperatures are best for certain beverages, please checkout the
Recommended Temperatures table on page 15.
Please note: The Factory preset temperatures are: 140°F (60°C), 176°F (80°C),
185°F (85°C), 190°F (88°C), 205°F (96°C) and 208°F (98°C).
Please note: While these preset temperatures can’t be reprogrammed, you can
manually set the kettle to a customized temperature by following the instructions in
Manually Setting Temperature below.
MANUALLY SETTING TEMPERATURE
1. Press the Power Button and the LED surrounding
the button will illuminate. The last temperature set
point flashes on the display.
Please note: Pressing the Hold Button while the
temperature flashes will maintain your selected
temperature for up to one hour (see Hold Button on
page 11 for more information).
2. Press or hold the - or + Button to select your
preferred temperature (Fig. 5).
3. Once the display stops flashing the temperature is set and the display shows
current water temperature. The kettle will now begin heating.
Hold
192F
5

11
BonavitaWorld.com
Please note: Once you have set a desired temperature, it is stored in memory
and will be recalled whenever you turn on the kettle. You only need to reset the
temperature when you want a different water temperature.
During the heating cycle the LCD display shows the current water temperature,
unless you are using the Boil Button in which the display will show BOIL.
After the set temperature is reached the heater will turn off but the display will
continue to show water temperature for up to 1 hour if the kettle remains on
the base.
If the kettle is removed from base during a heating cycle, the heating cycle and
power indicator light will turn off. The LCD will display 0 00. When the kettle is
returned to base the display will show current water temperature for 7 minutes
and then turn off.
To manually interrupt the heating process, press the Power Button at any time.
The heater and LED lights will turn off.
The maximum manual temperature setting is 208˚F. This kettle is designed to heat
at the specific temperature you select, up to the boiling point. Boiling is 212°F
at sea level and may be lower based on your elevation. If the kettle is set at a
temperature higher than the boiling point of your elevation, it will stop heating once
it reaches boiling.
BOIL BUTTON
Using the Boil Button is the fastest way to boil water
with your kettle. Your kettle adjusts its boiling point to
your altitude. At higher elevations water boils at lower
temperatures. The Boil Button is an optional feature.
1. Press the Power Button and the LED surrounding the
button will illuminate. The last temperature set point
flashes on the display.
2. Press the Boil Button (Fig. 6).
3. The kettle will now begin heating. The LCD screen will display BOIL until the
water boils. After the water boils the screen will display the current water
temperature.
Please note: If the LED around the power button is illuminated your kettle is already
on and you can skip Step 1. If you change your mind and do not want to heat your
water to boiling after pressing the boil button, press the boil button again or lift
Hold
6
Step 1
Step 2

12
your kettle off of the base to reset. To select a new temperature follow instructions
in Preset Temps Button or Setting Temperature Manually. In addition, the previous
temperature set point used on the kettle does not affect the boil temperature.
HOLD BUTTON
The Hold Button allows the kettle to reach and maintain set temperature for up to
one hour. This is an optional feature.
1. Press the Power Button and the LED surrounding the button will illuminate. Then
select the temperature set point using Manually Setting Temperature directions.
2. Press the Hold Button and the LED around the Hold Button will illuminate.
3. When set temperature is reached the heater will turn off and on as needed to
maintain set temperature.
4. When you lift kettle to pour and return to the base, the Hold Button must be
pressed again if you want to continue the hold temperature function. If you don’t
press the Hold Button after returning the kettle to the base, the display will show
current water temperature for 7 minutes and the unit will proceed to power off.
Please note: The hold function is disabled when the boil button is in use.
COUNT-UP TIMER / STOPWATCH FEATURE
When you lift the kettle, the LCD display will show a count-up timer / stopwatch.
The first number indicates the minutes, and the last two numbers indicate the
seconds (the maximum count time is 7 minutes). Press the + button to start the
timer. Set the kettle back on the base and lift back off to reset timer to zero.

13
BonavitaWorld.com
High Altitude Use
At higher elevations water boils at lower temperatures. Use the graph below to set
your kettle temperature.
Adjusting Kettle Lid Tension
If you feel the kettle lid is too hard or too easy to remove from the kettle, please
follow the steps below to adjust the tension:
1. Take the lid off the kettle.
2. Use a tool to adjust the three tabs of the kettle lid. If you
push in the tab, the lid tension will be lessened and easier
to push on and off. If you pull out the tabs the lid will be
harder to pull off.
3. Adjust the tabs, replace the lid and remove it to see if the adjustment is correct.
4. Repeat the step 2 and 3 until you have adjusted the lid to your preference.
lid tab

14
Cleaning and Maintenance
Clean your Bonavita Kettle regularly. This appliance contains no user serviceable
parts and requires little maintenance. Please leave any servicing or repairs to a
qualified professional.
Clean outside of the stainless-steel base and the kettle with a damp, soft cloth.
Clean the inside of the kettle with dishwashing detergent and rinse thoroughly with
warm water.
Do not use abrasive cleansers on this product.
After cleaning, dry the kettle and the stainless-steel base thoroughly.
When mineral scale builds up in your kettle, it can affect temperature consistency
and extend heating time. To ensure optimum performance, Bonavita recommends
descaling the kettle when mineral build-up is visible inside the kettle with a good
quality biodegradable and phosphate-free descaler. Based on the specific mineral
content of the water, you may see white, grey, black or reddish brown discoloration.
The mineral content of the water will determine how frequently you will need to
descale.
Please note: Vinegar may not effectively descale the kettle and can be difficult to
thoroughly rinse. Vinegar may also leave behind an odor that could affect future
uses. Bonavita recommends using a good quality biodegradable and phosphate-
free descaler for kettles rather than vinegar.
USE OF DESCALER:
Please follow the instructions on the descaler packet.
STORAGE:
Clean and dry all parts of this kettle before properly storing. Store the kettle in its
original box or in a clean, dry place. Never wrap the power cord around the kettle.
Always use the cord storage on the bottom of the base.
12 3
Boil
12
6
9
:15 min
3
4 5

15
BonavitaWorld.com
Pour-Over / Manual Brew Coffee
Pour-Over is a manual brewing method that ensures the precise control of the
temperature of the water, the duration of the brew and allows thorough saturation
of the grounds. Many coffee enthusiasts consider Pour-Over an artisanal method
for brewing coffee.
Equipment Suggestions:
Suggested water to coffee ratio – 16:1
Pour-Over Dripper:
1. Set the temperature of your Bonavita Kettle to 205 °F / 96 °C.
2. Add a paper filter to the dripper and rinse with hot water until the filter is
completely saturated.
3. Place the dripper on a drinking cup or carafe.
4. Add desired amount of coffee, we suggest a water to coffee ratio of 16:1
5. Add approximately 25% of the total water. We recommend starting in the center
and pouring in a circular pattern moving towards the edge of the dripper.
6. Wait 30-40 seconds. This pause enables the blooming process when gasses are
released from the grounds allowing them to absorb the water.
7. Slowly pour in the remaining amount of water in a circular pattern allowing the
finished coffee to flow through the dripper. Be mindful of your drinking cup or
carafe capacity to prevent spilling.
MA
X
Grinder
Bonavita®
Scale
Drinking Cup
or Carafe
Paper Filter, Cloth
or Permanent Filter
Bonavita®
Immersion
Dripper
or Pour-Over
Dripper
Bonavita®
Kettle

16
Immersion Dripper:
1. Ensure the lever is at the “open” position, add a paper filter to the dripper, and
rinse with hot water until filter is completely saturated.
2. Set the lever to “close” and follow steps 3-4 above, then add your desired
amount of water, allowing the coffee to immerse in the water for 2 minutes
30 seconds.
3. Move the lever to “open” to allow the coffee to drain into your drinking cup
or carafe.
RECOMMENDED TEMPERATURES
Coffee 205 °F 96 °C
Black Tea 208 °F 98 °C
Green Tea 176 °F 80 °C
Oolong Tea 190 °F 88 °C
White Tea 185 °F 85 °C
Cereal (Oatmeal) 208 °F 98 °C
Cocoa 190 °F 88 °C
Troubleshooting
Regular descaling helps extend the life of your kettle. Scale forms when hot water
evaporates and solid minerals are left behind. Based on the specific mineral content
of the water, you may see white, grey, black or reddish brown discoloration. The
mineral content of the water will determine how frequently you will need to descale.
If neglected too long, limescale can shorten the life of your kettle. We recommend
periodically using a good quality biodegradable and phosphate-free descaler.
Bonavita is a trademark of Smartco International
© 2018 Smartco International (Asia) Limited. All rights reserved.
Printed in China
Part # 29707-00

17
BonavitaWorld.com
Interurban
BOUILLOIRE EN ACIER INOXYDABLE
DE 1 L À TEMPÉRATURE VARIABLE
SERVICE À LA CLIENTÈLE
États-Unis:1-855-664-1252
[email protected]
Brevets: D683,584, 146260
DONNÉES TECHNIQUES
Tension nominale: 120V, 60Hz,
CA seulement
Puissance absorbée nominale: 1000W
Garantie limitée de 1an
Article no BV07002US, BV07003US,
BV07004US, BV07005US

18
Table des matières
Mises en garde
Mises en garde importantes .........................................................................19
Garantie
Garantie limitée.............................................................................................22
Instructions
Caractéristiques du produit...........................................................................23
Utilisation de la bouilloire...............................................................................24
Mise en place.....................................................................................24
Avant la première utilisation ................................................................25
Échelle de température, °F ou °C .......................................................25
Bouton de préréglage de la température ............................................25
Réglage manuel de la température .....................................................25
Bouton d’ébullition .............................................................................26
Bouton de maintien chauffe................................................................27
Fonction de compteur progressif / minuterie.......................................27
Utilisation à haute altitude.............................................................................28
Ajustement de la tension du couvercle..........................................................28
Nettoyage et entretien ..................................................................................29
Infusion par versement / manuelle ................................................................30
Températures recommandées ......................................................................31
Dépannage...................................................................................................31

19 BonavitaWorld.com
MISES EN GARDE IMPORTANTES
AVERTISSEMENT : Cet appareil utilise une puissance électrique de relais élevée pour
atteindre la température désirée de l’eau. Dans certains cas, ce relais peut causer un
clignotement des lumières sur le même circuit. Il est préférable d’utiliser cet appareil
sur un circuit dédié ou d’éteindre tous les autres appareils lors de son utilisation.
Cela n’endommagera pas les systèmes électriques, mais la prudence est de mise pour
ne pas surcharger ce circuit avec d’autres appareils fonctionnant en même temps.
Lors de l’utilisation d’appareils électriques, il est toujours recommandé de prendre des
mesures de sécurité élémentaires, incluant les suivantes :
Veuillez lire toutes les instructions.
• Ne touchez pas les surfaces chaudes. Utilisez les poignées
ou les boutons.
• Pour vous protéger contre les incendies, les chocs
électriques et les blessures, n’immergez pas le cordon, les
fiches, le socle ou l’appareil dans de l’eau ou tout autre liquide.
• Ne laissez jamais un appareil en cours d’utilisation sans
surveillance. Une surveillance étroite est requise lorsqu’un
enfant utilise n’importe quel appareil ou se trouve à proximité.
• Débranchez l’appareil de la prise lorsqu’il n’est pas utilisé,
vide et avant le nettoyage. Laissez refroidir l’appareil avant d’y
ajouter ou de retirer des pièces et avant son nettoyage.
• N’utilisez aucun appareil si la fiche ou le câble d’alimentation
sont endommagés, après un mauvais fonctionnement ou s’il a
été endommagé de n’importe quelle façon. Composez le
numéro de notre service à la clientèle sans frais,
1-855-664-1252, pour toute vérification, réparation ou pour
tout remplacement.
• N’utilisez aucun autre socle que celui déjà fourni. L’utilisation
d’accessoires externes n’est pas recommandée par le
fabricant et peut causer des incendies, des chocs électriques
ou des blessures.
• N’utilisez pas l’appareil en plein air.
• Ne laissez pas le cordon pendre d’une table ou d’un
comptoir, ou toucher aux surfaces chaudes. Rangez toujours
l’excédant de cordon d’alimentation dans le compartiment
sous le socle.
BonavitaWorld.com

20
• Utilisez toujours la bouilloire numérique sur une surface plane. Ne la placez pas sur le
dessus ou près d’un brûleur à gaz ou électrique, dans un four chaud ou sur tout autre
appareil électrique.
• Branchez le cordon dans une prise murale, et allumez par la suite. Pour débrancher :
éteignez le socle, puis débranchez le cordon de la prise murale.
• N’utilisez pas l’appareil à d’autres fins que celles prévues.
• Pour éviter toute surcharge de circuit, n’utilisez pas un autre appareil à puissance électrique
élevée sur le même circuit.
• Retirez toujours la bouilloire de son socle avant de la remplir. Enlevez toute humidité de la
base de la bouilloire avant de la placer sur son socle.
• Méfiez-vous des émissions de vapeur du bec ou du couvercle, surtout lors du remplissage.
Ne retirez pas le couvercle durant le cycle de préparation. Si le couvercle est retiré pendant
les cycles de préparation, il existe le risque de vous brûler.
• N’utilisez pas la bouilloire pour chauffer autre chose que de l’eau. Ne la remplissez pas
au-dessus de la ligne de 1 L. Il peut y avoir un débordement d’eau chaude si elle est trop
pleine.
• N’insérez aucun objet dans les fentes ou les orifices de la bouilloire.
N’UTILISEZ PAS L’APPAREIL SI LE CORDON MONTRE DES SIGNES
D’ENDOMMAGEMENT, S’IL FONCTIONNE DE FAÇON INTERMITTENTE OU
S’ARRÊTE COMPLÈTEMENT.
RALLONGES
Un cordon d’alimentation court est fourni pour réduire ses risques d’enchevêtrement ou de
trébuchement. Des rallonges ou des cordons d’alimentation plus longs et amovibles peuvent
être utilisés si l’on prend les précautions nécessaires. En cas d’utilisation d’un cordon
d’alimentation amovible ou d’une rallonge :
• La puissance électrique indiquée sur la rallonge ou le cordon d’alimentation amovible
devrait au moins correspondre à la puissance électrique de l’appareil
• La rallonge devrait être de type trifilaire avec une fiche ayant un contact de terre
• Le cordon plus long devrait être disposé de sorte qu’il ne pende pas d’un comptoir ou
d’une table pour éviter que quelqu’un, en particulier des enfants, ne trébuche, ne l’accroche
ou ne le tire.
AVERTISSEMENT : Cet appareil doit être mis à la terre lors de son utilisation. Pour
vous prémunir des risques de chocs électriques, ne le connectez qu’à une prise de
terre appropriée.
