Ibrido Top foreword
Congratulations on the purchase of your new barbecue. We are
condent that you, with your passion for barbecuing and the outdoor
life, are going to turn an average summer’s evening into a beautiful
buona sera and your garden into a giardino.
Squadra Boretti
Please read this manual carefully and keep it stored for future
reference! This manual contains specic instructions for your safety,
and for the assembly, operation and maintenance of your barbecue.
Only use the barbecue as described in these instructions. Exercising
good judgement and being careful when operating is an
absolute must!

3
ENBoretti Ibrido Top / User guide - Installation advice
Table of contents
*1. General safety instructions.....................................................................................4
*2. Parts..............................................................................................................................6
*3. Assembly drawings ..................................................................................................7
*4. Use of your barbecue...............................................................................................11
*5. Maintaining your barbecue.....................................................................................15
*6. Environmental regulations, warranty terms & contact info............................18

4
ENBoretti Ibrido Top / User guide - Installation advice
1. General safety instructions
Important safety information, pleas read this manual carfully
and keep it stored for future reference!
Important:
*Before the first use, carefully read all the information in
this manual.
*Never let children or pets near this barbecue.
*This barbecue may never be operated by children, people with
an intellectual disability, or people under the inuence of drugs
and/or medication.
*Always keep as much distance as possible when starting and
operating this barbecue.
*It is imperative to use the supplied gas pressure regulator. If
you replace the gas pressure regulator, the replacement must
comply with the EN 16129 standard. The gas pressure of the
gas pressure regulator must correspond to the gas pressure
stated on the model label.
*Ensure that the gas hose does not bend during assembly (of
the gas pressure regulator).
*Ensure that the gas tap of the gas cylinder is accessible, so that
you can shut off the gas supply to the barbecue.
*Change the gas cylinder in an area where there are no
ignition sources.
*The gas cylinder can be placed underneath the barbecue. This
does not apply to a table-top barbecue.
*Extinguish all ames and DO NOT SMOKE while opening the
gas tap and starting the barbecue.
*This barbecue becomes very hot, please exercise extreme care
and pay attention when using it.

5
ENBoretti Ibrido Top / User guide - Installation advice
*If you smell gas, make sure that all gas connections are
tightened before using the barbecue. If after that you still smell
gas, close the gas tap and contact the store where you bought
the barbecue immediately.
*Always keep ammable and/or combustible substances, gases,
liquids, and materials away from the barbecue and never let
them come in direct contact with the barbecue.
*Failure to follow and/or incorrectly following the instructions,
precautions, safety precautions and warnings contained in this
manual may result in re or explosion, material damage, and
may even result in serious physical injury or death.
*The barbecue is meant for household use and is only meant for
the preparation of food.
1.1 Assembly
*Assemble the barbecue as explained in the assembly drawings
featured in this manual.
*Incorrect assembly, or not following the correct sequence of
assembly as instructed in the assembly drawings, could lead to
very dangerous situations.
*Always be careful and thorough during assembly of the barbecue.
*All parts must be assembled as instructed in the assembly drawings.
*If a part is missing and/or you question the accuracy of the assembly,
please contact your point of sale immediately.
*Never repair or replace parts of this appliance yourself, unless this is
explicitly stated in this manual.
*Never connect a damaged gas hose to the barbecue. This may
lead to re.
*If the barbecue is equipped with a plug, this will be a grounded
mains plug, to protect you from electric shocks. The plug must be
plugged into a suitable, earthed socket. NEVER remove the metal
plates from the plug.

6
ENBoretti Ibrido Top / User guide - Installation advice
1.2 Place of use
*Only use the barbecue outdoors (outside) and in a well-ventilated area.
Never use the barbecue indoors or in any (partly) enclosed space. Toxic
fumes will accumulate, which may cause serious physical injury or may
result in death.
*Never use the barbecue on a ammable or combustible surface.
*Only use the barbecue on a hard, straight, and stable surface that can
carry its weight.
*Keep a minimum of 3 meters distance between the barbecue and all
ammable and/or combustible materials (wood, plastic, foliage, etc.)
when the barbecue is being used.
*Always keep the barbecue away from gasoline and/or other ammable
and/or combustible liquids, gases, fumes, or areas suspected of
possibly containing these.
*Never use the barbecue if there is a strong wind.
*Make sure that the main burner(s) and the infrared burner at the back
are NEVER switched on at the same time. This can lead to warping of
the barbecue lid.
*The barbecue becomes very hot, never attempt to move it during or
shortly after using it.
*Do not use the rotisserie in rain.

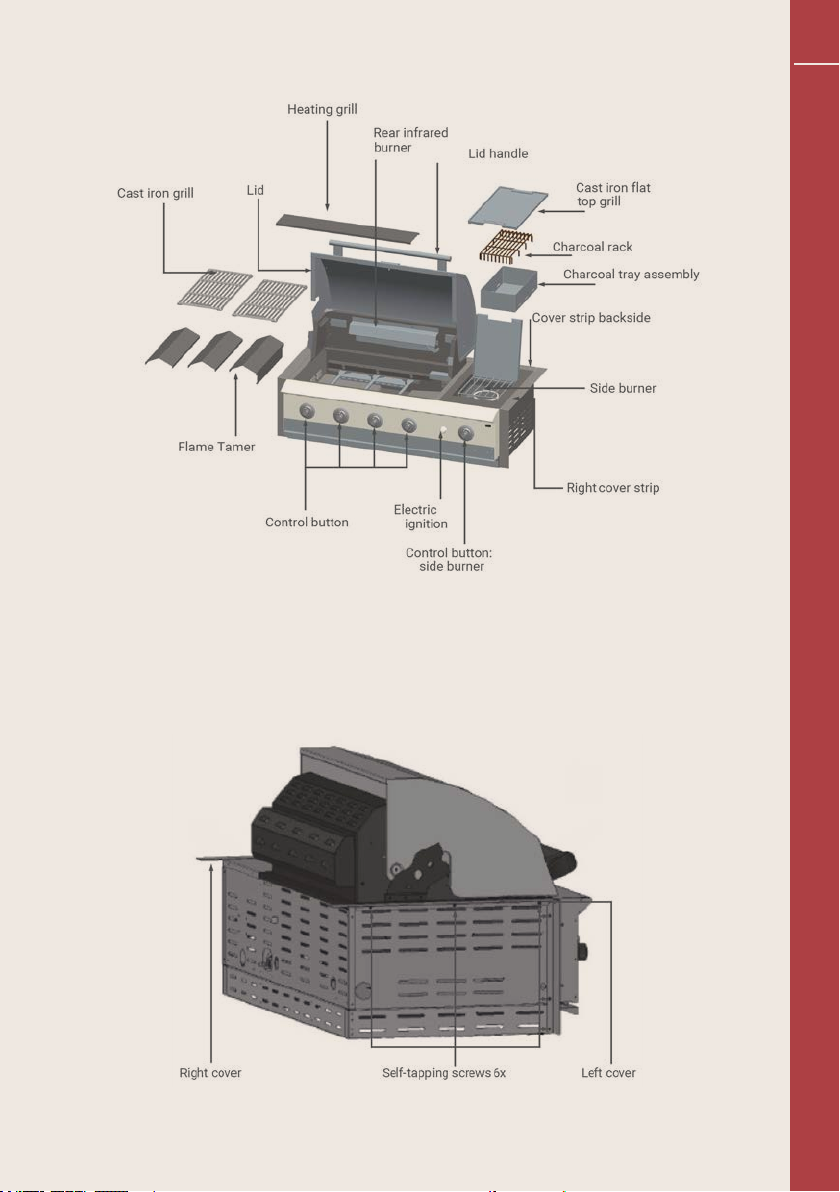

2. Parts
Self-tapping screws 15x

7
ENBoretti Ibrido Top / User guide - Installation advice
3. Assembly drawings
Step 1
Use 6 self-tapping screws to attach the left cover strip to the left side of
the barbecue and repeat this procedure to attach the right cover strip.

8
ENBoretti Ibrido Top / User guide - Installation advice
Step 2
Use 4 self-tapping screws to attach the strip to the back
of the barbecue.
Step 3
Unscrew the black cover and place the battery (AA) in the igniter with
the positive side (+) facing outwards. Screw the cover back onto the
battery compartment in the correct position.

9
ENBoretti Ibrido Top / User guide - Installation advice
Step 4
Slide the cover plates into the recesses with the triangular side pointing
upwards. Make sure you place the cover plate with the long side to the
infrared burner on the right side. Place the cooking grill and the grill
plate on the edges of the barbecue.

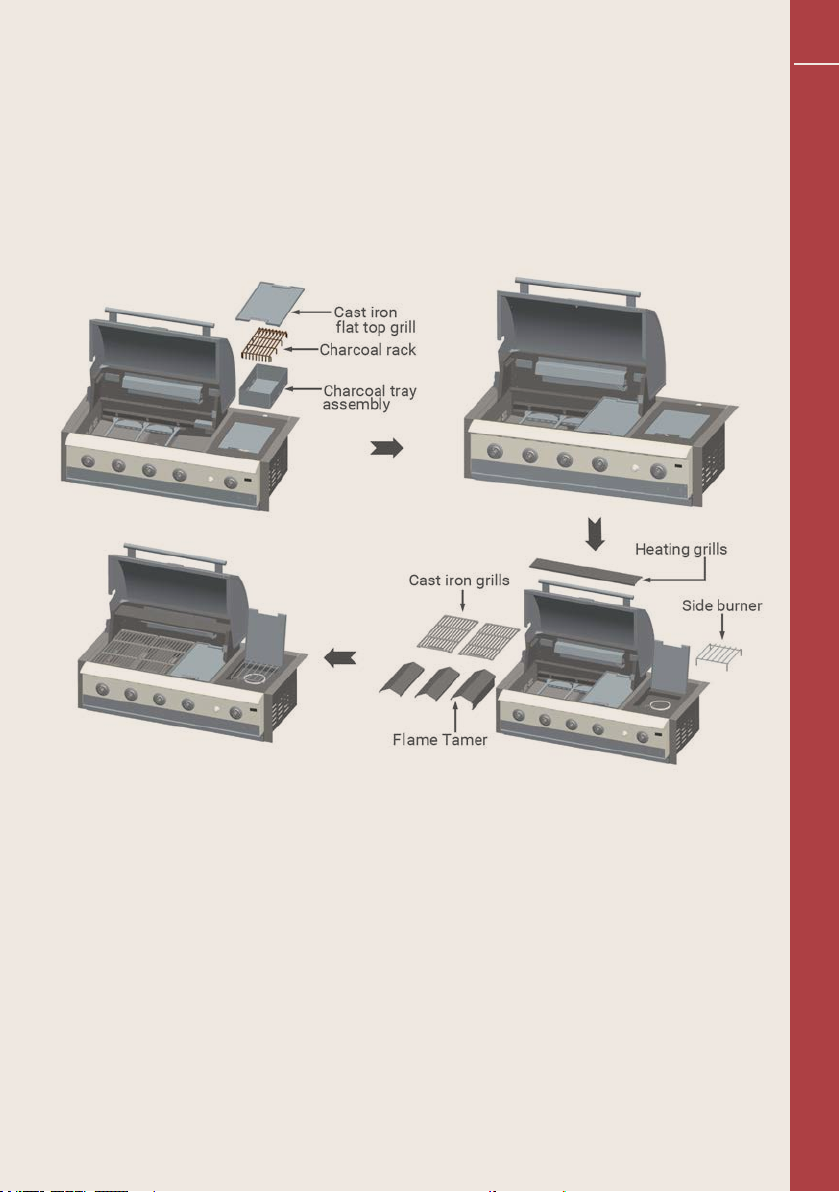

Place the heating grill (see image below).

10
ENBoretti Ibrido Top / User guide - Installation advice
Step 5
Verify that the gas type is the same as indicated on the barbecue
model label. Connect the gas hose to the connection on the back
of the barbecue.

11
ENBoretti Ibrido Top / User guide - Installation advice
4. Use of your barbecue
4.1 General information
Although all gas connections on the barbecue are tested for
leaks before transport, a full test must also be carried out at the place of
assembly. Parts may have shifted during the transportation or assembly
of the barbecue. The gas pressure on the barbecue may also be too
high. Check the entire system for leaks regularly and check the system
immediately if you smell gas. If in doubt, shut off the gas supply.
4.2 Gas leak test
Always carry out a gas leak test prior to using the barbecue and after a
longer period of non-use.
Extinguish any open re (DO NOT SMOKE while testing for leaks).
Never carry out this gas leak test near open re.
Make a soap solution that consists of equal parts of water and liquid
soap or a mild detergent.
Follow the steps below:
1. Turn off the control buttons of the burners.
2. Remove the battery from the electronic igniter.
3. Open the gas cylinder.
4. Apply the soap solution to all connections on the gas supply. If no
soap bubbles are formed, there is no gas leak. If bubbles form on a
connection, it means there is a leak there. If you have detected a leak,
immediately shut off the gas supply, tighten all leaking connections,
open the gas cylinder again, and repeat steps 1 to 4.
5. Turn off the gas supply.
6. Use the control buttons to turn the burners on for 10 seconds to
release the pressure in the hose and then turn the burners off again.
7. Remove the soap solution from the connections of the appliance with
cold water and dry it with a cloth. Check all gas connections before
each use (and after replacing the gas cylinder).
It is recommended to check the gas hose for leaks every year, even
if the gas cylinder has never been disconnected from the barbecue.

12
ENBoretti Ibrido Top / User guide - Installation advice
Please note:
Make sure that you test all individual connections (including the
side burner) when testing the device for leaks and, if necessary,
that they are tightened properly again. Even a small leak in the
system can result in a dangerous situation.
Please note:
Most gas cylinders nowadays are equipped with a mechanism
for detecting leaks inside the tank. If the gas is released too
quickly, this mechanism will shut off the gas supply. A leak can
signicantly reduce the gas supply, making it difcult to
start the barbecue.
If you are unable to seal a gas leak, shut off the gas supply and
contact the store where you bought the barbecue. Even a small
leak can cause a re.
If you are unable to start the barbecue after having tried a while,
contact the store where you bought the barbecue. Turn the control
buttons to “OFF” when you are not using the barbecue.
4.3 Starting the barbecue
Check the overall condition of the burners. If you are unsure about the
condition of the burners, please contact the store where you bought the
barbecue. Make sure the barbecue is standing on a at surface.
Keep the cooking compartment clean and free from gasoline and/
or other ammable or combustible liquids, ammable gases, and
ammable vapours. Make sure that the combustion and ventilation are
not blocked by any objects.

13
ENBoretti Ibrido Top / User guide - Installation advice
Do not use aluminium foil in the enamelled burner compartment or around
the ame tamers. Make sure the gas cylinder has adequate ventilation.
Put charcoal/briquettes in the designated coal container. Never use more
than 1 kilo of charcoal/briquettes. Instead of relighters or lighter uid, it
is possible to use charcoal chimneys, electric starters or other resources
suitable for lighting charcoal. Always use these in accordance with the
manufacturer’s instructions.
Warning:
*Do not start the barbecue if you smell gas!
*Check the gas hose for cracks or wear (see: GAS LEAK TEST).
*Keep your face and body as far away from the barbecue as
possible when starting the barbecue.
*Do not use spirit, petrol or other flammable liquids to
ignite or to re-ignite the barbecue! Only use igniters that
comply with EN 1860-3!
*Use relighters or a barbecue lighting uid to ignite the re.
*Only use relighters or a barbecue lighter uid that meets the
legal standard and always follow the manufacturer’s instructions.
*After the charcoal has turned red-hot, wait 30 minutes before
the meat can be prepared.
*Never add ammable and/or combustible uids to warm or hot
charcoal/briquettes. This could cause a ame jet, which can
result in physical injury and/or material damage.
*Be careful with adding charcoal/briquettes to an existing re. A
jet ame can result in physical injury and/or material damage.
*If the grease trap is missing in addition to the ash collector (if
applicable), you may never use the barbecue.
4.4 Lighting the burners with an electronic igniter
*Make sure all buttons are in the “OFF” position.
*Always open the lid before starting the barbecue.

14
ENBoretti Ibrido Top / User guide - Installation advice
4.5 Lighting the burners with a match extender (if present)
*The burner can also be ignited with the help of a match into the
extender, if the barbecue is equipped with one. Open the gas supply.
*Keep your face as far away from the barbecue as possible and move
the match extender through the openings in the grills to the burner.
*Position the match extender near the burner openings and press and
turn the control button to the “HIGH” position.
Please note:
If you are unable to start the barbecue after having tried a while,
contact the store where you bought the barbecue.
4.6 Lighting the side burner with the electronic igniter
*Press and turn the control button to the “HIGH” position. You will hear a
crackling sound.
*It may sometimes be necessary to hold the igniter for about 10 seconds.
*If the burner does not turn on after 10 seconds, turn the button back to
the “OFF” position and wait 1 minute before trying again.
4.7 Lighting the side burner with matches
If the electronic igniter fails to light the burner, the burner can also be
ignited with a match.
*Insert the match into the extender, if the barbecue is equipped with one.
*Keep your face as far away as possible from the barbecue and hold the
(extended) match at the burner openings.
*Press and turn the control button to the “HIGH” position.
Please note:
If you are unable to start the barbecue after having tried a while,
contact the store where you bought the barbecue.

15
ENBoretti Ibrido Top / User guide - Installation advice
4.8 Storage
*After using your barbecue, close the gas supply and let the barbecue
cool down.
*Remove the gas cylinder.
*Store the barbecue in a well-ventilated area and keep children away
from the device.
*Do not place easily ammable products under the barbecue.
*If you choose to store the barbecue outdoors, use a cover to protect
your barbecue from the weather. If stored outdoors, the cover should
be removed regularly to avoid excessive condensation (resulting in
oxidation) of metal parts.
*Allow the barbecue to cool down before putting on the cover or moving
the barbecue.
4.9 Use
*The barbecue becomes very hot, use heat-resistant gloves when using
the barbecue. Do not touch the barbecue without proper protection.
*Use suitable barbecue tools to prepare food on the barbecue.
5. Maintaining your barbecue
Important:
NEVER leave the barbecue outside uncovered. Water may collect
in the barbecue, undercarriage or grease tray. If the grease tray has
not been cleaned after use and the barbecue is not covered, the
tray will ll with water, causing water and grease to ow into the
undercarriage. We recommend that you clean the grease tray
after each use.
5.1 Cleaning
Do not use abrasive cleaning agents on the barbecue. These can
scratch and damage the surface.
*Heat the barbecue by turning on the main burners to the highest setting
and then closing the lid. Do not turn the infrared burner(s) on!
*Heat the barbecue for 10 minutes to 250°C.
*Turn off the burners and allow the barbecue to cool down before cleaning.

16
ENBoretti Ibrido Top / User guide - Installation advice
*Clean the grills and at top grill with a suitable cleaning brush (available
in the Boretti webshop).
*Remove the cooking grills and at top grill.
*Brush charred (food) residue towards the grease tray.
*Remove the grease tray and clean it with warm water and detergent.
*Use warm water and detergent to clean the outside of the barbecue.
*Dry the barbecue with a soft, clean cloth.
5.2 Grease collection tray
The grease tray must be cleaned regularly to prevent the accumulation
of dirt and residue.
Please note:
make sure the grease tray has cooled down before cleaning it.
5.3 Grills
The grills can be cleaned immediately after cooking, if the barbecue
is turned off, with a suitable cleaning brush. Cleaning the grills with a
degreasing agent and water increases the risk of oxidation/rust. This
can be prevented by rubbing the grills with olive oil after cleaning.
5.4 Stainless steel
After the rst use, parts of the barbecue may become discoloured by
the intense heat of the burners. This is normal.
Use a stainless steel cleaning agent and rub it in the same direction
as the brushing of the metal. It is possible that grease splatters and
sticks on the stainless steel parts, making some parts look worn. Use
a non-abrasive cleaning agent in combination with a stainless steel
cleaning agent to remove the grease.
5.5 Changing the battery of the igniter (if present)
Turn and remove the igniter button and remove the AA battery. Insert a
new AA battery.
5.6 Enamel parts
Some parts of the barbecue have an enamel coating. Enamel is a
glass-based product and is very durable and wear-free. However, it is
not very resistant to shocks and impact, which may cause ne cracks.

17
ENBoretti Ibrido Top / User guide - Installation advice
These ne cracks can lead to small pieces of enamel breaking off,
resulting in rust spots. However, chips and ne cracks in the enamel
will not affect the performance of your barbecue.
No claim can be made on the warranty for enamel damage in the
cooking area after use.
5.7 Ventilation
The burners can only work properly if the heat they produce can also
escape. If this is not possible, the burners may not get enough oxygen.
This can cause an after-ignition, especially if the burners are in the
“HIGH” position. If this happens repeatedly, cracks may occur in the
burners. For this reason, there are ventilation openings
around the barbecue.
These allow hot air to escape. Always make sure that there is
sufcient open space around the cooking surface (the grills provide
sufcient space). Never cover the ventilation openings with foil or
other materials that obstruct the air ow. Ensure that the cooking
surface is NEVER covered completely, for example by a large pan or
with only grill at tops.
5.8 Replacing the gas hose
The gas hose must be replaced every two years. Rubber gas hoses
can dry out which may result in gas leakage.
5.9 Burners
It is normal that rust forms on the burners (oxidation). Food residue
must be removed regularly. This can be done with a barbecue
cleaning brush. Burners must be removed for inspection and cleaning
periodically, especially after a period of non-use/storage. The burners
must be checked for their overall condition and to ensure that the
openings are not blocked. The burners can be cleaned by brushing
them. If you remove the burners, make sure that the gas tap and the
ignition electrode do not get damaged.
An opening has deliberately been made in the beginning of the burner,
to ensure that there is sufcient oxygen supply to create the right gas
mixture. As a result, you would be able to see a small opening, where
the gas tap connects to the burner. No gas will leak out here.

18
ENBoretti Ibrido Top / User guide - Installation advice
5.10 Spiders and insects
Spiders and insects may nest in the burners of your barbecue, which
means that the gas can escape out of the front of the burner. This is very
dangerous and may cause a re behind the control panel. This will damage
the barbecue, which will consequently no longer be safe for use.
We therefore recommend to check the barbecue for spiders, insects and
their nests at least once a year (mainly after a long period of storage).
You can do this by dismantling the burner tubes and blowing into them or
brushing them off.
6. Environmental regulations, warranty
terms & contact info
If, for whatever reason, you want to dispose of the barbecue, please observe
the following guidelines:
* Deliver the barbecue to the local service charged with collecting discarded
household appliances. Consult your municipality for the location of these
collection points.
*This barbecue is marked according to the European directive 2002/96EG
on waste electrical and electronic equipment. The Directive sets out the
standards for collection and recycling of waste equipment which apply to the
entire territory of the European Union.
For barbecue accessories, warranty and service terms, and any
questions, we refer you to
www.boretti.com
You may also send your questions and suggestions to
[email protected]
Boretti BV
Abberdaan 114
1046 AA Amsterdam

19
ENBoretti Ibrido Top / User guide - Installation advice

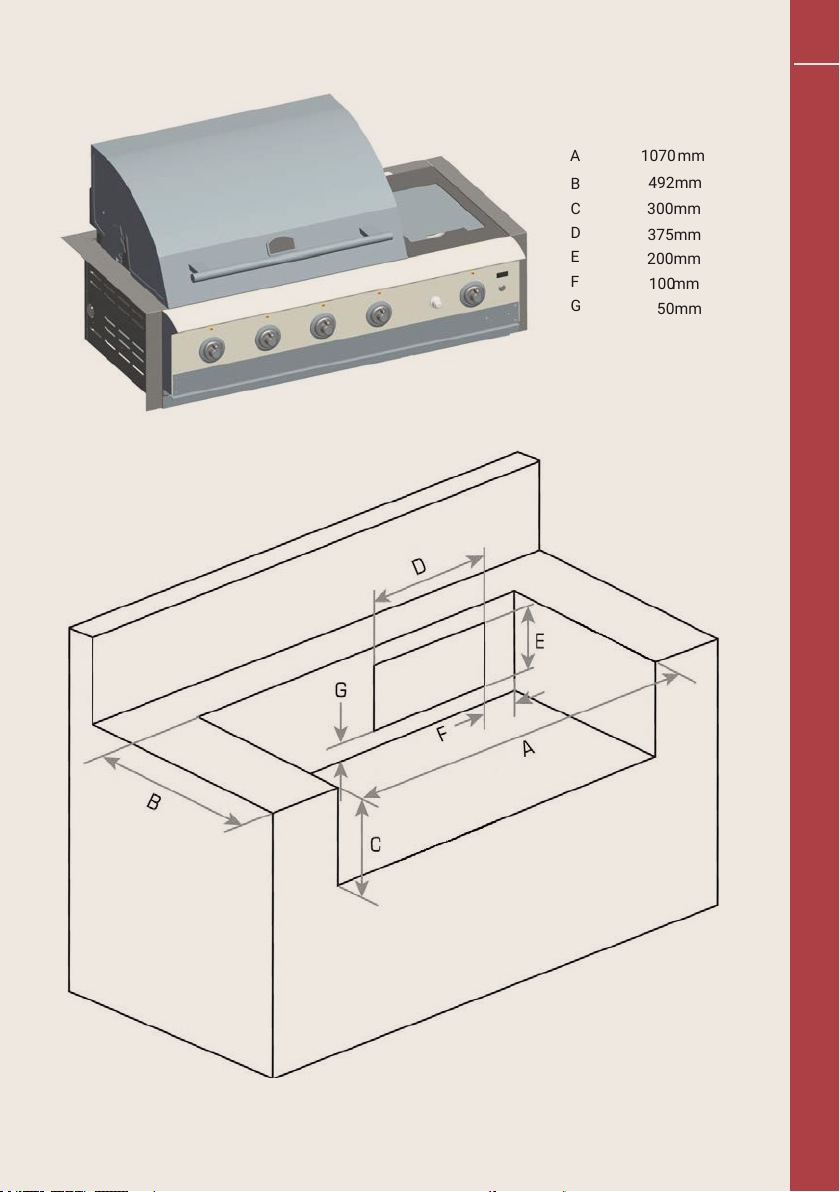

A 1070mm
492mm
300mm
375mm
200mm
100mm
B
C
D
E
F
G 50mm

Abberdaan 114 | 1046 AA Amsterdam | The Netherlands | www.boretti.com
