ENBoretti Ligorio / User guide - Installation advice
Introduction
Congratulations on the purchase of your new barbecue. We are convinced that you,
with your passion for barbecuing and the outdoor lifestyle, will transform an average
summer evening into a beautiful buona sera and your garden into a giardino.
Squadra Boretti
Read this manual carefully and keep it safe!
This manual contains specific instructions for your safety, for the assembly,
operation and the maintenance of your barbecue. Use the barbecue only as directed
in this manual. Common sense and caution during use are an absolute must!

5
ENBoretti Ligorio / User guide - Installation advice
Contents
* 1. General safety guidelines........................................................................................ 6
* 2. Parts list ..................................................................................................................... 9
* 3. Assembly drawings................................................................................................11
* 4. Use of your barbecue ............................................................................................18
* 5. Maintenance of your barbecue............................................................................23
* 6. Environmental guide, Conditions of warranty &Contact info........................26

6
ENBoretti Ligorio / User guide - Installation advice
Important safety information
Use outdoors only!
Read the instructions before using the appliance!
WARNING: accessible parts may be very hot. Keep young children away!
Do not move the appliance during use!
Turn off the gas supply at the gas cylinder after use!
1. General safety guidelines
*Before use, first carefully read all the information contained in this manual.
*Never let children and pets come in the vicinity of this barbecue.
*This barbecue may never be used by children, people with mental
impairments or people who are under the influence of mind expanding
substances and/or medication.
*Always maintain as much distance as possible when lighting and operating
this barbecue.
*Change the gas cylinder far away from any source of ignition.
*The gasbottle can be placed underneath the barbecue. This does not
comply for a table model barbecue.
*Take care that the gashose does not fold during installation of the
gasregulator.
*The supplied gasregulator should be used. If a new gasregulator is installed,
take care that is complies with the EN 16129. The gaspressure must be the
same as stated on the ratinglabel on the barbecue.
*Ensure that the gas valve on the gas bottle is within reach, so you can turn
off the gas supply to the barbecue.
*Extinguish all flames and DO NOT SMOKE while opening the gas valve and
lighting the barbecue.
*This barbecue will get extremely hot, extreme care and attention is required
during its operation.
*If you smell gas, check if all fuel connections are tightened securely before
use. If the gas smell persists, turn of the gas valve and contact your sales
outlet directly.
*Keep flammable and/or inflammable substances, gasses, liquids and
materials away from the barbecue at all times and never let them come into
direct contact with the barbecue.
*Omitting and/or incorrectly following the instructions, precautions, safety
guidelines, warnings and dangers that are contained in this manual can
lead to fire or explosions, to material damage and may also cause physical
injury or death.

7
ENBoretti Ligorio / User guide - Installation advice
*Exclusively for household use and exclusively intended for the preparation
of food.
*Your barbecue can be used with gas cylinders between 5 kg and 6 kg. The
maximum size of the gas cylinder should be: Dia. 300mm, Height: 470 mm.
Follow the technical information as stated in the instruction manual and
Check with your local gas supplier to have a suitable gas cylinder for your
barbecue.
*Avoid twisting the flexible tube when the appliance is in use. The length of
flexible hose shall not exceed 1.5m. In Finland, the length shall not exceed
1.2m. The hose should certified according to applicable EN Standard and
comply with local code.
1.1 Assembly
*Assemble the barbecue according to the assembly drawing as contained in
this manual.
*Incorrect assembly or not following the correct order of assembly, as
demonstrated in the drawing, can lead to very serious situations.
*Always take care and be precise during assembly.
*All parts must be assembled as shown in the assembly drawing. If a part
is missing and/or you doubt the correctness of the assembly, immediately
contact your sales outlet.
*Never repair or replace parts of this equipment yourself unless this is expressly
mentioned in this manual.
*Never connect a damaged gas hose to the equipment. This can lead to fire.
*In the event that the equipment is fitted with a plug, this will be an earthed main
plug to protect you from electric shocks. The plug must be connected to a
suitable, earthed, socket. NEVER remove the metal plates from the plug.
*DO NOT modify the appliance.
1.2 Place of use
*Only use the barbecue out of doors (outside) and in a well-ventilated space.
Never use the barbecue inside or in any (partly) enclosed space. Toxic fumes
may build up and these can cause serious physical injury or death.
*Never use the barbecue on a flammable or inflammable surface.
*Only use the barbecue on a hard, straight and stable surface that can take the
weight.

8
ENBoretti Ligorio / User guide - Installation advice
*Keep a distance of at least 3 metres between the barbecue and all flammable
and/or inflammable materials (wood, plastic, foliage etc.), when the barbecue
is in use.
*Always keep the barbecue away from petrol and/or other flammable or
inflammable liquids, flammable gases, flammable fumes or areas where you
suspect these may be present.
*Never use the barbecue under strong wind conditions.
*Ensure that the main burner(s) and the infra-red burner at the back are NEVER
switched on at the same time. This can lead to the lid of the barbecue warping
or buckling.
*The barbecue becomes extremely hot, never move it during or shortly after use.
*Most of the Boretti barbecues have wheels which makes them easy to move.
Take care when moving the barbecue across uneven terrain; otherwise the
wheels may get damaged.
*Do not use the roasting spit in the event of rain.
*The size of cooking pans can be used in our barbecue between 130mm and
220mm.

9
ENBoretti Ligorio / User guide - Installation advice
2. Parts list
BBQ assembly Le side table assembly Right side burner assembly
Garbage sack guide rails Electronic igniter Baery
Grease collector tray Knob M4x10 screw 2x
Indicator ring Frame for refuse sack Black enamel ame
distributor

10
ENBoretti Ligorio / User guide - Installation advice
Black enamel ame
distributor
Stainless steel ame
arrester
Warming rack

11
ENBoretti Ligorio / User guide - Installation advice
3. Assembly drawings
Step 1
Remove the pan support and unscrew the 2 M4x5 screws to loosen the side burner.
Step 2 - a) Loosen 4 screws on the right side of the fire basket by about 6 mm.
b) Slide the side burner with the cut-outs over the screws that you have
loosened.
c) Ten tighten the 4 screws again to secure the side burner.

12
ENBoretti Ligorio / User guide - Installation advice

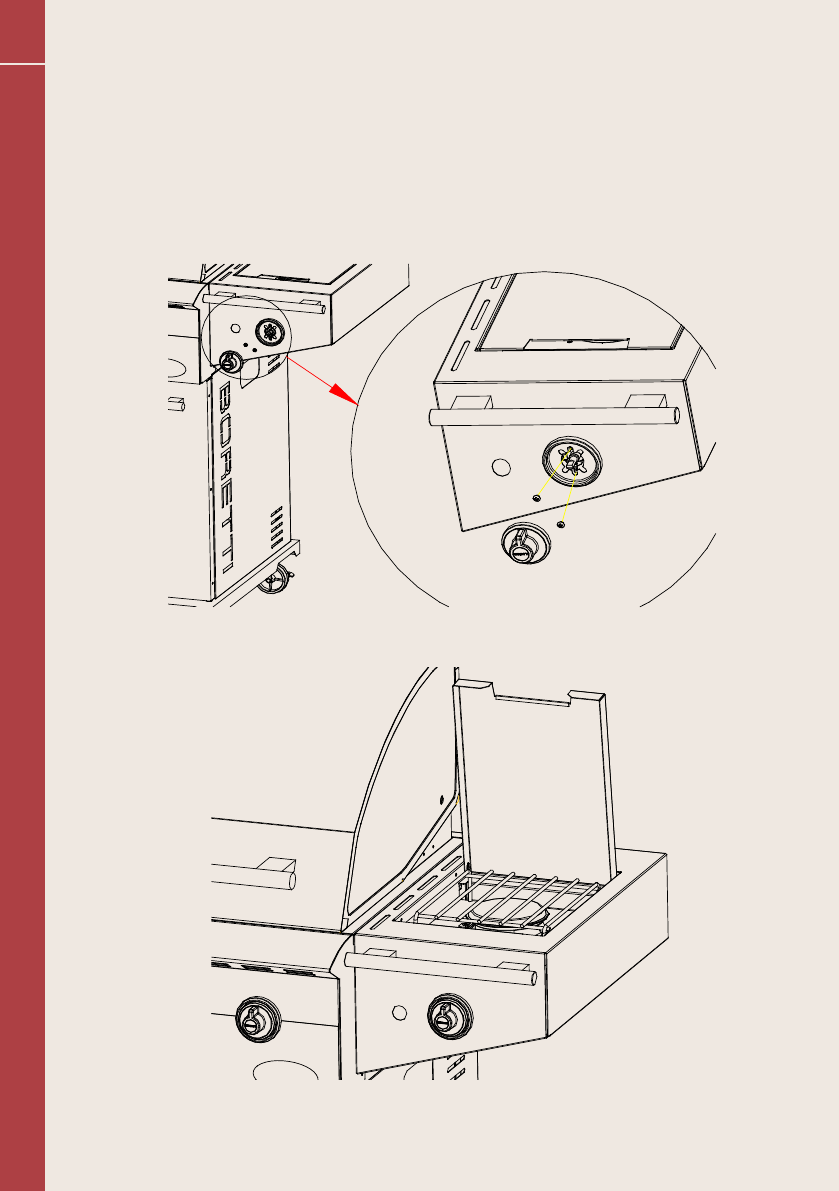

Step 3 - a) Place the indicator ring that has been supplied on to the side burner and
secure this with the M4x10 screw supplied.
b) Place the second M4x10 screw and tighten this, making sure that the ‘H’
is pointing to the left.
c) Install the control knob, taking care that the flat inner side of the knob is
positioned to fit with the flat side of the gas valve.
Step 4 - Install the side burner using the 2 M4x5 screws. Replace the pan support.

13
ENBoretti Ligorio / User guide - Installation advice
Step 5 - a) Connect the end of the side burner igniter wire with the electronic igniter.
b) Connect the 5 wires that protrude from the side of the BBQ with the
electronic igniter.
Step 6 - a) Slide the threaded section of the igniter through the igniter opening on
the front of the side table and install the lock nut.
b) Place the battery in the holder with the positive side facing outward.
c) Screw the top on the igniter.

14
ENBoretti Ligorio / User guide - Installation advice
Step 7
Fasten the refuse sack guide rail B on the left side of the BBQ, and secure with 2
M6x10 screws.
Step 8 - a) Loosen the 4 screws of the BBQ on the left side by about 6 mm.
b) Slide the side table over the 4 screws.
c) Tighten the 4 screws again to secure the side table.

15
ENBoretti Ligorio / User guide - Installation advice
Step 9
Fasten the reinforcing strip by using the screw that has been pre-installed in the
BBQ.
Step 10 - Slide the grease collector tray in the guide rails under the burners.

16
ENBoretti Ligorio / User guide - Installation advice
Step 11
Position the upper row of the flame distributors in the cut-outs. Ensure that the
flame distributors are placed with the long side next to the lowest IR burner.
Step 12 - a) Place the cooking grill on the ledges of the BBQ.
b) Place the grill tray as shown in the drawing.

17
ENBoretti Ligorio / User guide - Installation advice
Step 13
Hang the refuse sack in the frame.
Step 14
Slide the frame on to the guide rails under the left side table.

18
ENBoretti Ligorio / User guide - Installation advice
4. Use of your barbecue
4.1 General information
Even though all gas connections on the barbecue
are tested for leakages before transport, a complete
test must be carried out at the assembly site. During
transport or assembly, parts of the barbecue may have
been moved. It is also possible that the gas pressure on
the equipment is too high. Regularly inspect the entire
system for leaks and check the system immediately in
the event that you smell gas.
4.2 Gas leak test
Always carry out a gas leak test before use of the barbecue and when the barbecue
has not been used for some time.
*Extinguish any open fires (DO NOT SMOKE when testing for leaks).
*Never carry out this gas leak test near open flames.
*Make a soapy solution made up from equal parts of water and liquid soap or
gentle washingup liquid
*Follow the steps below:
1. Turn the control knobs of the burners to off.
2. Remove the battery from the electronic ignition.
3. Open the gas bottle.
4. Apply the soapy solution to all connections of the gas supply. If no soap
bubbles are formed, there is no gas leak. If soap bubbles start to form on a
connection, this indicates a leak. In the event that you detect a leak, turn the
gas supply off immediately, tighten the leaking connections firmly, open the
gas bottle again and repeat steps 1 through to 4.
5. Turn the gas supply off.
6. Turn the control knobs of the burners on for 10 seconds to let the pressure
escape from the hose and then turn the control knobs to off again.
7. Remove the soapy solution from the connections of the equipment with
cold water and rub dry with a cloth. Check all gas supply connections before
every use and do the same when the gas bottle is being connected to the
gas pressure regulator.
It is recommended that you check the gas hose for leaks every year, even if the
gas bottle has never been disconnected from the equipment.
Gasbottle 5-6 kg
Max 300mm
Max 470mm

19
ENBoretti Ligorio / User guide - Installation advice
Note:
Ensure that you test all loose connections (including the side burner) and, if
required, tighten them again when you are testing the equipment for leaks.
Even a small leak in the system can result in a dangerous situation.
Note:
These days, most gas bottles are fitted with a mechanism that detects leaks
inside the container. When the gas is being released too quickly, this mechanism
cuts off the gas supply. A leak can severely restrict the gas supply which will make
it difficult to light the barbecue.
Note:
If you are unable to close off a gas leak, then turn off the gas supply and contact
your sales outlet. Even a small leak can cause a fire.
Note:
If, after several attempts, you are unable to light the barbecue, then contact your
sales outlet.
Note:
Ensure that the control knobs are in the “OFF” position when you are not using the
equipment.
4.3 Lighting the barbecue
*Check the general conditions of the burners (see 0). If you are in doubt about
the condition of the burners, then contact your sales outlet.
*Ensure that the barbecue is placed on a level surface.
* This appliance must be kept away from flammable materials during use.
Keep the cooking area clean and free from petrol and/or other flammable
and/or inflammable substances, flammable gasses or flammable fumes.
*Ensure that nothing is blocking the burners and ventilation.
*Do not use aluminium foil in the enamel burner tray or around the flame
distributors.
*Ensure there is sufficient ventilation for the gas bottle.
Warning:
*Do not light the barbecue if you can smell gas!
*Check the gas hose for cracks or wear and tear (see: GAS LEAK TEST).
*Keep your face and body as far away from the barbecue as possible when
lighting it.

20
ENBoretti Ligorio / User guide - Installation advice
4.4 Lighting the burners with an electronic igniter
*Ensure that all knobs are in the “OFF” position.
*Always open the lid before you light the barbecue.
*Open the gas supply.
Note:
When opening the gas bottle, turn the valve SLOWLY two (2) whole turns to get
the right gas supply.
*Press and turn one of the control knobs to the “HIGH” setting. You will hear a
crackling noise. It may be necessary to keep the igniter depressed for about
10 seconds.
Note:
If the burner does not light after 10 seconds, turn the knob back to the “OFF”
position and wait 1 minute before you try again.
*Repeat the above steps also for the other burners.
Note:
On some models, as well as the control knob, a separate ignition knob also needs
to be pressed.
4.5 Lighting the burners with a match extender (if provided)
If the electronic igniter does not manage to light the burners, it is also possible to
light the burners with the aid of a match.
*Put the match in the extension piece, if the barbecue is supplied with a match
extender.
*Keep your face as far away as possible from the barbecue and point the
extended match through the openings in the grille toward the burner.
*Place the match close to the burner openings and turn the control knob to the
“HIGH” position.
Note:
If, after several attempts, you are still not able to light the barbecue, please contact
your sales outlet.
