INTRODUCTION
This micro portable air compressor is of novel design and excellent workmanship. Having the
advantages of compact construction, fine appearance, light weight, easy operation, high
safety and low noise, it can be widely used in machinery, chemical industry, spray and
decoration, automatic control system and other fields where compressed air is required.
GENERAL SAFETY
1. Air compressor is a pumping system, safety codes must be followed at all times.
2. Read the instructions of both the compressor and the air tool to be used. Follow all of the
local and national safety and electrical safety codes, eg ACACA, NEC, OSHA, etc. Be
thoroughly familiar with the controls and proper use of the equipment.
3. Only people acquainted with the safety rules and operation of this compressor and the
applied air tools should be allowed to use it. Keep visitors and children away from the work
area.
4. After unpacking, check carefully for any damage and spare parts. Make sure each part,
fastener, fittings, bolts, etc has been tightened.
5. Use approved hearing and eye protection required during operation.
6. Do not wear loose clothing or jewelry that will get caught in the moving parts of the unit.
7. Compressors must be connected to a power socket protected by an adequate differential
switch.
8. Keep fingers away from a running compressor.
9. After the first time and also every 5 hour operation, check that the components and parts
are tightened well.
10. The head, pump and discharge pipe and other parts can be heated soon after start-up.
To avoid burns, please do not touch these parts.
11. Stop the motor and check immediately for the cause when vibration and
unusual noise occurs.
12. Keep motor exterior free of oil, solvent, or grease to avoid fire.
13. Do not adjust safety valve.

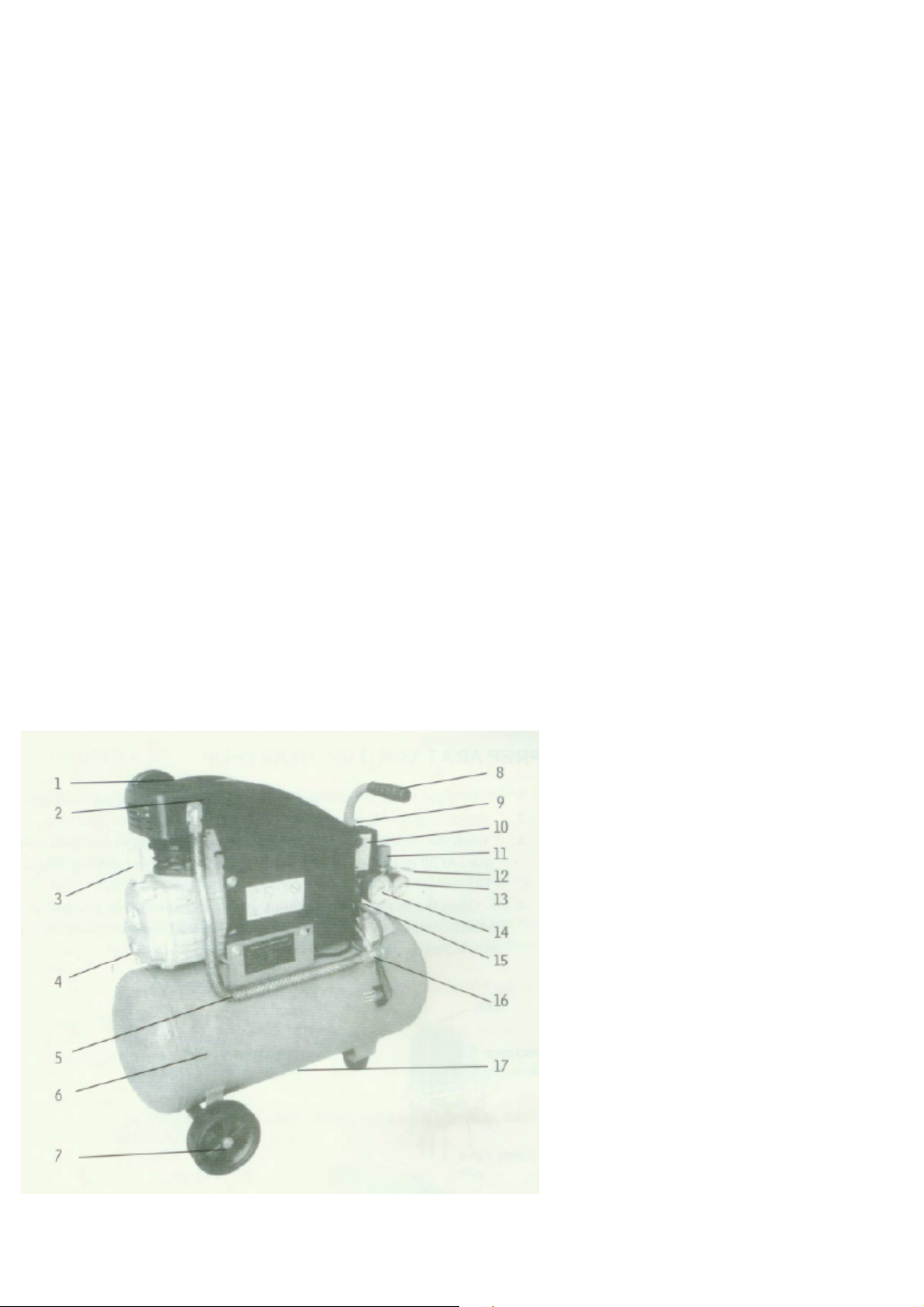

MAIN PARTS
1. AIR FILTER
2. SAFETY COVER
3. OIL PLUG
4. OIL LEVEL GLASS
5. DISCHARGE PIPE
6. AIR TANK
7. WHEEL X 2
8. HANDLE
9. SWITCH
10. PRESSURE SWITCH
11. REGULATOR
12. AIR OUTLEF X 2
13. REGULATOR GAUGE
14. TANK GAUGE
15. PRESSURE RELIEF VALVE
16. NON-RETURN VALVE
17. DRAIN COCK
