Bosch FCS-8000-VFD-B User manual

AVIOTEC IP starlight 8000
FCS-8000-VFD-B
Quick Installation Guide
english
deutsch
český
español
français
magyarul
italiano
dutch
polski
portuguese
român
русский
türkçe

Graphics
1
2
3
Ethernet (PoE)
STP Cat 5e
RJ45
4 5 6 4 5 6
1 2 3 1 2 3
|
|
12VDC
- +
MENU
CVBS
µSD
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
7 mm
(0.28 in)
12 V DC
≤2.5 mm
(0.1 in)
AVIOTEC IP starlight
8000 Graphics | All 3
Bosch Sicherheitssysteme GmbH 2016.05 | 3.0 | F.01U.317.838

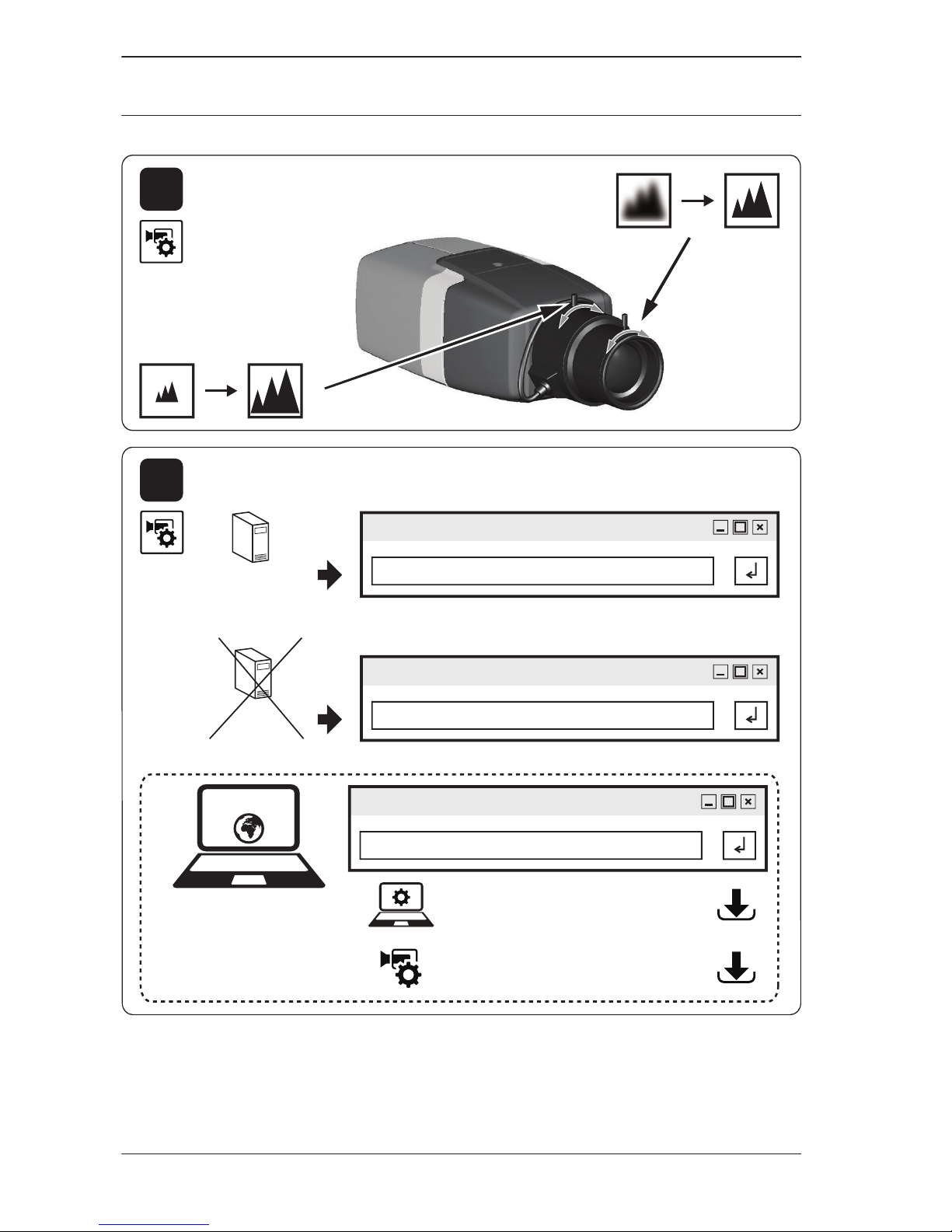

4
5
http://192.xxx.xxx.xxx
DHCP
DHCP http://192.168.0.1
www
BVC Video Client
http://downloadstore.boschsecurity.com
Firmware (CPP6)
4All | Graphics AVIOTEC IP starlight
8000
2016.05 | 3.0 | F.01U.317.838 Bosch Sicherheitssysteme GmbH

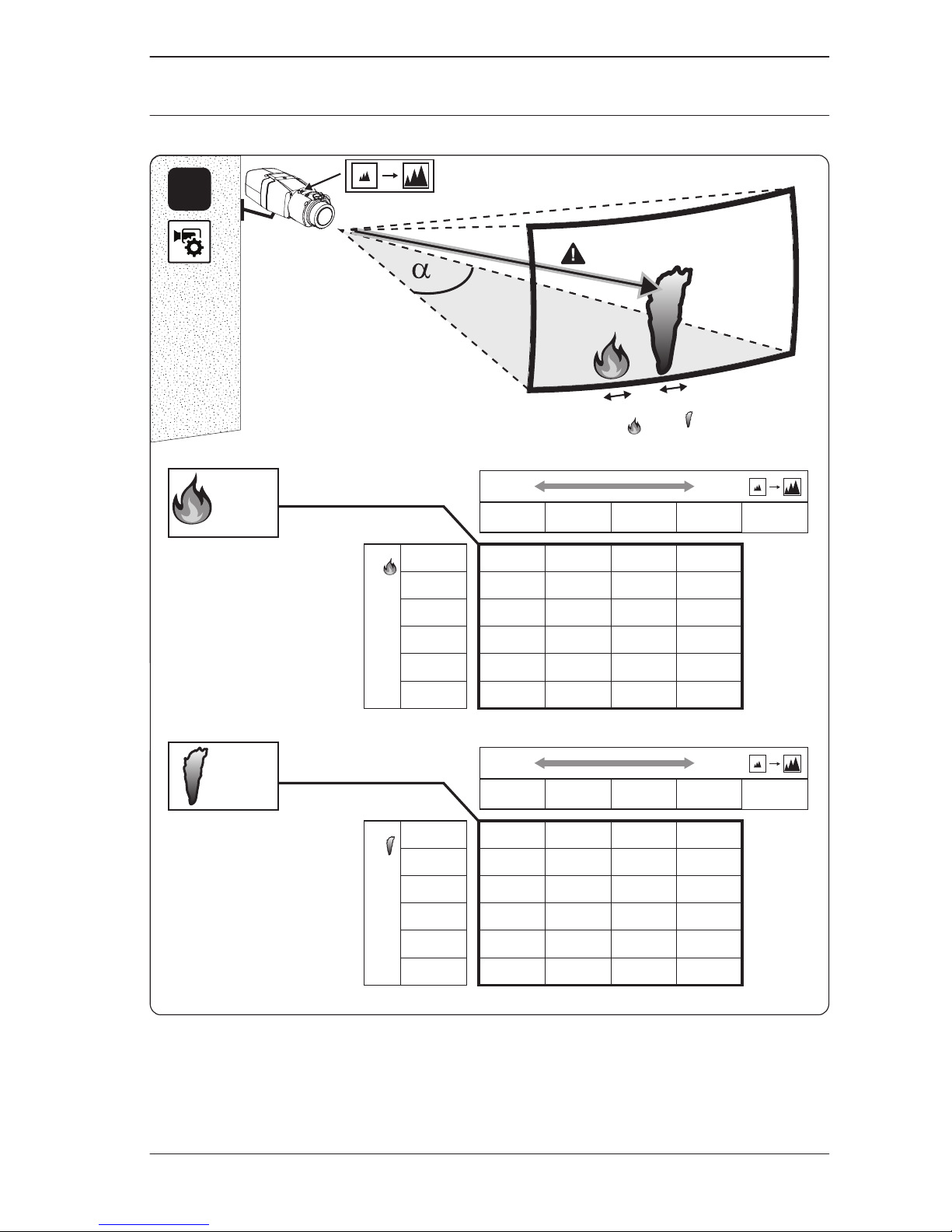

6
w
dmax
[m]
w
12.6 13.8 19.2 25.1
21.0 23.0 32.0 41.9
29.5 32.2 44.9 58.7
42.1 46.0 64.1 83.9
52.7 57.5 80.2 104.9
63.2 69.0 96.2 125.9
100 90 60 45 α
0.3 m
0.5 m
0.7 m
1 m
1.25 m
1.5 m
w
[m]
w
dmax
dmax
4.1 9
8.4 9.2 12.8 16.7
14.1 15.3 21.4 27.9
19.7 21.5 29.9 39.0
28.1 30.7 42.8 55.7
35.1 38.4 53.5 69.6
42.2 46.0 64.2 83.6
100 90 60 45 α
0.3 m
0.5 m
0.7 m
1 m
1.25 m
1.5 m
4.1 9
AVIOTEC IP starlight
8000 Graphics | All 5
Bosch Sicherheitssysteme GmbH 2016.05 | 3.0 | F.01U.317.838

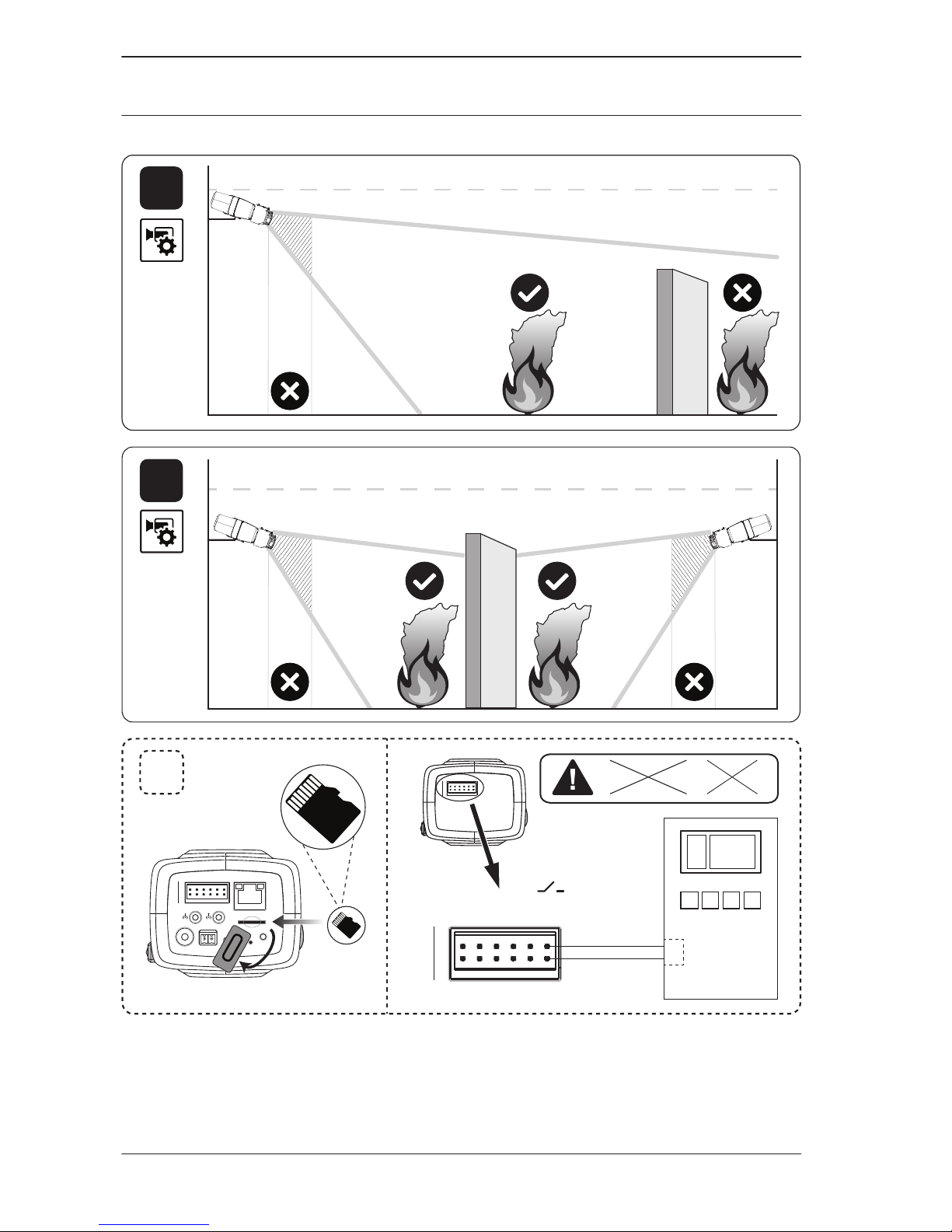

4 5 6 4 5 6
1 2 3 1 2 3
|
|
D
A
T
A
A
L
A
R
M
4 5 6 4 5 6
1 2 3 1 2 3
|
|
D
A
T
A
A
L
A
R
M
456456
123123
|
|
- +
MENU
CVBS
E
T
H
-
P
o
E
D
A
T
A
A
L
A
R
M
EN54
9
NO
8
7
UL
6All | Graphics AVIOTEC IP starlight
8000
2016.05 | 3.0 | F.01U.317.838 Bosch Sicherheitssysteme GmbH

Safety instructions
Video Fire indication systems are video content analysis
systems. They give indications for fires and are designed to
supplement fire detection systems and human guards in
monitoring centers.
Video Fire indication systems are confronted with a higher
amount of challenges considering scenery and background
compared to conventional fire detection systems. It cannot be
granted that fire is detected in all scenery settings. Thus the
video fire detection system shall be seen as a system that
enhances the probability of early fire detection, with the
restriction that it might detects false alarm. It shall not be
seen as a system that ensures fire detection in all possible
image scenarios.
!
Warning!
Do not moisten the electronic appliances inside of the lens.
It may cause fire or electric shock. In this case, shut off the
power supplied to the lens immediately.
!
Caution!
Do not leave or store the lens under direct sunshine.
The lens may focus rays of light on a near-by object and cause
fire.
!
Caution!
In case of unusual behavior, smoke, noise or smell coming out
of the lens, shut off the power immediately and pull out the
lens cable.
Notify the installer or sales agent from which you purchased the
product.
1
AVIOTEC IP starlight
8000 Safety instructions | en 7
Bosch Sicherheitssysteme GmbH 2016.05 | 3.0 | F.01U.317.838

!
Caution!
The Low Voltage power supply unit must comply with EN/UL
60950. The power supply must be a SELV-LPS unit or a SELV -
Class 2 unit (Safety Extra Low Voltage - Limited Power Source).
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code
(NEC 800 CEC Section 60) or applicable local codes.
Notice!
Qualified personnel only.
Assembly and installation must only be performed by qualified
personnel.
Notice!
No direct connection to fire services in EN54 compliant
installations.
Authorities can allow a connection to fire services after
verifying alarms in a monitoring center.
Notice!
Reduced detection distances at image margin area.
Due to optical distorsion of the lens, the maximum detection
distances at the image margin area are reduced.
Notice!
Activating video-based fire detection sets camera settings to a
specific preset.
This preset affects several camera settings as long as this mode
is activated.
8en | Safety instructions AVIOTEC IP starlight
8000
2016.05 | 3.0 | F.01U.317.838 Bosch Sicherheitssysteme GmbH

Notice!
Avoid backlight.
Backlight can disturb the video-based fire detection algorithm.
Notice!
Respect data protection.
The relevant data protection and privacy rules are to be
complied with.
Notice!
Indoor use only.
This product is designed for indoor use only. Outdoor use is not
allowed.
Notice!
Minimum Illumination required.
To ensure the proper functioning of the video-based fire
detection algorithm, a minimal illumination of 7 lx is required.
Notice!
No detection of moving fire.
Moving fires will not be detected by the video-based fire
detection.
Notice!
No existing standards.
There are no existing EN standards concerning the video-based
fire detection.
AVIOTEC IP starlight
8000 Safety instructions | en 9
Bosch Sicherheitssysteme GmbH 2016.05 | 3.0 | F.01U.317.838

Notice!
Avoid obstructions in the field of view!
Covered fires cannot be detected correctly. An unobstructed
view of the detection area is necessary.
Notice!
Optimized smoke detection.
The video-based fire detection algorithm is optimized for smoke
of smoldering fires.
Notice!
Calm wind conditions only.
Strong air currents can cause false alarms by raising dust or
debris similar in appearance to fire and smoke.
Notice!
Avoid image regions with continuous upward motion.
Continuous upward motion might lead to false alarms.
Notice!
Make sure the camera is firmly mounted.
Camera shake might lead to false alarms. Avoid vibrations of
the camera and the camera environment.
Notice!
Only use the supplied lens.
Do not use other lenses. A reliable functioning of the product
cannot be guaranteed with other lenses.
10 en | Safety instructions AVIOTEC IP starlight
8000
2016.05 | 3.0 | F.01U.317.838 Bosch Sicherheitssysteme GmbH
