Bosch 4889 User manual
Start making your home smart!
You need the Bosch Smart Cameras
App to install, configure and use
your Bosch Smart Home Eyes-
Outdoor Camera.
Please also make sure that you have
a Wi-fi internet connection available
in the installation location.
Make sure that you download the
Bosch Smart Cameras App first!
5792_Outdoor_Kamera_160818.indd 2 19.08.16 10:46

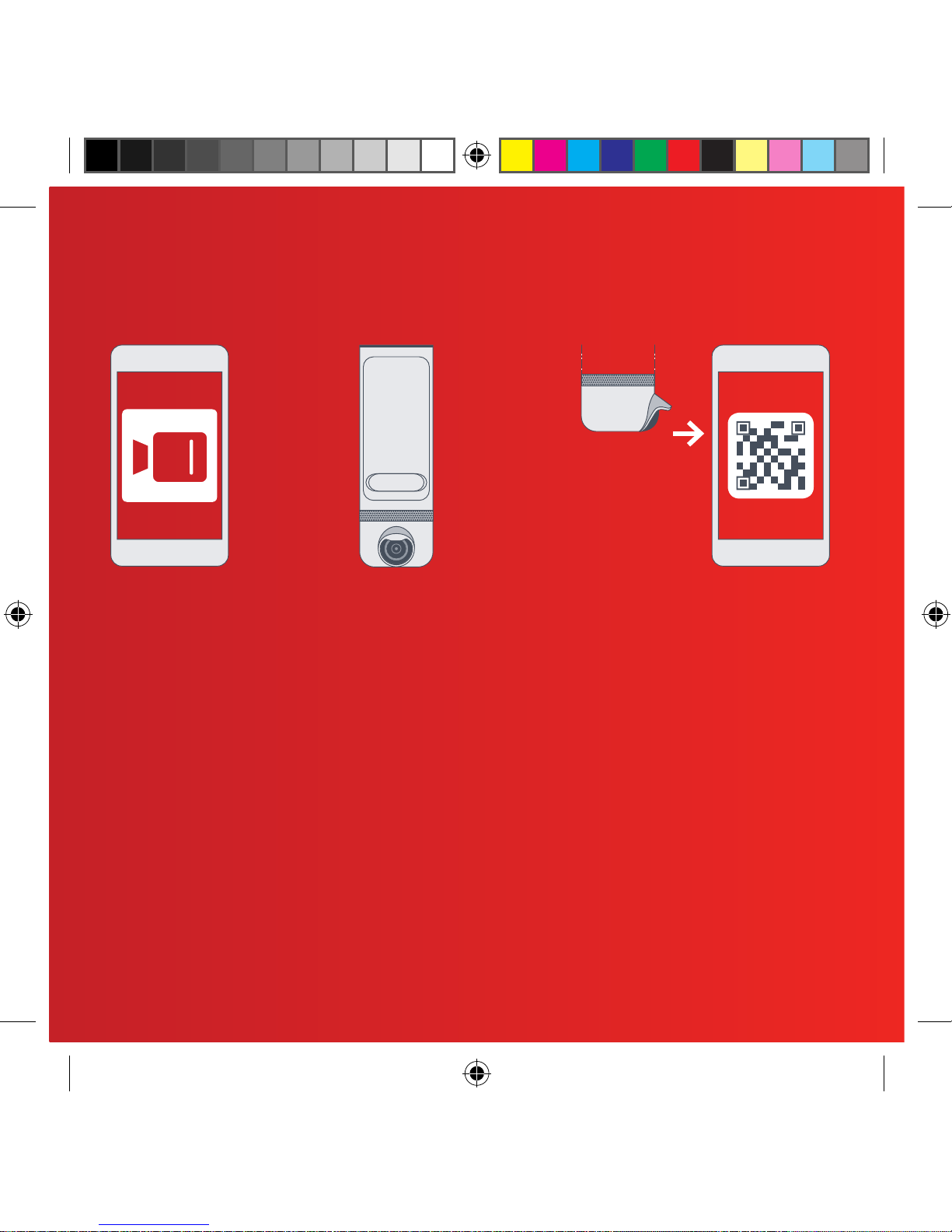

Set up your Eyes-Outdoor Camera in just three steps
Start the Bosch
Bosch Smart
Cameras App
Mount the Eyes-
Outdoor Camera
and power it up
Use the Bosch Smart
Cameras App to
connect and configure
your Eyes-Outdoor
Camera
5792_Outdoor_Kamera_160818.indd 3 19.08.16 10:46
5792_Outdoor_Kamera_160818.indd 4 19.08.16 10:46
5
Congratulations with the purchase of your Bosch Smart Home Eyes-Outdoor
Camera. It will help you to make your home more secure and smarter. Integrated
motion sensors automatically detect motion and record events, whilst the built-in
lights ensure high quality images at night and offer an attractive illumination to the
exterior of your home. With the Bosch Smart Cameras App you can access the
recordings and live images from anywhere, so you will always know if everything
is in order around your home.
We hope you enjoy your new product,
The Bosch Smart Home Team
Dear Customer,
5792_Outdoor_Kamera_160818.indd 5 19.08.16 10:46
6
INDEX
1.0 Product overview....................08
1.1 Target application ..................... 09
2.0 In the box ................................. 10
3.0 Warning notices ......................12
3.1 Safety message explanation ..... 12
3.2 Legal notice............................... 13
3.3 Safety precautions .................... 14
4.0 Indicators and control ............16
4.1 Product overview ...................... 16
5.0 Fixing........................................20
5.1 Fixing instructions..................... 20
5.2 Check the Wi-fi availability ........ 21
5.3 Install the mounting plate.......... 22
5.4 Power connection ..................... 25
5.5 Place the
Eyes-Outdoor Camera............... 26
5792_Outdoor_Kamera_160818.indd 6 19.08.16 10:46
7
6.0 Installation and initial
configuration ...........................28
6.1 Start Cameras App.................... 21
6.2 Add Eyes-Outdoor Camera
to network................................. 22
7.0 Eyes-Outdoor Camera
operation .................................32
8.0 Error and error resolutions....33
9.0 Product details........................34
8.1 Technical details ....................... 34
8.2 Declaration of conformity ......... 35
8.3 Faults in radio operation ........... 36
8.4 Open-Source-Software............. 36
8.5 Environmental protection
and product disposal ................ 38
10.0 Further informations ............39
5792_Outdoor_Kamera_160818.indd 7 19.08.16 10:46
8
Bosch Smart Home Eyes-Outdoor
Camera is controlled via Wi-fi and has
the following features:
LED-front light
Decorative top/bottom lights
Internal memory stores capable of
storing up to 200 events
Microphone and speaker for
two-way communication
1.0 PRODUCT OVERVIEW
Detailed information on advanced set-up and sharing
can be found at www.bosch-smarthome.com
5792_Outdoor_Kamera_160818.indd 8 19.08.16 10:46
9
Do not open or modify the product in any way. Any other use
is considered unintended use. We will not assume liability for any
resulting damage.
1.1 Target application
The product must only be used to-
gether with original Bosch Smart
Home components, and is for outdoor
use only.
Please make sure you strictly follow
the safety and installation instruc-
tions in this document as well as in
the Bosch Smart Cameras App
Only use the Outdoor Camera ac-
cording the installation instructions
and within the temperature and
humidity limits as described in the
Technical Data section (see p. 34)
Avoid direct sun light and sources
of heat and cold
5792_Outdoor_Kamera_160818.indd 9 19.08.16 10:46
10
2.0 IN THE BOX
Wall mounting plateEyes-Outdoor Camera
5792_Outdoor_Kamera_160818.indd 10 19.08.16 10:46
11

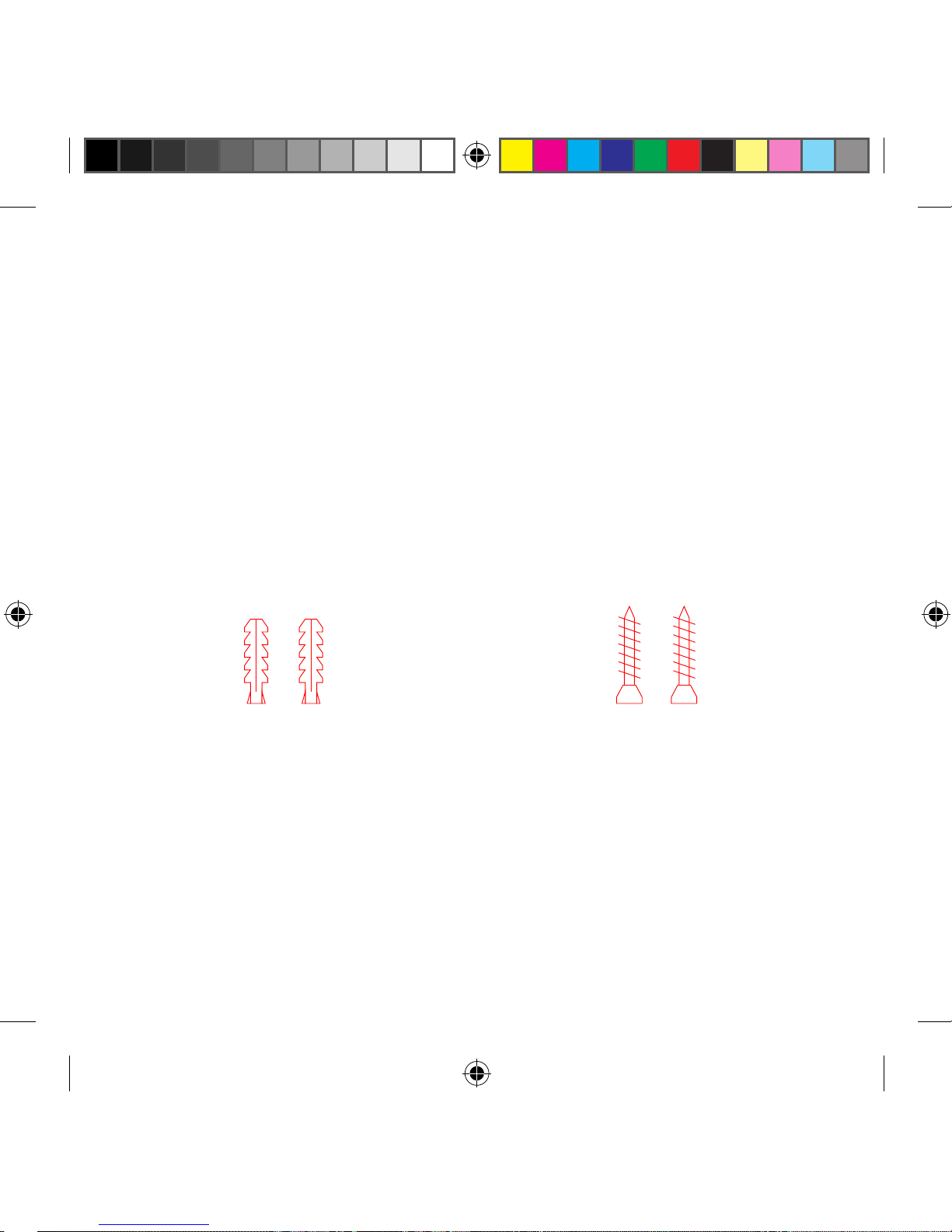

2 wall plugs 2 mounting screws
5792_Outdoor_Kamera_160818.indd 11 19.08.16 10:46
12
3.0 WARNING NOTICES
3.1 Safety message explanation
Notice!
Indicates a situation which, if not avoided, could result to
damage of the equipment or environment, or data loss.
Caution!
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
5792_Outdoor_Kamera_160818.indd 12 19.08.16 10:46
13
3.2 Legal notice
Privacy
The Bosch Smart Home Eyes-Outdoor Camera is designed for outdoor
personal use. Laws in your country may restrict the observation of
areas outside your private property. Please check your local legisla-
tion. To respect privacy, please avoid placing your Eyes-Outdoor
Camera to record public space including the street as well as private
property of your neighbors. We advise you to inform relatives, visitors
and home employees that a Eyes-Outdoor Camera is installed and
might be in operation.
Security
By using the Bosch Smart Home Eyes-Outdoor Camera you agree not
to rely on the device and its services for life safety or critical purposes.
Mobile notifications are provided for informational purposes only.
Bosch Smart Home GmbH cannot be held liable for missing or in-
correct notifications or event registrations.
5792_Outdoor_Kamera_160818.indd 13 19.08.16 10:46
14
3.3 Safety precautions
Do not open the Eyes-Outdoor Camera. The Eyes-Outdoor Camera
does not contain any user replaceable parts. If the Eyes-Outdoor
Camera stops working please contact customer service via telephone
00800 843 762 78. Please adhere to manual instructions on intended use.
Caution, risk of electric shock
The light source contained in this luminaire shall only be replaced by
the manufacturer or his service agent or a similar qualified person.
Please only use the power supply which was delivered with the
Eyes-Outdoor Camera. Please do not paint the Eyes-Outdoor Camera.
Recommended replacement of Eyes-Outdoor Camera after 10 years.
This product must only be installed by people legally qualified to install
230V devices. Please check your local legislation in case of doubts.
5792_Outdoor_Kamera_160818.indd 14 19.08.16 10:46
15
US/Canada installation
Installations and servicing must be done by qualified technicians and
comply with:
Installed per the American National Electrical Code (NEC), article
280, or Canadian Electric Code (CEC) guidelines as applicable.
The conducting voltage of the surge protector device (SPD) or surge
arrestor must be less than 2,500 Vpk
The branch circuit socket-outlet or circuit breaker shall be installed
near the equipment and shall be easily accessible
The equipment is designed only for normal building installations
(110 VAC 60 Hz)
Use an appropriate 16-AWG power cord for this device. Use UL-listed
flexible cord, SJ or SO serviceable or better, labeled with the suffix
“W,” “W-A,” “Water-Resistant,” or “Outdoor” marked on the cord.
Do not allow anything to rest on the power cord and do not install
the product where someone can walk on the power cord
Do not perform installation activities during thunder storms or when
the threat of lightning is present
5792_Outdoor_Kamera_160818.indd 15 19.08.16 10:46
4
5
2
3
1
16
4.0 INDICATORS AND CONTROL
4.1 Product overview
Front Back
5792_Outdoor_Kamera_160818.indd 16 19.08.16 10:46
17
Pos. Description Explanation
1Camera body –
2Front light
Automatically switches on when movement
is detected in the dark. can optionally be used as
decoration or welcome light
3Motion detector 180° 10m range
4Speaker mesh Protects the speaker and microphone
5Wide angle lens
Covers a horizontal viewing angle of 120 degrees;
the direction of view can be optimized during
installation
5792_Outdoor_Kamera_160818.indd 17 19.08.16 10:46
6
6
7
8
9
18
4.0 INDICATORS AND CONTROL
4.1 Product overview
Top
Bottom
Wall mounting plate
5792_Outdoor_Kamera_160818.indd 18 19.08.16 10:46
19
Pos. Description Explanation
6Decorative light Top and bottom decoration lights
7Reset hole Resets all settings in the camera, deletes all stored
video, removes the camera from your system
8Terminal block Connection for live, neutral and ground wires
9Cable entry Please make sure the power cable is routed
through this entry hole
5792_Outdoor_Kamera_160818.indd 19 19.08.16 10:46
20
5.0 FIXING
5.1 Fixing instructions
Before you start
Please turn off the electricity at all costs!
