Oncam EVO-12-NMD User manual

Welcome
The Oncam Evolution 12 Outdoor 360° camera is
designed to be connected to an IP network. Congure and
operate the camera using a standard internet browser.
Described are the installation and conguration
procedures for a standard surface mount camera
application.

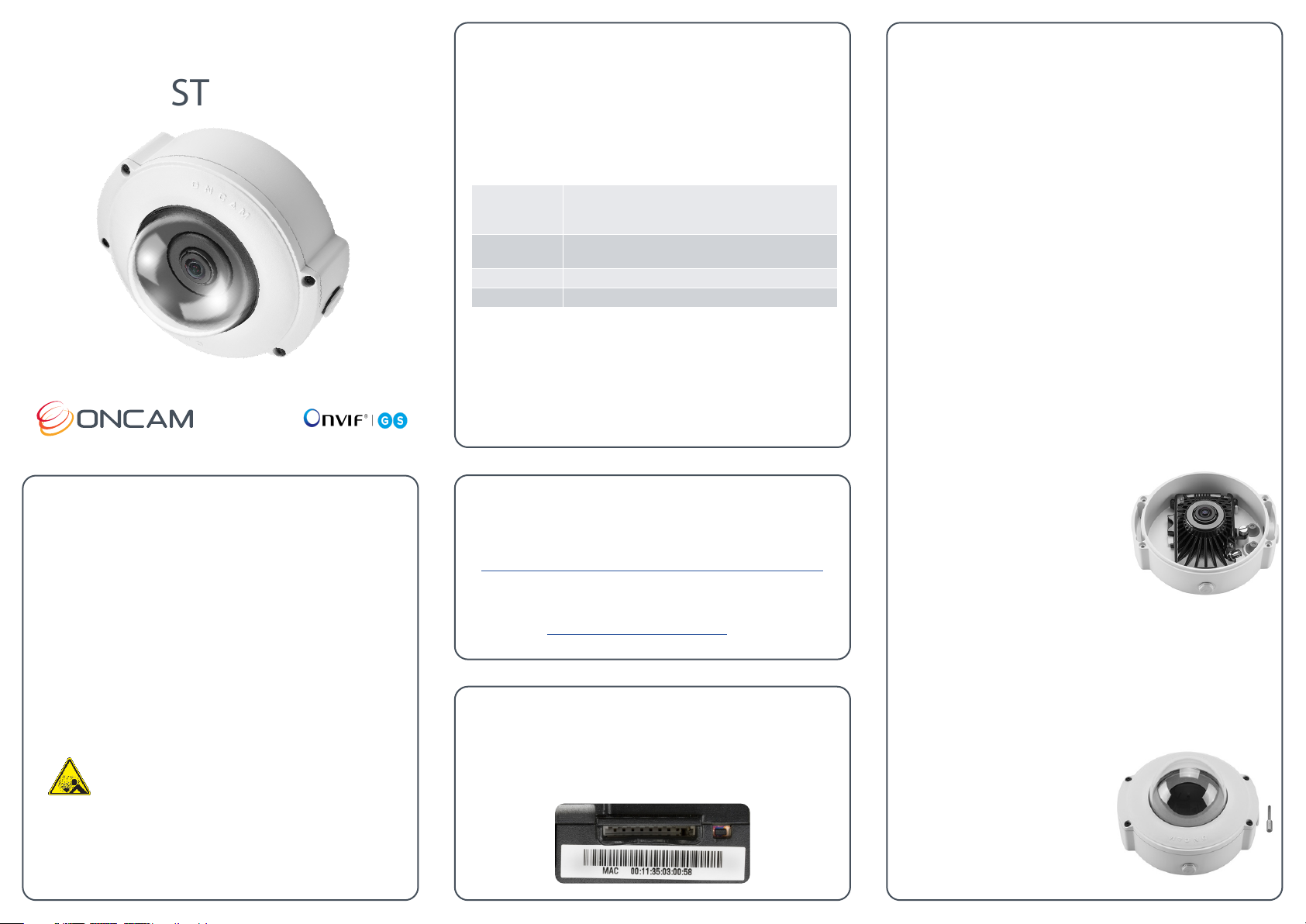

Evolution 12 Outdoor Camera
QUICK START GUIDE
Installation & Mounting
The Evolution Outdoor Dome camera is IP-66 rated and
vandal resistant.
The wire grommets on the back are sealed until
perforated by the installer. The integrity of these seals
are essential in order to keep moisture from entering
the enclosure. Carefully pierce the seals to ensure the
integrity of the seal around the cable.
Congure cabling to enter the camera from the side or
rear of the mounting base. Routing cabling from the rear
is recommended where possible to oer improved vandal
and tamper resistance.
Preparation
1. Puncture the diaphragm of the grommet by using a
sharp tool.
2. Pass a round Ethernet cable (CAT5 or better) through
a 20 mm compression cable gland. If using the side
entry or one of the rear rubber grommets, gently pull
the cable through the grommet to help secure the
seal.
NOTICE: Secure the cable to prevent movement.
3. Prepare the wires in accordance with EIA 568B
standards for crimping (RJ45 connector not
supplied).
Installation
1. Using the drilling template,
attach the Base Assembly to
the surface with the four holes
located outside the trim ring
seal joint.
Note: Use hardware
appropriate for the mount
surface to support a minimum of four times the
weight of the camera and enclosure.
2. Remove the alarm connector (if necessary).
3. Pass the Ethernet cable around the camera, securing
the cable into position.
4. Attach the Camera Module and route cables.
5. Rotate the Camera Module
into the mounting clip in the
Base Assembly.
6. Fasten the Camera Module
in place with the captive
thumb screw.
7. Assemble the Trim Cover
using the four captive
security screws.
Power Input
12 VDC, 1.0 A (min) LPS or NEC Class 2 power
supply or Power over Ethernet (PoE),
IEEE standard 802.3af
Operating
Temperature -40 to +55°C (-40 to +131°F)
Enclosure Aluminum with polymer bubble
Weight 1.12 kg (2.47 lbs)
Important
• Read these instructions carefully before installing
or operating this camera.
• This camera should be installed by a qualied
service person and the installation should
conform to local and national regulations.
• This camera is not suitable for installation in
a ceiling void that is used as an air handling
space.
• Certied as FCC Class A. In a domestic
environment this camera may cause radio
interference in which case the user should take
adequate measures.
DANGER: RISK OF EXPLOSION IF
REPLACING A BATTERY WITH AN
INCORRECT BATTERY TYPE.
MAC Address
Document the camera’s installation location and unique
MAC address. Find the MAC address printed on the
camera label. This information may be needed during the
camera conguration.
Technical Support
For the A&E, Specication, Installation and User Manual,
Software and Firmware visit:
www.oncamgrandeye.com/resources/product-downloads/
Tel: UK [phone]
US [phone]
Email: [email protected]
Supplied Parts
• EVO-12 Camera • Security Screw Driver Bit
• Base Assembly • Quick Start Guide
• Trim Cover • Drilling Template
EVO-12-NMD

© Copyright 2020 ONVU Technologies AG. All rights reserved. Oncam is a trading name of ONVU Technologies AG. Specications and congurations subject to change without
notice.
EVO-12-NMD-03 |Outdoor |11.2020 |Rev G

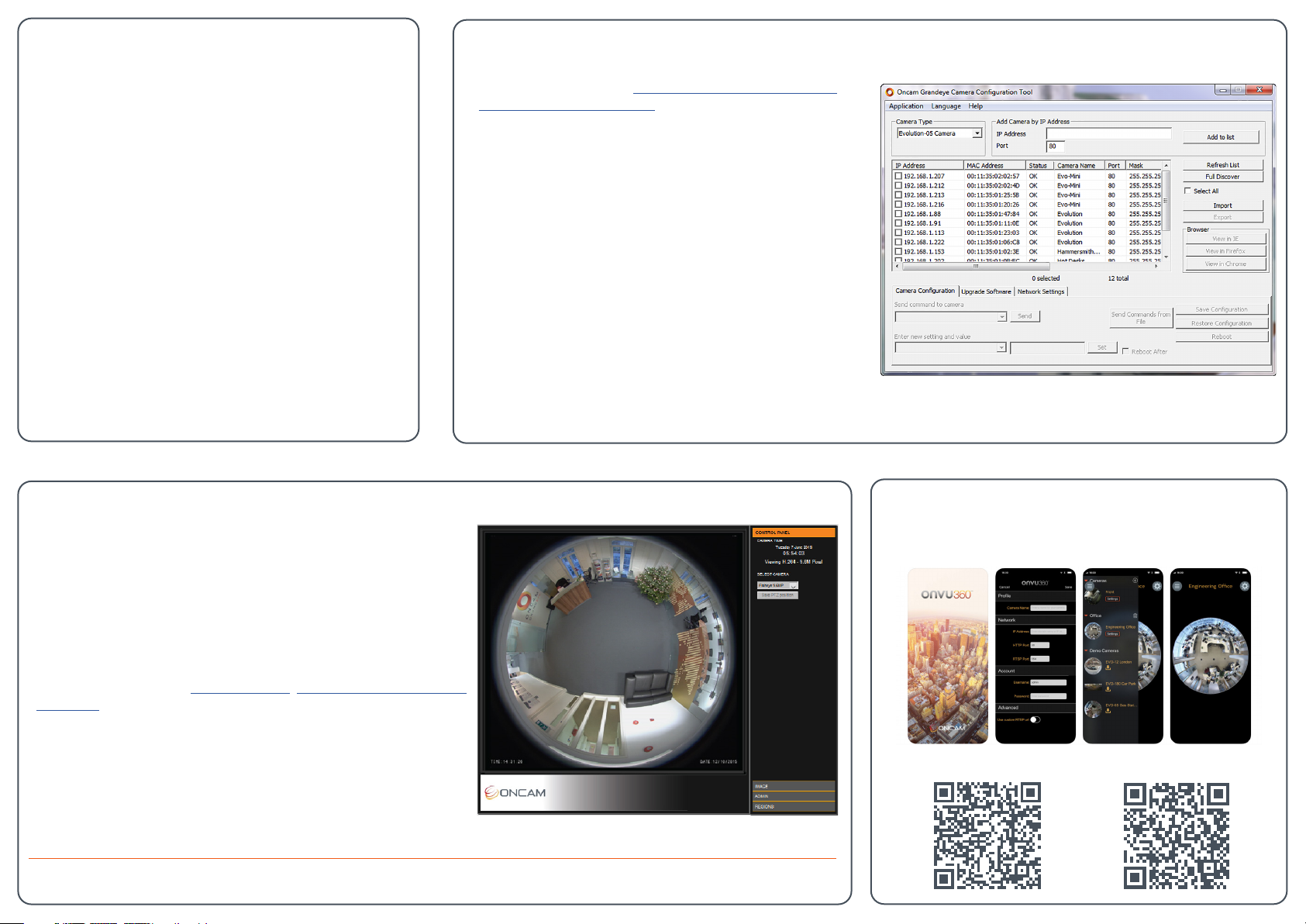

Note: The Evolution 05 screen is shown, the Evolution 12 is identical.
Conguring Network Settings
Powering the Camera
Supply power to the camera with PoE IEEE802.3af
through the integrated RJ45 Ethernet cable.
IP Settings
In order to use the camera you need the IP address.
There are two IP Settings.
• DHCP server or router to automatically assign
unique valid IP addresses to each camera.
• A manually congured network using static IP
addresses.
If your network has a DHCP server, go to First Time Camera
Access.
Should a DHCP server not be available, the camera
adopts the default static IP address 192.168.0.200. You
will then need to manually assign each camera with a
new unique IP address.
Note: See the camera’s User Manual and Camera
Conguration Tool User Manual for IP Setting
adjustments.
Using the Camera Conguration Tool
Go to the Oncam website (https://www.oncamgrandeye.com/
resources/camera-cong-tool/) to download the latest version of
the Camera Conguration tool and corresponding User Manual.
The Camera Conguration tool quickly nds the IP and MAC
addresses of all Oncam Evolution cameras connected to
the network. It also allows you to change network settings,
congure the system and perform software updates on multiple
cameras. Initiate a new scan by clicking the Full Discover button
Start the application by clicking the CameraCongurationTool
icon found on your desktop or from the program list (under
Oncam Grandeye). The software scans the network and provides
a list of all connected Oncam Evolution cameras.
Note: Some functions in this tool require a username and
password. If accessing the camera for the rst time, an
administrator username and password will need to be set.
First Time Camera Access
Web Browser
1. If you know the IP address of the camera, enter this
into the address bar of your web browser (Internet Explorer, Edge,
Firefox or Chrome). The camera should be on the same network.
2. Create an Admin username and password.
Notes:
Internet Explorer 11 is required to view live camera images in the browser.
All other browsers can be used for conguration purposes only.
Ensure you have the latest VLC Media Player (http://www.videolan.org/vlc/
index.html) for viewing camera images on the web interface.
Camera Conguration Tool
1. Select a camera from the camera list
2. Select your browser to open the web interface.
3. Click OK on the authentication pop up. You will then be prompted
to create and set an Admin username and password to access the
camera.
Download our FREE ONVU360 Pro mobile application and
put the 360-degree experience right at your ngertips.
Scan the QR Code to get it now!
