ALIBI ALI-TS1012VR User manual

1www.observint.com ALI-TS1012VR_CQ
161004
Before installation:
• Make sure that the device is in good condition and all the assembly parts are included.
• Check the specication of the products for the installation environment.
• Make sure that the wall or the ceiling is strong enough to withstand 3 times the weight of the camera.
• To avoid re or shock hazard, use only UL listed power supplies. Verify that the power supply will
provide the rated voltage and wattage for the camera. See the Specications section.
During installation:
• Camera Lens: Handle the camera carefully to prevent scratching or soiling the lens. If the lens or IR
array shield becomes soiled, clean it only with approved products. See the Cleaning section.
• Monitor impedance: Set the monitor impedance switch to 75 .
• Power supply: Camera drop cable: The camera drop cable includes two connectors:
—Video BNC connector: For transmission of the HD-TVI video signal across a coax (75 )
extension cable.
—Power connector: When applying Vdc power, observe the power polarity. See the picture to the
right for connector polarity conguration.
1. Remove the mounting plate from the camera assembly
uLoosen the clip plate captive screw with the L-wrench provided.
u
v

Clip plate
Enclosure
vSlide the clip plate out as shown in the photo above.
Separate the mounting base from the enclosure.
a. If mounting the camera directly to a wall or ceiling:
i. Using the mounting plate or drill template provided with your camera, mark the
location of the screws that anchor the base plate to the mounting surface. If you are
routing the drop cable through base, also mark the position of the hole for the drop
cable.
ii. Drill holes for the screws. The mounting hardware provided is appropriate for most
surfaces. However, depending on the surface materials, more appropriate fasteners
may be required.
iii. Drill a 3/4” hole for the drop cable, if necessary. The drop cable can be routed through
the mounting surface, or through a cable channel in the mounting plate.
b. If mounting the camera using the ALI-AJ6 junction box:
i. Separate the ALI-AJ6 mounting plate from the back box.
ii. Using the back box as a template, mark the location of the screws that will hold the
back box to the mounting surface.
iii. Drill holes for the screws. The mounting hardware provided is appropriate for most
surfaces. More appropriate fasteners may be required.
iv. Drill a 3/4” hole for the drop cable, if necessary. The drop cable can be routed through
the mounting surface, or through a conduit adapter in the side of the back box.
v. Anchor the back box to the mounting surface.
vi. Attach the camera mounting plate to the ALI-AJ6 mounting plate.
c. If mounting the camera using the ALI-AF1 flange adapter:
i. Attach the camera mounting plate to the ALI-AF1 ange adapter.
2. Route camera video and power extension cables between camera location and the monitoring
device (HD-TVI DVR).
3. Connect the camera drop cable to video and power extension cables.
ALI-TS1012VR 2.0MP HD-TVI IR
Outdoor Turret Camera Quick
Installation Guide
The ALIBI™ ALI-TS1012VR camera features a 2.0 MP high-performance CMOS imager that delivers sharp
1080p HD video. HD-TVI technology transmits zero latency HD video resolution over coax cabling.
Features
• 2MP CMOS image sensor
• HD-TVI technology produces 1080p video for sharp, detailed images
• 3.6 mm wide angle (82.2°) lens captures images over large areas
• 65 ft Full Frame SMART IR
• -40 °F ~ 140 °F extreme temperature operating range
• IP66 weather-rated housing
• Requires Alibi HD-TVI compatible recorder (HD-TVI DVR)
• Optional installation with junction box ALI-AJ6 and ange adapter ALI-AF1

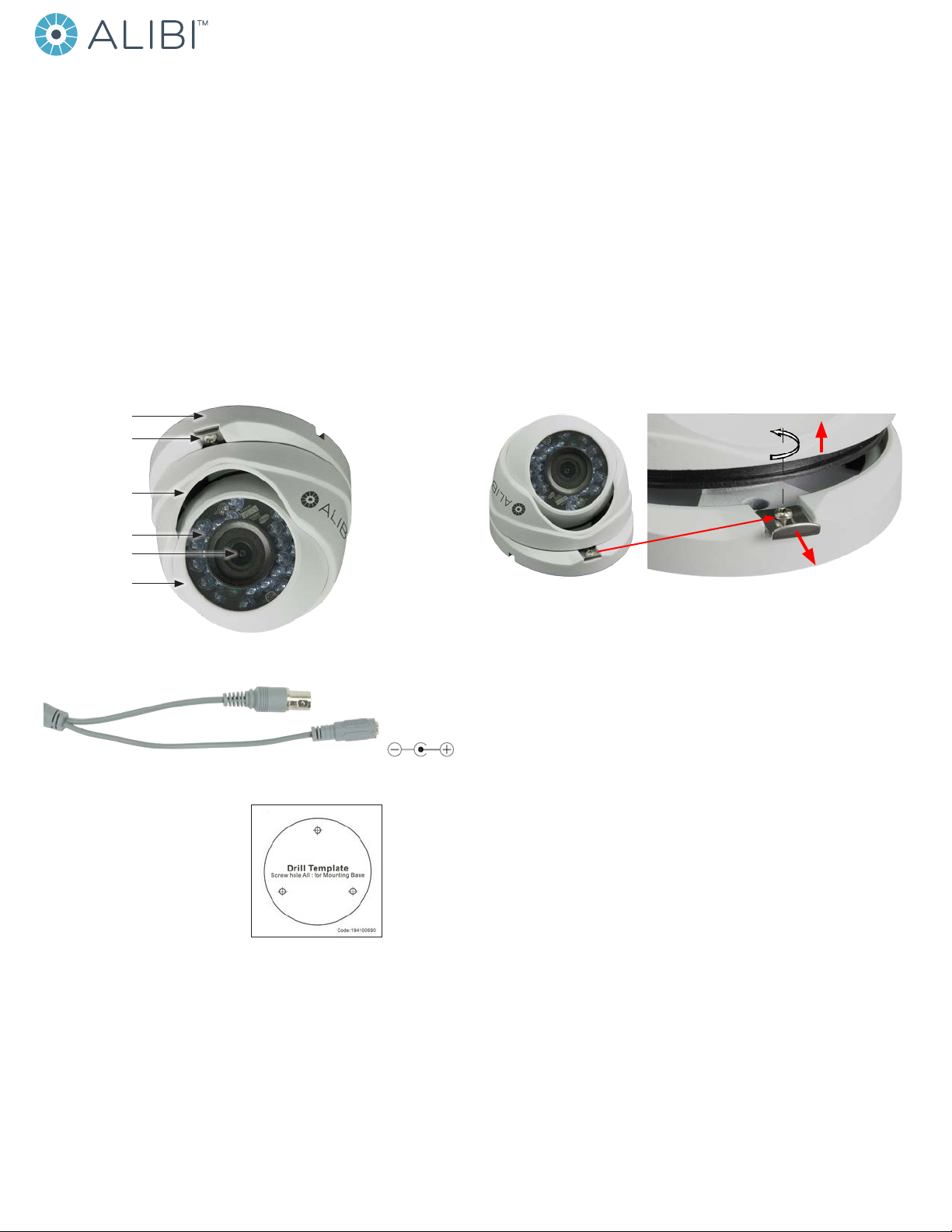

Mounting
plate
IR array
Lens
Camera
module
Enclosure
Clip plate
ALI-TS1012VR camera
Power
Connector
HD-TVI video
BNC Connector
ALI-CD1720P Camera drop cable connectors
What’s in the box
• Camera assembly
• Mounting hardware
• Security L- wrench
• Drill template
• This instruction guide
Tools you need
To install the camera, you will need:
• 12 Vdc power source. See Specications for voltage and wattage requirements.
• Tools and additional fasteners (may be required) for mounting the camera
• Video and power extension cable
• HD-TVI video setup monitor (optional)
Installation
The camera can be attached directly to a ceiling or wall, or installed with the ALI-AJ6 junction box or
ALI-AF1 ange adapter.

2www.observint.com
4. If attaching the camera directly to a wall or ceiling: Anchor the mounting base to the
surface with appropriate fasteners. If the camera drop cable will be routed through a cable channel,
make sure it is in place before securing the mounting plate to the surface.
Cable
Channel (2
If using the ALI-AJ6 junction box: Reattach the mounting plate to the junction box.
If using the ALI-AF1 ange adapter: Attach the ange adapter to the pedestal or conduit.
5. Reattach the camera to the camera mounting plate.
uPosition the camera assembly onto the mounting plate such that the lip on the black ring
attached to the enclosure slips under the tabs on the mounting plate.
Mounting plate
uTabs
Cable channel
vSlide the clip plate out.
v
y
x
Clip Plate
Mounting plate
Enclosure
 Push the enclosure into the mounting plate until it is fully seated.
x Slide the clip plate in so that it catches the lip of the black ring on the encloser.
y Tighten the clip plate screw until it is just snug.
6. Connect the far end of the video extension cable to a monitoring device, such as a surveillance
monitor or HD-TVI DVR.
7. Connect the far end of the power extension cable to a power supply, then apply power to the
camera through the power extension cable.
8. While observing video from the camera on a monitor, aim the camera at your surveillance target.
See the gure below for adjustment ranges.
Pan: 0 ~ 360 Tilt: 0 ~ 90
Rotation: 0 ~ 75
9. Tighten the clip plate screw until it is to hold the camera in place.
Cleaning Instructions
Clean the camera dome with an approved glass cleaning solution and a lint free cloth.
• Dust can be removed from the unit by wiping it with a soft damp cloth. To remove stains, gently rub
the surface with a soft cloth moistened with a mild detergent solution, then rinse and dry it with a
soft cloth.
• Remove all foreign particles, such as plastic or rubber materials, attached to the camera housing.
These may cause damage to the surface over time.
CAUTION
Do not use benzene, thinner or other chemical products on the camera assembly; these may
dissolve the paint and promote damage of the surfaces. Before using any chemical product,
carefully follow the accompanying instructions.
Specications
Camera
Image Sensor 2MP CMOS image sensor
Signal System HD-TVI
Eective Pixels 1920(H) * 1080(V)
Min. illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/30s to 1/50,000s
Lens 3.6 mm, 82.2° eld of view
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Synchronization Internal synchronization
Video Frame Rate 1080p @ 30 fps
HD Video Output 1 Analog HD output
S/N Ratio > 62 dB
General
Operating Conditions -40 °F ~ 140 °F (-40 °C ~ 60 °C), Humidity 90% or less (non-condensing)
Power Supply 12 Vdc ± 15%
Power Consumption Max. 4W
Protection Level IP66
IR Range Up to 65 ft (20 m)
Dimension 3.53” × 2.33” (89.6 mm × 59.1 mm)
Weight 12 oz (340 g)
Troubleshooting
Problem Possible Cause
Nothing appears on the screen - Check the power connection.
- Check the video signal cable connection to the monitor.
The video image is dim or not clear. - If the camera lens is dirty, clean it with a soft, clean cloth.
- Adjust the monitor controls, if necessary.
- If the camera is facing a very strong light, change the camera position.
- Adjust the lens focus.
The screen is dark. - Adjust the contrast control of the monitor.
- If you have an intermediate device, set the impedance (75  /Hi-Z)
properly, and check the cable connections.
The camera is not working properly and the
surface of the camera is hot.
- Verify that the camera is correctly connected to an appropriate regulated
power source.
The image on the monitor ickers - Make sure that the camera isn’t facing direct sunlight or uorescent light.
If necessary,change the camera position.
© 2016 Observint Technologies. All rights reserved.
