Bosch GO User manual

Robert Bosch Power Tools GmbH
70538 Stuttgart
GERMANY
www.bosch-pt.com
1 609 92A 3WU (2017.06) T / 208
GO Professional
en Original instructions
fr Notice originale
pt Manual original
cn 正本使用说明书
tw 原始使用說明書
th หนังสือคู่มือการใช้งาน ฉบับต้นแบบ
id Petunjuk-Petunjuk untuk
Penggunaan Orisinal
vi
Bản gốc hướng dẫn sửdụng
ar
fa
ςТЎϩХʉ ЌТϾϦφЍʉ ʌμВТЎϺυ
ΖЎϩʉ ˒μВЖЙʉʓ ИͳϞφЁʑ
OBJ_BUCH-3206-001.book Page 1 Monday, June 12, 2017 2:41 PM

2|
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
English. . . . . . . . . . . . . . . . .Page 7
Français. . . . . . . . . . . . . . . .Page 26
Português . . . . . . . . . . . . Página 46
中文 . . . . . . . . . . . . . . . . . . . . . .页66
中文 . . . . . . . . . . . . . . . . . . . . . .頁81
. . . . . . . . . . . . . . .  96
Bahasa Indonesia . . . . Halaman 116
Tiếng Việt . . . . . . . . . . . . . . Trang 137
. . . . . . . . . . . . . . . . 183
. . . . . . . . . . . . . . 205
. . . . . . . . . . . . . . . . . . . . . . I
OBJ_BUCH-3206-001.book Page 2 Monday, June 12, 2017

| 3
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
1
2
3
4
8
5
6
7
OBJ_DOKU-60680-001.fm Page 3 Monday, June 12, 2017
4

4|
1 609 92A 3WU | (12.6.17)
Bosch Power Tools

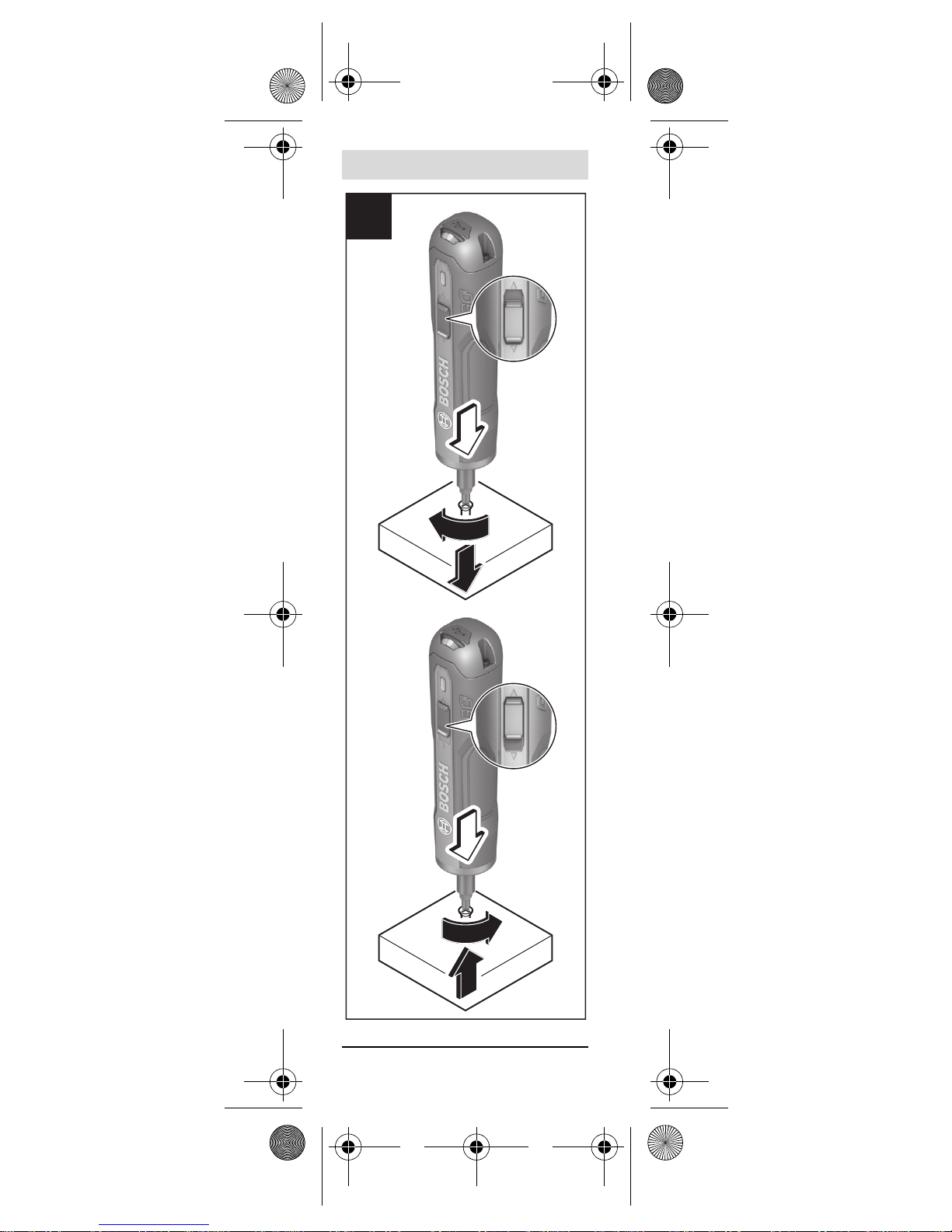

A
OBJ_BUCH-3206-001.book Page 4 Monday, June 12, 2017

| 5
1 609 92A 3WU | (12.6.17)
Bosch Power Tools

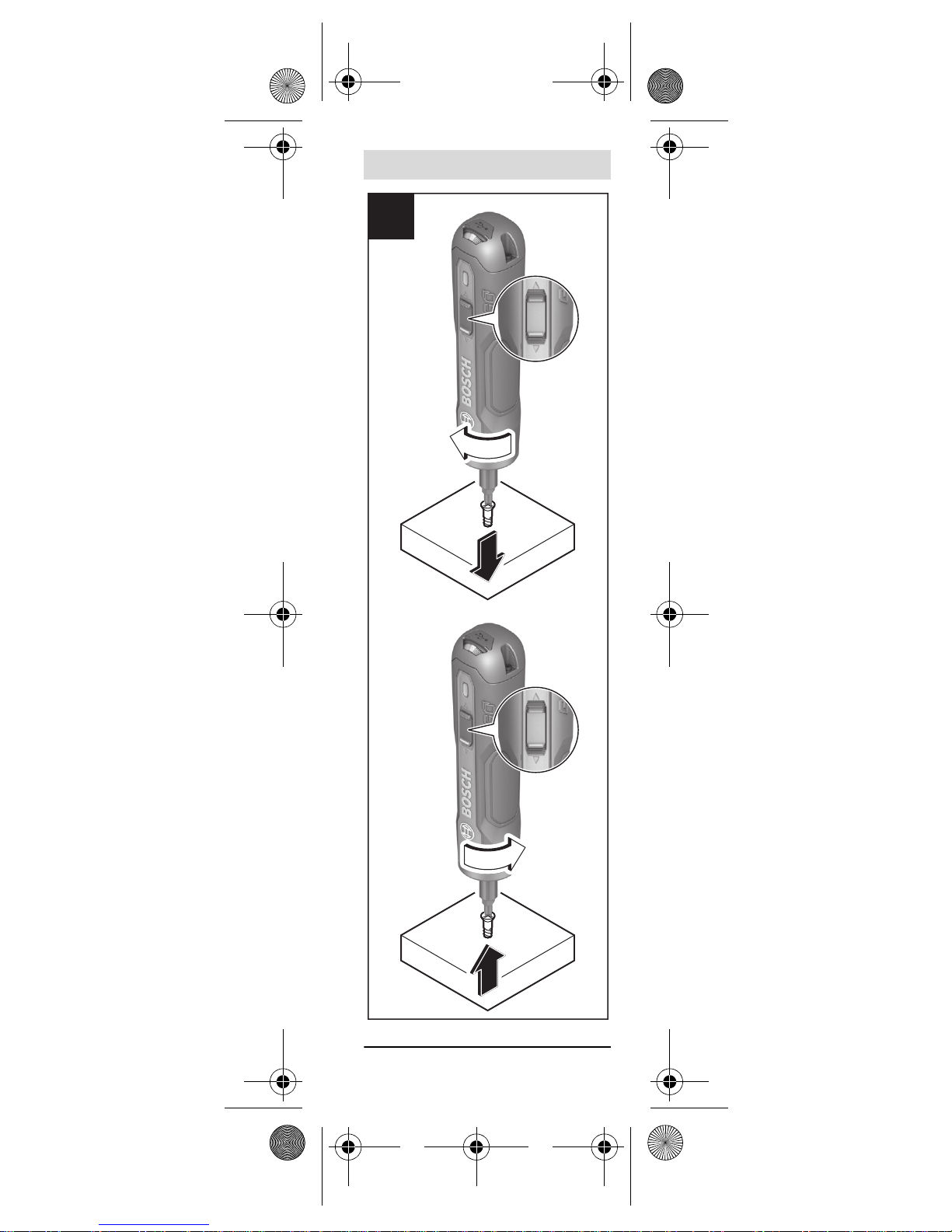

B
OBJ_BUCH-3206-001.book Page 5 Monday, June 12, 2017

6|
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
C
10
9
OBJ_BUCH-3206-001.book Page 6 Monday, June 12, 2017

English | 7
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
English
Safety Notes
General Power Tool Safety
Warnings
Read all safety
warnings and all in-
structions. Failure to follow the warn-
ings and instructions may result in elec-
tric shock, fire and/or serious injury.
Save all warnings and instructions
for future reference.
The term “power tool” in the warnings
refers to your mains-operated (corded)
power tool or battery-operated (cord-
less) power tool.
Work area safety
Keep work area clean and well lit.
Cluttered or dark areas invite acci-
dents.
Do not operate power tools in ex-
plosive atmospheres, such as in
thepresenceofflammableliquids,
gases or dust. Power tools create
sparks which may ignite the dust or
fumes.
Keep children and bystanders
away while operating a power
tool. Distractions can cause you to
lose control.
Electrical safety
Power tool plugs must match the
outlet. Never modify the plug in
any way. Do not use any adapter
plugs with earthed (grounded)
power tools. Unmodified plugs and
matching outlets will reduce risk of
electric shock.
WARNING
OBJ_BUCH-3206-001.book Page 7 Monday, June 12, 2017

8| English
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Avoid body contact with earthed
or grounded surfaces, such as
pipes, radiators, ranges and re-
frigerators. There is an increased
risk of electric shock if your body is
earthed or grounded.
Do not expose power tools to rain
or wet conditions. Water entering a
power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use
the cord for carrying, pulling or
unplugging the power tool. Keep
cord away from heat, oil, sharp
edges and moving parts. Damaged
or entangled cords increase the risk
of electric shock.
When operating a power tool out-
doors, use an extension cord suit-
able for outdoor use. Use of a cord
suitable for outdoor use reduces the
risk of electric shock.
Ifoperating apower toolin adamp
location is unavoidable, use a re-
sidual current device (RCD) pro-
tectedsupply.Use of an RCD reduc-
es the risk of electric shock.
Personal safety
Stay alert, watch what you are do-
ing and use common sense when
operating a power tool. Do not use
a power tool while you are tired or
under the influence of drugs, alco-
hol or medication. A moment of in-
attention while operating power
tools may result in serious personal
injury.
Use personal protective equip-
ment. Always wear eye protec-
tion. Protective equipment such as
OBJ_BUCH-3206-001.book Page 8 Monday, June 12, 2017

English | 9
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
dust mask, non-skid safety shoes,
hard hat, or hearing protection used
for appropriate conditions will re-
duce personal injuries.
Prevent unintentional starting.
Ensuretheswitchisintheoff-posi-
tion before connecting to power
source and/or battery pack, pick-
ing up or carrying the tool. Carry-
ing power tools with your finger on
the switchor energising power tools
that have the switch on invites acci-
dents.
Remove any adjusting key or
wrench before turning the power
tool on. A wrench or a key left at-
tached to a rotating part of the pow-
er tool may result in personal injury.
Do not overreach. Keep proper
footing and balance at all times.
This enables better control of the
power tool in unexpected situations.
Dress properly. Do not wear loose
clothing or jewellery. Keep your
hair, clothing and gloves away
from moving parts. Loose clothes,
jewellery or long hair can be caught
in moving parts.
If devices are provided for the
connection of dust extraction and
collection facilities, ensure these
are connected and properly used.
Use of dust collection can reduce
dust-related hazards.
Power tool use and care
Do not force the power tool. Use
the correct power tool for your
application. The correct power tool
will do the job better and safer at the
rate for which it was designed.
OBJ_BUCH-3206-001.book Page 9 Monday, June 12, 2017

10 | English
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Do not use the power tool if the
switch does not turn it on and off.
Any power tool that cannot be con-
trolled with the switch is dangerous
and must be repaired.
Disconnect the plug from the
power source and/or the battery
pack from the power tool before
making any adjustments, chang-
ing accessories, or storing power
tools. Such preventive safety
measures reduce the risk of starting
the power tool accidentally.
Store idle power tools out of the
reach of children and do not allow
personsunfamiliarwiththepower
tool or these instructions to oper-
ate the power tool. Power tools are
dangerous in the hands of untrained
users.
Maintain power tools. Check for
misalignment or binding of mov-
ing parts, breakage of parts and
any other condition that may
affect the power tool’s operation.
If damaged, have the power tool
repaired before use. Many acci-
dents are caused by poorly main-
tained power tools.
Keep cutting tools sharp and
clean. Properly maintained cutting
tools with sharp cutting edges are
less likely to bind and are easier to
control.
Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking in-
to account the working conditions
andthe work to be performed.Use
of the power tool for operations
different from those intended could
result in a hazardous situation.
OBJ_BUCH-3206-001.book Page 10 Monday, June 12, 201
7

English | 11
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Battery tool use and care
Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type
of battery pack may create a risk of
fire when used with another battery
pack.
Use power tools only with specifi-
cally designated battery packs.
Use of any other battery packs may
create a risk of injury and fire.
When battery pack is not in use,
keep it away from other metal ob-
jects, like paper clips, coins, keys,
nails, screws or other small metal
objects, that can make a connec-
tion from one terminal to another.
Shorting the battery terminals to-
gether may cause burns or a fire.
Under abusive conditions, liquid
may be ejected from the battery;
avoid contact. If contact acciden-
tally occurs, flush with water. If
liquid contacts eyes, additionally
seek medical help. Liquid ejected
fromthebattery may causeirritation
or burns.
Service
Have your power tool serviced by
a qualified repair person using
only identical replacement parts.
This will ensure that the safety of the
power tool is maintained.
Safety Warnings for
Screwdrivers
Hold power tool by insulated grip-
ping surfaces, when performing
an operation where the fastener
may contact hidden wiring.
OBJ_BUCH-3206-001.book Page 11 Monday, June 12, 201
7

12 | English
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Fasteners contacting a “live” wire
may make exposed metal parts of
the power tool “live” and could give
the operator an electric shock.
Hold the machine with a firm grip.
High reaction torque can briefly
occur while driving in and loosening
screws.
Securetheworkpiece.Aworkpiece
clamped with clamping devices or in
a vice is held more secure than by
hand.
Always wait until the machine has
come to a complete stop before
placing it down. The tool insert can
jam and lead to loss of control over
the power tool.
Before any work on the machine
(e. g., maintenance, tool change,
etc.) as well as during transport
and storage, set the rotational di-
rection switch to the centre posi-
tion. Unintentional actuation of the
On/Off switch can lead to injuries.
Protect the power tool
against heat, e. g., against
continuous intense sun-
light, fire, water, and mois-
ture. Danger of explosion.
In case of damage and improper
useofthebattery,vapoursmaybe
emitted. Ventilate the area and
seek medical help in case of com-
plaints. The vapours can irritate the
respiratory system.
OBJ_BUCH-3206-001.book Page 12 Monday, June 12, 201
7

English | 13
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Safety Warnings for Battery
Chargers
This charger is not in-
tended for use by chil-
drenandpersonswith
physical, sensory or
mental limitations or
a lack of experience
or knowledge. This
charger can be used
by children aged 8
and above and by per-
sons who have physi-
cal,sensoryormental
limitationsoralackof
experience or know-
ledge if a person re-
sponsible for their
safety supervises
them or has instruct-
ed them in the safe
operation of the
charger and they un-
derstand the associ-
ated dangers. Other-
wise, there is a danger
of operating errors and
injuries.
OBJ_BUCH-3206-001.book Page 13 Monday, June 12, 201
7

14 | English
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Supervise children.
This will ensure that
children do not play
with the charger.
Cleaning and user
maintenance of the
battery charger shall
not be made by chil-
dren without super-
vision.
Keep the battery charger
away from rain or mois-
ture.Penetration of water in
the battery charger increas-
es the risk of an electric
shock.
Only charge Bosch lithium-ion
batteries or lithium-ion batteries
installed in Bosch products. The
battery voltage must match the
battery charging voltage of the
charger. Otherwise there is danger
of fire and explosion.
Keep the battery charger clean.
Contamination can lead to danger of
an electric shock.
Before each use, check the bat-
tery charger, cable and plug. If
damageisdetected,donotusethe
battery charger. Never open the
battery charger yourself. Have
repairs performed only by a quali-
fied technician and only using
original spare parts. Damaged bat-
tery chargers, cables and plugs in-
crease the risk of an electric shock.
OBJ_BUCH-3206-001.book Page 14 Monday, June 12, 201
7

English | 15
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Product Description and
Specifications
Read all safety warnings and all in-
structions. Failure to follow the warn-
ings and instructions may result in elec-
tric shock, fire and/or serious injury.
Intended Use
The machine is intended for driving in
and loosening screws.
Product Features
The numbering of the product features
refers to the illustration of the machine
on the graphics page.
1Screwdriver bit*
2Tool holder
3Rotational direction switch
4Battery charge-control indicator
5Torque preselection ring
6Micro USB socket
7Cover, micro USB port
8Handle (insulated gripping
surface)
9USB cable*
10 Battery charger*
*Accessories shown or described are not
part of the standard delivery scope of the
product. A complete overview of accesso-
ries can be found in our accessories pro-
gram.
OBJ_BUCH-3206-001.book Page 15 Monday, June 12, 201
7

16 | English
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Technical Data
Noise/Vibration Information
Sound emission values determined
according to EN 60745-2-2.
Typically the A-weighted sound pres-
sure level of the product is less than
70 dB(A). Uncertainty K =3 dB.
Cordless Screwdriver GO
Article number 3 601 JH2 0..
Rated voltage V= 3.6
No-load speed min-1 0–360
Max.torqueforhard/softscrewdriving
application according to ISO 5393
Nm 5/2.5
Max. screw dia. mm 5
Weight according to
EPTA-Procedure 01:2014
kg 0.28
Permitted ambient temperature
during charging
°C 0...+45
Permitted ambient temperature
during operation* and storage
°C –20...+50
Battery Li-Ion
Capacity Ah 1.5
Energy Wh 6
Number of battery cells 1
Charging time h1.5
Charging cable
connection Micro-USB
Recommended chargers
V/mA 5/1000
Protection class /II
* limited performance at temperatures <0 °C
OBJ_BUCH-3206-001.book Page 16 Monday, June 12, 201
7

English | 17
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
The noise level when working can
exceed 80 dB(A).
Wear hearing protection!
Vibration total values ah(triax vector
sum) and uncertainty K determined
according to EN 60745-2-2:
Screwdriving without impact:
ah<0.9m/s2, K =1.5 m/s2
The vibration level given in this informa-
tion sheet has been measured in ac-
cordancewithastandardisedtestgiven
in EN 60745 and may be used to com-
pare one tool with another. It may be
used for a preliminary assessment of
exposure.
The declared vibration emission level
represents the main applications of the
tool. However if the tool is used for dif-
ferent applications, with different ac-
cessories or insertion tools or is poorly
maintained,the vibrationemission may
differ. This may significantly increase
the exposure level over the total work-
ing period.
Anestimationofthelevelofexposureto
vibration should also take into account
the times when the tool is switched off
or when it is running but not actually do-
ing the job. This may significantly re-
duce the exposure level over the total
working period.
Identify additional safety measures to
protect the operator from the effects of
vibration such as: maintain the tool and
the accessories, keep the hands warm,
organisation of work patterns.
OBJ_BUCH-3206-001.book Page 17 Monday, June 12, 201
7

18 | English
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Assembly
Before any work on the machine
(e. g., maintenance, tool change,
etc.) as well as during transport
and storage, set the rotational di-
rection switch to the centre posi-
tion. Unintentional actuation of the
On/Off switch can lead to injuries.
Battery Charging (see figure C)
Note: The battery supplied is partially
charged. To ensure full capacity of the
battery, completely charge the battery
in the battery chargerbeforeusingyour
power tool for the first time.
The lithium-ion battery can be charged
at any time without reducing its service
life. Interrupting the charging proce-
dure does not damage the battery.
The lithium-ion battery is protected
against deep discharging by the “Elec-
tronic Cell Protection (ECP)”.When the
battery is empty, the machine is
switched off by means of a protective
circuit: The inserted tool no longer
rotates.
Once the power tool has automati-
cally shut off, do not continue to
press on the spindle, as this can
damage the battery.
Open the cover 7.
UseaUSBcable9toconnectthepower
tool to the charger 10.
The battery charge-control indicator 4
indicatesthecharging progress. During
the charging procedure, the indicator
flashes green. The battery is fully
charged when the indicator lights up
green continuously.
OBJ_BUCH-3206-001.book Page 18 Monday, June 12, 201
7

English | 19
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
During the charging procedure, the
handleofthemachinewarmsup.Thisis
normal.
If you are not planning to use the power
tool again soon, disconnect it from the
power supply.
The power tool cannot be used during
thechargeprocedure;itisnot defective
when inoperative during the charging
procedure.
Observe the notes for disposal.
Changing the Tool
Do not use double-sided screw-
driver bits that are longer than
25 mm.
Slide the rotational direction switch 3
into the middle position. This locks the
spindle in place, preventing the drive
from starting up when the tool bit is
changed.
Insertthescrewdriver bit 1directlyinto
the tool holder 2.
Operation
Starting Operation
Reversing the rotational direction
(see figure A)
Do not use therotational direction
switch 3 when the power tool is in
operation, as this may damage it.
Clockwise rotation: To screw in
screws, slide the rotational direction
switch 3forwards.
Anti-clockwise rotation: To loosen or
unscrew screws, slide the rotational
direction switch 3back.
OBJ_BUCH-3206-001.book Page 19 Monday, June 12, 201
7

20 | English
1 609 92A 3WU | (12.6.17)
Bosch Power Tools
Locking the spindle in place
(see figure B)
To lock the spindle in place, slide the
rotational direction switch 3into the
middle position.
This enables screws to be screwed in,
even when the battery is empty and
allows for the machine to be used as a
screwdriver.
Setting the torque
With the torque preselection ring 5, the
required torque can be preselected in
6 steps. The inserted tool is stopped as
soon as the set torque is reached.
Position 1:
Lower torque for screwing in screws
with small diameter or into soft
materials.
Position 6:
Higher torque for screwing in screws
with large diameter or into hard
materials.
Starting and Stopping (see figure A)
To start the power tool, exert pressure
on the spindle and maintain this pres-
sure to continue using the power tool.
To switch it off, stop exerting pressure
on the spindle.
Battery Charge-control Indicator
The battery charge-control indicatoron
the power tool consists of three green
LEDs. It indicates the charging condi-
tion of the battery for a few seconds
after the tool is switched on and off.
100 %60 %30 %
OBJ_BUCH-3206-001.book Page 20 Monday, June 12, 201
7
