Bose Lifestyle 235 Series III User manual

| | | |
Setup Guide |

2 - English
Important Safety Information
Please read this guide
Please take the time to follow the instructions in this owner’s guide carefully. It will help you set up and operate your
system properly and enjoy its advanced features. Please save this guide for future reference.
The lightning ash with arrowhead symbol within an equilateral triangle alerts the user to the presence of
uninsulated, dangerous voltage within the system enclosure that may be of sufcient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the user
to the presence of important operating and maintenance instructions in this owner’s guide.
WARNING: Contains small parts which may be a choking hazard. Not suitable for children under age 3.
WARNINGS:
• To reduce the risk of re or electrical shock, do not expose the product to rain or moisture.
• Do not expose this apparatus to dripping or splashing, and do not place objects lled with liquids, such
as vases, on or near the apparatus. As with any electronic products, use care not to spill liquids into any
part of the system. Liquids can cause a failure and/or a re hazard.
• To prevent electric shock, match the wide blade of the line cord plug to the wide slot of the AC (mains)
receptacle. Insert fully.
• Do not place any naked ame sources, such as lighted candles, on or near the apparatus.
CAUTIONS:
• Make no modications to the system or accessories. Unauthorized alterations may compromise safety,
regulatory compliance, and system performance.
• Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when
using headphones, especially for extended periods.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS
Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights
Reserved.
The terms HDMI and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such
technology outside of this product is prohibited without a license from Microsoft
Wi-Fi is a registered mark of the Wi-Fi Alliance.
©2014 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used
without written permission.

English - 3
Important Safety Information
Notes:
• The product label is located on the bottom or the back of the product.
• Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain
readily operable.
• The product must be used indoors. It is neither designed nor tested for use outdoors, in recreation vehicles, or on
boats.
• This product is intended to be used only with the power supply provided.
• The speaker wire and interconnect cables included with the system are not approved for in-wall installation.
Please check your local building codes for the correct type of wire and cable required for in-wall installation.
• Changes or modications not expressly approved by Bose Corporation could void the user’s authority to operate
this equipment.
• Operate this product within the temperature range of 32°F to 104°F (0°C to 40°C).
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied personnel. Servicing is required when the apparatus has been damaged in a
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
This symbol means the product must not be discarded as household waste, and should be
delivered to an appropriate collection facility for recycling. Proper disposal and recycling
helps protect natural resources, human health and the environment. For more information on
disposal and recycling of this product, contact your local municipality, disposal service, or the
shop where you bought this product.
Bose Corporation hereby declares that this product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements.
The complete declaration of conformity can be found at: www.Bose.com/compliance.

Safety Information
4 - English
Please complete and retain for your records.
The serial and model numbers can be found on the bottom panel of the product.
Lifestyle®model:__________________________________________________________________
Control console serial number: _____________________________________________________
Acoustimass®serial number: _______________________________________________________
Speaker array serial number:_______________________________________________________
Purchase date: ___________________________________________________________________
Please keep your receipt together with this Setup Guide and the Operating Guide.
Names and Contents of Toxic or Hazardous Substances or Elements
Part Name
Toxic or Hazardous Substances and Elements
Lead
(Pb) Mercury (Hg) Cadmium (Cd) Hexavalent (CR(VI)) Polybrominated Biphenyl (PBB) Polybrominated diphenylether (PBDE)
PCBs X0 0 0 0 0
Metal parts X 0 0 0 0 0
Plastic parts 0 0 0 0 0 0
Speakers X0 0 0 0 0
Cables X0 0 0 0 0
0: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement in SJ/T 11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is
above the limit requirement in SJ/T 11363-2006.

English - 5
Contents
Introduction
About your Lifestyle®system .......................................................................... 6
Introducing SoundTouch™ from Bose®.......................................................... 6
Key Benefits ................................................................................................ 6
About SoundTouch™on your system...................................................... 6
System Features......................................................................................... 6
Unpacking........................................................................................................... 7
System Setup
Control console box........................................................................................... 8
Acoustimass®module box............................................................................... 11
Speaker box ........................................................................................................ 13
Interactive box ................................................................................................... 16
Install the SoundTouch™ app .......................................................................... 18
Add the system to your existing SoundTouch™ account........................... 18
Other Box 4 items.............................................................................................. 19
Applying rubber feet ......................................................................................... 20
If you have setup problems ............................................................................. 21
Contacting customer service .......................................................................... 21

6 - English
Introduction
About your Lifestyle®system
Thank you for choosing a Bose®Lifestyle®system for your home. This elegant and
easy-to-use system delivers superior performance for both music and video. This
guide provides step-by-step instructions for setting up your new system. Refer to
the Operating guide for system features.
Your new home entertainment system includes two Gemstone®ES speakers,
a control console, Acoustimass®module, SoundTouch™wireless adapter and a
universal remote control.
Introducing SoundTouch™ from Bose®
With SoundTouch™, you can stream Internet radio, music services (where available),
and your music library. If you have Wi-Fi®at home, you’re ready to enjoy your
favorite music in any room you want.
Key Benefits
• Enjoy wireless access to Internet radio, music services and your music library.
• Stream your favorite music easily with personalized Presets.
• Works with your existing home Wi-Fi network.
• Free SoundTouch™app for your computer, smartphone or tablet provides more
powerful control.
• Simply add additional systems at any time for a multi-room listening experience.
• Wide selection of Bose®audio systems lets you choose the right solution for
any room.
About SoundTouch™on your system
The SoundTouch™wireless adapter in Box
4
enables SoundTouch™on your
Lifestyle®system. Setting up your wireless adapter is part of the UNIFY®setup
process. Do not connect your wireless adapter until prompted by UNIFY.
See page 16.
System Features
• Enables your Bose home entertainment system to stream music wirelessly
using SoundTouch™.
• SoundTouch™source lets you view and control your Presets, Recents, and
Now Playing content on your TV.
• The SoundTouch™app lets you explore Internet radio, music services (where
available), and your music library from your computer, smartphone or tablet.
• Personalize up to six Presets to deliver your music with just one touch from your
remote control.
For information on using SoundTouch™, download the SoundTouch™user’s guide
for your Lifestyle®system from the Bose website.

English - 7
Unpacking
The parts of your new system are packaged in four numbered boxes plus a small
box containing the appropriate power cords:
•
1
1Control console box
• 2Acoustimass®module box
• 3Speaker box
• 4Interactive box
• Power cord box (used with boxes 1 and 2)
Starting with Box 1, carefully unpack each box and set up its contents before
unpacking the next one.
Be sure to save all of the packing materials. These provide the safest means for
any necessary shipping or transporting.
Note: If part of the system is damaged, do not use it. Contact your authorized Bose®
dealer or Bose customer service. Refer to the contact sheet in the carton.
Introduction

8 - English
System Setup
1
1Control console box
What you need from box 1:
What you need from the power cord box:
A. Place the control console on a flat, stable surface near your TV.

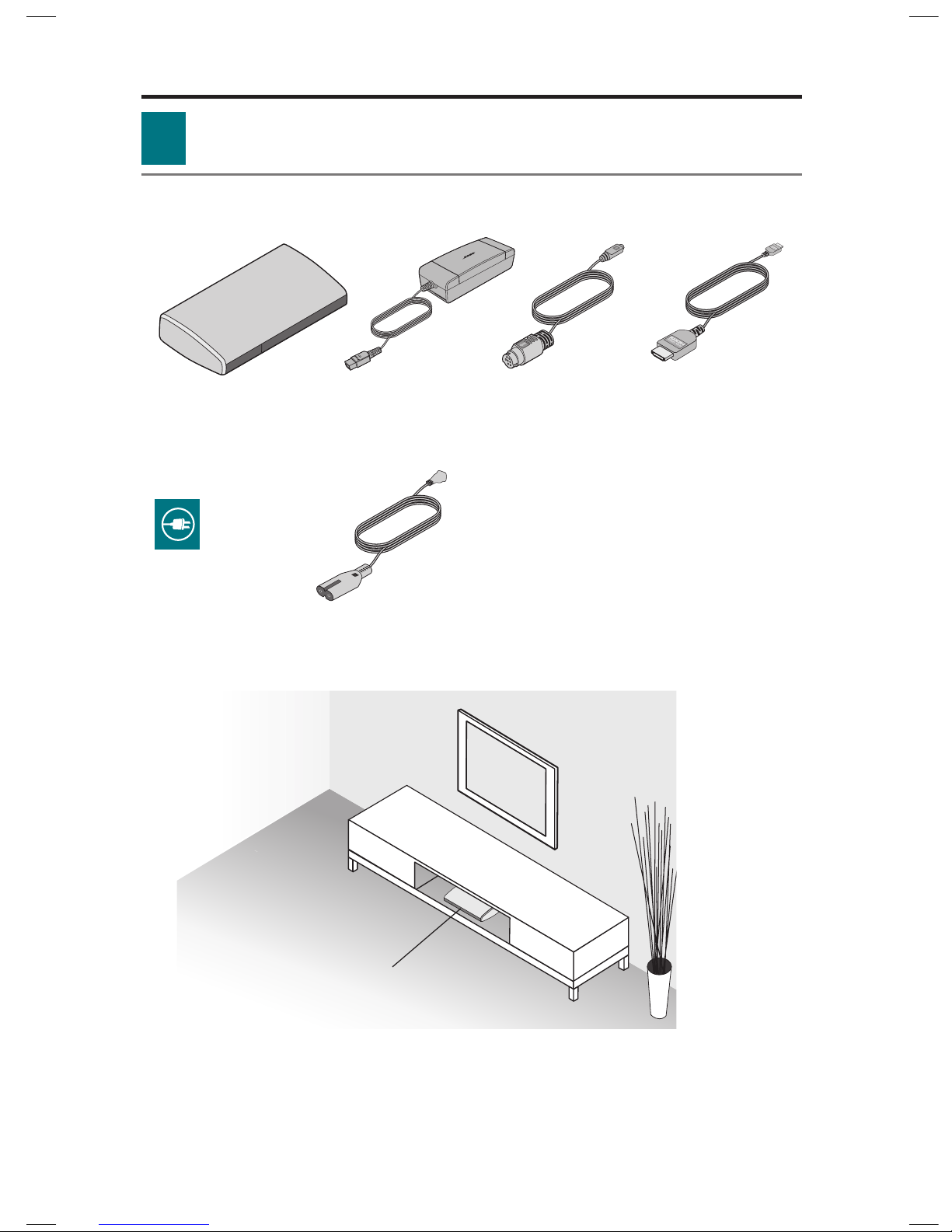

Control console
Note: Until your system is completely installed, it may be helpful to keep the control
console positioned for easy access to its rear connector panel.
From the power cord box:
Power cord
From box 1:
Control console Power supply Audio input cable High-speed
HDMI
™
cable

English - 9
System Setup
B. Insert one end of the High-speed HDMI™cable into an HDMI INPUT connector
on your TV.
If an HDMI cable is already connected to an HDMI input on your TV, you can
use this one. Just disconnect the other end.
Note: If you plan on viewing 3D content, make sure you use the supplied
high-speed HDMI cable.
C. Insert the other end of the HDMI cable into the HDMI OUT Video to TV
connector on the control console.
HDMI OUT
Video to TV
HDMI OUT
Video to TV
HDMI cable
from TV

10 - English

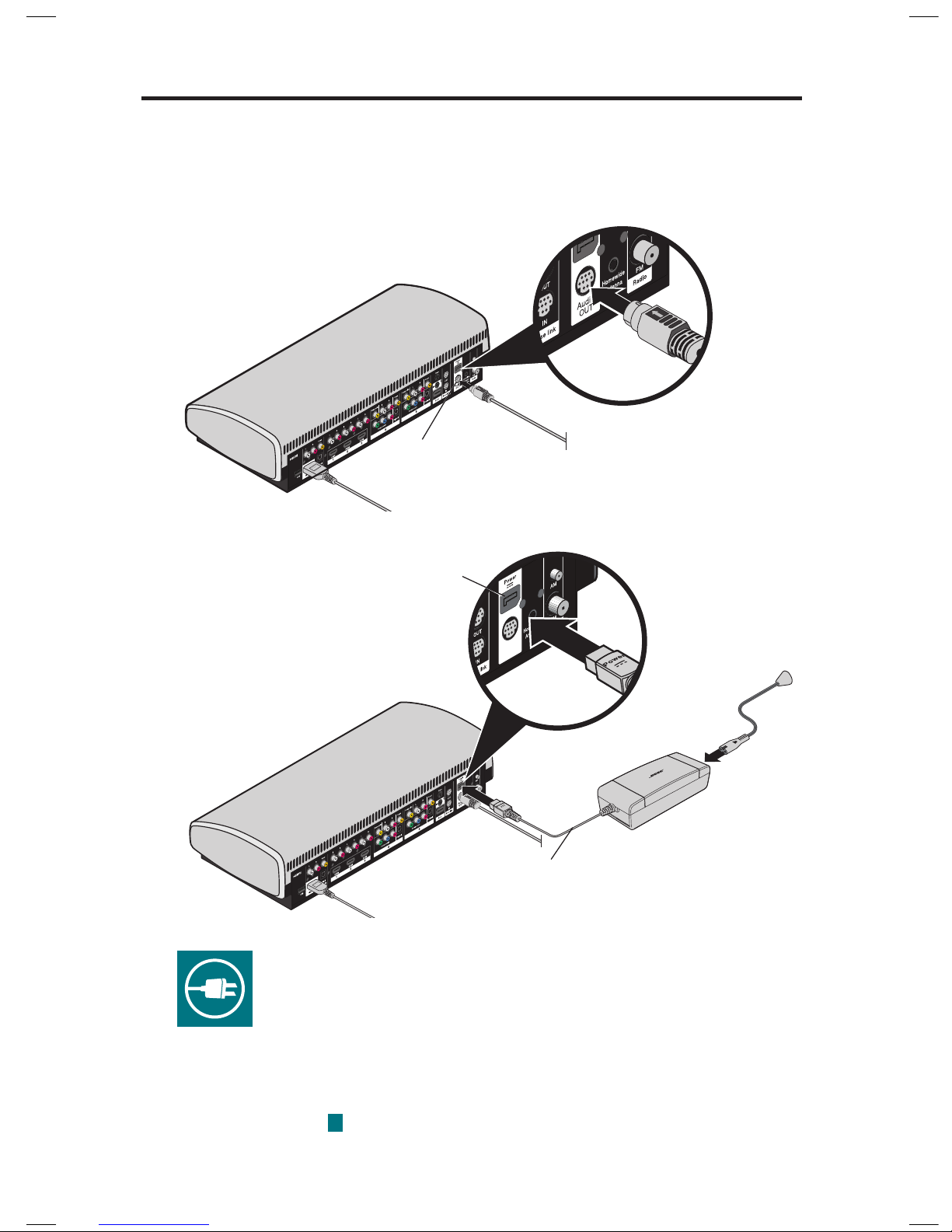

D. Insert one end of the audio input cable into the Audio OUT connector on the
control console. Make sure the flat surface with the arrow on the plug faces
up.
You will be asked to connect the other end of the cable while setting up the
contents of the next box.
Audio OUT
E. Insert the power supply output cord into the control console Power connector.
Power
Power supply
output cord
F. Remove a power cord from the power cord box.
G. Insert one end of the power cord into the power supply. Make sure you push
the plug in as far as it can go.
H. Plug the other end of the power cord into a live AC (mains) power outlet.
I. Continue with Box
2
on the next page.
System Setup

English - 11
2Acoustimass®module box
What you need for the following steps:

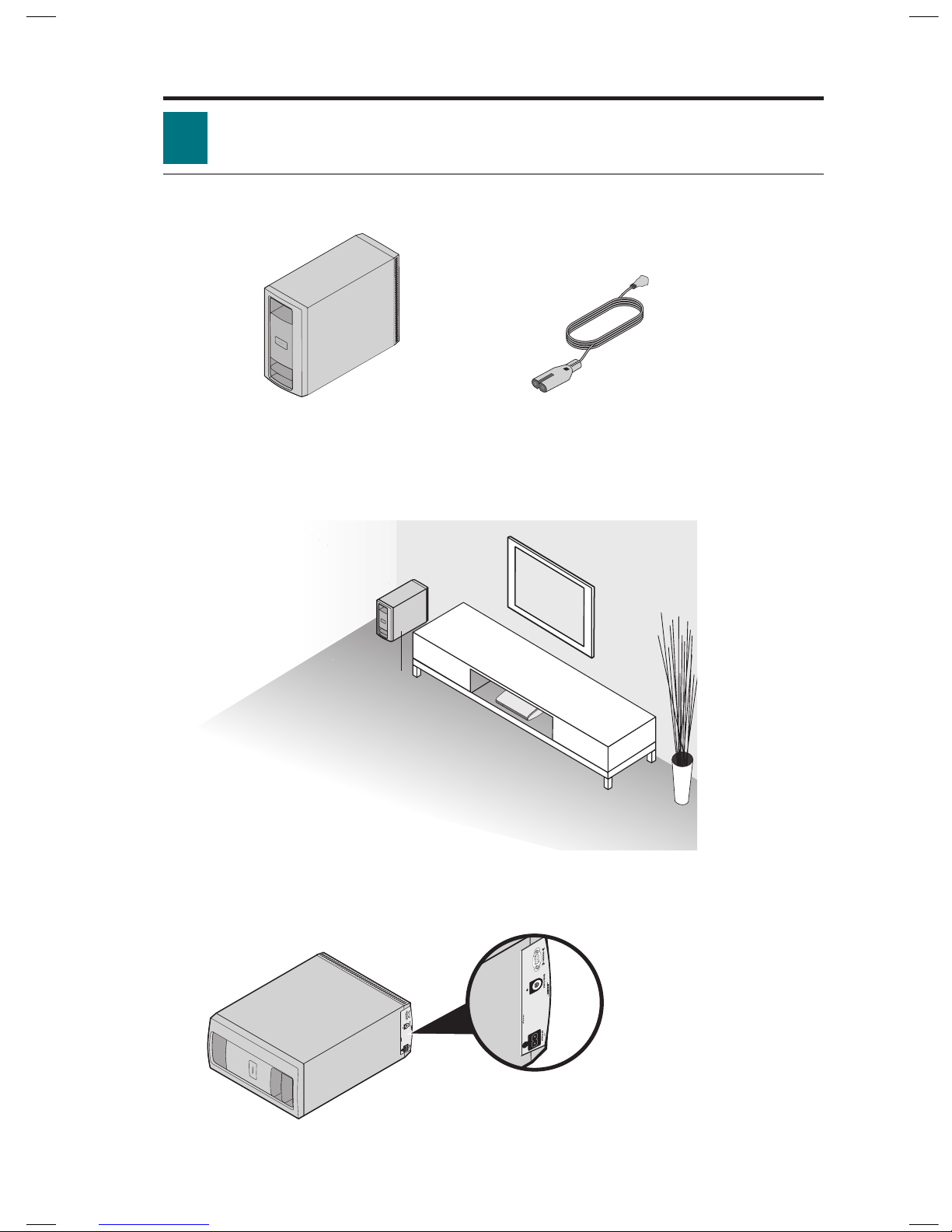

A. Place the Acoustimass module on the floor at the same end of the room
as the TV. Make sure there is a live AC (mains) power outlet nearby.
Acoustimass
module

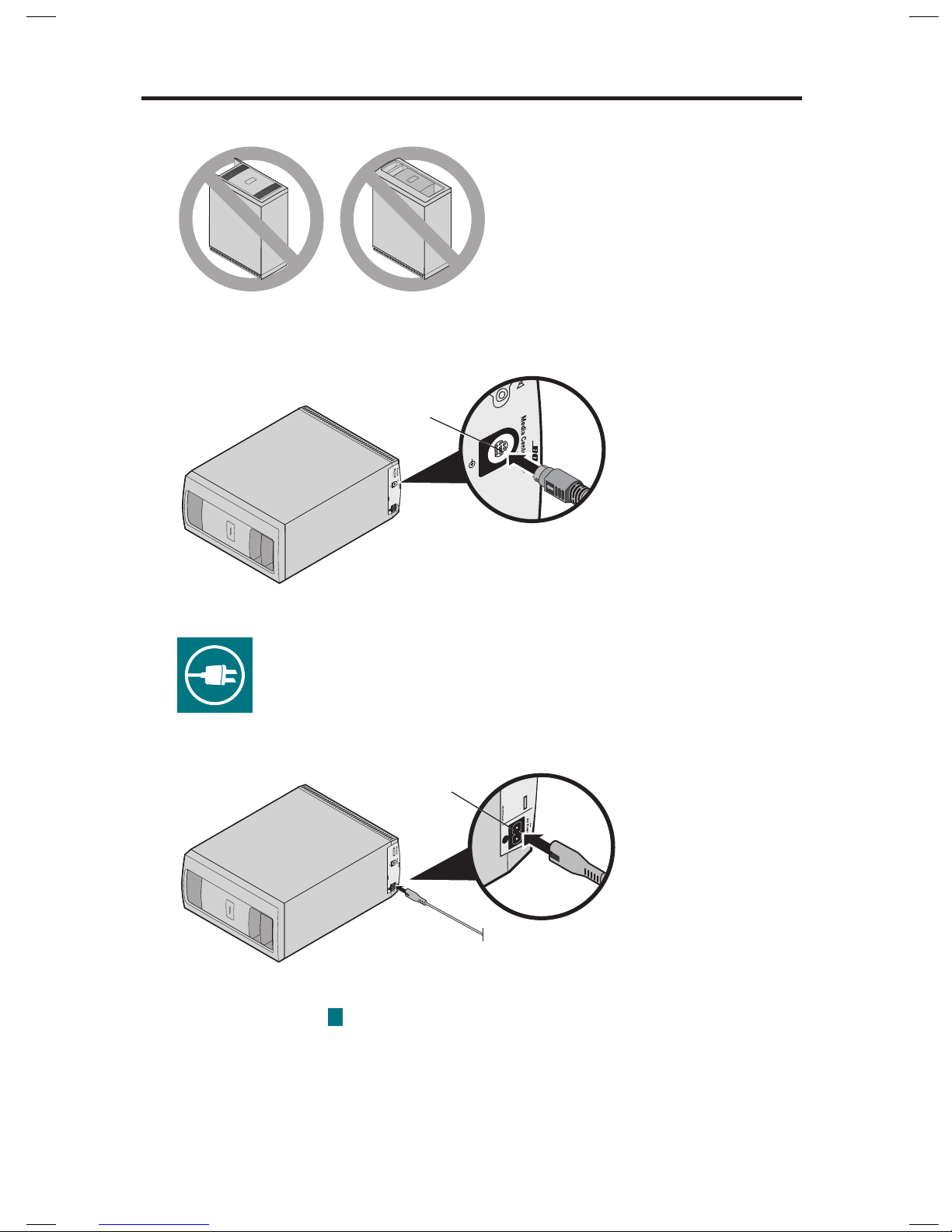

B. Lay the module on its side and locate the connector panel.
Connector
panel
From the power
cord box:
Power cord
Acoustimass module
From box 2:
System Setup

12 - English
CAUTION: DO NOT stand the Acoustimass®module on its front or back end.
C. Insert the free end of the audio input cable into the Media Center connector
on the Acoustimass module.
Make sure the flat surface with the arrow faces the front of the module.
Media
Center
D. Remove a power cord from the power cord box.
E. Insert one end of the power cord into the AC Power connector on the
Acoustimass module. Make sure you push the plug in as far as it can go.
AC Power
F. Plug the other end of the power cord into a live AC (mains) power outlet.
G. Continue with Box
3
on the next page.
System Setup

English - 13
3Speaker box
What you need for the following steps:
Gemstone®ES speakers
Left speaker Right speaker
Speaker cable
Note: You can place system speakers on wall brackets or floor stands. To purchase
these accessories, contact your local Bose®dealer or visit www.Bose.com.

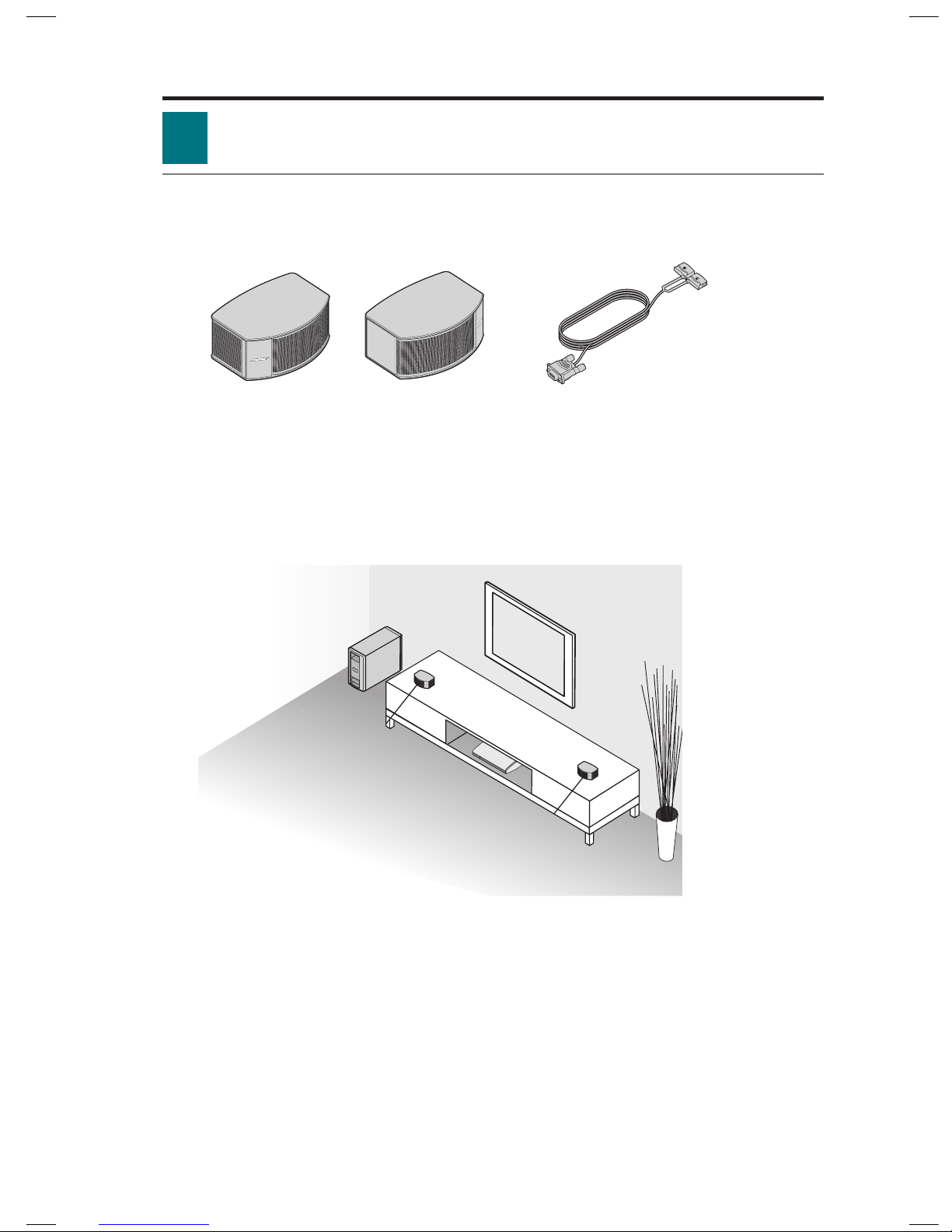

A. Place the speaker marked L(on the back) to the left of the TV and the other
(marked R) to the right.
Left (L)
speaker
Right (R)
speaker
• Keep each speaker within 3 ft (1 m) of the TV screen to prevent too much
separation of the sound from the picture. Vary this distance to suit your room
conditions and personal preference.
• If possible, place the speakers on an open shelf.
• If placing the speakers in an enclosed bookcase, center them between the
sides and position them at the front edge of the shelf.
• Keep each speaker facing straight out into the room. Do not place them at
an angle.
System Setup

14 - English
B. At the end of the speaker cable with two plugs, separate the cable so each
plug can reach one speaker.
C. Insert the L plug into the left (L) speaker.
D. Insert the R plug into the right (R) speaker.
Right (R) speaker
Left (L) speaker
System Setup

English - 15
E. Insert the free end of the speaker cable into the SPEAKERS connector
on the Acoustimass®module.
Turn in each thumb screw until it is finger tight.
Thumb
screw
F. Put the Acoustimass®module in its final position:
• Upright (BEST) or on either side (ALTERNATE).
• With the front opening facing into the room.
• At least 18 in (45 cm) from any TV to avoid magnetic interference with the TV
image. Move it farther away if you still notice interference.
CAUTIONS:
• Do not put electronic media, such as video or audio tapes, on or next
to the Acoustimass®module for long periods of time. The magnetic field
surrounding the module may erase some or all of the recorded material.
• DO NOT BLOCK the ventilation openings on the module. This can cause it
to overheat.
Continue with Box
4
on the next page.
Ventilation
openings
System Setup

16 - English
4Interactive box
What you need for the following steps:
ADAPTiQ audio calibration headset Remote control with batteries
SoundTouch™wireless adapter USB cable
IMPORTANT!
Before you start, make sure your speakers and Acoustimass®module are in
their final positions.
Do not connect any devices to the control console at this time. The
instructions provided on your TV will tell you when to do this.
A. Slide the battery compartment cover off the back of the remote control.
AA (IEC LR6) batteries (4)
B. Install four AA (IEC LR6) batteries, matching the polarity markings (+ and –)
to the markings inside the battery compartment.
C. Slide the battery cover back into place.
System Setup

English - 17
D. Press the power button on the control console.
Because the system is in a low power state when in standby, it takes
several seconds to start. When the system status indicator changes
from blinking to steady green, your system is ready to use.
Status indicator
Power button
E. Power on your TV.
F. Using your TV’s remote control, change the TV input to the one that is
connected to your Lifestyle®system.
G. Follow the instructions on your TV. The system instructs you to do the
following:
• Select your language.
• Optimize the system audio using the ADAPTiQ®audio calibration system.
• Connect audio/video devices to the control console.
• Configure your Bose®remote to control your connected devices.
• Complete network setup with the SoundTouch™ wireless adapter.
System Setup

18 - English
Install the SoundTouch™ app
Once you have completed network setup with your SoundTouch™wireless adapter,
create a SoundTouch™account.
IMPORTANT: If you already have SoundTouch™set up for another system, you
don’t need to reinstall the app. See “Add the system to your existing
SoundTouch™account.”
1. On your computer, open a browser and go to
http://www.Bose.com/soundtouch_app
Tip: Use the computer where your music library is stored.
http://www.Bose.com/soundtouch_app
2. Download and install the SoundTouch™app.
3. Launch the app by double-clicking the SoundTouch™icon.
4. Click CONTINUE.
The SoundTouch™system setup screen appears.
5. Select IT IS ALREADY CONNECTED.
6. Follow the instructions on your computer to complete setup, including creating
a SoundTouch™account, locating your music library, signing in to music
services, exploring music, and personalizing your Presets.
Add the system to your existing
SoundTouch™ account
Complete these steps only if you already have other SoundTouch™systems.
1. Launch the app.
2. Click EXPLORE > SETTINGS > Systems > ADD SYSTEM.
The SoundTouch™system setup screen appears.
3. Select IT IS ALREADY CONNECTED.
System Setup

English - 19
Other Box 4 items
The remaining items in Box 4 may or may not be required to set up your
Lifestyle®system. For more information on using these accessories or
adding other devices to your system at another time, see the operating guide.
Stereo audio cable Optical cable IR emitter cable
Operating Guide | Guía del usuario | Guide d’utilisation
FM antenna* Rubber feet for
Acoustimass module
and speakers
AM antenna* USB drive (for
updating system
software only)
Operating guide
If using the optical cable, remove the cap from both ends of the cable, and
insert the cable with the Bose logo facing down. Inserting the plug in the wrong
orientation can damage the plug and the connector.
OR
System Setup

20 - English

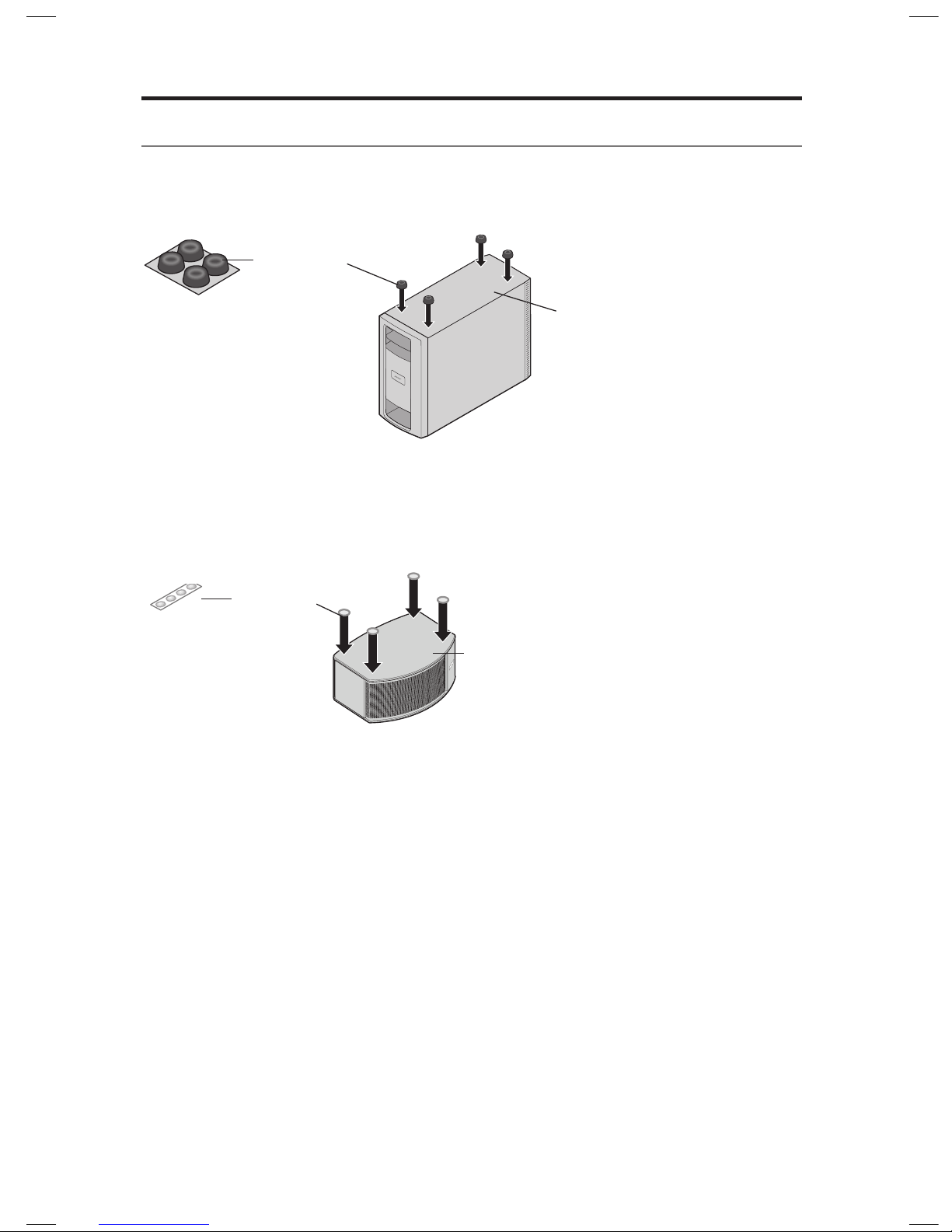

Applying rubber feet
When placing the Acoustimass®module on bare floors, you can attach the
included rubber feet to the bottom of the module for greater stability and
to protect your floor.
Bottom panel
Rubber feet
Vibration can cause speakers to move, particularly if placed on a smooth surface
like glass or highly polished wood. If you are placing the center speaker on such a
surface, you can attach the included rubber feet to the bottom of the speaker for
greater stability.
Bottom panel
Rubber feet
System Setup
