Bose 901 Series VI Loud User manual

The Bose® 901® Series VI Direct/Reecting® Speaker System
Owner’s Guide
Brugervejledning
Bedienungsanleitung
Guía del usuario
Notice d’utilisation
Manuale d’istruzioni
Gebruiksaanwijzing
Bruksanvisning
Bose® 901® Series VI Direct/Reecting® Speaker System

2
English
WARNING: To reduce the risk of fire or electric shock, do not expose the system to rain or
moisture.
WARNING: The apparatus shall not be exposed to dripping or splashing, and objects filled with
liquids, such as vases, shall not be placed on the apparatus. As with any electronic products, use
care not to spill liquids into any part of the system. Liquids can cause a failure and/or a fire hazard.

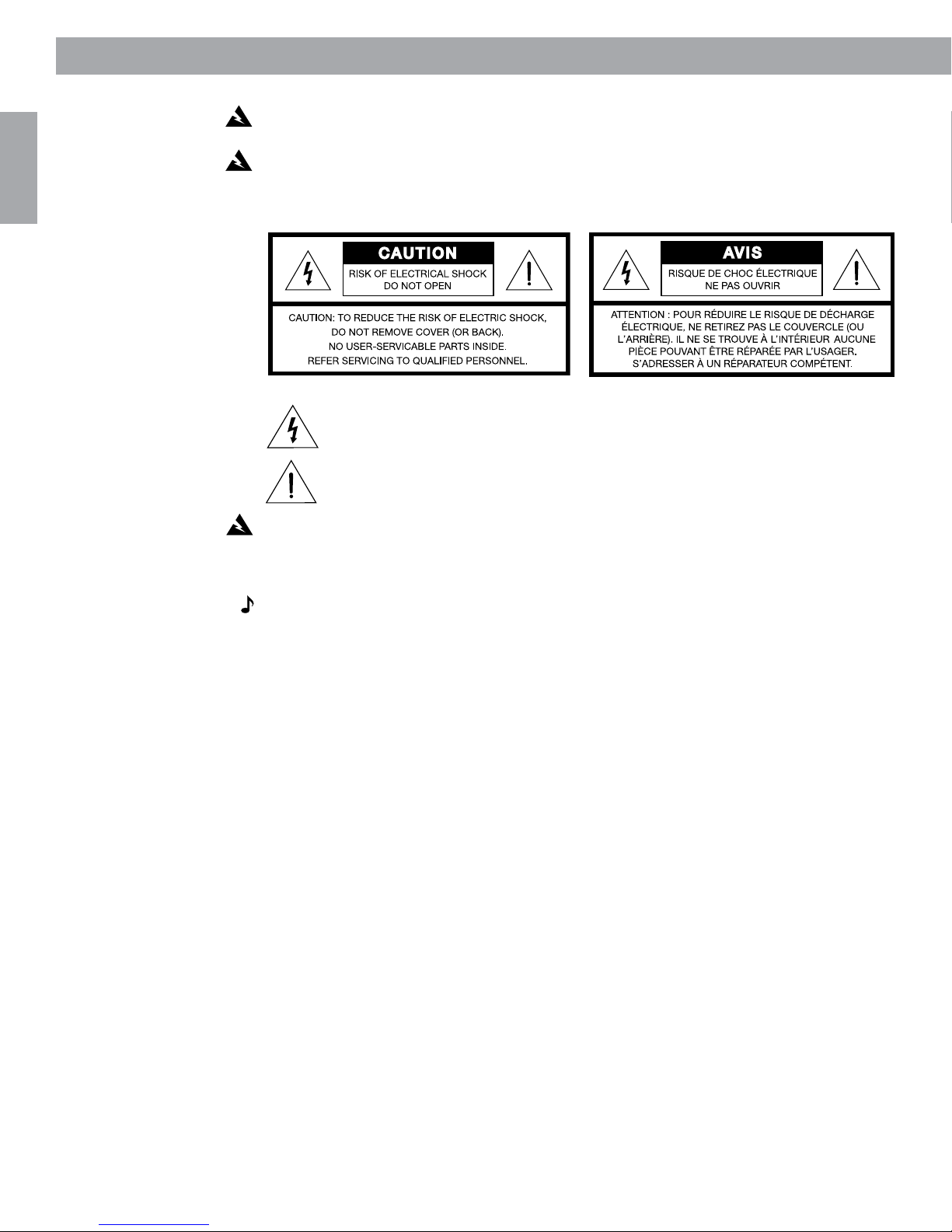

CAUTION
These CAUTION marks are located on the bottom of your 901®active equalizer:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the
user to the presence of uninsulated dangerous voltage within the system enclosure that may be
of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle, as marked on the system, is intended to alert the
user to the presence of important operating and maintenance instructions in this owner’s guide.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot, insert fully.
Note: Where the mains plug or appliance coupler is used as the disconnect device, such discon-
nect device shall remain readily operable.
Additional safety information
See the additional instructions on the Important Safety Information page enclosed with this
owner’s guide.
Please read this owner’s guide
Please take the time to follow this owner’s guide carefully. It will help you set up and oper-
ate your system properly, and enjoy all of its advanced features. Save your owner’s guide for
future reference.
Safety Information
©2007 Bose Corporation. All rights reserved. Bose, Acoustimass, Lifestyle, Personal and Wave are
registered trademarks of Bose Corporation.
For your records
Serial numbers are located on the bottom panel of each 901 speaker and on the back of the
active equalizer.
Loudspeaker Serial Numbers:_______________________________________________________
Active equalizer Serial Number: _____________________________________________________
Dealer name: _____________________________________________________________________
Dealer phone: _______________________ Purchase date: _____________________________
We suggest you keep your sales slip and warranty card together with this owner’s guide.

3
English
Contents
Where to nd…
Contents
Where to find… ............................................................................................................. 3
Warranty period............................................................................................................. 3
Customer service .......................................................................................................... 3
Setting Up
Before you begin ........................................................................................................... 4
Unpacking the cartons .................................................................................................. 4
System compatibility..................................................................................................... 5
Choose the support for your speakers.......................................................................... 6
Choosing the location for your speakers ...................................................................... 6
Speaker connections..................................................................................................... 8
Equalizer connections ................................................................................................... 9
Testing the speakers and equalizer ............................................................................. 12
Using other equipment................................................................................................ 13
Using your 901®Series VI speaker system
Playing your speakers ................................................................................................. 14
Adjusting the sound .................................................................................................... 15
Equalizer compatibility ................................................................................................ 16
Connecting additional speakers.................................................................................. 16
Maintaining Your 901 speaker system
Cleaning your speakers............................................................................................... 17
Troubleshooting........................................................................................................... 17
Product Information
Technical information .................................................................................................. 18
Accessories ................................................................................................................. 18
Bose Corporation...................................................................................... inside back cover
Warranty period
The Bose®901 speakers and active equalizer are covered by a limited 5-year transferable
warranty. Details of the warranty are provided on the warranty card that came with your
system. Please fill out the information section on the card and mail it to Bose Corporation.
Customer service
For additional help in solving problems, contact Bose customer service. See the inside back
cover for Bose customer service offices and phone numbers.
A free booklet is available: Guide to Optional System Connections for Bose 901®Direct/
Reflecting®Speaker Systems. Ask for part number 149393.

4
English
Setting Up
Before you begin
Thank you for purchasing the Bose®901®Series VI Direct/Reflecting®speakers. They represent
the best in Bose Corporation speaker design and engineering and will give you many years of
listening pleasure.
The installation and operating principles of this system are significantly different from those of
conventional speakers. To obtain the best possible performance and avoid problems, please
take the time to read this guide.
CAUTION: You must have a Bose 901 active equalizer for a complete 901 speaker system. The
use of 901 Series VI speakers without the 901 Series VI active equalizer will result in improper per-
formance. The use of graphic or parametric equalizers, instead of the Bose 901 equalizer, will result
in unsatisfactory performance.
Conventional graphic and parametric equalizers may be used in addition to, but not in place
of the Bose 901 active equalizer. However, the use of such additional equalizers is not recom-
mended since it will not improve system performance. For adequate performance you must
use the 901 Series VI active equalizer with these speakers.
Unpacking the cartons
A complete Bose 901 Series VI speaker system consists of three matched components: two
901 Direct/Reflecting®speakers and a separate 901 Series VI active equalizer. Two cables are
included to connect the active equalizer to your receiver or amplifier. The 901 speakers and
equalizer are packed in three separate cartons. Carefully unpack your system, saving all pack-
ing materials for possible future use.
Inspect the speakers and equalizer. If any part appears damaged, do not attempt to use the
system. Repack the speakers and equalizer in their original cartons and notify your authorized
Bose dealer immediately.
Note: Now is a good time to record the serial numbers of each speaker and the active equalizer.
Please write them on your warranty card and in the spaces provided on page 2. The serial num-
bers are located on the bottom of the 901 speakers and on the back of the equalizer.
WARNING: Each speaker carton weighs over 35 lb (16 kg). Use good lifting practice to avoid
injury.
WARNING: To avoid danger of suffocation, keep the plastic bags out of the reach of children.

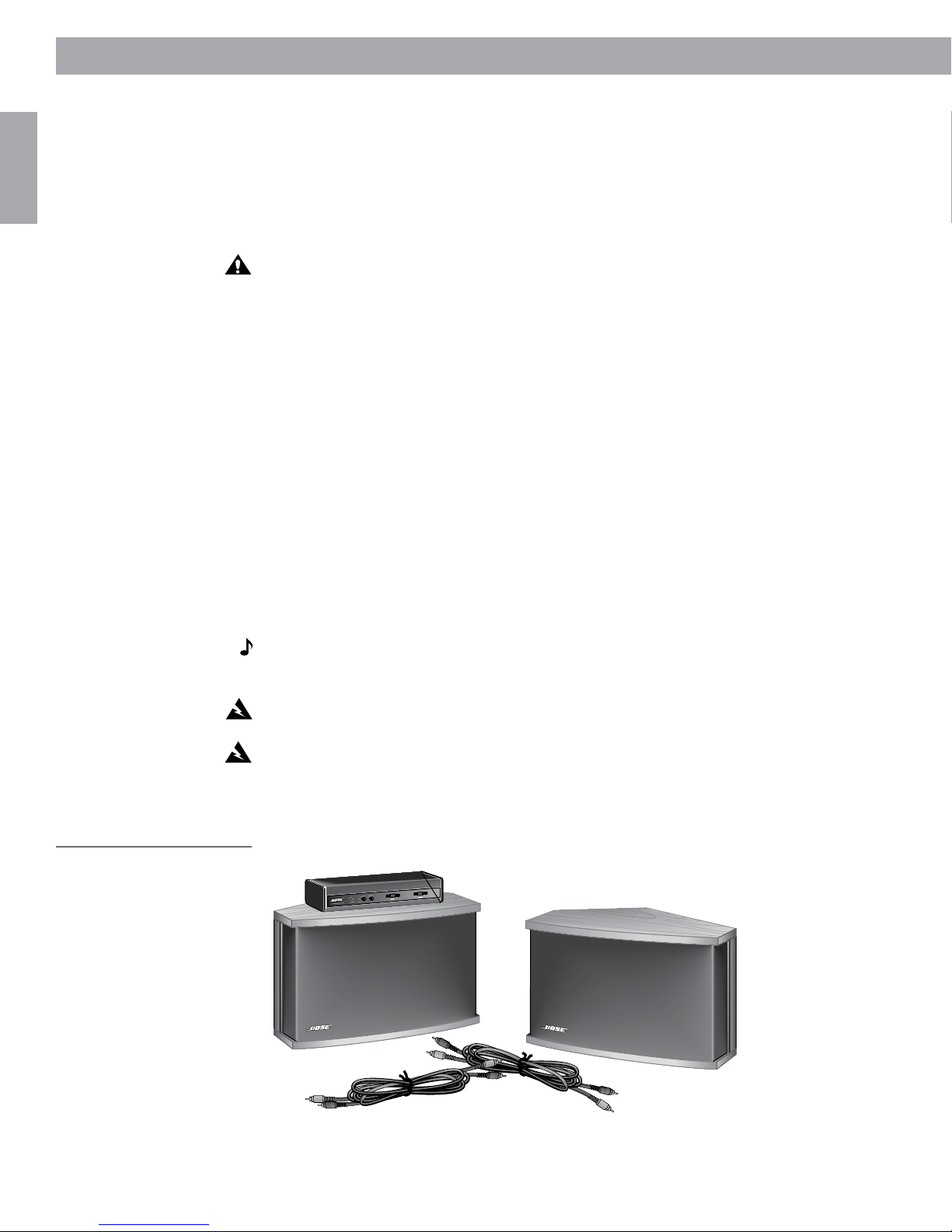

Figure 1
What comes in the three cartons:
• Two 901 speakers
• One 901 active equalizer
• Two equalizer cables

5
English
Setting Up
System Compatibility
Bose®901®Series VI speakers and Series VI active equalizer work with your stereo
components to produce a superb music system. The active equalizer is an integral part
of the system and may be connected in a variety of ways, depending on the components
you have. The two most common methods are described in this guide. Using different
components may require different connection methods. More information is available by
calling Bose Corporation. Ask for the free booklet, Guide to Optional System Connections
for Bose 901 Direct/Reflecting®Speaker Systems, part number 149393.
Your 901 speakers are designed to work compatibly with receivers or amplifiers rated from
10 to 450 watts per channel. In this guide, the term receiver is used to refer to an integrated
preamplifier and power amplifier (which may also contain an AM/FM tuner). The term
amplifier is used to describe configurations involving separate preamplifier and amplifier
components.

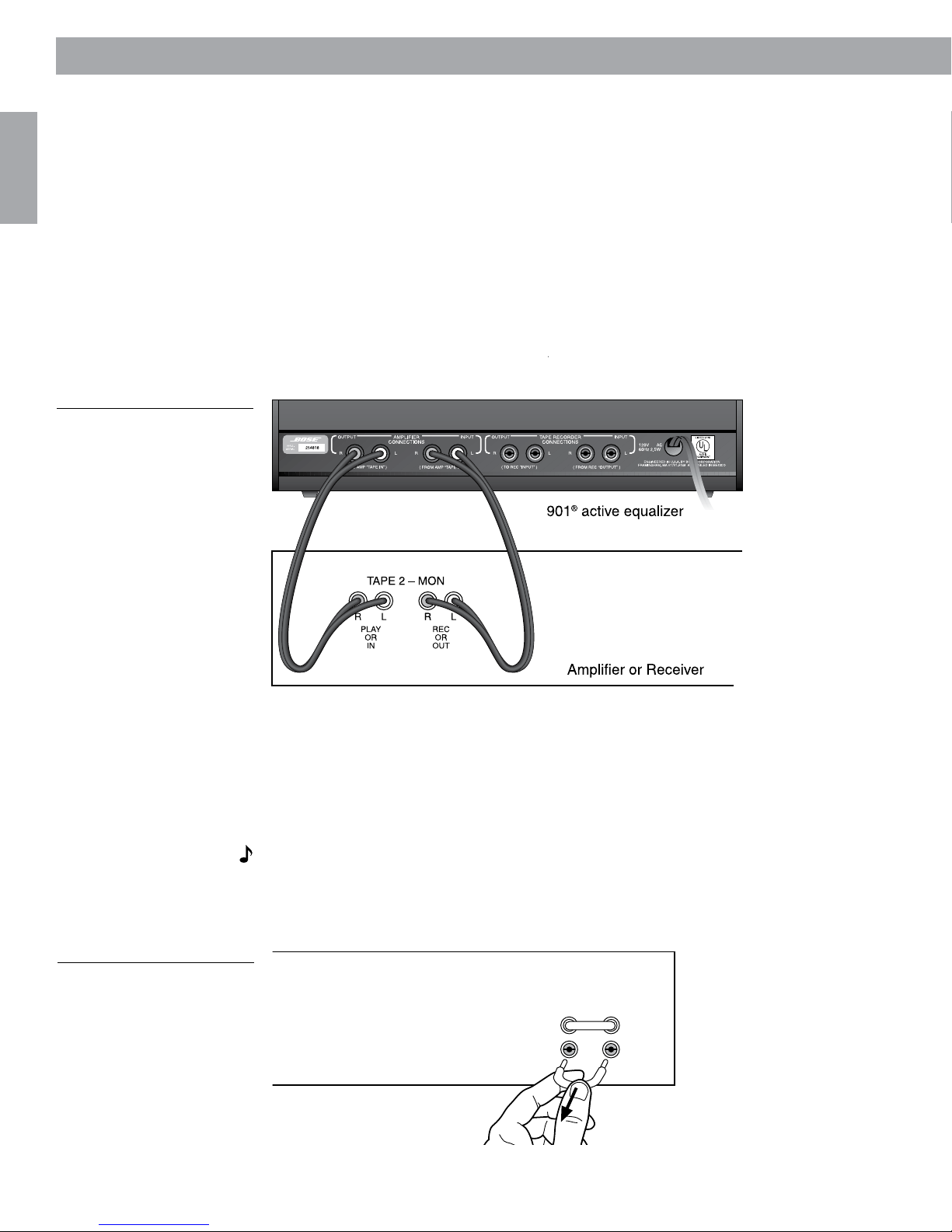

Most receivers have a TAPE MONITOR connection. The 901 active equalizer is most
commonly connected to the tape monitor connections on the receiver. If you plan to
connect a tape recorder, use the set of inputs and outputs located on the back of the 901
active equalizer marked TAPE RECORDER CONNECTIONS.
If you have recently purchased a home theater receiver, you may be considering using
your 901 speakers for the front channels. Your home theater receiver must have accessible
PRE AMP OUT/MAIN AMP IN connections for the front channels if you are to use your 901
speakers in this way. These may also be called the ADAPTER or SIGNAL PROCESSOR
connections.
Installation steps
Follow these steps, in the order below, to install your 901 Series VI speaker system.
1. Choose the best locations and support for the 901 speakers (page 6).

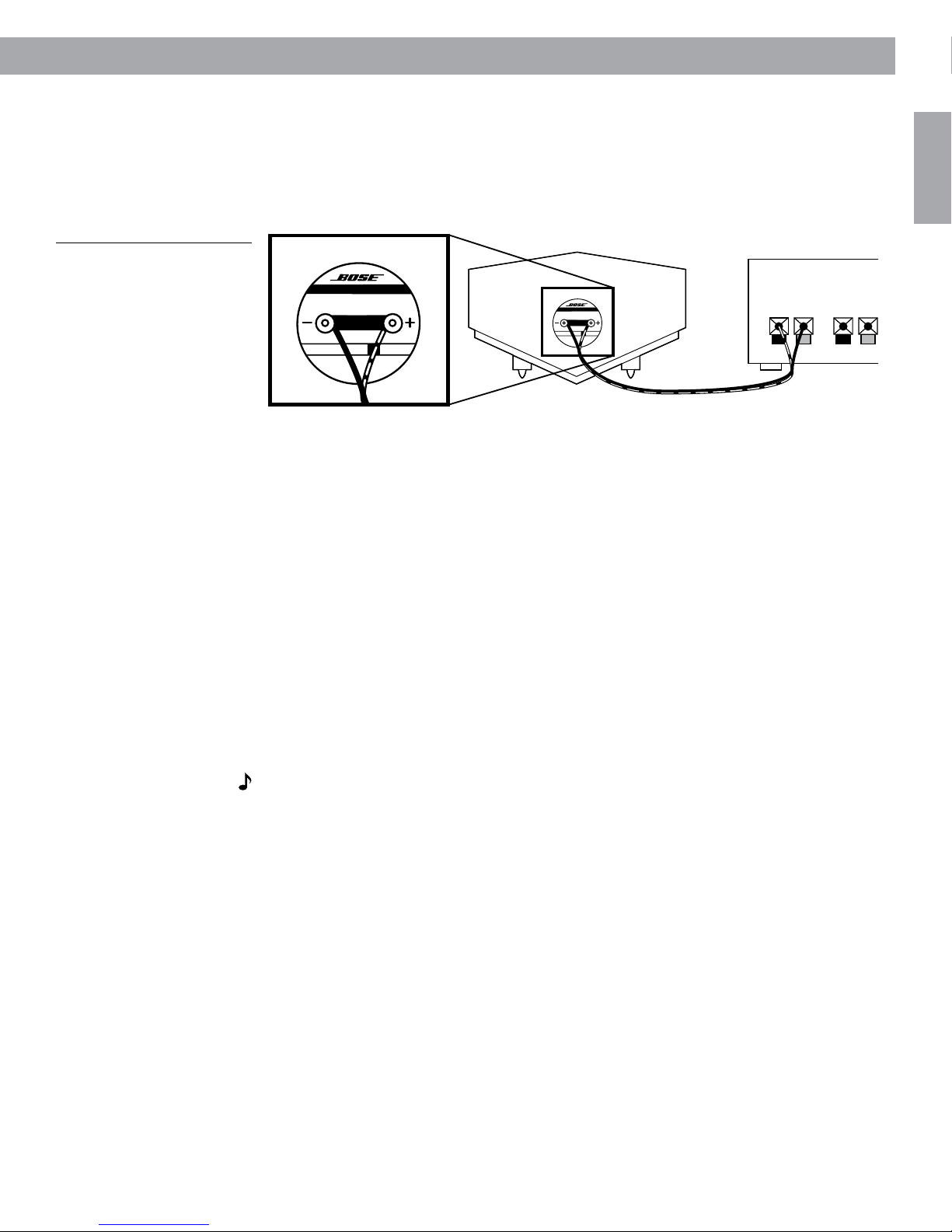

2. Connect the speakers to the amplifier or receiver (page 8).
3. Connect the 901 active equalizer to the amplifier or receiver using either the TAPE
MONITOR or PRE AMP OUT/MAIN AMP IN connections (page 9).
4. Test the system to see that the audio signal is correctly processed by the active equal-
izer (page 12).

6
English
Setting Up
Choosing the location for your speakers
Choose locations for your 901®speakers that use the walls to best advantage by reflecting
sound throughout the listening room. Refer to the drawing on page 7.
Guidelines for placement

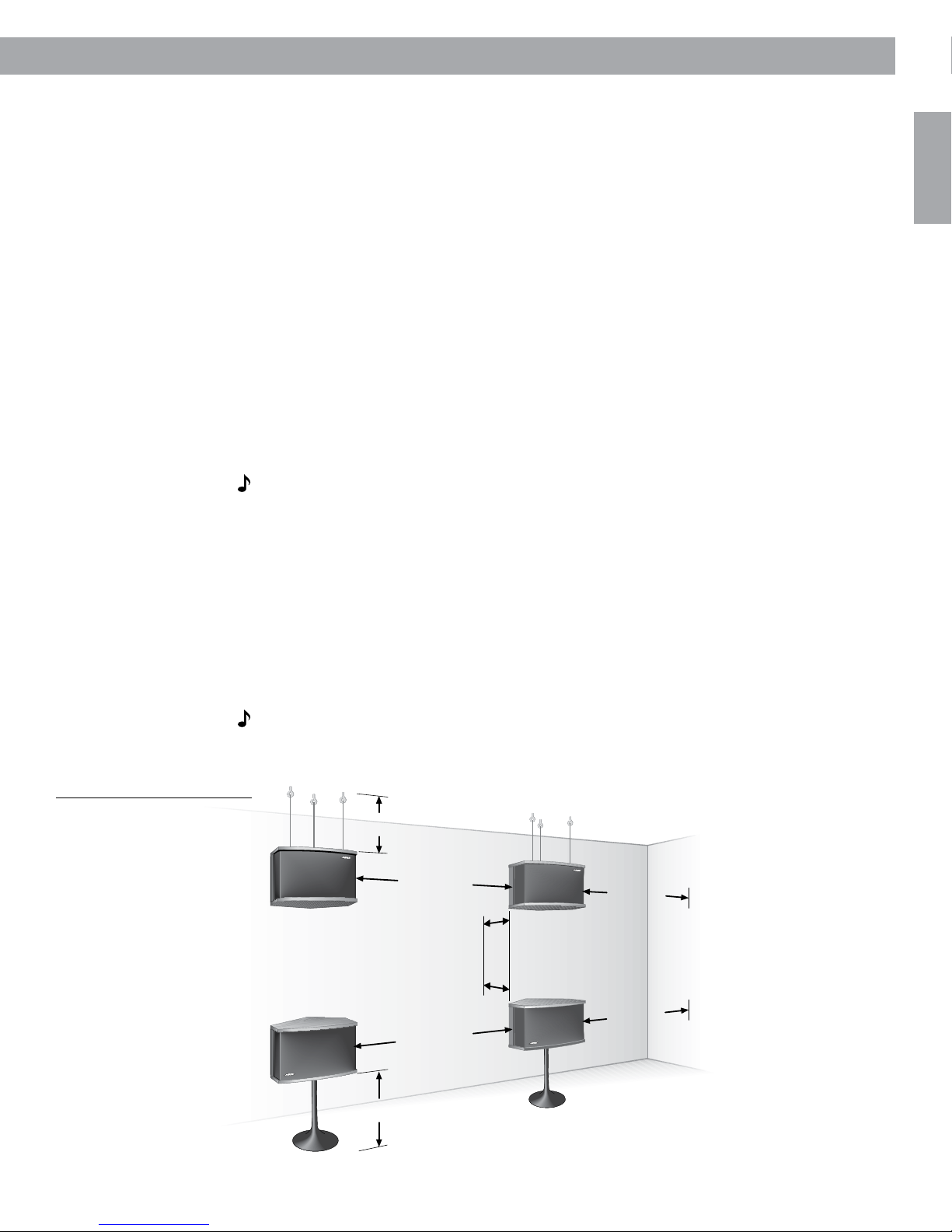

Place the speakers along the same wall (see Figure 3):
• 4 to 12 feet (1.2 – 3.6 m) apart, with the V-shaped rear of the speaker between 8 and 18
inches (20 – 45 cm) from the rear wall. Do not aim the V toward a corner.
• 18 inches (45 cm) of clear space around the sides, top, and bottom of the speakers.
• at least 2 feet (60 cm) from sound-absorbent furnishings.
• 18 to 48 inches (45 – 120 cm) from the side and rear walls.
• 18 to 36 inches (45 – 91 cm) from the floor or ceiling. Do not place the speakers exactly
halfway between floor and ceiling.
Within these guidelines, remember that the closer the speakers are placed to a reflective
surface, like a wall, the more bass is reproduced.
Choose the support for your speakers
You may place 901 speakers on a table or shelf. You may also use Bose®floor pedestals, or
suspend the speakers from your ceiling. Refer to Figure 3 on page 7.
To set the speakers on a table or shelf
Although each speaker weighs 35 lb (16 kg), a suitable shelf or table must be able to support
140 lb (64 kg). Keep an adequate distance between the speakers and the rear wall as listed in
“Guidelines for placement” above.
To stand the speakers on the oor
Use only Bose pedestals (PS-6) as floor stands. They are designed to provide the proper
support and are available through your authorized Bose dealer. Please read the pedestal
attachment instructions before making any speaker connections. Four pilot holes on the
bottom of each speaker (see Figure 2, hole set A) are pre-drilled for the purpose of anchoring
the speaker to the pedestal.
To suspend the speakers from the ceiling
Use these guidelines to ensure safe suspension of your 901 speakers. Three steel support
chains are recommended. We cannot specify the ceiling attachments. The type to use
depends on the type of building construction.
CAUTION: Do not mount on surfaces that are not sturdy enough, or that have hazards con-
cealed behind them, such as plumbing or electrical wire. If you are unsure of your ability to install
these speakers, contact a qualified professional installer.
Note: The speakers hang in an inverted position, with the terminal connections facing up.
Carefully rotate the Bose logo 180˚ (so it appears right side up) before hanging the speakers.
Figure 2
Pedestal (A) and ceiling mount
(B) pilot holes
B
B
BA
A
A
A

7
English
Setting Up
Hardware needed for ceiling suspension
• Screw hooks support the chains at the ceiling. They must have at least a #10 wood thread
with a shank diameter of at least 3⁄16 inch (4.5 mm). They should be long enough to go
through any plasterboard and still have at least one inch (25 mm) of thread left to pene-
trate a wood beam. For a masonry ceiling: use only high-quality metal expansion masonry
anchors that fit the thread of the ceiling hooks.
• Chain: diameter should be at least 5⁄32 inch (0.135 in. or 4 mm).
• Screw eyes with S hooks attach chains to the speaker and must have at least a #10 wood
thread with a shank diameter of at least 3⁄16 inch (4.5 mm) or larger.
• All hardware (screw hooks, chain, screw eyes, S hooks) must have a manufacturer’s safe-
load rating of 40 lb (18 kg) or more.
General notes on ceiling suspension
• Suspend the speakers 18 – 36 inches (45 – 91 cm) from the ceiling; do not mount them
flush to the ceiling.
• To ensure an accurate stereo image, the distance from the floor should be three to ten feet
(1 – 3.5 m). Be sure the speakers are no less than 18 inches (45 cm) from the floor. Do not
suspend the speakers exactly halfway between the floor and ceiling.
Note: If the speakers are more than 10 feet (3 m) from the floor, we suggest you lengthen the
chain supporting the rear of the speaker. By doing this you will allow the rear of the speaker,
housing eight of the nine drivers, to be angled slightly downward.
Step by step procedure for ceiling suspension
1. Ceiling: Anchor at least two screw hooks into a rigid structural ceiling support (beam, joist,
or masonry anchor). Drill pilot holes into wood using a 1⁄8inch drill bit (3.7 mm), if neces-
sary.
2. Speaker: Use the three pre-drilled pilot holes (see Figure 2 - hole set B) on the bottom of
each speaker. Use a 1⁄8inch drill bit (3.7 mm) to enlarge the pilot holes to accept the #10
thread screw eyes. Drill to a depth of 1⁄2inch (12 mm) in the speaker cabinet. Do not drill
completely through the cabinet.
Note: Contact Bose®for more information on suspending speakers. See the inside back cover
for phone numbers. For details on your specific ceiling construction, consult a qualified building
contractor or professional installer.
Figure 3
Mounting guidelines
18 – 48”
(45 – 120 cm)
18 – 36” (45 – 91 cm)
4 – 12’
(1.2 – 3.6 m)
18 – 48”
(45 – 120 cm)
4 – 12’
(1.2 – 3.6 m)
18 – 36” (45 – 91 cm)
8 – 18” – (20 – 45 cm)

8
English
Setting Up
Speaker connections
With your speakers in their chosen locations, connect them to the receiver.
Choosing the wire
It is important to use the right thickness of speaker wire. For distances of up to 30 feet (9 m),
18 gauge (.075 mm2) 2-conductor wire works well. For distances greater than 30 feet (9 m),
refer to the wire recommendations chart on page 18.
Note: To determine if this wire is suitable for use in a wall or under a floor, check your local build-
ing codes. You may want to contact a qualified electrical installer for this information.
Preparing the speaker wires
Examine the speaker wire. Note that it is actually a pair of insulated wires that may be gently
pulled apart. The insulation around one wire is marked with a stripe, collar, rib, groove, or
printing. Use the marked wire as positive (+) and the unmarked wire as negative (-). These
wires correspond to the positive and negative terminals on the speaker and receiver.
Note: It may be difficult to distinguish wire markings. Inspect both wires carefully.
To prepare the ends of each wire:
1. Strip approximately 1/2inch (12 mm) of insulation from both wires.
2. Twist the bare ends of each stranded wire, to prevent strands from touching across
terminals.
Connecting the speakers
CAUTION: Before making any connections, turn off your receiver and unplug it from the AC
(mains) power outlet. Not doing this may result in damage to your system.
Speaker terminals are located on the bottom of each speaker. Unscrew the knurled nut on
each terminal and remove one washer. Wrap one bare wire end around the terminal post.
Then, replace the metal washer on the screw post and screw the knurled nut firmly back on.
1. Connect one wire pair to the right speaker (the one on your right as you face it).
a. Attach the marked wire at one end to the positive (+) terminal.
b. Attach the plain wire at that end to the negative (-) terminal.
2. Connect the other ends of the same wire pair to the RIGHT SPEAKER OUTPUT of your
receiver.
a. Attach the marked wire to the positive (+) terminal.
b. Attach the plain wire to the negative (-) terminal.
3. Following the steps above, connect the second pair of wires to the left speaker and to the
LEFT SPEAKER OUTPUT on the receiver.
Note: If your receiver offers a choice of output impedances, use the terminal marked 8 or 8
ohms.

9
English
Setting Up
Checking the speaker connections
Make sure the terminal knurled nut is tightened down firmly. Any gap between the wire and
terminal can cause heat build up. Check to be sure the wires are connected positive to posi-
tive (+ to +) and negative to negative (- to -). Make sure no loose strands of wire touch across
terminals, which can cause short circuits.
Figure 4
Connecting the speakers to the
receiver
Equalizer Connections
There are two options for connecting the equalizer. Your choice depends on the type of
receiver you own and whether you plan to use the system primarily for stereo or for home
theater enjoyment.
Stereo/non-home theater use
(tape monitor connections)
The Bose®901®active equalizer connects directly to your receiver through the tape monitor
connection. If your receiver has more than one tape connection, use the second one (TAPE 2).
To connect a tape deck, use the additional set of inputs and outputs located on the back of the
901 active equalizer marked TAPE RECORDER CONNECTIONS.
The TAPE MONITOR switch on the front of the receiver lets you switch the equalizer in and out
of the signal path. This is important when you want to play conventional, non-equalized speak-
ers or headphones attached to your receiver. See Using other equipment on page 13.
Note: If your receiver is designed for home theater use, it may not have a Tape Monitor switch.
If not, you must use a PRE AMP OUT/MAIN AMP IN connection. This may also be called the
ADAPTER or SIGNAL PROCESSOR connection. Refer to “Home theater use (PRE AMP OUT/
MAIN AMP IN)” on page 10 for instructions on how to connect for home theater use.
1. Disconnect any external tape deck or signal processor connected to the tape monitor
connection.
2. Use the twin cable assemblies (with two connectors at each end) that are supplied with
the equalizer. Use the red connector for the right (R) channel connections and the other
connector for the left (L) channel connections.
Receiver
L R
+ – + –

10
English
Setting Up
3. Connect one end of a cable to the AMPLIFIER INPUT jacks on the 901®active equalizer.
a. Insert the first connector firmly into the INPUT jack marked R.
b. Insert the second connector into the INPUT jack marked L.
4. Connect the other end of the cable to the OUT or RECORD jacks on your receiver. These
jacks may be marked TO INPUT, FROM INPUT, or REC.
a. Insert the first connector into the OUT or RECORD jack marked R.
b. Insert the second connector into the OUT or RECORD jack marked L.
5. Connect the second cable from the AMPLIFIER OUTPUT jacks on the 901 active equalizer
to the IN or TAPE jacks on your receiver. These jacks may be marked PLAY, TO OUTPUT,
FROM OUTPUT, or MONITOR.
6. Plug the power cord of the 901 active equalizer into one of the switched outlets on the
receiver so that it will be powered when the receiver is switched on.
Figure 5
Connecting to the tape monitor
connection
Home theater use
(PRE AMP OUT/MAIN AMP IN)
Use these instructions:
• for stereo-only operation if your receiver does not have a TAPE MONITOR connection.
• if you are using a surround sound receiver that has a section on the back marked PRE AMP
OUT/MAIN AMP IN. The jacks may be labeled ADAPTER or SIGNAL PROCESSOR.
Note: If your receiver does not have this PRE AMP OUT/MAIN AMP IN section, the 901
speakers will not be usable in your home theater system.
1. The PRE AMP OUT/MAIN AMP IN jacks on your receiver are usually connected by small
bars called horseshoe pins. Remove these pins. See Figure 6.
Figure 6
Removing horseshoe pins
OUTPUT INPUT
AMPLIFIER
CONNECTIONS
R L R L
( TO AMP “TAPE IN” ) ( FROM AMP “TAPE OUT
” )
OUTPUT INPUT
TAPE RECORDER
CONNECTIONS
R L R L
( TO REC “INPUT” ) ( FROM REC “OUTPUT
” )
901.E.
SERIAL
254818
ˆII¨
120V AC
60Hz 2.5W
ENGINEERED IN U.S.A. BY BOSE CORPORATION
FRAMINGHAM, MA 01701-9168 ASSEMBLED IN MEXICO
LISTED 917D
AUDIO
EQUIPMENT
UL
Amplifier or Receiver
901
®
Active Equalizer
R
L
MAIN
AMP
IN
PRE
AMP
OUT
R
L

11
English
Setting Up
2. Use the twin cable assemblies (with two connectors at each end) that are supplied with the
equalizer. Use one connector for the right (R) channel connections and the other connector
for the left (L) channel connections.
3. Connect the amplifier INPUT of the Bose®901®active equalizer to the PRE AMP OUT jacks
of the receiver or amplifier. Connect right channel to right channel and left to left.
4. Connect the amplifier OUTPUT of the active equalizer to the MAIN AMP IN jacks on the
receiver or amplifier. Connect right channel to right channel and left to left.
5. Plug the power cord of the 901 active equalizer into one of the switched outlets on the
receiver so that it will be powered when the receiver is switched on.
Note: This connection method does not allow you to connect a tape deck directly to the active
equalizer. Connect it to the receiver instead.
Check to see that the 901 speakers are connected to the receiver MAIN or FRONT speaker
jacks. In this way the 901 active equalizer signals will reach only the 901 speakers – the front
channels of your home theater – and not any non-901 speakers used as center and surround
channels.
Call Bose Corporation for assistance with the connection of additional speakers or signal
processing equipment. Refer to the address information inside the back cover of this guide.
A free booklet is available (USA only): Guide to Optional System Connections for Bose 901
Direct/Reflecting®Speaker Systems. Ask for part number 149393.
Figure 7
Home theater receiver
connections

12
English
Setting Up
Testing the speakers and equalizer
Choose the test method appropriate to your system:
To test the TAPE MONITOR connection
1. Turn off or disconnect any non-901 speakers or headphones that may be connected.
2. On the 901®active equalizer, press the MONITOR button IN to TAPE, and the BASS
button OUT to position 1.
3. Set the MID-BASS and MID-TREBLE sliders to center positions.
4. Press your receiver or amplifier TAPE or TAPE MONITOR button to the OUT or NORMAL
position so it is not selected.
5. Play music through your system. You should hear both speakers. Do not worry about the
sound quality at this point. The equalizer is not yet engaged. If there is no sound from one
or both speakers, check the receiver and speaker connections.
6. Move the receiver BALANCE control to the extreme left and then to the extreme right.
This tests the left and right channel orientation. If the channels are reversed, check the
connections.
To test the equalizer
You have now tested your speakers and their wiring. The following steps test the equalizer
and its wiring:
1. With the speakers playing, press the receiver TAPE or TAPE MONITOR button IN, select-
ing the PLAY or MONITOR position. All sound should stop. If it does not, check your
equalizer wiring. Be sure the 901 active equalizer MONITOR button is set to position 2
(TAPE).
2. Press the 901 active equalizer MONITOR button to SOURCE, position 1. The sound
should return with full, natural sound characteristics. The system is now ready for use.
If the sound does not return, and the equalizer power indicator is lit, the equalizer is
probably connected incorrectly. Review equalizer connections.
To test the PRE AMP OUT/MAIN AMP IN connection
If you have connected the 901 active equalizer to the PRE AMP OUT/MAIN AMP IN connec-
tion, follow these instructions to test the speakers, equalizer, and wiring before connecting
any other equipment to your system.
1. Turn off or disconnect any non-901 speakers or headphones that may be connected.
If your system has a speaker selector switch, set it so that only the 901 speakers are
connected to your power amplifier.
2. On the 901 active equalizer, press the MONITOR button OUT to SOURCE, and the BASS
button OUT to position 1.
3. Set the MID-BASS and MID-TREBLE sliders to center positions.
4. Play music through your system. You should hear both speakers. If there is no sound from
one or both speakers, check to see that the power indicator on the equalizer is lit, then
check the receiver and speaker connections.

13
English
Setting Up
5. Move the receiver BALANCE control to the extreme left and then to the extreme right.
This tests the left and right channel orientation. If the channels are reversed, check the
connections.
6. Turn off the receiver and temporarily unplug the 901®active equalizer from its AC (mains)
power outlet.
7. Turn your receiver back on. You should not hear any music through the system. If you do,
the equalizer is probably connected incorrectly. Check the equalizer connections.
8. Turn off the receiver before restoring AC power to the 901 equalizer. Plug the equalizer
back in to its AC outlet. The system is now ready for use.
Using other equipment
You can use the Bose®901 active equalizer TAPE CONNECTION jacks for a tape deck, VCR
audio connection, signal processors, or other components. This will be necessary if your
receiver has only one tape connection and you have connected the equalizer to it. If you
connected the equalizer to the receiver’s TAPE 2 connection, you can use TAPE 1 for these
components.
Before making any connections, turn off the receiver and components. Be sure the active
equalizer power indicator is off.
To add a tape deck or VCR:
1. Use cables with RCA connectors at each end. One color (usually red) is for right (R) chan-
nel connections and the other connector is for left (L) channel connections.
2. Connect the TAPE RECORDER OUTPUT of the equalizer to the LINE IN/REC of the tape
deck. Connect right channel to right channel and left channel to left channel.
3. Connect the TAPE RECORDER INPUT of the equalizer to the LINE OUT/PLAY of the tape
deck. Connect right channel to right channel and left channel to left channel.
Note: To use an external signal processor, or to add a graphic equalizer, contact Bose for more
information. Refer to the inside back cover of this guide.
A free booklet is available (USA only): Guide to Optional System Connections for Bose®901®
Direct/Reflecting®Speaker Systems. Ask for part number 149393.
Figure 8
Connecting a tape deck to the
901 active equalizer

14
English
Playing your speakers
Always use the 901®active equalizer when playing your 901 speakers. How you set the equal-
izer depends on how it is connected to your receiver.
When connected to TAPE MONITOR
Press your receiver TAPE MONITOR button to the IN or MONITOR position. This switches the
equalizer into the system. Check periodically to be sure the TAPE MONITOR is engaged. On
some receivers the button may be labeled RECORD SELECT or RECORD OUT.
To play a tape deck connected to the equalizer, press the MONITOR button on the equalizer
IN (TAPE, position 2).
Return the MONITOR button to OUT (SOURCE, position 1) to listen to components other than
the tape deck (CD player, radio, etc.).
CAUTION: Do not use the active equalizer with conventional, non-equalized speakers or head-
phones. This can produce unnatural sound, and can even damage some non-901 speakers.
Before you play any non-901 speakers, be sure the receiver TAPE MONITOR button is OFF (OUT
or NORMAL).
You can play a tape deck through conventional, non-equalized speakers, even if your receiver
has only one tape monitor connection. Follow these steps to do this:
1. Connect the tape deck outputs to the AUX input jack on your receiver.
2. Leave the inputs of the tape deck connected to the TAPE OUTPUT jacks on the 901 active
equalizer.
3. Press the receiver TAPE MONITOR to OFF (OUT or NORMAL). This allows you to record
disc and radio sources. You may also play any program source (including tape) with or
without 901 equalization.
Note: This arrangement works only with tape decks. Do not use it with any type of signal pro-
cessing device.
When connected to PRE AMP OUT/MAIN AMP IN
1. You must leave the MONITOR button on the 901 active equalizer OUT (SOURCE,
position 1) at all times.
2. Do not connect tape decks to the 901 active equalizer when it is connected to this ampli-
fier connection. Connect the tape deck to the receiver or amplifier TAPE MONITOR con-
nection or AUX inputs.
3. The power amplifier is always receiving the 901 active equalized signal. This signal can
damage conventional speakers and headphones. Therefore, do not connect conventional
speakers or headphones unless you have disconnected the 901 equalizer.
Do not connect tape decks or signal processing devices to the 901 active equalizer when it is
connected between the preamplifier and main amplifier.
Using Your 901® Series VI Speaker System

15
English
Using Your 901® Series VI Speaker System
Adjusting the sound
Adjust the sound using the MID-TREBLE and MID-BASS sliders and BASS control on the
901®active equalizer. Use the tone controls on your receiver only after the MID-TREBLE and
MID-BASS sliders have been set according to the procedures below.
Using the MID-TREBLE and MID-BASS sliders
These controls let you make adjustments to compensate for the effects of speaker location,
room acoustics, and program quality.
1. Select a familiar musical piece.
2. Set your receiver tone controls to the center (flat) position. If it has a loudness compensa-
tion control (marked LOUD or LOUDNESS), set it to the OFF or OUT position.
3. Set the MID-TREBLE slider on the equalizer to its center position.
4. Play the selected music through the 901 speakers at normal volume. Move the MID-BASS
slider back and forth several times and listen to the effect. You should hear a significant
change in the fullness of the sound. If you do not, the active equalizer may not be engaged.
Refer to Playing your speakers on page 14.
5. When you are familiar with the effect of the MID-BASS slider, set it to the extreme left. Start
the musical passage again and slowly advance the MID-BASS slider to the right until the
sound is rich and full, without excessive heaviness.
6. Replay the musical passage, this time moving the MID-TREBLE slider back and forth to
become familiar with its effect. You should hear a significant change in clarity of the sound.
7. Set the MID-TREBLE slider to the extreme left and play the passage again. Slowly advance
the MID-TREBLE slider to the right until the sound is clear and detailed without excessive
shrillness.
Using the BASS control
The Bass control provides an alternate bass equalization. It is not a bass enhancement switch,
and it is not intended to boost the bass output of the speakers.
Press the BASS control IN (to position 2) to engage an alternate form of equalization that
changes the way the speakers handle low-frequency information. For example, you may
prefer pipe organ music with the alternate equalization. The control can also be useful in
eliminating feedback or rumble from a turntable.

16
English
Using Your 901® Series VI Speaker System
Equalizer compatibility
The Bose®901®Series VI active equalizer is designed for specific use with
Bose 901 Series VI speakers. It may also be used with 901 Series V speakers.
WARNING: Bose 901 Series I, II, III, or IV speakers require a substantially
different equalization. The 901 Series VI active equalizer must not be used with
Series I – IV speakers. For additional information on the active equalizer, please
contact Bose Service.
Connecting additional speakers
The type of speakers and how you will use them determines how many ampli-
fiers and 901 active equalizers you will need.
To run other non-901 speakers simultaneously requires the addition of a
second amplifier. To use other speakers simultaneously with the 901 speakers
requires the ability to isolate the 901 active equalizer signal so that it affects
only the 901 speakers.
Adding 901 speakers
You need just one 901 Series VI active equalizer to use a second pair of 901
Series VI speakers connected to a single receiver or amplifier. Connect the
additional speakers to the additional speaker output jacks on the receiver or
amplifier.
To use extra 901 speakers in a four channel or time-delay music system, you
will need a separate 901 active equalizer for each pair of speakers.
Adding conventional speakers
You need a separate power amplifier to play conventional speakers at the
same time as 901 speakers. Connect the 901 active equalizer to the amplifier
that drives the 901 speakers only.
CAUTION: Make sure the conventional speakers do not receive signals from the
901 active equalizer.
Call Bose Corporation for assistance with the connection of additional speak-
ers or signal processing equipment. Refer to the address information on the
inside back cover of this guide.
A free booklet is available (USA only): Guide to Optional System Connections
for Bose 901 Direct/Reflecting®Speaker Systems. Ask for part number 149393.

17
English
Problem What to do
One speaker sounds • Do not switch the wires; this could damage a speaker. Turn off the amplifier and disconnect
defective, or does not play the defective speaker wire at the amplifier. Reconnect it to the other channel. If the speaker
now plays correctly, the problem is not in the speaker or wiring.
Neither speaker plays • Connect the speakers to another receiver or amplifier that is known to be operating
properly. If the speakers now play correctly, the problem is not in the speakers.
Note that the tonal balance of the 901 speakers will be incorrect if the 901 active equalizer
is not being used with this second receiver or amplifier.
The high and low • Check to be certain that the 901 active equalizer is in the circuit. Review the Playing
frequencies seem weak your speakers section of this guide on page 14.
You hear distortion • Try turning down the volume. If the distortion goes away you may be using an insufficiently
at high volume levels powered receiver or amplifier.
The trouble seems to be in • Bypass the equalizer to see if the system operates properly without it. (Speakers will not
the 901 active equalizer have any highs or lows.) Check to see that all connections are correct and that none of
the cables is defective.
Trouble persists in the • Contact your authorized Bose®dealer to verify any defects and arrange for service by
speakers or equalizer a factory authorized agency or by the Bose factory. Bose Corporation will make every
effort to remedy any problem within the terms of the warranty.
Maintaining Your 901®Series VI Speaker System
Cleaning your speakers
If your 901®speakers have a painted surface, clean with a soft damp cloth. If necessary, use
a mild detergent such as dish soap. If the speakers have a wood veneer finish, clean them
with wood furniture polish. You may vacuum the speaker grille panels carefully, if necessary.
Do not use any sprays near the system. Do not use any solvents, chemicals, or cleaning
solutions containing alcohol, ammonia, or abrasives. Do not allow liquids to spill into any
openings.
Troubleshooting
If you have a problem with your 901 Series VI speakers or 901 active equalizer, turn off the re-
ceiver or amplifier before you proceed. Then check all the connections between the speakers,
receiver, and active equalizer. Correct any wiring problems before you follow the guidelines
below. Problems are more likely to originate with equipment other than speakers, so you may
also want to refer to your receiver or other component owner’s guides.

18
English
Product Information
901 Series VI active equalizer
Input Impedance
47 k ohms (47 kΩ)
Output Impedance
1 k ohm
Usable dynamic range
106 dB @ 35 Hz
Noise (A-weighted)
Greater than 90 dB below 1 volt
Distortion
Less than 0.09% THD at 1 kHz, 1 V input
Compensation controls
Mid-Bass, ±6 dB @ 225 Hz
Mid-Treble, ±6 dB @ 3 kHz
Bass Switch
– 6 dB @ 35 Hz
Power Requirements
120V ~ 50/60Hz, 3.5W
220-240V ~ 50/60Hz 3.5W
100V ~ 50/60Hz 3.5W
Cabinet
Black anodized aluminum
Dimensions
13”W x 23/4”H x 5”D
(33.0 x 7.0 x 12.7 cm)
Weight
3.4 lb (1.5 kg)
Technical information
Bose®901®Series VI Direct/Reflecting®Loudspeakers
Transducer complement
Nine (9) 41/2” (11.4 cm) full-range Helical
Voice Coil drivers in each cabinet
Energy dispersion
89% by reflection
11% by direct radiation
Enclosure
14-element Acoustic Matrix™enclosure
with three reactive air columns
Nominal impedance
8Ω (ohms)
Amplier compatibility
Compatible with amplifiers/receivers rated
from 10 - 450 watts RMS.
Rated 250 watts IEC
Recommended fusing
Series connected 3A quick-acting fuse
Buss AGC-3, Littelfuse 312-003, or equiva-
lent
Cabinet
Oil-rubbed hardwood veneer with
walnut finish
Black vinyl veneer
Dimensions
21”W x 125/8”H x 13”D
(53.3 x 32.0 x 33.0 cm)
Weight
35 lb. (16 kg) per enclosure
Wire recommendations
Gauge Length
18 (0.75 mm2) 30 ft (9 m) maximum
16 (1.5 mm2) 45 ft (14 m) maximum
14 (2.0 mm2) 70 ft (21 m) maximum
Accessories
To find out about PS-6 floor pedestals, contact your Bose dealer. Or call Bose directly (see inside
back cover for phone numbers).

Bose® Corporation
Italia
Bose S.p.A., Via della Magliana 876
00148 Roma
www.bose.iT
TEL [phone] FAX [phone]
Japan
Bose K.K., Shibuya YT Building
28-3 Maruyama-cho
Shibuya-ku, Tokyo 150
TEL [phone] FAX [phone]
Nederland
Bose B.V., Nijverheidstraat 8
1135 GE Edam
TEL [phone] FAX [phone]
Norge
Bose A/S, Solheimsgate 11
N-2001, Lillestrøm
TEL [phone] FAX [phone]
Österreich
Bose Ges.m.b.H., Vienna Business Park Wienerberg-
strasse 7 (10.OG)
A-1100 Vienna
TEL [phone] FAX [phone]
Schweiz
Bose AG, Rünenbergerstrasse 13
4460-Gelterkinden
TEL [phone] FAX [phone]
Sverige
Bose A/S, Johannefredsgatan 4
S-43153 Mölndal
TEL [phone] FAX [phone]
United Kingdom
Bose Limited
1 Ambley Green
Gillingham Business Park
Gillingham, Kent ME8 ONJ
TEL [phone] FAX [phone]
From other locations
Bose Customer Service, 1 New York Ave.
Framingham, MA 01701-9168 USA
TEL [phone] FAX [phone]
World Wide Web
www.Bose.com
USA
Bose Corporation, The Mountain
Framingham, MA 01701-9168
1-800-367-4008
Phone hours - ET (eastern time):
Weekdays 8:30 a.m. to 8 p.m.
Saturdays 9 a.m. to 3 p.m.
Canada
Bose Ltd., 1-35 East Beaver Creek Road
Richmond Hill, Ontario L4B 1B3
1-800-465-2673
Phone hours - ET (eastern time):
Weekdays 9 a.m. to 5 p.m.
European Ofce
Bose Products B.V., Nijverheidstraat 8
1135 GE Edam, Nederland
TEL [phone] FAX [phone]
Australia
Bose Pty Limited, 1 Sorrell Street
Parramatta NSW, 2150
TEL [phone] FAX [phone]
Belgique/België
Bose N.V., Limesweg 2, B-3700 Tongeren
TEL [phone] FAX [phone]
Danmark
Bose A/S, Industrivej 7, 2605 Brøndby
TEL [phone] FAX [phone]
Deutschland
Bose GmbH, Max-Planck-Straße 36d
D-61381 Friedrichsdorf
TEL [phone] FAX [phone]
France
Bose S.A., 6, rue Saint Vincent
78100 Saint Germain en Laye
TEL [phone] FAX [phone]
India
Bose Corporation India Private Limited
W-16, Greater Kailash-II
New Delhi 110 048
TEL [phone] FAX [phone]
Ireland
Bose Corporation
Carrickmacross, Co Monaghan
TEL [phone] FAX [phone]

©2007 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
195438 AM Rev.04
