Boss Audio Systems BV8250 User manual

1
Precautions .....................................
Safety Information.........................
Disc Notes ....................................
Installation ....................................
Electrical Connection ....................
Remote Control ............................
Control Panel ................................
Basic Operations
Radio Operations ..........................
DISC Operations ...........................
Detaching the control panel ...............
Changing the control panel ...............
Touch Panel
Unit Keys .......................................
TFTMonitor
........................
Audio QualityAdjustments
................
Scroll CaptionAdjustments ..............
Listening to the radio .......................
Storing stations in memory ...............
Listening to a preset station .............
RDS Function ............................. ...
Basic Operations ............................
Select Playback Mode .....................
AUX Operation ...............................
On-Screen Disc Operations .............
....................................
Adjustment .................
Rear View Camera
...............
SettingAudio Mode ..................... ...
Reset The Factory Setting
..........................
26
26
26
26
27
27
29
29
30
31
32
33
33
34
26
32
35
7
8
12
12
13
16
16
16
17
17
17
18
1
21
23
24
25
2
3
4
5
9
10
16
18
8
19
19
21
DISC Special Functions ................
Setup .............................................
Other Main Operations ...................
Specifications ...............................
Trouble Shooting ..........................
Selecting audio languages ................
Selecting Subtitles ..........................
Selecting multi-angle views ..............
Title menu function ..........................
General Setup ................................
Speaker Setup ...............................
Dolby Digital Setup ........................
Preferences Setup ..........................
Defaults Table ................................
USB Operations ..............................
MP3/WMA/JPEG Play ......................
MPEG4 Play ...................................
Contents
BV8250
In-Dash AM/FM
DVD/MP3/CD Receiver With
5.3 Widescreen Touchscreen TFT Monitor
With Front Panel USB Port

2
Precautions
THANK YOU FOR PURCHASING THIS CAR DVD PLAYER .
Before operating the unit, read this manual thoroughly and keep it handy
for future reference .
To avoid injury or accident , read the following precautions before
installing and operating the unit .
ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL
Do not press too firmly on the LCD panel on the unit as doing so can distort
the picture or cause a malfunction . The picture may become unclear , or the
LCD panel may be damaged .
DO NOT install any receiver in locations where;
- it may obstruct the steering wheel and gearshift lever operations, as this
may result in a traffic accident.
- it may obstruct the operation of safety devices such as air bags, as this
may result in a fatal accident.
- it may obstruct visibility.
DO NOT operate any receiver while manipulating the steering wheel, as
this may result in a traffic accident.
The driver must not watch the monitor while driving.
IF THE DRIVER watches the monitor while driving, it may lead to
carelessness and cause an accident.
IF YOU NEED to operate the receive while driving, be sure to look ahead
carefully or you may be involved in a traffic accident.
IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the
monitor, and no playback picture will be shown.
- This warning appears only when the parking brake wire is connected to
the parking brake system built in the car ( refer to the electric connection)
ON INSTALLATION
NOTES ON CLEANING
-Clean the LCD panel with a slightly damp soft cloth.
-Do not use solvents such as benzine, thinner, commercially available
cleaners or antistatic spray .
-Do not use alcohol to clean the screen .
If your car was parked in a cold or hot place, the picture may not be clear .
The monitor is not damaged . The picture will become clear the temper-
ature in your car becomes normal .

3
Safety Information
REGION MANAGEMENT INFORMATION:
This DVD Player is designed and manufactured to respond to the Region
Management Information that is recorded on a DVD disc. If the Region number
described on the DVD disc does not correspond to the Region number of this
DVD Player, this DVD Player cannot play this disc.
CAUTION:
THIS DVD PLAYER ISACLASS I LASER PRODUCT. HOWEVER THIS DVD
PLAYER USESAVISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DVD PLAYER CORRECTLYAS INSTRUCTED.
USE OF CONTROLS ORADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THANTHOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERSAND DO NOT
REPAIR YOURSELF. REFER SERVICINGTO QUALIFIED PERSONNEL.
WARNING:
TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENTTO RAIN OR MOISTURE.
TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK,ANDANNOYING
INTERFERENCE, USE ONLYTHE RECOMMENDEDACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
COPYRIGHT PROTECTION
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.

Disc Notes
Preparing New Discs with
Spots
Rough
Anew disc may have rough edges on
its inside and outside edges. If a disc
withrough edges is used, the proper
setting will not be performed and the
player will not play the disc. Therefore,
removetherough edges in advance
by using a ball point pen or pencil as
shown on the right. To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
Rough spots
on
outside edge
Ball point pen
or pencil
Rough spots
on inside
edge
Do not touch
the
underside
of the disc
Do not
bend
Wipe the disc from
center
toward the outside
edge
Label side
up
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
Adisc should always be kept in its
case when not in use to prevent from
damaging.
Do not place discs in the following
places:
1. Direct sunlight
2. Dirty, dusty and damp areas
3. Near car heaters
4. On the seats or dashboard
Discs which cannot be played
with this player
DVD-RAM
CDV
CDG
Note:
Adisc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
4
Disc formats supported by this
player
DVD
VCD
CD
MP3
Audio and Video
Discsize12cm
Audio and Video
Discsize12cm
Audio
Discsize12cm
Audio
Discsize12cm

Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
modifications of the vehicle.
Install the unit where it does not get in the driver s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.
If installation angle exceeds 30 from horizontal, the unit might not give its
performance.
Avoid installing the unit where it would be subject to high temperature, such
direct sunlight, or from hot air, from the heater, or where it would be
dirt or excessive vibration.
This unit can be properly installed either from "Front"(conventional DIN
or "Rear"(DIN Rear-mount installation, utilizing threaded
the unit chassis). For details, refer to the following
illustrated installation methods.
NOTES:
DIN FRONT/REAR-MOUNT
it is
of
other
optimum
as from
subject to dust,
Front-mount)
screw holes at the sides of
'
Installation
5
30
USA/EURO FREQUENCY SWITCH
On the right of this device, there is a USA/EURO frequency switch, you can select
the desired radio frequency before installing .
USA/EURO Frequency Switch (radio frequency
switch for selecting between the USAand EUROPE
frequency band. )

Installation
6
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING,
first remove the PLASTIC COVER of the both sides away, then insert
the two KEY PLATE into left and right side of chassis as above illustration.
DASH BOARD
METAL MOUNTING
STRAP
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
KEYPLATE
KEYPLATE
PLASTIC COVER

7
Installation

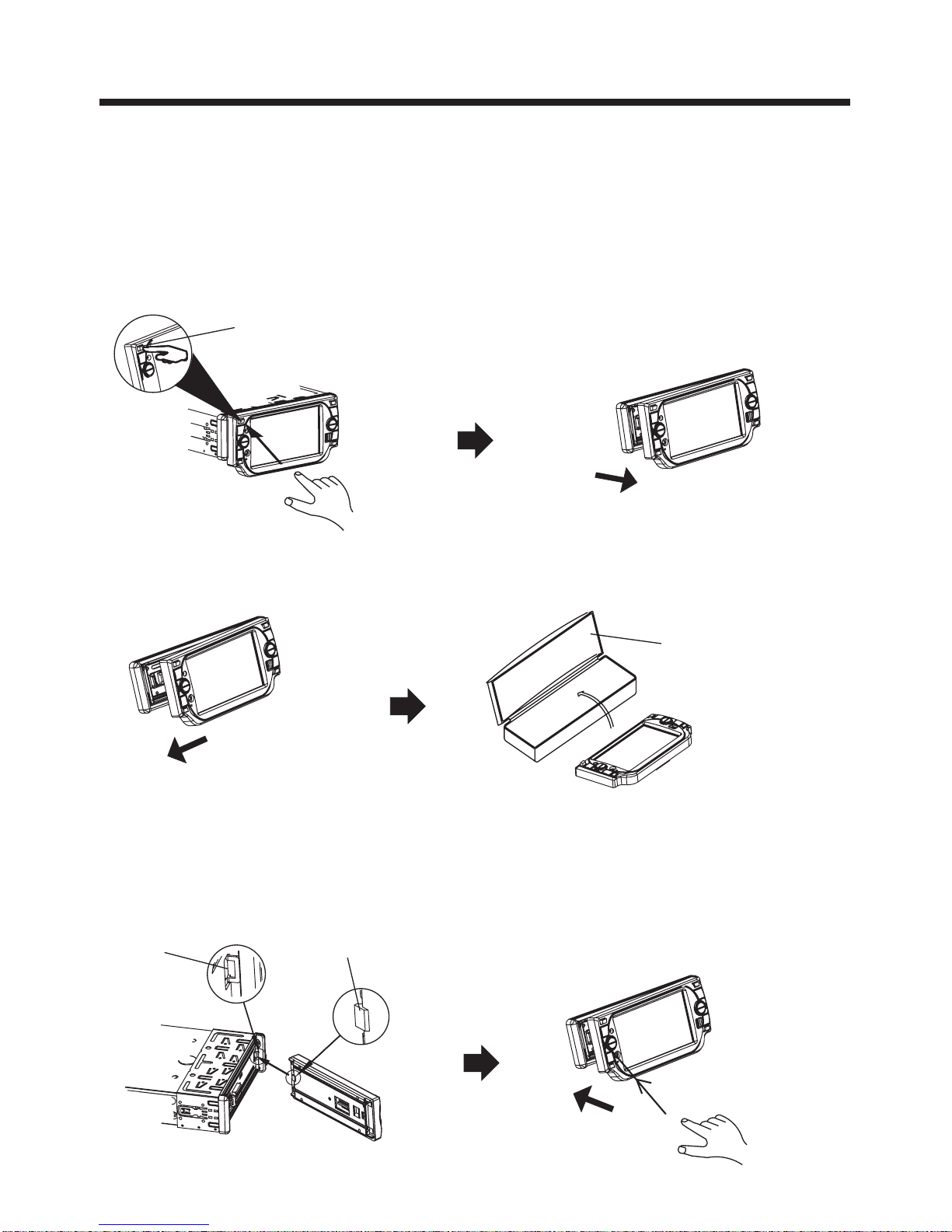

How To Remove And Install The Front Panel
When detaching or attaching the control panel, be careful not to damage the
connectors on the back of the control panel and on the panel holder.
2). Pull-off the front panel and keep the front panel into the case .
PROTECTIVE CASE
Detaching The Front Panel
Before detaching the control panel, be sure to turn off the power.
1). Press the release button and the left hand side of the front panel will release.
RELEASE BUTTON
Attaching The Front Panel
1). First insert the right hand side of the front panel into the hollow of the unit .
(NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)
2). Gently push the left hand side of the front panel until you feel a “ Click” .
Hollow Bulge

Panel Angle Adjustment
8
Caution:
Do not insert your finger behind the control panel.
When you want to change the viewing angle of the operating unit to play,
you can touch the section on touch screen (or press the button
on the front panel) repeatedly to select the desired angle as follows:

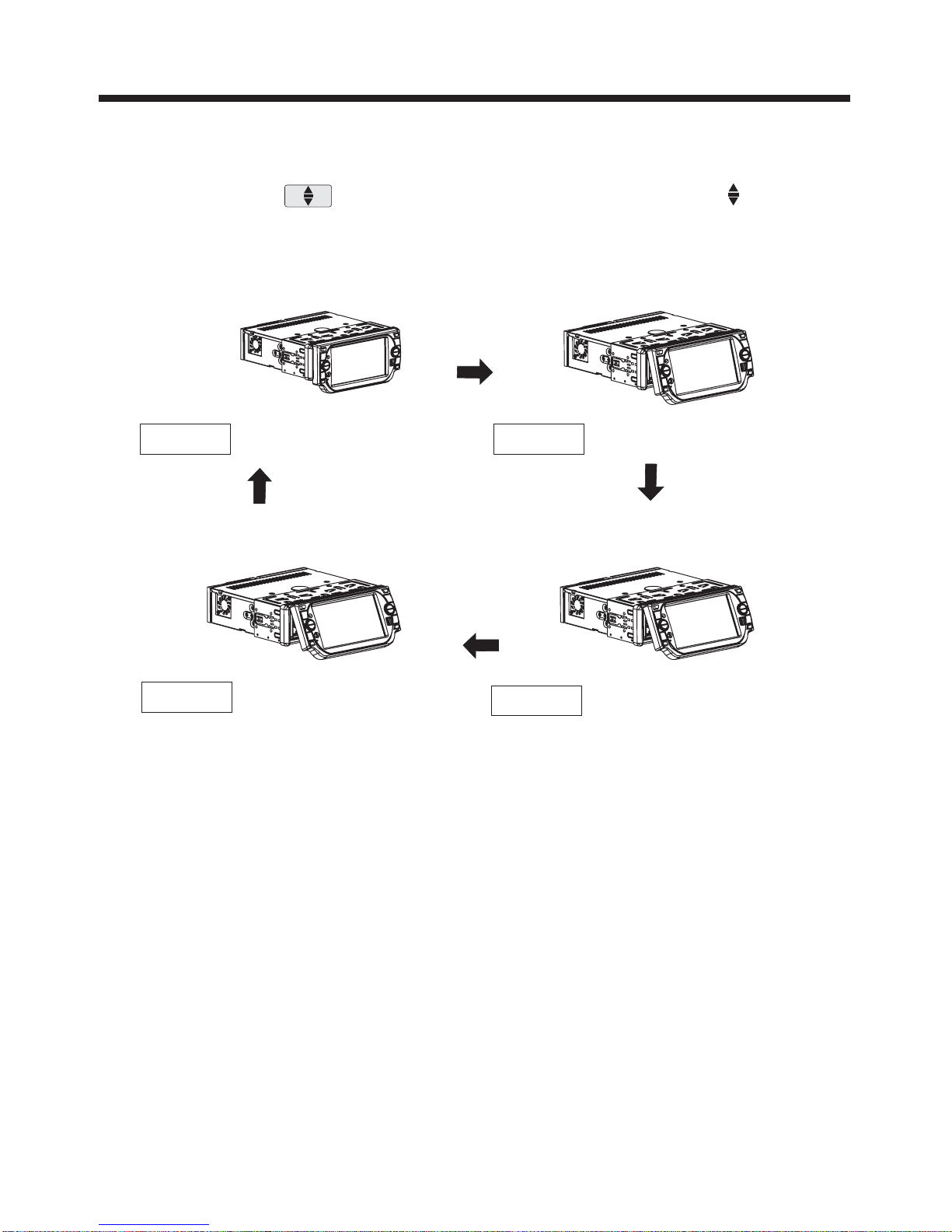

CHANGING THE CONTROL PANEL ANGLE
Angle 3
Angle 4
Angle 1 Angle 2

Electric Connection
WIRING CONNECTION
9
Note :
The "PARKING BRAKE" wire must be connected to the parking brake system of
your car. When the parking brake is engaged, the LCD screen will be allowed to
view your video. If not, the screen will produce an image saying,
"PARKING BRAKE" This is a safety feature designed for the driver not to watch a
video while driving. The video output on this unit is not affected by this.
FRONTRCA WHITE L
FRONTRCARED R
VIDEO OUT1YELLOW
FRONTRCAOUTPUT
CABLE
GREY
GREY/BLACK
FRONT
Rch SPK.
VIOLET
VIOLET/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
REAR
Lch SPK.
BLUE FUSE
GROUND(B-)
IGNITION
SWITCH(B+)
RADIOANTENNA JACK
RED
YELLOW
BLACK
MAIN UNIT
REAR
Rch SPK.
FRONT
Lch SPK.
CHOKE
BOX
RCH RED
LCH WHITE
REAR RCAOUTPUT
CABLE
GREYSUBWOOFER
VIDEO OUT 2YELLOW
COAXIALOUT BROWN
RCA CABLE
WHITE (B+)12V
REAR CAMERASWITCH
GREEN
YELLOW REAR CAMERAINPUT
(B-)PARKING BRAKE
ISO CONNECTOR
FUSE
CONSTANT
12 VOLTS
AUTO ANTENNA
&AMPTURNON

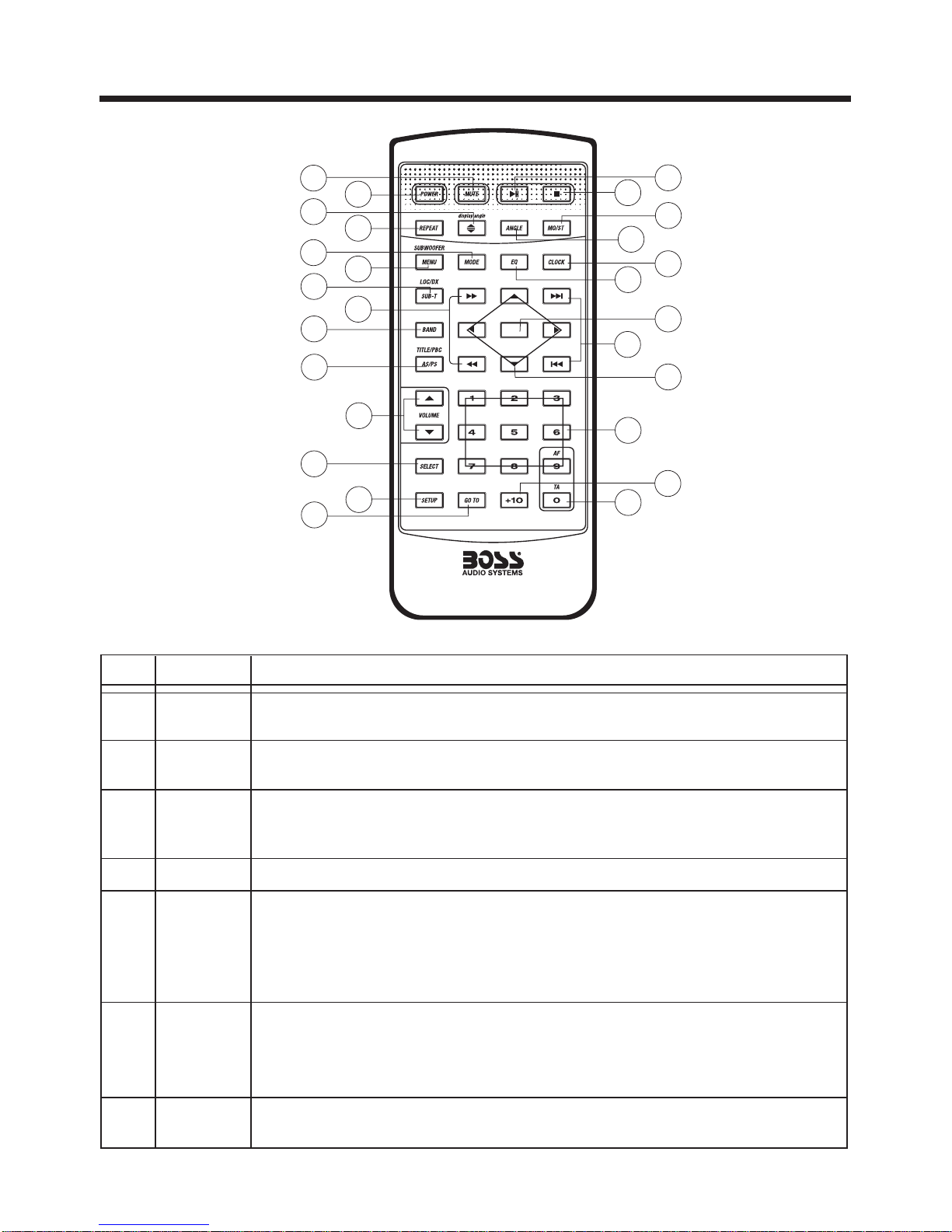

Remote Control
10
6
5
Button
Ref # Function
1
2
REPEAT
CLK Press it briefly to view the clock time , Press again to return to
normal display mode . Press longer to set the time .
MODE Press repeatedly to cycle through the various modes:
RADIO>DISC>AUXIN.
3STOP Press once to pause playback. Press PLAY/PAUSE to resume
playback. Please note: if you press STOPtwice, playback will
start at the beginning of the disc.
SETUP
4Press this button to open the SETUP menu.
MO/ST
(AUDIO)
In Radio mode, press this button to change between Mono and
Stereo reception modes (when a station is weak, sometimes
switching to Mono will improve sound quality). In Disc Playback
mode, pressing this button opens theAUDIO setup menu for
making changes to the way the soundtrack is reproduced.
SUBTITLE
LOCAL/
DISTANT
In DVD Disc Playback mode, pressing this button will allow you to
change the subtitle language on discs which have this as an
option. In Radio mode, press this button to change the radio
reception sensitivity in stations are near or far.
7Pressing this button will open a menu presenting you with the
playback repeat options available for that kind of disc.
17 15
19
13
14
7
2
6
11
18
316
5
20 1
21
26
9
12
10
4
8
25
23
24
22

Remote Control
Button
Ref # Function
8
9
GOTO Press it button to begin playback at a moment in the program you
designate. Use number buttons to enter the data that is needed.
/Press these buttons to skip ahead or back one track. (Note: In
DVD mode, press continually the twice to skip back one)
10 SEL Press this button repeatedly to cycle through the various audio
and video adjustments you can make: Volume, Bass, Treble,
Balance, Fader, Color, Brightness, Contrast and Tint.
11 VOL+/- Use these controls to adjust the volume level.
Press to navigate the various menus present in the product.
12 ///
Press this button briefly to display the root level directory of a
DVD disc. Press and hold this button to turn on or off the
SUBWOOFER output.
Menu
SubWoofer
()
13
14 BAND
(OSD)
In Radio mode, press this button repeatedly to switch between
the five radio bands: FM1 > FM2 > FM3 >AM1 >AM2.
In Disc Playback modes, Press this button to see information
about the disc currently in play.
(POWER)
15 Pressthisbutton toturntheunit ON,pressandholdtoturnthe
unitOFF.
PLAY/
PAUSE
16 In Disc Playback mode, press to pause playback. Press again to
start where playback stopped.
MUTE
17 Press this button to turn off the audio. Press again to restore the
sound to its prior volume level.
TITLE/
PBC(A/P)
18
When playing a DVD, pressing this button will open the TITLE
menu which is recorded on the DVD. When playing a VCD disc,
press this button to create a PBC (Playback Control) menu for the
disc to assist in making playback selections. In Radio mode,
press and hold this button to start theAuto-Program mode, during
which the tuner will scan for all strong stations and assign them
to the radio preset buttons.
Press this button to adjust the screen viewing angle (see page 8).
19
ANGLE
20 For DVD discs which have alternate viewing angles encoded,
when you see the "angle mark" symbol advising you that these
angles are available, press this button to see them.
EQ/LOUD
21 Press repeatedly to cycle through the different equalizer curve
presets you may wish to use for enhanced listening.
/
22 InDiscPlayback mode,pressforfastforward/reverseplayback.
23 ENTER This button is used to confirm selections and settings within
many of the menus in the OSD system.
11

Remote Control
12
Using the Remote Control

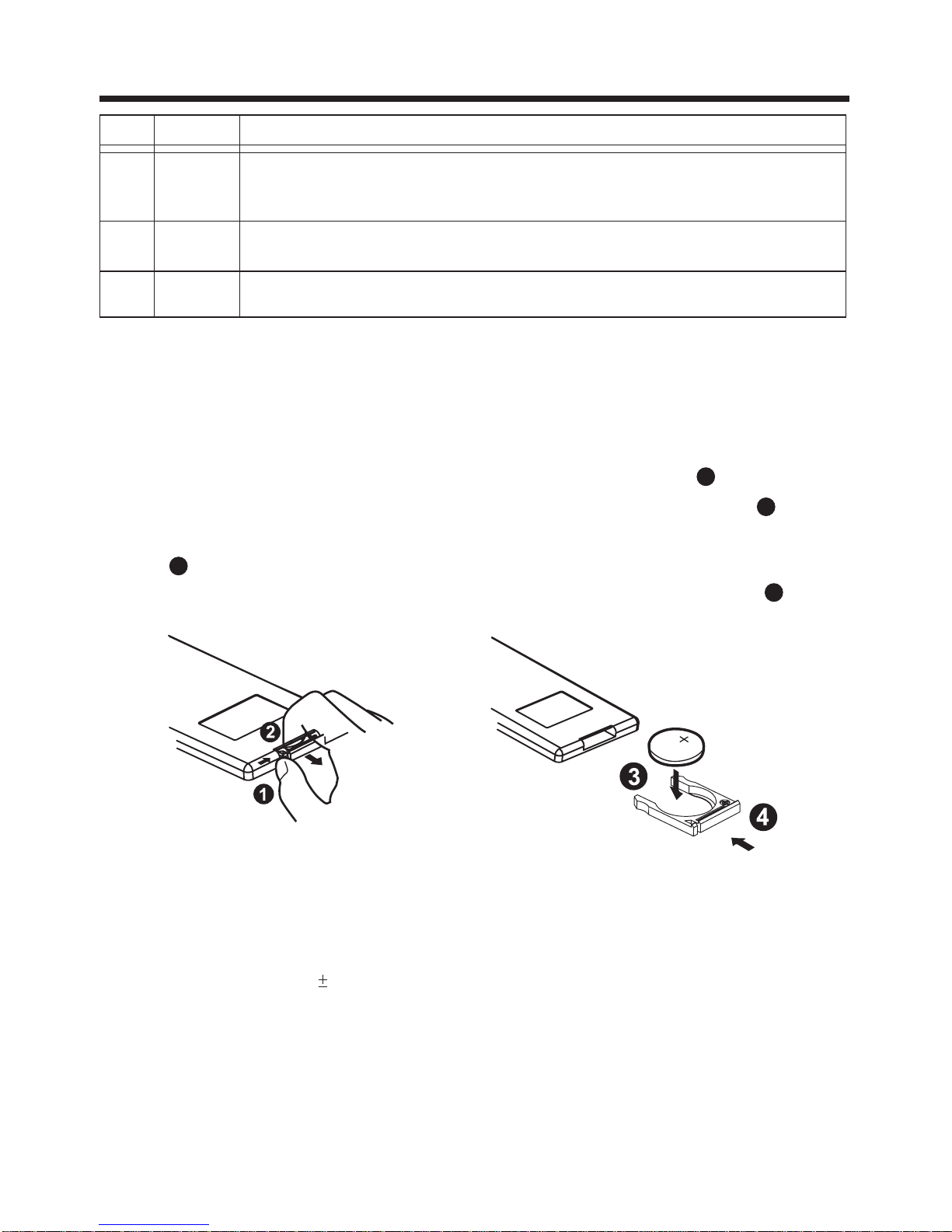

Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About 30 degree in each the direction of the front of the IR mark.
Preparing the Remote Control
1.First push to inside as the direction indicated by the arrow (See )And then
Remove the battery holder as the direction indicated by the arrow (See ).
2.Replace the battery Set a new battery property with (+)side up as illustrated
(See ).
3.Insert the battery holder. Push in the holder to the original position(See ).
1
2
34
Inserting the Batteries
Button
Ref # Function
0-9 These buttons are used for numeric entry in many different menus.
In addition, in Radio Mode (when RDS is engaged), 0 serves as
the TAbutton and 9 serves as theAF button.
24
This button is used with the other number buttons for use with
two-digit number entries.
+10
25
1-6
26 Sixnumberedpreset buttonsstoreandrecall stationsforeachband.
Note :
The lithium cell in the battery compartment of remote control has been secured for
transport with a foil . Before initial use please remove this foil so that the remote
control is ready for operation .

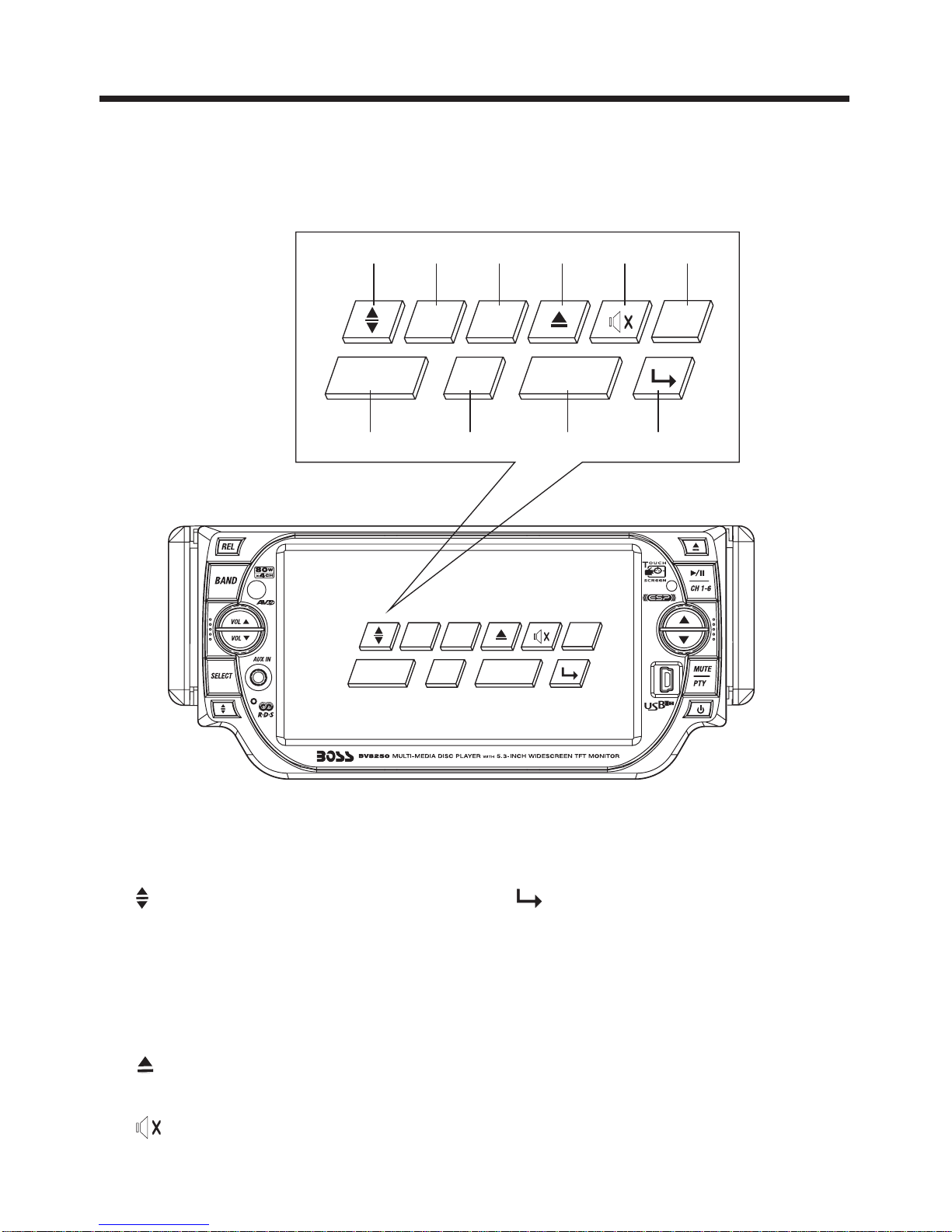

Control Panel
Touch Panel
Key Functions
13
10. Volume- : volume adjustment (-)
Touch Screen Key :
6. MOD : operating mode selection .
7. : Previous
2. TA : Turning pre-switching for traffic
announcements on and off . (For RDS)
3. AF : Switch on and off
and alternative frequency. (For RDS)
1. (Angle) : Changing the viewing
angle of the operating unit .
4. (Eject) :Touch it to insert and
eject the DISC .
8. Volume+ : volume adjustment (+)
9. SEL : select the menu of the
Sound/Picture
5. :To switch of the sound .
123456
78910
VOLUME- SEL VOLUME+
MOD
AFTA
VOLUME- SEL VOLUME+
MOD
AFTA
CH
X
MODE

Control Panel
Unit Keys :
1
713 2
8
6
9
5
4
15 10
14
3
12
11
CH
X
MODE
14
1. REL BUTTON
Press this button to release the front panel for removal . Refer to see page 7.
2. (POWER On/Off)/MOD BUTTON
Press it to switch the device ON, press and hold (approximately 2 seconds) to
switch the device OFF . During the playback mode, you can press it to select an
input mode by pressing repeatedly until proper one is found:
AUXIN>RADIO>DISC
If you are in USB playback mode and want to select the DISC mode, press the
STOPbutton and then press the GOTO button.
3. VOL+/ VOL- BUTTON
In normal mode, this button is used to increase or decrease the volume. It is also
used as an UP/DOWN knob when audio or video settings are being adjusted
when accessed using the SELECT button.
5. BAND BUTTON
press it repeatedly to select the desired radio band: FM1, FM2,
FM3, AM1(MW1), AM2(MW2) .
In Radio mode,
4. SELECT BUTTON
To access the available adjustment settings for audio and video, press this button
repeatedly to cycle through and select them:
Tint Contrast Bright Color Fader
Buzzer Volume Bass Treble Balance

Control Panel
15
8. /CH 1-6 BUTTON(RADIO PRESET)
a). In Disc Playback Mode
Press this button to pause playback, press it again to resume playback.
b). In Radio Mode
Press this button repeatedly to preset station. (Please refer to see page 20 .)
7. ANGLE (Screen position)
Press this button repeatedly to cycle through the different positions.
11. RESET BUTTON
Press this button to return to factory settings .
12. IR SENSOR
10. (EJECT) BUTTON
Press the button to eject the DISC or insert the DISC to start play .
13. AUX Input Jack
For information about connecting aAUX device, please see page 25 .
14. USB PORT
For information about connecting a USB device, please see page 33.
15. TFT Display
The operation of the TFT, please see page 17.
(Thin Film Transistor)
6. MUTE /PTY BUTTON
Press this button briefly to select the MUTE or NOT .
In Radio Mode, press this button and hold for a bout 2 seconds to select the PYT
of the program type (examples of such types of program are : NEWS, POP.....)
9. / BUTTONS (TUNE, SEEK, TRACK, SKIP UP/DOWN)
A) In DISC, USB mode:
if you wish to jump forwards or backwards press / buttons.
(Note: in DVD mode, press the button continually twice to skip back one track
during playback.)
To go through the tracks , press longer the or button, FF X2 appears in the
display. Operating it again, the speed of rapid forward/reverse changes according
to the disc as follow:
DVD/VCD/CD/MP3:
Normal Playback 2x 4x 8x 16x
B) In Radio Mode:
press briefly the or button in order to set a radio station manually.
Press longer (for more than two seconds) in order to start the search for a radio
station automatically.

Basic Operation
Touch the screen the
VOLUME- to decrease
the volume level .
Touch screen
Touch the screen the
VOLUME+ to increase
the volume level .
Setting The Buzzer ON/OFF
Touch the SELsection on the
touch screen to select the
item, and then touch
the VOL+/- (or rotate the vol+
/vol-) to switch the
BUZZER
BUZZER
ON/OFF .
SEL
VOLUME+
VOLUME-
Ejecting The Disc
Use your finger to touch the
range on touch screen ,
the control panel of the unit
will swing downwards . Then
you can insert the disc or eject the disc .
(You can also press the button on the
front panel to eject the disc or insert the
disctostartplay.)

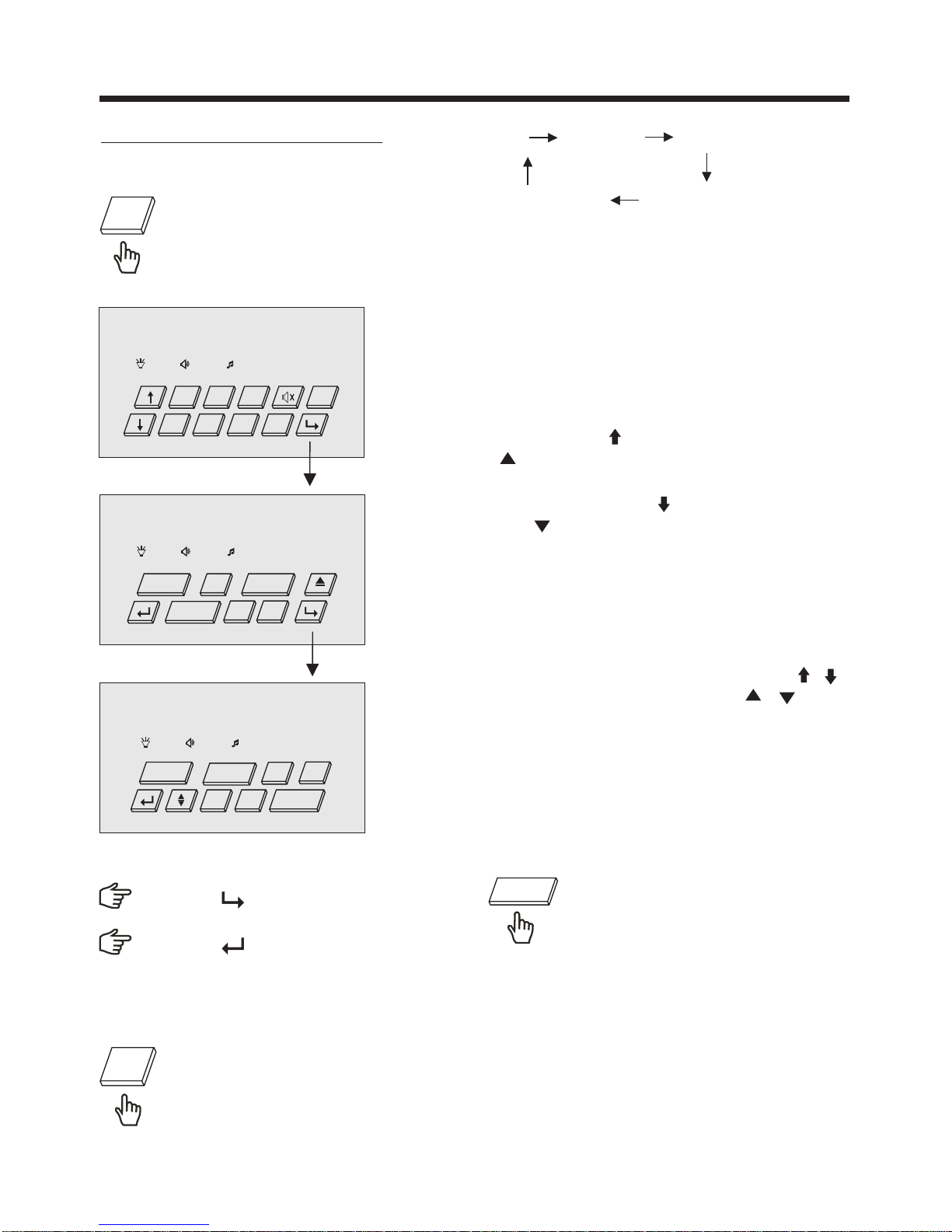

Select Sources
Touch the MOD
section on the screen, the
signals will display in the
screen as follow :
repeatedly
DISC AUX IN RADIO
MOD
Mute Function
Use your finger to touch
the section , it will
mute the sound but the
disc continues playing.
Touch it again to resume .

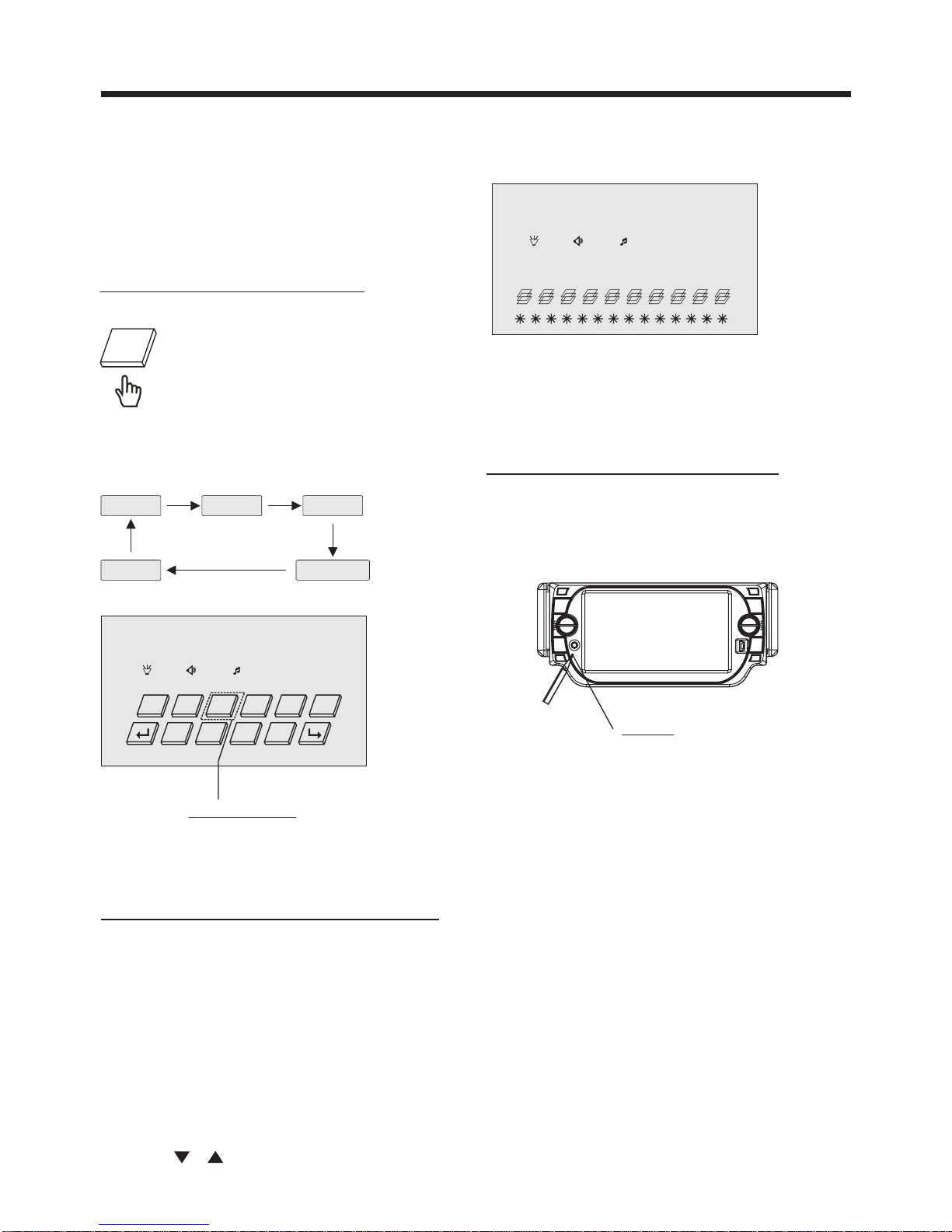

Setting The Clock
Touch the CLK section on the
screen and hold for about 2
seconds the hour will flash ,
rotate the VOL+/- to adjust .
Touch it again, the minute
will flash, then use the VOL+/-
to adjust .
CLK
16

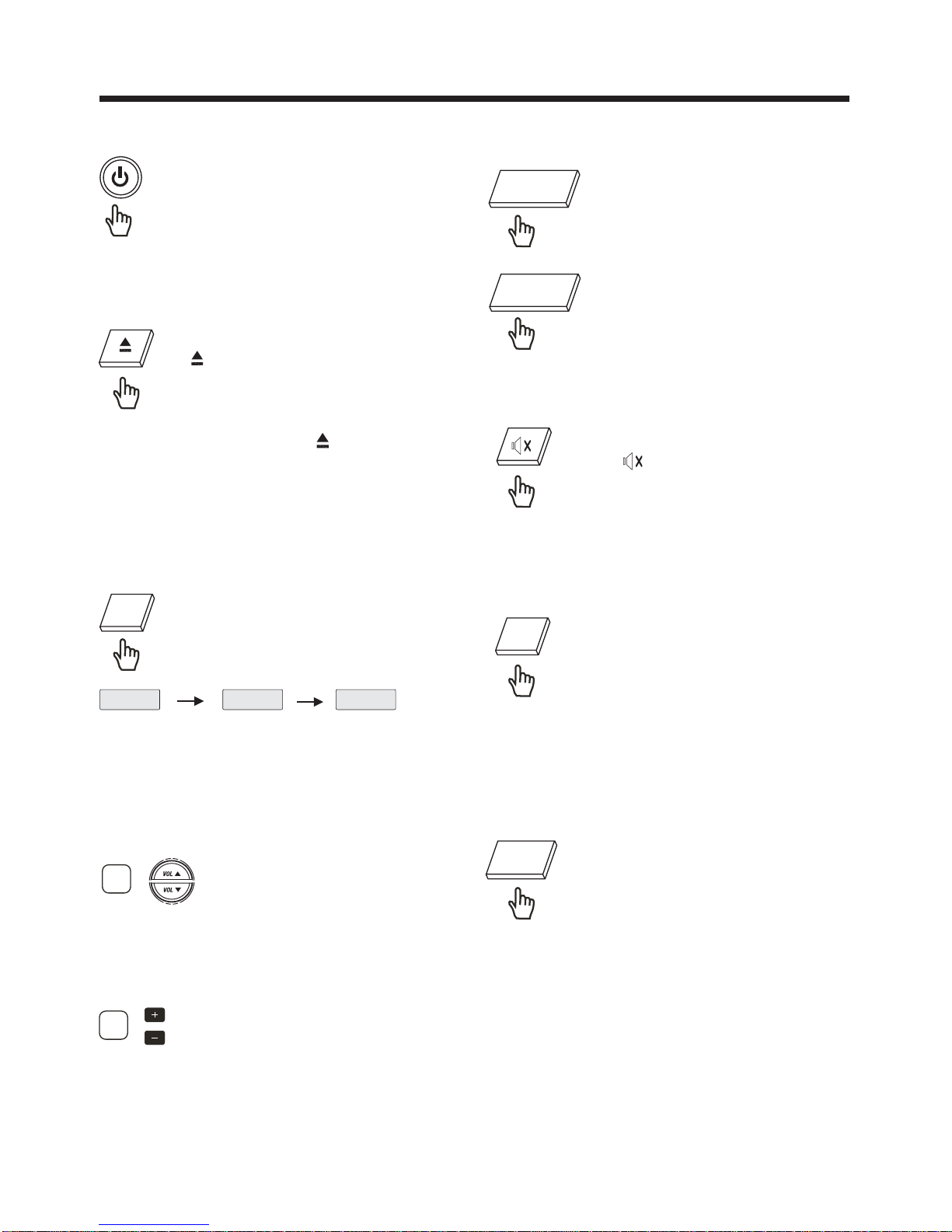

Press it to switch the device ON,
press and hold about 2 seconds
to switch the device OFF.
POWER On/Off
Press the VOL+/- on remote control ,
to change the volume level .
B
Volume Adjusting
Volume button
A
Press the VOL+/- on the front panel
to change the volume level .

17
LCD Monitor Adjustment
During DISC playback, use your
finger to touch briefly the SEL
section on the screen (or press
SELbutton on front panel
mode
)
to access the Picture
selection menu, by repeatedly touch the
SELsection, and then touch the VOL+/-
(or rotate the VOL+/-) to adjust the
selected mode .
(The corresponding value will show on
the monitor )
COLOR: 0 to 32
Adjust the color for the picture-lighter or
darker.
BRIGHT:0to32
User can use the Vol+/- knob to adjust
the brightness level from 0 to 32 .
CONTRAST: 0 to 32
To adjust the contrast of the bright and
dark portion.
TINT:0to32
Adjust the tint if the human skin color is
unnatural.
-Adjustable when NTSC is selected for
NTSC/PAL .
ADJUSTABLE ITEMS:
““
““
Rear View Camera
When you connect a rear view camera to
this system. It will display the image in a
mirror like fashion. Once you engage the
car into Reverse the screen will show the
camera image. Then once you take the
car out of Reverse the screen will go
back to the previous mode.
Basic Operation
Audio Quality Adjustment
During DISC playback, use your
finger to touch briefly the SEL
section on the screen (or press
SELbutton on the front panel )
to access the Sound mode selection
menu, by repeatedly touch the SEL
section, and then touch the vol+/-
(or rotate the vol+/-) to adjust the
selected mode . (The corresponding
value will show on the monitor )
It`sdependonyourhabittosetupthedata.
ADJUSTABLE ITEMS:
Volume:
Bass:
Treble:
0to32
Adjust volume level by using VOL+/-.
-14to+14
Adjust bass level by using VOL+/-.
-14to+14
Adjust treble level by using VOL+/-.
SEL
LUD SWF POP 11:08
DISC
DVD 11-0:44:36
MOD
SEL VOL+VOL-
touchtoadjust
touchtoselect
Volume Bass Treble Balance
Contrast Bright ColorTint
FaderBuzzer
Volume Bass Treble Balance
Contrast Bright ColorTint
FaderBuzzer
SEL
LUD SWF POP 11:08
DISC
DVD 11-0:44:36
MOD
SEL VOL+VOL-
touchtoadjust
touchtoselect

Reset Factory Settings
RESET button is placed on the housing
and must be activated with either a
ballpoint pen or thin metal object.
The RESET button is to be activated for
the following reasons:
A. Initial installation of the unit when
all wiring is completed.
B.All the function buttons do not operate.
C. Error symbol on the display.
RESET
18
Basic Operation
Balance:
Fader:
R0-10toL0-10.
Adjust sound balance between left
and right speakers by using VOL+ / -
F0 10toR0-10.
Adjust sound balance between front and
rear speakers by using VOL+ / VOL - .
.
-
Touch the screen the DSP range
(or press the EQ/LOUD button
on the remote ) to select one of
the preset sound modes .
The information will display in the
monitor as follow :
(Rock/Pop/Jazz/Classic/Flat) .
Setting Audio Modes
It`s depend on your habit to select the
Audio mode .
POP
FLAT
ROCK
CLASSIC
JAZZ
to ahead/back (proceed/cancel) , and
then press the SETUP button briefly to
confirm .
FM1 106.30 MHz
ST DX TA
LUD SWF POP 11:08
DISC
(Please note : press the button longer
again to renew it . )
DVD 11-0:44:36
LUD SWF POP 11:08
DISC
OSD
TA AF
CLKSWF LUD DSP
RDM INT RPT
touchtoselect
DSP
In Radio mode:
You can adjust your desired scroll
caption , the method of the operation
as follow:
A). Press and hold the SETUP button
(for about 2 seconds) on the remote
control, the adjustment scroll bar will
display on the screen .
B). Use the VOL+/- to select among of
the “A, B, C ....X, Y, Z, and blank ”, and
use the / button on the front panel
Scroll Caption Adjustment

FM1 106.30 MHz
ST DX TA
CH6
LUD SWF POP 11:08
DISC
SEL
ST/MON
VOLUME- VOLUME+
LOC APS
FM1 106.30 MHz
ST DX TA
CH6
LUD SWF POP 11:08
DISC
4 5 6
2 31
MOD
BND
FM1 106.30 MHz
ST DX TA
CH
6
LUD SWF POP 11:08
DISC
TA AF
PTY
DSP CLK
SWF LUD
Radio Operation
19
Listening to the Radio FM1 FM2 FM3
AM2(MW2) AM1(MW1)
(
)
You can also press the BND on front
panel repeatedly to select the band .
Switching To Radio Mode
Touch the MOD range repeatedly
on the screen to select the RADIO
mode. the following information
will appears as below:
Touch “ ” to next .
Touch “ ” to previous .
When an FM stereo broadcast is
hard to receive
Touch the section on
touch screen (or press ST/MO
button on the remote) to select
the MONO or STEREO mode .
ST/MON
(
)
When Stereo mode is activated, the ST
symbol will appear .
Selecting The Frequency Band
Touch the section on the
touch screen repeatedly to select
the band , screen band will show
in turn :
BND
BND
ST/MON
MOD
Start Searching For a Station
During Radio mode, briefly touch the
screen of “ ” section or press the
“ ” on front panel to increase frequency
by one step of channel spacing .
Briefly touch the “ ” section or press
the “ ” button on the front panel to
decrease frequency by one step of
channel spacing .
Manual Search
Automatic Search
During Radio mode, touch and hold
(for more than 2’s ) the screen of “ / ”
section or press longer the “ / ” on
the front panel to start search for a radio
station automatically .

FM1 106.30 MHz
ST DX TA
CH6
LUD SWF POP 11:08
DISC
4 5 6
2 31
MOD
BND
Radio Operation
Automatic Memory Storing &
Program Scanning
Automatic Preset Setup
20
Storing Stations In Memory
Setting Memory
Press the /CH 1-6 button repeatedly
on the front panel to preset stations at
radio mode . Or touch the screen the
1-6 sections ( )
With this system, a total of 30 stations
can be stored in the memory of six
buttons. Each band stores up to six
preset stations. The stations might be
FM1, FM2, FM3, AM1(MW1), and
AM2(MW2) band.
The operation is as below :
-Store in Memory
Touch and keep the 1-6 sections
(or press and hold the /CH 1-6) for
about 2 seconds, the current listening
station will be stored into the
number location .
-Retrieve a preset station
Touch the 1-6 sections briefly (or press
the /CH1-6 button repeatedly) to
retrieve a station which had been
stored in the memory in advance the
chose number is shown on display .
RDS FUNCTION
TA Traffic Annonuncement
(priority For Traffic Information)
In Radio mode, touch the TA
section briefly (or swing the SEL
knob briefly in the TA/AF direction) ,
to activate the TAfunction. Touch it
again to turn off theTAfunction .When
the TAfunction is activated, the TA
symbol appears in the display .
In Radio mode, touch it to select
the desired item, it will display the
following as below :
In Radio Mode, Touch and keep the
APS section on the touch screen
(or swing and hold the SELknob in
direction of theAPS/DISP) for about
2 seconds to active automatic station
storage. The radio searches within the
current frequency band, e.g. FM1, for
the stronger signal level until the search
cycle has finished . The six strongest
stations are then allocated to the
corresponding storage locations . Then
the station of the first storage location
is set .
TA
Touch the LOC section on the
touch screen (or press LO/DX
button on the remote) to select
the LOCALor DX mode .
To tune in strong-singnal FM
Station only (LO/DX function)
(
)
You can choose between the LOCAL
and DX(DISTANCE) mode for local or
long-distance traffic news .
LOC
APS
Touch to preset station
FM1 106.30 MHz
ST DX TA
CH
6
LUD SWF POP 11:08
DISC
TA AF
PTY
DSP CLK
SWF LUD
Scan Function
In Radio mode, briefly touch the
APS section on the touch screen
the radio briefly plays all the preset
stations of the frequency band .
APS
