RAB X34 User manual

INSTRUCTIONS
X34®



READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.



WARNING: Make certain power is OFF before installing or maintaining xture. No user-serviceable parts inside.
NOTE: No user maintenance or cleaning required.
Universal voltage driver permits operation at 120V through 277V, 50 or 60 Hz. Units ordered with /480 sux are 480V only,
50Hz or 60Hz.
Suitable for wet locations. Suitable for mounting within 4ft of the ground.


CAUTION: UL certied liquid-tight cord grip suitable for use
with ve-conductor-type STW exible cord shall be used for
connection to a wet location outlet box provided by others.

 Pivot Bolts 
 
  Pivot Bolts
 Tenon.
Tenon Set Screws

 Locking Bolt 
  Locking Bolt

Pivot Bolts

Set
Screws
Tennon
Locking Bolt
O-Ring
X34 250W
SLIPFITTER/TRUNNION MOUNT X34 350/450W
SLIPFITTER/TRUNNION MOUNT
CAUTION: Do not mount the Sliptter to a Tennon or Bracket
that is more than 20 degrees from vertical. Mounting any angle
other than 0-20 degrees increases the risk of disengagement
and/or failure of the sliptter.

INSTRUCTIONS
X34®








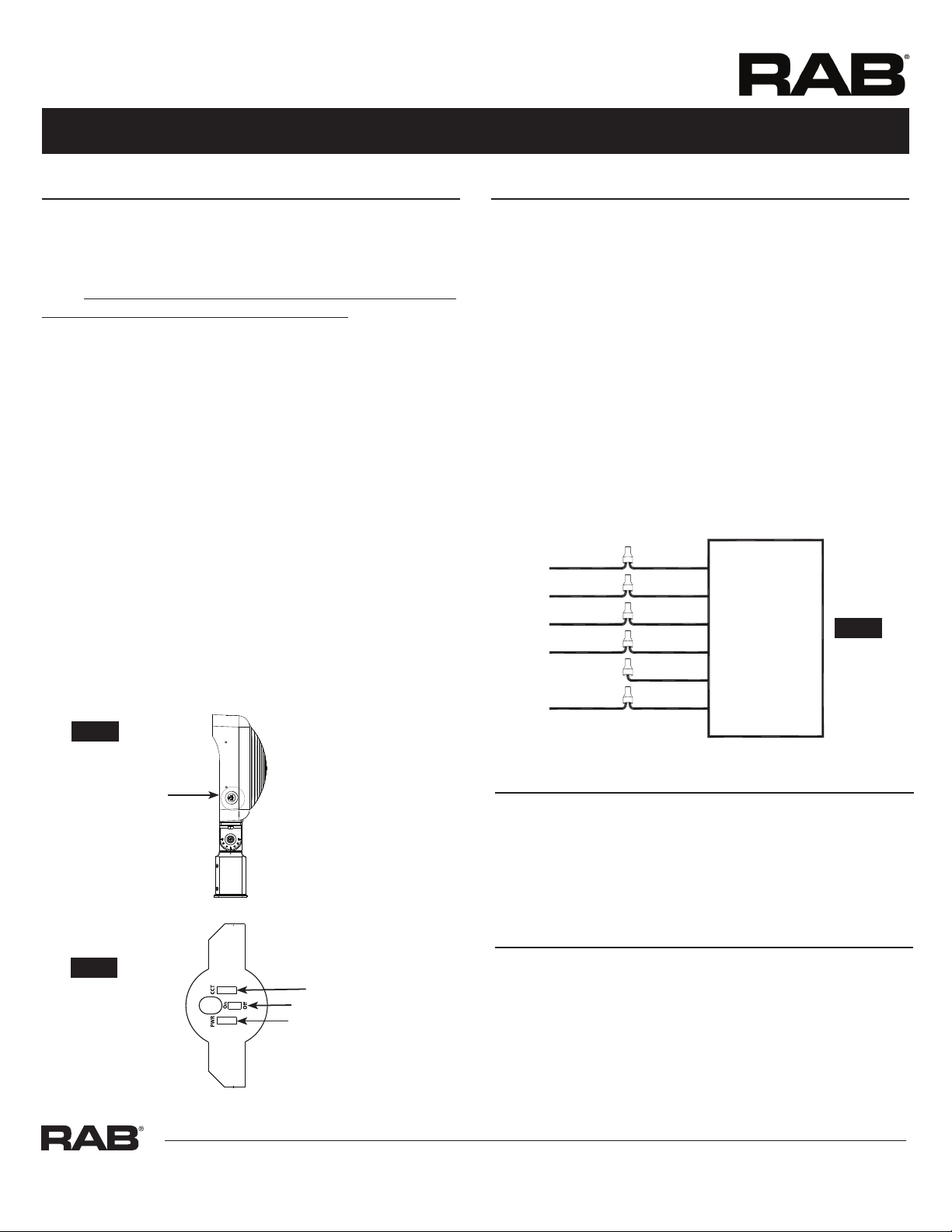

 LINE
 COMMON 
 GROUND 
GROUND

 
 
 
CAUTION: Be sure xture temperature is cool enough to touch.
Do not clean or maintain while xture is energized.
 
 
PINK
LIGHT
FIXTURE
Vaux 12V
YELLOW
GROUND
GROUND
( - ) DIM V
( + ) DIM V
COMMON
LINE BLACK
WHITE
PURPLE

X34 HO - IN - 0322
Easy Answers
rablighting.com
Visit our website for product info
Tech Help Line
Call our experts: 888 722-1000
e-mail
Answered promptly - sal[email protected]
Free Lighting Layouts
Answered online or by request
© 2022 RAB LIGHTING Inc.
RAB WARRANTY: RAB’s warranty is subject to all terms and conditions found at rablighting.com/warranty
Note: These instructions do not cover all details or variations in equipment nor do they
provide for every possible situation during installation, operation or maintenance.
P-100120
Photocell Operation:
 Photocell factory
setting is set to the “OFF” position

(Fig 4)If the Photocell is set to the “ON” position and it is daylight, it
may take up to 60-seconds for the light to turn o.
Color Temperature (CCT) Selection:



Power (%) Selection:



 (CCT)(%) 
Factory Settings:
 

 Color Temperature (CCT)Power (%)Photocell

(Fig. 4)


Selector Switches
100
75 50
5k 4k 3k

Color Temperature (CCT)
Power (%)
Photocell (on/o)
Note: For external dimming control set power switch to 100% and
turn o Photocell switch.

1. 

2. 
3. 
