BOSST60 IAX2 Phone User Manual (V1.43)
BOSST60 IAX2 Phone User Manual
1. BOSST60 IP PHONEAPPEARANCE INTRODUCTION.......................... 3
1.1 Function Keys of BOSST60 IP Phone Introduction (Normal State):....................4
2. FEATURES....................................................................................................... 5
2.1 Hardware....................................................................................................................5
2.2 Software.....................................................................................................................5
2.3 Standard and Protocol .............................................................................................6
2.4 Operating requirements...........................................................................................7
2.5 Electric requirements...............................................................................................7
2.6 Size.............................................................................................................................7
2.7 Installation.................................................................................................................7
3. CONFIGURATION ......................................................................................... 8
3.1 Phone Keypad setup ................................................................................................8
3.1.1 Function Keys Introduction: .................................................................................... 8
3.1.2 Keypad setup step by step:.....................................................................................13
3.2 Configured by WEB................................................................................................14
3.2.1 Network Setting
： .................................................................................................. 15
3.2.2 Audio Setting
： ...................................................................................................... 17

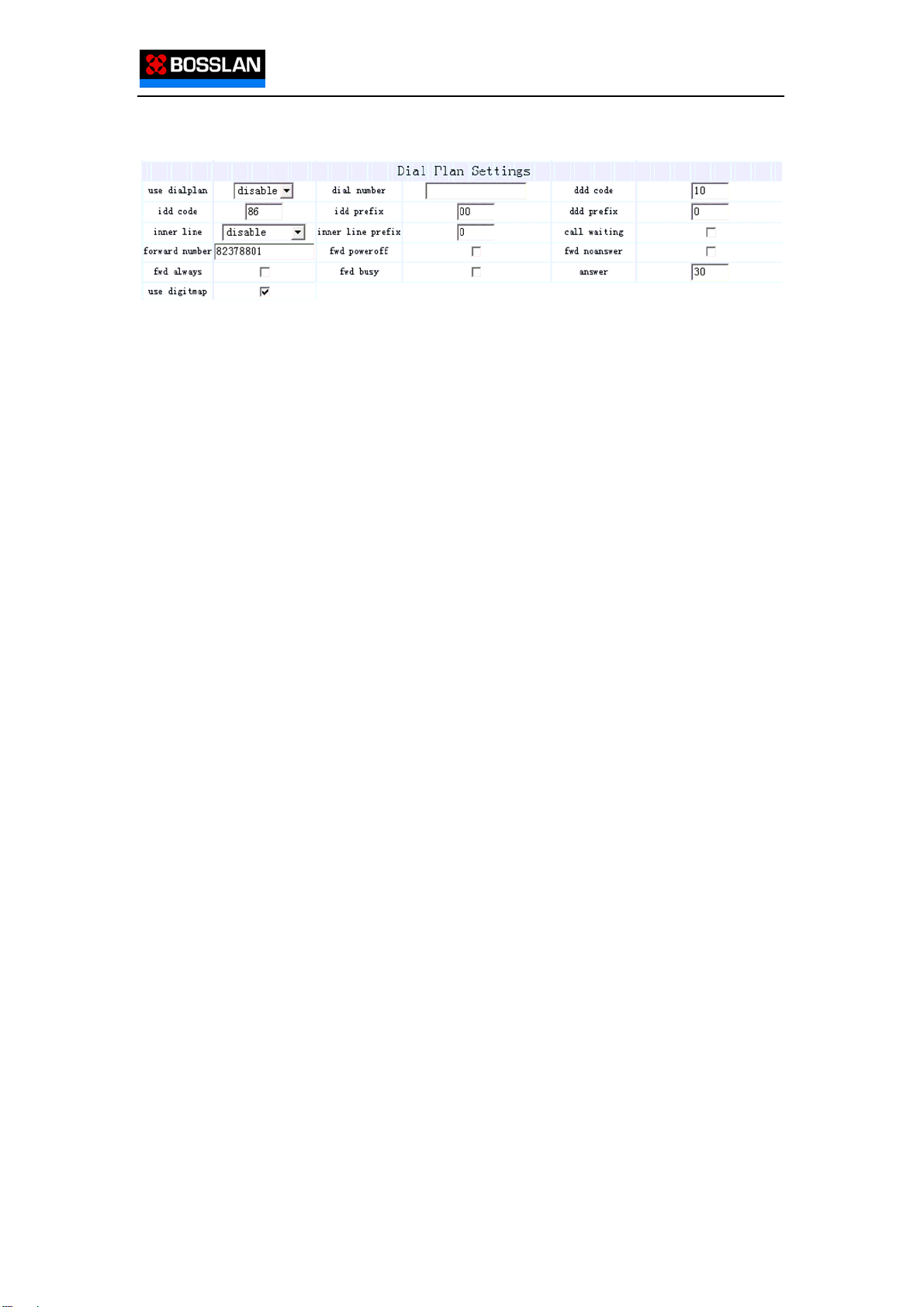

3.2.3 Dial plan Setting
： ................................................................................................ 20
3.2.4 IAX2 Protocol Settings
： ....................................................................................... 23
3.2.5 Other settings:........................................................................................................ 24
3.3 Configured by PalmTool ........................................................................................29
3.4 Telnet Configuration...............................................................................................30
3.4.1 BOSST60 Telnet Commands Explanation .............................................................. 30
4. UPGRADE BOSST60 IP PHONE ............................................................. 46
4.1 Use IE browse to upgrade the IP phone...............................................................46
4.2 Use the PalmTool to upgrade the IP phone..........................................................46
4.3 Use FTP to upgrade the phone..............................................................................47
5. USAGE OF THE PHONE............................................................................. 48
5.1 Receiving calls........................................................................................................48
5.2 Place a call...............................................................................................................49
5.3 View Records ..........................................................................................................51
6. RESET BOSST60 TO FACTORY DEFAULT............................................. 52

BOSST60 IAX2 Phone User Manual (V1.43)
2
7. FAQ.................................................................................................................. 54
Q1 For two ports of the BOSST60, what is the function for the other port?..........54
Q2 Why I can’t see the complete setting page when access the BOSST60 by IE?54
Q3 How to use the PalmTool to upgrade the IP phone?...........................................54
Q4 Why the Palmtool shows “can’t connect to palm1” message box? .................55
Q5 How to update the protocol for the BOSST60? ...................................................55
Q6 After updating BOSST60, the LCD shows "■■" and stops ,how to deal with it?
....................................................................................................................................56
Q7 Why is the local IP 0.0.0.0?....................................................................................56
Q8 Why is the local IP 255.255.255.255?....................................................................56
Q9 How to reset the BOSST60 to the factory default? .............................................57
Q10 How to use the fast dial-up function? ....................................................................57
Q11 Why is there no sound after pressing the speaker button while using MGCP
protocol?..............................................................................................................................57
Q12 Why does the other side feel my voice is very weak?..........................................58
Q13 Why do BOSST60 IP phone and AG-168V gateway disconnect while calling each
other, but it rings?...............................................................................................................58
Q14 What is Dial Plan used for? How to configure it?.................................................58
Q15 What is "inner line"?................................................................................................60
Q16 Why does it take so long before the phone logins to the server? How to speed it
up? 60
Q17 How to set TOS field? ..............................................................................................61
Q18 How to use call transfer function? .........................................................................62

BOSST60 IAX2 Phone User Manual (V1.43)
3
1. BOSST60 IP phone Appearance Introduction

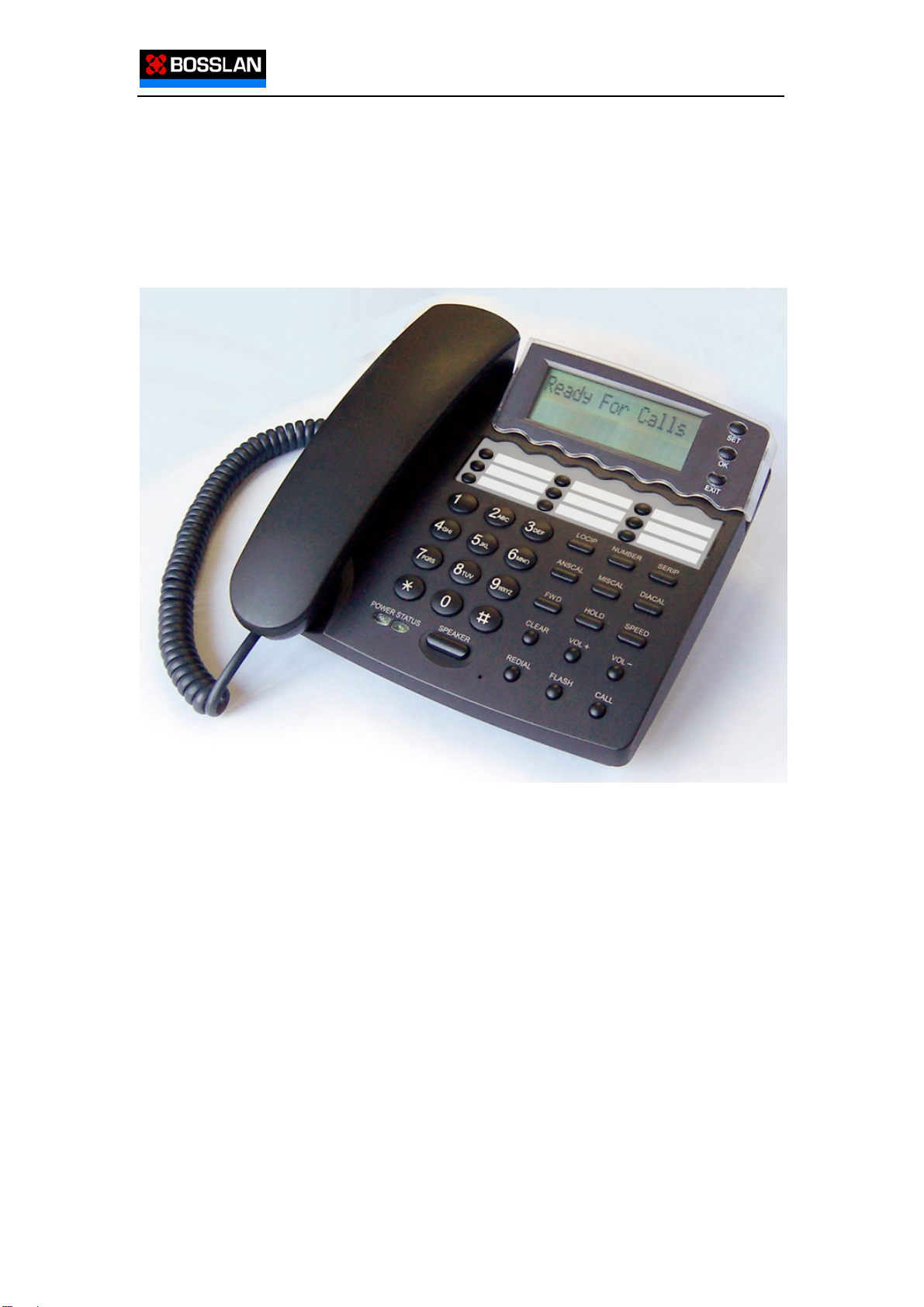

●BOSST60 IP Phone Front Illustration (Refer to Fig 1.1):
Fig 1.1 BOSST60 IP Phone Illustration

BOSST60 IAX2 Phone User Manual (V1.43)
4
1.1 Function Keys of BOSST60 IP Phone Introduction (Normal State):
Keys Function
LOCIP With handset hung, press this key to get local IP address of the phone
NUMBER With handset hung, press this key to get phone number
SERIP With handset hung, press this key to get service IP
ANSCAL With handset hung, press this key to review received number
MISCAL With handset hung, press this key to review missed number
FWD Call transfer key
HOLD Call hold key
Speed Speed Dial Key
DIACAL With handset hung, press this key to review dialed number
Vol+ Increase the volumes of handset or speaker; turn over the record backward
Vol- Decrease the volumes of handset or speaker; turn over the record forward
Redial While reviewing missed, received or dialed number, press this key to dial current number
Speaker Press this key to have a call without lifting the handset
SET Enter setting mode
OK Confirm change, enter submenu
EXIT Back to the parent menu

BOSST60 IAX2 Phone User Manual (V1.43)
5
2. Features
2.1 Hardware
●Main chip—PA1688 50MHz
●Data Memory—16MB SDRAM
●Program Memory—8 MB Flash memory
●Ethernet Jack—1/2 10/100M jacks
●AC/DC adapter—Output 12V DC, 450mA
2.2 Software
●DHCP support for LAN or Cable modem
●PPPoE support for ADSL or Cable modem
●Set phone by HTTP web browser (IE6.0) or Telnet
●Upgrade by FTP
●Support major G.7XX; GSM 610; iLBC audio Codec
●VAD (Voice Active Detect)
●CNG (Comfort noise generation)
●Dynamic voice jitter buffer
●G.168/165 compliant 16ms echo cancellation
●Tone generation and Local DTMF re-generation according with ITU-T
●E.164 dial plan and customized dial rules
●100 entries for quick dial

BOSST60 IAX2 Phone User Manual (V1.43)
6
●80 entries each for missed calls, answered calls and dialed calls
●Adjustable volume for both handset and speaker
●Voice prompt
●Hotline
●Support adjustable user password and super password
2.3 Standard and Protocol
BOSST60 IP Phone supports following standard and protocol:
● IEEE 802.3 /802.3 u 10 Base T / 100Base TX
● Major G.7XX; GSM610 iLBC audio Codec
● IAX2 (Inter-Asterisk-eXchange V2)
● TCP/IP: Internet transfer and control protocol
● RTP: Real-time Transport Protocol
● RTCP：Real-time Control Protocol
● VAD/CNG save bandwidth
● DHCP：Dynamic Host Configuration Protocol
● PPPoE：PPP Protocol over Ethernet
● DNS：Domain Name Server
● Telnet：Internet's remote login protocol
● FTP：File Transfer protocol
● HTTP：Hyper Text Transfer protocol

BOSST60 IAX2 Phone User Manual (V1.43)
7
2.4 Operating requirements
●Operation temperature: 0 to 40° C (32° to 104° F)
●Storage temperature: -30° to 65° C (-22° to 149° F)
●Humidity: 10 to 90% no dew
2.5 Electric requirements
●Voltage: 9V~24V
●Power adapter: output DC 12V/450mA
●Network interface:1/2X RJ-45 Ethernet Connectors
2.6 Size
200 X 195 X 87 mm (L x W x H)
2.7 Installation
1． Connect handset to base: insert handset cord into handset cord jack at the
left side of the base.
2． Connect IP phone to Internet: plug the RJ-45 Ethernet cable into the
Ethernet Jack. Plug the other end of the cable into HUB.
3． Power on IP phone: plug the power cord adapter into the Power Jack.
Then plug the other end of the power cord adapter into the appropriate
wall outlet.

BOSST60 IAX2 Phone User Manual (V1.43)
8
3. Configuration
Four different ways can be used to configure BOSST60 IP phone: phone
keypad, web browser, Telnet commands and PalmTool configuration tool on
computer.
3.1 Phone Keypad setup
3.1.1 Function Keys Introduction:
When using keypad and LCD to configure the settings of IP phone,
following keys will be used:
Keys Function Keys Function
SET/LOCIP Enter setting mode OK/Speaker Enter submenu; confirm change
VOL+ Turn over menu
backward VOL- Turn over menu forward; move
cursor backward
Digital key Modify values EXIT/Redial Exit current menu; exit setting mode
●Enter the keypad setting mode
Press “Speaker” keyenter “1234#”you can see LCD display
password”enter “1234”press “speaker” key to confirm.
●Select the submenu
After entering the main menu, press “VOL+” or “VOL-” to page the menu
up or page the menu down; when you want to set the submenu item to be
displayed, press “OK/speaker” to enter the submenu.

BOSST60 IAX2 Phone User Manual (V1.43)
9
●Enter the EDIT mode
After entering the submenu, when you want to set the submenu item to be
selected, press “Set” to enter EDIT mode.
●Enter the settings
Once the phone enters EDIT mode, enter the settings by numeric keypad
respectively, then press “OK/speaker” key to confirm.
●Modify enter error
If the errors come forth when you enter the settings, press“VOL-” key to
delete it and enter the settings again
●Abort the settings
If there is no need for the modified settings, press “EXIT” key to
return to the main menu, and press “VOL+” or “VOL-” to page the menu up
or page the menu down; When “exit settings” submenu item is selected,
press “OK/speaker” key to confirm, BOSST60 IP phone will reboot and be
used the current settings.
●Save the settings
When all parameters have modified, press “EXIT” key to return to the main
menu, and press “VOL+” or “VOL-” to page the menu up or page the menu
down; When “save settings” submenu item is selected, press “OK/speaker”
key to confirm,BOSST60 IP phone will reboot and use the already modified

BOSST60 IAX2 Phone User Manual (V1.43)
10
setting.
Refer to above operation; you can reach any menu to modify any value.
Please refer to following structure illustrations to learn the values of each
menu item. As for the meaning of each item and value, please refer to Web
Browser Setting chapter.

BOSST60 IAX2 Phone User Manual (V1.43)
11
 Menu Structure:

BOSST60 IAX2 Phone User Manual (V1.43)
12

BOSST60 IAX2 Phone User Manual (V1.43)
13
3.1.2 Keypad setup step by step:
For example, you want to setup jack’s number 56712389 as speed dial
number, you can:
Step 1. Enter setup mode: press “Speaker” keyenter “1234#”you
can see LCD display “password”enter “1234”press “Speaker” key to
confirm.
Step 2. Set speed dial number: use “Vol +/-“ key to choose the “speed
dial setting” menupress “speaker” enter its submenu and choose “memory
1” press “Local IP” key and enter “jack” to modify press “Speaker” to
confirmchoose “number 1”press “Local IP” key and enter “56712389” to
modify press “Speaker” to confirm.
Step 3. Save your setting: use “redial” key return to main
menuchoose “save setting” press “Speaker” to confirm the change.

BOSST60 IAX2 Phone User Manual (V1.43)
14
3.2 Configured by WEB
Double click icon to open the IE browser. Input the IP address of the
phone into address bar ( ), and then input
password of the phone into the following page. Default password 1234 is
ordinary password and super password is 12345678. With Debug set
0[disable], please input super password; while Debug is not set as
0[disable], please input ordinary password. Then click button.
The following configured page wills pop up. Refer to Fig 3.1 please.
Fig 3.1 Http Setting

BOSST60 IAX2 Phone User Manual (V1.43)
15
3.2.1 Network Setting：
Fig 3.2 Network Setting
●IPtype: Set how IP phone gets relevant network parameters by selecting
corresponding item from drop down list.
 static IP: Select this item to authorize users set IP address, subnet
mask and router IP address of IP phone manually.
 dhcp: Select this item to enable DHCP mode. With this system, your
LAN or router automatically assigns all the required network parameters
to any device connected to it when the device log on. BOSST60 IP
phone is shIPped from the factory with DHCP on. So, if your LAN or
router is configured to use DHCP addressing, the IP phone’s LAN
parameters will automatically be configured as soon as it is connected
to the LAN or router and powered up.
 PPPoE：Those ADSL and Cable Modem users please select this item
for it is a protocol especially designed for them. With this system, ADSL
ISP automatically assigns all the required IP parameters to any device
connected to it when the device log on.
 modem：If the IP phone used with modem, please select this item to get

BOSST60 IAX2 Phone User Manual (V1.43)
16
relevant network parameters auto. Then please fill ID and pin into ppp id
and ppp pin fields.
●ppp id: With PPPoE or modem selected in IPtype drop down list, please
enter the user name here.
●ppp pin: With PPPoE or modem selected in IPtype drop down list, please
enter the password here.
●local IP: With static IP selected in IPtype drop down list, please enter IP
address of IP phone here.
●subnet mask: With static IP selected in IPtype drop down list, please
enter subnet mask of IP phone here.
●router IP: With static IP selected in IPtype drop down list, please enter
router IP address of IP phone here.
●dns: With static IP selected in IPtype drop down list, please enter IP
address of DNS server here.
●dns 2: With static IP selected in IPtype drop down list, please enter IP
address of backup DNS server here.
●mac: MAC address is the physical address supplied by the Ethernet
NIC. BOSST60 phone is shIPped from the factory with a unique

BOSST60 IAX2 Phone User Manual (V1.43)
17
algorism MAC address printed on the back of the base.
Note To avoid colliding with other device in network, please don’t change the
MAC address arbitrarily. If you have use “* and power on twice” method to
enter the safe mode of your phone, remember to change the phone’s MAC
to factory default after safe mode.
3.2.2 Audio Setting：
Fig 3.3 Audio Setting
●codec1: Set the priority 1 of the audio compression algorithm. The
options are g729，g7231，g711u，g711a , gsm and iLBC.
●codec2: Set the priority 2 of the audio compression algorithm. The
options are g729，g7231，g711u，g711a , gsm and iLBC.
●codec3: Set the priority 3 of the audio compression algorithm. The
options are g729，g7231，g711u，g711a , gsm and iLBC.
●codec4: Set the priority 4 of the audio compression algorithm. The
options are g729，g7231，g711u，g711a , gsm and iLBC.
●codec5: Set the priority 5 of the audio compression algorithm. The
options are g729，g7231，g711u，g711a , gsm and iLBC.

BOSST60 IAX2 Phone User Manual (V1.43)
18
●codec5: Set the priority 6 of the audio compression algorithm. The
options are g729，g7231，g711u，g711a , gsm and iLBC.
●vad: Enable/disable VAD (voice activity detection).
●agc: Enable/disable AGC.
●aec: Enable/disable AEC.
●g.723.1 high rate: enable/disable g.723.1 high rate. G.723.1 high rate is
6.3kbps, low rate is 5.3kbps.
●audio frame: Set audio frames in RTP package. Minimum is 1 and
maximum is 8.
●jitter size : Set buffer size of RTP package. The value range is 0-32.
●ilbc payload : Set the payload type of RTP package when ILBC codec
selected to DTMF delay. The value range is 96-255.
●handset in: Drag the slider to adjust the volume of handset input. Drag it
to the left to reduce the volume; while drag it to the right to increase the
volume.
●handset out: Drag the slider to adjust the volume of handset output. Drag
it to the left to reduce the volume; while drag it to the right to increase
the volume.

BOSST60 IAX2 Phone User Manual (V1.43)
19
●ring type: Set ring type by selecting corresponding item from drop down
list.
 dtmf: Set ring as ordinary rings in different frequency
 not disturb: Set the phone do not ring by selecting this item.
 Advanced: Set ring used the individualized tone provided by system
(need system support).
 user define：Set ring as music saved by user by selecting this item.
●speaker in: Set the volume of handfree input.
●speaker out: Set the volume of handfree output.

BOSST60 IAX2 Phone User Manual (V1.43)
20
3.2.3 Dial plan Setting：
Fig 3.4 Dial Plan Setting
●use dialplan: Set whether use dial plan or use dial number by selecting
the corresponding item in drop down list.
 disable: Do not use dial plan or dial number by selecting this item.
 enable: Use dial plan by selecting this item.
 dialnum: Use dial number by selecting this item. With this item
selected, please enter the dial prefix into dial number field.
 prefix: Use specially service by selecting this item.
 Hotline: Use Hotline function by selecting this item. With this item
selected, please enter the hotline number into dial number field.
●dial number: With dialnum selected in use dialplan drop down list,
please enter the dial prefix into this field according to requirement of log
in server. For example, with eTalk card used, enter 00 here.
●ddd code: With enable or dialnum selected in use dialplan drop down
list, set area code according to E.164 dial rule. For example, Beiing 10;
Shanghai 21.
●idd code: With enable or dialnum selected in use dialplan drop down list,
