1 General information
This document contains important instructions for the safe operation of the product. Read and
follow the safety instructions and all other instructions. Keep the document for future refer‐
ence. Make sure that it is available to all those using the product. If you sell the product to
another user, be sure that they also receive this document.
Our products and documentation are subject to a process of continuous development. They
are therefore subject to change. Please refer to the latest version of the documentation, which
is ready for download under www.thomann.de.
1.1 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this document.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General information
DMX Controller SDC-16 5
DMX Controller

Warning signs Type of danger
Warning – danger zone.
General information
6DMX Controller SDC-16
DMX Controller

2 Safety instructions
This device is used to control spotlights, dimmers, lighting eects equipment or other DMX-
controlled devices. Use the device only as described in this user manual. Any other use or use
under other operating conditions is considered to be improper and may result in personal
injury or property damage. No liability will be assumed for damages resulting from improper
use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Risk of injury and choking hazard for children!
Children can suocate on packaging material and small parts. Children can injure themselves when handling the device. Never allow
children to play with the packaging material and the device. Always store packaging material out of the reach of babies and small
children. Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐
sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children
could play with.
NOTICE!
Risk of re due to covered vents and neighbouring heat sources!
If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐
heat and burst into ames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat
sources. Never operate the device in the immediate vicinity of naked ames.
Intended use
Safety instructions
DMX Controller SDC-16 7
DMX Controller

NOTICE!
Damage to the device if operated in unsuitable ambient conditions!
The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient
conditions specied in the “Technical specications” chapter of this user manual. Avoid operating it in environments with direct sun‐
light, heavy dirt and strong vibrations. Avoid operating it in environments with strong temperature uctuations. If temperature uc‐
tuations cannot be avoided (for example after transport in low outside temperatures), do not switch on the device immediately.
Never subject the device to liquids or moisture. Never move the device to another location while it is in operation. In environments
with increased dirt levels (for example due to dust, smoke, nicotine or mist): Have the device cleaned by qualied specialists at reg‐
ular intervals to prevent damage due to overheating and other malfunctions.
NOTICE!
Damage to the external power supply due to high voltages!
The device is powered by an external power supply. The external power supply can be damaged if it is operated with the incorrect
voltage or if high voltage peaks occur. In the worst case, excess voltages can also cause a risk of injury and res. Make sure that the
voltage specication on the external power supply matches the local power grid before plugging in the power supply. Only operate
the external power supply from professionally installed mains sockets that are protected by a residual current circuit breaker (FI). As
a precaution, disconnect the power supply from the power grid when storms are approaching or it the device will not be used for a
longer period.
NOTICE!
Possible staining due to plasticiser in rubber feet!
The plasticiser contained in the rubber feet of this product may react with the coating of the oor and cause permanent dark stains
after some time. If necessary, use a suitable mat or felt slide to prevent direct contact between the device’s rubber feet and the oor.
Safety instructions
8DMX Controller SDC-16
DMX Controller

3 Features
Special features of this DMX controller:
n16 channel faders
n1 master fader
nCompact design
nSimple operation
nPower supply via the supplied 9 V external power adapter
Features
DMX Controller SDC-16 9
DMX Controller

4 Starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Data transfer errors due to improper wiring!
If the DMX connections are wired incorrectly, this can cause errors during the data
transfer.
Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐
ers.
Use special DMX cables for the wiring instead of normal microphone cables.
Starting up
10 DMX Controller SDC-16
DMX Controller

Connect the DMX output of the device (C) to the DMX input of the rst DMX device (1). Con‐
nect the output of the rst DMX device to the input of the second one, and so on to form a
daisy chain. Always ensure that the output of the last DMX device in the daisy chain is termi‐
nated with a resistor (110 Ω, ¼W).
Connect the included 9V power supply unit to the power supply input of the device and then
plug the power cord plug into the wall outlet.
When all cable connections are made, turn on the device with the main switch on the back.
The device is immediately ready for operation, the display shows the current DMX start
address, for example ‘A001’ .
Connections in DMX mode
Connecting the power supply
Switching on the device
Starting up
DMX Controller SDC-16 11
DMX Controller

5 Connections and controls
$#
%

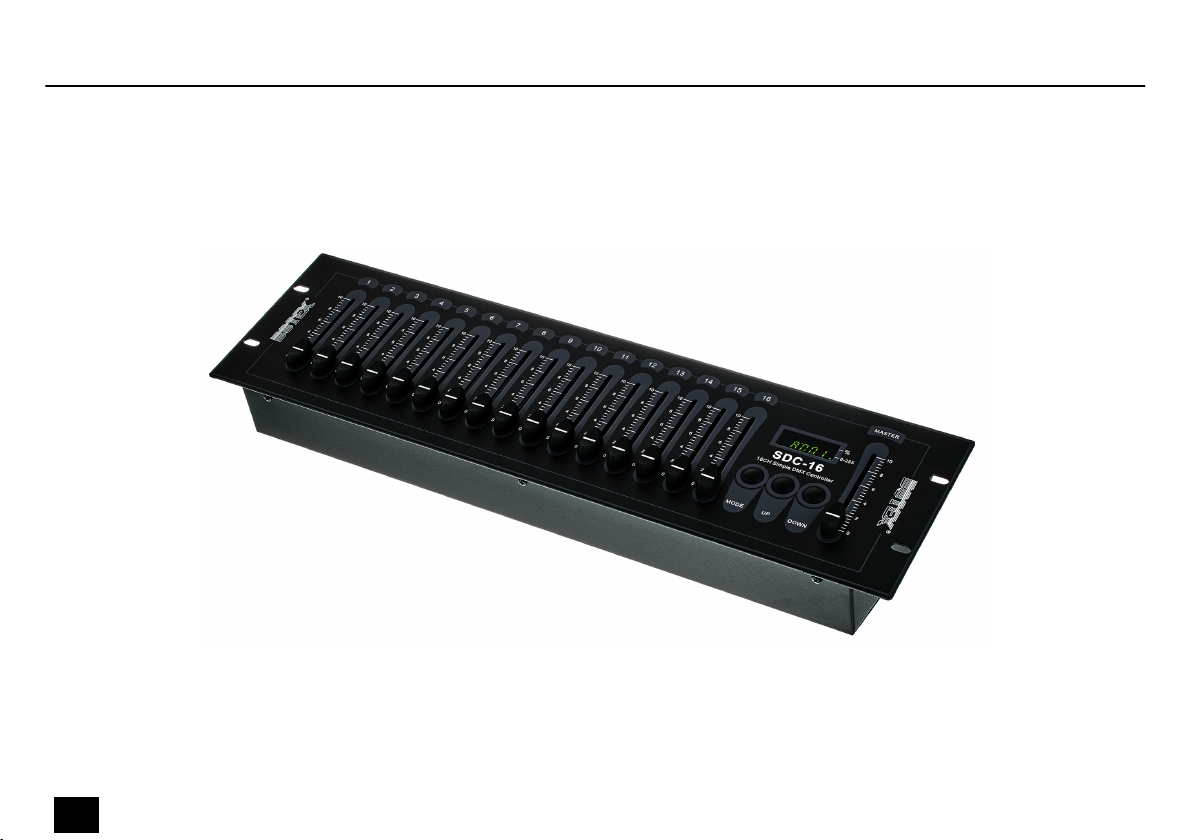

Front panel
Connections and controls
12 DMX Controller SDC-16
DMX Controller

1[1] … [16] | Channel faders 1 to 16. The channel faders are used to control DMX channels 1 … 16 individually.
2 Display for DMX address and set values with indicator LEDs:
n[%] | Indicates that the display has been switched to percentage display
n[0-255] | Indicates that the display has been switched to DMX value display
3[MASTER] | Master fader. The master fader serves as a controller for all 512 channels of the DMX universe.
4 Control buttons:
[MODE] | Toggles the display mode.
[UP], [DOWN] | Increases or decreases the displayed value.
Connections and controls
DMX Controller SDC-16 13
DMX Controller

('&

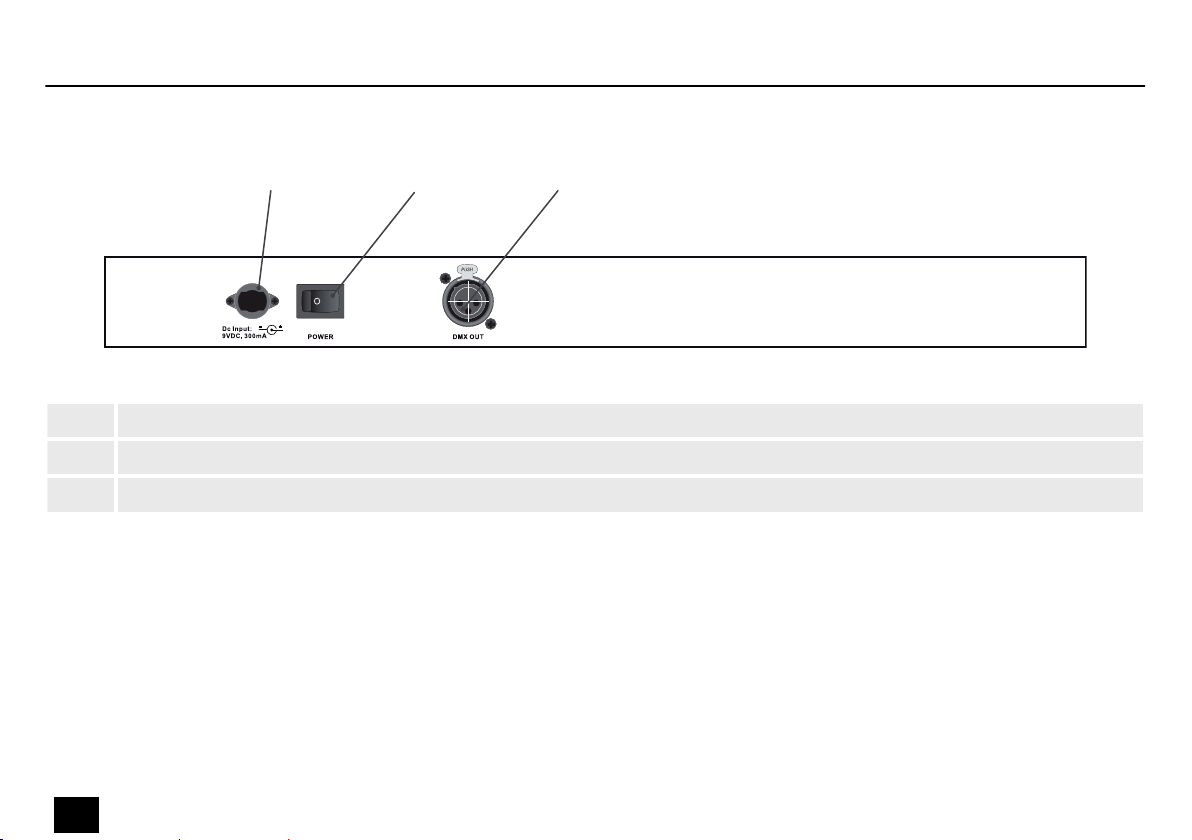

5[DC INPUT] | Connection socket for the power supply.
6[POWER] | Main switch. Turns the device on and o.
7[DMX OUT] | DMX output
Rear panel
Connections and controls
14 DMX Controller SDC-16
DMX Controller

6 Operating
On delivery, the DMX start address, i.e. the DMX channel controlled by channel fader [1], is set
to 1. Proceed as follows to change the DMX start address:
1. Press [UP] or [DOWN] once to increase or decrease the DMX start address by one. The
value has to be within a range of 1 to 512.
2. If you press and hold [UP] or [DOWN], the set value changes more quickly.
ðThe new DMX start address is shown in the display.
1. Move the channel faders to the desired value. The corresponding DMX value in the
range 0 to 255 appears in the display for approximately 10 seconds.
2. To switch the display to percentage (0 to 100), press [MODE].
ðThe LED [%] lights.
3. To switch the display to DMX values (0 to 255), press again [MODE].
ðThe [0-255] LED lights.
Setting the DMX start address
Using channel faders
Operating
DMX Controller SDC-16 15
DMX Controller

1. Move the master fader to the desired value. It is output on all 512 channels of the DMX
universe. The corresponding DMX value in the range 0 to 255 appears in the display for
approximately 10 seconds.
2. To switch the display to percentage (0 to 100), press [MODE].
ðThe LED [%] lights.
3. To switch the display to DMX values (0 to 255), press again [MODE].
ðThe [0-255] LED lights.
Using the master fader
Operating
16 DMX Controller SDC-16
DMX Controller

7 Technical specications
Number of DMX channels 16
Input connections Power supply Hollow plug socket
Output connections DMX control XLR panel socket, 3-pin
Operating voltage 9 V , 300 mA, centre positive
Dimensions (W × H × D) 482 mm × 80 mm × 132 mm
Weight 2.3 kg
Ambient conditions Temperature range 0 °C…40 °C
Relative humidity 20%…80% (non-condensing)
Technical specications
DMX Controller SDC-16 17
DMX Controller

8 Plug and pin assignments
This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment so that a perfect light experience is guaranteed.
Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug
ts into a socket, the result of an incorrect connection may be a destroyed DMX controller, a
short circuit or ‘just’ a not working light show!

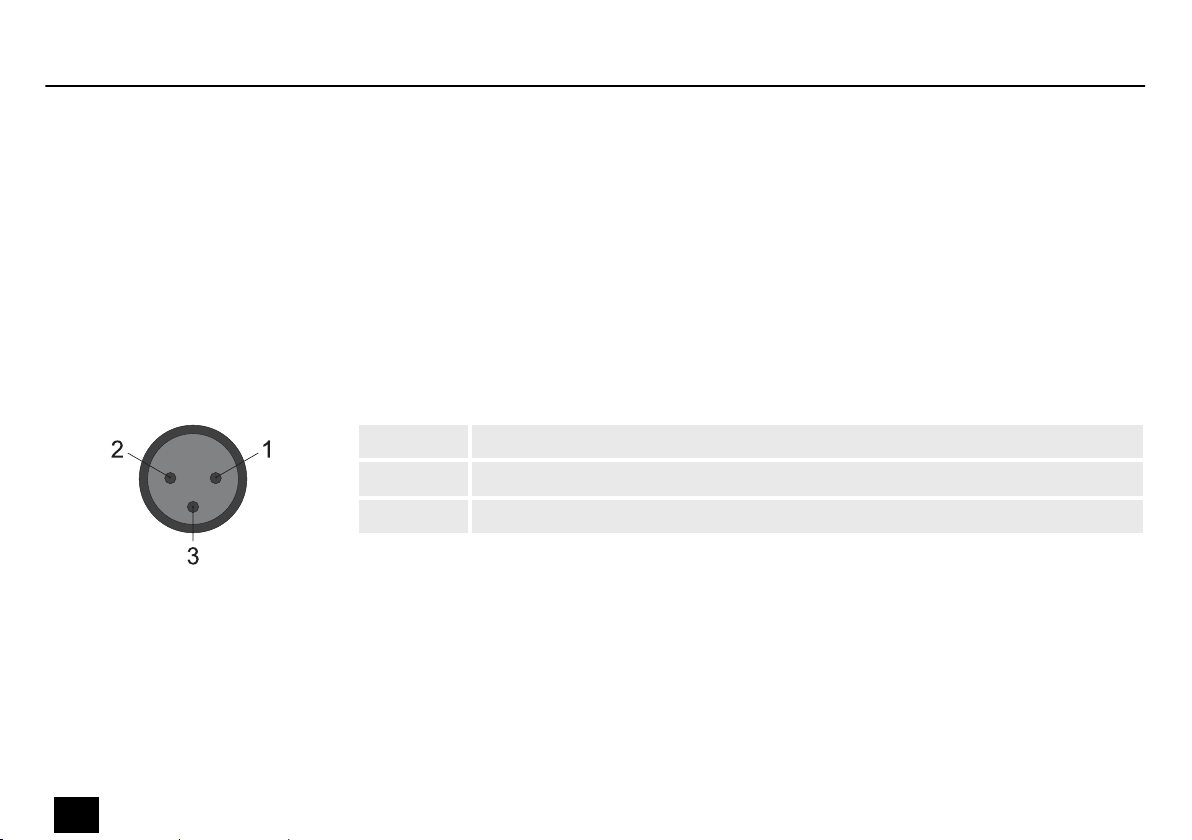

A 3-pin XLR socket is used as DMX output. The following diagram and table show the pin
assignment of the XLR socket.
1 Ground
2 DMX data (–)
3 DMX data (+)
Introduction
DMX connection
Plug and pin assignments
18 DMX Controller SDC-16
DMX Controller

9 Protecting the environment
Environmentally friendly materials have been chosen for the packaging. These materials can
be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the
proper manner.
Do not dispose of these materials with your normal household waste, but make sure that they
are collected for recycling. Please follow the instructions and markings on the packaging.
Observe the disposal note regarding documentation in France.
Batteries do contain some hazardous chemicals so they should not be thrown away with the
normal household waste. Use the available collection sites.
Before disposing of your old device, remove the batteries if this is possible without destroying
it.
Dispose of the batteries or rechargeable batteries at suitable collection points or through your
local waste facility.
Disposal of the packing material
Disposal of batteries
Protecting the environment
DMX Controller SDC-16 19
DMX Controller

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE) as amended.
Do not dispose of your old device with your normal household waste; instead, deliver it for
controlled disposal by an approved waste disposal rm or through your local waste facility.
When disposing of the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste management facility. Proper disposal protects the
environment as well as the health of your fellow human beings.
Also note that waste avoidance is a valuable contribution to environmental protection.
Repairing a device or passing it on to another user is an ecologically valuable alternative to
disposal.
You can return your old device to Thomann GmbH at no charge. Check the current conditions
on www.thomann.de.
If your old device contains personal data, delete those data before disposing of it.
Disposal of your old device
