Bradley BradMate S93-574 User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
S93-572 – AST4
S93-573 – TouchTime
S93-574 – Infrared
Stainless Steel Wall-Hung
BradMate™ Washfountain
(Standard* & Juvenile Height)
* Standard Height is ADA Compliant
215-1595 Rev. E; ECN 17-00-014
© 2017 Bradley
Page 1 of 17 9/28/2017
S93-572
S93-573
S93-574
Table of Contents
Supplies Required ...................................2
Pre-installation information ............................3
BradMate Dimensions ................................4
Step 1 Rough-Ins ...................................5
Step 2 Mount Washfountain to Wall .....................6
Step 3 Assemble the Trap .............................7
Step 4 Connect Supplies..............................8
Step 5.1 Test the Installation — AST4 ...................9
Step 5.2 Electrical Connections — TouchTime ............10
Step 5.3 Electrical Connections — Infrared ..............11
Step 6 Adjust Temperature with Running Water ...........12
Step 7 Complete Installation ..........................12
Thermostatic mixing valve troubleshooting ...............13
Parts List — Aerator Assembly ........................14
Cleaning and maintenance instructions for stainless steel ...14
Metering Air Valve Maintenance .......................15
Troubleshooting - Metering Air Valve....................16
Troubleshooting - Solenoid Valve ......................17

29/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation
Supplies Required by Installer
• (8) #10 diameter bolts with washers and (8) wall anchors appropriate for your installation
• (3) 1/4" diameter bolts with washer and (3) wall anchors appropriate for your installation
• Wall reinforcement (if required)
• 1/2" nominal copper tubing for hot and cold water supply pipes stubbed 1" out of wall
• 1-1/2" NPT drain pipe stubbed 1" out of wall
• Pipe sealant and plumber’s putty
• For TT and IR Options
• 110 VAC power source (110VAC/12VDC plug-in adapter supplied)
• 110 VAC GFI outlet for transformer
• OPTIONAL: Bradley recommends installing an electrical cut-off switch to the unit. This feature
prevents accidental water delivery during regular maintenance and service.
WARNING
Make sure that all water supply lines have been flushed and then completely turned off before beginning
installation. Debris in supply lines can cause valves to malfunction.
Hardware supplied by installer must be appropriate for wall construction. Wall anchors used must have a
minimum pull-out rating of 1,000 lbs.
CAUTION
Water supply requires a flowing pressure of at least 20 psi, but no greater than 80 psi.
The AccuZone®Infrared and TouchTime control must be connected with a 12VDC plug in adapter.
Connections to 110 VAC can cause personal injury and will result in damage to the electronics.
IMPORTANT
Read this entire installation manual to ensure proper installation. When finished with the installation, file this
manual with the owner or maintenance department.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties may be found under "Products" on our website at www.bradleycorp.com.

3Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574
Pre-installation information
The Bradley wall-hung BradMate™meets or exceeds ADA requirements when mounted at standard height. The
BradMate™Washfountain is made of stainless steel and is attractively designed to serve one or two users. The
Washfountain comes preassembled. Trap and flexible supply hoses are included.
AST4 Push Button and metering valve
Each aerator is controlled by a separate push button and a separate metering valve, so each user activates a single
metered flow of water pre-blended to a specific temperature. Each valve uses less than half the maximum amount of
hot water allowed by the ANSI/ASHRAE/IES 90A-1980 Standard.
TouchTime and solenoid valve
Each TouchTime push button activates a flow of water. Each aerator is controlled by a separate solenoid valve,
allowing each user to activate a flow of tempered water from one aerator with a push button for 15 seconds. Each
valve uses less than half the maximum amount of hot water allowed by the ANSI/ASHRAE/IES 90A-1980 Standard.
Solenoid valve: An electronically controlled solenoid valve serves as the metering mechanism. Few moving parts
provide reliable metering performance and the solenoid is unaffected by chemicals and minerals often present in
municipal water supplies.
AccuZone sensor and solenoid valve
Each aerator is controlled by a separate solenoid valve, allowing each user to activate a flow of tempered water from
one aerator. Each valve uses less than half the maximum amount of hot water allowed by the ANSI/ASHRAE/IES
90A-1980 Standard.
AccuZone Infrared sensor: The AccuZone sensors are housed in the backsplash to protect them from water, soap,
and dirt. All electrical components are housed within the unit.
Solenoid valve: An electronically controlled solenoid valve serves as the metering mechanism. Few moving parts
provide reliable metering performance and the solenoid is unaffected by chemicals and minerals often present in
municipal water supplies.

49/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation
A
D
A
C
O
M
P
L
I
A
N
T

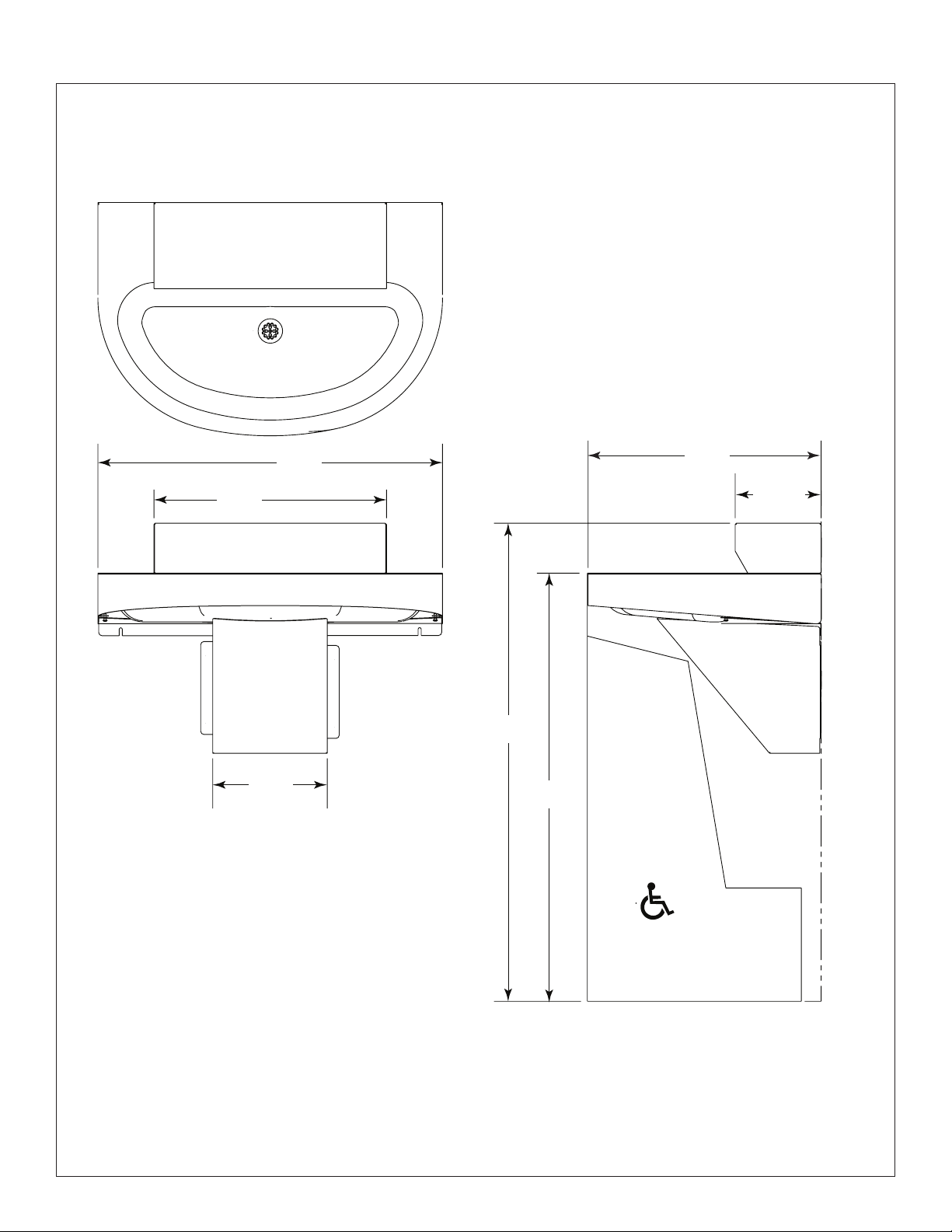

BradMate™Dimensions
* Subtract 4" (101) from this
dimension for juvenile height model.
Standard height is
ADA compliant
27-3/8"
(695)
18-1/2"
(470)
9-1/8"
(232)
18-1/2"
(470)
6-13/16"
(173)
37-15/16"*
(964)
34"*
(864)
(mm)

5Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574
* Subtract 4" (101) from this dimension for juvenile height model.

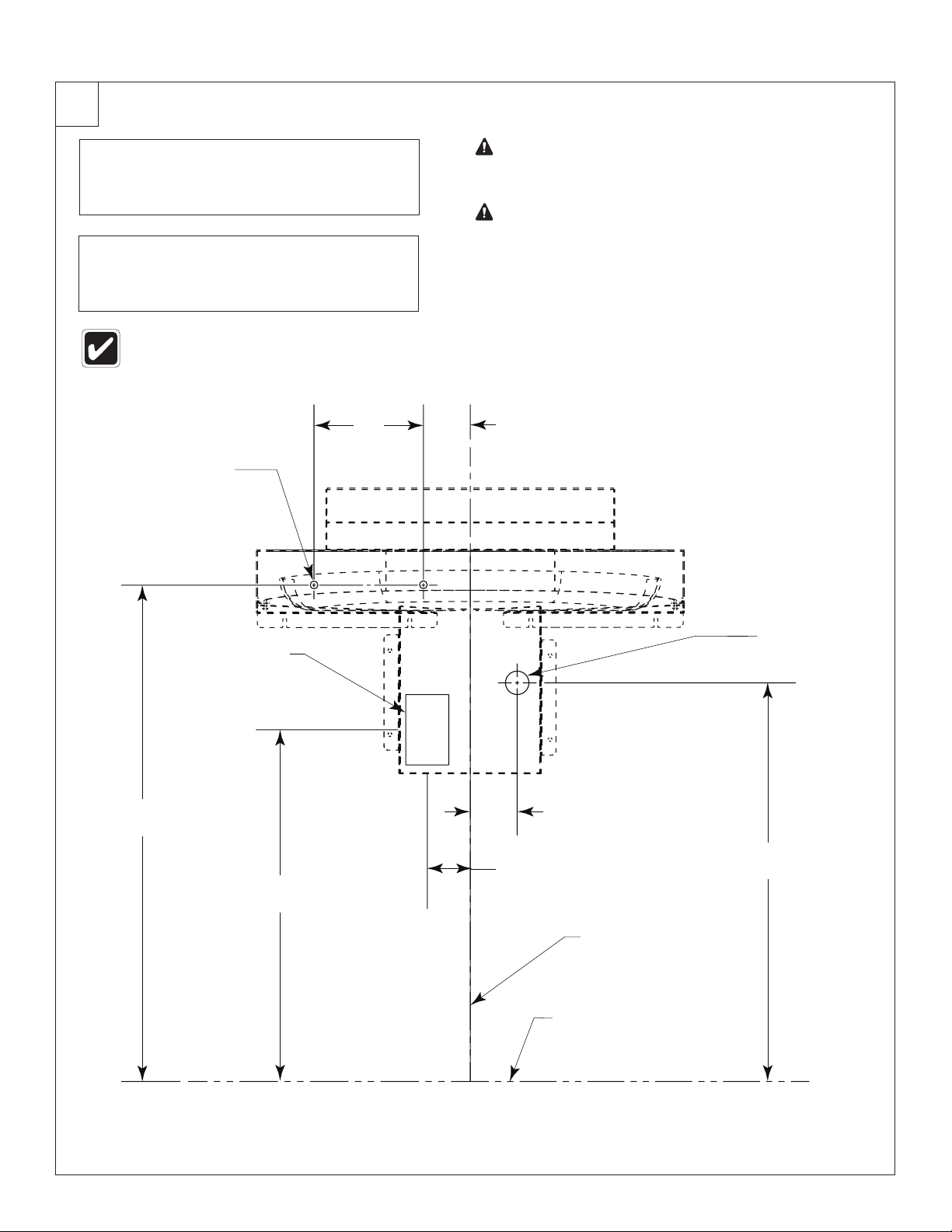

1Rough-Ins
Rough in 1/2" nominal copper tubing for
hot and cold supply lines through wall at
dimensions shown.
A
Rough in 1-1/2" NPT drain waste
connection through wall at dimensions
shown.
B
7"
(178)
3"
(76)
1/2" Nominal Copper
Tubing for Supplies,
Stub Out 1"
Hot Cold
110 V GFI
Electrical Outlet
31-3/4"*
(806)
22-1/2"*
(572)
3"
(76)
2-3/4"
(70)
1-1/2" Drain
through Wall,
Stub Out 1"
25-1/2"*
(648)
Center Line
of Bradmate
Finished
Floor
(mm)
Compliance and conformity to local codes and
ordinances is the responsibility of the installer.
WARNING Flush the supply lines before making
connections. Debris in supply lines will
cause the valves to malfunction.
WARNING The IR and TT models must be
connected with a 12VDC plug in
adapter. Connection with 110 VAC will
result in damage to the electronics and
could result in personal injury.

69/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation
Anchor locations shown are to be used to determine
reinforcement locations only. Use the fixture as a
template for precise locations when installing anchors.
NOTE! ADA Compliant
when mounted at
standard height.
2Mount Washfountain to Wall
Anchors supplied by installer.
Dimensions shown in parentheses are millimeters.
AInstall three 1/4 wall anchors (supplied
by installer) into the wall at dimensions
shown.
BInstall eight #10 wall anchors (supplied
by installer) into the wall at dimensions
shown.
CMount center bracket to wall with bolt
and washer (supplied by installer).
DHang bowl/backsplash assembly on
center bracket.
EFasten the assembly to wall on each
side of bowl (bolts supplied by installer).
25-1/4"
(641)
12-5/8"
(321)
Center Bracket
3-3/8"
(86)
32-3/4"*
(832)
29-7/16"*
(748)
8"
(203)
Trap Cover
3-7/8"
(98)
5-1/8"
(130)
Center Line of
Bradmate
Finished Floor
21-7/8"*
(130)
5-3/8"
(137)
Bowl Cover
#10 Wall Anchors, "B"
1/4" Wall Anchors, "A"
A
A
A
BB
B
B
B
B
(mm)

7Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574

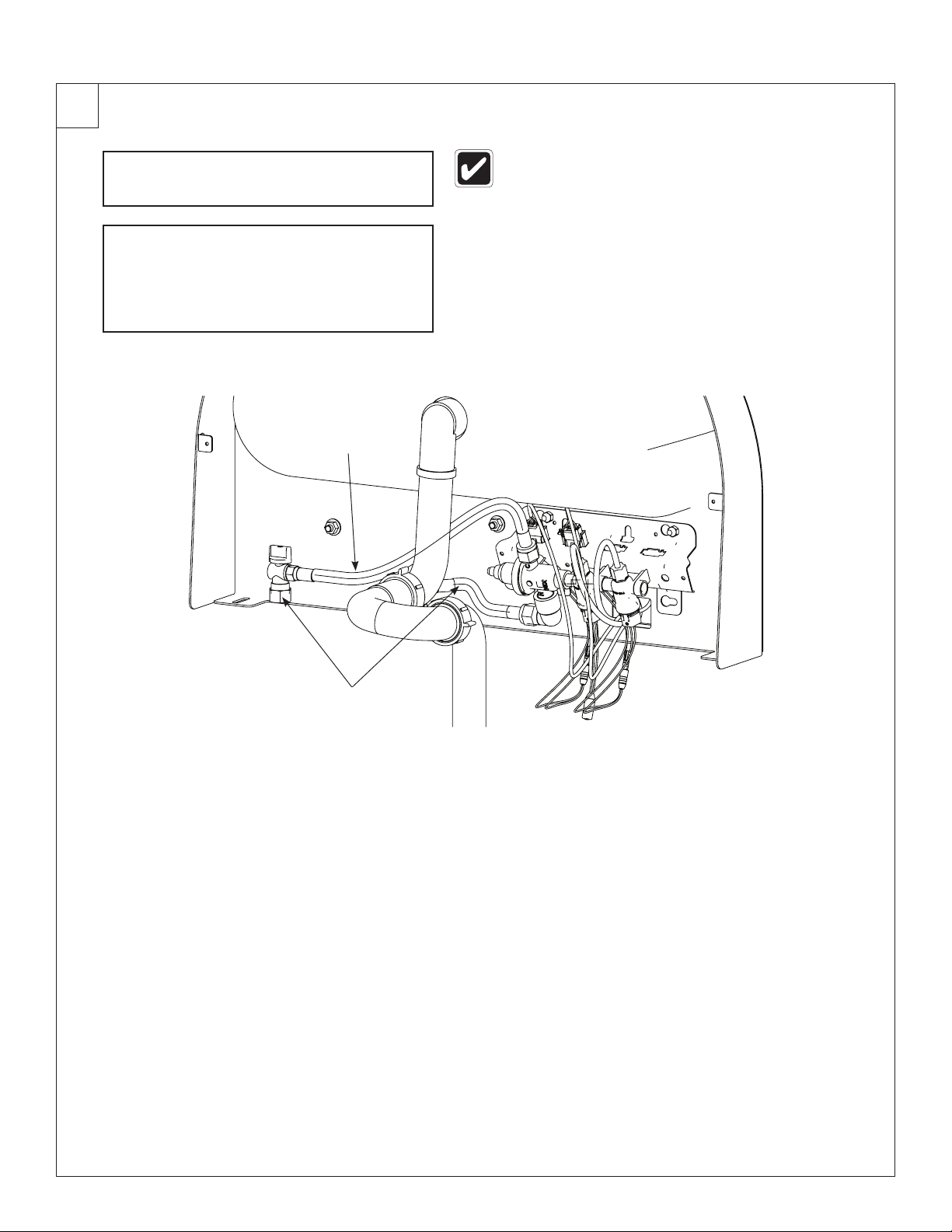

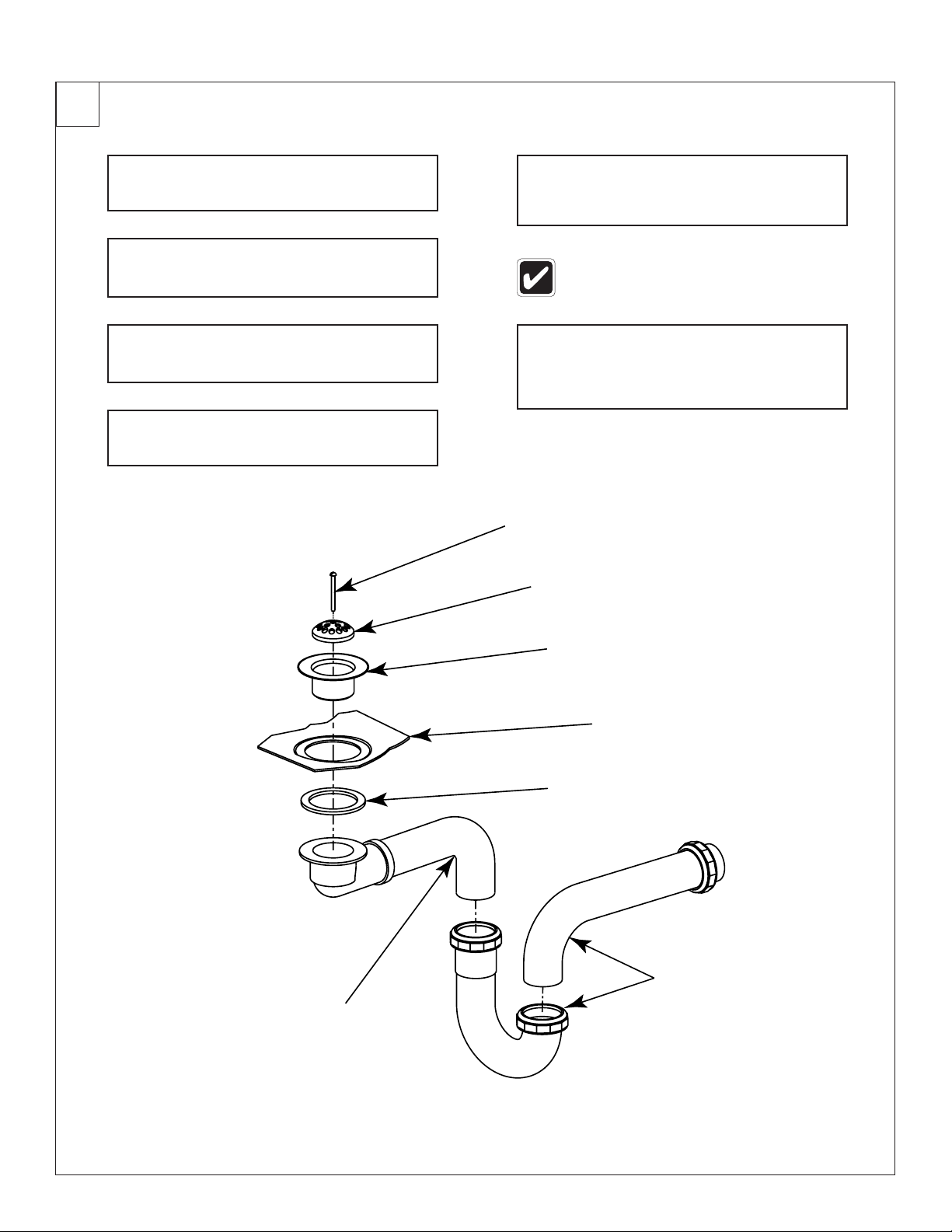

3Assemble the Trap
AInsert the drain plug in the hole in the
bottom of the BradMate™bowl as shown.
BBeneath the bowl, install the rubber
washer onto the drain plug.
CThread the waste elbow onto the drain
plug.
DInsert the two rubber washers included
with the P-trap into the tube ends.
EConnect one end of the P-trap to the
waste elbow and the other end to the
1-1/2" drain pipe (supplied by installer).
The drain pipe should already be stubbed
out 1" from the wall at the location.
F
Insert the strainer into the drain plug
opening inside the bowl and push the
strainer firmly down into place. FASTEN
WITH SCREW PROVIDED.
#8-32 Screw
(160-319)
Strainer
(P16-075)
Drain Plug
(P16-072)
Bradmate Bowl
Rubber Washer
(125-001DP)
Waste Elbow
(A15-004)
1-1/2" P-Trap
(269-1697)

89/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation
4Connect Supplies
AConnect the 1/2" compression female
end of the stop valves to the rough-ins.
B
Connect the supply hoses to the stop
valves and to the Navigator®. The hose
attached to the hot water inlet of the
Navigator (marked with the letter "H")
must be connected to hot water rough-in.
The letter “H” on the Navigator Mixing Valve indicates
hot water supply inlet.
The thermostatic mixing valve requires at least 115°F
water from the hot water side for proper operation. As
with all lavatories, there will be a delay in obtaining
warm water. If the hot water is too far away from the
washfountain, a circulating pump may be required.
Stainless Steel Flex
Hose (269-2053)
Stop (S27-340)
Hot
Cold

9Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574
Bottom View - AST4
5.1 Test the Installation - AST4
Make sure both stop valves are fully open. The air valve timer is located next to the
tube connector on the air valve body. The
timer is capped with a filter to prevent dirt
build-up on the timer. The air valve timing
can be adjusted from 0–45 seconds.
ATurn on the water supply to test the unit
and check for leaks.
BPress the two push buttons several
times to purge air from the lines.
5.1.1 Adjust Air Metering Valve
A
Unscrew the timer cover and use a
screwdriver to tighten or loosen the
timer. Turning the timer clockwise
increases the time; turning the timer
counterclockwise decreases the time.
Be careful not to overtighten as the
timer seat can be damaged.
BContinue to adjust until the timer is set
at desired length.
CReplace the timer cover over the timer.
Washer
(142-008)
Nut 5/16-18
(161-036)
Nut 1/4-20
(160-026)
Washer
(142-002BS)
AST4 Ganged Valve
ASSY. (S08-1442TMA)
Timer Assembly Timer Cover

10 9/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation
Bottom View - TouchTime

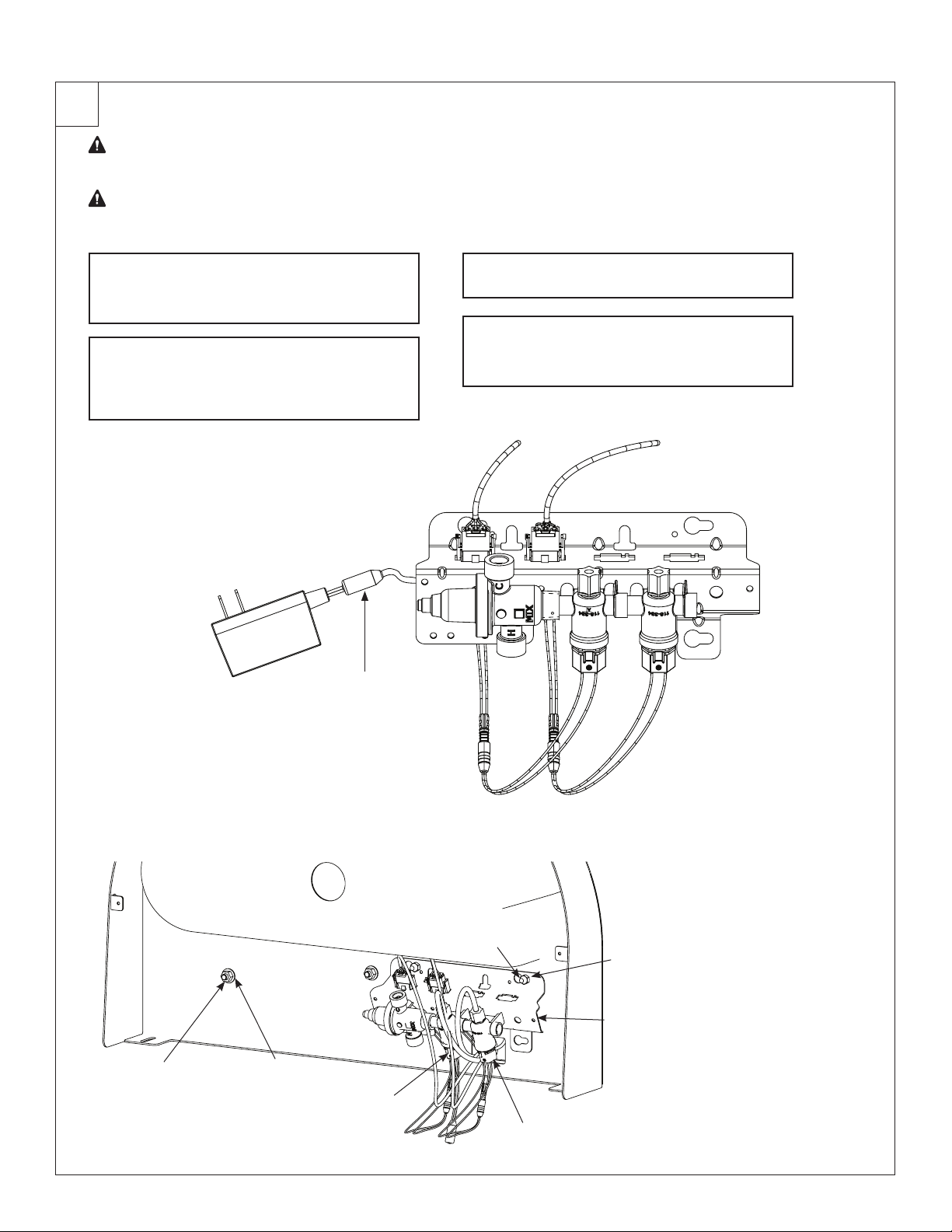

5.2 Electrical Connection - TouchTime
AInstall a GFI receptacle (supplied by
installer) at location shown on rough-in
drawing.
B
Plug the power connection of the power
adapter (261-147A) into the power jack
receptacle of the TouchTime module
(S83-360).
CTurn on the water supply to test the unit
and check for leaks.
DTurn on the electrical power and
depress each push button to verify
activation.
Navigator
Mixing Valve
Green
Tubing
Left
Button
Right
Button
TouchTime Switch
(S83-368)
Washer
(142-088)
Nut 5/16-18
(161-036)
Nut 1/4-20
(161-026) Washer
(142-002BS)
Solenoid Ganged Valve
Assy. (S08-2402TMA)
Red
Tubing
Compression Nuts
Green
Supply Tube
Red Supply
Tube
TouchTime Module
(S83-360)
Each female jack plugs into the male
jack port of the TouchTime module
(S83-360)
2-Way Splitter
(251-027A)
Plug-In Adapter
(261-147A)
WARNING The TouchTime control must be connected with a 12V DC plug in adapter. Connections
to 110 VAC can cause personal injury and will result in damage to the electronics.
CAUTION Connections of leads other than shown may cause permanent damage to the sensor.

11Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574
Bottom View -
Infrared
5.3 Electrical Connections - Infrared
AInstall a GFI receptacle (supplied by
installer) at location shown on rough-in
drawing.
B
Plug the power connection of the power
adapter (261-147A) into the power jack
receptacle of the 2 station harness
(S83-367B)
CTurn on the water supply to test the unit
and check for leaks.
DTurn on the electrical power and pass
your hand in front of each sensor to
verify activation.
Power Adapter
(261-147A)
Left Sensor Right Sensor
Left Green
Tubing
Right Red
Tubing
Nut 5/16-18
(161-036)
Washer
(142-088)
Solenoid Ganged Valve
Assy. (S45-3485)
Washer (142-002BS)
Nut 1/4-20
(161-026)
Connect to
Right Station
Connect to
Left Station
Power Jack from Harness
(S83-367B)
WARNING The infrared control must be connected with a 12V DC plug in adapter. Connections to
110 VAC can cause personal injury and will result in damage to the electronics.
CAUTION Connections of leads other than shown may cause permanent damage to the sensor.

12 9/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation

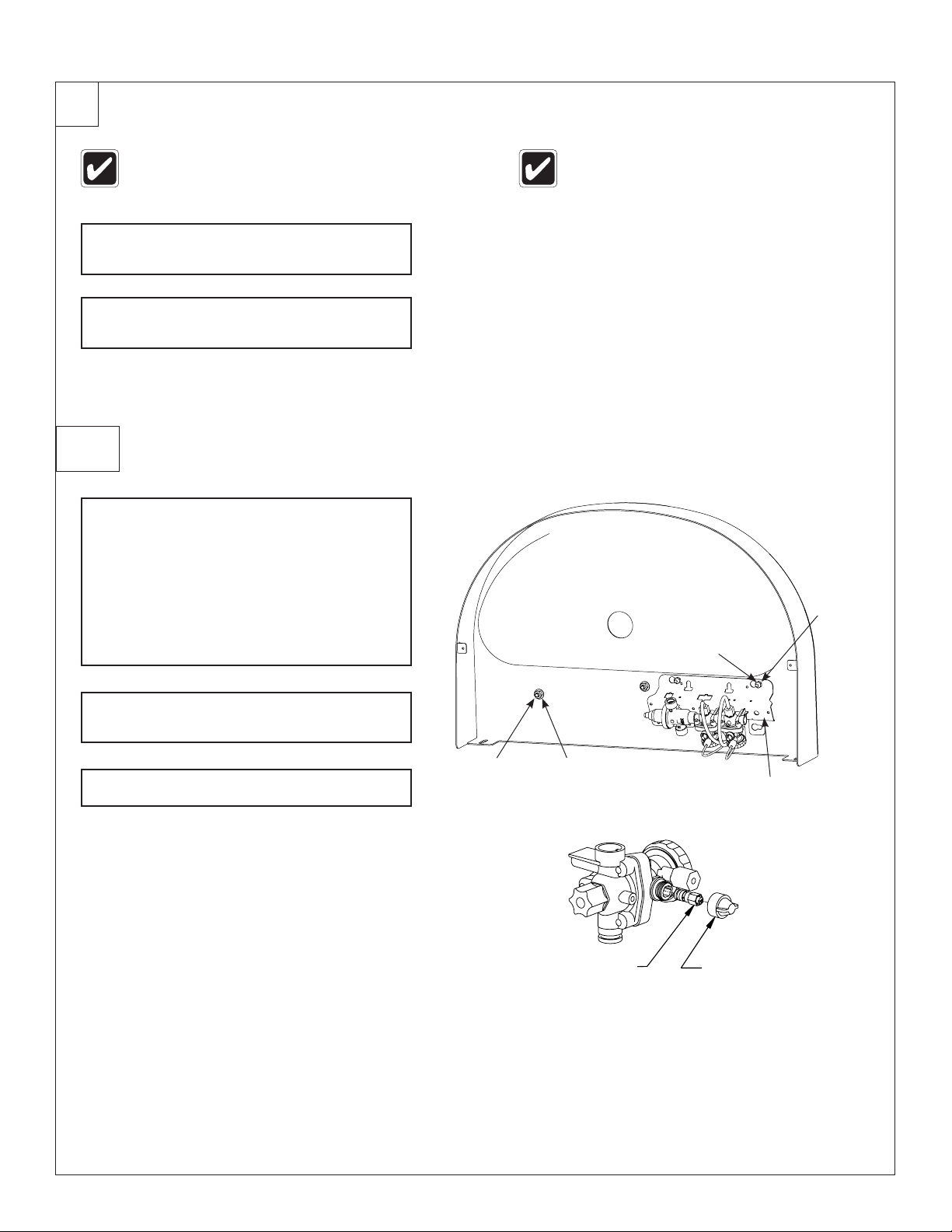

6Adjust Temperature with Water Running
H
C
ALoosen Cap Screw about 1/4" (4-6
turns) and lift up cover (do not
remove).
B
Using cover, turn cartridge gently
until desired water temperature is
reached. Do not turn past stops as
this may damage unit. Push cover
down and tighten screw.
7Complete Installation
A
After the testing is complete, attach
the left and right bowl covers over the
piping/valve assembly underneath the
bowl.
B
Bolt the bowl covers to the wall with four
#10 bolts (supplied by installer). Secure
the bowl covers to the tabs on the
underside of the bowl using the #10-32
screws provided.
CAttach the trap cover to the wall using
four #10 bolts (supplied by installer).
107-360
Screw Hole (Attach
Bowl Cover to Bowl)
Screw Hole (Attach
Bowl Cover to Bowl)
107-359
Left Right
Trap Cover
(186-1658)
WARNING This valve is NOT factory preset. Upon installation, the temperature of this valve must
be checked and adjusted to ensure delivery of a safe water temperature. Water in
excess of 110°F (43°C) may cause scalding.

13Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574

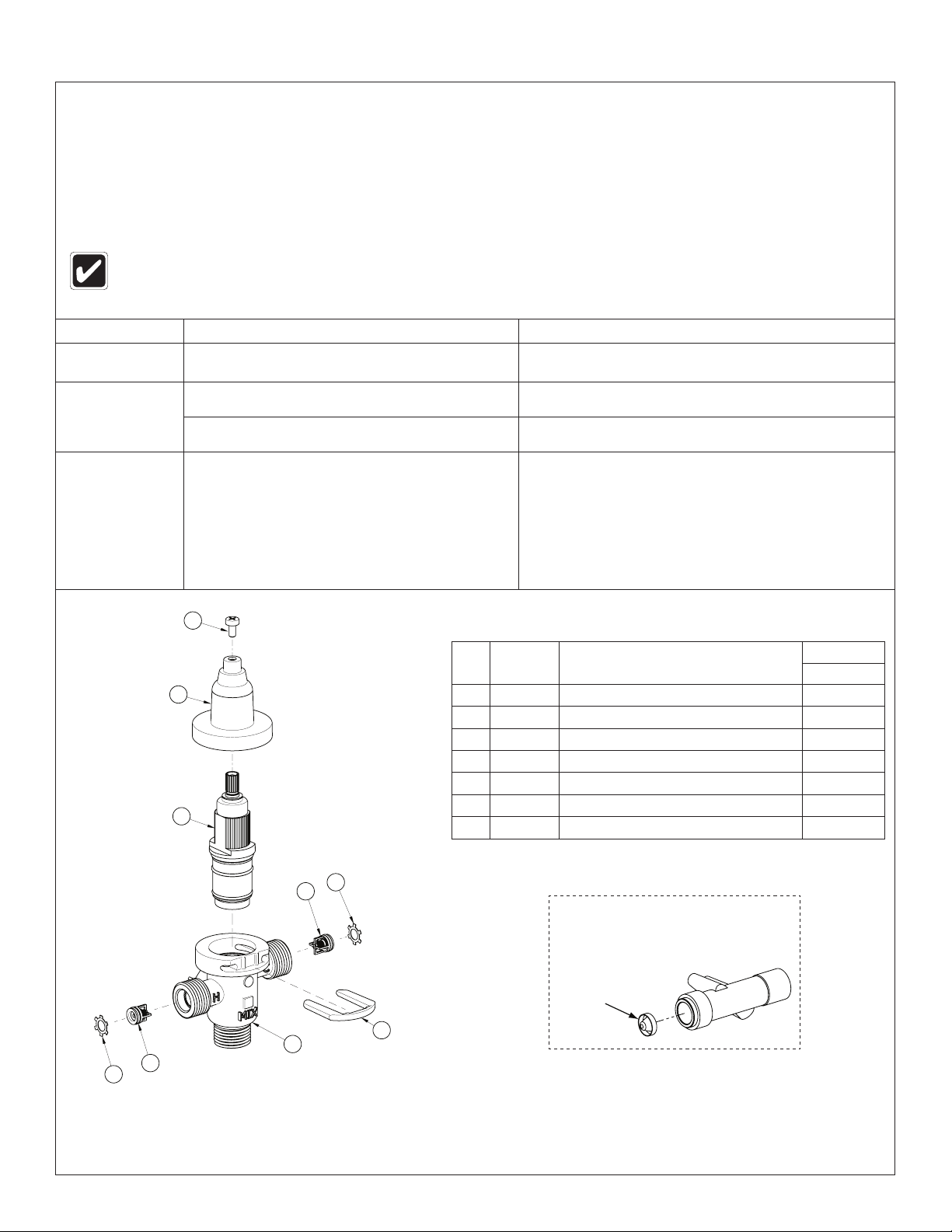

Parts List
Item Part No. Description Quantity
S59-4000
1 160-463 Cap Screw 1
2 107-582 Cover 1
3 269-1927 Thermostatic Cartridge 1
4 198-014 Check Valve* 2
5 132-051 Retaining Ring* 2
6 118-319 Valve Body 1
7 146-079 U-Clip 1
* Included with Prepack S65-326
1
2
3
4
5
4
5
7
6
Thermostatic Mixing Valve Troubleshooting
Before attempting to troubleshoot the valve or disassemble the components, check for the following conditions:
• If stop valves are used, make sure that they are fully open.
• Make sure that the hot and cold inlet pipes are connected properly, and that there are no cross-
connections or leaking stop valves.
• Check the hot water heater output to make sure that it is at least 10° F above the set temperature.
Be sure to close the appropriate shut-off valves prior to disassembly of the valve and reopen the valves after
inspection and repair is complete.
Problem Cause Solution
External leaks. Damaged cartridge or O-rings. Replace cartridge with part number 269-1927
Improper water
temperature or
temperature
fluctuation.
Hot water supply is not 10° above desired set point. Increase hot water supply temperature
Valve temperature is not properly set. Adjust the temperature as shown on page 19, step 10.
Limited water flow. Dirt and debris have built up in the valve or strainer. 1. Check to make sure both hot and cold supplies are
connected to the Navigator mixing valve and that they
have water flow.
2. Remove cover and U-clip. Remove the cartridge and
clean the strainer. It is not required to grease cartridge,
however if desired, use silicone grease only. Do not
use grease on check valves.
Tempered Line Adapter Option
Part no. S39-804
(replaces S59-4000 if tempered line
is used)
Strainer
(173-028)

14 9/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation
Parts List — Aerator Assembly
1
2
3
4
* Spanner wrench not included in Assembly
Cleaning and maintenance instructions for stainless steel
Material Description: Stainless steel is extremely durable, and maintenance is simple and inexpensive. Proper care,
particularly under corrosive conditions, is essential. Always start with the simplest solution and work your way toward
the more complicated.
Routine cleaning: Daily or as often as needed use a solution of warm water and soap, detergent, or ammonia. Apply
the cleaning solution per the manufacturer’s instructions and always use a soft cloth or sponge to avoid damaging the
finish.
Stubborn Stains: To remove stains from stainless steel use a stainless steel cleaner and polish such as Ball®
stainless steel cleaner or a soft abrasive. Always follow the manufacturer’s instructions and apply in the same
direction as the polish lines.
CAUTION! Never use ordinary steel wool or steel brushes on stainless steel. Always use stainless steel wool
or stainless steel brushes.
Special Situations for Material
Fingerprints and Smears: To remove fingerprints or smears use a high quality stainless steel cleaner and polish in
accordance with the manufacturer’s instructions. Many of these products leave a protective coating that helps prevent
future smears and fingerprints.
Grease and Oil : To remove grease and oil use a quality commercial detergent or caustic cleaner. Apply in
accordance to the manufacturer’s instructions and in the direction of the polish lines.
Precautions: Avoid prolonged contact with chlorides (bleaches, salts), bromides (sanitizing agents), thiocyanates
(pesticides, photography chemicals, and some foods), and iodides on stainless steel equipment, especially if acid
conditions exist.
CAUTION! Do not permit salty solutions to evaporate and dry on stainless steel.
The appearance of rust streaks on stainless steel leads to the belief that the stainless steel is rusting. Look for the
actual source of the rust in some iron or steel particles which may be touching, but not actually a part of the stainless
steel structure.
NOTE: Strongly acidic or caustic cleaners may attack the steel, causing a reddish film to appear. The use of these
cleaners should be avoided.
Brand Names: Use of brand names is intended only to indicate a type of cleaner. This does not constitute an
endorsement, nor does the omission of any brand name cleaner imply its inadequacy. Many products named are
regional in distribution, and can be found in local supermarkets, department and hardware stores, or through your
cleaning service. It is emphasized that all products should be used in strict accordance with package instructions.
Item Part No. Description
S05-157
Qty
1 S05-142A Std. Aerator, 0.5 GPM 1
2 153-402A Adapter 1
3 145-090 90° Connector 1/4" tube x 1/8" NPT 1
* 4 130-141 Spanner Wrench for Aerator —

15Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574
Metering Air Valve Maintenance
Adjust Air Valve Meter Time
1. Remove filter cap and use a screwdriver to tighten or
loosen the timer (see illustration at right). Turning the
timer clockwise increases the time; turning the timer
counterclockwise decreases the time.
2. Continue to adjust until the timer is set at desired length.
3. Replace filter cap over the timer.
Tube Connection Leaks
1. Push in the white manual release button while pulling the
tube out (see illustration at right) to disconnect the tube at
the connector. No tools are needed.
2. To correct a leak, press tubing firmly into the connector
and make sure it is seated.
3. If leak persists, remove tubing from the fitting, and trim
the tubing end square with a razor-sharp knife. If leak
continues, replace the fitting or contact your Bradley
representative for assistance.
Manual
Release
Button
Sealing
Ring
Air Valve
Tubing
Locking
Slope
Gripping
Ridge
Tube Stop
Water Tube Connector
Air Valve
Filter Cap
Air Tube Connector
Troubleshooting – Stop Valve
Problem Cause Solution
Water just dribbles
or does not flow from
sprayhead.
Water supply malfunctioning. 1. Close the stops and check the valves that supply water to the
lavatory system.
2. Inspect the stop valves for proper installation.
Water sprayhead
delivers all hot or cold
water.
Water supply or mixing valve
malfunctioning.
1. Close the stops and check the valves that supply water to the
lavatory system.
2. Inspect the stop valves for proper installation.
3. Inspect mixing valve for proper hot and cold installation. A red
marking indicates the hot inlet.
The air valve timer is located next to the tube
connector on the air valve body. The timer is capped
with a filter to prevent dirt build-up on the timer. The
air valve timing can be adjusted from 5–60 seconds.

16 9/28/2017 Bradley • 215-1595 Rev. E; ECN 17-00-014
S93-572, S93-573, S93-574 Installation
Troubleshooting – Metering Air Valve
Problem Cause Solution
Valve will not
shut off.
Timing mechanism is
clogged.
Clean and inspect timing mechanism:
1. If compressed air is available, blow water and debris from timer cover of timing
mechanism.
2. Turn adjusting screw out all the way. Clean and inspect screw and valve body.
3. Turn adjusting screw in to desired cycle time.
Valve will not
turn on.
Water is not being
supplied to unit.
Open all stops on mixing valve.
Water pressure is
over 80 PSI.
Install a pressure reducing valve.
Failed diaphragm/
magnet assembly.
Unscrew the valve clamp nut on valve. Remove valve cover. Gently press the diaphragm.
The valve should activate. If not, replace the diaphragm/magnet assembly.
Timing can not
be adjusted for
more than 5
seconds.
There is an air leak. Check the valve assembly:
1. Check all tubing and fittings for proper assembly.
2. Tighten cap and nut on 1/8" tubing.
Pushbutton
does not work
properly.
Air volume may
not be sufficient to
operate valve.
Check for leaks and lubricate U-cup:
1. Check all fittings for air leaks.
2. Disassemble pushbutton and lubricate U-cup seal (see pushbutton assembly
diagram).
Water is
dripping
from the
streamformers.
Debris has
accumulated on
valve seat or orifices.
Clean and inspect valve seat:
1. Remove screws and disassemble metering valve.
2. Clean valve seat and inspect for deep gouges or scratches. Replace valve body if
necessary.
3. Remove any debris clogging off-center hole in rubber diaphragm.
1
2
14
13
12
10
11
15
13
5
4
3
9
7
8
6

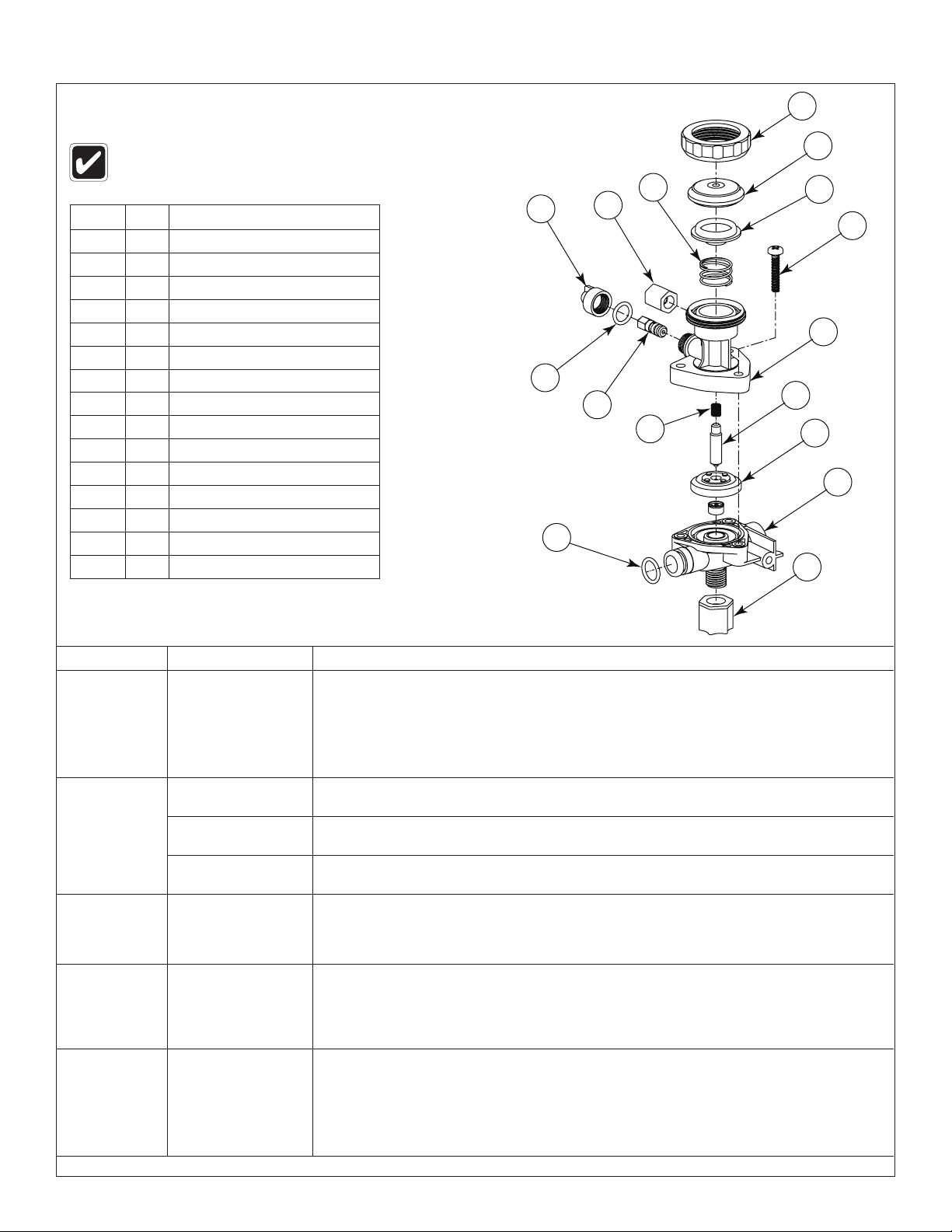

Item Qty. Description
1 1 Diaphragm
2 1 Armature
3 1 Spring
4 1 AST 4 Valve Upper Body
5 1 Spring
6 1 Magnet/Diaphragm Assembly
7 1 AST 4 Valve Cover
8 1 AST 4 Valve Clamp Nut
9 1 AST 4 Valve Timer Assembly
10 2 O-Ring
11 1 AST 4 Valve Timer Cover
12 3 Screw, #8 x 7/8"
13 1 Compression Nut, 1/8" Tube
14 1 Compression Nut, 1/4" Tube
15 1 O-Ring
Turn off water supplies to the unit before troubleshooting.

17Bradley • 215-1595 Rev. E; ECN 17-00-014 9/28/2017
Installation S93-572, S93-573, S93-574

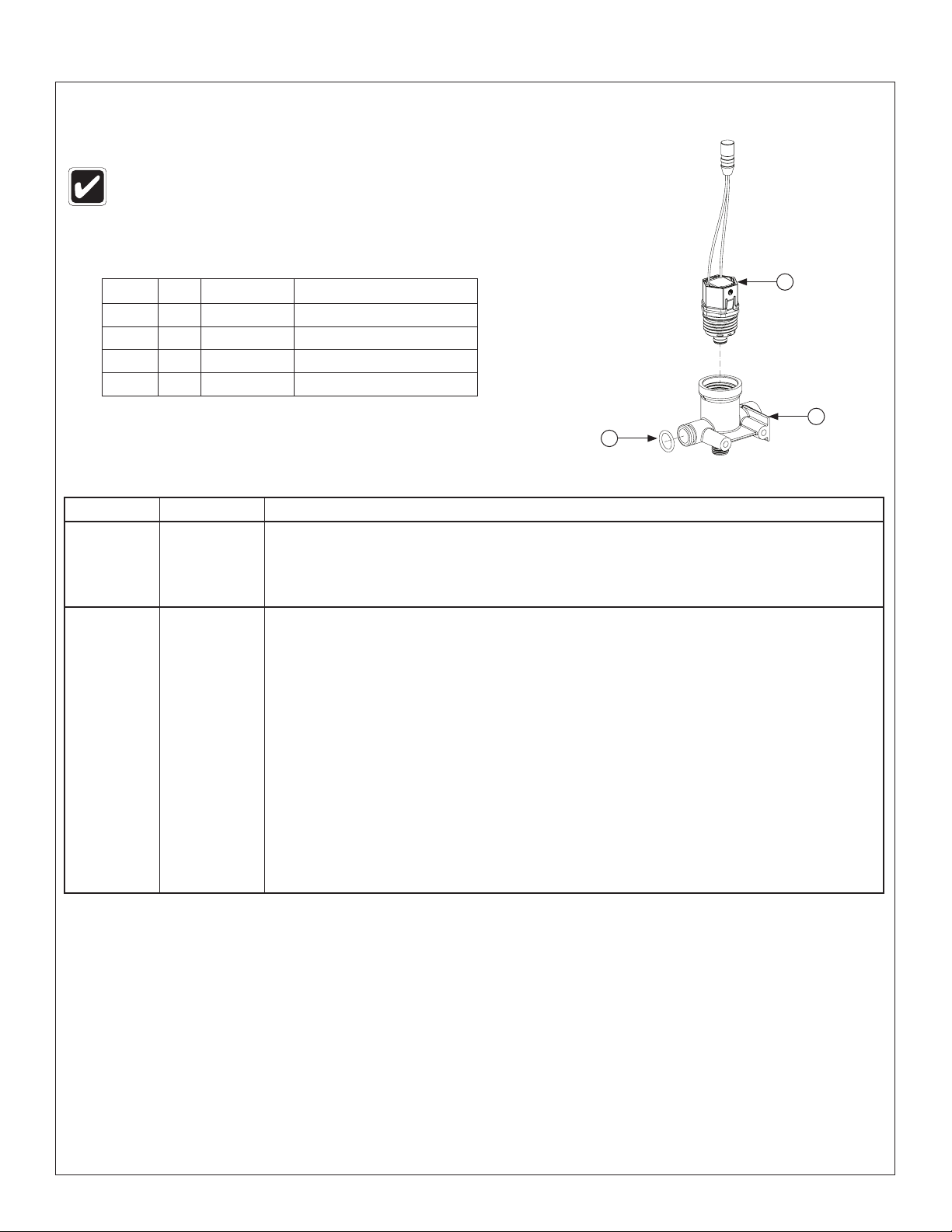

Problem Cause Solution
An individual
operating
station fails
to shut off
and drips.
Internal
cartridge
failure.
Replace cartridge S27-352.
An individual
operating
station fails
to turn on.
A failed
cartridge for
the valve or
loose electrical
connection to
the terminal.
Test the station to determine the cause.
1. Disconnect the wires from the cartridge of an adjacent valve. Disconnect the wires from the
problem valve and reconnect to the adjacent valve.
2. Turn on electrical and water supplies to the unit. Pass your hand in front of the sensor of
the problem station, and the adjacent station should turn on.
If the adjacent station turns on and cycles normally, replace the cartridge on the problem valve.
If the adjacent valve fails to turn on, inspect the wires from the sensor cable and do the following:
• make sure there are no breaks and that the fully insulated disconnect terminals are
firmly crimped in place;
• turn off the electrical and water supplies;
• reconnect to the adjacent valve and turn on the water supplies to the unit;
• pass your hand in front of the sensor. If the station still fails to turn on, replace the
sensor.
Item Qty. Part No. Description
1 1 118-334 Valve Body, ¼" Closed
1 1 118-334A Valve Body, ¼" Thru
2 1 S27-352 Cartridge
3 1 125-165 O-Ring, #2-013
Turn off water supplies to the unit before troubleshooting.
2
3
1
Troubleshooting – Solenoid Valve: Part nos. S07-067-DC (closed body)
& S07-067A-DC (thru body)
