Bradley Terreon Classic WF2500 Series User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
WF2500 Series Terreon Classic
WF2600 Series Terrazzo
WF2700 Series Stainless Steel
WF2800 Series Bradstone
WF3200 Series Terreon Deep Bowl
TDB3100 Series Terreon Deep Bowl
WF3203
215-1833-10 Rev. A; ECN 17-00-006B
© 2017 Bradley
Page 1 of 2 11/21/2017
WF2605
WARNING
Make sure that all water supply lines have been flushed and then completely turned off before beginning
isntallation. Debris in the supply lines can cause valves to malfunction.
Turn OFF electrical supply to the unit before installation.
NOTICE
Main water supply to the unit should be "ON" at all times.
IMPORTANT
Read this installation manual completely to ensure proper installation, then file it with the owner or
maintenance department. Compliance and conformity to drain requirements and other local codes and
ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding any packaging
material. If any parts are missing, do not begin installation until you obtain the missing parts.
Product warranties and parts information may also be found under ”Products” on our web site at bradleycorp.com.

Cleaning and Maintenance
WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
2 of 3 12/19/2017 Bradley • 215-1832-10 Rev. A: ECN 17-00-006B
Cleaning and Maintenance for Terreon®
Material Description: Terreon is a densified solid surface material composed of bio based resin and is resistant to
chemicals, stains, burns and impact. Surface can be easily repaired with everyday cleansers or fine grit abrasives. Because
Terreon is a unique cast material, its aggregate flow and distribution, and shades of color can vary from product to product
creating natural characteristics.
Routine Cleaning: For regular cleaning, use mild neutral base cleaners.
Stubborn Stains: Remove tough stains with Soft-Scrub®and a green Scotch-Brite®pad or lightly sand in a circular motion
with 240 grit wet/dry sandpaper. The finish can then be renewed with a maroon Scotch-Brite pad.
Scratches: Remove scratches with a green Scotch-Brite pad. The finish can then be renewed with a maroon Scotch-Brite
pad.
Hard Water Deposits: Remove hard water deposits with a mild solution of vinegar and water. Always rinse the unit
thoroughly after cleaning.
Restoring the surface: Use Hope’s®Perfect Countertop to refresh and protect the Terreon Solid Surface material. Dark
Terreon colors may require additional care and maintenance. For complete instructions on this additional maintenance, visit
bradleycorp.com.
Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing.
Repair kits are made to order and have a shelf life of 30 days.
NOTICE! Do not use strong acid or alkaline chemicals and cleaners to clean Terreon. If these chemicals come in
contact with the surface, wipe them off immediately and rinse with soapy water. Avoid contact with harsh
chemicals such as paint remover, bleach, acetone, etc. Avoid contact with hot pans and objects.
Cleaning and Maintenance for Stainless Steel
Material Description: Stainless steel is extremely durable, and maintenance is simple and inexpensive. Proper care,
particularly under corrosive conditions, is essential. Always start with the simplest solution and work your way toward the more
complicated.
Routine cleaning: Daily or as often as needed use a solution of warm water and soap, detergent, or ammonia. Apply the
cleaning solution per the manufacturer's instructions and always use a soft cloth or sponge to avoid damaging the finish.
Stubborn Stains: To remove stains from stainless steel use a stainless steel cleaner and polish such as Ball®stainless steel
cleaner or a soft abrasive. Always follow the manufacturer's instructions and apply in the same direction as the polish lines.
NOTICE! Never use ordinary steel wool or steel brushes on stainless steel. Always use stainless steel wool or
stainless steel brushes.
Fingerprints and Smears: To remove fingerprints or smears use a high quality stainless steel cleaner and polish in
accordance with the manufacturer's instructions. Many of these products leave a protective coating that helps prevent future
smears and fingerprints.
Grease and Oil: To remove grease and oil use a quality commercial detergent or caustic cleaner. Apply in accordance to the
manufacturer's instructions and in the direction of the polish lines.
Precautions: Avoid prolonged contact with chlorides (bleaches, salts), bromides (sanitizing agents), thiocyanates (pesticides,
photography chemicals, and some foods), and iodides on stainless steel equipment, especially if acid conditions exist.
NOTICE! Do not permit salty solutions to evaporate and dry on stainless steel.
The appearance of rust streaks on stainless steel leads to the belief that the stainless steel is rusting. Look for the actual
source of the rust in some iron or steel particles which may be touching, but not actually a part of the stainless steel structure.
NOTICE! Strongly acidic or caustic cleaners may attack the steel causing a reddish film to appear. The use of these
cleaners should be avoided.
Brand Names
Use of brand names is intended only to indicate a type of cleaner. This does not constitute an endorsement, nor does the
omission of any brand name cleaner imply inadequacy. Many products named are regional in distribution, and can be found
in local supermarkets, department and hardware stores, or through your cleaning service. It is emphasized that all products
should be used in strict accordance with package instructions.

Cleaning and Maintenance
WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
3 of 3 12/19/2017 Bradley • 215-1832-10 Rev. A: ECN 17-00-006B
Cleaning and Maintenance for Terrazzo
Material Description: Terrazzo is a mosaic-looking natural stone and concrete material polished to a high gloss and sealed
with clear polyurethane resin for long lasting beauty. Terrazzo is precast and composed of 85% stone and 15% binder with
steel reinforcing rods cast into the bowl.
Routine Cleaning: Clean daily or as often as conditions require with any standard detergent, warm water and a soft cloth.
Stubborn Stains: If stains have permeated the surface of the terrazzo, follow instructions for restoring the surface listed
below.
Restoring the surface: Use paint stripper to remove the existing polyurethane (it is important to remove all of the old
polyurethane to ensure a high quality finish). Then use light grit sand paper to remove any stubborn staines that have
permeated the surface. Clean and thoroughly dry the bowl. Then apply 2 to 3 coats of polyurethane to the terrazzo
in accordance with the manufacturer's instructions. Allow the polyurethane to dry completely per the manufacturer's
recommendations before turning on the water.
NOTICE! If the bowl is not completely dry before applying the polyurethane, the polyurethane will not adhere to the
surface.
NOTICE! Make sure the surface is complete covered with polyurethane to prevent water from penetrating the
surface and damaging the terrazzo.
Repair Kits: Terrazzo repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing.
NOTICE! Do not place acid or alkaline solutions (floor stripper or drain cleaners) into the terrazzo bowl or use them
to clean the bowl. If these solutions come into contact with the terrazzo, rinse the bowl immediately with
water and inspect for damage. If damage has occurred, follow the directions for restoring the surface. If
bowl begins to haze, it is usually a sign that the terrazzo has come into contact with an acid or alkaline
chemical or has been exposed to UV radiation. To repair this condition, follow the instructions for
restoring the surface.
Cleaning and Maintenance for Bradstone
Material Description: Bradstone is an extremely durable plastic material made of reinforced thermosetting polyester resins,
finely ground inorganic fillers and fade resistant pigments. Bradstone is impervious to most chemicals and stains.
Routine Cleaning: Soap and dirt accumulations should be washed off with detergent cleaners. Abrasive and caustic
cleaners are not recommended. An occasional waxing with automotive wax will make future cleaning even easier.

1 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com

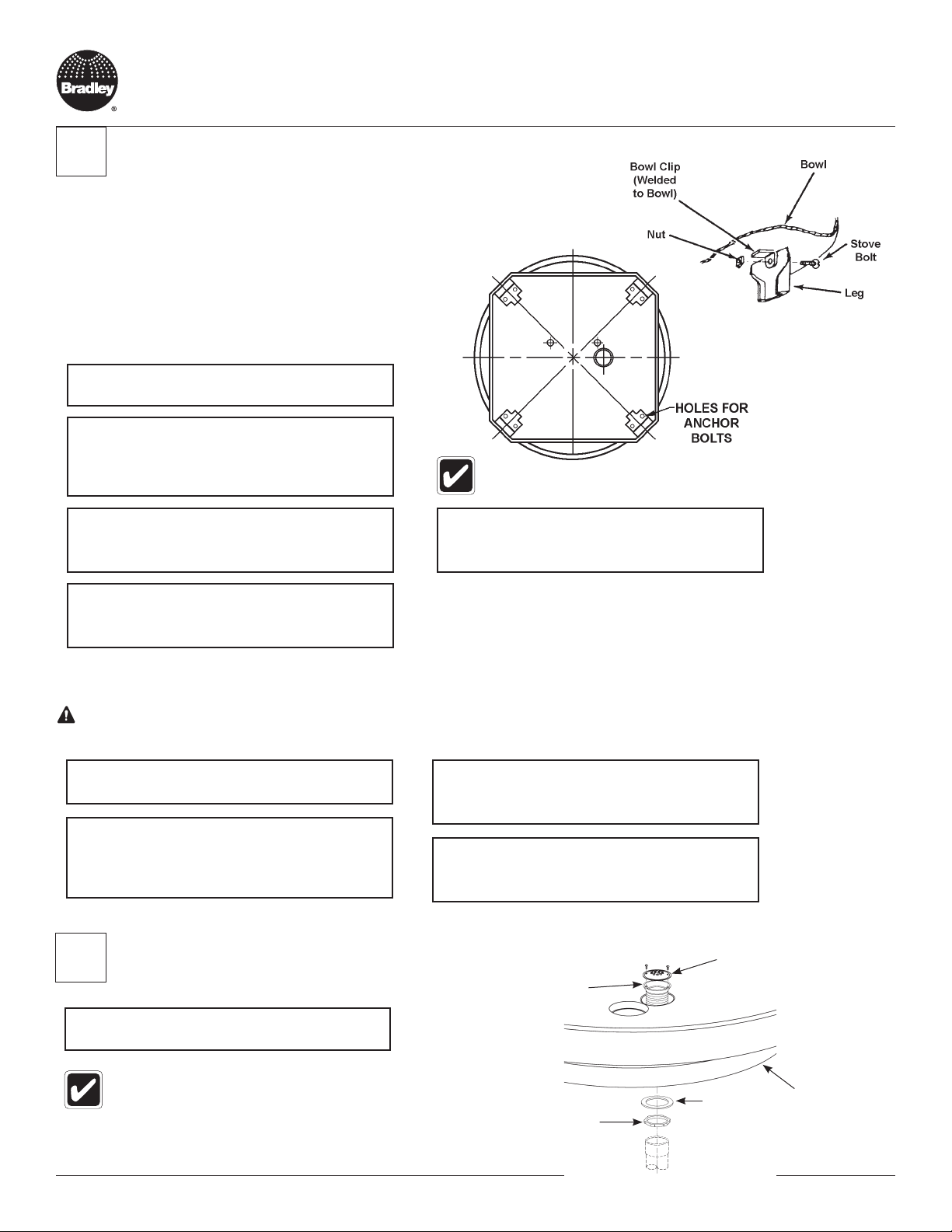

This document describes installation of washfountain bowl and pedestal only. Some optional equipment and
accessories are shown for clarity. For activation, optional equipment and accessory installation, see installation
documents included with those parts.
Supplies Required by Installer
• (8) 1/2" lag bolts, screws or other fasteners to anchor washfountain pedestal to floor
• 1" hot and cold water supply lines and fittings (see activation instructions)
• Reducing fittings and 1/2" nom. copper tubing supply lines for types with supplies from above (see
activation instructions)
• Standard 2" P-trap (vented trap supplied by Bradley when required)
• 2" drain lines and fittings (see activation instructions)
• 1-1/2" vent pipe on types vented through washfountain column
• Pipe sealant and plumber's putty
Before installation of bowl and pedestal assemblies, review all included instructions. Some options may require
additional steps during the bowl and pedestal installation process.
Supply lines for one or two washfountains should be 1"; for three washfountains 1-1/4"; for more than three
washfountains, pipe size should increase proportionally. Vent pipe to be 1-1/2" on models vented through
washfountain.
Valving installations for Classic washfountains require rigid plumbing installation and connections to ensure
proper operation and support of the valve assemblies, especially for foot control activated washfountains. Do
not use flexible supply hoses unless specified in your activation instruction documentation and supplied with
your washfountain.

2 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
Circular Washfountain Dimensions (mm)
G
H E
A
B
C
D
F
Approximate Dimensions in Inches*
Material Size A B C D E F G H
Terrazzo 54" 19 29-1/4 39-1/8 47-5/8 56 32 36 54
Stainless 54" 19 28 37-3/8 45-7/8 54-1/4 32 36 54
Terrazzo 36" 19 29-1/4 35-5/8 44-1/8 52-1/2 21 25 36
Stainless 36" 19 28 33-7/8 42-3/8 50-3/4 21 25 36
*Juvenile height (terrazzo only): Subtract 4" from dimensions A through E for juvenile height.
Approximate Dimensions in Millimeters*
Material Size A B C D E F G H
Terrazzo 1372mm 483 743 994 1210 1422 813 914 1372
Stainless 1372mm 483 711 949 1165 1378 813 914 1372
Terrazzo 914mm 483 743 905 1121 1334 533 635 914
Stainless 914mm 483 711 860 1076 1289 533 635 914
*Juvenile height (terrazzo only): Subtract 102mm from dimensions A through E for juvenile height.

3 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com

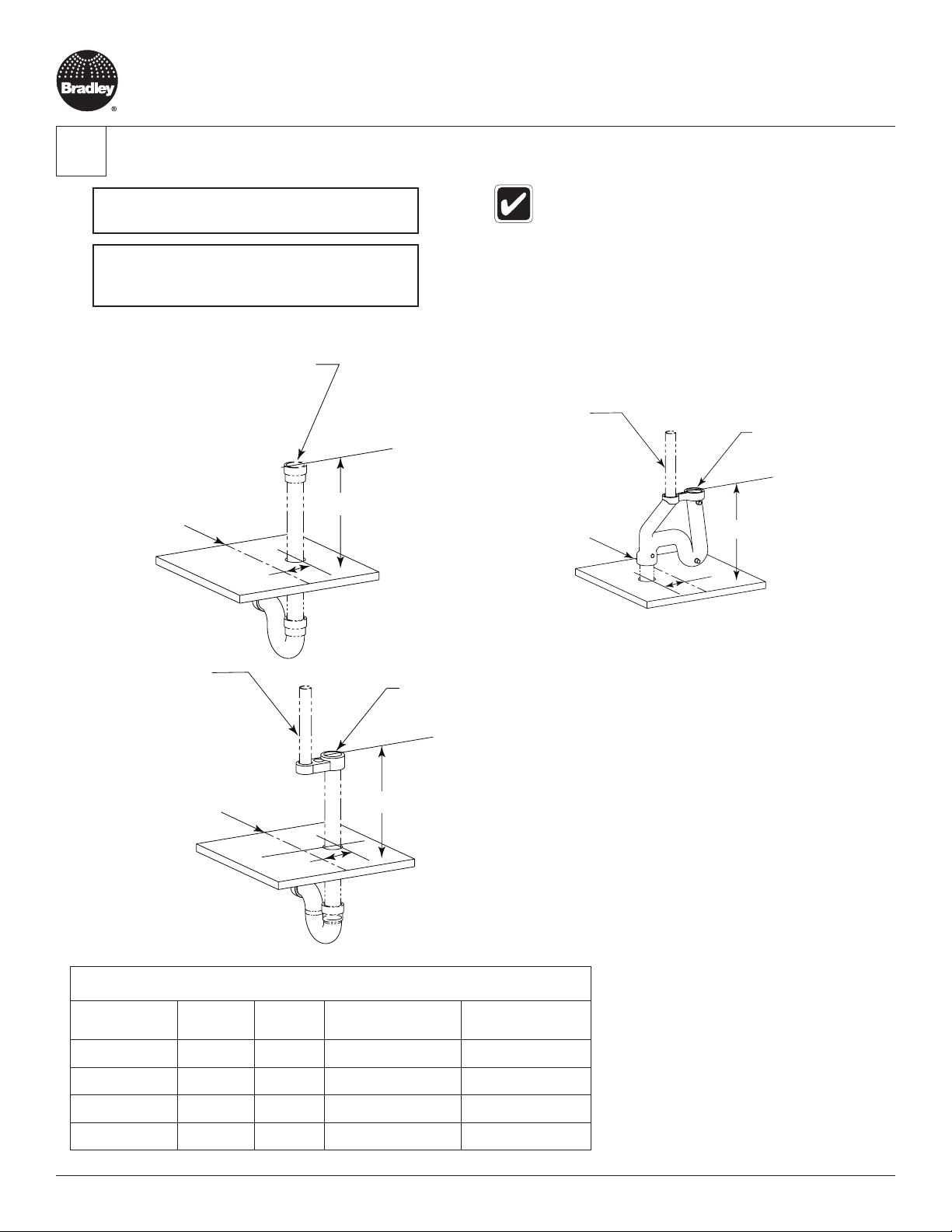

Length of Tie Pipe Required for Vent Through Washfountain Column
Type Pipe Length
54" Less Soap Dispenser 21-1/2" (543mm)
36" Less Soap Dispenser 18" (457mm)
54" with Soap Dispenser 30" (762mm)
36" with Soap Dispenser 26-1/2" (673)
54" Less Soap Dispenser with Towel Dispenser 55-1/2" (1410mm)
36" Less Soap Dispenser with Towel Dispenser 52" (1321mm)
54" with Soap Dispenser with Towel Dispenser 48" (1213mm)
36" with Soap Dispenser with Towel Dispenser 44-1/2" (1130mm)
54" with Cube Adapter 32" (813mm)
36" with Cube Adapter 28-1/2" (724mm)
54" with Cube Adapter with Towel Dispenser 50" (1270mm)
36" with Cube Adapter with Towel Dispenser 46-1/2" (1181mm)
54" with Cube Adapter and Soap Dispenser 40" (1016mm)
36" with Cube Adapter and Soap Dispenser 36-1/2" (927mm)
Drain must be connected with 2" schedule 40 welded wrought iron pipe, minimum, to provide lower support
for this installation. Vent or support pipe must be of the same material in 1-1/2". For detailed tie pipe
information, see 215-1834-26.

4 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
(mm)

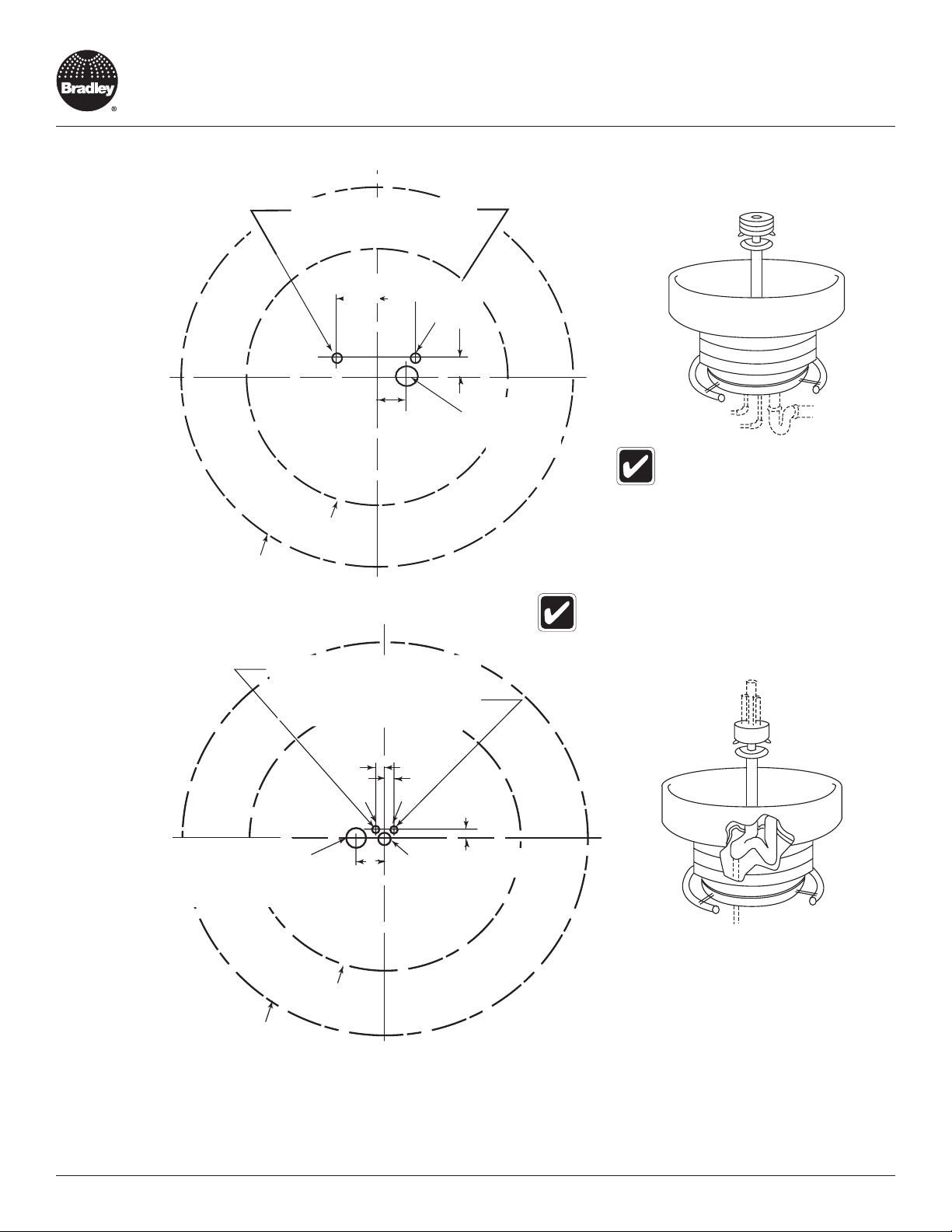

Rough-In Specifications
Type A
Off-line vent with
supplies from below
7-5/8"
(194)
4"
(102)
2-1/2"
(64)
1" NPT Supplies Through Floor:
Stub Up 2-1/2" (64) Above Floor
ColdHot
2" NPT Drain,
Stub Up 3" (76)
Above Floor
54" (1372) Bowl
7-5/8"
(194)
Type B
Centrally rising vent with
supplies from above
1" NPT Supplies From Above
Must Reduce to 1/2" Nom. Copper
Tube on These Centers To Pass
Thru Washfountain
7/8"
(22) 7/8"
(22)
Hot
1-1/2" NPT
Vent to Ceiling
1-1/4"
(32)
4"
(102)
2" NPT Drain,
Stub Up 3" (76)
Above Floor
54" (1372) Bowl
Cold
UPC and IPC restricts the
vertical distance from the fixture
outlet to the trap weir to not
more than 24". Check state and
local codes for variances.
36" (914) Bowl
36" (914) Bowl
Rough-In Notes
1. All pipes and fittings not furnished by Bradley are shown in broken lines.
2. Supply lines for one to two washfountains should be 1", for three washfountains 1-1/2"; for more than three washfountains,
pipe sizes should be increased proportionately.
3. Overhead supplies must be reduced to 1/2" copper tube to pass through support tube.
4. Check valve inlets are 1/2" NPT.
Some optional equipment shown.

5 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
(mm)

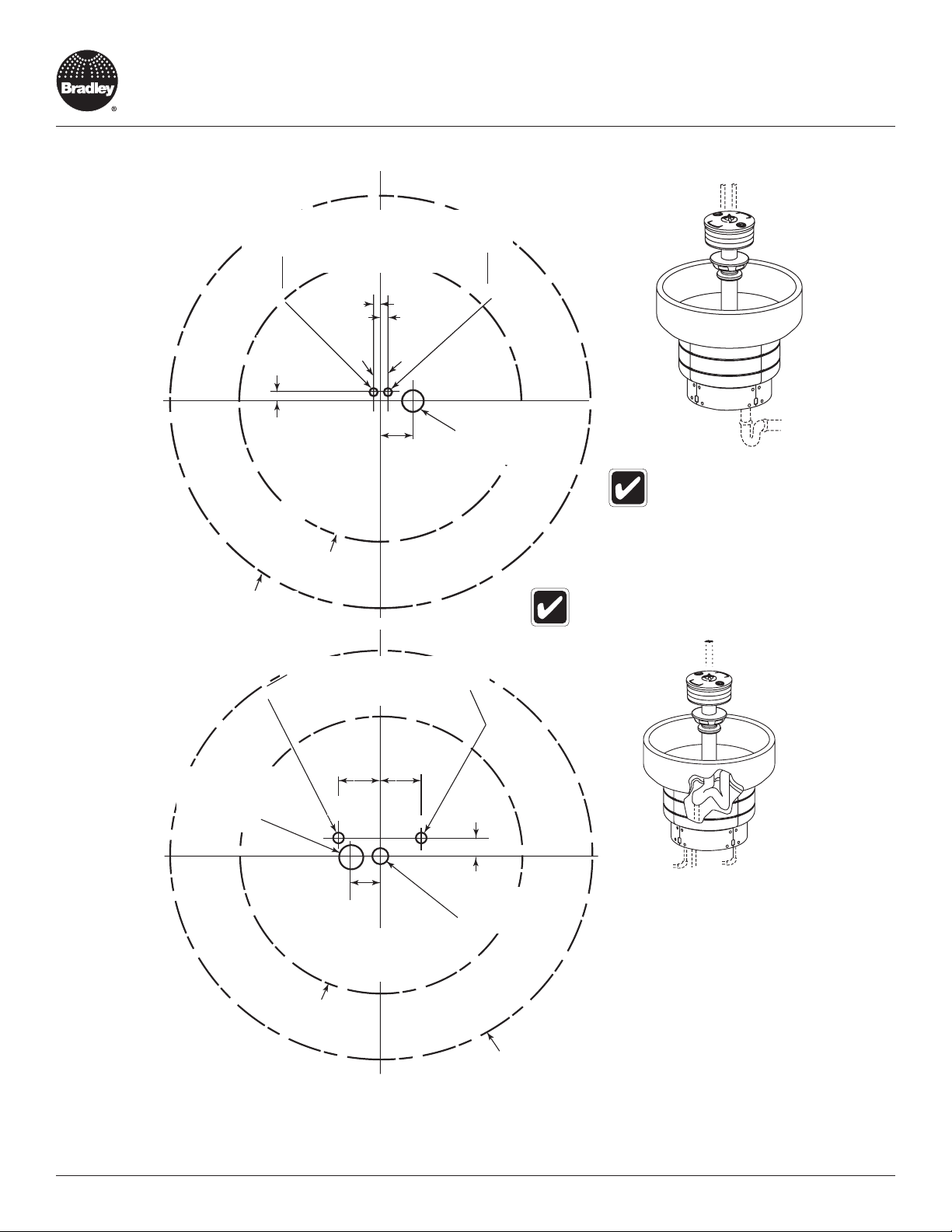

Rough-In Specifications
Type H
Centrally rising
vent with supplies
from below
7-5/8"
(194)
2-1/2"
(64)
1" NPT Supplies Through
Floor: Stub Up 2-1/2" (64)
Above Floor
Cold
Hot
4"
(102)
2" NPT Drain,
Stub Up 3" (76)
Above Floor
54" (1372) Bowl
1-1/2" NPT
Vent to Ceiling
7-5/8"
(194)
Type O
Off-line vent with
supplies from above
1" NPT Supplies From Above Must
Reduce to 1/2" Nom. Copper Tube on
These Centers to Pass Thru Washfountain
7/8" (22)
7/8" (22)
Cold
Hot
1-1/4"
(32)
4"
(102)
2" NPT Drain,
Stub Up 3" (76)
Above Floor
54" (1372) Bowl
UPC and IPC restricts the
vertical distance from the fixture
outlet to the trap weir to not
more than 24". Check state and
local codes for variances.
36" (914) Bowl
Some optional equipment shown.
54" (1372) Bowl
Rough-In Notes
1. All pipes and fittings not furnished by Bradley are shown in broken lines.
2. Supply lines for one to two washfountains should be 1", for three washfountains 1-1/2"; for more than three washfountains,
pipe sizes should be increased proportionately.
3. Overhead supplies must be reduced to 1/2" copper tube to pass through support tube.
4. Check valve inlets are 1/2" NPT.

6 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
1Installing the Drain
ARough in supply and drain piping as
required for your installation.
BAssemble the drain to the dimension
shown below for the bowl size you are
installing.
All piping shown in dotted lines
to be supplied by installer.
Trap Dimensions (mm)
Bowl Material Size Dim Standard Height Juvenile Height
Terrazzo 36" B 18-5/8 (473) 14-5/8" (371)
Terrazzo 54" B 18-5/8" (473) 14-5/8" (371)
Stainless Steel 36" B 17-3/8" (441) N/A*
Stainless Steel 54" B 17" (432) N/A*
* Stainless steel is not available in juvenile height.
Types B and H
4"
(102)
Types A and O
Fixture Centerline
B
Vent or Tie Pipe
(Supplied by Installer)
B
Types A and O
With Tie Pipe Bracket
Option
B
Tie Pipe Bracket - optional
2" NPT Coupling if Tie
Pipe is not required
(Supplied by Installer)
4"
(102)
Fixture Centerline
Vented Trap
(111-024)
Vent or Tie Pipe
(Supplied by Installer)
Fixture Centerline
4"
(102)
Optional Tie Pipe
Bracket (S70-082)

7 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
2a Assembling the Pedestal (with Foot Control)
AAssemble the legs and scuff base
panels with the 5/16" carriage bolts
and nuts provided.
BAttach the pedestal frame members with
the 5/16" stove bolts and nuts provided.
CAdd the foot levers and operating cross
to the pedestal assembly.
D
Press the foot rail into place with a
rolling motion. The joint of the foot rain
should be placed in the clevis of one of
the foot valves.
2b Assembling the Pedestal (without Foot Control)
AAssemble the leg and scuff base
panels with the 5/16" carriage bolts
and nuts provided.
BAttach the pedestal frame members
with the 5/16" stove bolts and nuts
provided.

8 of 8 1/29/2018 Bradley • 215-1833-4 Rev. A: ECN 17-00-021A
Bowl and Pedestal Assembly (Stainless Steel & Terrazzo)
WF2605, WF2608, WF2705, WF2708
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
CAUTION! Use suitable lifting equipment
to position bowl and pedestal
assembly. Handle with care! Failure
to do so could result in serious
personal injuries.
APlace the bowl on the pedestal using
suitable lifting equipment.
B
Fasten the bowl to the pedestal with
the four flat head stove bolts provided.
Place the bowl clip inside the pedestal
leg.
NOTICE! The pedestal must be level when
secured to floor for proper drainage.
3Bowl Assembly and Mounting
CPosition the bowl and pedestal
assembly so that the bowl drain is in
line with the trap or drain line.
DScrew the drain spud part of the
way into the drain to ensure correct
alignment.
EAnchor the pedestal assembly to the
floor with suitable anchors/fasteners
(supplied by installer).
Top View of
Pedestal Assembly
CAUTION! Bowl surface is smooth. Use suitable lifting equipment to position bowl and
pedestal assembly. Handle with care!
APosition the pedestal as shown in
pedestal assembly drawing.
BPlace the bowl on the pedestal using
suitable lifting equipment, making sure
that the bowl drain is in line with the
trap or drain line. DAnchor the pedestal assembly to the
floor with suitable anchors/fasteners
(supplied by installer).
For Stainless Steel Bowl
For Terrazzo Bowl
Some optional equipment shown.
4Installing Drain Spud in Bowl
ASecure drain spud with lock nut and
washers as shown.
Seal between drain spud and drain hole
with plumber’s putty (supplied by installer).
Strainer
(S45-067)
Spud
Terrazzo (112-015)
Stainless Steel (112-016)
Washer
(142-068)
Bowl
Locknut
(161-021)
CScrew the drain spud part of the
way into the drain to ensure correct
alignment.

1 of 3 12/19/2017 Bradley • 215-1834-21 Rev. A: ECN 17-00-006B
Sprayheads
WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
Sectional Sprayhead
1
32
54
Sectional Sprayhead
(Circular Shown - S34-038,
Semi-Circular Similar - S34-037)
Connector
1/4" NPT x 1/4" Tube
(169-974) 1/4" Supply Tubing
(4 Required for Circular,
2 Required for Semi-Circular)
Parts List
Item Part No. Description
Circular Semi-
Circular
Qty
1 115-080 Sectional Sprayhead - Plated (Circular) 1
1 115-079 Sectional Sprayhead - Plated (Semi-Circular) 1
2 159-115 Bottom Plate 1 1
3 124-032 Gasket 1 1
4 160-138 Screw, 10-24 x 1/2" Button Head 4 4
5 142-002BT Washer, #10, Split Lock 4 4

2 of 3 12/19/2017 Bradley • 215-1834-21 Rev. A: ECN 17-00-006B
Sprayheads
WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
Non-Sectional Sprayhead
Repair kit does not include sprayhead grommet. Order as a separate item.
1
2
345
9
6
8
7
10
Parts List
Item Part No. Description
Sprayhead
Assembly
Repair Kit
S45-051
Qty
1 125-001DE Neoprene Washer - Top 1 1
2 139-031 Sprayhead Manifold 1 -
3 124-001AL Washer 3 4
4 160-211 Carriage Bolt 3 4
5 115-061 Sprayhead Top 1 -
6 116-008 Sprayhead Bottom 1 -
7 124-001AT Washer 3 4
8 161-025 Nut 3 4
9 124-020C Sprayhead Grommet - Circle 1 -
9 120-020D Sprayhead Grommet - Semi-Circle 1 -
9 120-020E Sprayhead Grommet - Corner 1 -
10 125-001DF Neoprene Washer - Bottom 1 1

3 of 3 12/19/2017 Bradley • 215-1834-21 Rev. A: ECN 17-00-006B
Sprayheads
WF2500, WF2600, WF2700, WF2800, WF3200, TDB3100 Series
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com

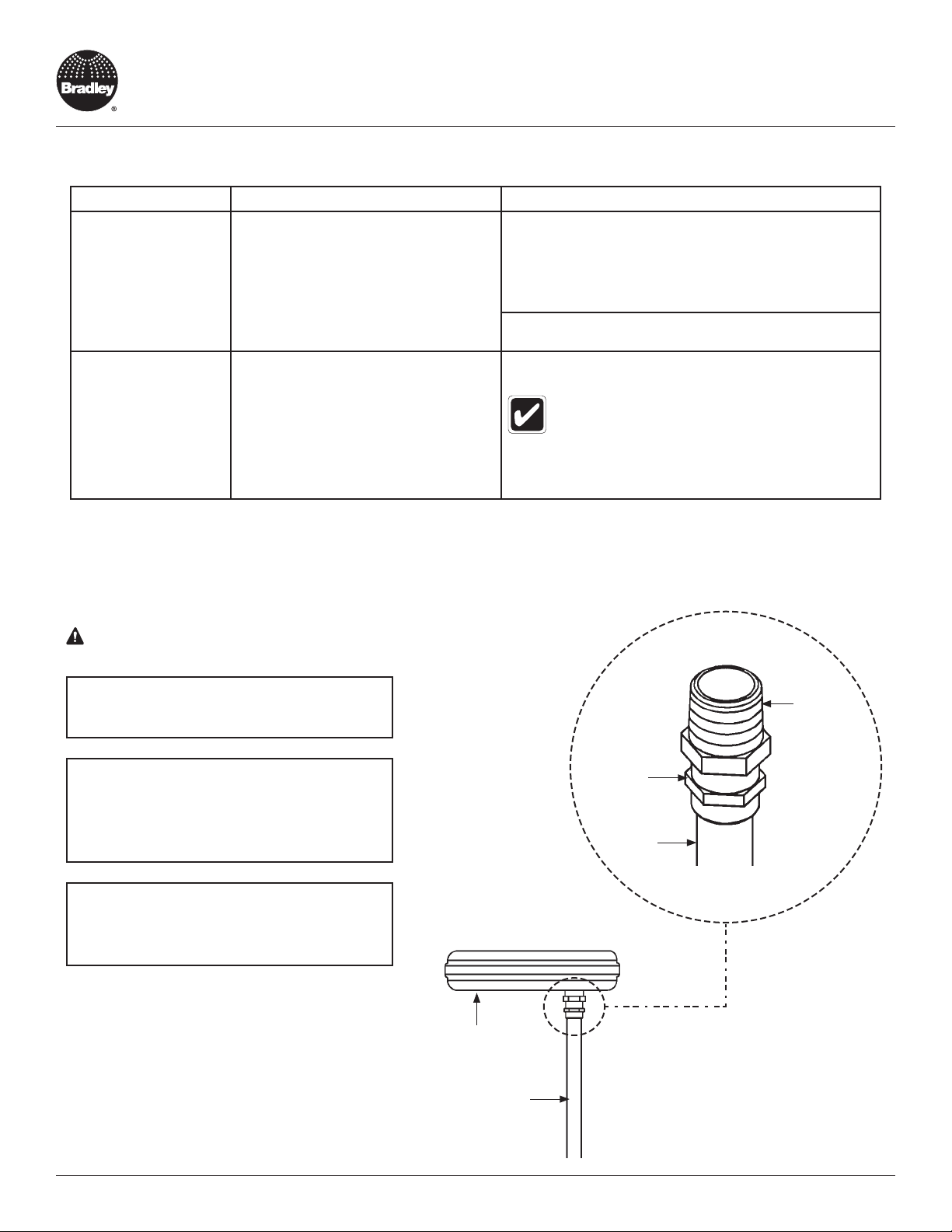

Sprayhead Troubleshooting
Problem Cause Solution
Water splashes over
the rim of the bowl.
Foreign matter has reduced the size of
the sprayhead slots, causing greater
pressure at the open slots.
Clean the sprayhead:
1. Disassemble the sprayhead and dislodge any dirt,
lime build-up and foreign debris with a wire brush.
2. Sprayheads with rubber grommet spray rings may
be cleaned by rubbing a coin over the grommet.
Throttle down the volume control (water spray should strike
the bowl without splashing outside of the bowl).
Water flow diminishes
from the sprayhead.
Strainer portion of the stop-strainer-check
valve is plugged.
Remove and clean the strainer screen from the stop-
strainer-check valve.
The non-sectional sprayhead includes a
perforated neoprene spray ring grommet that is
self-cleaning. The water pressure flexes the spray
holes which slows accumulation of foreign matter
and tends to "break loose" any such deposits that
may have accumulated.
Sprayhead Tubing Connections
WARNING Flush supply lines before making connections.
AUsing a sharp razor, cut tubing squarely
and remove any burrs. DO NOT pinch or
crush end of tubing.
B
Loosen nut on fitting. Moisten end of
tube and push into fitting until it is firmly
seated. Tighten nut to secure tube
to fitting (make sure nut is securely
tightened).
C
If connector leaks, reseat tubing
according to above procedure. If leaking
persists, replace male connector, or call
a Bradley representative for assistance.
Tubing
Sprayhead
Tubing
Nut
Male Tube
Connector
(269-626)

1 of 6 2/7/2018 Bradley • 215-1834-2 Rev. A: ECN 17-00-020
Foot Activation - Non-Sectional Circular Washfountains
WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805, WF2808
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
Supplies Required by Installer
• 1-1/2" vent pipe on types vented through washfountain column
• Pipe sealant and plumber's putty
Supply lines for one or two washfountains should be 1"; for three washfountains 1-1/4"; for more than three
washfountains, pipe size should increase proportionally. Vent pipe to be 1-1/2" on models vented through
washfountain.
1a Installing Supplies – A and O Units WITH Soap Option
AInstall hemmed end (not sharp end) of
support tube with gasket onto bowl.
BUsing pipe sealant, connect the supply
pipe to the sprayhead and place on top of
the support tube.
C
Place the upper tie bar on top of the
sprayhead and join the upper and lower
tie rod (the longer threaded rod) with the
coupling nut and set screws.
D
Insert the tie rod assembly through the
hole in the upper tie bar and secure with
the lower tie bar, tie rod nut and set screw
from below.
EInstall the spacer, soap dispenser,
dispenser cover and secure with the acorn
nut and socket set screw.
1b Installing Supplies – A and O Units WITHOUT Soap Option
C
Place the dispenser cover on the
sprayhead. Thread the acorn nut onto the
lower tie rod, run the tie rod through the
dispenser cover and secure from below
with the lower tie bar, tie rod nut and
socket set screw.
AInstall hemmed end (not sharp end) of
support tube with gasket onto bowl.
BUsing pipe sealant, connect the supply
pipe to the sprayhead and place on top of
the support tube.

2 of 6 2/7/2018 Bradley • 215-1834-2 Rev. A: ECN 17-00-020
Foot Activation - Non-Sectional Circular Washfountains
WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805, WF2808
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com

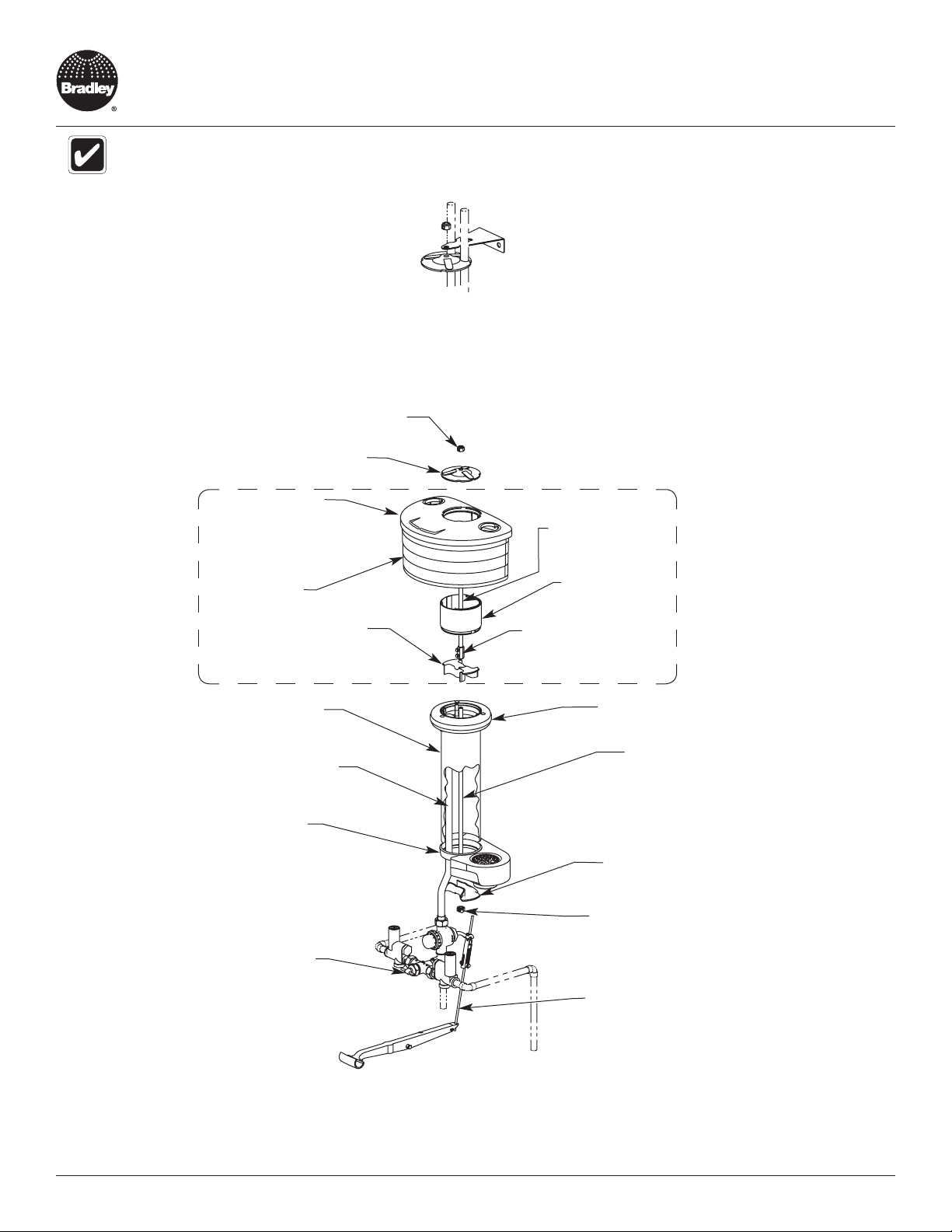

Type "O" Drain
Supplies from Above
Type "A" Drain
Acorn Nut (110-052A)
Set Screw (160-093)
Dispenser Cover
Soap Dispenser
Soap Dispenser Lid
Upper Tie Bar
(159-009A)
(Notched at Corners)
Upper Tie Rod
(176-010)
Spacer
(113-155A)
Coupling Nut (110-051D)
Set Screws (160-208)
Sprayhead
(S05-054)
Lower Tie Rod
(176-008, 36")
(176-008A, 54")
Support Tube
(S57-005, 54")
S57-006, 36")
Sprayhead Supply
Pipe, 3/8"
Gasket
(125-011, Terrazzo)
(125-008, Stainless Steel) Lower Tie Bar
(159-009)
Tie Rod Nut
(110-064)
Set Screws
(160-208
Operating Rod
(S14-007, Standard Height)
S14-007A, Juvenile Height)
See Valving Detail
Some optional equipment shown.
Parts Shown in Box
are for Units with
Soap Dispenser

3 of 6 2/7/2018 Bradley • 215-1834-2 Rev. A: ECN 17-00-020
Foot Activation - Non-Sectional Circular Washfountains
WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805, WF2808
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
1c Installing Supplies – B and H Units WITH Soap Option
AInstall hemmed end (not sharp end) of
support tube with gasket onto bowl.
BUsing pipe sealant, connect the supply
pipe to the sprayhead and place on top of
the support tube.
C
Insert the 1-1/2" vent pipe (supplied by
installer) through the soap dispenser
with the spacer (if provided), sprayhead
and support tube. Connect to vented trap
(provided).
DSlide the tie bar over the 1-1/2" vent pipe
1/2" below the top of the soap dispenser
and secure with the set screws.
ESlide the dispenser cover over the 1-1/2"
vent pipe and secure with the two screws
(included) to the tie bar.
1d Installing Supplies – B and H Units WITHOUT Soap Option
DSlide the tie bar over the 1-1/2" vent pipe,
1/2" below the top of the sprayhead and
secure with the set screws.
ESecure the dispenser cover over the
1-1/2" vent pipe and secure with the two
screws included with the tie bar.
FConnect the vent pipe to the vent through
the ceiling with the pipe union.
FConnect the vent pipe to the vent through
the ceiling with the pipe union.
AInstall hemmed end (not sharp end) of
support tube with gasket onto bowl.
BUsing pipe sealant, connect the supply
pipe to the sprayhead and place on top of
the support tube.
C
Insert the 1-1/2" vent pipe (supplied by
installer) through the sprayhead and
support tube. Connect to vented trap
(provided).

4 of 6 2/7/2018 Bradley • 215-1834-2 Rev. A: ECN 17-00-020
Foot Activation - Non-Sectional Circular Washfountains
WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805, WF2808
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
Type "H" Drain
Supplies from Below
Type "B" Drain
Cap Screw
(160-108)
Dispenser Cover
Supplies 1/2" Nominal
Copper Tubing
Tie Bar Location
For Unit with Soap
(159-020)
Soap Dispenser
Soap Dispenser Lid
Spacer
(113-155A)
Tie Bar Location for Unit
without Soap (159-020)
Sprayhead
(S05-054)
Support Tube
(S57-005, 54")
S57-006, 36")
Sprayhead Supply
Pipe, 3/8"
Gasket
(125-011, Terrazzo)
(125-008, Stainless Steel)
Vented Trap
(111-024)
Operating Rod
(S14-007, Standard Height)
S14-007A, Juvenile Height)
See Valving Detail
Some optional equipment shown.
1-1/2" Vent Pipe
Parts Shown in Box
are for Units with
Soap Dispenser

5 of 6 2/7/2018 Bradley • 215-1834-2 Rev. A: ECN 17-00-020
Foot Activation - Non-Sectional Circular Washfountains
WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805, WF2808
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com

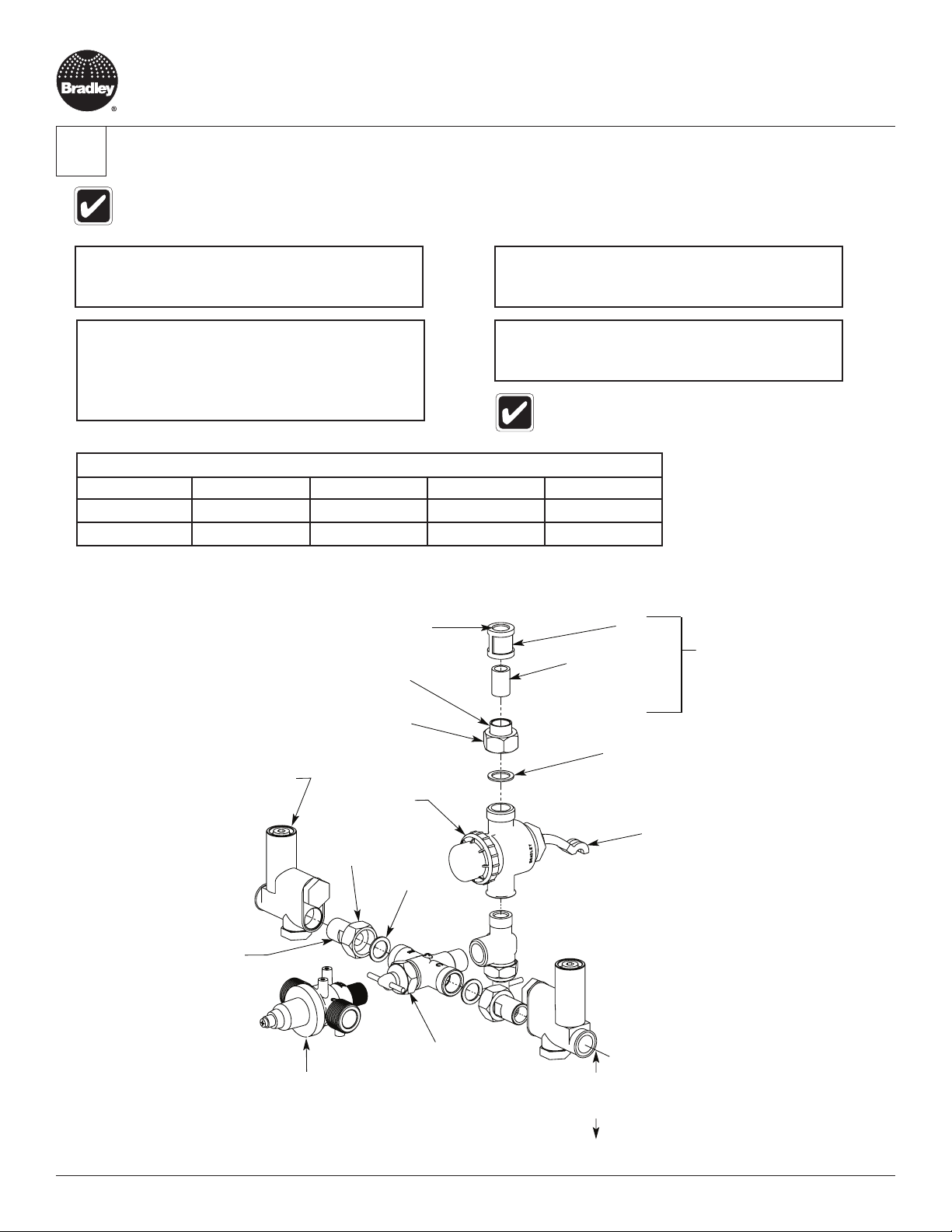

2Installing the Valve Assembly
See 215-1834-22 for further details on
valving components.
Flush supply lines before making connections.
AConnect the stop-strainer-check valves,
mixing valve, volume control valve and
foot valve as shown.
B
For overhead supply lines, install 1/2"
nominal copper supply tubing by passing
the lines through the holes in the
dispenser cover and then down through
the support tube.
C
Install the valving assembly using suitable
fittings to the supplies as shown at the
approximate height indicated in table below.
D
Slide the tailpiece nut over the tailpiece and
connect the tailpiece to the supply pipe (or
to the nipple/coupling for B or H drain).
Distance to Finished Floor
Model Type A Type B Type H Type O
Standard Height 9" (229mm) 6-3/16" (157mm) 6-3/16" (157mm) 9" (229mm)
Juvenile Height 5-1/4" (133mm) 3-7/16" (87mm) 3-7/16" (87mm) 5-1/4" (133mm)
To Supply Pipe Coupling
(169-174)
Nipple
Std: 2" Long (113-852)
Juv: Close (113-006AL)
Used on "B" and
"H" Models Only
Tailpiece
(129-009)
Nut
(110-005)
Tailpiece Washer
(124-001AF)
Foot Valve
(S07-066 or
S07-066HD)
Operating Lever
Stop-Strainer_
Check Valve
(S60-003)
Nut
(110-005) Washer
(124-001AF)
Tailpiece
(129-007)
Manual Mixing Valve
(S01-038)
Distance (Dimension)
Finished Floor -
See Table
Optional Thermostatic
Mixing Valve (S01-529)
(Units are supplied with
manual mixing valve as
standard equipment.)

6 of 6 2/7/2018 Bradley • 215-1834-2 Rev. A: ECN 17-00-020
Foot Activation - Non-Sectional Circular Washfountains
WF2505, WF2508, WF2605, WF2608, WF2705, WF2708, WF2805, WF2808
P.O. Box 309 •Menomonee Falls, WI 53052-0309 • 1 800 BRADLEY •262 251 6000 •bradleycorp.com
3Installing the Operating Rod
For normal operation, use the operating
rod as shipped. The spring loaded
cartridge should be adjusted so there is no
play in the operating lever. Care must be
taken to ensure that a snug fit is achieved
without activating the foot valve or water
will leak from the sprayhead.
AInsert the operating rod in the operating
rod lever and then into the foot lever or
operating cross (if equipped).
B
When movement of the operating rod
is insufficient to open the foot valve,
disassemble the rod and remove the
spacer and override spring. Reassembly
the operating rod as shown. Reinstall
and adjust so that the foot valve is
completely open when the foot lever is
fully depressed. This prevents damage to
the foot valve due to the absence of the
override spring.
CTurn supplies on and activate the
sprayhead. Check piping installation for
leaks.
DClean the sprayhead if necessary. Adjust
the volume control valve, if necessary, to
control the flow of water.
OPERATING CROSS
OR FOOT LEVER
OPERATING CROSS
OR FOOT LEVER
EInstall pedestal panels to complete
installation.
