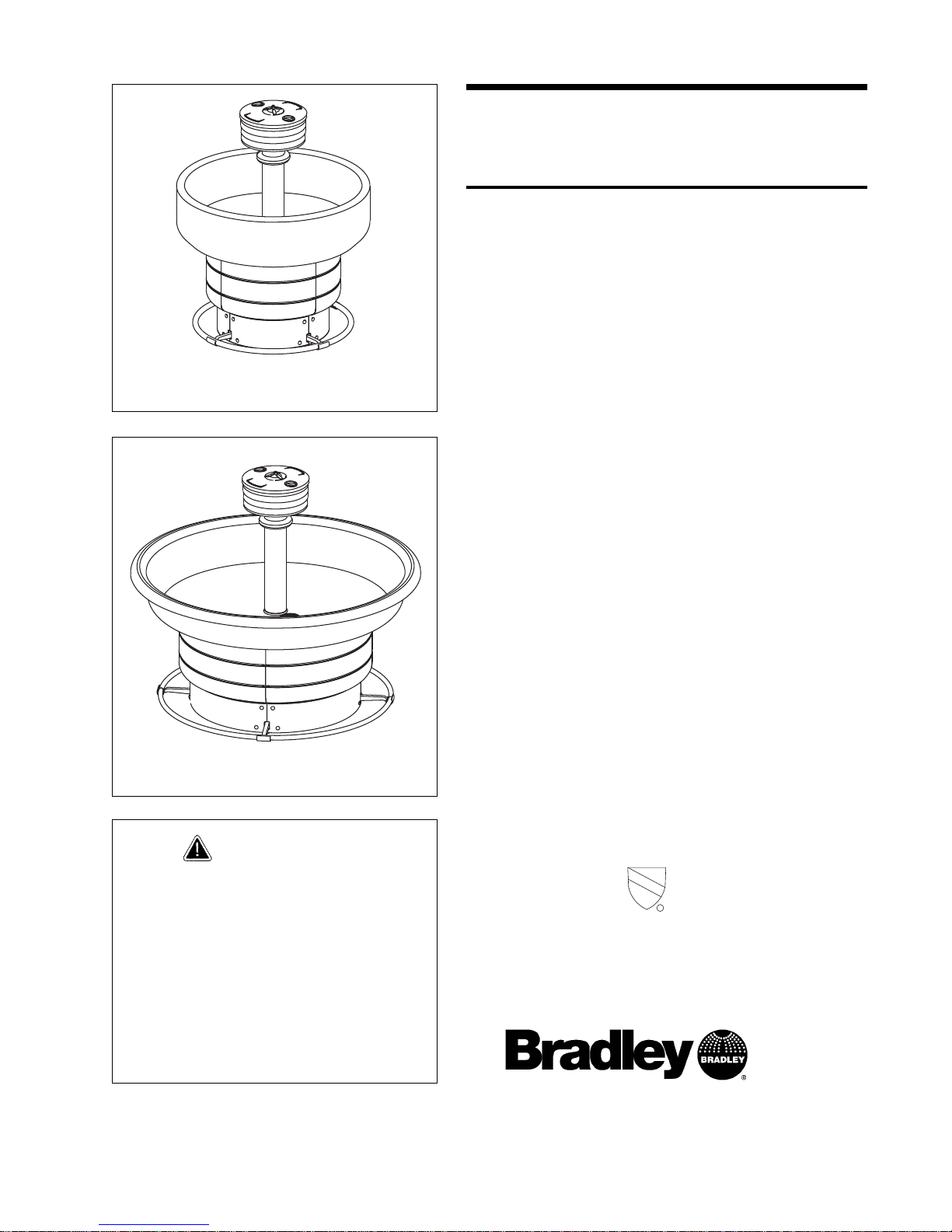

Bradley WF2605 User manual

IMPORTANT
Read this entire installation manual
to ensure proper installation.
Flush all the water supply lines
before making connections.
Main water supply to the unit
should be ON at all times.
This installation manual and parts
list should be filed by the owner’s
maintenance department.
Installation
Instructions
WF2605, WF2608 Terrazzo
WF2705, WF2708 Stainless Steel
Classic Circular 36"/54"
Washfountain with Foot
Control
215-603 Rev. M; EN 06-915B
© 2007 Bradley Corporation
Page 1 of 28 4/6/2007
P.O. Box 309, Menomonee Falls, WI 53052-0309
TEL. 1-800-BRADLEY FAX [phone]
http://www.bradleycorp.com
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . 2
Circular Washfountain Dimensions . . . . . . . . . . 3-4
Rough-In Specifications . . . . . . . . . . . . . . . . . . . 5-6
Drain Rough-In Specifications . . . . . . . . . . . . . . . .7
Pedestal Mounting and Assembly . . . . . . . . . . . . .8
Bowl and Pedestal Assembly and Mounting . . . . .9
Drain Spud Installation . . . . . . . . . . . . . . . . . . . . .10
Supplies w/Optional Soap Dispenser (A/O drains) . .11-12
Supplies w/Optional Soap Dispenser (B/H drains) . .13-14
Installing the Valve Assembly . . . . . . . . . . . . . . .15
Installing the Operating Rod . . . . . . . . . . . . . . . .16
Soap Valve Maintenance and Repair Parts . . .17-18
Check Valve Troubleshooting . . . . . . . . . . . . . . .17
Stop, Strainer and Check Valve Repair Parts . . . .19
Sprayhead Troubleshooting/Repair Parts . . . . . . 20
Foot Valve Breakdown and Repair Kit . . . . . . . .21
Manual Mixing Valve Repair Parts . . . . . . . . . . .22
Volume Control Valve Repair Parts . . . . . . . . . . .23
Vernatherm™ Mixing Valve Maintenance . . .24-26
Cleaning and Maintenance Instructions . . . . .27-28
WF2605
WF2708
UPC Certified
UPC
R
C

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
2 4/6/2007
Pre-Installation Information
Operation
Stepping on the foot rail allows the user to activate a valve starting the flow of water.
Supplies required for installation:
• (8) 1/2" lag bolts, screws or other fasteners to anchor washfountain pedestal to floor
• 1" hot and cold water supply lines and fittings (refer to rough-ins on pages 5-6)
• Reducing fittings and 1/2" nom. copper tubing supply lines for types with supplies from above
• 2" drain lines and fittings (refer to rough-ins on pages 5-6)
• Standard 2" P-trap (refer to rough-ins on page 7, special vented trap supplied for B and H type)
• Pipe sealant and plumber’s putty
• 1-1/2" vent pipe on types vented through washfountain column (refer to page 4 for lengths required)
NOTE: Supply lines for one or two washfountains should be 1"; for three washfountains 1-1/4"; for
more than three washfountains pipe size should increase proportionally. Vent pipe to be 1-1/2"
on models vented through Washfountain.
Bradley Classic Washfountain Warranty Information
Product warranties may be found under “Product Information” on our website at www.bradleycorp.com

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 34/6/2007
Circular Washfountain Dimensions
F
H
G
A
B
C
D
E
*Juvenile height (Terrazzo only): Subtract 4" from dimensions A through E for juvenile height.
Material Size A B C D E F G H
Terrazzo 54 19 29-1/4 39-1/8 47-5/8 56 32 36 54
Stainless Steel 54 19 28 37-3/8 45-7/8 54-1/4 32 36 54
Terrazzo 36 19 29-1/4 35-5/8 44-1/8 52-1/2 21 25 36
Stainless Steel 36 19 28 33-7/8 42-3/8 50-3/4 21 25 36
Approximate Dimensions in Inches*
*Juvenile height (Terrazzo only): Subtract 4" from dimensions A through E for juvenile height.
Material Size A B C D E F G H
Terrazzo 1372 483 743 994 1210 1422 813 914 1372
Stainless Steel 1372 483 711 949 1165 1378 813 914 1372
Terrazzo 914 483 743 905 1121 1334 533 635 914
Stainless Steel 914 483 711 860 1076 1289 533 635 914
Approximate Dimensions in Millimeters*

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
4 4/6/2007
Length of Tie Pipe Required for Vent Through Washfountain Column
54" Less Soap Dispenser 21-1/2" (546mm)
36" Less Soap Dispenser 18" (457mm)
54" With Soap Dispenser 30" (762mm)
36" With Soap Dispenser 26-1/2" (673mm)
54" Less Soap Dispenser With Towel Dispenser 55-1/2" (1410mm)
36" Less Soap Dispenser With Towel Dispenser 52" (1321mm)
54" With Soap Dispenser With Towel Dispenser 48" (1219mm)
36" With Soap Dispenser With Towel Dispenser 44-1/2" (1130mm)
54" With Cube Adapter 32" (813mm)
36" With Cube Adapter 28-1/2" (724mm)
54" With Cube Adapter With Towel Dispenser 50" (1270mm)
36" With Cube Adapter With Towel Dispenser 46-1/2" (1181mm)
54" With Cube Adapter And Soap Dispenser 40" (1016mm)
36" With Cube Adapter And Soap Dispenser 36-1/2" (927mm)
Type Pipe Length
NOTE: Drain must be connected with 2" schedule 40 welded wrought iron pipe, minimum, to provide
lower support for this installation. Vent or support pipe must be of the same material in 1-1/2".

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 54/6/2007

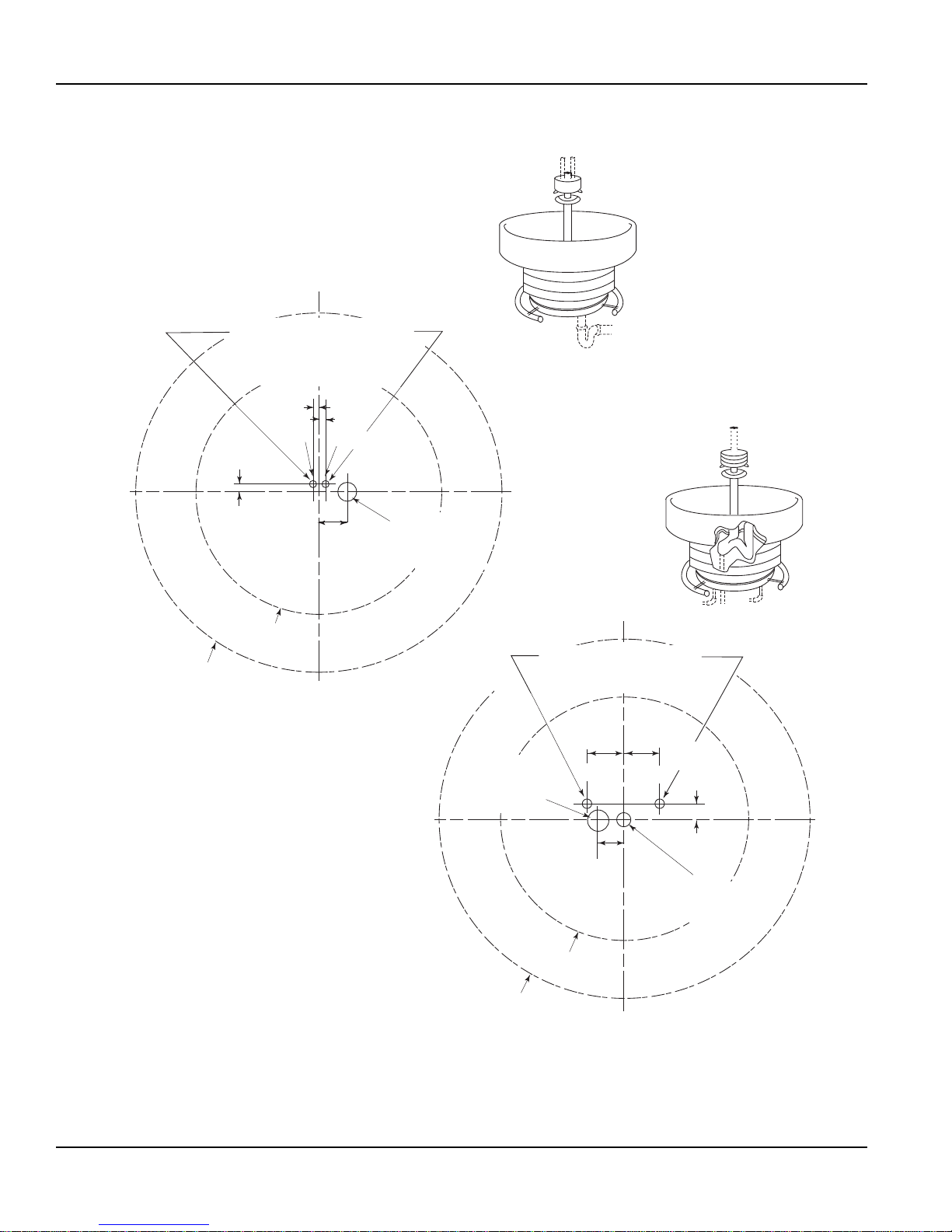

Rough-In Notes:
1. All pipes and fittings not furnished by Bradley are shown in broken lines.
2. Supply lines for one to two washfountains should be 1"; for three washfountains 1-1/4"; for more
than three washfountains, pipe sizes should be increased proportionately.
3. Overhead supplies must be reduced to 1/2" copper tube to pass through support tube.
4. Check valve inlets are 1/2" NPT.
5. Dimensions shown in parentheses are millimeters.
4"
(102)
4"
(102)
Cold
Cold 1-1/4"
(32)
NOTE: UPC and IPC restrict the vertical
distance from the fixture outlet to the trap
weir to not more than 24". Check state and
local codes for variances.
7-5/8"
(194)
7-5/8"
(194)
Type A
Off-line vent with
supplies from below
Type B
Centrally rising vent with
supplies from above
1" NPT supplies from above
must reduce to 1/2 nom. copper
tube on these centers to
pass thru washfountain
1" NPT supplies through
floor: stub up 2-1/2" (64)
above floor
2" NPT drain:
stub up 3" (76)
above floor
36" (914) bowl
36" (914) bowl
54" (1372) bowl
54" (1372) bowl
2-1/2"
(64)
7/8"
(22.2)
7/8"
(22.2)
Hot
Hot
1-1/2" NPT vent to ceiling
2" NPT drain:
stub up 3" (76)
above floor
TOP VIEW
TOP VIEW
Rough-In Specifications

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
6 4/6/2007
Rough-In Specifications ... Continued
Rough-In Notes:
1. All pipes and fittings not furnished by Bradley are shown in broken lines.
2. Supply lines for one to two washfountains should be 1"; for three washfountains 1-1/4"; for more
than three washfountains, pipe sizes should be increased proportionately.
3. Overhead supplies must be reduced to 1/2" copper tube to pass through support tube.
4. Check valve inlets are 1/2" NPT.
5. Dimensions shown in parentheses are millimeters.
Type H
Centrally rising vent with
supplies from below
36" (914) bowl
54" (1372) bowl
36" (914) bowl
54" (1372) bowl
Type O
Off-line vent with
supplies from above
1" NPT supplies through
floor: stub up 2-1/2" (64)
above floor
1" NPT supplies from above
must reduce to 1/2 nom. copper
tube on these centers to
pass thru washfountain
2" NPT drain:
stub up 3" (76)
above floor
7-5/8"
(194)
7-5/8"
(194)
7/8"
(22.2)
7/8"
(22.2)
4"
(102)
4"
(102)
1-1/2" NPT
vent to
ceiling
2" NPT drain:
stub up 3" (76)
above floor
Hot
Hot Cold
1-1/4"
(32)
Cold
2-1/2"
(64)
TOP VIEW
TOP VIEW
NOTE: UPC and IPC restrict the vertical
distance from the fixture outlet to the trap
weir to not more than 24". Check state and
local codes for variances.

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 74/6/2007
Centerline of
Washfountain
Centerline of
Washfountain
Centerline of
Washfountain
See rough-ins
on Pages 5-6
for dimensions
not shown
Types B, H
Types A, O
With Tie Pipe
Bracket Option
Types A, O
2" NPT Coupling if Tie
Pipe is not required
(Supplied by Installer)
Vent
or
Tie Pipe
(Supplied by Installer)
Vent
or
Tie Pipe
(Supplied by Installer)
Vented Trap
(111-024)
Optional
Tie Pipe Bracke
t
(S70-082)
4"
(102)
4"
(102)
B – See Table 1
B – See Table 1
B – See Table 1
4"
(102)
Installation Instructions
Step 1: Rough-In of Drain & Supplies
1. Rough in supply and drain piping as required for your installation (see pages 5-6 for rough-ins of
the optional installations).
2. Assemble the drain to the dimension shown in Figure 1 and Table 1 for bowl size of the
Washfountain you are installing.
NOTE: All piping shown in dotted lines to be supplied by the installer. Compliance and conformity to
local codes and ordinances is the responsibility of the installer.
Figure 1
Material Size Dim Standard Height Juvenile Height
Terrazzo 54" B 18-5/8" (473mm) 14-5/8" (371mm)
Stainless Steel 54" B 17" (432mm) N/A
Terrazzo 36" B 18-5/8" (473mm) 14-5/8" (371mm)
Stainless Steel 36" B 17-3/8" (441mm) N/A
Table 1 — “B” Trap Dimensions

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
8 4/6/2007
Installation Instructions continued . . .
Step 2: Assembling the Pedestal

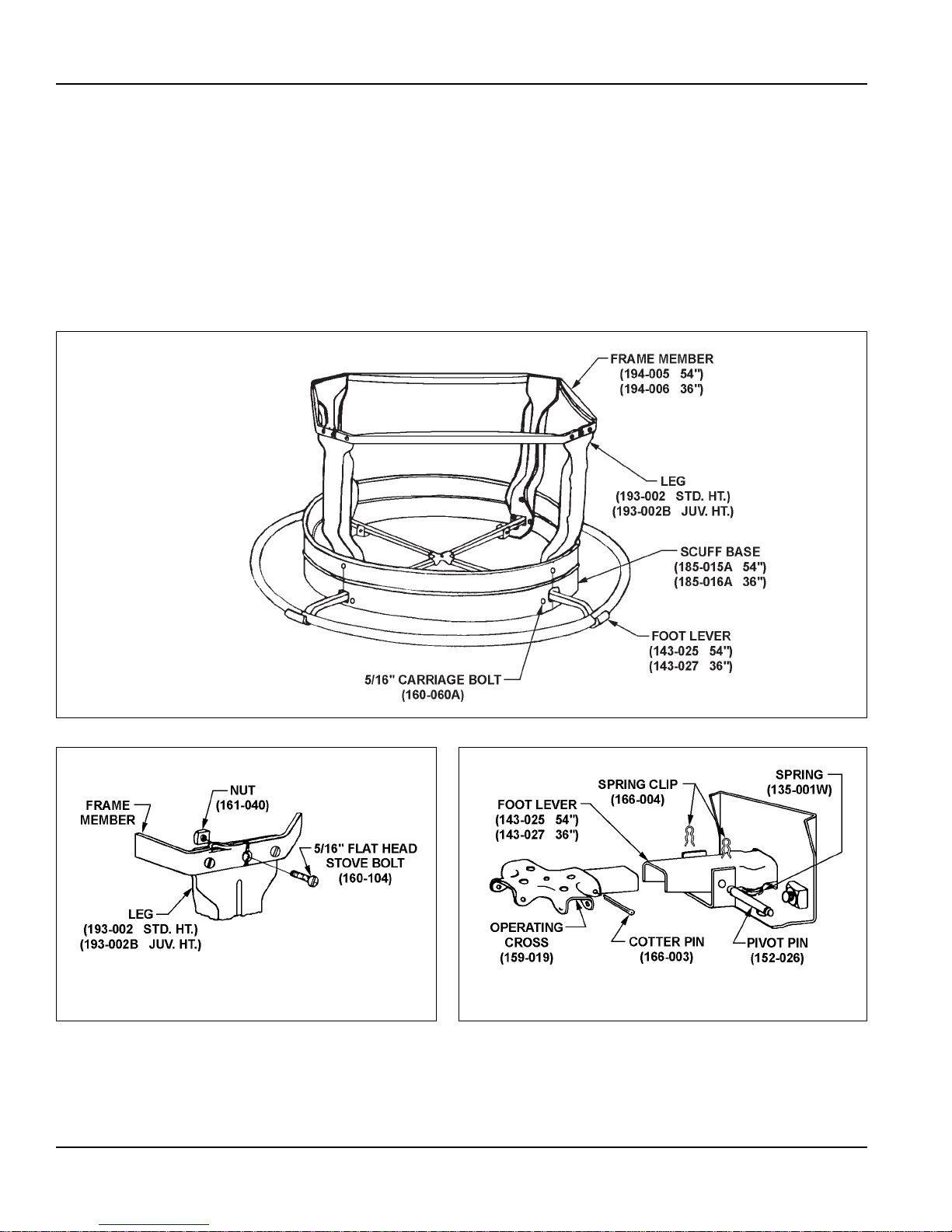

1. Assemble the leg and scuff base panels with the 5/16” carriage bolts and nuts provided (Figure 2).
2. Attach the pedestal frame members with the 5/16” stove bolts and nuts provided (Figures 2 and 3).

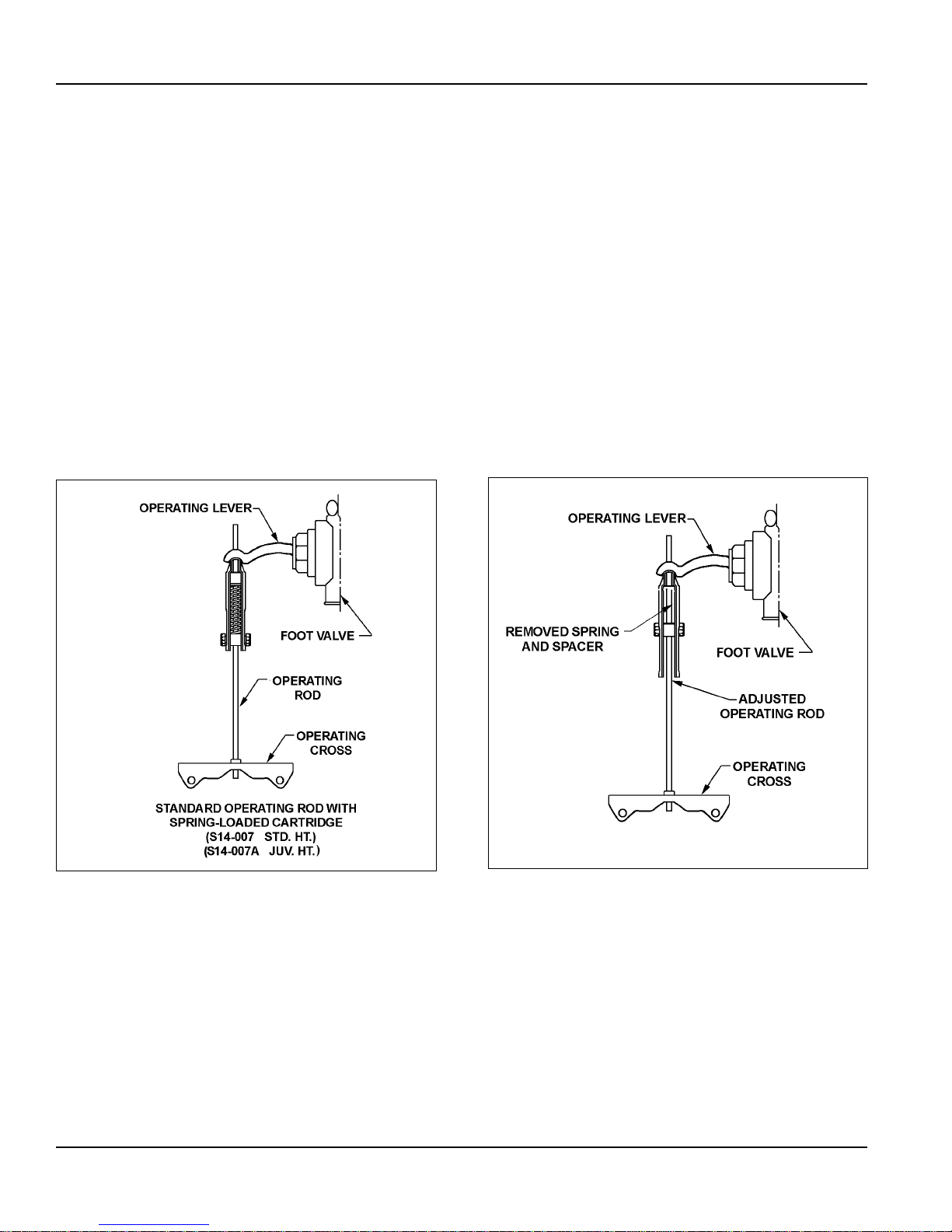

3. Add the foot levers and operating cross to the pedestal assembly (Figures 2 and 4).
4. Press the foot rail into place with a rolling motion. The joint of the foot rail should be placed in
the clevis of one of the foot valves (Figure 2).
Figure 2
Figure 3 Figure 4

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 94/6/2007
Installation Instructions continued . . .
Step 3: Bowl and pedestal assembly and mounting
IMPORTANT: FOR PROPER DRAINAGE, THE BOWL AND PEDESTAL MUST BE
LEVEL WHEN THEY ARE SECURED TO THE FLOOR .
WARNING: USE SUITABLE LIFTING EQUIPMENT TO POSITION THE BOWL AND
PEDESTAL ASSEMBLY. HANDLE WITH CARE! FAILURE TO DO SO
COULD RESULT IN SERIOUS PERSONAL INJURIES.
STAINLESS STEEL BOWL:

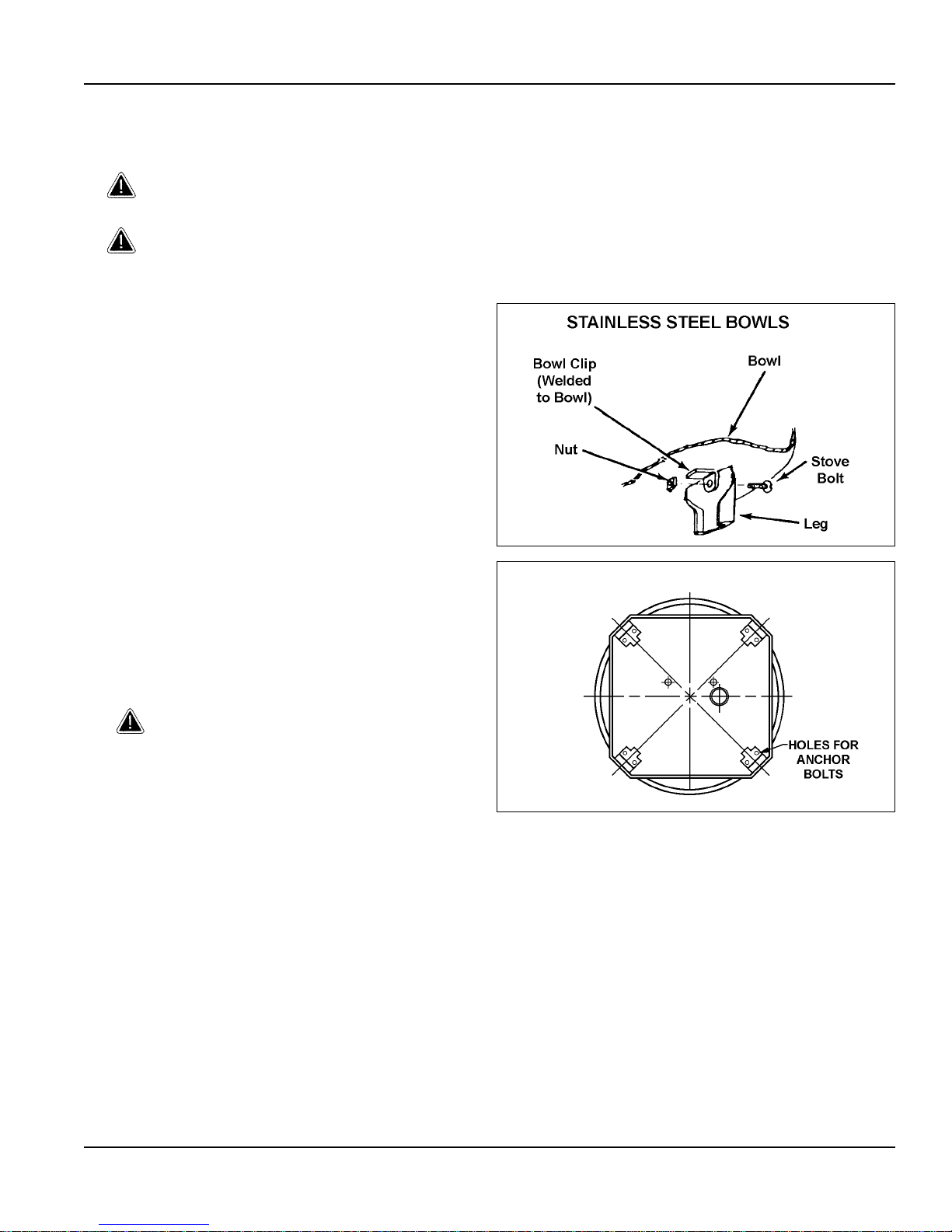

1. Place the bowl on the pedestal using
suitable lifting equipment.
2. Fasten the bowl to the pedestal with the
four flat head stove bolts provided. Place
the bowl clip inside the pedestal leg (see
Figure 5).
3. Position the bowl and pedestal assembly
so that the bowl drain is in line with the
trap or drain line (see Figure 6 at right and
figure 7 on page 10).
4. Screw the drain spud part of the way into
the drain to ensure correct alignment (see
Figure 7 on page 10).
5. Anchor the pedestal assembly to the floor
and wall with suitable anchors/fasteners
(supplied by installer).
TERRAZZO BOWL:
CAUTION: Bowl Surface is smooth.
Use suitable lifting
equipment to position
the bowl and pedestal
assembly. Handle with
CARE!
1. Place the pedestal assembly as shown in Figure 6.
2. Place the bowl on the pedestal using suitable lifting equipment.
3. Screw the drain spud part way into the drain to ensure correct alignment (see Figure 7).
4. Anchor the pedestal assembly to the floor with suitable anchors/fasteners (supplied by installer).
Figure 5
Figure 6
TOP VIEW OF PEDESTAL ASSEMBLY

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
10 4/6/2007
Installation Instructions continued . . .
Step 4: Installing drain spud in bowl
NOTE: Seal between drain spud and drain hole with plumber’s putty (supplied by installer).
1. Secure drain spud with lock nut and washers as shown in Figure 7.
Figure 7
STRAINER
(S45-067)
SPUD
112-015 (Terrazzo)
112-016 (Stainless Steel)
BOWL
WASHER
(142-068)
LOCKNUT
(161-021)

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 114/6/2007
Installation Instructions continued . . .
Step 5a: Installing Supplies with Optional Soap Dispenser for A/O drain units
NOTE: See Step 5b for units with type B/H drain.
NOTE: For models with optional paper towel dispensers, tie pipe assembly, or shroud, see separate
instruction sheets and Step 5b for units with type B/H drain.
NOTE: Flush the supply lines before making connections.
1. Install the hemmed end (not sharp end) of the support tube with the gasket into the bowl.
2. Using pipe sealant, connect the supply pipe to the sprayhead and place on top of the support tube as
shown in Figure 8 on page 12.
3a.For Unit with Soap Option:
1. Place the upper tie bar on top of the sprayhead and join the upper and lower tie rod (the longer threaded
rod) with the coupling nut and setscrews.
2. Insert the tie rod assembly through the hole in the upper tie bar and secure with the lower tie bar, tie rod
nut and setscrew from below (see Figure 8).
3. Install the spacer, soap dispenser, dispenser cover and secure with the acorn nut and socket setscrew.
4. Continue installation with Step 7 on Page 16.
3b.For Unit without Soap Option:
1. Place the dispenser cover on the sprayhead. Thread the acorn nut onto the lower tie rod, run the tie rod
through the dispenser cover and secure from below with the lower tie bar, tie rod nut and socket setscrew
(see Figure 8).
2. Continue installation with Step 6 on Page 15.

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
12 4/6/2007
Operating Rod
(S14-007, Std. Ht.)
(S14-007A, Juv. Ht.)
Lower Tie Bar
(159-009)
Tie Rod Nut
(110-064)
& Set Screws
(160-208)
Gasket
(125-011, Terrazzo)
(125-008, Stainless Steel)
Support Tube
(S57-005, 54")
(S57-006, 36")
Sprayhead
(S05-054)
Upper Tie Bar
(159-009A)
(notched at corners)
Soap
Dispenser
Soap
Dispenser Lid
TYPE "A" DRAIN
TYPE "O" DRAIN
Acorn Nut (110-052A)
& Set Screw (160-093)
Dispenser Cover
Upper Tie Rod
(176-010)
Spacer
(113-155A) PARTS SHOWN IN
BOX ARE FOR
UNITS WITH SOAP
DISPENSER.
Coupling Nut (110-051D)
Set Screws (160-208)
Lower Tie Rod
(176-008, 36")
(176-008A, 54")
Sprayhead Supply
Pipe (3/8")
(See Figure 10 on page 15
for valving assembly)
HOT
COLD
(Supplies from above)
Figure 8

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 134/6/2007
Installation Instructions continued . . .
Step 5b: Installing Supplies with Optional Soap Dispenser for B/H drain units
NOTE: Flush supply lines before making connections.
1. Install the hemmed end (not sharp end) of the support tube with gasket onto the bowl.
2. Using pipe sealant, connect the supply pipe to the sprayhead and place on top of the support tube
as shown in Figure 9 on page 14.
3. Insert the 1-1/2" vent pipe (supplied by installer, see page 4 for length) through the soap dispenser
with the spacer (if provided), sprayhead and support tube.
4. Connect to the vented trap (provided).
5a.For Unit with Soap Option:
1. Slide the tie bar over the 1-1/2" vent pipe 1/2" below the top of the soap dispenser and secure
with the set screws.
2. Slide the dispenser cover over the 1-1/2" vent pipe and secure with the two screws (included)
to the tie bar.
5b.For Unit without Soap Option:
1. Slide the tie bar over the 1-1/2" vent pipe, 1/2" below the top of the sprayhead and secure with
the set screws.
2. Secure the dispenser cover over the 1-1/2" vent pipe and secure with the two screws included
with the tie bar.
6.Connect the Vent Pipe
a. Connect the vent pipe to the vent through the ceiling with the pipe union.
b. Continue installation with Step 6 on Page 15.

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
14 4/6/2007
Installation Instructions continued . . .
Operating Rod
(S14-007, Std. Ht.)
(S14-007A, Juv. Ht.)
Gasket
(125-011, Terrazzo)
(125-008, Stainless Steel)
Support Tube
(S57-005, 54")
(S57-006, 36") Sprayhead
(S05-054)
Soap
Dispenser
Soap Dispenser Lid
Cap Screw
(160-108)
TYPE "B" DRAIN
TYPE "H" DRAIN
Supplies 1/2" Nom.
Copper Tubing
Tie Bar Location
For Unit With Soap
(159-020)
Spacer
(113-155A)
PARTS SHOWN IN
BOX ARE FOR
UNITS WITH SOAP
DISPENSER.
Tie Bar Loation For
Unit Without Soap (159-020)
Sprayhead Supply
Pipe (3/8")
(See Figure 10 on page 15
for valving assembly)
1-1/2" Vent Pipe
HOT COLD
Vented Trap
(111-024)
(Supplies from below)
Figure 9

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 154/6/2007
Installation Instructions continued . . .
Step 6: Installing the Valve Assembly
NOTE: Flush supply lines before making connections.
1. Connect the stop-strainer-check valves, mixing valve, volume control valve, and foot valve as
shown in Figure 10.
2. For overhead supply lines, install 1/2"nominal copper supply tubing by passing the lines through
the holes in the dispenser cover and then down through the support tube.
3. Install the valving assembly using suitable fittings to the supplies as shown in Figure 10 at the
approximate height indicated in Table 2.
4. Slide the tailpiece nut over the tailpiece and connect the tailpiece to the supply pipe (or to the
nipple/coupling for B or H drain).
Operating Lever
Coupling
(169-174)
Nut
(110-005)
Tailpiece
(129-009)
Nipple
STD: 2" Long (113-852)
JUV: Close (113-006AL)
Tailpiece Washer
(124-001AF)
Used on "B"
and "H" models only
To Supply Pipe
Foot Valve
(S07-066)
OPTIONAL Vernatherm™
Thermostatic
Mixing Valve
(S01-525)
(Units are supplied with
Manual Mixing Valve as
standard equipment)
Stop-Strainer-Check
Valve
(S60-003)
Washer
(124-001AF)
Nut
(110-005)
Tailpiece
(129-007)
Manual Mixing
Valve
(S01-038)
Valve Assembly
Distance (dimension)
finished floor - see
Table 2
Figure 10
Model Number Type A Type B Type H Type O
Standard Height 9" (229mm) 6-3/16" (157mm) 6-3/16" (157mm) 9" (229mm)
Juvenile Height 5-1/4" (133mm) 3-7/16" (87mm) 3-7/16" (87mm) 5-1/4" (133mm)
Table 2 — Distance to Finished Floor

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
16 4/6/2007
Installation Instructions continued . . .
Figure 12
Figure 11
Step 7: Installing the Operating Rod
1. Insert the operating rod in the operating rod lever and then into the foot lever (see Figure 11).
NOTE: For normal operation, use the operating rod as shipped. The spring loaded cartridge should
be adjusted so there is no play in the operating lever. Care must be taken to insure that a snug fit is
achieved without activating the foot valve or water will leak from the sprayhead (see Figure 11).
2. When movement of the operating rod is insufficient to open the foot valve, disassemble the rod
and remove the spacer and override spring. Reassemble the operating rod as shown in Figure 12.
Reinstall and adjust so that the foot valve is completely open when the foot lever is fully
depressed. This prevents damage to the foot valve due to the absence of the override spring.
3. Turn supplies on and activate the sprayhead. Check piping installation for leaks.
4. Clean the sprayhead if necessary. See page 22 for sprayhead troubleshooting. Adjust the volume
control valve, if necessary, to control the flow of water.

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 174/6/2007
Soap Recommendations and Maintenance Tips
Quality soap dispensers require good quality soap and periodic maintenance to properly operate. Bradley
soap dispensers will provide dependable, consistent operation over the long term when soap with
reasonable viscosity and pH levels are used and when a minimal amount of periodic maintenance is
performed on the valves.
Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps
(centerpoise) and 2500 cps for all Bradley soap dispensers. Thinner soaps are perceived by the users as
being “watered down” so users tend to take more than they need, resulting in waste. Thick soaps flow
slower and inhibit the “flushing” action of the valves, which allows the soap to congeal in the valve and
cause clogs.
The pH (acid) level of the soap should be in the range of 6.5 to 8.5. More acidic soaps (pH levels lower
than 6.5) will corrode metal parts (even stainless steel!!) and degrade rubber and plastic components. They
will also cause skin irritation. Most inexpensive soaps (typically the pink lotion type) fall into this acidic
category and will eventually cause valve failure and metal corrosion. Base soaps (pH levels higher than
8.5) will cause swelling or degradation of rubber and plastic parts and skin irritation.
Generally, any quality soap meeting the viscosity and pH guidelines above will work well with Bradley
soap dispensers. PCMX or Isapropanol based antibacterial soaps (within viscosity and pH limits) will also
work with Bradley dispensers. Soaps satisfying these basic guidelines will provide consistent flow and
reduce clogs.
Most soap dispenser problems are caused by soap that is too thick or corrosive, or by a lack of maintenance.
Many soaps come in concentrate form which must be diluted with water. Often, the soap is improperly
diluted or used straight out of the bottle, which causes clogging and valve failure. If proper soap is being
used, valves that have never been cleaned are usually the source of dispensing problems. Bradley has
entered into an agreement with Champion Brand Products to provide additional customer service for
purchasers of our dispensers regarding soap issues. They are very helpful and can get to the bottom of
almost any soap dispenser-related problem. They also sell an excellent “Bradley approved” soap. Please
see Bradley Instruction sheet 215-1286 for soap valve cleaning details and Champion Brand Products
contact information.
Check Valve Troubleshooting
If water just dribbles or does not flow from sprayhead:
1. Turn off water supplies to fixture.
2 Inspect check valves for proper installation. See Stop, Strainer and Check Valve on page 19.
3. Open the stops and clean the strainers, if necessary.
If water sprayhead delivers all hot or cold water:
1. Turn off water supplies to fixture.
2. Inspect check valves for proper installation.
3. Open the stops and clean the strainers, if necessary.
4. Inspect mixing valve for proper installation (see Vernatherm valve on page 24).

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
18 4/6/2007
Soap Valve - Liquid - S09-007S
This valve delivers a measured
amount of soap with each
upward stroke. The soap
dispenser has been standard on
washfountains since 1983 and
is not well-suited for very thick
lotion soaps.
NOTE: Lotion soap will clog
liquid soap valves. Use only
lotion soap valves with lotion
soap.
Soap Valve - Lotion - S09-057S
Soap Valve - Powdered - S09-010A
NOTE: Reducer plugs are available for use with fine granulated soap to
reduce the flow.
NOTE: Valves can be changed from powdered to liquid by plugging the
innermost, or “bearing” hole with rubber plug, part number 125-001AK.
To change from liquid to powdered, the plug must be removed. If none is
present, it will be necessary to drill out the bearing hole with a 1/2" or
5/8" drill. The plastic container configuration forms a natural template
for locating the bearing hole.
1 118-025 Valve Body 1
2 110-007 Packing Nut 1
3 135-001L Spring 1
4 125-001BU Washer 1
5 119-028 Plunger 1
* 161-014 Nut 1
* 124-001D Washer 2
* 142-002AH Washer - Stainless Steel 1
Attaching
Parts
S09-007S
Item Part No. Description Qty
Parts List * Not Illustrated
1 124-001D Washer — 1
2 110-057 Nut — 1
3 125-001AN Stopper — 1
4 159-114 Reinforcing Plate — 1
5 124-001AT Washer — 1
6 160-176 Screw — 1
7 S09-040 Valve 1 1
8 S53-045 Adaptor 1 1
Valve Attaching
Assembly Parts
S09-057 S09-057S
Item Part No. Description Qty
Parts List
1 160-069 1 Screw, 1/4-20 RD
2 142-002X 1 Washer, 1/4 Split-Lock
3 S62-002 1 Agitator / Slide Assy.
4 192-004 1 Lever - Powdered Soap
Item Part No. Qty Description
Parts List

Classic Circular 36"/54" Washfountain with Foot Control
Installation Instructions WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel
Bradley Corporation • 215-603 Rev. M; EN 06-915B 194/6/2007
Stop, Strainer and Check Valve
1/2" NPT
Strainer
Check
Stop
1/2" NPT
6
8
2
3
45
7
9
10
6
5
11
1
2
3
4
1
1 118-039 1 Valve Body - Brass
1 118-039A 1 Valve Body - Plated
2 160-131 1 Set Screw
3 S21-014 1 Stop Assembly - Celcon
3 S21-026 1 Stop Assembly - Brass
*4 156-006 1 Strainer
*5 124-001BV 2 Fiber Washer
*6 153-068 2 Plug - Brass
7 129-007 1 Tail Piece - Brass
7 129-007A 1 Tail Piece - Plated
8 110-005 1 Tail Piece Nut - Brass
8 110-005A 1 Tail Piece Nut - Plated
*9 124-001AF 1 Tail Piece Washer
*10 135-001AB 1 Spring
*11 S21-015 1 Check Assembly
Item Part No. Qty Description

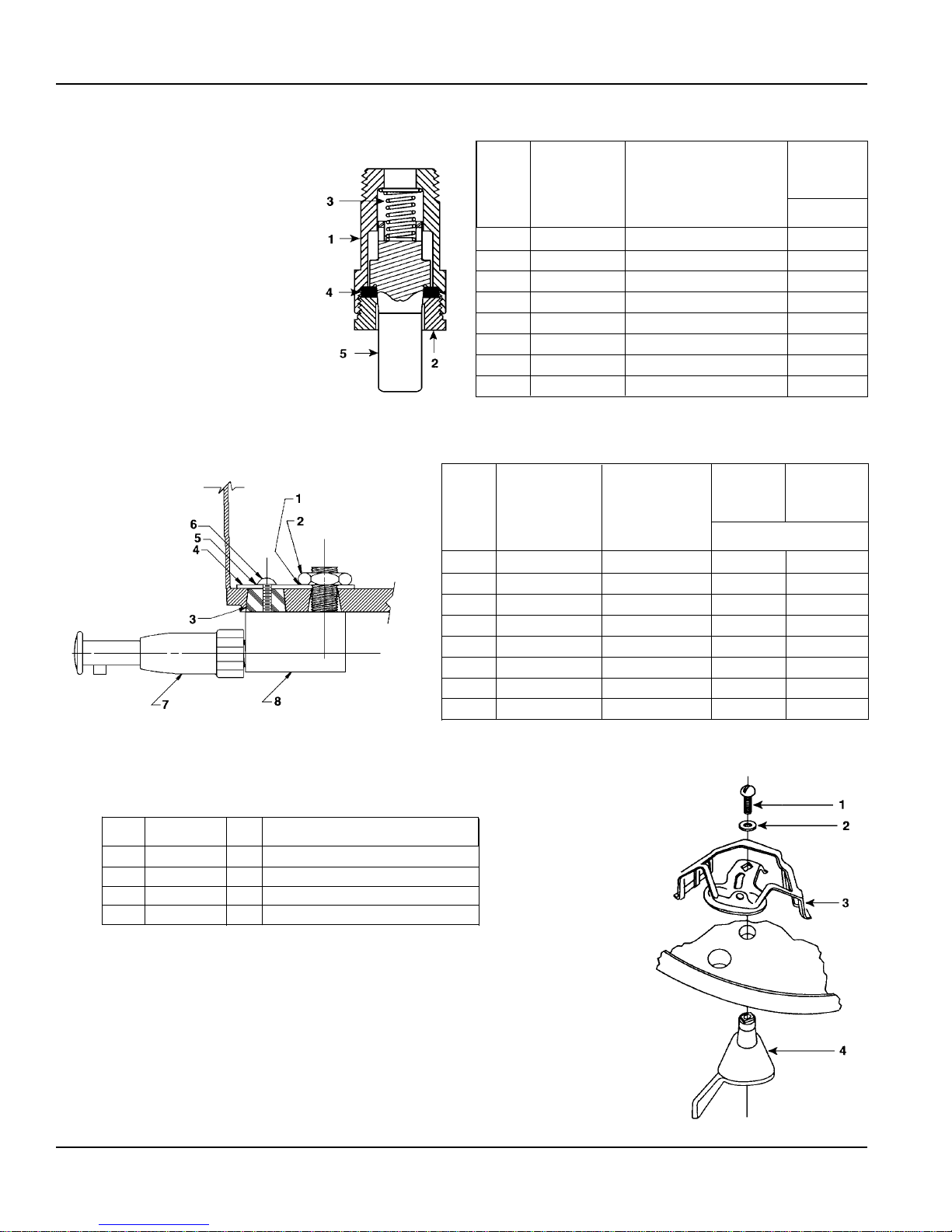

Parts List S60-003 Stop, Strainer and Check Valve
1 119-057 1 Valve Core
*2 125-001AW 1 “O” Ring
*3 125-001L 1 Bibb Washer
4 160-164 1 Screw
Item Part No. Qty Description
Parts List Stop Assembly S21-014
Standard Celcon Core
1 119-091 1 Plunger
2 125-001BB 1 Washer
Item Part No. Qty Description
Parts List Check Assembly S21-015*
1
2
* S45-050 Repair Kit Includes these parts

Classic Circular 36"/54" Washfountain with Foot Control
WF2605, WF2608 Terrazzo — WF2705, WF2708 Stainless Steel Installation Instructions
Bradley Corporation • 215-603 Rev. M; EN 06-915B
20 4/6/2007
Sprayhead Troubleshooting and Repair Parts
Problem: Water splashes over the rim of the bowl.
Cause: Foreign matter has reduced the size of the sprayhead slots, causing greater pressure at the
open slots.
Solution: Clean the sprayhead:
1. Disassemble the sprayhead and dislodge any dirt, lime build-up and foreign debris with a wire
brush.
2. Sprayheads with rubber grommet spray rings may be cleaned by rubbing a coin over the grommet.
3. Throttle down the volume control (water spray should strike the bowl without splashing outside
of the bowl).
Problem: Water flow diminishes from the sprayhead.
Cause: Strainer portion of the stop-strainer-check valve is plugged.
Solution: Remove and clean the strainer screen from the stop-strainer-check valve.
NOTE: The sprayhead shown below includes a perforated rubber spray ring grommet that is self-
cleaning. The water pressure flexes the spray holes which slows accumulation of foreign matter and
tends to “break loose” any such deposits that may have accumulated.

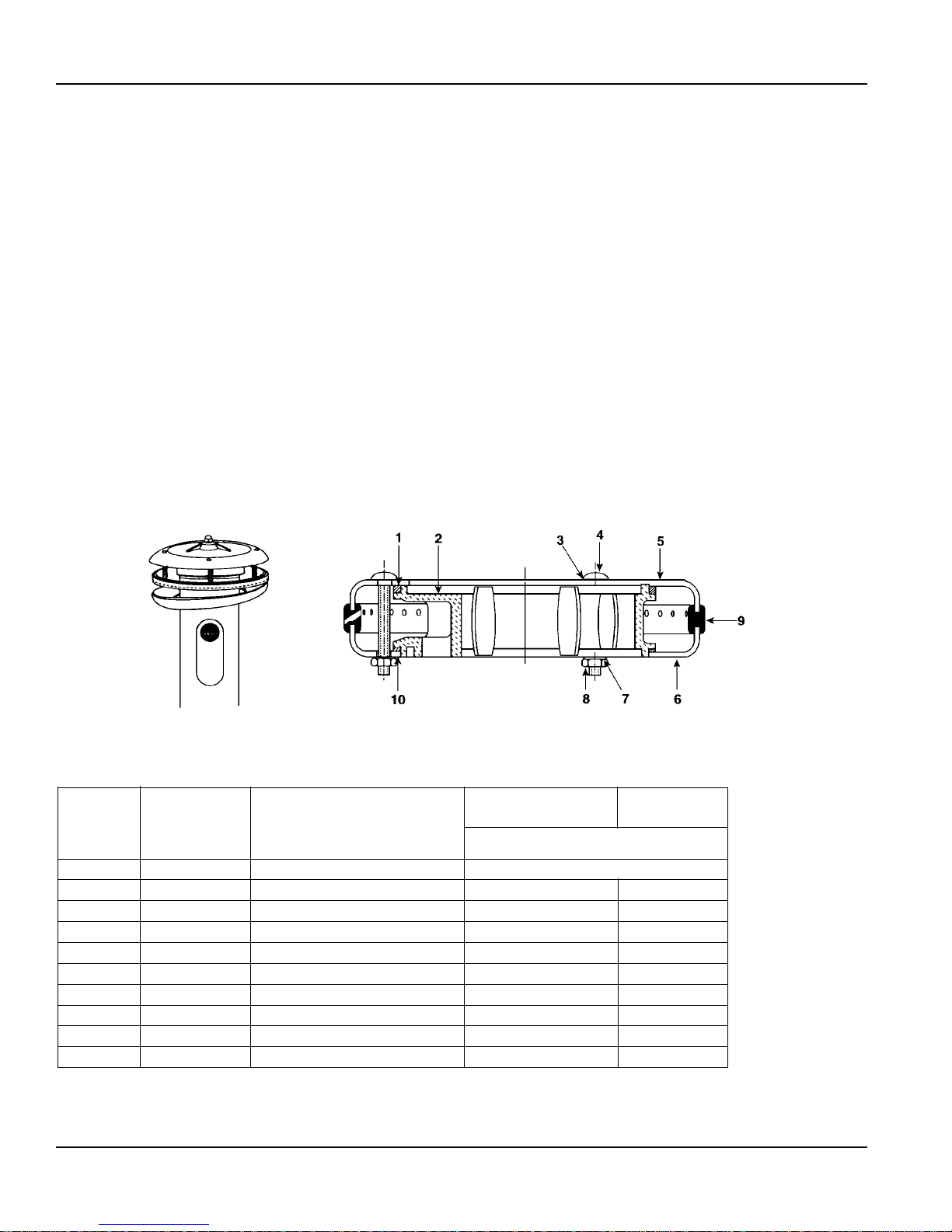

1 125-001DE Neoprene Washer-Top 1 1
2 139-031 Sprayhead Manifold 1 —
3 124-001AL Washer 3 4
4 160-211 Carriage Bolt 3 4
5 115-061 Sprayhead Top 1 —
6 116-008 Sprayhead Bottom 1 —
7 124-001AT Washer 3 4
8 161-025 Nut 3 4
9 124-020C Sprayhead Grommet - Circle 1 —
10 125-001DF Neoprene Washer-Bottom 1 1
Sprayhead Assembly Repair Kit
S05-054 S45-051
Item Part No. Description Qty
Parts List
