Brady BMP71 User manual

One smart printer to print it all

1
www.bradyeurope.com
Content
BMP™71 Label Printer & Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
High Performance Industrial Identification / Safety Identification . . . . . . . 10
General and Industrial Identification Labels . . . . . . . . . . . . . . . . . . . . . . 11
Wire And Cable Marking ...................................16
Electrical Component Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Datacom Labels .........................................23
Circuit Board and Component Identification Labels . . . . . . . . . . . . . . . . . 27
Security Identification Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Laboratory Identification Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Brady products are sold on the condition that the purchaser will test them in actual use and determine for
himself/herself their suitability to his/her intended purpose Brady warrants to the purchaser that Brady
products are free from defects in material and workmanship but limits its obligation under this warranty
to the replacement of the product which has been shown to Brady’s satisfaction to have been defective
at the time of its purchase.
The warranty does not extend to any persons who have acquired the product from the purchaser. It is
in lieu of any other warranty, including every warranty of sale-ability, marketability or suitability for the
intended purpose, and is also in lieu of any other obligation or liability on the part of Brady.
Under no circumstances will Brady be liable for losses, damage, costs or subsequent damage of whatever
nature which may arise in connection with the use of, or inability to use, Brady’s products.

www.bradyeurope.com 2
The BMP71 mobile label printer can print on more than 30 different types of
label material – all designed with Brady’s industrial-strength durability.
Whether you need heat shrink sleeves, die-cut labels or indoor/outdoor vinyl,
you can be confident that the BMP71 printer has the right label material for
your application.
Speed up your labelling
The powerful BMP71 prints faster than any other printer in it’s class (38 mm/sec). Don’t wait longer than necessary
for your labels.
The full keyboard lets you type labels in less time
The BMP71 has a full keyboard, available in 4 different versions: QWERTY, AZERTY, QWERTZ and CYRILLIC.
Use both your hands to type your label instead of one finger and save time!
The enlarged full colour screen makes your label printing so much easier
The enlarged screen of the BMP71 enables to see the whole label at once, helping you to compose the label in the
most efficient way, eliminating trial and error!
One smart printer to print it all
The BMP71 is your essential tool that handles all your label printing needs.
Order Reference Description
BMP71-QWERTY-UK Printer, Hard Carry Case, 2 Label Rolls, 1 Black Ribbon Cartridge,
Rechargeable Battery Pack, AC Adaptor, USB Communications Cable,
TLS2200® / HandiMark™ Material Roll Adaptor, Quick Start Guide,
Product CD (w/ Printer Driver, Tutorials, Full User’s Guide), Cleaning Kit
BMP71-QWERTY-EU As above but with European Power Supply
BMP71-AZERTY-EU As above but with AZERTY Keyboard and European Power Supply
BMP71-QWERTZ-EU As above but with QWERTZ Keyboard and European Power Supply
BMP71-CYRILLIC-EU As above but with CYRILLIC Keyboard and European Power Supply
M71-AC-EU BMP71 European AC
M71-AC-UK BMP71 UK AC
M71-QC-EU BMP71 European Quick Charger
M71-QC-UK BMP 71 UK Quick Charger
M71-HC BMP71 Hard Carry Case
M71-SC BMP 71 Soft Carry Case
M71-AC-BC BMP71 AC/BATTERY CHARGER
M71-BATT BMP71 SPARE BATTERY
M71-CLEAN BMP71 CLEANING KIT
M71-ADAPT BMP71 ROLL ADAPTER FOR TLS/HM
BMP™71 Label Printer

3
www.bradyeurope.com
Features – Printing Options
Printer
• Large full colour graphic LCD screen
• Display communicates important status information:
• Installed label part
• Label size and colour
• Amount of material remaining
• Remaining battery charge
• Label and area status
• Current font size and rotation
• Thermal transfer printing mechanism - 300 dpi
• High print speed of 38 mm/sec
• Weight : 2.5kg (w/battery)
• Handle to easily carry the printer anywhere you need it
• Built in industrial label cutter
• Print width 46 mm - Print length up to 1016 mm
• Stand alone or PC connectivity via USB
• Durable hard carry case
• Operating temperature range: 4° to 49°C
Labels
• The pre-defined application templates and wizards save
time and make it easy to print the exact label you need
• Adjustable to six different widths of labels
• Can print up to 25 lines per label
• Batch label printing or print multiple copies of one label
• Ability to serialise data
• Prints mirror image
• Built-in Smart Cell Technology in labels and ribbons
Memory
• Ability to store, retrieve and delete label files
• Save over 100,000 labels!
• Built in time/date stamp
Battery
• Prints 4000 labels per battery charge
(25, 40 to 50 mm labels)
• Rechargeable Battery and AC power/battery charger
• Sleep mode conserves battery power when printer
is not in use
• UL and CUL listed battery charger
Symbols & Barcodes
• Standard electrical and datacom symbols included
• Barcode symbologies: Code 39 and Code 128
• Over 500 built in graphics
Text
• Auto font sizing
• Custom True Type Font
• Text size 4 pt to 174pt (scaleable)
Label part number
Font size
Number of labels in
print file
Label size
Label rotation
Number of areas
on current label
Labels remaining
Battery charge remaining
Ribbon remaining
Pre-defined application templates
Prints all TLS2000® and Handimark™
label parts including bulk rolls.
Users interested in upgrading to
BMP™71 Printer, do not need to invest
in a new set of consumables.

www.bradyeurope.com 4
Software
Easy way to create labels on your PC
with LabelMark™ Labelling Software
Brady’s LabelMark™ software lets you easily create
labels for Asset ID, Component Marking, Telecom/
Datacom Labelling, Wire Markers and more.
It allows users to design, edit and print their Brady
labels. Integrates completely with Microsoft®
Office, AutoCAD® applications and more.
Enhance your labels with advanced
graphics and symbols with
MarkWare™ software
With Brady’s MarkWare™ software you can
combine text with graphics, symbols and
barcodes. Labels can be used as visual tools
throughout your facility. For lean enterprises,
Brady’s MarkWare™ software provides
additional graphics and templates for Signs,
Labels, Pipe Markers and Tags - perfect for
5S, TPM and lean visuals.
Quick & Easy Label Design
• Includes label template designs. The size of the template
adjusts automatically to the size of the installed material,
regardless of width
• Over 600 standardised symbols available
• Ability to import drawings, signs and diagrams
• Supports European CLP Hazardous Substances
Identification labels containing GHS and ADR graphics
• Creation of pipe markers guaranteeing compliance based
on your choice of national standard
• 5 Barcode protocols and 19 languages
Label Editing
• Advanced functions allow quick label creation
(“align objects”, “group objects”, foreground/
background, zoom, rotation…)
• Employs all the basic functions of Windows®
applications (copy/paste within the application
print preview, etc …).
Label Printing
• Windows®-compatible print driver included
• Windows® print driver adds the Brady printer
to your printer list. This authorises printing
directly from other software such as drawing
and other widely used creative programs
Easy to Use Graphical Interface Label Design
• Option for line-edit or free-form mode for label design
• Several common barcode symbologies available
• Ability to import graphical images
• Data import support including spreadsheets, ASCII, ODBC and OLE DB
Label Editing
• Easy to use single screen editing
• Multiple document interface for working with different labels at the same time
• Ability to flip/flop data on label (i.e. flip/flop “to”/“from” order)
Label Printing
• Compatible with all Brady media, stock and custom formats
• Works with a variety of different printers to suit various applications

5
www.bradyeurope.com
Applications
Patch Panel ID
Terminal Block
Markers
Face Plate ID
Wire & Cable
Self-Laminating Labels
Wire & Cable
Wrap Around Labels
Wire & Cable Sleeves
Tag Printing
Electrical Panel ID
Desi-Strip Inserts Flag Labels

www.bradyeurope.com 6
Applications
Logistics Labelling Pipe Marking
Asset ID
Circuit Board &
Component Labelling
Industrial
Barcode Labelling Security ID
Laboratory ID Information Signs
Safety Identification

7
www.bradyeurope.com
Materials and Ribbons Cross Reference Chart
Material
Number
Material
Description
Colour Finish Min./Max.
Service
Temperature
Application Special Properties Agency
Approvals/
Compliance
Recommended
Ribbons
Nylon Cloth
B-499 Nylon Cloth with permanent
acrylic pressure sensitive
adhesive
White Matt -70° to 90°C
30 days
Low profile through-conduit wire
marking, component and general
labelling
High adhesion makes all-purpose wire
marker ideal for environments where
heat, oil and dirt are present
M71-R4300
Paper
B-424 General Purpose Paper with
permanent latex adhesive
White Matt -40° to 50°C
30 days
Barcode and general labelling Good contrast and smear resistance
M71-R4300
Polyester
B-422 Polyester with permanent
acrylic adhesive
White Gloss -40° C to 100°C
30 days
Electronic PCB ID and component,
barcode label and rating plate,
outlet and patch panel ID
2 mil adhesive recommended for
application on textured surfaces
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-423 Polyester with permanent
acrylic adhesive
White Gloss -40°C to 120°C
30 days
Electronic PCB ID and component,
barcode label, rating plates and
outlets
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-428 Metallised polyester with
permanent acrylic adhesive
Silver Matt -40°C to 120°C
30 days
Rating plates, electronic
component marking
M71-R4300
B-430 Clear polyester with
permanent acrylic adhesive
Clear Gloss -70°C to 100°C
30 days
General labelling rating/name
plates, outlet and general
communications
High adhesion make it ideal for highly
textured and other surfaces that are
difficult to adhere to; Translucent
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-459 Polyester with permanent
acrylic adhesive
White Matt -40°C to 110°C
30 days
Electronic PCB ID and component,
barcode labelling and rating plates
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-461 Self-laminating polyester with
permanent acrylic adhesive
White/
Translucent
Matt -196°C to 130°C
30 days
Laboratory ID Excellent abrasion and smudge
resistance
M71-R4300
M71-R6200
B-473 Polyester with static
dissipative permanent
acrylic adhesive
White Gloss -40°C to 120°C
30 days
Electronic PCB ID and component,
barcode labelling and rating plates
Static dissipative adhesive and liner
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-483 Polyester with permanent
rubber adhesive
White Gloss -40°C to 120°C
30 days
General labelling; barcode label
and rating plates
Ultra-aggressive adhesive for thermal
transfer printing, designed for powder
coated surfaces
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-486 Polyester with permanent
rubber adhesive
Silver Matt -40°C to 120°C
30 days
General labelling; barcode label
and rating plates
Metallised polyester with ultra-aggresive
adhesive for oily, greasy and powder-
coated surfaces
M71-R4300
B-488 Polyester with permanent
acrylic adhesive
White Matt -40°C to 160°C
30 days
Electronic PCB and component;
barcode label and rating plates
High performance matt white M71-R4300
M71-R6200
B-489 Polyester with permanent
rubber adhesive
White Matt -40°C to 120°C
30 days
General labelling, barcode
labelling and rating plates
Ultra-aggresive adhesive for oily, greasy
and powder coated surfaces; UL/CSA
approval pending
M71-R6200
B-582 BradyGlo™ Polyester with
acrylic adhesive
Phosphorescent
Gloss -40°C to 80°C Photoluminescent safety
identification
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-7593 EPREP: polyester tag on foam
carrier with permanent acrylic
adhesive
White, Yellow,
Red, Green,
Silver, Black
Gloss -40°C to 100°C
30 days
Electrical components, switches,
push buttons, rack and patch
panels
650 µm thick material with foam tape to
replace engraved name plates; colour
match available on demand
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
Polyethylene
B-109 Polyethylene tag White Matt -40°C to 80°C
30 days
Multi-purpose identification tag,
where durability is required
Cross-laminated polyethylene provides
extreme tear resistance and excellent
cold-weather performance
M71-R4300
B-145 Polyethylene tag Grey Matt -40°C to 100°C
30 days
Power and ground labels Tear-resistant 2-sided printable tag M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-145FR Flame retardant rigid
polyethylene tag
Grey Matt -40°C to 100°C
30 days
Power and ground labels Tear-resistant 2-sided printable tag M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-7599 Polyethylene tag White Matt -40°C to 50°C
30 days
Multi-purpose identification tag 250 µm polyethylene tag M71-R6200
Polymide
B-426 Polymide with permanent
acrylic adhesive
Amber Matt -70°C to 330°C
80 sec.
Underside PCB and other high
temperature, high performance
applications
Withstands extremely high
temperatures
M71-R4300
B-477 Polymide with static
dissipative permanent
acrylic adhesive
White Gloss -70°C to 300°C
80 sec.
Top- or bottom-side board
application for SMT or
Through hole
Static dissipative adhesive and liner
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-478 Polymide with static
dissipative permanent
acrylic adhesive
White Gloss -70°C to 300°C
80 sec.
1 mil low profile top- or bottom-
side board application for SMT or
Through hole
Static dissipative adhesive and liner
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
*R-6900 ribbon comes in red, green, magenta, yellow and blue
These materials have
static dissipative adhesives
These materials are
CSA approved.
These materials are
UL recognised
Halogen-Free
(DIN VDE 0472/parts 815)

www.bradyeurope.com 8
Materials and Ribbons Cross Reference Chart
Material
Number
Material
Description
Colour Finish Min./Max.
Service
Temperature
Application Special Properties Agency
Approvals/
Compliance
Recommended
Ribbons
Polyolefin
B-341 PermaSleeve™ heat shrink
polyolefin sleeves
White, Yellow Matt -40°C to 130°C
1000 hours
Wire marking 2-to-1 shrink ratio, self-extinguishing,
meets the material and physical property
of AMS-DTL-23053/5 Class 1,
SAE AS-81531, MIL-STD-202,
Method 215 and UL 224
M71-R4300
B-342 PermaSleeve™ heat shrink
polyolefin sleeves
White, Yellow Matt -55°C to 130°C
1000 hours
Wire marking 3-to-1 shrink ratio, self-extinguishing,
meets the material and physical property
of AMS-DTL-23053/5 Class 1,
SAE AS-81531, MIL-STD-202,
Method 215 and UL 224
M71-R4300
Polypropylene
B-412 Polypropylene tag White Matt -40°C to 100°C
30 days
Wire, cable and product inventory
information
Designed where tensile strength is
needed
M71-R6200
B-425 Polypropylene with acrylic
adhesive
White Matt -40°C to 100°C
30 days
Cable and wire markers,
P- and T-labels
Excellent abrasion and smudge
resistance
M71-R4300
B-529 Economy polypropylene with
acrylic adhesive
Whit Gloss -40°C to 100°C Low-cost choice for indoor use M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
Tedlar®
B-437 Tedlar® with permanent
acrylic adhesive
White, Yellow Matt -70°C to 135°C
30 days
Aerospace and military cable
marking
Self-extinguishing M71-R4300
B-642 Tedlar® with permanent
acrylic adhesive
White Matt -70°C to 120°C
30 days
Self-laminating, wire and cable
marking
Self-extinguishng, low smoke and flame
spread, excellent abrasion and smudge
resistance
M71-R4300
Thermoplastic Polyether-polyurethane (PUR)
B-7643 Thermoplastic polyether
polyurethane tag
White, Yellow Matt -40°C to 90°C
30 days
Wire & cable marking Zero halogen, more colours available
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
Vinyl
B-352 Vinyl with permanent acrylic
adhesive
Silver Matt -40°C to 80°C
30 days
Tamper-resistant labels for
security ID; asset ID
Metallised vinyl, designed to fracture
easily
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-427 Self-laminating vinyl with
permanent acrylic adhesive
White Matt -70°C to 70°C
30 days
Self-laminating wire and cable
marking
Excellent abrasion and smudge
resistance
M71-R4300
B-530 Tamper evident vinyl with
acrylic adhesive
White Gloss -40°C to 90°C Tamper-resistant labels for
security ID; asset ID
Designed to fracture easily M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-580 High Performance vinyl with
permanent acrylic adhesive
Red, Yellow,
Blue, Green,
White,
Orange, Grey,
Black, Brown,
Purple, Clear,
Gold, Ochre,
Sky Blue,
Light Blue,
Pink, Tan
Gloss -40°C to 82°C Safety identification, pipe marking 5-year average outdoor durability
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-584 Reflective vinyl with acrylic
adhesive
White, Yellow,
Orange
Gloss -40°C to 82°C Reflective quality makes material
ideal for use in low-light
conditions
5-year average outdoor durability
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-581 Repositionable vinyl with
acrylic adhesive
White, Yellow Gloss -40°C to 82°C Indoor labels where frequent
repositioning is required
M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
B-7696 Rigid vinyl tag,
Rigid Durasleeve
White Gloss -40° C to 70°C
30 days
Sleeves, inserts, tags, terminal
block markers
Rigid construction M71-R6000
M71-R4400-WT
M71-R6900 (colours*)
Vinyl Cloth
B-498 Vinyl cloth with repositionable
rubber based adhesive
White Semi-
gloss
-40°C to 82°C
30 days
Wire and electronic component
marking
Repositionable adhesive
M71-R6200
For more information on our materials or to help you choose,
visit www.bradyeurope.com
Tedlar® is a registered trademark of DuPont
*R-6900 ribbon comes in red, green, magenta, yellow and blue
Brady has hundreds of RoHS compliant materials
for you to choose from and we are committed to
provide you with the latest information. Simply
go to www.weeerohs.bradyeurope.com for the
latest up-date.
These materials have
static dissipative adhesives
These materials are
CSA approved.
These materials are
UL recognised
Halogen-Free
(DIN VDE 0472/parts 815)

9
www.bradyeurope.com
Ribbons
Ribbons
Order Reference Colour Ribbon
Width (mm)
Ribbon
Length (m) Special property
M71-R4300 Black 50.80 46 Strong environmental resistance against smearing and chemicals. Reliable, sharp-edge print quality to
maximize bar code readability.
M71-R4400-WT White 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6000 Black 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6200 Black 50.80 46 Designed for harsh environment labeling applications. Superior abrasion, chemical and heat resistance.
M71-R6400 Black 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6800-WT White 50.80 46 Strong environmental resistance against smearing and chemicals. Reliable, sharp-edge print quality to
maximize bar code readability.
M71-R6900-BL Blue 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-GN Green 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-MA Magenta 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-RD Red 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
M71-R6900-YL Yellow 50.80 46 High density ribbon with excellent solvent resistance, high heat resistance, and super scratch resistance.
Bulk Packaging
Bulk labels are designed for the BMP™71 Label Printer as a cost-effective solution for high volume labelling needs.
Order references beginning with “B” indicate bulk rolls.

www.bradyeurope.com 10
High Performance Industrial Identification / Safety Identification
Diagram Order Reference Width A (mm) Length B (m) Colour
M71C-500-580-WT 12.70 15.24 White
M71C-500-580-YL 12.70 15.24 Yellow
M71C-500-580-GN 12.70 15.24 Green
M71C-500-580-RD 12.70 15.24 Red
M71C-500-580-BL 12.70 15.24 Blue
M71C-500-580-LB 12.70 15.24 Light Blue
M71C-500-580-SB 12.70 15.24 Sky Blue
M71C-500-580-OR 12.70 15.24 Orange
M71C-500-580-BK 12.70 15.24 Black
M71C-500-580-GY 12.70 15.24 Grey
M71C-500-580-BR 12.70 15.24 Brown
M71C-500-580-GD 12.70 15.24 Gold
M71C-500-580-OC 12.70 15.24 Ochre
M71C-500-580-PL 12.70 15.24 Purple
M71C-500-580-PK 12.70 15.24 Pink
M71C-500-580-TN 12.70 15.24 Tan
M71C-500-580-CL 12.70 15.24 Clear
M71C-1000-580-WT 25.40 15.24 White
M71C-1000-580-YL 25.40 15.24 Yellow
M71C-1000-580-GN 25.40 15.24 Green
M71C-1000-580-RD 25.40 15.24 Red
M71C-1000-580-BL 25.40 15.24 Blue
M71C-1000-580-LB 25.40 15.24 Light Blue
M71C-1000-580-SB 25.40 15.24 Sky Blue
M71C-1000-580-OR 25.40 15.24 Orange
M71C-1000-580-BK 25.40 15.24 Black
M71C-1000-580-GY 25.40 15.24 Grey
M71C-1000-580-BR 25.40 15.24 Brown
M71C-1000-580-GD 25.40 15.24 Gold
M71C-1000-580-OC 25.40 15.24 Ochre
M71C-1000-580-PL 25.40 15.24 Purple
M71C-1000-580-PK 25.40 15.24 Pink
M71C-1000-580-TN 25.40 15.24 Tan
M71C-1000-580-CL 25.40 15.24 Clear
M71C-2000-580-WT 50.80 15.24 White
M71C-2000-580-YL 50.80 15.24 Yellow
M71C-2000-580-GN 50.80 15.24 Green
M71C-2000-580-RD 50.80 15.24 Red
M71C-2000-580-BL 50.80 15.24 Blue
M71C-2000-580-LB 50.80 15.24 Light Blue
M71C-2000-580-SB 50.80 15.24 Sky Blue
M71C-2000-580-OR 50.80 15.24 Orange
M71C-2000-580-BK 50.80 15.24 Black
M71C-2000-580-GY 50.80 15.24 Grey
M71C-2000-580-BR 50.80 15.24 Brown
M71C-2000-580-GD 50.80 15.24 Gold
M71C-2000-580-OC 50.80 15.24 Ochre
M71C-2000-580-PL 50.80 15.24 Purple
M71C-2000-580-PK 50.80 15.24 Pink
M71C-2000-580-TN 50.80 15.24 Tan
M71C-2000-580-CL 50.80 15.24 Clear
B-580 Indoor/Outdoor Vinyl:
• Brady’s indoor/outdoor grade vinyl tape adheres well to pipes, walls, equipment, windows – most clean, dry surfaces.
• Conforms well to irregular, curved or rough surfaces – it even stands up to grease, oil and most industrial chemicals.
• Five year average outdoor durability in temperatures from 82°C to -40°C, can be applied as low as -18°C.
Clear
Pink Tan
Black Grey Brown Gold
Ochre Purple
White Yellow Green Red
Blue Light Blue Sky Blue Orange
Order references with “C” (e.g. M71C) indicate continuous.

11
www.bradyeurope.com
General and Industrial Identification Labels

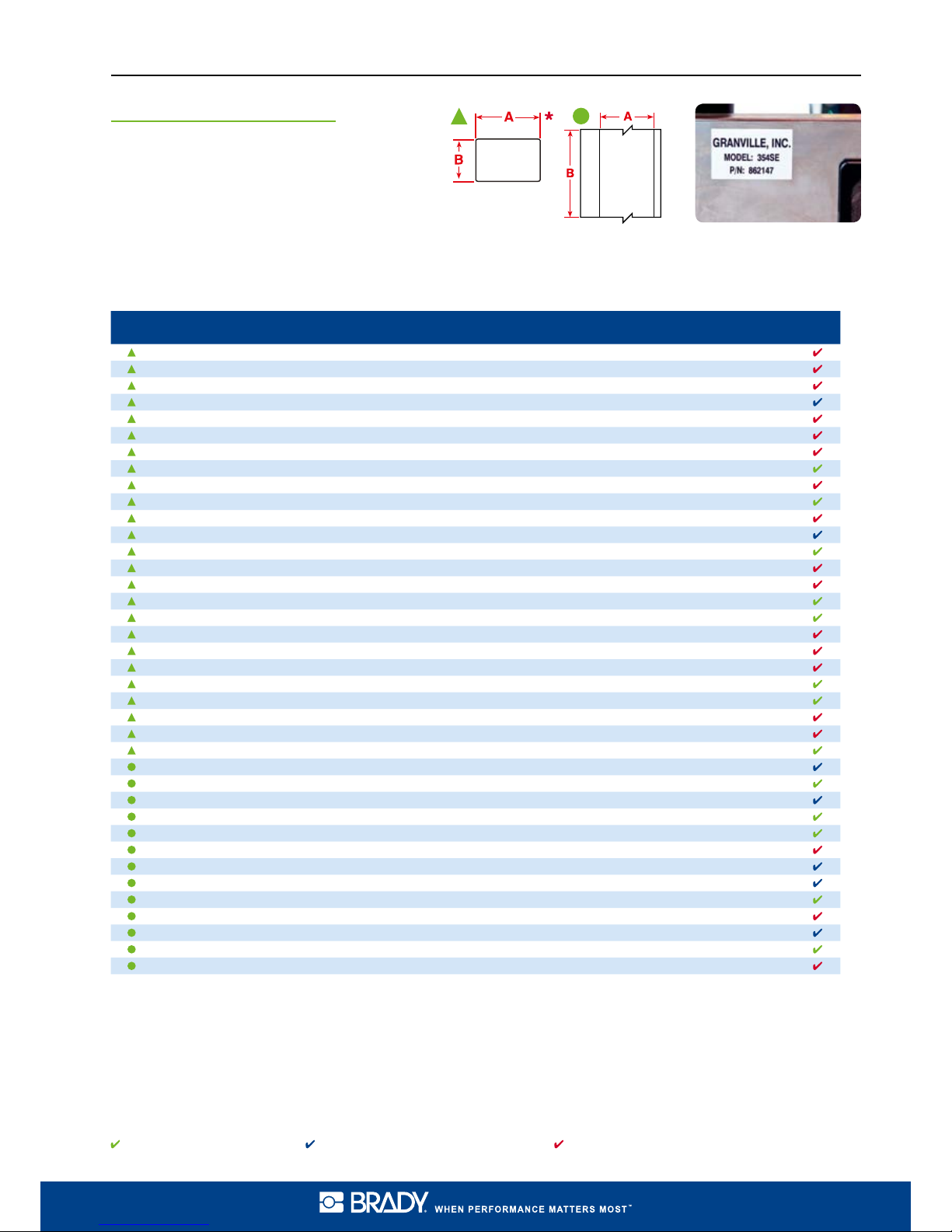

Diagram Order Reference Width A (mm) Length B (m) Colour
M71C-500-581-Yl 12.70 15.24 Yellow
M71C-500-581-WT 12.70 15.24 White
M71C-1000-581-YL 25.40 15.24 Yellow
M71C-1000-581-WT 25.40 15.24 White
M71C-2000-581-YL 50.80 15.24 Yellow
M71C-2000-581-WT 50.80 15.24 White
Repositionable Labels
• B-581 Repositionable Vinyl:
• Special adhesive allows easy removal of label to re-apply again and again.
• Best choice for indoor marking where frequent repositioning is required,
such as shelves.
Diagram Order Reference Width A (mm) Length B (m) Colour
M71C-500-584-Yl 12.70 15.24 Yellow
M71C-500-584-WT 12.70 15.24 White
M71C-1000-584-YL 25.40 15.24 Yellow
M71C-1000-584-WT 25.40 15.24 White
M71C-2000-584-YL 50.80 15.24 Yellow
M71C-2000-584-WT 50.80 15.24 White
Reflective Labels
• B-584 Reflective Vinyl:
• Ideal for reading labels in low light conditions.
For more information on our materials or to help you choose,
visit www.bradyeurope.com
Order references with “C” (e.g. M71C) indicate continuous.
Order references with “C” (e.g. M71C) indicate continuous.

www.bradyeurope.com 12
General and Industrial Identification Labels
Rating, Name Plate Labels
• B-422, B-423 Permanent Glossy Polyester
• B-424 General Purpose White Paper
• B-428 Permanent Metallised Polyester
• B-430 Permanent Clear Polyester
• B-483 Ultra-Aggresive Glossy Polyester
• B-486 Ultra-Aggresive Metallised Polyester
• B-489 Ultra-Aggresive Matt Polyester
• B-488 Matt Polyester
• B-499 Nylon Cloth
Diagram Order
Reference
Labels
Per Roll
Width
A (mm)
Height
B (mm)
Applications/
Descriptions
Max. Characters
per line
for 5 Points
Max. Lines
of Text
for 5 Points
Surface
Suitability
M71-16-483 500 25.40 9.53 Asset ID for textured surfaces 24 3
BM71-17-428 5000 25.40 12.70 General Purpose over-laminated ID 24 5
M71-17-428 500 25.40 12.70 General Purpose over-laminated ID 24 5
M71-17-483 500 25.40 12.70 Asset ID for textured surfaces 24 5
M71-17-486 500 25.40 12.70 Asset ID for oily, greasy and textured surfaces 24 5
M71-17-489 500 25.40 12.70 Asset ID for oily, greasy and textured surfaces 24 5
M71-19-423 250 25.40 25.40 Rating plate 24 10
BM71-19-423 2500 25.40 25.40 Rating plate 24 10
M71-19-483 250 25.40 25.40 Asset ID for textured surfaces 24 10
M71-20-424 100 50.80 25.40 General ID and Asset ID 46 10
BM71-20-424 1000 50.80 25.40 General ID and Asset ID 46 10
M71-20-428 100 50.80 25.40 Asset ID, silver finish 46 10
BM71-20-428 1000 50.80 25.40 Asset ID, silver finish 46 10
M71-20-483 100 50.80 25.40 Asset ID for textured surfaces 46 10
M71-20-486 100 50.80 25.40 Asset ID for oily, greasy and textured surfaces 46 10
M71-22-423 100 76.20 25.40 General ID 50 10
M71-22-428 100 76.20 25.40 Rating plate 50 10
M71-23-423 100 101.60 25.40 General ID 50 9
M71-23-483 100 101.60 25.40 Asset ID for textured surfaces 50 9
M71-24-423-BK 500 28.70 12.70 1.60 mm Black-bordered component ID 24 3
M71-26-423 100 69.85 31.75 General ID and Asset ID 50 13
M71-26-428 100 69.85 31.75 General ID and Asset ID 50 13
M71-29-428 500 38.10 12.70 Face plates, panels, equipment, silver finish 37 5
Material to Surface Cross Reference Guide
Brady material number (B-number)
Smooth
(Examples: Uncoated Metal,
Plastic, Glass)
Textured/Rough
(Examples: Textured ABS,
Cast Metal, Polycarbonate)
Highly Textured / Low Surface Energy
(Examples: Powder Coated,
Low Surface Energy ABS, Polypropylene
B-7351 B-352** B-422* B-432* YES YES NO
B-435* B-427** B-580
B-483* B-486* B-489* B-499* YES YES YES
B-423* B-424 B-428* B-430*
YES NO NO
B-459* B-473* B-488* B-7546*
B-7566 B-7576*
*Material UL recognised / CSA approved **Material UL recognised
*Any label 50.80 mm or larger is rotated on liner Order references beginning with “B” indicate bulk rolls. Continued on next page >>
Material suitable for smooth surfaces. Material suitable for smooth and textured surfaces. Material suitable for smooth, textured and highly textured surfaces.

13
www.bradyeurope.com
General and Industrial Identification Labels
Diagram Order
Reference
Labels
Per Roll
Width
A (mm)
Height
B (mm)
Applications/
Descriptions
Max. Characters
per line
for 5 Points
Max. Lines
of Text
for 5 Points
Surface
Suitability
M71-29-483 500 38.10 12.70 Asset ID for textured surfaces 37 5
M71-29-486 500 38.10 12.70 Asset ID for oily, greasy and textured surfaces 37 5
M71-29-489 500 38.10 12.70 Asset ID for oily, greasy and textured surfaces 37 5
M71-30-422 250 38.10 19.05 Asset ID for textured surfaces 37 8
M71-30-483 250 38.10 19.05 Asset ID for oily, greasy and textured surfaces 37 8
M71-30-486 250 38.10 19.05 Asset ID for oily, greasy and textured surfaces 37 8
M71-30-499 250 19.05 38.10 Asset ID for oily, greasy and textured surfaces 18 16
M71-31-423 250 38.10 25.40 General ID 37 10
M71-31-483 250 38.10 25.40 Asset ID for textured surfaces 37 10
M71-32-423 250 38.10 38.10 General ID 37 16
M71-32-489 250 38.10 38.10 Asset ID for oily, greasy and textured surfaces 37 16
M71-37-422 100 76.20 48.26 Asset ID for textured surfaces 50 20
M71-37-423 100 76.20 48.26 General ID and Asset ID 50 20
M71-37-483 100 76.20 48.26 Asset ID for oily, greasy and textured surfaces 50 20
M71-37-486 100 76.20 48.26 Asset ID for oily, greasy and textured surfaces 50 20
M71-38-423 100 101.60 48.26 General ID and Asset ID 50 20
M71-38-428 100 101.60 48.26 Asset ID, silver finish 50 20
M71-38-483 100 101.60 48.26 Asset ID for oily, greasy and textured surfaces 50 20
M71-38-489 100 101.60 48.26 Asset ID for oily, greasy and textured surfaces 50 20
M71-78-499 250 48.26 25.40 General ID 46 10
M71-80-488 250 19.05 22.86 Asset ID with print durability 18 10
M71-81-488 750 48.26 6.35 Asset ID with print durability 46 10
M71-81-499 750 48.26 6.35 General ID 46 10
M71-84-499 500 22.86 12.70 General ID 22 2
M71-97-488 250 22.86 22.86 Asset ID with print durability 18 9
M71C-375-422 1 (cont.) 9.53 15.24 m General ID 50 3
M71C-375-430 1 (cont.) 9.53 15.24 m General ID 50 3
M71C-475-422 1 (cont.) 12.07 15.24 m General ID 50 5
M71C-500-423 1 (cont.) 12.70 15.24 m Small ICs 50 5
M71C-500-428 1 (cont.) 12.70 15.24 m Small ICs, silver finish 50 5
M71C-500-483 1 (cont.) 12.70 15.24 m Small IC’s, silver finish 50 5
M71C-625-422 1 (cont.) 15.88 15.24 m General ID 50 6
M71C-1000-422 1 (cont.) 25.40 15.24 m General ID 50 10
M71C-1000-430 1 (cont.) 25.40 15.24 m General ID 50 5
M71C-1000-483 1 (cont.) 25.40 15.24 m General ID 50 10
M71C-1900-422 1 (cont.) 48.26 15.24 m General ID 50 10
M71C-1900-430 1 (cont.) 48.26 15.24 m General ID 50 10
M71C-1900-483 1 (cont.) 48.26 15.24 m General ID 50 10
Material suitable for smooth surfaces. Material suitable for smooth and textured surfaces. Material suitable for smooth, textured and highly textured surfaces.
Rating, Name Plate Labels (continued)
• B-422, B-423 Permanent Glossy Polyester
• B-428 Permanent Metallised Polyester
• B-430 Permanent Clear Polyester
• B-483 Ultra-Aggresive Glossy Polyester
• B-486 Ultra-Aggresive Metallised Polyester
• B-489 Ultra-Aggresive Matt Polyester
• B-488 Matt Polyester
• B-499 Nylon Cloth
*Any label 50.80 mm or larger is rotated on liner

www.bradyeurope.com 14
General and Industrial Identification Labels
Material suitable for smooth surfaces. Material suitable for smooth and textured surfaces. Material suitable for smooth, textured and highly textured surfaces.
Diagram Order
Reference
Labels
Per Roll
Colour Width
A (mm)
Height
B (mm)
Max. Characters
per line
for 7 points
Max. Lines
of Text
for 7 points
Surface
Suitability
M71-16-483 500 White 25.40 9.53 14 2
M71-17-483 500 White 25.40 12.70 10 2
M71-17-489 500 White 25.40 12.70 10 2
M71-19-483 250 White 25.40 25.40 14 7
M71-20-483 100 White 50.80 25.40 50 4
M71-23-483 100 White 101.60 25.40 38 4
M71-29-483 500 White 38.10 12.70 14 2
M71-29-489 500 White 38.10 12.70 14 2
M71-30-422 250 White 38.10 19.05 14 3
M71-30-483 250 White 38.10 19.05 14 3
M71-31-483 250 White 38.10 25.40 14 4
M71-32-489 250 White 38.10 38.10 14 4
M71-37-422 100 White 76.20 48.26 28 9
M71-37-483 100 White 76.20 48.26 28 9
M71-38-483 100 White 101.60 48.26 38 9
M71-38-489 100 White 101.60 48.26 39 9
M71C-375-422 1 (cont.) White 9.53 15.24 m 50 2
M71C-375-430 1 (cont.) Clear 9.53 15.24 m 50 2
M71C-475-422 1 (cont.) White 12.07 15.24 m 50 2
M71C-500-422 1 (cont.) White 12.07 15.24 m 50 2
M71C-500-483 1 (cont.) White 12.70 15.24 m 50 2
M71C-500-580-BK 1 (cont.) Black 12.70 15.24 m 50 2
M71C-500-580-BL 1 (cont.) Blue 12.70 15.24 m 50 2
M71C-500-580-BR 1 (cont.) Brown 12.70 15.24 m 50 2
M71C-500-580-CL 1 (cont.) Clear 12.70 15.24 m 50 2
M71C-500-580-GD 1 (cont.) Gold 12.70 15.24 m 50 2
M71C-500-580-GN 1 (cont.) Green 12.70 15.24 m 50 2
M71C-500-580-GY 1 (cont.) Grey 12.70 15.24 m 50 2
M71C-500-580-LB 1 (cont.) Light Blue 12.70 15.24 m 50 2
M71C-500-580-OC 1 (cont.) Ochre 12.70 15.24 m 50 2
M71C-500-580-OR 1 (cont.) Orange 12.70 15.24 m 50 2
M71C-500-580-PK 1 (cont.) Pink 12.70 15.24 m 50 2
M71C-500-580-PL 1 (cont.) Purple 12.70 15.24 m 50 2
M71C-500-580-RD 1 (cont.) Red 12.70 15.24 m 50 2
M71C-500-580-SB 1 (cont.) Sky Blue 12.70 15.24 m 50 2
M71C-500-580-TN 1 (cont.) Tan 12.70 15.24 m 50 2
M71C-500-580-WT 1 (cont.) White 12.70 15.24 m 50 2
M71C-500-580-YL 1 (cont.) Yellow 12.70 15.24 m 50 2
M71C-625-422 1 (cont.) White 15.88 15.24 m 50 3
M71C-1000-580-BK 1 (cont.) Black 25.40 15.24 m 50 5
M71C-1000-580-BL 1 (cont.) Blue 25.40 15.24 m 50 5
M71C-1000-580-BR 1 (cont.) Brown 25.40 15.24 m 50 5
M71C-1000-580-CL 1 (cont.) Clear 25.40 15.24 m 50 5
M71C-1000-580-GD 1 (cont.) Gold 25.40 15.24 m 50 5
M71C-1000-580-GN 1 (cont.) Green 25.40 15.24 m 50 5
M71C-1000-580-GY 1 (cont.) Grey 25.40 15.24 m 50 5
M71C-1000-580-LB 1 (cont.) Light Blue 25.40 15.24 m 50 5
General Industrial Labels
• B-422 Permanent Glossy Polyester
• B-430 Permanent Clear Polyester
• B-483 Ultra-Aggresive Glossy Polyester
• B-489 Ultra-Aggresive Matt Polyester
• B-580 Indoor/Outdoor Vinyl
*Any label 50.80 mm or larger is rotated on liner Continued on next page >>

15
www.bradyeurope.com
General and Industrial Identification Labels
General Industrial Labels (continued)
• B-422 Permanent Glossy Polyester
• B-430 Permanent Clear Polyester
• B-483 Ultra-Aggresive Glossy Polyester
• B-580 Indoor/Outdoor Vinyl
Material suitable for smooth surfaces. Material suitable for smooth and textured surfaces. Material suitable for smooth, textured and highly textured surfaces.
Diagram Order
Reference
Labels
Per Roll
Colour Width
A (mm)
Height
B (mm)
Max. Characters
per line
for 7 points
Max. Lines
of Text
for 7 points
Surface
Suitability
M71C-1000-580-OC 1 (cont.) Ochre 25.40 15.24 m 50 5
M71C-1000-580-OR 1 (cont.) Orange 25.40 15.24 m 50 5
M71C-1000-580-PK 1 (cont.) Pink 25.40 15.24 m 50 5
M71C-1000-580-PL 1 (cont.) Purple 25.40 15.24 m 50 5
M71C-1000-580-RD 1 (cont.) Red 25.40 15.24 m 50 5
M71C-1000-580-SB 1 (cont.) Sky Blue 25.40 15.24 m 50 5
M71C-1000-580-TN 1 (cont.) Tan 25.40 15.24 m 50 5
M71C-1000-580-WT 1 (cont.) White 25.40 15.24 m 50 5
M71C-1000-580-YL 1 (cont.) Yellow 25.40 15.24 m 50 5
M71C-1000-422 1 (cont.) White 25.40 15.24 m 50 5
M71C-1000-430 1 (cont.) Clear 25.40 15.24 m 50 5
M71C-1000-483 1 (cont.) White 25.40 15.24 m 50 5
M71C-1900-422 1 (cont.) White 48.26 15.24 m 50 9
M71C-1900-430 1 (cont.) Clear 48.26 15.24 m 50 9
M71C-1900-483 1 (cont.) White 48.26 15.24 m 50 9
M71C-2000-580-BK 1 (cont.) Black 50.80 15.24 m 50 8
M71C-2000-580-BL 1 (cont.) Blue 50.80 15.24 m 50 8
M71C-2000-580-BR 1 (cont.) Brown 50.80 15.24 m 50 8
M71C-2000-580-CL 1 (cont.) Clear 50.80 15.24 m 50 8
M71C-2000-580-GD 1 (cont.) Gold 50.80 15.24 m 50 8
M71C-2000-580-GN 1 (cont.) Green 50.80 15.24 m 50 8
M71C-2000-580-GY 1 (cont.) Grey 50.80 15.24 m 50 8
M71C-2000-580-LB 1 (cont.) Light Blue 50.80 15.24 m 50 8
M71C-2000-580-OC 1 (cont.) Ochre 50.80 15.24 m 50 8
M71C-2000-580-OR 1 (cont.) Orange 50.80 15.24 m 50 8
M71C-2000-580-PK 1 (cont.) Pink 50.80 15.24 m 50 8
M71C-2000-580-PL 1 (cont.) Purple 50.80 15.24 m 50 8
M71C-2000-580-RD 1 (cont.) Red 50.80 15.24 m 50 8
M71C-2000-580-SB 1 (cont.) Sky Blue 50.80 15.24 m 50 8
M71C-2000-580-TN 1 (cont.) Tan 50.80 15.24 m 50 8
M71C-2000-580-WT 1 (cont.) White 50.80 15.24 m 50 8
M71C-2000-580-YL 1 (cont.) Yellow 50.80 15.24 m 50 8
Order Reference Labels Per Roll Colours Width A (mm) Height B (mm) Pre- Printed Legend Surface Suitability
M71-30-423-TEST 250 Green on White 38.10 19.05 Tested
M71-30-428-CALI 250 Green on Silver 38.10 19.05 Calibration
M71-35-428-PROP 250 Black on Silver 41.40 19.05 Property Tag
Pre-Printed Labels
• B-423 Permanent Glossy Polyester
• B-428 Permanent Metallised Polyester

www.bradyeurope.com 16
Wire and Cable Marking
Wrap Around Labels
• B-498 Vinyl cloth: repositionable rubber based adhesive
• B-499 Nylon Cloth: permanent adhesive, pliable for rough
and smooth surfaces.
Diagram Order
Reference
Labels
Per Roll
Label
Width
A (mm)
Label
Height
B (mm)
Max.
Wire Diameter
(mm)
Approx.
Wire
Gauge*
Max. Characters
per line for
5 Points
Max. Lines
of Text for
5 Points
9 AWG Based on Type of Wire – Max Wire Diam. 3.03 mm
M71-7-498 500 12.70 12.70 3.03 9 11 5
M71-7-499 500 12.70 12.70 3.03 9 11 5
M71-81-499 750 48.26 6.35 10.00 9 46 10
M71-84-499 500 22.86 12.70 6.00 9 22 2
6 AWG Based on Type of Wire – Max Wire Diam. 4.55 mm
M71-10-498 750 6.35 19.05 4.55 6 5 3
M71-11-498 500 12.70 19.05 4.55 6 11 8
BM71-11-498 5000 12.70 19.05 4.55 6 11 8
M71-11-499 500 12.70 19.05 4.55 6 11 8
BM71-11-499 5000 12.70 19.05 4.55 6 11 8
3 AWG Based on Type of Wire – Max Wire Diam. 6.06 mm
M71-16-498 500 9.53 25.40 6.06 3 8 10
M71-16-499 500 9.53 25.40 6.06 3 8 10
M71-17-498 500 25.40 12.70 6.06 3 24 5
M71-18-498 250 19.05 25.40 6.06 3 18 10
M71-18-499 250 19.05 25.40 6.06 3 18 10
BM71-18-498 2500 19.05 25.40 6.06 3 18 10
M71-19-498 250 25.40 25.40 6.06 3 24 10
BM71-19-498 2500 25.40 25.40 6.06 3 24 10
M71-19-499 250 25.40 25.40 6.06 3 24 10
M71-78-499 250 48.26 25.40 10.00 3 46 10
0 AWG Based on Type of Wire – Max Wire Diam. 9.10 mm
M71-28-499 750 38.10 6.35 9.10 0 5 16
M71-29-498 500 38.10 12.70 9.10 0 11 16
BM71-29-498 5000 12.70 38.10 9.10 0 11 16
M71-29-499 500 12.70 38.10 9.10 0 11 16
M71-30-498 250 19.05 38.10 9.10 0 18 16
M71-30-499 250 19.05 38.10 9.10 0 18 16
M71-31-498 250 25.40 38.10 9.10 0 24 16
M71-31-499 250 25.40 38.10 9.10 0 24 16
M71-32-498 250 38.10 38.10 9.10 0 37 16
0000 AWG Based on Type of Wire – Max Wire Diam. 15.16 mm
M71-21-498 100 25.40 63.50 15.6 0000 24 23
M71-21-499 100 25.40 63.50 15.6 0000 24 23
0000 AWG Based on Type of Wire – Max Wire Diam. 24.26 mm
M71-33-498 100 38.10 101.60 24.26 0000 37 16
Order references beginning with “B” indicate bulk rolls.*Based on National Electric Code insulation measurement of THHN Wire.

17
www.bradyeurope.com
Wire and Cable Marking
Self-Laminating Labels
• B-427 Vinyl: resistant to water, oil, solvents and abrasion.
• B-642 Tedlar®: excellent abrasion and smudge resistance,
self-extinguishing
Diagram Order
Reference
Labels
Per Roll
Colour Label
Width
A (mm)
Label
Height
B (mm)
Write-on
Height
C (mm)
Min. Wire
Diameter
(mm)
Max. Wire
Diameter
(mm)
Approx.
Wire
Gauge*
Max. Characters
per line for
5 Points
Max. Lines
of Text for
5 Points
10 to 0 AWG Based on Type of Wire – Maximum Wire Diam 10.00
M71-104-427 250 White 38.10 25.40 9.53 3.00 8.00 10 to 0 37 3
10 to 4 AWG Based on Type of Wire – Maximum Wire Diam 5.00
BM71-17-427 5000 White 12.70 25.40 9.53 3.00 5.00 10 to 4 11 3
M71-17-427 500 White 12.70 25.40 9.53 3.00 5.00 10 to 4 11 3
BM71-18-427 2500 White 19.05 25.40 9.53 3.00 5.00 10 to 4 18 3
M71-18-427 250 White 19.05 25.40 9.53 3.00 5.00 10 to 4 18 3
BM71-19-427 2500 White 25.40 25.40 9.53 3.00 5.00 10 to 4 24 3
M71-19-427 250 White 25.40 25.40 9.53 3.00 5.00 10 to 4 24 3
M71-19-427-YL 250 Yellow 25.40 25.40 9.53 3.00 5.00 10 to 4 24 3
M71-19-642 250 White 25.40 25.40 9.53 3.00 5.00 10 to 4 24 3
M71-96-427 250 White 25.40 19.05 9.53 3.00 5.00 10 to 4 24 3
10 to 10 AWG Based on Type of Wire – Maximum Wire Diam 3.00
M71-10-427 750 White 6.35 19.05 9.53 3.00 3.00 10 to 10 5 3
BM71-11-427 5000 White 12.70 19.05 9.53 3.00 3.00 10 to 10 11 3
M71-11-427 500 White 12.70 19.05 9.53 3.00 3.00 10 to 10 11 3
7 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 12.00
BM71-107-427 1000 White 50.80 38.10 12.70 4.00 12.00 7 to 0000 46 5
M71-107-427 100 White 50.80 38.10 12.70 4.00 12.00 7 to 0000 46 5
7 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 10.00
M71-88-427 250 White 44.45 38.10 12.70 4.00 10.00 7 to 0000 40 5
7 to 0 AWG Based on Type of Wire – Maximum Wire Diam 8.00
M71-28-427 750 White 6.35 38.10 12.70 4.00 8.00 7 to 0 5 5
BM71-29-427 5000 White 12.70 38.10 12.70 4.00 8.00 7 to 0 11 5
M71-29-427 500 White 12.70 38.10 12.70 4.00 8.00 7 to 0 11 5
BM71-30-427 2500 White 19.05 38.10 12.70 4.00 8.00 7 to 0 18 5
M71-30-427 250 White 19.05 38.10 12.70 4.00 8.00 7 to 0 18 5
M71-30-427-BL 250 Blue 19.05 38.10 12.70 4.00 8.00 7 to 0 18 5
M71-30-427-PL 250 Purple 19.05 38.10 12.70 4.00 8.00 7 to 0 18 5
M71-30-427-RD 250 Red 19.05 38.10 12.70 4.00 8.00 7 to 0 18 5
BM71-31-427 2500 White 25.40 38.10 12.70 4.00 8.00 7 to 0 24 5
M71-31-427 250 White 25.40 38.10 12.70 4.00 8.00 7 to 0 24 5
M71-31-427-GN 250 Green 25.40 38.10 12.70 4.00 8.00 7 to 0 24 5
M71-31-427-RD 250 Red 25.40 38.10 12.70 4.00 8.00 7 to 0 24 5
M71-31-427-YL 250 Yellow 25.40 38.10 12.70 4.00 8.00 7 to 0 24 5
M71-31-642 250 White 25.40 38.10 12.70 4.00 8.00 7 to 0 24 5
BM71-32-427 1000 White 38.10 38.10 12.70 4.00 8.00 7 to 0 37 5
M71-32-427 250 White 38.10 38.10 12.70 4.00 8.00 7 to 0 37 5
M71-32-427-YL 250 Yellow 38.10 38.10 12.70 4.00 8.00 7 to 0 37 5
7 to 4 AWG Based on Type of Wire – Maximum Wire Diam 5.00
M71-103-427 250 White 25.40 31.75 12.70 4.00 5.00 7 to 4 24 5
*Based on National Electric Code insulation measurement of THHN Wire. Continued on next page >>Order references beginning with “B” indicate bulk rolls.

www.bradyeurope.com 18
Wire and Cable Marking
Self-Laminating Labels (continued)
• B-427 Vinyl: resistant to water, oil, solvents and abrasion.
• B-642 Tedlar®: excellent abrasion and smudge resistance,
self-extinguishing
Diagram Order
Reference
Labels
Per Roll
Colour Label
Width
A (mm)
Label
Height
B (mm)
Write-on
Height
C (mm)
Min. Wire
Diameter
(mm)
Max. Wire
Diameter
(mm)
Approx.
Wire
Gauge*
Max. Characters
per line for
5 Points
Max. Lines
of Text for
5 Points
3 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 14.00
BM71-21-427 1000 White 25.40 63.50 19.05 6.00 14.00 3 to 0000 24 8
M71-21-427 100 White 25.40 63.50 19.05 6.00 14.00 3 to 0000 24 8
M71-21-427-YL 100 Yellow 25.40 63.50 19.05 6.00 14.00 3 to 0000 24 8
M71-21-642 100 White 25.40 63.50 19.05 6.00 14.00 3 to 0000 24 8
1 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 24.00
BM71-23-427 1000 White 25.40 101.60 25.40 8.00 24.00 1 to 0000 24 10
M71-23-427 100 White 25.40 101.60 25.40 8.00 24.00 1 to 0000 24 10
BM71-33-427 500 White 38.10 101.60 25.40 8.00 24.00 1 to 0000 37 10
M71-33-427 100 White 38.10 101.60 25.40 8.00 24.00 1 to 0000 37 10
M71-33-427-YL 100 Yellow 38.10 101.60 25.40 8.00 24.00 1 to 0000 37 10
1 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 17.00
BM71-34-427 500 White 38.10 152.40 38.10 8.00 17.00 1 to 0000 37 16
M71-66-427 100 White 49.23 80.01 25.40 8.00 17.00 1 to 0000 46 10
1 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 36.00
M71-34-427 50 White 38.10 152.40 38.10 12.00 36.00 1 to 0000 37 16
1 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 20.00
BM71-109-427 500 White 38.10 101.60 38.10 12.00 20.00 1 to 0000 37 16
M71-109-427 100 White 38.10 101.60 38.10 12.00 20.00 1 to 0000 37 16
1 to 0000 AWG Based on Type of Wire – Maximum Wire Diam 17.00
BM71-64-427 1000 White 25.40 85.73 28.58 9.00 17.00 1 to 0000 24 12
M71-64-427 100 White 25.40 85.73 28.58 9.00 17.00 1 to 0000 24 12
Applying Self-laminating Labels
Apply the printed area to
your wire.
Once applied the clear laminate will protect
your legend for years to come.
Wrap the clear area around the wire, covering the
printed area.
*Based on National Electric Code insulation measurement of THHN Wire. Order references beginning with “B” indicate bulk rolls.

19
www.bradyeurope.com
Wire and Cable Marking
PermaSleeve™ Heat-Shrink Sleeve Markers
• B-342 Polyolefin: 3:1 Shrink ratio, self-extinguishing,
meets requirements of SAE AMS-DTL-23053/5 Class 1,
SAE-AS-81531, MIL-STD-202 method 215K,
is UL224 recognised, CSA acceptance pending
• B-341 Polyolefin: 2:1 Shrink ratio, same properties as B-342
Diagram Order
Reference
Sleeves
Per Roll
Colour Sleeve
Width
A (mm)
Sleeve
Height
B (mm)
Min. Wire
Diameter
(mm)
Max. Wire
Diameter
(mm)
Approx.
Wire
Gauge*
Max. Characters
per line for
5 Points
Max. Lines
of Text for
5 Points
3:1 SHRINK RATIO
25.78mm marker width
M71-94-1-342 100 White 25.78 4.62 0.58 2.03 28 to 18 22 1
BM71-94-1-342 2500 White 25.78 4.62 0.58 2.03 28 to 18 22 1
M71-94-1-342YL 100 Yellow 25.78 4.62 0.58 2.03 28 to 18 22 1
BM71-94-1-342YL 2500 Yellow 25.78 4.62 0.58 2.03 28 to 18 22 1
M71-125-1-342 100 White 25.78 5.97 1.17 2.79 22 to 16 22 1
BM71-125-1-342 1000 White 25.78 5.97 1.17 2.79 22 to 16 22 1
M71-125-1-342YL 100 Yellow 25.78 5.97 1.17 2.79 22 to 16 22 1
M71-187-1-342 100 White 25.78 8.51 1.57 3.81 18 to 12 22 2
BM71-187-1-342 1000 White 25.78 8.51 1.57 3.81 18 to 12 22 2
M71-187-1-342YL 100 Yellow 25.78 8.51 1.57 3.81 18 to 12 22 2
BM71-187-1-342YL 1000 Yellow 25.78 8.51 1.57 3.81 18 to 12 22 2
M71-250-1-342 100 White 25.78 11.15 2.39 5.46 16 to 10 22 3
BM71-250-1-342 1000 White 25.78 11.15 2.39 5.46 16 to 10 22 3
M71-250-1-342YL 100 Yellow 25.78 11.15 2.39 5.46 16 to 10 22 3
M71-375-1-342 100 White 25.78 16.38 3.18 8.13 12 to 6 22 5
BM71-375-1-342 1000 White 25.78 16.38 3.18 8.13 12 to 6 22 5
M71-375-1-342YL 100 Yellow 25.78 16.38 3.18 8.13 12 to 6 22 5
M71-500-1-342 100 White 25.78 21.62 4.75 11.43 8 to 1 22 7
BM71-500-1-342 1000 White 25.78 21.62 4.75 11.43 8 to 1 22 7
M71-500-1-342YL 100 Yellow 25.78 21.62 4.75 11.43 8 to 1 22 7
BM71-500-1-342YL 1000 Yellow 25.78 21.62 4.75 11.43 8 to 1 22 7
44.83mm marker width
M71-94-175-342 100 White 44.83 4.62 0.58 2.03 28 to 18 41 1
BM71-94-175-342 2500 White 44.83 4.62 0.58 2.03 28 to 18 41 1
M71-94-175-342YL 100 Yellow 44.83 4.62 0.58 2.03 28 to 18 41 1
BM71-94-175-342YL 2500 Yellow 44.83 4.62 0.58 2.03 28 to 18 41 1
M71-125-175-342 100 White 44.83 5.97 1.17 2.79 22 to 16 41 1
BM71-125-175-342 1000 White 44.83 5.97 1.17 2.79 22 to 16 41 1
M71-125-175-342YL 100 Yellow 44.83 5.97 1.17 2.79 22 to 16 41 1
BM71-125-175-342YL 1000 Yellow 44.83 5.97 1.17 2.79 22 to 16 41 1
M71-187-175-342 100 White 44.83 8.51 1.57 3.81 18 to 12 41 3
BM71-187-175-342 1000 White 44.83 8.51 1.57 3.81 18 to 12 41 3
M71-187-175-342YL 100 Yellow 44.83 8.51 1.57 3.81 18 to 12 41 3
BM71-187-175-342YL 1000 Yellow 44.83 8.51 1.57 3.81 18 to 12 41 3
M71-250-175-342 100 White 44.83 11.15 2.39 5.46 16 to 10 41 3
BM71-250-175-342 1000 White 44.83 11.15 2.39 5.46 16 to 10 41 3
M71-250-175-342YL 100 Yellow 44.83 11.15 2.39 5.46 16 to 10 41 3
BM71-250-175-342YL 1000 Yellow 44.83 11.15 2.39 5.46 16 to 10 41 3
M71-375-175-342 100 White 44.83 16.38 3.18 8.13 12 to 6 41 5
BM71-375-175-342 1000 White 44.83 16.38 3.18 8.13 12 to 6 41 5
M71-375-175-342YL 100 Yellow 44.83 16.38 3.18 8.13 12 to 6 41 5
M71-500-175-342 100 White 44.83 21.62 4.75 11.43 8 to 1 41 7
BM71-500-175-342 1000 White 44.83 21.62 4.75 11.43 8 to 1 41 7
M71-500-175-342YL 100 Yellow 44.83 21.62 4.75 11.43 8 to 1 41 7
BM71-500-175-342YL 1000 Yellow 44.83 21.62 4.75 11.43 8 to 1 41 7
Continuous marker
BM71C-125-342 1 (cont.) White 15.24 m 5.97 1.17 2.79 22 to 16 NA NA
BM71C-187-342 1 (cont.) White 15.24 m 8.51 1.57 3.81 18 to 12 NA NA
BM71C-250-342 1 (cont.) White 15.24 m 11.15 2.39 5.46 16 to 10 NA NA
BM71C-375-342 1 (cont.) White 15.24 m 16.38 3.18 8.13 12 to 6 NA NA
BM71C-500-342 1 (cont.) White 15.24 m 21.62 4.75 11.43 8 to 1 NA NA
2:1 SHRINK RATIO
25.78mm marker width
M71-1000-1-341 50 White 25,78 42,16 11.43 24.13 1 to 500 22 16
M71-1000-1-341YL 50 Yellow 25,78 42,16 11.43 24.13 1 to 500 22 16
44.83mm marker width
M71-1000-175-341 50 White 44,83 42,16 11.43 24.13 1 to 500 41 16
BM71-1000-175-341 500 White 44,83 42,16 11.43 24.13 1 to 500 41 16
M71-1000-175-341YL 50 Yellow 44,83 42,16 11.43 24.13 1 to 500 41 16
Continuous marker
BM71C-1000-341 1 (cont.) White 15.24 m 42,16 11.43 24.13 1 to 500 NA NA
*Based on National Electric Code insulation measurement of THHN Wire. Order references beginning with “B” indicate bulk rolls.
