Limitation of use
The development of BraunAbility kits is a continuous process. Applications
are added on a regular basis. For more details contact BraunAbility or look
on the BraunAbility website.

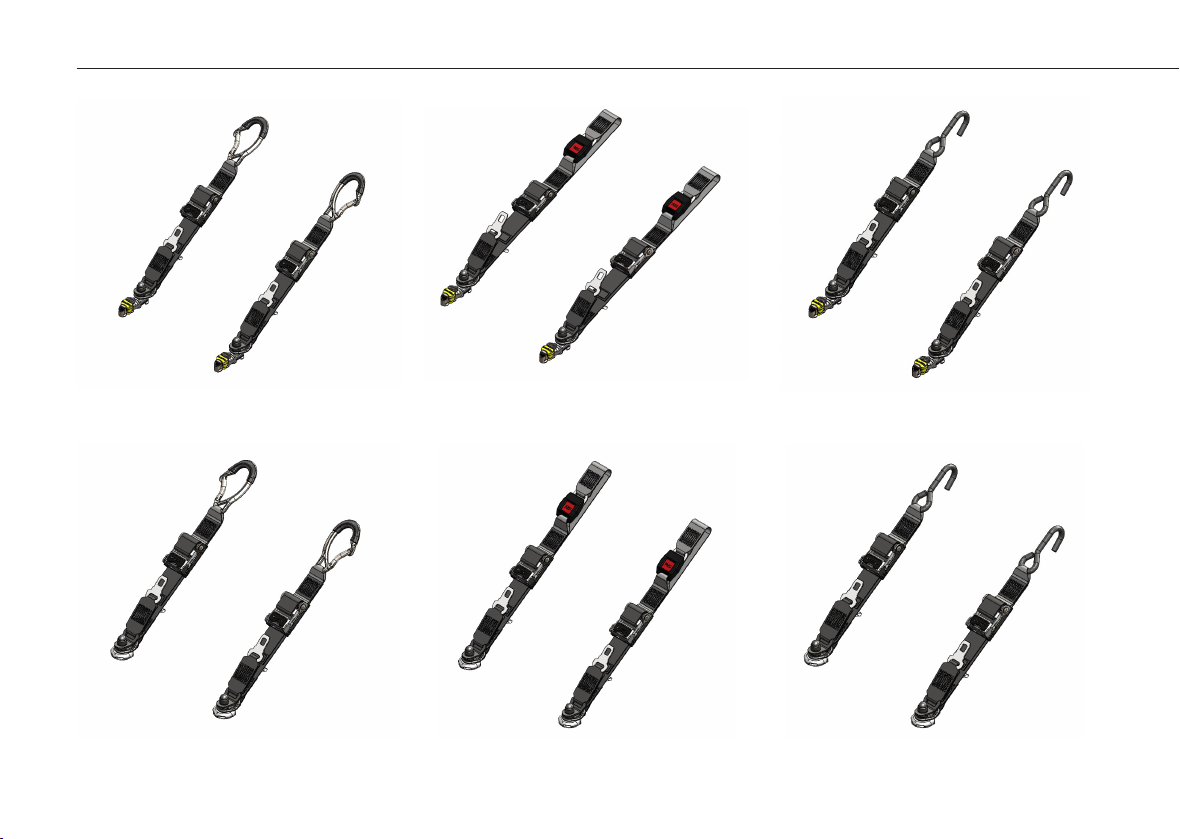

T-ROBK
T-SOBK
T-ROBT
T-SOBT
T-ROBJ
T-SOBJ
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs

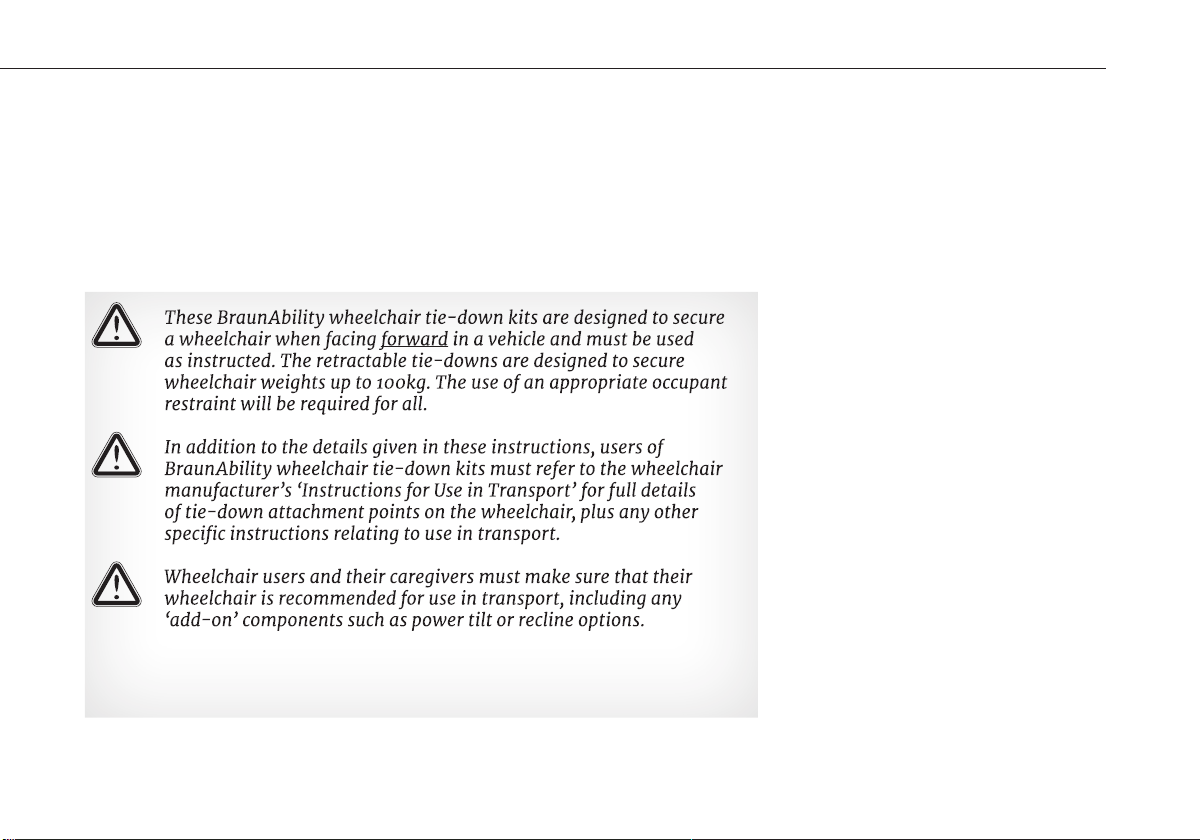

Safety information
45
Safety information

Limitation of use
The development of BraunAbility kits is a continuous process. Applications
are added on a regular basis. For more details contact BraunAbility or look
on the BraunAbility website.
T-ROBK
T-SOBK
T-ROBT
T-SOBT
T-ROBJ
T-SOBJ
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Safety information
45
Safety information

General guidance
• Wheelchair Accessories that have not been approved by the Wheelchair Manufacturer
must be removed from the wheelchair and secured in the vehicle during transport to
reduce the potential for injury. Refer to ‘Instructions For Use in Transport’ provided with
the wheelchair or contact wheelchair manufacturer for further guidance.
• These wheelchair tie-downs comply with all applicable requirements of ISO 10542,
including a 48km/h, 20g frontal impact test using a forward facing surrogate 85kg
wheelchair and an ATD (test dummy) with a mass of 76.3kg. The test dummy was
restrained by both a pelvic and upper-torso restraint. Use of a pelvic only belt may
compromise the performance of the wheelchair tie-down and occupant restraint system
(WTORS) and should be avoided.
• If the installation is to be used with an occupant headrest anchored to the vehicle, then
a vehicle-anchored back rest must be provided to minimise rearward deection of the
wheelchair seatback, preventing neck injury.
• Regular inspection of all parts is recommended and the equipment should be used only if
all components are in good condition.
• Warning: protect webbing from contacting sharp edges and corners. Replace equipment
if the webbing becomes cut, frayed, or contaminated with polishes, oils or chemicals,
particularly battery acid.
• Any restraints which have been subjected to a crash situation from which the vehicle must
be towed, should, in the interest of safety, be replaced.
• Do not attempt to modify the equipment. For further advice on the installation and use of
this wheelchair tie-down, please contact BraunAbility. Please read this manual fully before
use.
• Avoid contact with corrosive liquids. Care should be taken to prevent contamination of the
webbing with polishes, oils and chemicals.
• The wheelchair tie-down anchorages should be installed by an experienced technician/
vehicle converter. Anchorages should not be installed into unsound materials such as
corroded metal, wood, plastic and breglass panels, without additional and suitable
reinforcement.
• The equipment has been tested in a conguration recommended by BraunAbility and any
deviation from the recommendations here is the responsibility of the installer/user.
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Safety information
67

General guidance
• Wheelchair Accessories that have not been approved by the Wheelchair Manufacturer
must be removed from the wheelchair and secured in the vehicle during transport to
reduce the potential for injury. Refer to ‘Instructions For Use in Transport’ provided with
the wheelchair or contact wheelchair manufacturer for further guidance.
• These wheelchair tie-downs comply with all applicable requirements of ISO 10542,
including a 48km/h, 20g frontal impact test using a forward facing surrogate 85kg
wheelchair and an ATD (test dummy) with a mass of 76.3kg. The test dummy was
restrained by both a pelvic and upper-torso restraint. Use of a pelvic only belt may
compromise the performance of the wheelchair tie-down and occupant restraint system
(WTORS) and should be avoided.
• If the installation is to be used with an occupant headrest anchored to the vehicle, then
a vehicle-anchored back rest must be provided to minimise rearward deection of the
wheelchair seatback, preventing neck injury.
• Regular inspection of all parts is recommended and the equipment should be used only if
all components are in good condition.
• Warning: protect webbing from contacting sharp edges and corners. Replace equipment
if the webbing becomes cut, frayed, or contaminated with polishes, oils or chemicals,
particularly battery acid.
• Any restraints which have been subjected to a crash situation from which the vehicle must
be towed, should, in the interest of safety, be replaced.
• Do not attempt to modify the equipment. For further advice on the installation and use of
this wheelchair tie-down, please contact BraunAbility. Please read this manual fully before
use.
• Avoid contact with corrosive liquids. Care should be taken to prevent contamination of the
webbing with polishes, oils and chemicals.
• The wheelchair tie-down anchorages should be installed by an experienced technician/
vehicle converter. Anchorages should not be installed into unsound materials such as
corroded metal, wood, plastic and breglass panels, without additional and suitable
reinforcement.
• The equipment has been tested in a conguration recommended by BraunAbility and any
deviation from the recommendations here is the responsibility of the installer/user.
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Safety information
67

Before installing the wheelchair tie-down occupant restraints
• Ensure that the wheelchair is correctly maintained and that the settings of any adjustable
parts are made according to ‘Instructions for Use in Transport’.
• Whenever possible remove any items of luggage etc that may be attached to the
wheelchair and secure or store separately during transport in order to reduce the potential
for injury to other passengers traveling in the vehicle.
• Position the wheelchair facing forward - centrally in the designated region of the vehicle.
Ensure the wheelchair brakes are applied.
• To minimize the potential for head injuries in an impact, allow a clear space of at least
450mm (18in) behind and 650mm (26in), (FCZ, front clear zone), in front of the head of the
wheelchair user, (Fig A). The shoulder belt anchorage must be roof or side-wall anchored
at a height level such that the belt webbing passes over the midpoint of the occupant
shoulder and at a height that is at or just above the level of the occupants shoulders so as
not to impose downward loads on the spine.
• A height provision (HHT) ranging from 1000mm (39in) to 1550mm (61in) should be made,
depending on the size of the passenger. There should also be 200mm (8in) of clear
space either side of the wheelchair center line. If these clear space dimensions cannot
be provided then any structure protruding into this area should be adequately padded
and comply with impact performance requirements of ECE Regulation 21 ‘FMVSS 201’. All
vehicle padding should comply with the ammability requirements of ECE Regulation 118
‘FMVSS 302’.
Note: seated head
height (HHT)
ranges from as low
as 1000mm (39in)
for a 6-year-old
child to 1550mm
(61in) for a tall
adult.
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Safety information
89
400mm
(16in)
FCZ
HHT
200mm
(8in)
200mm
(8in)
• Wheelchair users, their caregivers and family are advised to check
vehicle specications to ensure that sufcient oor space is available
to accommodate the wheelchair and tie-down system. These
distances are based upon the desire to maintain clear zones for
potential head excursions of occupants provided with both upper and
lower torso restraints.
• Users of heavy powered wheelchairs are also advised to check vehicle
carrying capacity. If in doubt consult the vehicle supplier for further
details.
• Any airbag, as tted to the vehicle, shall be used only as a
supplementary occupant restraint if designed to be used in
combination with the WTORS.
• Installers of this tie-down should take note of any vehicle airbag
position when planning the installation. Airbags can cause serious
injury if a wheelchair-seated occupant is seated too close to an airbag
position. If in doubt contact the vehicle manufacturer or your National
Automotive Regulatory Body for advice.
Figure A

Before installing the wheelchair tie-down occupant restraints
• Ensure that the wheelchair is correctly maintained and that the settings of any adjustable
parts are made according to ‘Instructions for Use in Transport’.
• Whenever possible remove any items of luggage etc that may be attached to the
wheelchair and secure or store separately during transport in order to reduce the potential
for injury to other passengers traveling in the vehicle.
• Position the wheelchair facing forward - centrally in the designated region of the vehicle.
Ensure the wheelchair brakes are applied.
• To minimize the potential for head injuries in an impact, allow a clear space of at least
450mm (18in) behind and 650mm (26in), (FCZ, front clear zone), in front of the head of the
wheelchair user, (Fig A). The shoulder belt anchorage must be roof or side-wall anchored
at a height level such that the belt webbing passes over the midpoint of the occupant
shoulder and at a height that is at or just above the level of the occupants shoulders so as
not to impose downward loads on the spine.
• A height provision (HHT) ranging from 1000mm (39in) to 1550mm (61in) should be made,
depending on the size of the passenger. There should also be 200mm (8in) of clear
space either side of the wheelchair center line. If these clear space dimensions cannot
be provided then any structure protruding into this area should be adequately padded
and comply with impact performance requirements of ECE Regulation 21 ‘FMVSS 201’. All
vehicle padding should comply with the ammability requirements of ECE Regulation 118
‘FMVSS 302’.
Note: seated head
height (HHT)
ranges from as low
as 1000mm (39in)
for a 6-year-old
child to 1550mm
(61in) for a tall
adult.
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Safety information
89
400mm
(16in)
FCZ
HHT
200mm
(8in)
200mm
(8in)
• Wheelchair users, their caregivers and family are advised to check
vehicle specications to ensure that sufcient oor space is available
to accommodate the wheelchair and tie-down system. These
distances are based upon the desire to maintain clear zones for
potential head excursions of occupants provided with both upper and
lower torso restraints.
• Users of heavy powered wheelchairs are also advised to check vehicle
carrying capacity. If in doubt consult the vehicle supplier for further
details.
• Any airbag, as tted to the vehicle, shall be used only as a
supplementary occupant restraint if designed to be used in
combination with the WTORS.
• Installers of this tie-down should take note of any vehicle airbag
position when planning the installation. Airbags can cause serious
injury if a wheelchair-seated occupant is seated too close to an airbag
position. If in doubt contact the vehicle manufacturer or your National
Automotive Regulatory Body for advice.

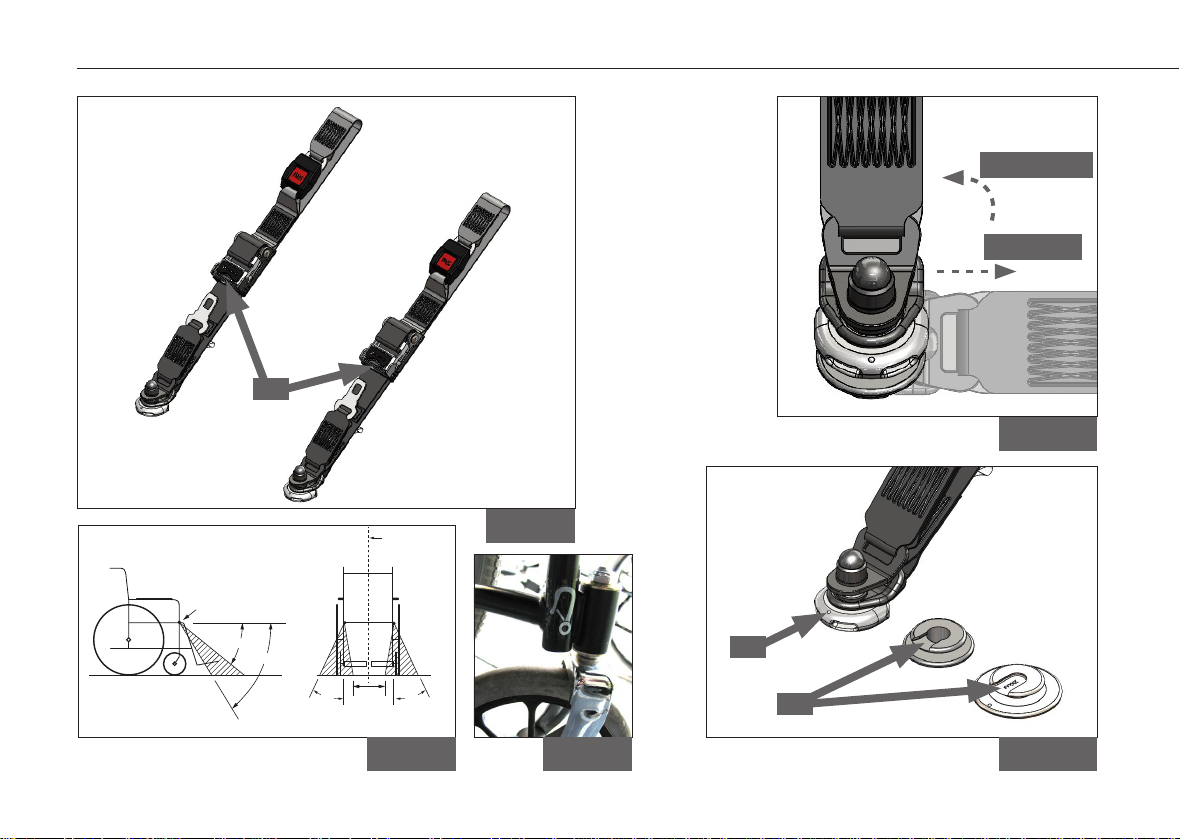

Figure A

Front
securement points
Wheelchair
reference
plane
40°
60°
SIDE VIEW FRONT VIEW
25° 25°
300mm
(12in)
Figure 3
Figure 1
A
Figure 4
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
10 11
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the rear tie-
downs.
1. Release the webbing tension in
each front side by pressing the
silver release on the over-centre
buckles, (Fig. 1A) and detach the
karabiner, J-hook or tongue and
buckle arrangements from the
front wheelchair frame.
2. Lift the yellow ATF plunger fully
and slide back away from the
wheelchair to align the ATF feet
with the rail cut-outs. Lift away
from the rail. Repeat operation on
the other side and store safely.

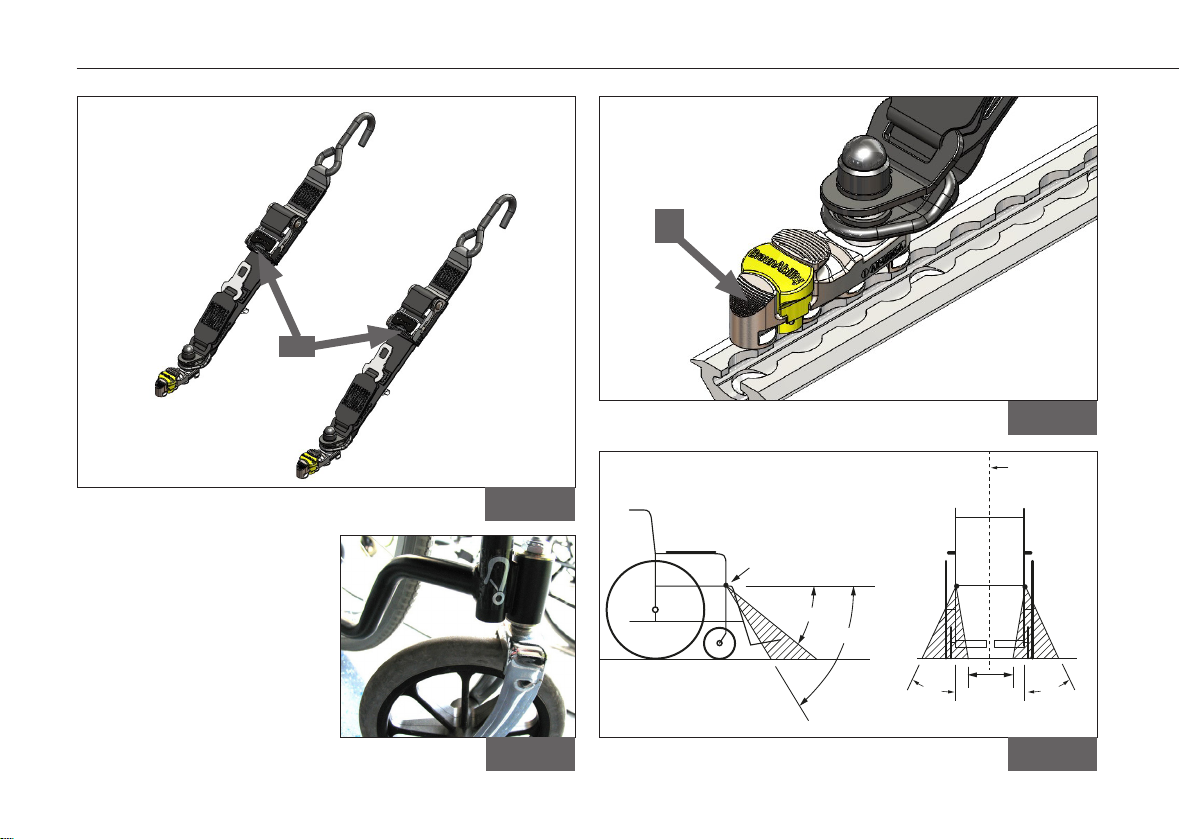

Fit and use
Compact manual wheelchair tie-down
Rail oor - front
Figure 2
A
1. The rail will have been installed in the vehicle in accordance with our own
and the vehicle converter’s instruction. Position wheelchair within vehicle as
required.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Install the front tie-down ATF (aluminium track tting) into the rail by aligning
the ATF feet with the cut-out sections of the rail and locate into the rail, (Fig. 2).
4. Press down on the ribbed part of the ATF, (Fig. 2A) and push rmly towards
the wheelchair until the yellow plunger drops and locks into the rail.
5. Install the second front tie-down ATF in the same way, ensuring that each
tting is opposite each other, if using rail lengths which have adjustability in
ATF positioning. IMPORTANT: Check the yellow clips are fully engaged on
both sides.
6. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver release button, (Fig. 1A).
7. Attach the karabiner, J-hook or tongue and buckle arrangements around the
front wheelchair frame to create an angle of around 40 to 60° within the front
view zone, (Fig. 3). (Some wheelchairs will indicate this tie-down position, Fig.
4).
8. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.

Front
securement points
Wheelchair
reference
plane
40°
60°
SIDE VIEW FRONT VIEW
25° 25°
300mm
(12in)
Figure 3
Figure 1
A
Figure 4
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
10 11
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the rear tie-
downs.
1. Release the webbing tension in
each front side by pressing the
silver release on the over-centre
buckles, (Fig. 1A) and detach the
karabiner, J-hook or tongue and
buckle arrangements from the
front wheelchair frame.
2. Lift the yellow ATF plunger fully
and slide back away from the
wheelchair to align the ATF feet
with the rail cut-outs. Lift away
from the rail. Repeat operation on
the other side and store safely.
Fit and use
Compact manual wheelchair tie-down
Rail oor - front
Figure 2
A
1. The rail will have been installed in the vehicle in accordance with our own
and the vehicle converter’s instruction. Position wheelchair within vehicle as
required.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Install the front tie-down ATF (aluminium track tting) into the rail by aligning
the ATF feet with the cut-out sections of the rail and locate into the rail, (Fig. 2).
4. Press down on the ribbed part of the ATF, (Fig. 2A) and push rmly towards
the wheelchair until the yellow plunger drops and locks into the rail.
5. Install the second front tie-down ATF in the same way, ensuring that each
tting is opposite each other, if using rail lengths which have adjustability in
ATF positioning. IMPORTANT: Check the yellow clips are fully engaged on
both sides.
6. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver release button, (Fig. 1A).
7. Attach the karabiner, J-hook or tongue and buckle arrangements around the
front wheelchair frame to create an angle of around 40 to 60° within the front
view zone, (Fig. 3). (Some wheelchairs will indicate this tie-down position, Fig.
4).
8. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.

Figure 1
A
Figure 2
A
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
12 13

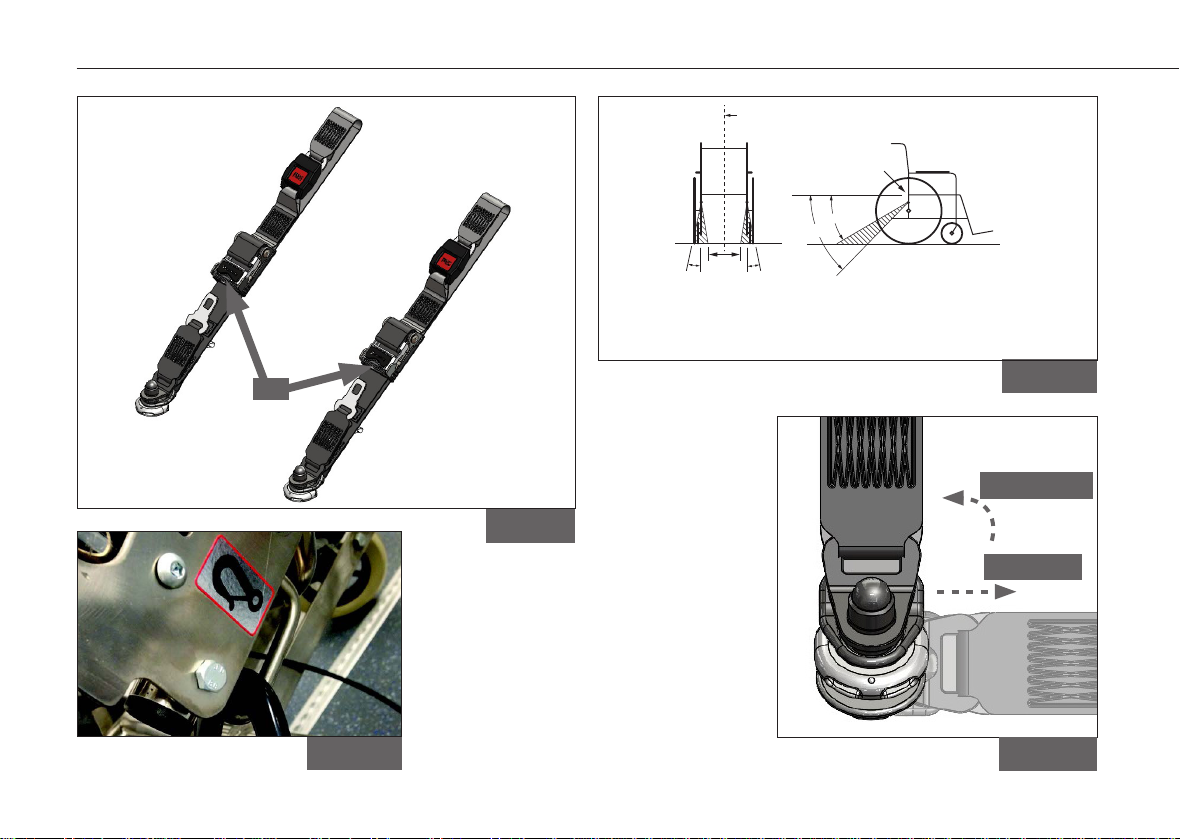

Figure 5
Rear
securement
points
Wheelchair
reference
plane
45°
30°
SIDE VIEWREAR VIEW
10° 10°
300mm
(12in)
NOTE
Note that angles indicated are obtained by projecting the angle of each tie-down strap
onto a vertical plane parallel to the wheelchair reference plane (side view) or onto a vertical
plane that is perpendicular to the wheelchair reference plane (rear view).
Fit and use
Compact manual wheelchair tie-down
Rail oor - rear
1. The rail will have been installed in the vehicle in accordance with our own
and the vehicle converter’s instruction. Position wheelchair within vehicle as
required.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Install the rear tie-down ATF (aluminium track tting) into the rail by aligning
the ATF feet with the cut-out sections of the rail and locate into the rail, (Fig. 2).
4. Press down on the ribbed part of the ATF, (Fig. 2A) and push rmly towards
the wheelchair until the yellow plunger drops and locks into the rail.
5. Install the second rear tie-down ATF in the same way, ensuring that each
tting is opposite each other, if using rail lengths which have adjustability in
ATF positioning. IMPORTANT: Check the yellow clips are fully engaged on
both sides.
6. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver release button, (Fig. 1A).
7. Attach the karabiner, J-hook or tongue and buckle arrangements around the
rear wheelchair frame to create an angle of around 30 to 45° within the rear
view zone, (Fig. 5). (Some wheelchairs will indicate this tie-down position, Fig.
6).
8. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.
9. Similar tension should exist in all four tie-down webbings. Tension should be
such that the over centre buckle can be turned 90° in either direction using
moderate hand pressure. Adjust as necessary.
10. An occupant restraint should now be fitted.
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the
occupant restraint, as instructed in the
relevant manual.
1. Release the webbing tension in
each rear side by pressing the silver
release button on the over-centre
buckles, (Fig. 1A) and detach the
karabiner, J-hook or tongue and
buckle arrangement from the
wheelchair’s frame.
2. Lift the yellow ATF plunger fully
and slide back away from the
wheelchair to align the ATF feet
with the rail cut-outs. Lift away
from the rail.
3. Now move to the front of the
wheelchair and release the tie-
downs as instructed on pages 10
and 11. Figure 6

Figure 1
A
Figure 2
A
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
12 13
Figure 5
Rear
securement
points
Wheelchair
reference
plane
45°
30°
SIDE VIEWREAR VIEW
10° 10°
300mm
(12in)
NOTE
Note that angles indicated are obtained by projecting the angle of each tie-down strap
onto a vertical plane parallel to the wheelchair reference plane (side view) or onto a vertical
plane that is perpendicular to the wheelchair reference plane (rear view).
Fit and use
Compact manual wheelchair tie-down
Rail oor - rear
1. The rail will have been installed in the vehicle in accordance with our own
and the vehicle converter’s instruction. Position wheelchair within vehicle as
required.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Install the rear tie-down ATF (aluminium track tting) into the rail by aligning
the ATF feet with the cut-out sections of the rail and locate into the rail, (Fig. 2).
4. Press down on the ribbed part of the ATF, (Fig. 2A) and push rmly towards
the wheelchair until the yellow plunger drops and locks into the rail.
5. Install the second rear tie-down ATF in the same way, ensuring that each
tting is opposite each other, if using rail lengths which have adjustability in
ATF positioning. IMPORTANT: Check the yellow clips are fully engaged on
both sides.
6. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver release button, (Fig. 1A).
7. Attach the karabiner, J-hook or tongue and buckle arrangements around the
rear wheelchair frame to create an angle of around 30 to 45° within the rear
view zone, (Fig. 5). (Some wheelchairs will indicate this tie-down position, Fig.
6).
8. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.
9. Similar tension should exist in all four tie-down webbings. Tension should be
such that the over centre buckle can be turned 90° in either direction using
moderate hand pressure. Adjust as necessary.
10. An occupant restraint should now be fitted.
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the
occupant restraint, as instructed in the
relevant manual.
1. Release the webbing tension in
each rear side by pressing the silver
release button on the over-centre
buckles, (Fig. 1A) and detach the
karabiner, J-hook or tongue and
buckle arrangement from the
wheelchair’s frame.
2. Lift the yellow ATF plunger fully
and slide back away from the
wheelchair to align the ATF feet
with the rail cut-outs. Lift away
from the rail.
3. Now move to the front of the
wheelchair and release the tie-
downs as instructed on pages 10
and 11. Figure 6

Figure 9
Figure 8
A - slide on
B - rotate 90°
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
14 15
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the rear tie-
downs, as instructed on pages 16 and 17.
1. Release the webbing tension in
each front side by pressing the
silver release on the over-centre
buckles and detach the karabiner,
J-hook or tongue and buckle
arrangements from the front
wheelchair frame.
2. Remove each tie-down from the
anchor by rotating the tie-down
through 90°, (Fig. 8) so that the
raised protrusion on the cleat is
aligned with the indent on the oor
anchors (Fig. 9). Slide off.
3. Pull the tie-down away from the
oor anchor and store safely.
Fit and use
Compact manual wheelchair tie-down
Solo anchor - front
A
B
1. The Solo oor anchors will have been installed in the vehicle in accordance
with our own and the vehicle converter’s instruction. Position the wheelchair
within the vehicle as required.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Install each front retractor cleat onto a front Solo anchor (sprung or xed) by
aligning the open mouth of the cleat, (Fig. 9B), and the protrusion, (Fig. 9A),
to the slot on the oor anchor. Slide the cleat fully home (allowing the keyway
within the cleat to guide into its home position, Fig. 8A & B) and rotate the
cleat through 90° to align the retractor with the wheelchair frame, (Fig. 8).
4. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver button, (Fig. 7A).
5. Attach the karabiner, J-hook or tongue and buckle arrangements around the
front wheelchair frame to create an angle of around 40 to 60° within the front
view zone, (Fig. 3). (Some wheelchairs will indicate this tie-down position, Fig.
4).
6. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.
Front
securement points
Wheelchair
reference
plane
40°
60°
SIDE VIEW FRONT VIEW
25° 25°
300mm
(12in)
Figure 3
Figure 7
Figure 4
A

Figure 9
Figure 8
A - slide on
B - rotate 90°
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
14 15
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the rear tie-
downs, as instructed on pages 16 and 17.
1. Release the webbing tension in
each front side by pressing the
silver release on the over-centre
buckles and detach the karabiner,
J-hook or tongue and buckle
arrangements from the front
wheelchair frame.
2. Remove each tie-down from the
anchor by rotating the tie-down
through 90°, (Fig. 8) so that the
raised protrusion on the cleat is
aligned with the indent on the oor
anchors (Fig. 9). Slide off.
3. Pull the tie-down away from the
oor anchor and store safely.
Fit and use
Compact manual wheelchair tie-down
Solo anchor - front
A
B
1. The Solo oor anchors will have been installed in the vehicle in accordance
with our own and the vehicle converter’s instruction. Position the wheelchair
within the vehicle as required.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Install each front retractor cleat onto a front Solo anchor (sprung or xed) by
aligning the open mouth of the cleat, (Fig. 9B), and the protrusion, (Fig. 9A),
to the slot on the oor anchor. Slide the cleat fully home (allowing the keyway
within the cleat to guide into its home position, Fig. 8A & B) and rotate the
cleat through 90° to align the retractor with the wheelchair frame, (Fig. 8).
4. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver button, (Fig. 7A).
5. Attach the karabiner, J-hook or tongue and buckle arrangements around the
front wheelchair frame to create an angle of around 40 to 60° within the front
view zone, (Fig. 3). (Some wheelchairs will indicate this tie-down position, Fig.
4).
6. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.
Front
securement points
Wheelchair
reference
plane
40°
60°
SIDE VIEW FRONT VIEW
25° 25°
300mm
(12in)
Figure 3
Figure 7
Figure 4
A

Figure 8
A - slide on
B - rotate 90°
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
16 17
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the
occupant restraint, as instructed in the
relevant manual.
1. Release the webbing tension in
each rear side by pressing the silver
release button on the over-centre
buckles and detach the karabiner,
J-hook or tongue and buckle
arrangement from the wheelchair’s
frame.
2. Remove each tie-down from the
anchor by rotating the tie-down
through 90°, (Fig. 8) so that the
raised protrusion on the cleat is
aligned with the indent on the oor
anchors, (Fig. 9). Slide off.
3. Pull the tie-down away from the
oor anchor and store safely.
Fit and use
Compact manual wheelchair tie-down
Solo anchor - rear
Figure 6
Figure 5
Rear
securement
points
Wheelchair
reference
plane
45°
30°
SIDE VIEWREAR VIEW
10° 10°
300mm
(12in)
NOTE
Note that angles indicated are obtained by projecting the angle of each tie-down strap
onto a vertical plane parallel to the wheelchair reference plane (side view) or onto a vertical
plane that is perpendicular to the wheelchair reference plane (rear view).
1. Install the Quattro restraints onto the Solo anchors, in the same way as the
fronts.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver button (Fig. 7A).
4. Attach the karabiner, J-hook or tongue and buckle arrangements around the
rear wheelchair frame to create an angle of around 30 to 45° within the rear
view zone, (Fig. 5). (Some wheelchairs will indicate this tie-down position, Fig.
6).
5. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.
6. Similar tension should exist in all four tie-down webbings. Tension should be
such that the over centre buckle can be turned 90° in either direction using
moderate hand pressure. Adjust as necessary.
7. An occupant restraint should now be fitted.
Figure 7
A

Figure 8
A - slide on
B - rotate 90°
Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Fit and use
16 17
Removing the compact manual
wheelchair tie-down
IMPORTANT: First remove the
occupant restraint, as instructed in the
relevant manual.
1. Release the webbing tension in
each rear side by pressing the silver
release button on the over-centre
buckles and detach the karabiner,
J-hook or tongue and buckle
arrangement from the wheelchair’s
frame.
2. Remove each tie-down from the
anchor by rotating the tie-down
through 90°, (Fig. 8) so that the
raised protrusion on the cleat is
aligned with the indent on the oor
anchors, (Fig. 9). Slide off.
3. Pull the tie-down away from the
oor anchor and store safely.
Fit and use
Compact manual wheelchair tie-down
Solo anchor - rear
Figure 6
Figure 5
Rear
securement
points
Wheelchair
reference
plane
45°
30°
SIDE VIEWREAR VIEW
10° 10°
300mm
(12in)
NOTE
Note that angles indicated are obtained by projecting the angle of each tie-down strap
onto a vertical plane parallel to the wheelchair reference plane (side view) or onto a vertical
plane that is perpendicular to the wheelchair reference plane (rear view).
1. Install the Quattro restraints onto the Solo anchors, in the same way as the
fronts.
2. When using tie-down with J-hooks or karabiners, ensure that the karabiner /
J-hook gates are facing outwards. If using tongue and buckle, the buckle may
be positioned facing inboard or outboard.
3. Remove the webbing from the Velcro patch and release the over-centre
buckle by pressing the silver button (Fig. 7A).
4. Attach the karabiner, J-hook or tongue and buckle arrangements around the
rear wheelchair frame to create an angle of around 30 to 45° within the rear
view zone, (Fig. 5). (Some wheelchairs will indicate this tie-down position, Fig.
6).
5. Pull the webbing through the over-centre buckle until it is tight. With the free
hand, begin to close the buckle. Once the webbing is retained, fully close the
buckle using both hands. Re-secure the Velcro to prevent the loose end from
becoming a trip hazard.
6. Similar tension should exist in all four tie-down webbings. Tension should be
such that the over centre buckle can be turned 90° in either direction using
moderate hand pressure. Adjust as necessary.
7. An occupant restraint should now be fitted.
Figure 7
A

Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Warranty
19
After care
18
Warranty
BraunAbility products are extensively tested using BraunAbility
anchorage systems, and our full warranty normally only applies
to BraunAbility equipment when used with BraunAbility branded
anchorages or as instructed. BraunAbility have also participated in test
programs with other manufacturers anchorage products and will support
warranty on the BraunAbility products when used in conjunction with
such jointly tested systems. For further details on specic applications
please contact the Sales Ofce. In other situations, using BraunAbility
products, for which BraunAbility has not participated in a joint test
program, a limited BraunAbility warranty will apply.
Equipment storage and maintenance
• Store the restraint safely in supplied bag, off the oor, to avoid
damage and ensure that it cannot become a projectile in an accident.
• Regularly inspect the wheelchair restraint systems for damage, wear
or malfunction. If any problems are identied replace components
immediately.
• When not in use, keep loose occupant webbing ends connected
to their corresponding buckle sleeves, etc, to prevent them from
becoming trip hazards and from ailing around when the vehicle is in
motion.
• All webbing and components can be cleaned as necessary, but care
should be taken to prevent contamination of the webbings with
polishes, oils and chemicals, particularly battery acid.
• To clean the straps use warm soapy water and a clean soft cloth. Rinse
with clear water and allow to air dry. To disinfect, use a mild spray
disinfectant and do not use products containing bleach. Important:
when cleaning or disinfecting, do not immerse or ood buckles,
karabiner ttings or oor anchors in the disinfectant or water.
• If the vehicle is involved in an accident when any restraints are
deployed, remove them from service and replace immediately. If in
doubt please contact BraunAbility.

Compact manual wheelchair tie-downsCompact manual wheelchair tie-downs
Warranty
19
After care
18
Warranty
BraunAbility products are extensively tested using BraunAbility
anchorage systems, and our full warranty normally only applies
to BraunAbility equipment when used with BraunAbility branded
anchorages or as instructed. BraunAbility have also participated in test
programs with other manufacturers anchorage products and will support
warranty on the BraunAbility products when used in conjunction with
such jointly tested systems. For further details on specic applications
please contact the Sales Ofce. In other situations, using BraunAbility
products, for which BraunAbility has not participated in a joint test
program, a limited BraunAbility warranty will apply.
Equipment storage and maintenance
• Store the restraint safely in supplied bag, off the oor, to avoid
damage and ensure that it cannot become a projectile in an accident.
• Regularly inspect the wheelchair restraint systems for damage, wear
or malfunction. If any problems are identied replace components
immediately.
• When not in use, keep loose occupant webbing ends connected
to their corresponding buckle sleeves, etc, to prevent them from
becoming trip hazards and from ailing around when the vehicle is in
motion.
• All webbing and components can be cleaned as necessary, but care
should be taken to prevent contamination of the webbings with
polishes, oils and chemicals, particularly battery acid.
• To clean the straps use warm soapy water and a clean soft cloth. Rinse
with clear water and allow to air dry. To disinfect, use a mild spray
disinfectant and do not use products containing bleach. Important:
when cleaning or disinfecting, do not immerse or ood buckles,
karabiner ttings or oor anchors in the disinfectant or water.
• If the vehicle is involved in an accident when any restraints are
deployed, remove them from service and replace immediately. If in
doubt please contact BraunAbility.

Declaration of conformity
Manufacturer /
BraunAbility UK Ltd
Unwin House
The Horseshoe Coat Road
Martock, Somerset, TA12 6EY,
UK
Phone: [phone]
Email: [e-mail]
www.braunability.eu
Declares that the products /
T-ROBK, T-ROBJ, T-ROBT, T-SOBK,
T-SOBJ, T-SOBT
Accredited by URS as testing laboratory in accordance with ISO/IEC 17025:2005
Quality system certied in accordance with ISO 9001:2008
Illustrations, descriptions and specications in the user manual are based on current product
information. BraunAbility UK Ltd reserves the right to make alterations without previous notice.
© 2021 BraunAbility UK Ltd
Conforms to following directives
standards and regulations /
214/2013/ EU Paragraphs 2.3.1 and 2.3.2
ISO 10542:2012
RESNA WC-4 2012 Section 18
2001/85/EC
R.107.06
DIN 75078
2018-858-EU
BraunAbility, June 2021
